TOYOTA RAV4 2001 Owners Manual
Manufacturer: TOYOTA, Model Year: 2001, Model line: RAV4, Model: TOYOTA RAV4 2001Pages: 265, PDF Size: 3.21 MB
Page 161 of 265
'01 Rav4_U (L/O 0008)
872001 RAV4 (OM42483U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge88 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers90 . . . . . . . . . . . . . . .
SECTION 1± 5
ProCarManuals.com
Page 162 of 265
'01 Rav4_U (L/O 0008)
882001 RAV4 (OM42483U)
Fuel gauge
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly fullÐNeedle at ªFº
Nearly emptyÐNeedle at ªEº
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches ªEº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Engine coolant temperature
gauge
ProCarManuals.com
Page 163 of 265
'01 Rav4_U (L/O 0008)
892001 RAV4 (OM42483U)
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop±and±go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See ªIf your ve-
hicle overheatsº on page 186 in
Section 4.
Tachometer
The tachometer indicates engine speed
in thousands of rpm
( revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over±revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. OdometerÐShows the total distance
the vehicle has been driven.
2. Two trip metersÐShow two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
ProCarManuals.com
Page 164 of 265
'01 Rav4_U (L/O 0008)
902001 RAV4 (OM42483U)
3. Trip meter reset knobÐResets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
(a) If parking brake
is off, stop
immediately and
contact Toyota
dealer.
(b) Fasten driver 's
seat belt. If the indicator or
buzzer comes on...
(d) Stop and check.(indicator and buzzer)
(e) Stop and check.or
Do this.
(c) Fasten front
passenger 's seat
belt.
(h) Take vehicle to
Toyota dealer.
If brake system
warning light is
also on, stop
immediately and
contact Toyota
dealer. or (g) Fill up tank. (f) Take vehicle to
Toyota dealer.
or
If the indicator or
buzzer comes on...Do this.
Service reminder indicators
an d warn in g bu zzers
ProCarManuals.com
Page 165 of 265
'01 Rav4_U (L/O 0008)
912001 RAV4 (OM42483U)
(m) Remove key. (j) Stop and check.
(k) Take vehicle to
Toyota dealer
immediately.
(n) Turn off lights.Light reminder
buzzer Key reminder
buzzer (i) Close all side
doors and back
door.
(l) Add washer fluid.If the indicator or
buzzer comes on...Do this.
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the ªONº posi-
tion.
When the parking brake is applied...
Vehicles with anti±lock brake systemÐ
This light comes on for a few seconds
when the ignition key is turned to the
ªONº position even after the parking brake
is released.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the ªONº position.
Vehicles with anti±lock brake systemÐ
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
Vehicles with anti±lock brake sys-
temÐ
The brake system warning light re-
mains on together with the ªABSº
warning light.
In this case, not only the anti±lock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
ProCarManuals.com
Page 166 of 265
'01 Rav4_U (L/O 0008)
922001 RAV4 (OM42483U)
(b) Driver's Seat Belt Reminder Light
and Buzzer
This light and buzzer remind you to
buckle up the driver's seat belt.
Once the ignition key is turned to ªONº or
ªSTARTº, the reminder light flashes and
buzzer sounds if the driver 's seat belt is
not fastened. Unless the driver fastens the
belt, the light keeps flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger 's Seat Belt Re-
minder Light
This light reminds you to buckle up the
front passenger 's seat belt.
Once the ignition key is turned to ªONº or
ªSTARTº, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Unless
the front passenger fastens the belt, the
light keeps flashing.
If luggage load is placed on the front
passenger seat, depending on its weight
and how it is placed on the seat, built±in
sensors in the seat cushion may detect
the pressure, causing the reminder light to
keep flashing.(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio,etc., and drive directly to the
nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light onÐeven for one block.
It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty.
(See ªFuel gaugeº on page 88 in Sec-
tion 1±5 for instructions.)
b. The fuel tank cap is not tightened se-
curely. (See ªFuel tank capº on page
24 in Section 1±2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission elec-
trical system.
If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
ProCarManuals.com
Page 167 of 265
'01 Rav4_U (L/O 0008)
932001 RAV4 (OM42483U)
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) ªABSº Warning Light
The light comes on with the ignition key
turned to the ªONº position. If the anti±
lock brake system works properly, the
light turns off after a few seconds. There-
after, if the system malfunctions, the light
comes on again.
When the ªABSº warning light is on (and
the brake system warning light is off), the
anti±lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the ªABSº warning light is on (and
the brake system warning light is off), the
anti±lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the ªONº posi-
tion, or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the ªABSº warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the anti±lock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
(i) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.
(j) Automatic Transmission Fluid Tem-
perature Warning Light (four±wheel
drive models)
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in ªPº. With the engine id-
ling, wait until the light goes off. If the
light goes off, you can start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
ProCarManuals.com
Page 168 of 265
'01 Rav4_U (L/O 0008)
942001 RAV4 (OM42483U)
(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the ªONº position.
After about 6 seconds, the light will go
off. This means the systems of the air-
bag and front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, front seat belt pretensioner assem-
blies, inflators, warning light, interconnect-
ing wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the ªONº posi-
tion or remains on.
The light comes on or flashes while
driving.
(l) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see ªAdding washer fluidº on page 235 in
Section 7±3.)(m) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver 's door with
the ignition key in the ªACCº or ªLOCKº
position.
(n) Light Reminder Buzzer
This buzzer will sound if the headlight
switch is left on and the driver's door is
opened with the key removed from the
ignition switch.CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back
door.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to ªONº, but do
not start the engine.
All the service reminder indicators ex-
cept the open door warning light and
automatic transmission fluid tempera-
ture warning light should come on. The
ªABSº warning light goes off after a
few seconds. The SRS warning light
goes off after about 6 seconds.
5. Turn the ignition key to ªSTARTº.
The automatic transmission fluid tem-
perature warning light should come on.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
ProCarManuals.com
Page 169 of 265
'01 Rav4_U (L/O 0008)
952001 RAV4 (OM42483U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission97 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 6
ProCarManuals.com
Page 170 of 265
'01 Rav4_U (L/O 0008)
962001 RAV4 (OM42483U)

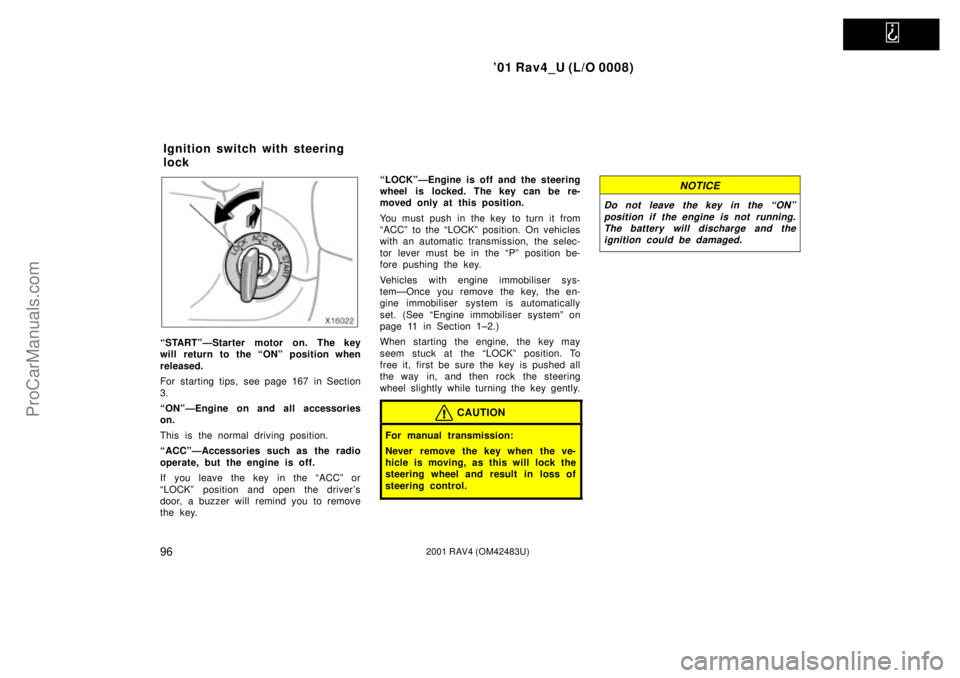

ªSTARTºÐStarter motor on. The key
will return to the ªONº position when
released.
For starting tips, see page 167 in Section
3.
ªONºÐEngine on and all accessories
on.
This is the normal driving position.
ªACCºÐAccessories such as the radio
operate, but the engine is off.
If you leave the key in the ªACCº or
ªLOCKº position and open the driver's
door, a buzzer will remind you to remove
the key.ªLOCKºÐEngine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn it from
ªACCº to the ªLOCKº position. On vehicles
with an automatic transmission, the selec-
tor lever must be in the ªPº position be-
fore pushing the key.
Vehicles with engine immobiliser sys-
temÐOnce you remove the key, the en-
gine immobiliser system is automatically
set. (See ªEngine immobiliser systemº on
page 11 in Section 1±2.)
When starting the engine, the key may
seem stuck at the ªLOCKº position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the ªONº
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock
ProCarManuals.com
