TOYOTA RAV4 2003 XA20 / 2.G Owners Manual

’03 Rav4_U (L/O 0208)
2452003 RAV4 from Aug. ’02 Prod. (OM42517U)
Light bulbsBulbNo.WTy p e
Interior lights—8D
Personal light—10D
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs
D: Double end bulbs
1. Open the hood. Unplug the connec- tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
—Headlights

’03 Rav4_U (L/O 0208)
2462003 RAV4 from Aug. ’02 Prod. (OM42517U)

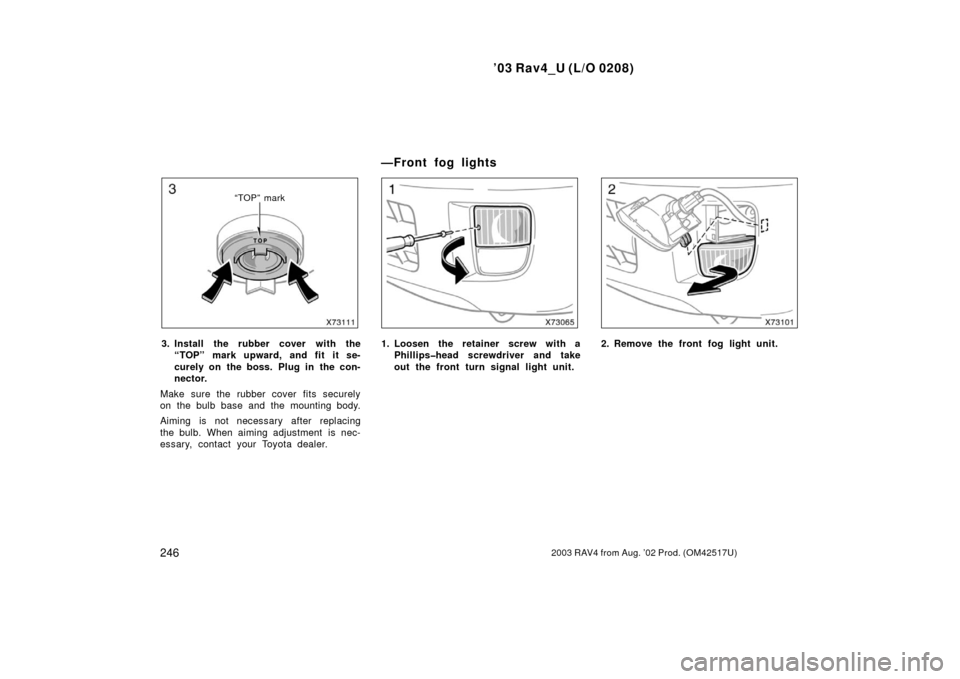

“TOP” mark
3. Install the rubber cover with the“TOP” mark upward, and fit it se-
curely on the boss. Plug in the con-
nector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Loosen the retainer screw with a Phillipshead screwdriver and take
out the front turn signal light unit.2. Remove the front fog light unit.
—Front fog lights

’03 Rav4_U (L/O 0208)
2472003 RAV4 from Aug. ’02 Prod. (OM42517U)

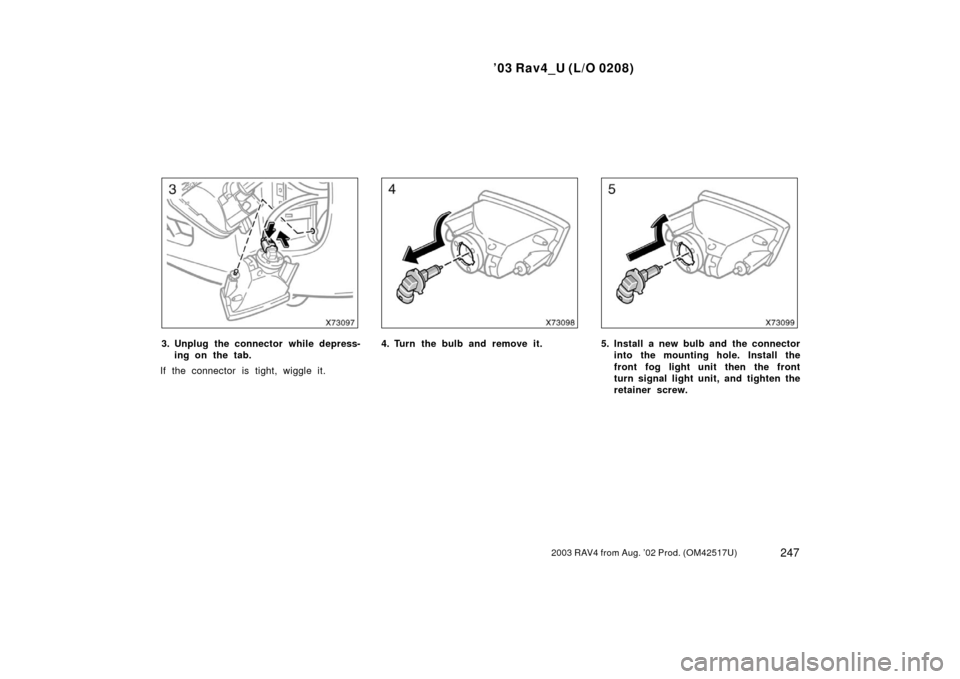

3. Unplug the connector while depress-ing on the tab.
If the connector is tight, wiggle it.4. Turn the bulb and remove it.5. Install a new bulb and the connector into the mounting hole. Install the
front fog light unit then the front
turn signal light unit, and tighten the
retainer screw.

’03 Rav4_U (L/O 0208)
2482003 RAV4 from Aug. ’02 Prod. (OM42517U)
Use a Phillipshead screwdriver.

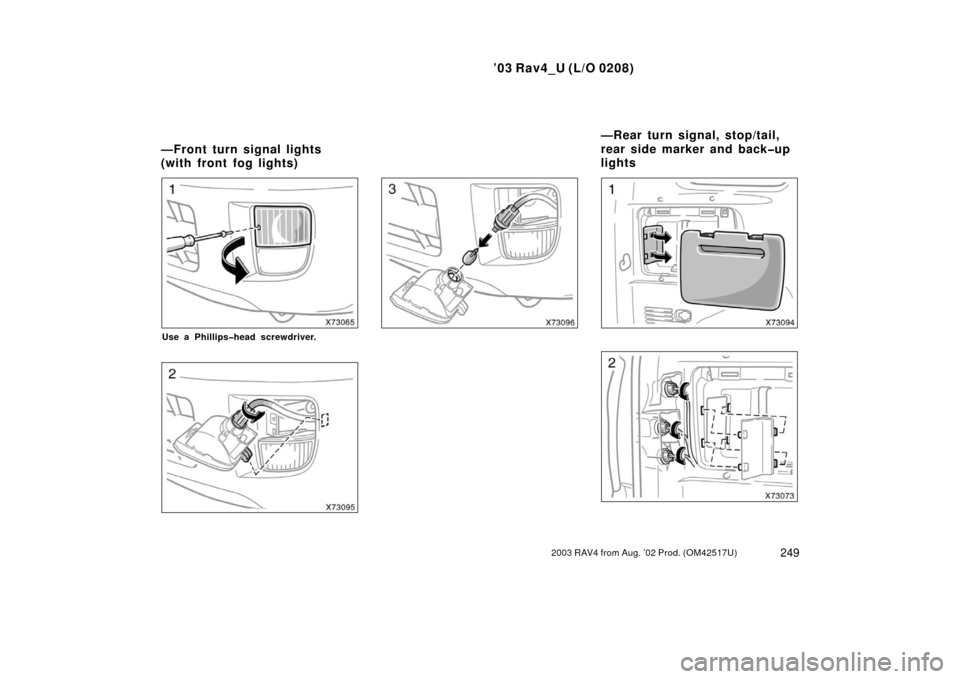

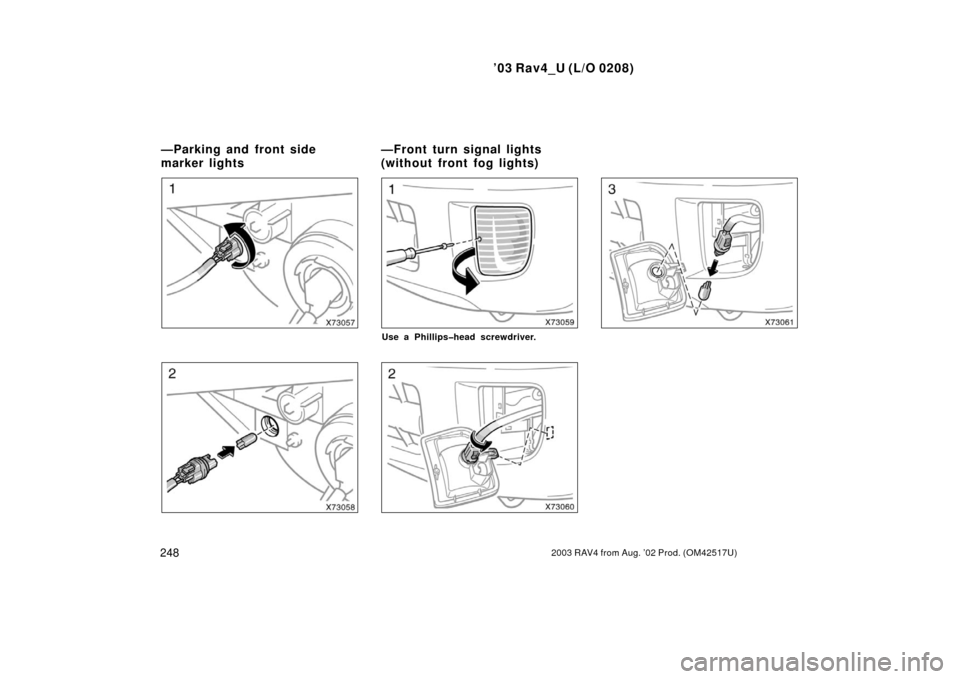

—Parking and front side
marker lights—Front turn signal lights
(without front fog lights)

’03 Rav4_U (L/O 0208)
2492003 RAV4 from Aug. ’02 Prod. (OM42517U)
Use a Phillipshead screwdriver.
—Front turn signal lights
(with front fog lights)—Rear turn signal, stop/tail,
rear side marker and backup
lights

’03 Rav4_U (L/O 0208)
2502003 RAV4 from Aug. ’02 Prod. (OM42517U)

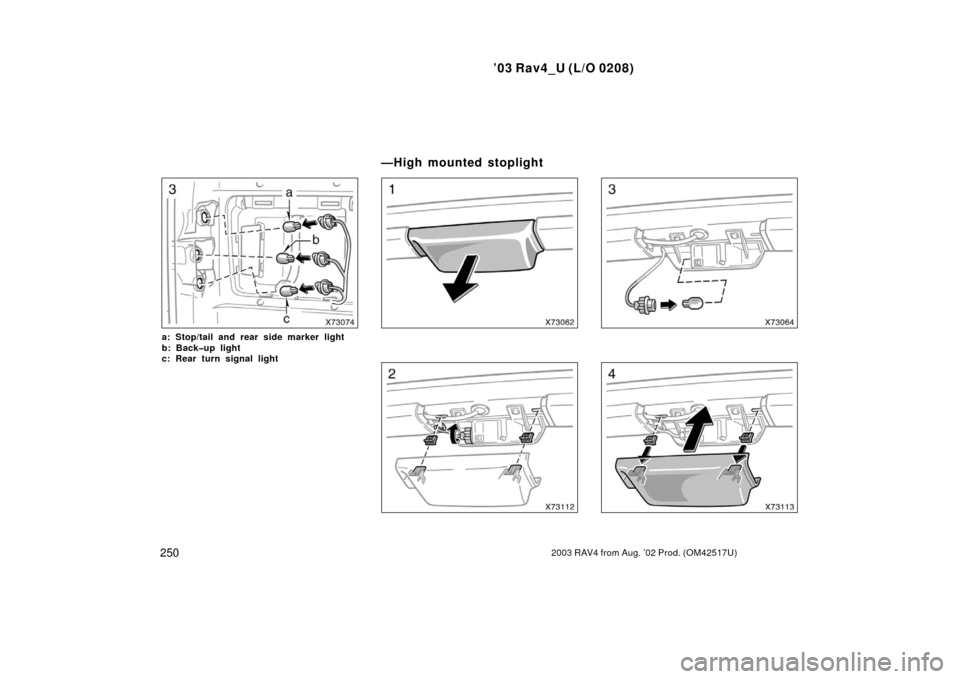

a: Stop/tail and rear side marker light
b: Backup light
c: Rear turn signal light
—High mounted stoplight

’03 Rav4_U (L/O 0208)
2512003 RAV4 from Aug. ’02 Prod. (OM42517U)
Use a Flatbladed screwdriver.
—License plate light

’03 Rav4_U (L/O 0208)
2522003 RAV4 from Aug. ’02 Prod. (OM42517U)

’03 Rav4_U (L/O 0208)
2532003 RAV4 from Aug. ’02 Prod. (OM42517U)
SPECIFICATIONS
Specifications
Dimensions and weight254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’03 Rav4_U (L/O 0208)
2542003 RAV4 from Aug. ’02 Prod. (OM42517U)
∗1: Unladen vehicle∗2: With steel wheel spare tire and half
spare tire cover
∗3: With aluminum wheel spare tire and
half spare tire cover
∗4:
With full spare tire cover
∗ 5:
With over fender
∗ 6:
Twowheel drive models
∗ 7:
Fourwheel drive models
∗ 8:
With roof rails
∗ 9:
With automatic transmission
∗ 10:
With manual transmission
Dimensions and weight
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight (occupants
+ luggage) kg (lb.) 215/70R16 tires 235/60R16 tires
4195 (165.2)
4200 (165.4)
∗ 2
4205 (165.6)∗3
4245 (167.1)∗4
4210 (165.7)
4215 (165.9)∗3
4245 (167.1)∗4
1735 (68.3)
1785 (70.3)∗51785 (70.3)
1670 (65.7)
1705 (67.1)
∗8
2490 (98.0) 2490 (98.0)
1505 (59.3)
∗ 7
1510 (59.4)∗61525 (60.0)
1495 (58.9)
∗ 7
1500 (59.1)∗61520 (59.8)
345 (761)
∗ 7, 9
375 (826)∗7, 10
417 (919)∗6, 9
447 (985)∗6, 10
345 (761)∗7, 9
375 (826)∗7, 10
417 (919)∗6, 9
447 (985)∗6, 10
1670 (65.7)∗6
1680 (66.1)∗7
1705 (67.1)∗6, 8
1715 (67.5)∗7, 8
