TOYOTA RAV4 2003 XA20 / 2.G Owners Manual

’03 Rav4_U (L/O 0208)
2552003 RAV4 from Aug. ’02 Prod. (OM42517U)
Model:1AZFE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 86.0 86.0 (3.39 3.39)
Displacement, cm
3 (cu. in.):
1998 (121.9) Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., lmp. gal.): 56 (14.8, 12.3) ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.19—0.29 (0.007—0.012)
Exhaust 0.30—0.40 (0.012—0.016)
Spark plug type: DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and ref ill),
L (qt., Imp. qt.): With filter 4.2 (4.4, 3.7)
Without filter 4.0 (4.2, 3.5)
“Toyota Genuine Motor Oil” is f illed in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: API grade SL “EnergyConserving” or
ILSAC multigrade engine oil
Engine FuelService specifications

’03 Rav4_U (L/O 0208)
2562003 RAV4 from Aug. ’02 Prod. (OM42517U)
Recommended oil viscosity:SAE 5W30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
With manual transaxle 6.3 (6.7, 5.6)
With automatic transaxle 6.2 (6.6, 5.5)
Coolant type:
“Toyota Genuine Long Life Coolant” is
filled in your Toyota vehicle. In order to
avoid technical problems, we strongly
recommend using “Toyota Genuine Long
Life Coolant” or equivalent.
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max. CLUTCH
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): Twowheel drive models2.5 (2.6, 2.2)
Fourwheel drive models
3.4 (3.6, 3.0)
Oil type: Gear oil API GL4 or GL5
Recommended oil viscosity: SAE 75W90

’03 Rav4_U (L/O 0208)
2572003 RAV4 from Aug. ’02 Prod. (OM42517U)
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill), L (qt.,
Imp. qt.):
Up to 3.5 (3.7, 3.0)
Fluid type: Toyota Genuine ATF Type TIV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type TIV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details. TRANSFER
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.):
0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90 or 85W90
Below 18 C (0 F)
SAE 80W or 80W90
REAR DIFFERENTIAL
(fourwheel drive models)
Oil capacity, L (qt., Imp. qt.): 0.9 (1.0, 0.8)
Oil type: Hypoid gear oil API GL5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90
Below 18 C (0 F)
SAE 80W or 80W90 BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
118 (4.6)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6—8 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

’03 Rav4_U (L/O 0208)
2582003 RAV4 from Aug. ’02 Prod. (OM42517U)
Tire size:215/70R16 99S
235/60R16 100H
Tire pressure, kPa (kgf/cm
2 or bar, psi):
200 (2.0, 29)
Wheel size: Steel wheel 16 61/2J
Aluminum Wheel 16 7JJ
Wheel nut torque, N
·m (kgf·m, ft·lbf):
103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or re-
placing wheels), see “Checking
tire pressure” through “Aluminum
wheel precautions”, pages 233
through 238 in Section 72.

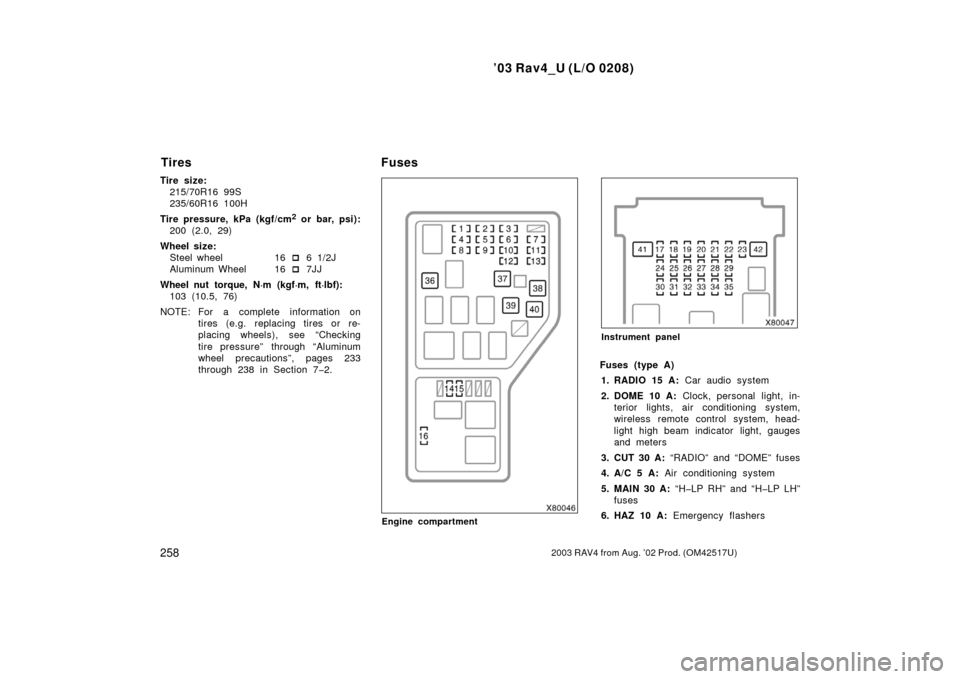

Engine compartment
Instrument panel
Fuses (type A)
1. RADIO 15 A: Car audio system
2. DOME 10 A: Clock, personal light, in-
terior lights, air conditioning system,
wireless remote control system, head-
light high beam indicator light, gauges
and meters
3. CUT 30 A: “RADIO” and “DOME” fuses
4. A/C 5 A: Air conditioning system
5. MAIN 30 A: “HLP RH” and “HLP LH”
fuses
6. HAZ 10 A: Emergency flashers
Tires Fuses

’03 Rav4_U (L/O 0208)
2592003 RAV4 from Aug. ’02 Prod. (OM42517U)
7. ALTS 5 A: Charging system
8. IGN 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
9. EFI3 10 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
10. EFI2 5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
11. A/F 20 A: A/F sensor
12. ABS2 30 A: Antilock brake system
13. EFI1 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, “EFI2” and “EFI3” fuses
14. HLP RH 10 A: Righthand headlight
15. HLP LH 10 A: Lefthand headlight
16. ST 5 A: Starting system
17. STOP 10 A: Stop lights, highmounted
stoplight, antilock brake system, shift
lock control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, cruise control system
18. CIG 15 A: Cigarette lighter
19. POWER OUTLET 15 A: Power outlets
20. SHTR 10 A: No circuit 21. PANEL 7.5 A:
Instrument panel lights,
gauges and meters, front fog lights,
instrument panel light control, outside
rear view mirror defoggers, air condi-
tioning system
22. FR FOG 15 A: Front fog lights
23. HORN 10 A: Horn
24. TAIL 7.5 A: Tail lights, license plate
lights, instrument cluster lights
25. TAIL&PANEL 15 A: “PANEL” and
“TAIL” fuses
26. ACC 7.5 A: Car audio system, shift
lock control system, clock, power rear
view mirrors
27. DEF 20 A: Rear window defogger
28. GAUGE 10 A: Backup lights, electric
cooling fans, air conditioning system,
automatic transmission indicator lights,
charging system
29. OBD 7.5 A: Onboard diagnosis sys-
tem
30. IG2 10 A: Discharge warning light,
multiport fuel injection system/sequen-
tial multiport fuel injection system,
starting system, SRS airbag system
31. DOOR 20 A: Power door lock system 32. MIR HTR 10 A:
Outside rear view mir-
ror defoggers
33. RR WIP 15 A: Rear window wiper and
washer
34. WIP 25 A: Windshield wipers and
washer
35. ECU IG 10 A: Emergency flashers,
gauges and meters, antilock brake
system, SRS airbag system, shift lock
control system, cruise control system
Fuses (type B)
36. RDI 30 A: Electric cooling fan
37. CDS 30 A: Electric cooling fan
38. AM2 30 A: Discharge warning light,
multiport fuel injection system/sequen-
tial multiport fuel injection system,
starting system, SRS airbag system,
“IG2” fuse
39. ABS 1 40 A: Antilock brake system
40. HTR 40 A: Air conditioning system
4

1. PWR 30 A: Electric moon roof, power
windows
42. AM1 40 A: Power outlets, rear window
defogger, “ACC”, “CIG”, “ECU IG”,
“GAUGE”, “RR WIP”, “SHTR” and
“WIP” fuses

’03 Rav4_U (L/O 0208)
2602003 RAV4 from Aug. ’02 Prod. (OM42517U)

’03 Rav4_U (L/O 0208)
2612003 RAV4 from Aug. ’02 Prod. (OM42517U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. owners and uniform
tire quality grading
Reporting safety defects for U.S. owners262
. . . . . . . . . . . . . . . . . . . . . .
Uniform tire quality grading 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 9

’03 Rav4_U (L/O 0208)
2622003 RAV4 from Aug. ’02 Prod. (OM42517U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Tollfree: 18003314331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
tollfree at 18004249393 (or
3660123 in Washington, D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line.This information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality grades—All passenger car
tires must conform to Federal Safety
Requirements in addition to these
grades. Quality grades can be found
where applicable on the tire sidewall
between tread shoulder and maximum
section width. For example: Treadwear
200 Traction AA Temperature A
Reporting safety defects for
U.S. owners
Uniform tire quality grading

’03 Rav4_U (L/O 0208)
2632003 RAV4 from Aug. ’02 Prod. (OM42517U)
Treadwear—The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (11/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate. Traction AA, A, B, C—
The traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire’s
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.
Temperature A, B, C— The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law. Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.

’03 Rav4_U (L/O 0208)
2642003 RAV4 from Aug. ’02 Prod. (OM42517U)
