TOYOTA RAV4 2005 XA30 / 3.G Owners Manual

'05 Rav4_U (L/O 0409)
133
2005 RAV4 from Sep. '04 Prod. (OM42570U)

The loading is over the limit or imbal-
anced.

Initialization was not performed correct-
ly after replacing or rotating tires or
wheels.

The outside temperature is below 0C
(32 F) or above 40 C (104 F).

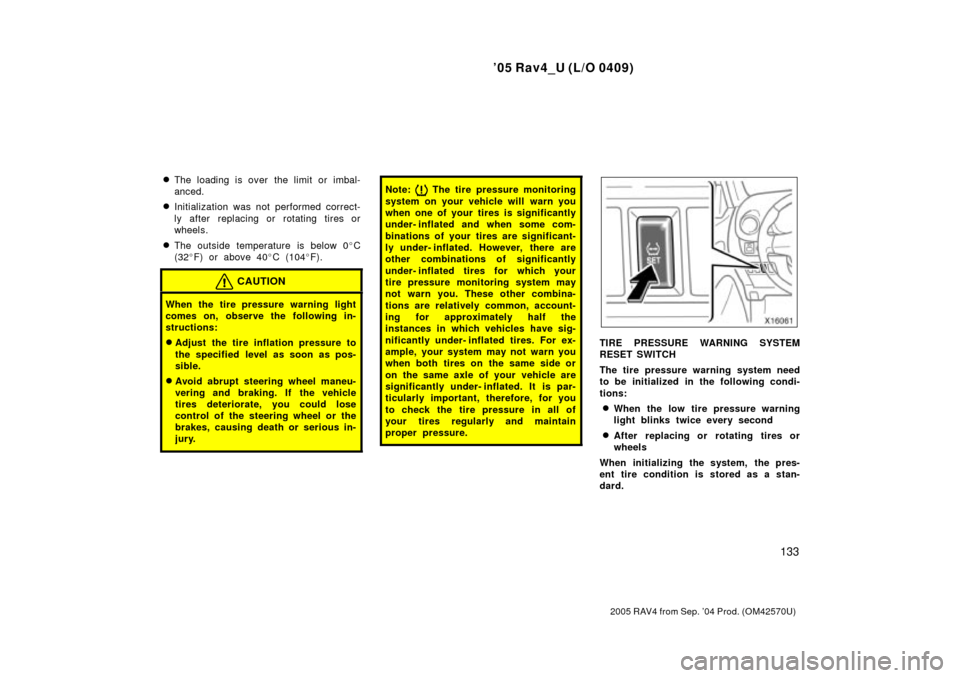

CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:

Adjust the tire inflation pressure to
the specified level as soon as pos-
sible.

Avoid abrupt steering wheel maneu-
vering and braking. If the vehicle
tires deteriorate, you could lose
control of the steering wheel or the
brakes, causing death or serious in-
jury.
Note: The tire pressure monitoring
system on your vehicle will warn you
when one of your tires is significantly
under- inflated and when some com-
binations of your tires are significant-
ly under- inflated. However, there are
other combinations of significantly
under- inflated tires for which your
tire pressure monitoring system may
not warn you. These other combina-
tions are relatively common, account-
ing for approximately half the
instances in which vehicles have sig-
nificantly under- inflated tires. For ex-
ample, your system may not warn you
when both tires on the same side or
on the same axle of your vehicle are
significantly under- inflated. It is par-
ticularly important, therefore, for you
to check the tire pressure in all of
your tires regularly and maintain
proper pressure.
TIRE PRESSURE WARNING SYSTEM
RESET SWITCH
The tire pressure warning system need
to be initialized in the following condi-
tions:

When the low tire pressure warning
light blinks twice every second

After replacing or rotating tires or
wheels
When initializing the system, the pres-
ent tire condition is stored as a stan-
dard.

'05 Rav4_U (L/O 0409)
134
2005 RAV4 from Sep. '04 Prod. (OM42570U)
To initialize the system, perform the fol-
lowing:1. Park the vehicle at a safe place and apply the parking brake. Stop the en-
gine.
2. Adjust the pressure of all the installed tires to the specified level. (See Tiresº
on page 316 in Section 8.)
3. Turn the ignition key to ONº. If the low tire pressure warning light
comes on, push the reset switch for a
few seconds and make sure the warn-
ing light goes off.
4. Push and hold the reset switch until the low tire pressure warning light
blinks three times.
Initialization is completed after driving at
the speeds of 30 km/h (19 mph) or over
for more than one hour. If the following
driving conditions are satisfied, initializa-
tion will be completed in about one hour.

The vehicle speed is between 50 km/h
(31 mph) and 100 km/h (62 mph).

The roads are dry, smooth and straight.

The number of passengers is 1 or 2
(including driver).
When initializing the system, make sure
the low tire pressure warning light blinks
three times. If the warning light does not
blink three times, initializing will be failed
and the tire pressure warning system will
not function properly.
Do not push the reset switch without ad-
justing the tire inflation pressure to the
specified level. Otherwise, the low tire
pressure warning light may not come on
even if the tire pressure is low, or it may
come on when the tire inflation pressure
is actually normal.
If you push the reset switch while the
vehicle is moving, initialization is not per-
formed. If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
When the warning light blinks twice every
second while driving, you may be unable
to reset the system. In this case, set the
system again according to the above pro-
cedure.

'05 Rav4_U (L/O 0409)
135
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Ty p e A
Ty p e B
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION

To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snow- covered) or
winding roads.

Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
Parking brake Cruise control

'05 Rav4_U (L/O 0409)
136
2005 RAV4 from Sep. '04 Prod. (OM42570U)
TURNING THE SYSTEM ON
To operate the cruise control, push the
ON- OFFº switch. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er push will turn the system completely
off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the ON- OFFº switch
off when not using the cruise control.
SETTING AT A DESIRED SPEED
On vehicles with automatic transmission,
the transmission must be in Dº before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the - SETº direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.If you need accelerationÐfor example,
when passingÐdepress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CAUTION
For manual transmission:
While driving with the cruise control
on, do not shift to neutral without
depressing the clutch pedal, as this
may cause engine racing or overrev-
ving.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the CANCELº direction and releasing it.
b. Depressing the brake pedal.
c. Depressing the clutch pedal (manual transmission).
d. Pushing ON- OFFº switch.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.

'05 Rav4_U (L/O 0409)
137
2005 RAV4 from Sep. '04 Prod. (OM42570U)
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESETTING TO A FASTER SPEED
Push the lever up in the + RESº direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the - SETº direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the - SETº direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the - SETº direction.On vehicles with automatic transmission,
even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be enabled because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal or clutch pedal, pushing the
lever up in the + RESº direction will re-
store the speed set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If the CRUISEº indicator light in the
instrument cluster flashes when using the
cruise control, push the ON- OFFº switch
to turn the system off and then push it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.

The indicator light does not come on.

The indicator light flashes again.

The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

'05 Rav4_U (L/O 0409)
138
2005 RAV4 from Sep. '04 Prod. (OM42570U)

'05 Rav4_U (L/O 0409)
139
2005 RAV4 from Sep. '04 Prod. (OM42570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 160
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Audio system operating hints 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 8

'05 Rav4_U (L/O 0409)
140
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Type 1: AM´FM radio/compact disc player
(with compact disc changer controller)Type 2: AM´FM radio/compact disc player
with changerType 3: AM´FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)
Reference

'05 Rav4_U (L/O 0409)
141
2005 RAV4 from Sep. '04 Prod. (OM42570U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACCº or ONº position.
TURNING THE SYSTEM ON AND OFF
Push PWR´VOLº to turn the audio system
on and off.
Push AMº, FMº, FM1º, FM2º, TAPEº or
DISCº to turn on that function without
pushing PWR´VOLº. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AMº, FMº, FM1º, FM2º, TAPEº or
DISCº if the system is already on but you
want to switch from one function to anoth-
er.TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-ing your Toyota through an automaticcar wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-sette tapes into the slot, or the tapeplayer may be damaged.
Using your audio systemÐ
ÐSome basics

'05 Rav4_U (L/O 0409)
142
2005 RAV4 from Sep. '04 Prod. (OM42570U)
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The player will play from track
1 through the end of the disc. Then it will
play from track 1 again.
NOTICE
Never try to disassemble or oil anypart of the compact disc player. Donot insert anything other than com-pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only. YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the LOADº
button and gently push the disc in with
the label side up. (The player will auto-
matically eject a disc if the label side is
down.) This compact disc player can store
up to six discs. The player will play from
track 1 through the end of the disc. Then
it will play from track 1 of the next disc.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Donot insert anything other than com-pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE

Do not stack up two discs for in-
sertion, or it will cause damage tothe compact disc changer. Insertonly one compact disc into slot at
a ti me.

Never try to disassemble or oil anypart of the compact disc player. Do
not insert anything except a com-pact disc into the slot.
