TOYOTA RAV4 2005 XA30 / 3.G Owners Manual

'05 Rav4_U (L/O 0409)
93
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti-
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the
º switch.
To turn on the automatic function again,
push the
º switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
To ensure correct functioning of anti-
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
Auto anti- glare inside rear
view mirror

'05 Rav4_U (L/O 0409)
94
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Ty p e A
Ty p e B

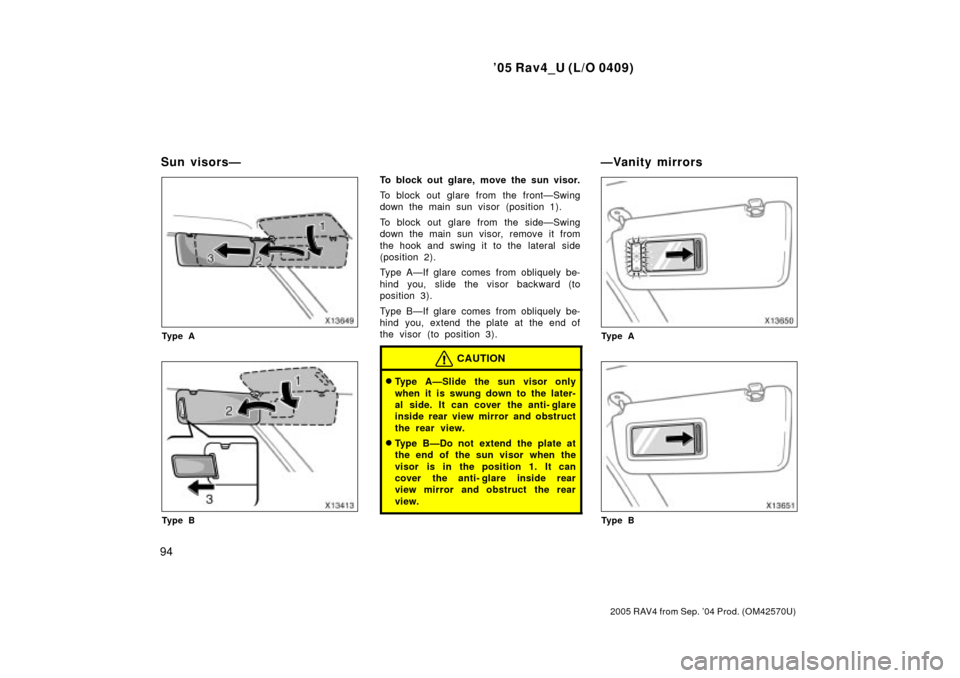

To block out glare, move the sun visor.
To block out glare from the frontÐSwing
down the main sun visor (position 1).
To block out glare from the sideÐSwing
down the main sun visor, remove it from
the hook and swing it to the lateral side
(position 2).
Type AÐIf glare comes from obliquely be-
hind you, slide the visor backward (to
position 3).
Type BÐIf glare comes from obliquely be-
hind you, extend the plate at the end of
the visor (to position 3).
CAUTION

Type AÐSlide the sun visor only
when it is swung down to the later-
al side. It can cover the anti- glare
inside rear view mirror and obstruct
the rear view.

Type BÐDo not extend the plate at
the end of the sun visor when the
visor is in the position 1. It can
cover the anti- glare inside rear
view mirror and obstruct the rear
view.
Ty p e A
Ty p e B
Sun visorsÐÐVanity mirrors

'05 Rav4_U (L/O 0409)
95
2005 RAV4 from Sep. '04 Prod. (OM42570U)
To use the vanity mirrors, swing down
the main sun visor and slide the cover.
Type A onlyÐ
The vanity light comes on when you slide
the cover.

'05 Rav4_U (L/O 0409)
96
2005 RAV4 from Sep. '04 Prod. (OM42570U)

'05 Rav4_U (L/O 0409)
97
2005 RAV4 from Sep. '04 Prod. (OM42570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior lights 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Personal light 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Ignition switch light 102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 104
. . . . . . . . . . .
SECTION 1- 5

'05 Rav4_U (L/O 0409)
98
2005 RAV4 from Sep. '04 Prod. (OM42570U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver 's door is opened if you
remove the key with the headlight switch
on.
NOTICE
To prevent the battery from being dis-charged, do not leave the lights onfor a long period when the engine isnot running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the OFFº position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
High- Low beamsÐ For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to OFFº.
Headlights and turn signals

'05 Rav4_U (L/O 0409)
99
2005 RAV4 from Sep. '04 Prod. (OM42570U)
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the ONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See Replacing light
bulbsº on page 304 in Section 7- 3.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-charged, do not leave the switch onlonger than necessary when the en-gine is not running.
Emergency flashers

'05 Rav4_U (L/O 0409)
100
2005 RAV4 from Sep. '04 Prod. (OM42570U)
To adjust the brightness of the instru-
ment panel lights, turn the knob.To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
ONºÐKeeps the light on all the time.
OFFºÐTurns the light off.
DOORºÐTurns the light on when any of
the side doors and back door are opened.
The light goes off when all the side doors
and back door are closed.
Instrument panel light control Front fog lightsInterior lights

'05 Rav4_U (L/O 0409)
101
2005 RAV4 from Sep. '04 Prod. (OM42570U)
ILLUMINATED ENTRY SYSTEM
(vehicles with the power door lock sys-
tem)
When the switch is in the DOORº posi-
tion and any of the side doors and back
door are opened, the lights will come on.
After all the side doors and back door are
closed, the lights remain on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately:

All the side doors and back door are
closed when the ignition key is in
ACCº or ONº position.

All the side doors and back door are
locked when the light is still on.
When all the side doors and back door
are unlocked simultaneously using either
the key or the wireless remote control
transmitter, the interior lights will come on
and remain on for about 15 seconds be-
fore fading out.
INTERIOR LIGHT CUT OFF OPERATION
To prevent the battery being discharged,
the light will automatically turn off when
the ignition switch is in the LOCKº posi-
tion and the door is left opened with the
switch at DOORº position for 20 minutes
or more.
With moon roof
Without moon roof
To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
Personal light

'05 Rav4_U (L/O 0409)
102
2005 RAV4 from Sep. '04 Prod. (OM42570U)
For easy access to the ignition switch,
the ignition switch light comes on when
any of the doors are opened.
Vehicles with the power door lock sys-
temÐ

The light remains on for about 15 sec-
onds after all the side doors and back
door are closed.

When all the doors are locked, or when
the ignition switch is turned to ACCº
or ONº after all the side doors and
back door are closed, the light fades
out.

When any door is unlocked using ei-
ther the key or the wireless remote
control key, the light will come on and
remain on for about 15 seconds before
fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the ignition switch is in the LOCKº posi-
tion and the door is left opened for 20
minutes or more.
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ONº position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.
Ignition switch light Windshield wipers and washer
