TOYOTA RAV4 2006 XA30 / 3.G Owners Manual

’06 Rav4_U (L/O 0601)
399
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

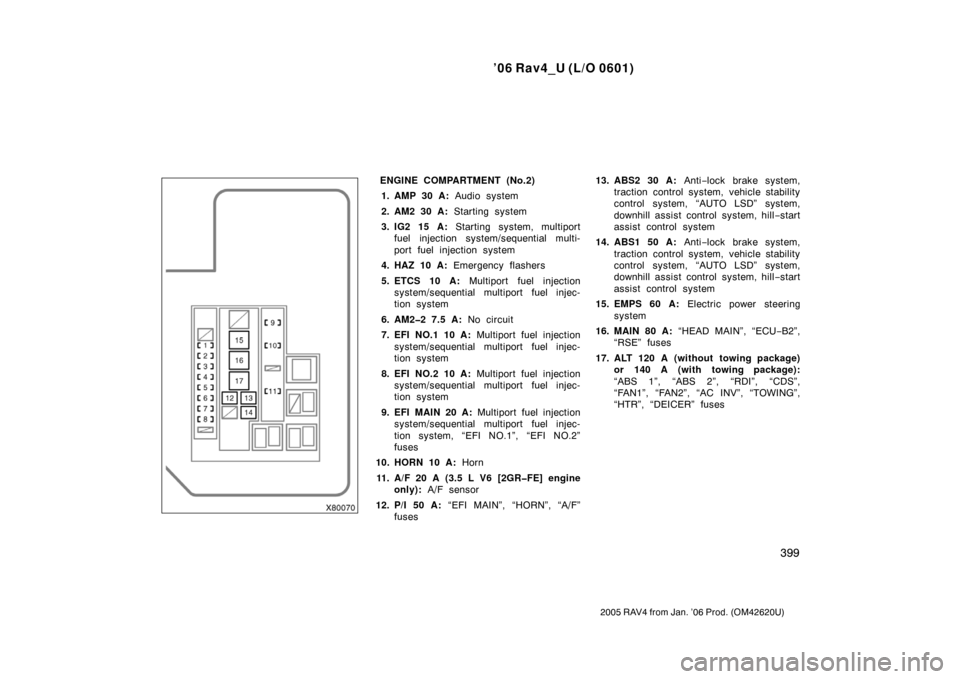

ENGINE COMPARTMENT (No.2)1. AMP 30 A: Audio system
2. AM2 30 A: Starting system
3. IG2 15 A: Starting system, multiport
fuel injection system/sequential multi-
port fuel injection system
4. HAZ 10 A: Emergency flashers
5. ETCS 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
6. AM22 7.5 A: No circuit
7. EFI NO.1 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
8. EFI NO.2 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
9. EFI MAIN 20 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, “EFI NO.1”, “EFI NO.2”
fuses
10. HORN 10 A: Horn
11. A/F 20 A (3.5 L V6 [2GRFE] engine only): A/F sensor
12. P/I 50 A: “EFI MAIN”, “HORN”, “A/F”
fuses 13. ABS2 30 A:
Anti−lock brake system,
traction control system, vehicle stability
control system, “AUTO LSD” system,
downhill assist control system, hill −start
assist control system
14. ABS1 50 A: Anti−lock brake system,
traction control system, vehicle stability
control system, “AUTO LSD” system,
downhill assist control system, hill −start
assist control system
15. EMPS 60 A: Electric power steering
system
16. MAIN 80 A: “HEAD MAIN”, “ECU −B2”,
“RSE” fuses
17. ALT 120 A (without towing package) or 140 A (with towing package):
“ABS 1”, “ABS 2”, “RDI”, “CDS”,
“FAN1”, “FAN2”, “AC INV”, “TOWING”,
“HTR”, “DEICER” fuses

’06 Rav4_U (L/O 0601)
400
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
INSTRUMENT PANEL1. SHTR 15 A: Seat heaters
2. WIP 25 A: Windshield wipers
3. RR WIP 15 A: Rear window wiper
4. WSH 15 A: Windshield washer, rear
window washer
5. ECUIG1 10 A: Electric cooling fan,
anti −lock brake system, traction control
system, vehicle stability control system,
“AUTO LSD” system, downhill assist
control system, hill −start assist control
system, active torque control 4WD sys-
tem, tire pressure monitor system, au-
tomatic transmission shift lock system,
air conditioning system, main body
ECU, electric moon roof, stop/tail
lights, windshield wiper de −icer, electric
power steering system, clock, AC in-
verter
6. ECUIG2 10 A: Air conditioning sys-
tem, rear window defogger
7. OBD 7.5 A: On−board diagnosis sys-
tem 8. STOP 10 A:
Stop/tail lights, high
mounted stoplight, automatic transmis-
sion shift lock system, multiport fuel
injection system/sequential multiport
fuel injection system, anti −lock brake
system, traction control system, vehicle
stability control system, “AUTO LSD”
system, downhill assist control system,
hill −start assist control system
9. DOOR 25 A: Main body ECU, power
door lock system
10. ACCB 25 A: “ACC”, “CIG” fuses
11. 4WD 7.5 A: Active torque control 4WD
system
12. FR FOG 15 A: Front fog lights
13. AM1 7.5 A: Starting system
14. TAIL 10 A: Tail lights, parking lights,
license plate light, front fog lights, rear
side marker lights
15. PANEL 7.5 A: Clock, instrument panel
lights, audio system
16. GAUGE1 10 A: Buck−up lights, charg-
ing system
17. D FR DOOR 20 A: Power window
(front doors)
18. RL DOOR 20 A: Power window (rear
left door)

’06 Rav4_U (L/O 0601)
401
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
19. RR DOOR 20 A: Power window (rear
right door)
20. S/ROOF 25 A: Electric moon roof
21. CIG 15 A: No circuit
22. ACC 7.5 A: Audio system, power out-
lets, power rear view mirror control,
automatic transmission shift lock sys-
tem, main body ECU, clock, rear seat
entertainment system
23. MIR HTR 10 A: Outside rear view mir-
ror heaters
24. PWR OUTLET 15 A: Power outlets
25. RR FOG 10 A: No circuit
26. IGN 7.5 A: SRS airbag system, multi-
port fuel injection system/sequential
multiport fuel injection system, front
passenger occupant classification sys-
tem, starting system
27. GAUGE2 7.5 A: Meters and gauges
28. DEF 30 A: Rear window defogger,
“MIR HTR” fuses
29. P/SEAT 30 A: Power seat
30. POWER 30 A: Power windows

’06 Rav4_U (L/O 0601)
402
2005 RAV4 from Jan. ’06 Prod. (OM42620U)

’06 Rav4_U (L/O 0601)
403
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners404
. . . . . . . . . . . . . . . . . . . . . .
SECTION 9

’06 Rav4_U (L/O 0601)
404
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Toll−free: 1 −800 −331 −4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc. To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
toll
−free at 1 −800 −424 −9393 (or
366 −0123 in Washington, D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line.
Reporting safety defects for
U.S. owners

’06 Rav4_U (L/O 0601)
405
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
INDEXIndex
SECTION 10

’06 Rav4_U (L/O 0601)
406
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
A
“ABS” warning light127
. . . . . . . . . . . . . . . . . . .
“AUTO LSD” system 151
. . . . . . . . . . . . . . . . . .
Active torque control 4WD system 148 . . . . .
Adding washer fluid 386
. . . . . . . . . . . . . . . . . .
Adjustment
Front seats 36,37
. . . . . . . . . . . . . . . . . . . . . .
Rear/second seat 39
. . . . . . . . . . . . . . . . . . .
Seat belt 53
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning filter 252
. . . . . . . . . . . . . . . . . .
Air conditioning system
Automatic air conditioning system 244 . . . .
Manual air conditioning system 238 . . . . . .
Airbags 64,71,81
. . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions 380
. . . . . . . . . .
Anti −glare inside rear view mirror 110 . . . . . .
Anti −theft steering column lock 140 . . . . . . . .
Appearance care
Cleaning the interior 349
. . . . . . . . . . . . . . . .
Protecting your Toyota from corrosion 346
. . . . . . . . . . . . . . . . . . .
Washing and waxing 347
. . . . . . . . . . . . . . . .
Armrest 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio system 170
. . . . . . . . . . . . . . . . . . . . . . . .
Audio system
AUX 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system 191
. . . . . . . . . . . . . . . . . .
Audio/video system operating tips 229 . . . . . .
Automatic air conditioning system 244 . . . . . . Automatic transmission
Driving with an automatic transmission 141,145
. . . . . . . . . . . . . . . . .
Shift lock override button 342
. . . . . . . . . . . .
Shift pattern 141,145
. . . . . . . . . . . . . . . . . . .
Shifting speed 141,145
. . . . . . . . . . . . . . . . .
Automatic transmission fluid temperature warning light 127 . . . . . . .
AUX 188
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box 259,260
. . . . . . . . . . . . . . . . . . . .
Auxiliary catch, Engine hood 27
. . . . . . . . . . .
B
Back door 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery
Checking battery condition 382
. . . . . . . . . .
Gas caution 382
. . . . . . . . . . . . . . . . . . . . . . .
Handling safety 382
. . . . . . . . . . . . . . . . . . . .
Recharging precautions 384
. . . . . . . . . . . . .
Winter driving tips 309
. . . . . . . . . . . . . . . . . .
Before starting the engine 306
. . . . . . . . . . . . .
Bottle holders 263
. . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators 287 . . . . . . . .
Brake system 283
. . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 127
. . . . . . . . . . . .
Brakes
Fluid level 371
. . . . . . . . . . . . . . . . . . . . . . . . .
Pad wear limit indicators 287
. . . . . . . . . . . .
Parking 165
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Break −in tips 277
. . . . . . . . . . . . . . . . . . . . . . . .
Brightness control 116
. . . . . . . . . . . . . . . . . . . .
C
Carbon monoxide caution 281
. . . . . . . . . . . . .
Cargo and luggage
Capacity 300
. . . . . . . . . . . . . . . . . . . . . . . . . .
Capacity and distribution 302
. . . . . . . . . . . .
Stowage precautions 301
. . . . . . . . . . . . . . .
Cargo net 269
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Certification label 289
. . . . . . . . . . . . . . . . . . . .
Charging system warning light 127
. . . . . . . . .
Checking and replacing fuses 384
. . . . . . . . .
Checking and replacing the air conditioning filter 252
. . . . . . . . . . . . . . . . . . .
Checking brake fluid 371
. . . . . . . . . . . . . . . . . .
Checking the engine oil level 368
. . . . . . . . . .
Checking the radiator and
condenser 371
. . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint
Child restraint system 86
. . . . . . . . . . . . . . .
Installation 88
. . . . . . . . . . . . . . . . . . . . . . . . .
Installation with child restraint lower anchorages 104
. . . . . . . . . . . . . . . .
Precautions 85
. . . . . . . . . . . . . . . . . . . . . . . .
Types of child restraint system 87 . . . . . . . .
Using a top strap 100
. . . . . . . . . . . . . . . . . . .
Cleaning the interior 349
. . . . . . . . . . . . . . . . . .
Clock 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cold weather
Operation 309
. . . . . . . . . . . . . . . . . . . . . . . . .
Compact disc changer 170
. . . . . . . . . . . . . . . .
Compact disc changer controller 170 . . . . . . .
Compact disc player 170
. . . . . . . . . . . . . . . . . .
Condenser
Checking the condenser 371
. . . . . . . . . . . .
Console box
Rear 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

’06 Rav4_U (L/O 0601)
407
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Controls, Instrument panel2,7
. . . . . . . . . . . .
Cooling system
Coolant level 370
. . . . . . . . . . . . . . . . . . . . . .
Engine overheating 324
. . . . . . . . . . . . . . . . .
Radiator and reservoir 370
. . . . . . . . . . . . . .
Radiator cap 324
. . . . . . . . . . . . . . . . . . . . . . .
Winter driving tips 309
. . . . . . . . . . . . . . . . . .
Corrosion prevention 346
. . . . . . . . . . . . . . . . .
Cruise control 166
. . . . . . . . . . . . . . . . . . . . . . .
Cup holder
Front 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D
Defogger
Outside rear view mirror 122 . . . . . . . . . . . .
Rear window 122
. . . . . . . . . . . . . . . . . . . . . . .
Dimmer switch, Headlight 114
. . . . . . . . . . . . .
Dinghy towing 311
. . . . . . . . . . . . . . . . . . . . . . .
Directional signals 114
. . . . . . . . . . . . . . . . . . .
Do −it−yourself maintenance
Parts and tools 364
. . . . . . . . . . . . . . . . . . . . .
Service precautions 363
. . . . . . . . . . . . . . . .
Does your vehicle need repairing? 357 . . . . .
Doors
Back door 26
. . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 22
. . . . . . . . . . . . . . . . . . . . . . . . .
Downhill assist control system 156
. . . . . . . . .
Driver ’s seat belt reminder buzzer 127 . . . . . .
Driver ’s seat belt reminder light 127 . . . . . . . .
Driving
Automatic transmission 141,145
. . . . . . . . .
Driving tips 306
. . . . . . . . . . . . . . . . . . . . . . . . Driving tips
Driving tips in various conditions 307 . . . . .
Driving with an automatic transmission 141,145
. . . . . . . . . . . . . . . . .
Economical driving 317
. . . . . . . . . . . . . . . . .
Good driving practice 141,145
. . . . . . . . . . .
Winter driving tips 309
. . . . . . . . . . . . . . . . . .
During
Break −in 277
. . . . . . . . . . . . . . . . . . . . . . . . . .
DVD player 191
. . . . . . . . . . . . . . . . . . . . . . . . . .
E
Economical driving
Saving money on both fuel and repairs 317 . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 30 . . . . . . . . . . . . . . . . . . . . .
Electric power steering system 287 . . . . . . . .
Electric power steering system warning light 127 . . . . . . . . . . . . . . . . . . . . . . .
Electrical system
Battery 382,384 . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 362 . . . . . . . . . . . . . . . . . . . . .
Fuses 384 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 115 . . . . . . . . . . . . .
Emergency, In case of
Blown fuse 384 . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 115 . . . . . . . . . . .
Flat tire 325 . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot increase engine speed 323 . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission selector lever 342 . . . . . . . .
If you lose your keys 343 . . . . . . . . . . . . . . . . If your engine stalls while driving 323
. . . . .
If your vehicle becomes stuck 337 . . . . . . .
If your vehicle needs to be towed 337 . . . . .
If your vehicle will not start 320 . . . . . . . . . .
Jump starting 321 . . . . . . . . . . . . . . . . . . . . . .
Overheating 324 . . . . . . . . . . . . . . . . . . . . . . .
Towing 337 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emissions Inspection and
Maintenance (I/M) programs 358 . . . . . . . . .
Engine
Before starting the engine 306 . . . . . . . . . . .
Checking the coolant level 370 . . . . . . . . . .
Emission control device 280 . . . . . . . . . . . . .
Engine compartment 360 . . . . . . . . . . . . . . .
Exhaust gas caution 281 . . . . . . . . . . . . . . . .
Hood release 27 . . . . . . . . . . . . . . . . . . . . . . .
Identification number 290 . . . . . . . . . . . . . . .
Oil consumption 282 . . . . . . . . . . . . . . . . . . . .
Oil level 368 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overheating 324 . . . . . . . . . . . . . . . . . . . . . . .
Starting procedure 306 . . . . . . . . . . . . . . . . .
Three −way catalytic converters 280 . . . . . .
Engine coolant
Temperature gauge 124 . . . . . . . . . . . . . . . . .
Winter driving tips 309 . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 124 . . . . .
Engine immobilizer system 15 . . . . . . . . . . . . .
Engine oil
Winter driving tips 309 . . . . . . . . . . . . . . . . . .
Engine oil replacement reminder light 127 . . . . . . . . . . . . . . . . . . . . . .
Exhaust gas caution 281 . . . . . . . . . . . . . . . . . .

’06 Rav4_U (L/O 0601)
408
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
F
“4WD” warning light127
. . . . . . . . . . . . . . . . . .
Facts about engine oil consumption 282 . . . .
Flasher, Headlight 114
. . . . . . . . . . . . . . . . . . . .
Flat tire
After changing wheels 336
. . . . . . . . . . . . . .
Changing tire 331
. . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 325
. . . . . . . . . . . . . . . .
Jack point 330
. . . . . . . . . . . . . . . . . . . . . . . . .
Jacking precautions 325
. . . . . . . . . . . . . . . .
Jacking up 330
. . . . . . . . . . . . . . . . . . . . . . . .
Loosening wheel nuts 329
. . . . . . . . . . . . . . .
Lowering vehicle 332
. . . . . . . . . . . . . . . . . . .
Reinstalling w heel ornament 335
. . . . . . . . .
Removing wheel ornament 328
. . . . . . . . . .
Stowing flat tire 333
. . . . . . . . . . . . . . . . . . . .
Wheel block 328
. . . . . . . . . . . . . . . . . . . . . . .
Wheel nuts 331
. . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid level
Brake 371
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washer fluid 386
. . . . . . . . . . . . . . . . . . . . . . .
Fog light switch, Front 116
. . . . . . . . . . . . . . . .
Foreign countries, Operation in 279 . . . . . . . .
Four −wheel drive system 148
. . . . . . . . . . . . .
Front cup holder 262
. . . . . . . . . . . . . . . . . . . . .
Front fog light switch 116
. . . . . . . . . . . . . . . . .
Front passenger occupant classification system 81
. . . . . . . . . . . . . . . .
Front passenger ’s seat belt reminder buzzer 127
. . . . . . . . . . . . . . . . . . .
Front passenger ’s seat belt reminder light 127
. . . . . . . . . . . . . . . . . . . . . .
Front seat
Seatback flattening 48,50
. . . . . . . . . . . . . . . Front seats
35,36,37
. . . . . . . . . . . . . . . . . . . . .
Fuel
Filler door opener 28
. . . . . . . . . . . . . . . . . . .
Fuel economy 317
. . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 279
. . . . . . . . . .
Gauge 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries 279 . . . . . . .
Tank cap 28
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel information 277
. . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 279
. . . . . . . . . . . .
Fuse
Fuse box 384
. . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 362
. . . . . . . . . . . . . . . . . . . . . . .
G
Gauge
Engine coolant temperature 124 . . . . . . . . .
Fuel 124 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 259 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Good driving practice 141,145 . . . . . . . . . . . . .
Grocery bag hooks 264 . . . . . . . . . . . . . . . . . . .
H
Hazard switch 115
. . . . . . . . . . . . . . . . . . . . . . .
Head restraints 51
. . . . . . . . . . . . . . . . . . . . . . .
Headlight switch 114
. . . . . . . . . . . . . . . . . . . . .
High speed operation
During break −in 277
. . . . . . . . . . . . . . . . . . . .
Hill −start assist control system 159 . . . . . . . .
Hood release, Engine 27
. . . . . . . . . . . . . . . . . .
How to start the engine 306
. . . . . . . . . . . . . . .
I
I/M test 358
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification
Engine 290
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire 293
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 140
. . . . . . . . . . . . . . . . . . . . . . .
Illuminated entry system 119
. . . . . . . . . . . . . .
Indicator symbols 8
. . . . . . . . . . . . . . . . . . . . . .
Installing front towing eyelet 340
. . . . . . . . . . .
Instrument panel
Brightness control 116
. . . . . . . . . . . . . . . . . .
Clock 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 124
. . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols 8
. . . . . . . . . . . . . . . . . . . .
Odometer 125
. . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 125
. . . . . . . . . . . . . . . . . . . . . . . .
Trip meter 125
. . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 116
. . . . . . . . . .
Instrument panel overview 2,7
. . . . . . . . . . . .
J
Jack
Location 326 . . . . . . . . . . . . . . . . . . . . . . . . . .
Jack, Audio
AUX 188 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump starting 321 . . . . . . . . . . . . . . . . . . . . . . . .
K
Key reminder buzzer 127
. . . . . . . . . . . . . . . . .
Keys 12,343
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
