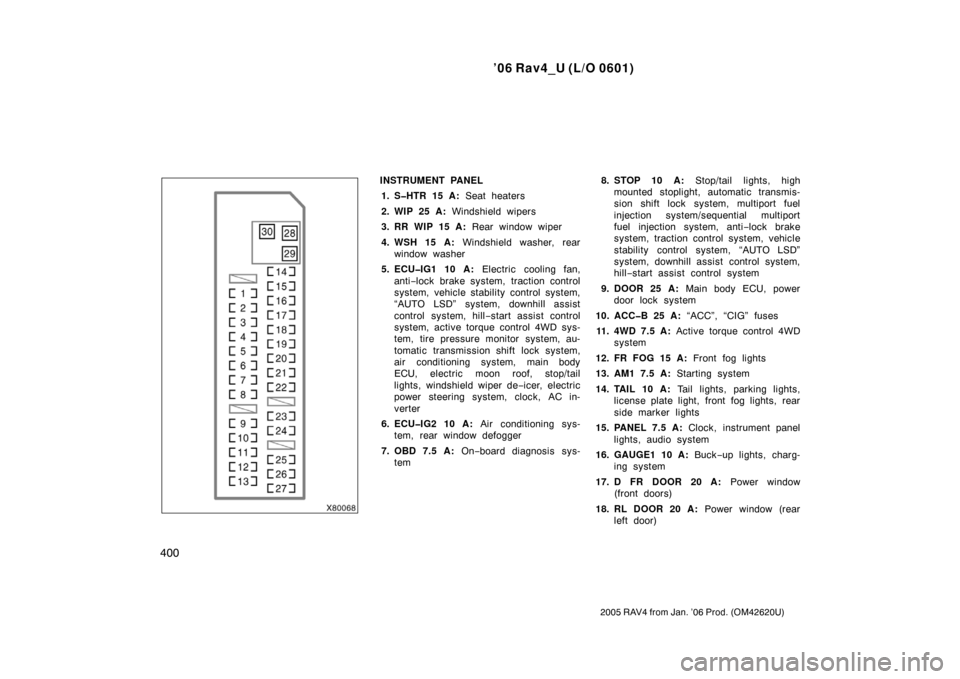

INSTRUMENT PANEL1. S HTR 15 A: Seat heaters
2. WIP 25 A: Windshield wipers
3. RR WIP 15 A: Rear window wiper
4. WSH 15 A: Windshield washer, rear
window washer
5. ECU IG1 10 A: Electric cooling fan,
anti −lock brake system, traction control
system, vehicle stability control system,
“AUTO LSD” system, downhill assist
control system, hill −start assist control
system, active torque control 4WD sys-
tem, tire pressure monitor system, au-
tomatic transmission shift lock system,
air conditioning system, main body
ECU, electric moon roof, stop/tail
lights, windshield wiper de −icer, electric
power steering system, clock, AC in-
verter
6. ECU IG2 10 A: Air conditioning sys-
tem, rear window defogger
7. OBD 7.5 A: On−board diagnosis sys-
tem 8. STOP 10 A:
Stop/tail lights, high
mounted stoplight, automatic transmis-
sion shift lock system, multiport fuel
injection system/sequential multiport
fuel injection system, anti −lock brake
system, traction control system, vehicle
stability control system, “AUTO LSD”
system, downhill assist control system,
hill −start assist control system
9. DOOR 25 A: Main body ECU, power
door lock system
10. ACC B 25 A: “ACC”, “CIG” fuses
11. 4WD 7.5 A: Active torque control 4WD
system
12. FR FOG 15 A: Front fog lights
13. AM1 7.5 A: Starting system
14. TAIL 10 A: Tail lights, parking lights,
license plate light, front fog lights, rear
side marker lights
15. PANEL 7.5 A: Clock, instrument panel
lights, audio system
16. GAUGE1 10 A: Buck−up lights, charg-
ing system
17. D FR DOOR 20 A: Power window
(front doors)
18. RL DOOR 20 A: Power window (rear
left door)
