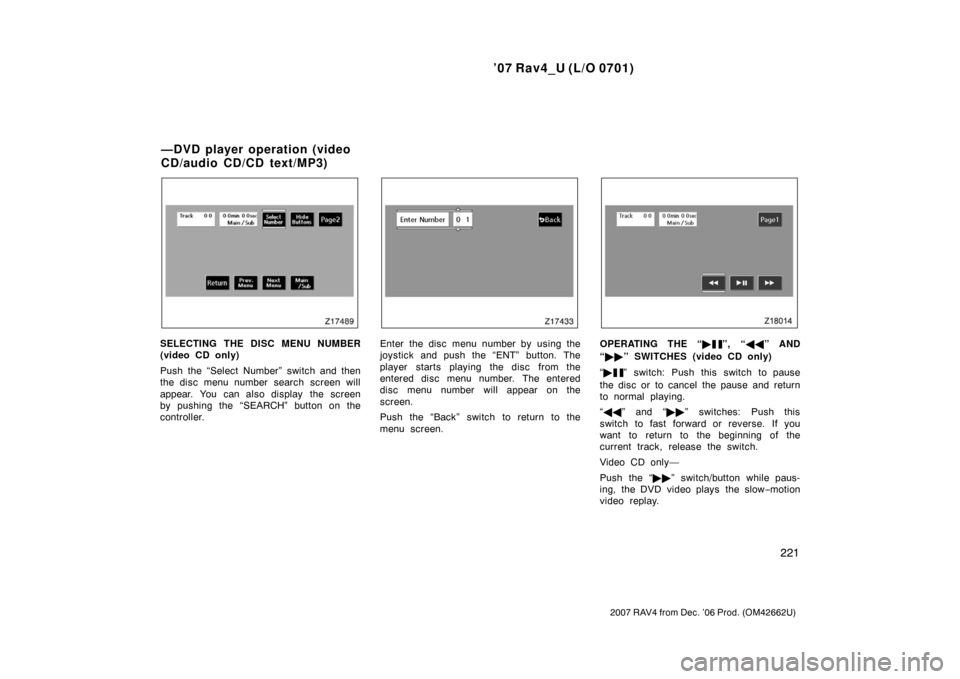

SELECTING THE DISC MENU NUMBER
(video CD only)
Push the “Select Number” switch and then
the disc menu number search screen will
appear. You can also display the screen
by pushing the “SEARCH” button on the
controller.Enter the disc menu number by using the
joystick and push the “ENT” button. The
player starts playing the disc from the
entered disc menu number. The entered
disc menu number will appear on the
screen.
Push the “Back” switch to return to the
menu screen.OPERATING THE “”, “” AND
“  ” SWITCHES (video CD only)
“
” switch: Push this switch to pause
the disc or to cancel the pause and return
to normal playing.
“  ” and “ ” switches: Push this
switch to fast forward or reverse. If you
want to return to the beginning of the
current track, release the switch.
Video CD only—
Push the “ ” switch/button while paus-
ing, the DVD video plays the slow −motion
video replay.
—DVD player operation (video
CD/audio CD/CD text/MP3)

’07 Rav4_U (L/O 0701)
223
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
CHANGING THE INITIAL SETTING (video
CD only)
Push the “Set Up” switch on the screen
and then the initial setting screen will ap-
pear. You can also display the screen by
pushing the “SET UP” button on the con-
troller. You can change the initial setting.
(See “CHANGING THE INITIAL SETTING”
on page 213 in this Section for details.)
After the setting is done, the player plays
from the beginning of the chapter or the
track.
CD Text
CD MP3
USING THE CONTROL SCREEN
When playing a disc, push the “DVD” but-
ton on the controller. The control screen
will appear on the screen.
CD text only—
The disc title and track title will appear on
the screen when pushing the “DVD” but-
ton.
Details of the specific switches, controls
and features are described below.1. “RPT” switch (audio CD and CD text) Push the “RPT” switch while the track
is playing. When the track ends, it will
automatically replay. To turn off the re-
peat feature, push this switch again.
2. “RAND” switch (audio CD and CD text) Push the “RAND” switch. The player
will play the tracks on the disc in ran-
dom order. To turn off the random fea-
ture, push this switch again.
3. “SCAN” switch (audio CD and CD text) Push the “SCAN” switch. The player
will scan all the tracks on the disc. To
stop scanning, push this switch again.
When the player has scanned all the
tracks on the disc, it will stop scan-
ning.

’07 Rav4_U (L/O 0701)
224
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
MP3 only—
Folder and file names will appear on the
screen when the “DVD” button is pushed.
The details of the specific switches, con-
trols, and features are described below.1. “RPT” switch When the “RPT” switch is pushed while
a track is played, the track file will be
played repeatedly until the switch is
pushed again. When the switch is
pushed for at least 0.8 seconds, all the
files in a folder will be played repeat-
edly. To turn off repeat play mode,
push the switch again.
2. “RAND” switch
When the “RAND” switch is pushed,
the files in a current folder will be
played in random order. When the
switch is pushed for at least 0.8 sec-
onds, all the files in the disk will be
played in random. To turn off random
play mode, push the switch again. 3. “SCAN” switch
When the “SCAN” switch is pushed, all
the files in a current folder will be
scanned. Only the first 10 seconds of
each file are played sequentially until
all the files are scanned. When the
switch is pushed for at least 0.8 sec-
onds, the first 10 seconds of each ini-
tial file of all the folders in the disk will
be played sequentially until the entire
initial files are scanned. To stop scan-
ning, push the switch again.
4. “FLD
” switch
When the switch is pushed, the initial
file of the next folder will be played.
5. “
FLD” switch
When the switch is pushed, the initial
file of the previous folder will be
played.
6. “DETAIL” switch
When the switch is pushed while a
track is played, the detailed file infor-
mation of the track will be displayed. You can adjust the color, contrast, tone
and brightness of the screen.
Push the “DISPLAY” button on the control-
ler and the “Display” screen will appear.
The screen may turn purple to deflect the
sunlight. This is not a malfunction.
—Screen adjustment

’07 Rav4_U (L/O 0701)
225
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Operate the joystick up and down to se-
lect Brightness, Contrast, Tone, or Color
and left and right to make adjustments.
− or “Red”+ or
“Green”
BrightnessDarkensBrightens
Contrast
Weakens
the
contrastStrengthen
s the
contrast
ToneWeakens
the toneStrengthen
s the tone
Color
Strengthen
s the red
colorStrengthen
s the green
color
After adjusting the screen, push the “ENT”
button or “DISPLAY” button to return to
the previous screen.
The audio machine connected to the input
terminal adapter can be played in the
video mode.
To select the video mode, push the
“VIDEO” button on the controller.
—Selecting the video mode

’07 Rav4_U (L/O 0701)
241
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

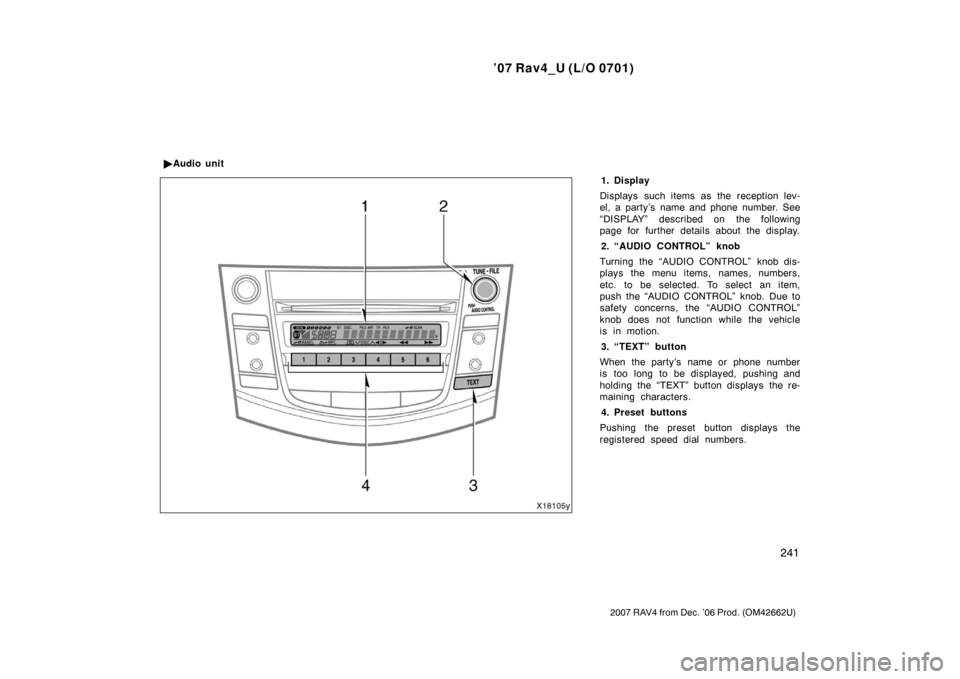

1. Display
Displays such items as the reception lev-
el, a party’s name and phone number. See
“DISPLAY” described on the following
page for further details about the display.
2. “AUDIO CONTROL” knob
Turning the “AUDIO CONTROL” knob dis-
plays the menu items, names, numbers,
etc. to be selected. To select an item,
push the “AUDIO CONTROL” knob. Due to
safety concerns, the “AUDIO CONTROL”
knob does not function while the vehicle
is in motion.
3. “TEXT” button
When the party’s name or phone number
is too long to be displayed, pushing and
holding the “TEXT” button displays the re-
maining characters.
4. Preset buttons
Pushing the preset button displays the
registered speed dial numbers.

Audio unit

’07 Rav4_U (L/O 0701)
253
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
If [Confirm] is said, then input a voice
tag.
[Push the talk switch and say a name.] is
heard.1. Push the talk switch and say the name of the dial number that you want to
register.
[XXXX (phone number) Push the talk
switch and say confirm. Otherwise, say go
back.] is heard.
2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Stored. To register this as a speed dial
entry, push the talk switch and say set
speed dial. Otherwise, say confirm.] is
heard and [Stored] is displayed.
3. Select one of the following:
Confirm
Speed Dial Confirm
Push the talk switch and say [Confirm], or
turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the knob.
[Returning to the phone book.] is heard.
Speed Dial
1. Push the talk switch and say [Set speed dial], or turn the “AUDIO CON-
TROL” knob until [Speed Dial] is dis-
played and push the knob.
[Set speed dial. Push the preset button to
assign to XXXX] is heard. 2. Push and hold the desired preset but- ton.
[preset... is now assi gned. Returning to
the phone book.] is heard.
The system may not function in the follow-
ing cases:
If the phone book is full.
If the dial number has more than 24
digits. (b) By Phone
1. Push the talk switch and say [By phone], or turn the “AUDIO CONTROL”
knob until [By Phone] is displayed and
push the knob.
[Phone entry. Prepare to send the informa-
tion from the phone. When ready, push
the talk switch and say confirm.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Send the information at this time.] is
heard.
After the system has received the name
and phone number, [Push the talk switch
and say confirm. To select an alternate
number, say next or previous. Otherwise,
say go back.] is heard and the name and
phone number are displayed. 3. Follow voice guidance instructions, push the talk switch and say [Confirm],
or turn the “AUDIO CONTROL” knob
until the dial number that you want to
register is displayed and push the
knob.
Next, input a voice tag.
For further details, see page 252.

’07 Rav4_U (L/O 0701)
257
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
To delete speed dial1. Push the talk switch and say [Delete speed dial], or turn the “AUDIO CON-
TROL” knob until [Del Spd Dial] is dis-
played and push the knob.
[Delete speed dial. Push the preset button
to delete from speed dial.] is heard. 2. Select the preset button that you want to delete.
[To delete preset... push the talk switch
and say confirm. Otherwise, say go back.]
is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Deleted.] is heard and [Deleted] is dis-
played.
[Returning to the phone book.] is heard.
The system may not function in the follow-
ing cases:
If no speed dial has been registered.
If the preset button has not been as-
signed. To change name
1. Push the talk switch and say [Change name], or turn the “AUDIO CONTROL”
knob until [Change Name] is displayed
and push the knob.
[Change name. Push the talk switch and
say the name to change.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
the dial number that you want to
change is displayed and push the
knob. When using a voice command:
[XXXX (phone number) Push the talk
switch and say confirm. Otherwise, say go
back.] is heard and the phone number is
displayed.
1. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Push the talk switch and say a new
name.] is heard.
2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Record Name] is displayed, push the
knob and say new name.
[XXXX Push the talk switch and say con-
firm. Otherwise, say go back.] is heard. 3. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Name changed. Returning to the phone
book.] is heard and [Changed] is dis-
played.

’07 Rav4_U (L/O 0701)
258
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
When using the knob:
[Push the talk switch and say a new
name.] is heard.1. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Record Name] is displayed, push the
knob and say new name.
[XXXX Push the talk switch and say con-
firm. Otherwise, say go back.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Name changed. Returning to the phone
book.] is heard and [Changed] is dis-
played.
The system may not function in the follow-
ing cases:
If no name has been registered.
If the system does not recognize the
voice command. To set speed dial
1. Push the talk switch and say [Set Speed dial], or turn the “AUDIO CON-
TROL” knob until [Speed Dial] is dis-
played and push the knob.
[Set speed dial. Push the talk switch and
say a name.] is heard. 2. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
the dial number that you want to regis-
ter is displayed and push the knob. When using a voice command:
[XXXX (phone number) To register this as
a speed dial entry, push the talk switch
and say confirm. Otherwise, say go back.]
is heard and the phone number is dis-
played.
1. Follow voice guidance instructions, or turn the “AUDIO CONTROL” knob until
[Confirm] is displayed and push the
knob.
[Push the preset button to assign to
XXXX] is heard. 2. Push and hold the desired preset but- ton.
[preset... is now assi gned. Returning to
the phone book.] is heard.
When using the knob:
[Push the preset button to assign to
XXXX] is heard.
Push and hold the desired preset button.
[preset... is now assi gned. Returning to
the phone book.] is heard.
The system may not function in the follow-
ing cases:
If no name has been registered.
If the system does not recognize the
voice command.

’07 Rav4_U (L/O 0701)
262
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
If the cellular phone is not registered, this
system cannot be used. See page 242 for
registering a cellular phone. Make sure
that [BT] is displayed and get the cellular
phone ready to use.
There are 3 ways to make a phone call
with this system.
Speed dial
A phone call can be made with a preset
button in which a phone number is regis-
tered. See page 258 for setting the preset
buttons.
Dial by Name
The system dials the numbers correspond-
ing to the spoken names registered in the
system.
Dial by Number
The system dials to the spoken numbers.
To make a phone call
Push the off −hook switch to turn the
hands −free system on. To speed dial
1. Push the preset button where the de- sired number is set. The name or tele-
phone number is displayed.
2. Push the off −hook switch to dial.
To dial by Name 1. Push the talk switch and say [Dial by name].
[Dial by name. Please push the talk
switch and say the stored name, or say
list names.] is heard and [Dial by Name]
is displayed.
2. Push the talk switch and say the phone name, or turn the “AUDIO CON-
TROL” knob until the name that you
want to dial is displayed and push the
knob. When using a voice command:
[XXXX (phone number) Push the off
−hook
switch to dial. Otherwise, push the talk
switch and say dial, or go back.] is heard.
After that, do the one of the following:
Push the off −hook switch.
Push the talk switch and say [Dial].
Turn the “AUDIO CONTROL” knob until
[Dial] is displayed and push the knob.
When using the knob:
It calls the number.
The system may not function in the follow-
ing cases:
If there is no number registered in the
preset button.
If the system does not recognize the
voice command.
—Making a phone call

’07 Rav4_U (L/O 0701)
268
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

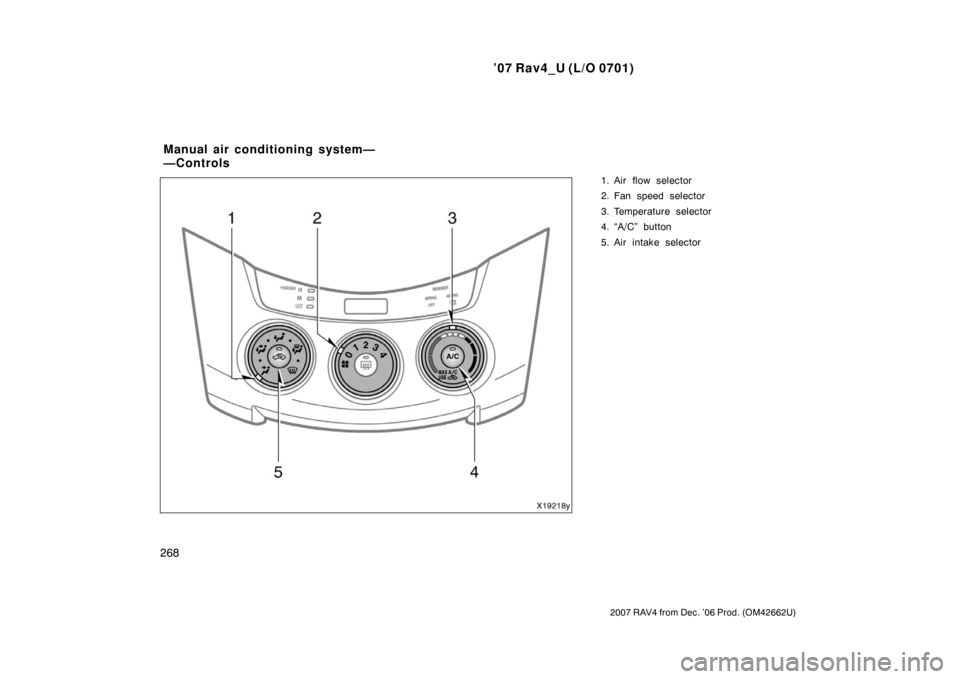

1. Air flow selector
2. Fan speed selector
3. Temperature selector
4. “A/C” button
5. Air intake selector
Manual air conditioning system—
—Controls
