’07 Rav4_U (L/O 0701)
281
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
In this position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
Pushing this button turns on the defroster−
linked air conditioning. This is to clean up
the front view more quickly.
To turn off the air conditioning alone,
press the “A/C” button once again.
When the “A/C” button is not pressed in,
pressing another air flow button turns off
the air conditioning.
To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.

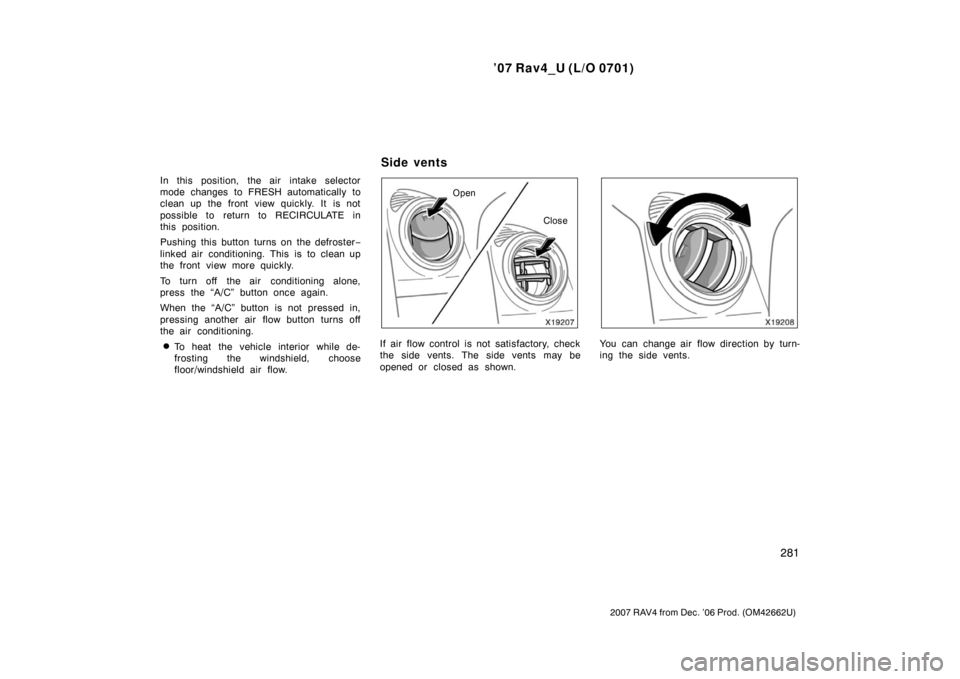

Open
Close
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.You can change air flow direction by turn-
ing the side vents.
Side vents

’07 Rav4_U (L/O 0701)
286
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

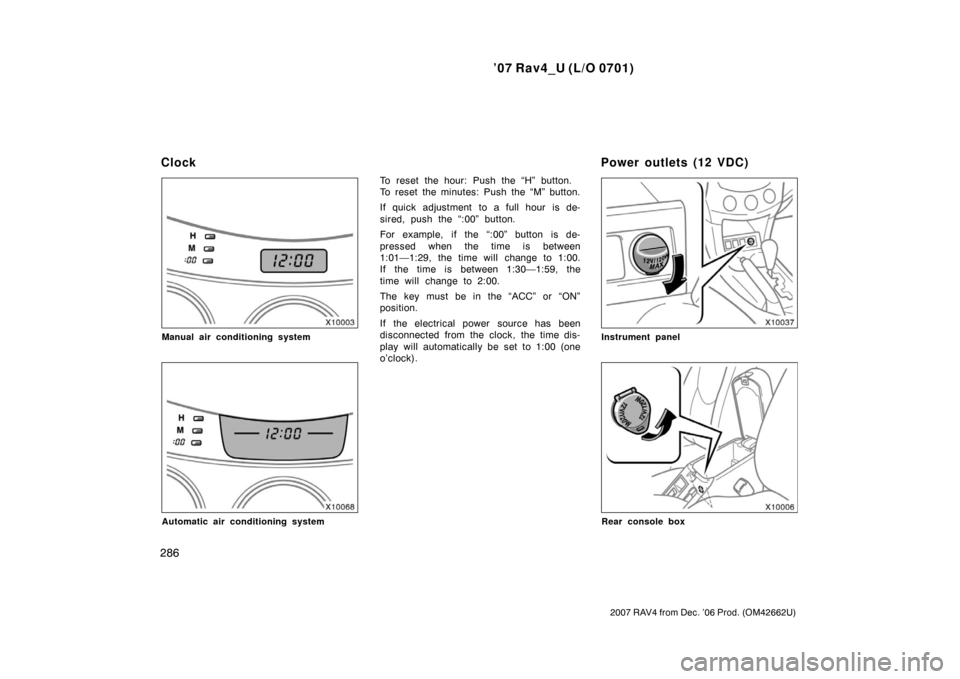

Manual air conditioning system
Automatic air conditioning system
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
Instrument panel
Rear console box
ClockPower outlets (12 VDC)

’07 Rav4_U (L/O 0701)
290
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
To open the box, push the “OPEN
CLOSE” button.
To close the box, push the “OPEN
CLOSE” button again.
Do not attempt to open the box forcibly
when your vehicle is on a steep downhill.
Move your vehicle to flat road and open
the box by pushing the button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Front
Rear (type A)
Rear (type B)
To use the box, do the following.
Front: Remove the deck board.
Rear (type A): Open the deck board by
pulling up the strap.
Rear (type B): Fold up the deck board.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the luggage storage
boxes closed while driving.
Auxiliary box
(instrument panel)Luggage storage boxes

’07 Rav4_U (L/O 0701)
373
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

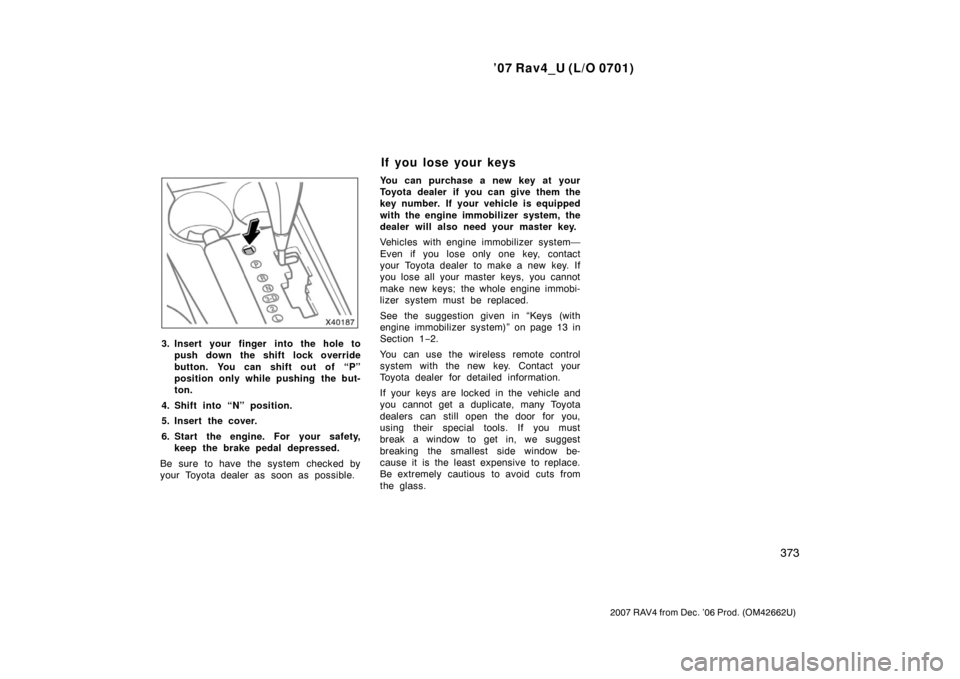

3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible. You can purchase a new key at your
Toyota dealer if you can give them the
key number. If your vehicle is equipped
with the engine immobilizer system, the
dealer will also need your master key.
Vehicles with engine immobilizer system—
Even if you lose only one key, contact
your Toyota dealer to make a new key. If
you lose all your master keys, you cannot
make new keys; the whole engine immobi-
lizer system must be replaced.
See the suggestion given in “Keys (with
engine immobilizer system)” on page 13 in
Section 1
−2.
You can use the wireless remote control
system with the new key. Contact your
Toyota dealer for detailed information.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
If you lose your keys
