’07 Rav4_U (L/O 0701)
71
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain shield air-
bags are designed to provide further
protection for the driver, front passen-
ger and rear/second passengers in addi-
tion to the primary safety protection
provided by the seat belts.In response to a severe side impact, the
SRS side airbag and curtain shield airbags
in the impacted side work with the seat
belts to help reduce injury by inflating.
The SRS side airbags help reduce injuries
mainly to the driver’s or front passenger’s
chest. The SRS curtain shield airbags
help reduce injuries mainly to the driver ’s,
front passenger ’s or rear/second passen-
ger ’s head and help prevent them from
being thrown out of the vehicle.
The SRS side airbag on the passenger
seat will not activate if there is no pas-
senger sitting in the front passenger seat.
However, the side airbag on the passen-
ger seat may deploy if luggage is put in
the seat, or the seat belt is buckled up
regardless of the presence of the occu-
pant in the seat. (As for the front passen-
ger occupant classification system, see
“—Front passenger occupant classification
system” on page 81 in this Section.)
The SRS curtain shield airbag on the pas-
senger side are activated even with no
passenger in the front seat or rear/second
outside seat.Roll sensing function:
In response to a vehicle rollover, the cur-
tain shield airbags on both sides work
with the seat belts to help reduce injury
by inflating. The curtain shield airbags
help reduce injuries mainly to the driver ’s,
front passenger ’s or rear/second passen-
ger ’s head and help prevent them from
being thrown out of the vehicle.
The SRS curtain shield airbags may acti-
vate even when the side airbags are not
activated.
Always wear your seat belt properly.
—SRS side airbags and
curtain shield airbags

’07 Rav4_U (L/O 0701)
72
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the prima-
ry protection of the driver, front
passenger and rear/second outside
passenger seat belt systems. To en-
sure maximum protection in an ac-
cident, the driver and all passen-
gers in the vehicle must wear their
seat belts properly. Wearing a seat
belt properly during an accident re-
duces the chances of death or seri-
ous injury or being thrown out of
the vehicle. For instructions and
precautions concerning the seat
belt system, see “Seat belts” on
page 53 in this Section.
Do not allow anyone to lean his/her
head or any part of his/her body
against the door or the area of the
seat, front pillar, rear pillar or roof
side rails from which the SRS side
airbag and curtain shield airbag
deploy even if he/she is a child
seated in the child restraint system.
It is dangerous if the SRS side air-
bag and curtain shield airbag in-
flate, and the impact of the deploy-
ing airbag could cause death or se-
rious injury to the occupant.Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seats of the vehicle and prop-
erly restrained. The rear seats are
the safest for infants and children.
For instructions concerning the
installation of a child restraint sys-
tem, see “Child restraint” on page
85 in this Section.

’07 Rav4_U (L/O 0701)
73
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

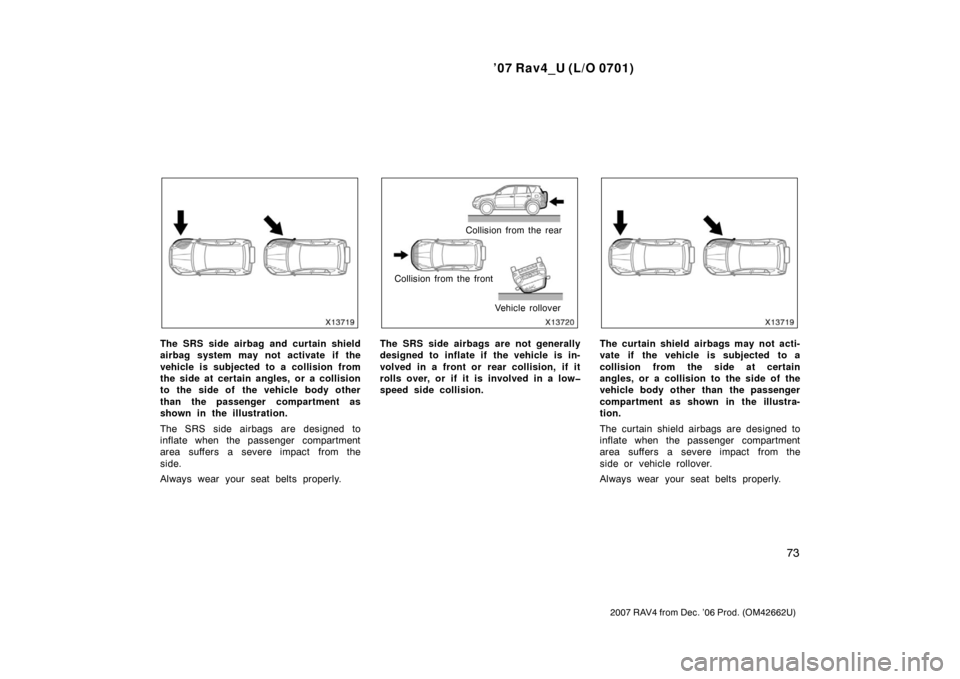

The SRS side airbag and curtain shield
airbag system may not activate if the
vehicle is subjected to a collision from
the side at certain angles, or a collision
to the side of the vehicle body other
than the passenger compartment as
shown in the illustration.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
Always wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags are not generally
designed to inflate if the vehicle is in-
volved in a front or rear collision, if it
rolls over, or if it is involved in a low
speed side collision.The curtain shield airbags may not acti-
vate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustra-
tion.
The curtain shield airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side or vehicle rollover.
Always wear your seat belts properly.

’07 Rav4_U (L/O 0701)
74
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

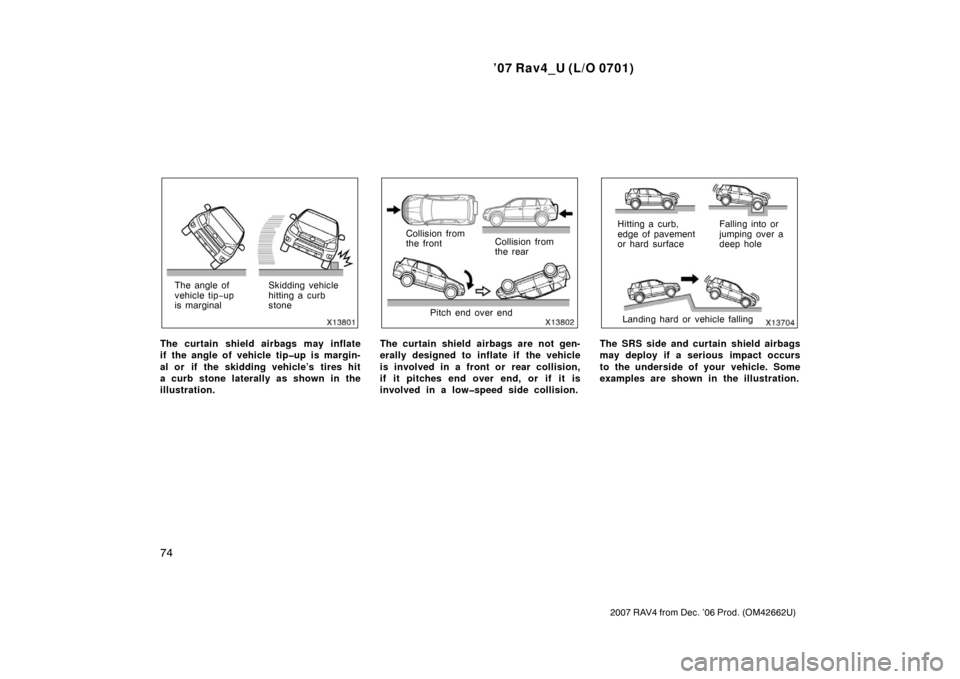

The angle of
vehicle tip−up
is marginal Skidding vehicle
hitting a curb
stone
The curtain shield airbags may inflate
if the angle of vehicle tipup is margin-
al or if the skidding vehicle’s tires hit
a curb stone laterally as shown in the
illustration.
Collision from
the front
Collision from
the rear
Pitch end over end
The curtain shield airbags are not gen-
erally designed to inflate if the vehicle
is involved in a front or rear collision,
if it pitches end over end, or if it is
involved in a lowspeed side collision.
Hitting a curb,
edge of pavement
or hard surface Falling into or
jumping over a
deep hole
Landing hard or vehicle falling
The SRS side and curtain shield airbags
may deploy if a serious impact occurs
to the underside of your vehicle. Some
examples are shown in the illustration.

’07 Rav4_U (L/O 0701)
75
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
The SRS side airbag and curtain shield
airbag system consists mainly of the fol-
lowing components, and their locations are
shown in the illustration.1. SRS warning light
2. “AIRBAG ON” and “AIRBAG OFF” indi- cator lights
3. Curtain shield airbag modules (airbag and inflator)
4. Front passenger occupant classification system (ECU and sensors)
5. Side airbag modules (airbag and inflator)
6. Curtain shield airbag sensors
7. Side and curtain shield airbag sensors 8. Airbag sensor assembly
9. Front passenger ’s seat belt buckle
switch
The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor as-
sembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain
shield airbag inflators. At this time a
chemical reaction in the inflators quickly
fills the airbags with non −toxic gas to help
restrain the lateral motion of the occu-
pants.
In a vehicle rollover, the airbag sensor
assembly triggers the curtain shield airbag
inflator. At this time, a chemical reaction
in the inflators quickly fills the airbags
with non −toxic gas to help restrain the
lateral motion of the occupants. When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non
−toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillars, front, center and rear
garnish and roof interior may be hot for
several minutes, but the airbags them-
selves will not be hot. The airbags are
designed to inflate only once.

’07 Rav4_U (L/O 0701)
76
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

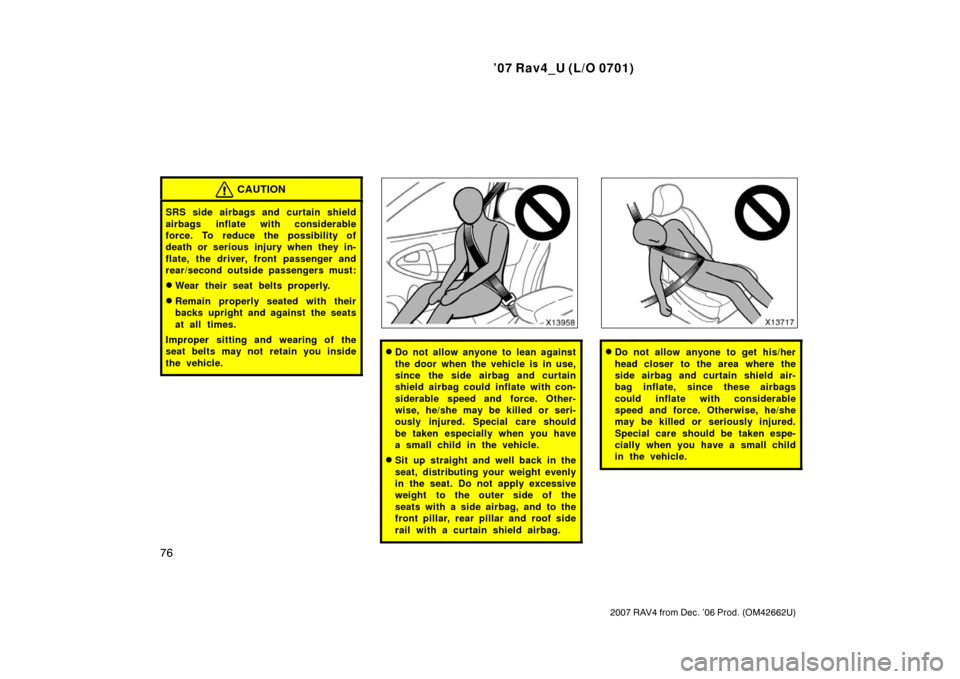

CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver, front passenger and
rear/second outside passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Improper sitting and wearing of the
seat belts may not retain you inside
the vehicle.
Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.
Do not allow anyone to get his/her
head closer to the area where the
side airbag and curtain shield air-
bag inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.

’07 Rav4_U (L/O 0701)
77
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

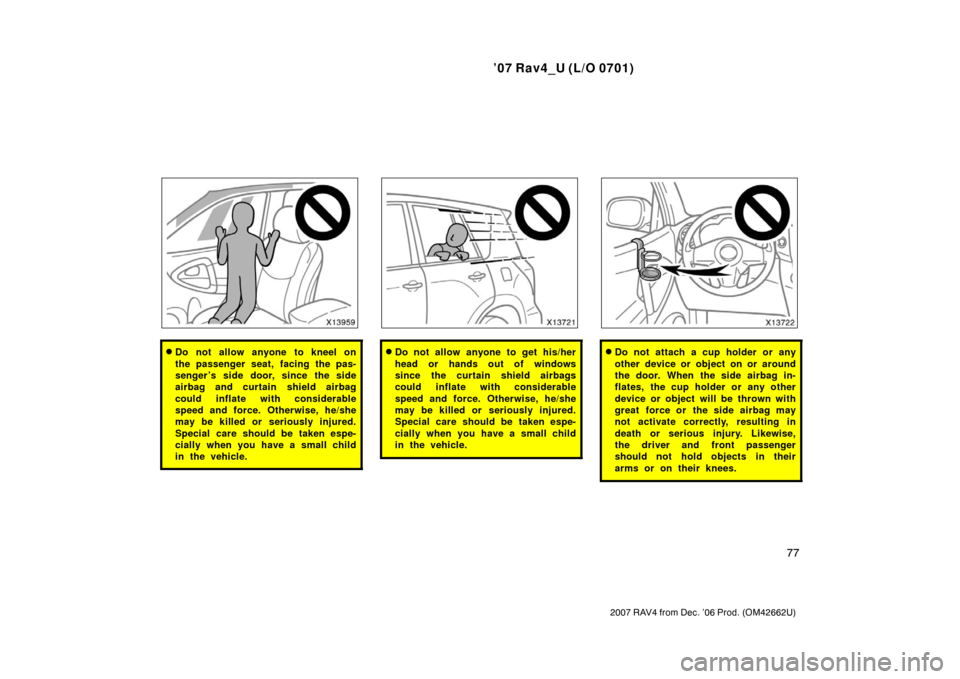

Do not allow anyone to kneel on
the passenger seat, facing the pas-
senger ’s side door, since the side
airbag and curtain shield airbag
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.

’07 Rav4_U (L/O 0701)
78
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

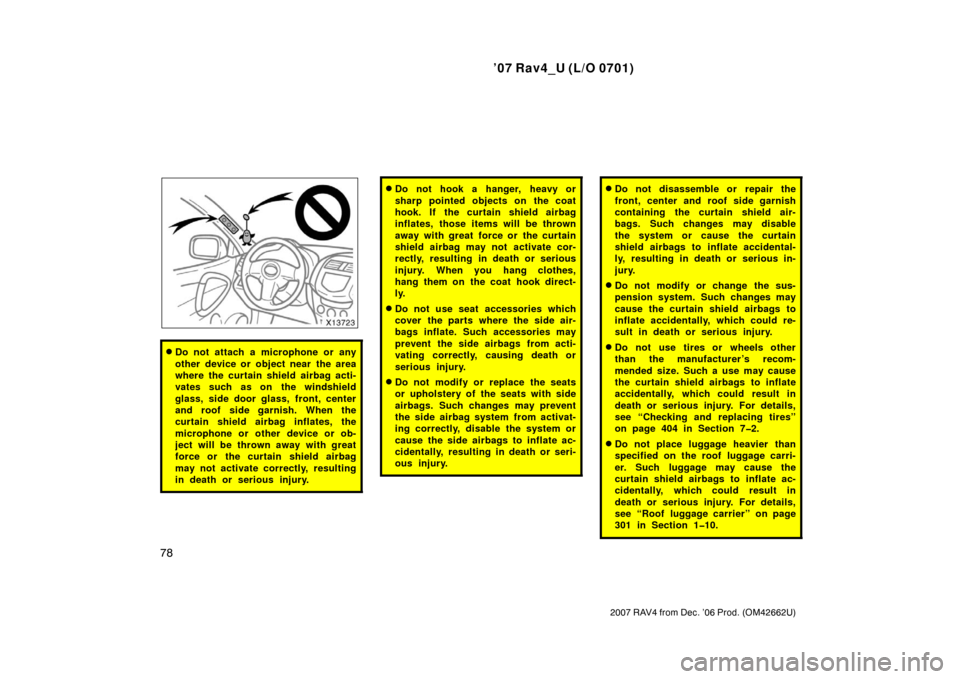

Do not attach a microphone or any
other device or object near the area
where the curtain shield airbag acti-
vates such as on the windshield
glass, side door glass, front, center
and roof side garnish. When the
curtain shield airbag inflates, the
microphone or other device or ob-
ject will be thrown away with great
force or the curtain shield airbag
may not activate correctly, resulting
in death or serious injury.
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Do not disassemble or repair the
front, center and roof side garnish
containing the curtain shield air-
bags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Do not modify or change the sus-
pension system. Such changes may
cause the curtain shield airbags to
inflate accidentally, which could re-
sult in death or serious injury.
Do not use tires or wheels other
than the manufacturer ’s recom-
mended size. Such a use may cause
the curtain shield airbags to inflate
accidentally, which could result in
death or serious injury. For details,
see “Checking and replacing tires”
on page 404 in Section 72.
Do not place luggage heavier than
specified on the roof luggage carri-
er. Such luggage may cause the
curtain shield airbags to inflate ac-
cidentally, which could result in
death or serious injury. For details,
see “Roof luggage carrier” on page
301 in Section 110.

’07 Rav4_U (L/O 0701)
79
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with physical disability, con-
sult your Toyota dealer. It may dan-
gerously interfere with the SRS side
airbags and curtain shield airbags op-
eration.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.

’07 Rav4_U (L/O 0701)
80
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, “AIRBAG ON” indicator
light, “AIRBAG OFF” indicator light, front
passenger ’s seat belt buckle switch, seat
belt pretensioner assemblies, inflators, in-
terconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 127 in
Section 1−6.)
If either of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds.
The light comes on while driving.
The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front, center and
roof side garnish containing the curtain
shield airbags inside (shaded in the
illustration) is scratched, cracked, or
otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
