’07 Rav4_U (L/O 0701)
31
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

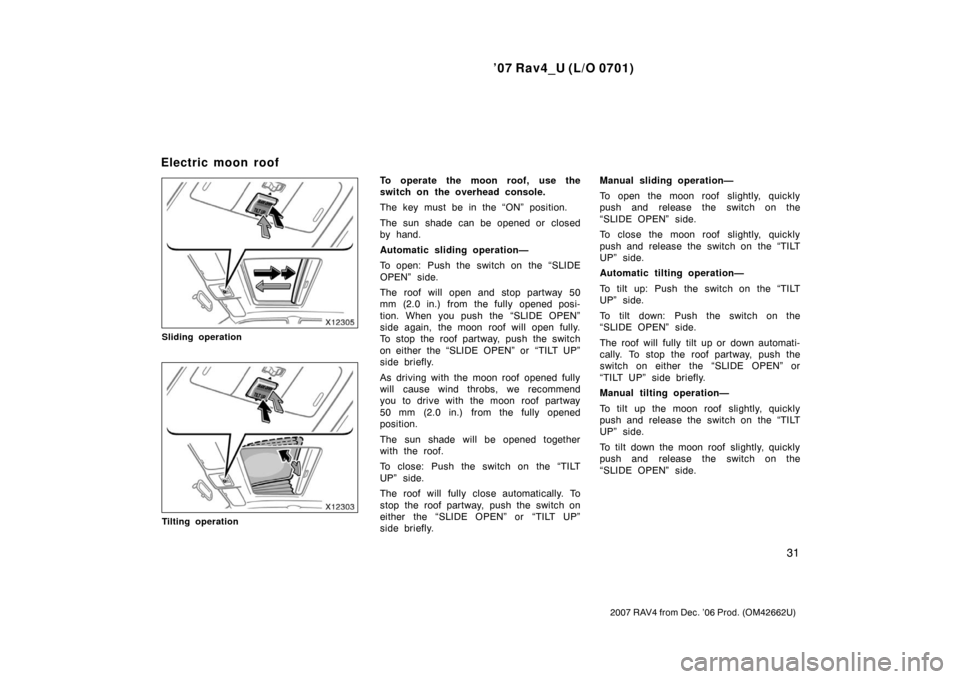

Sliding operation
Tilting operation
To operate the moon roof, use the
switch on the overhead console.
The key must be in the “ON” position.
The sun shade can be opened or closed
by hand.
Automatic sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will open and stop partway 50
mm (2.0 in.) from the fully opened posi-
tion. When you push the “SLIDE OPEN”
side again, the moon roof will open fully.
To stop the roof partway, push the switch
on either the “SLIDE OPEN” or “TILT UP”
side briefly.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
50 mm (2.0 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “TILT
UP” side.
The roof will fully close automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side briefly.Manual sliding operation—
To open the moon roof slightly, quickly
push and release the switch on the
“SLIDE OPEN” side.
To close the moon roof slightly, quickly
push and release the switch on the “TILT
UP” side.
Automatic tilting operation—
To tilt up: Push the switch on the “TILT
UP” side.
To tilt down: Push the switch on the
“SLIDE OPEN” side.
The roof will fully tilt up or down automati-
cally. To stop the roof partway, push the
switch on either the “SLIDE OPEN” or
“TILT UP” side briefly.
Manual tilting operation—
To tilt up the moon roof slightly, quickly
push and release the switch on the “TILT
UP” side.
To tilt down the moon roof slightly, quickly
push and release the switch on the
“SLIDE OPEN” side.
Electric moon roof

’07 Rav4_U (L/O 0701)
32
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Key off operation: The moon roof works
for 45 seconds even after the ignition
switch is turned off. It stops working when
either front door is opened.
Jam protection function: If something
gets caught between the moon roof and
frame during closing operation, the moon
roof stops and opens half way.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
If the moon roof does not operate auto-
matically or the jam protection function
does not operate correctly, you should
normalize the moon roof.
To normalize the moon roof, push and
hold the moon roof switch on the “TILT
UP” side until the roof fully tilts up. Then
release the switch. Push and hold the
switch on the “TILT UP” side until the
moon roof tilts up, tilts down, slides open
and then closes automatically.
Make sure that the moon roof opens and
closes automatically. If the moon roof can-
not be operated properly, have it checked

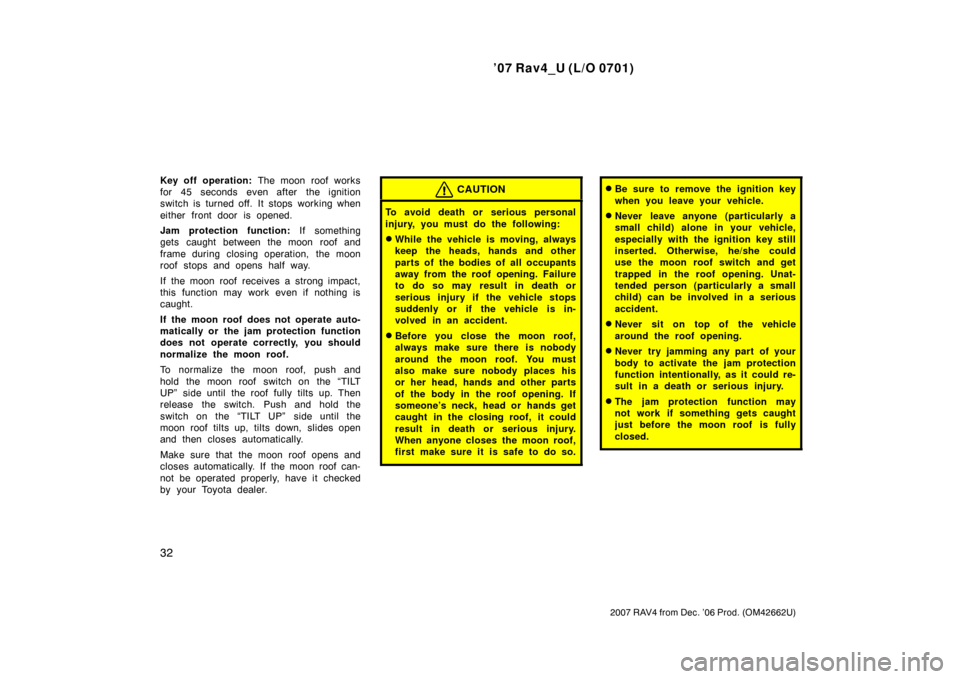

by your Toyota dealer.CAUTION
To avoid death or serious personal
injury, you must do the following:
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Failure
to do so may result in death or
serious injury if the vehicle stops
suddenly or if the vehicle is in-
volved in an accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moon roof switch and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.

’07 Rav4_U (L/O 0701)
33
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Flattening seatbacks 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Armrest 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Head restraints 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat heaters 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Seat belts 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS airbags 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Child restraint 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 3

’07 Rav4_U (L/O 0701)
34
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

’07 Rav4_U (L/O 0701)
35
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

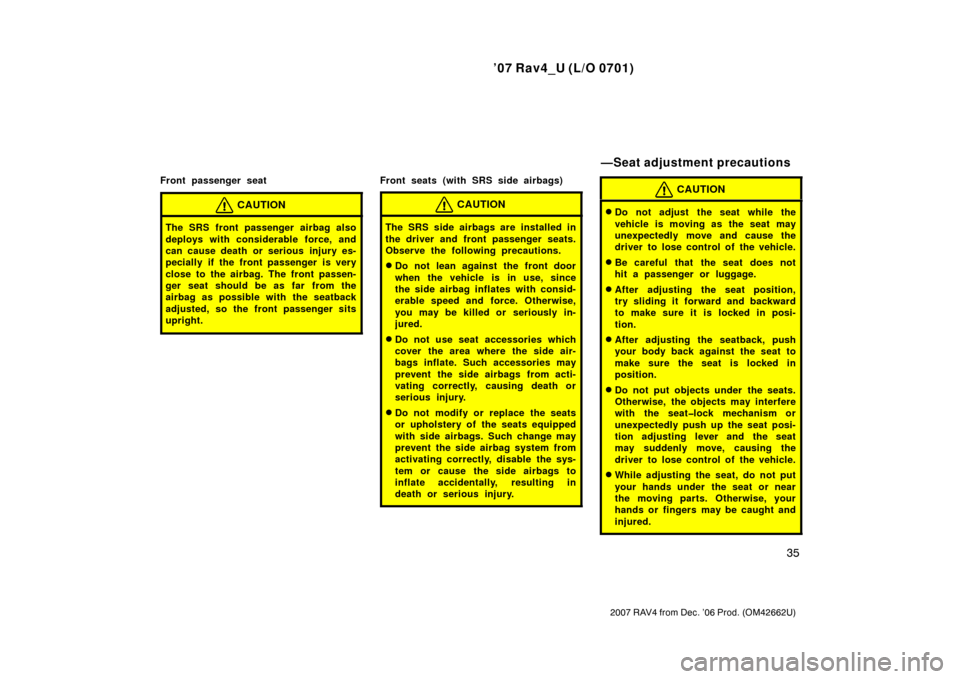

Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem or cause the side airbags to
inflate accidentally, resulting in
death or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
—Seat adjustment precautions

’07 Rav4_U (L/O 0701)
36
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

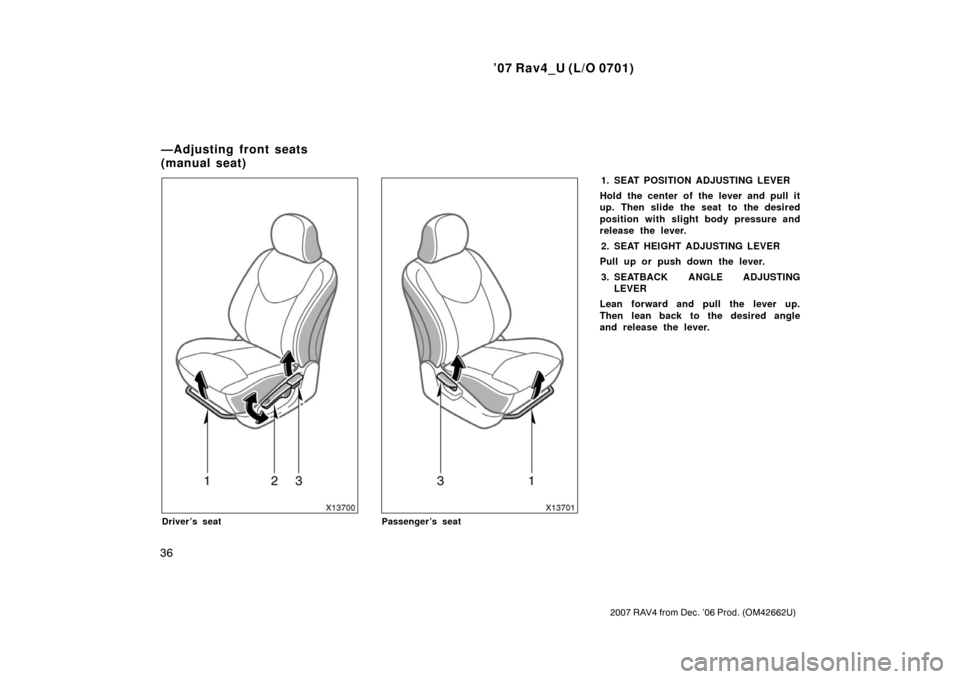

Driver’s seatPassenger’s seat
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT HEIGHT ADJUSTING LEVER
Pull up or push down the lever.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting front seats
(manual seat)

’07 Rav4_U (L/O 0701)
37
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
1. SEAT POSITION, SEAT CUSHIONANGLE AND SEAT HEIGHT
ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)

’07 Rav4_U (L/O 0701)
38
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

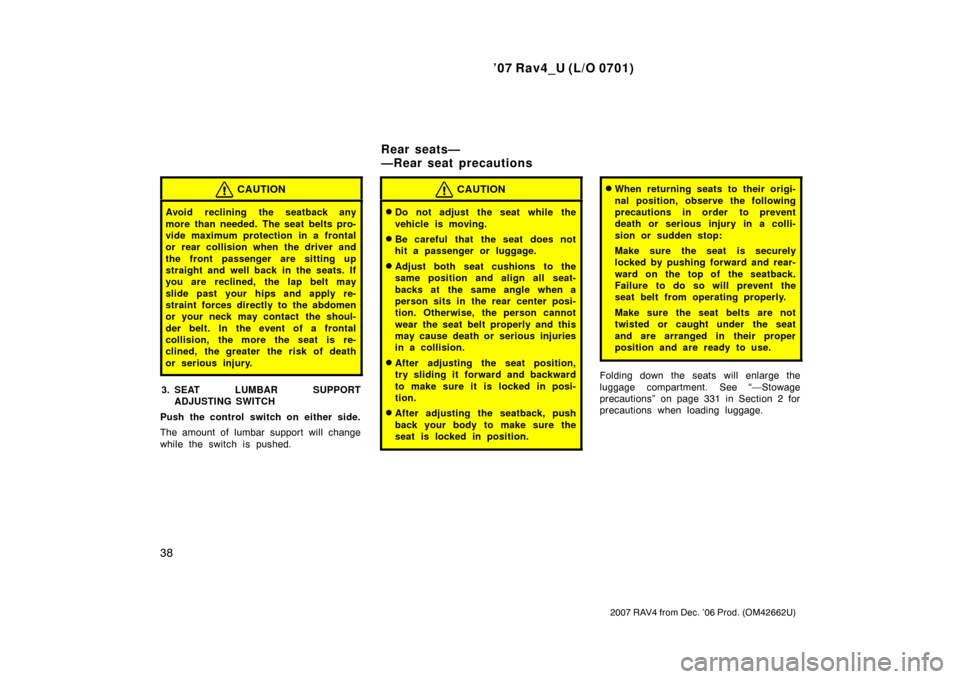

CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Push the control switch on either side.
The amount of lumbar support will change
while the switch is pushed.
CAUTION
Do not adjust the seat while the
vehicle is moving.
Be careful that the seat does not
hit a passenger or luggage.
Adjust both seat cushions to the
same position and align all seat-
backs at the same angle when a
person sits in the rear center posi-
tion. Otherwise, the person cannot
wear the seat belt properly and this
may cause death or serious injuries
in a collision.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
back your body to make sure the
seat is locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent
death or serious injury in a colli-
sion or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding down the seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 331 in Section 2 for
precautions when loading luggage.
Rear seats—
—Rear seat precautions

’07 Rav4_U (L/O 0701)
39
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Without third seatWith third seat
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
When a person sits in the rear center
position, adjust both seat cushions to
the same position. 2. SEATBACK ANGLE ADJUSTING LEVERS
Pull down the lever. Then lean back to
the desired angle and release the lever.
When a person sits in the rear center
position, align all seatbacks at the
same angle.
—Adjusting rear/second seats

’07 Rav4_U (L/O 0701)
40
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

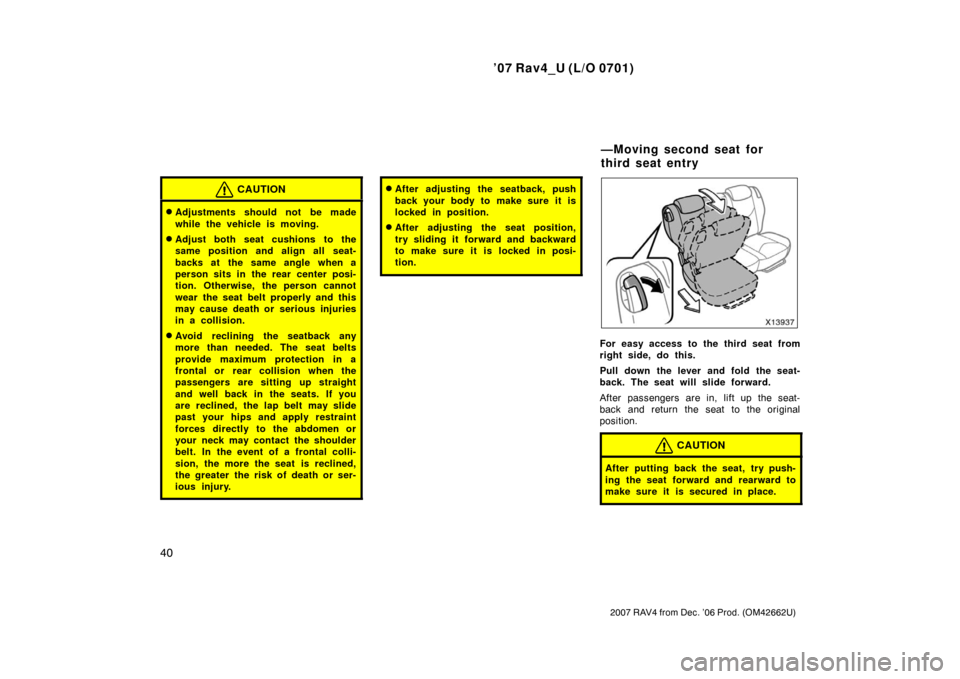

CAUTION
Adjustments should not be made
while the vehicle is moving.
Adjust both seat cushions to the
same position and align all seat-
backs at the same angle when a
person sits in the rear center posi-
tion. Otherwise, the person cannot
wear the seat belt properly and this
may cause death or serious injuries
in a collision.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen or
your neck may contact the shoulder
belt. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of death or ser-
ious injury.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
For easy access to the third seat from
right side, do this.
Pull down the lever and fold the seat-
back. The seat will slide forward.
After passengers are in, lift up the seat-
back and return the seat to the original
position.
CAUTION
After putting back the seat, try push-
ing the seat forward and rearward to
make sure it is secured in place.
—Moving second seat for
third seat entry
