OPERATION OF INSTRUMENTS AND
CONTROLS
Audio and handsfree phone systems
Reference172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
AUX adapter 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio remote controls 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Rear seat entertainment system 194
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 232
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Hands −free phone system 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8

’08 Rav4_U (L/O 0802)
172
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

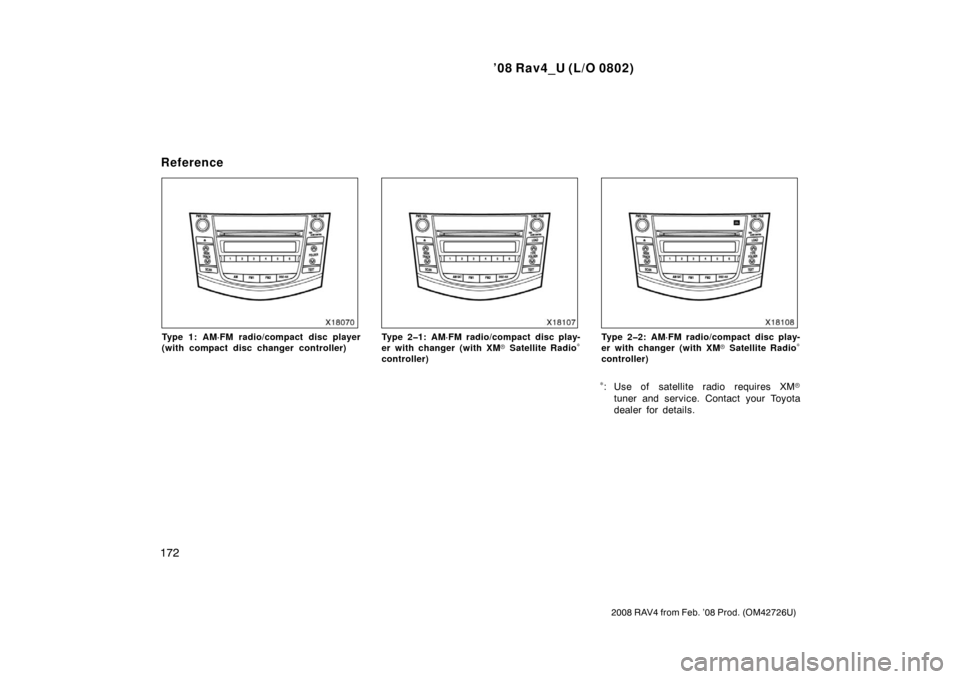

Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)Type 21: AM·FM radio/compact disc play-
er with changer (with XM Satellite Radio∗
controller)
Type 22: AM·FM radio/compact disc play-
er with changer (with XM  Satellite Radio∗
controller)
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
Reference

’08 Rav4_U (L/O 0802)
173
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the engine
switch is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “AM·SAT”
∗, “FM1”, “FM2” or
“DISC·AUX” to turn on that function with-
out pushing “PWR·VOL”. To turn on the
compact disc player, a compact disc must
be loaded in the player.
You can turn on compact disc player by
inserting a compact disc.
You can turn off the compact disc player
by ejecting the compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the compact disc. If other function
was previously playing, it will come on
again.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details. SWITCHING BETWEEN FUNCTIONS
Push “AM”, “AM·SAT”
∗, “FM1”, “FM2”,
“DISC·AUX” if the system is already on
but you want to switch from one function
to other.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
LISTENING TO THE XM  SATELLITE
RADIO BROADCAST
∗ (type 21 and 22)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM  Satellite Radio
service is also necessary.
How to subscribe to an XM  Satellite
Radio
An XM  Satellite Radio is a tuner de-
signed exclusively to receive broadcasts
provided under a separate subscription.
Availability is limited to the 48 contiguous
U.S. states and 10 Canadian provinces. How to subscribe:
You must enter into a separate service
agreement with the XM
 Satellite Radio in
order to receive satellite broadcast pro-
gramming in the vehicle. Additional activa-
tion and service subscription fees apply
that are not included in the purchase price
of the vehicle and optional digital satellite
tuner. For complete information on sub-
scription rates and terms, or to subscribe
to the XM  Satellite Radio,
U.S.A.—
Visit on the web at www.xmradio.com
or
call 1 −800− 967−2346.
Canada—
Visit on the web at www.xmradio.ca
or call
1 −877− 438−9677.
The XM  Satellite Radio is solely respon-
sible for the quality, availability and con-
tent of the satellite radio services pro-
vided, which are subject to the terms and
conditions of the XM  Satellite Radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
Using your audio system—
—Some basics

’08 Rav4_U (L/O 0802)
174
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
All fees and programming are the respon-
sibility of the XM Satellite Radio and are
subject to change.
Satellite t uner technology notice:
Toyota’s satellite radio t uners are awarded
Type Approval Certificates from XM  Sat-
ellite Radio Inc. as proof of compatibility
with the services offered by the XM
Satellite Radio.
Displaying the radio ID
Each XM  tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM  service or when reporting
a problem.
If you select the “CH 000” using the
“TUNE·FILE” knob, the ID code of 8 al-
phanumeric characters appears. If you se-
lect another channel, display of the ID
code is canceled. The channel (000) alter-
nates the display between the radio ID
and the specific radio ID code.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details. TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
SRS
Type 1 and 2
−1 audio systems utilize SRS
FOCUS  and SRS TruBass  audio
enhancement technologies, under license
from SRS Labs, Inc., in all modes except
AM radio mode.
FOCUS , TruB as s , SRS andsymbols are trade-
marks of SRS Labs, Inc.
FOCUS and TruBass technologies are incorporated under
license from SRS Labs, Inc.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 2 −2) and bass
levels. In fact, different kinds of music
and vocal programs usually sound better
with different mixes of treble, midrange
and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of other.
YOUR RADIO ANTENNA
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automatic
car wash.

’08 Rav4_U (L/O 0802)
175
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.

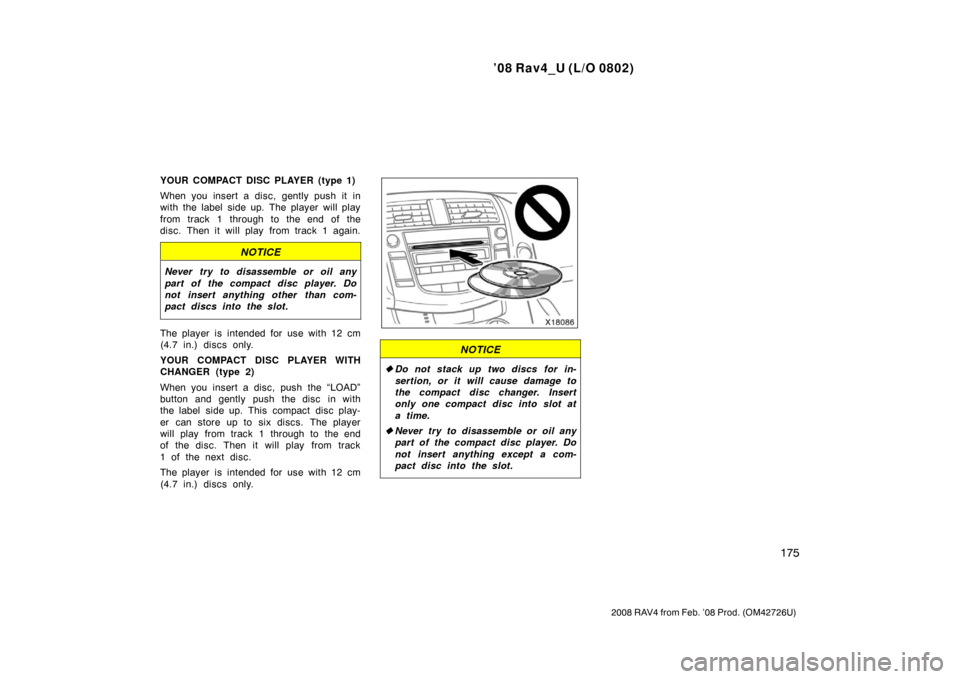

YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. This compact disc play-
er can store up to six discs. The player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc changer. Insert
only one compact disc into slot at
a ti me.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.

’08 Rav4_U (L/O 0802)
176
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

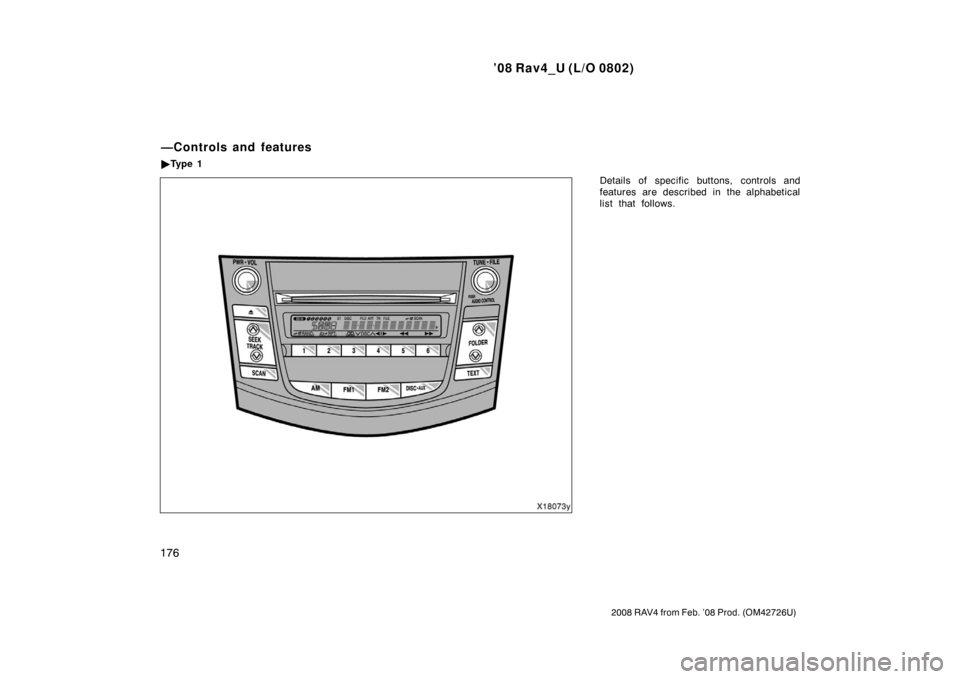

Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features
Ty p e 1

’08 Rav4_U (L/O 0802)
177
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE·FILE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The button num-
ber will appear on the display.
To recall a preset station: Push the button
for the station you want. The button num-
ber and station frequency will appear on
the display.
These systems can store one AM and two
FM stations for each button. (The display
will show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing. AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low
−pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7. ASL: The Automatic Sound Levelizer can
be turned on by turning the knob. In addi-
tion, turning the knob allows you to select
from LOW, MID, and HIGH volume and
tone settings. The ASL system automati-
cally adjusts volume and tone in accor-
dance with the driving speed. This helps
ensure an optimal listening experience
even if noise levels rise while driving.
DISC·AUX (Compact disc)
Push the “DISC·AUX” button to play a
compact disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
To switch between CD and AUX (external
device) modes, press the “DISC·AUX” but-
ton. The AUX mode is only available when
AUX adapter is connected to the system.
When the AUX adapter is in use, “AUX”
will appear on the display.

’08 Rav4_U (L/O 0802)
178
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”: The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If “NO MUSIC” appears on the display,
it indicates that a disc with no MP3/WMA
data has been inserted. Remove the disc
from the player and insert an MP3/WMA
data disc.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
DISC
With compact disc changer only—
Use these buttons to select the disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 3). “” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
∗: Dolby digital
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double −D symbol
are trade-
marks of Dolby Laboratories. Confidential unpublished
works.
(c) 1992− 1997 Dolby Laboratories. All rights reserved.
This product incorporates copyright protection technology
that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision
Corporation, and is intended for home and other limited view-
ing uses only unless otherwise authorized by Macrovision
Corporation.
Reverse engineering or disassembly is prohibited.
FM1 FM2
Push the “FM1” or “FM2” button to turn on
the radio and select the FM band. “FM1”
or “FM2” will appear on the display. This
system allows you to set twelve FM sta-
tions, two for each of the preset button.
FOLDER (Folder up/down)
To skip up or down to a different folder:
Push either side of the “FOLDER” several
times until the number of the folder you
want to listen to appears on the display.
To jump to the first file in the first folder:
Push and hold the “ ” side of the button
until you hear a beep.
When playing a disc featuring both audio
data (CD −DA) and MP3/WMA files, audio
data (CD −DA) is played.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.

’08 Rav4_U (L/O 0802)
179
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
RAND (Random)
Compact disc player
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
With compact disc changer only—
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again. MP3/WMA player
There are two random playback features—
you can either listen to all of the files on
the compact discs in random order. You
can also listen to the files in a single
folder in random order.
To randomly play the files in a folder:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display.
To randomly play all of the files on the
compact disc:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will
appear on the display and the player will
play all of the files on the disc in random
order. To turn off the random playback
feature, push this button again.
RPT (Repeat)
Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc. Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
With compact disc changer only—
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
MP3/WMA player
There are two repeat features—you can
repeat a signal file or an entire folder.
Repeating a file:
Quickly push and release “RPT” (preset
button 2) while the file is playing.
“
” will appear on the display. When
the file ends, it will repeat automatically.
This process will be continued until you
push the button again to turn off the re-
peat feature.

’08 Rav4_U (L/O 0802)
180
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Repeating a folder:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all of the files in the folder. When the last
file in the folder ends, the folder will re-
peat from the beginning. To turn off the
repeat feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up or down the band, stay there
for 5 seconds, and then move to the next
preset station. To stop scanning, push this
button again.
To scan all the frequencies:
Quickly push and release “SCAN”. The
radio will find the next station up or down
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again. Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan up or down all the tracks on the
disc you are listening to. To stop scan-
ning, push this button again. If the player
scanned all the tracks on the disc, it will
stop scanning.
The discs in the compact disc changer
can be scanned up only.
With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push “SCAN” until you hear a beep.
“
SCAN” will appear on the display and
the player will scan up or down the first
track of the next disc. To stop scanning,
push this button again. If the auto changer
has scanned all the discs, it will stop
scanning. MP3/WMA player
There are two scan features—you can ei-
ther scan the files in a folder on a specif-
ic disc or scan the first file of all the
folder.
Scanning the files on a folder:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the files in the folder you are
listening to. To select a file, push the
“SCAN” again. After all the tracks on the
disc have been scanned in one pass, nor-
mal play resumes.
Scanning the first file of all the folders:
Push “SCAN” until you hear a beep.
“
SCAN” will appear on the display and
the player will scan the first file of the
next folder. To select a folder, push the
“SCAN” again. After all the folders have
been scanned in one pass, normal play
resumes.
SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
