TOYOTA RAV4 2008 XA30 / 3.G Owners Manual

’08 Rav4_U (L/O 0802)
211
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

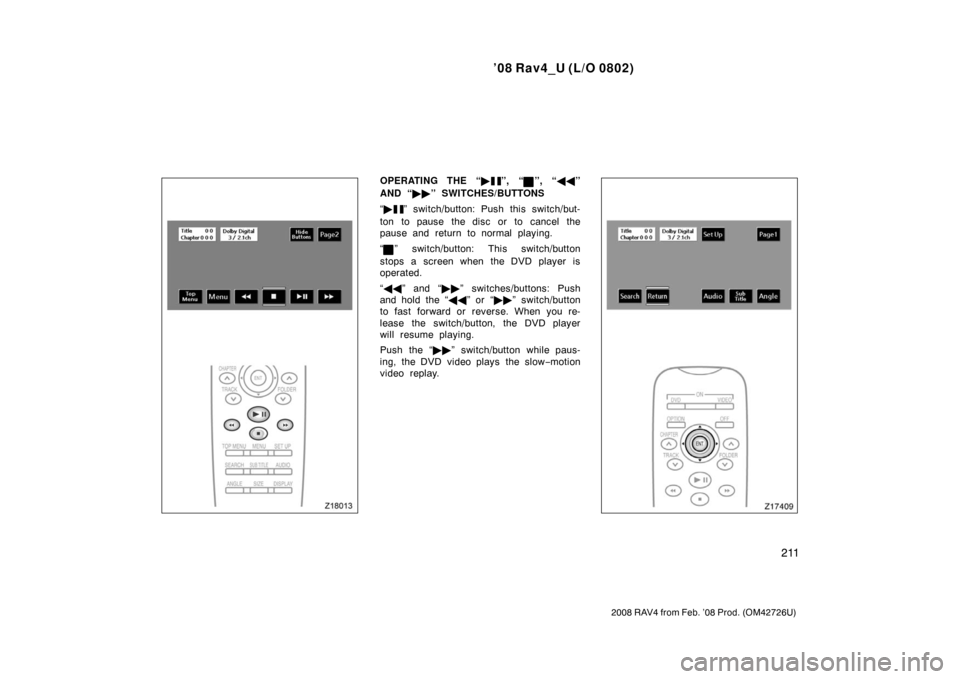

OPERATING THE “”, “”, “”
AND “ ” SWITCHES/BUTTONS
“
” switch/button: Push this switch/but-
ton to pause the disc or to cancel the
pause and return to normal playing.
“
” switch/button: This switch/button
stops a screen when the DVD player is
operated.
“  ” and “ ” switches/buttons: Push
and hold the “ ” or “ ” switch/button
to fast forward or reverse. When you re-
lease the switch/button, the DVD player
will resume playing.
Push the “ ” switch/button while paus-
ing, the DVD video plays the slow −motion
video replay.

’08 Rav4_U (L/O 0802)
212
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
SKIPPING TO THE PREDETERMINED
SCREEN
To skip to the predetermined screen, push
the “Return” switch. The DVD player starts
playing from the beginning of the predeter-
mined screen.
For further details of the predetermined
screen, see the separate manual for the
DVD disc.SELECTING THE TITLE

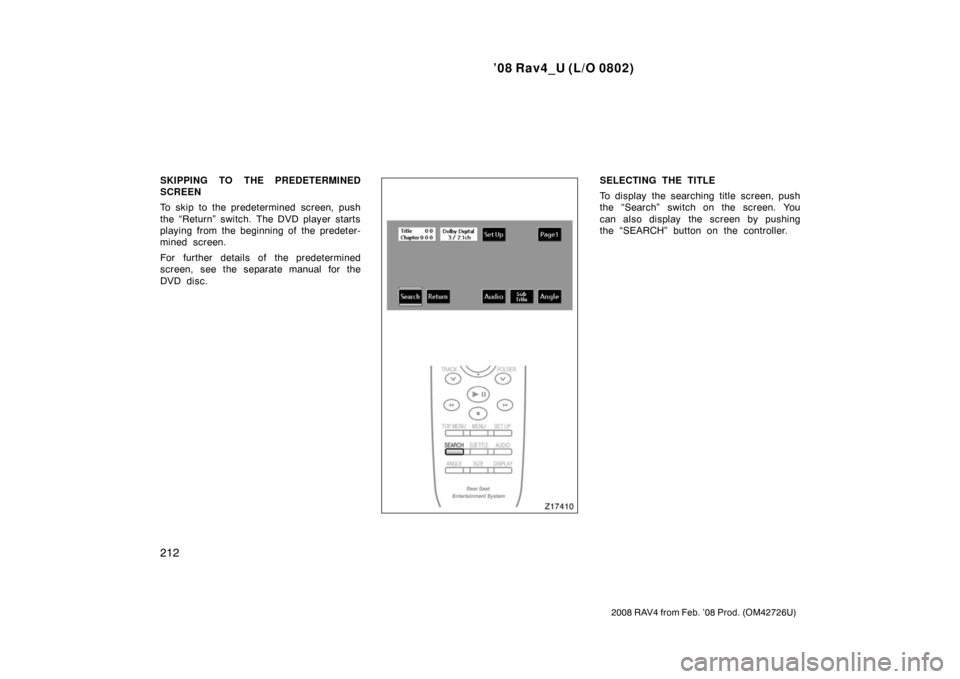

To display the searching title screen, push
the “Search” switch on the screen. You
can also display the screen by pushing
the “SEARCH” button on the controller.

’08 Rav4_U (L/O 0802)
213
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Select the title number by using the
joystick and push the “ENT” button to
enter the number. The player starts play-
ing disc for that title number. The selected
title number will appear on the screen.
Push the “Back” switch to return to the
menu screen.
CHANGING THE SUBTITLE LANGUAGE
Push the “Sub Title” switch on the screen,
and then the changing subtitle language
screen will appear. You can also display
the screen by pushing the “SUB TITLE”
button on the controller.

’08 Rav4_U (L/O 0802)
214
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Each time you push the “Sub Title” switch,
another language stored on the disc is
selected.
To turn off the subtitles, push the “Hide
Buttons” switch.
Push the “Back” switch to return to the
previous screen.
The selected subtitle language will appear
on the screen.
CHANGING AUDIO LANGUAGE
Push the “Audio” switch on the screen
and then the changing audio language
screen will appear. You can also display
the screen by pushing the “AUDIO” button
on the controller.

’08 Rav4_U (L/O 0802)
215
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Each time you push the “Audio” switch,
another language stored on the disc is
selected.
To turn off the audio language screen,
push the “Hide Buttons” switch.
Push the “Back” switch to return to the
previous screen.
The selected audio language will appear
on the screen.
CHANGING ANGLE SCREEN
Push the “Angle” switch on the screen,
and then the changing angle screen will
appear. You can also display the screen
by pushing the “ANGLE” button on the
controller.

’08 Rav4_U (L/O 0802)
216
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

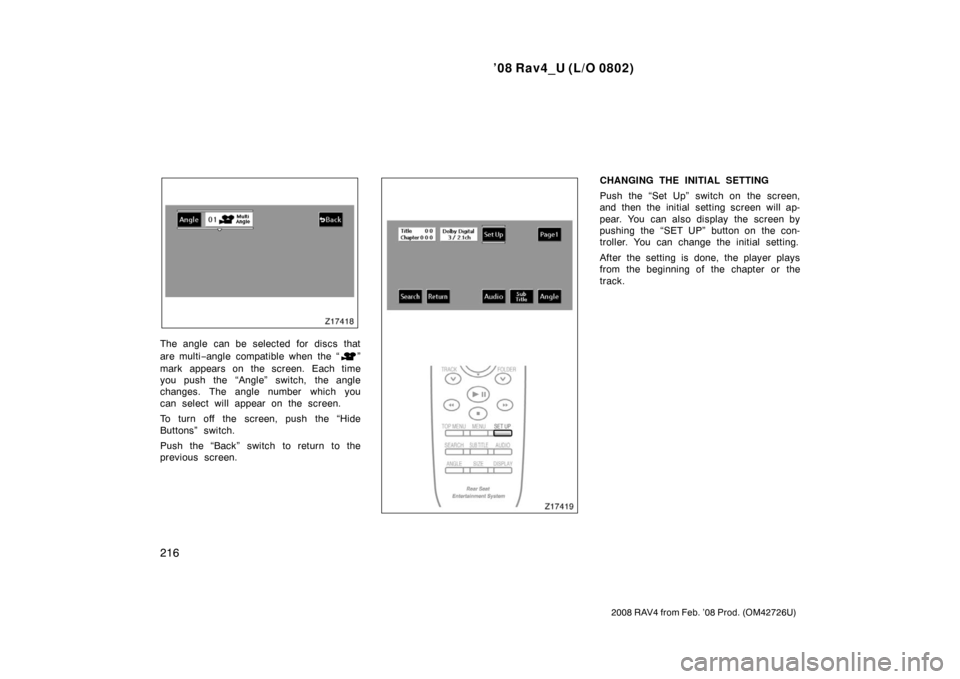

The angle can be selected for discs that
are multi−angle compatible when the “
”
mark appears on the screen. Each time
you push the “Angle” switch, the angle
changes. The angle number which you
can select will appear on the screen.
To turn off the screen, push the “Hide
Buttons” switch.
Push the “Back” switch to return to the
previous screen.
CHANGING THE INITIAL SETTING
Push the “Set Up” switch on the screen,
and then the initial setting screen will ap-
pear. You can also display the screen by
pushing the “SET UP” button on the con-
troller. You can change the initial setting.
After the setting is done, the player plays
from the beginning of the chapter or the
track.

’08 Rav4_U (L/O 0802)
217
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

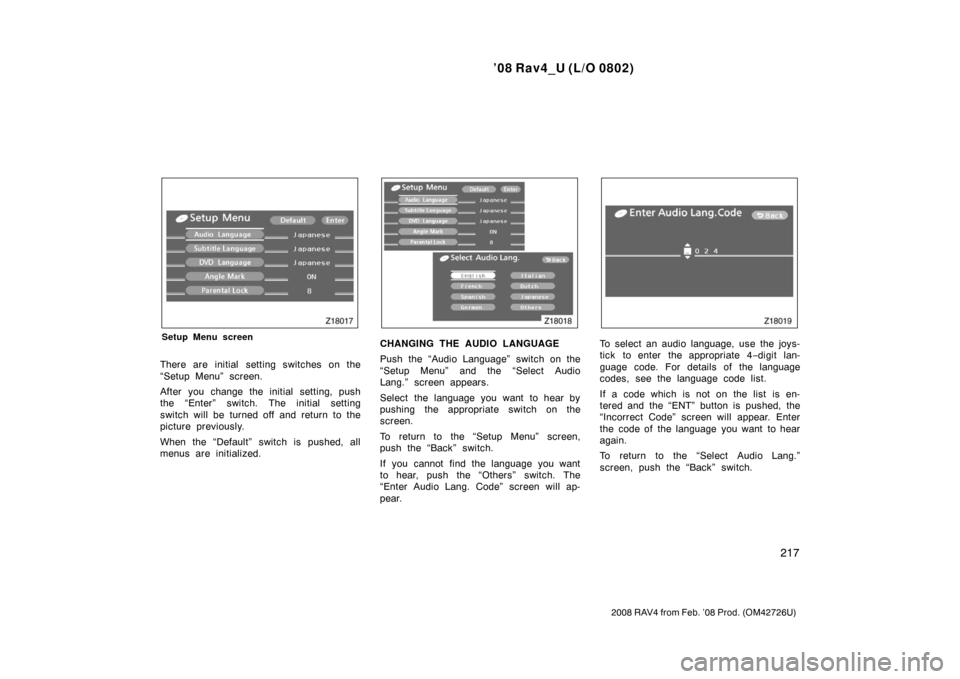

Setup Menu screen
There are initial setting switches on the
“Setup Menu” screen.
After you change the initial setting, push
the “Enter” switch. The initial setting
switch will be turned off and return to the
picture previously.
When the “Default” switch is pushed, all
menus are initialized.
CHANGING THE AUDIO LANGUAGE
Push the “Audio Language” switch on the
“Setup Menu” and the “Select Audio
Lang.” screen appears.
Select the language you want to hear by
pushing the appropriate switch on the
screen.
To return to the “Setup Menu” screen,
push the “Back” switch.
If you cannot find the language you want
to hear, push the “Others” switch. The
“Enter Audio Lang. Code” screen will ap-
pear.To select an audio language, use the joys-
tick to enter the appropriate 4−digit lan-
guage code. For details of the language
codes, see the language code list.
If a code which is not on the list is en-
tered and the “ENT” button is pushed, the
“Incorrect Code” screen will appear. Enter
the code of the language you want to hear
again.
To return to the “Select Audio Lang.”
screen, push the “Back” switch.

’08 Rav4_U (L/O 0802)
218
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

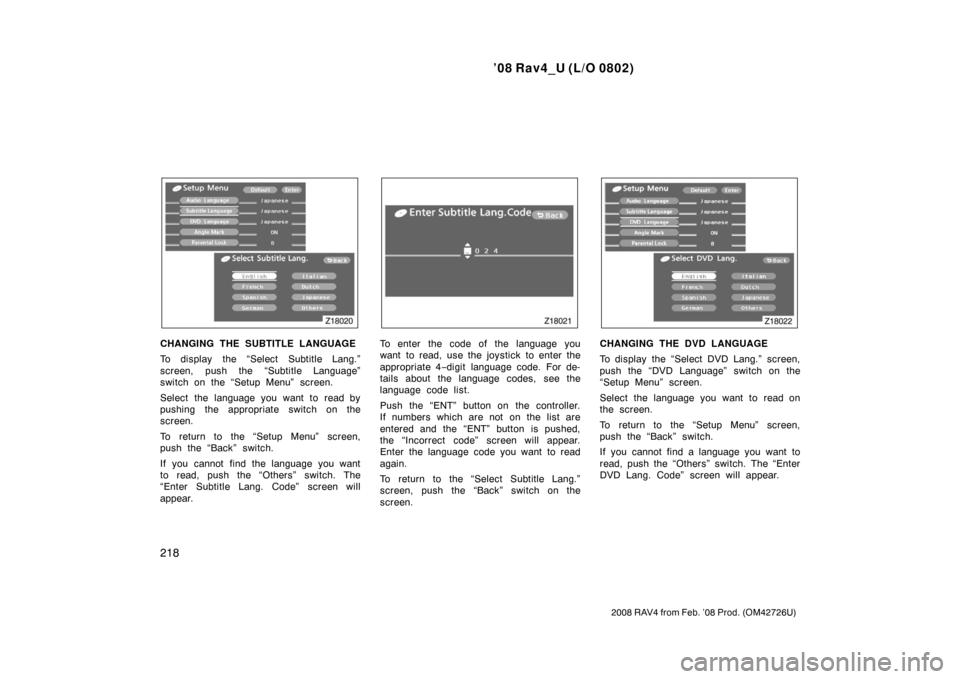

CHANGING THE SUBTITLE LANGUAGE
To display the “Select Subtitle Lang.”
screen, push the “Subtitle Language”
switch on the “Setup Menu” screen.
Select the language you want to read by
pushing the appropriate switch on the
screen.
To return to the “Setup Menu” screen,
push the “Back” switch.
If you cannot find the language you want
to read, push the “Others” switch. The
“Enter Subtitle Lang. Code” screen will
appear.To enter the code of the language you
want to read, use the joystick to enter the
appropriate 4−digit language code. For de-
tails about the language codes, see the
language code list.
Push the “ENT” button on the controller.
If numbers which are not on the list are
entered and the “ENT” button is pushed,
the “Incorrect code” screen will appear.
Enter the language code you want to read
again.
To return to the “Select Subtitle Lang.”
screen, push the “Back” switch on the
screen.CHANGING THE DVD LANGUAGE
To display the “Select DVD Lang.” screen,
push the “DVD Language” switch on the
“Setup Menu” screen.
Select the language you want to read on
the screen.
To return to the “Setup Menu” screen,
push the “Back” switch.
If you cannot find a language you want to
read, push the “Others” switch. The “Enter
DVD Lang. Code” screen will appear.

’08 Rav4_U (L/O 0802)
219
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

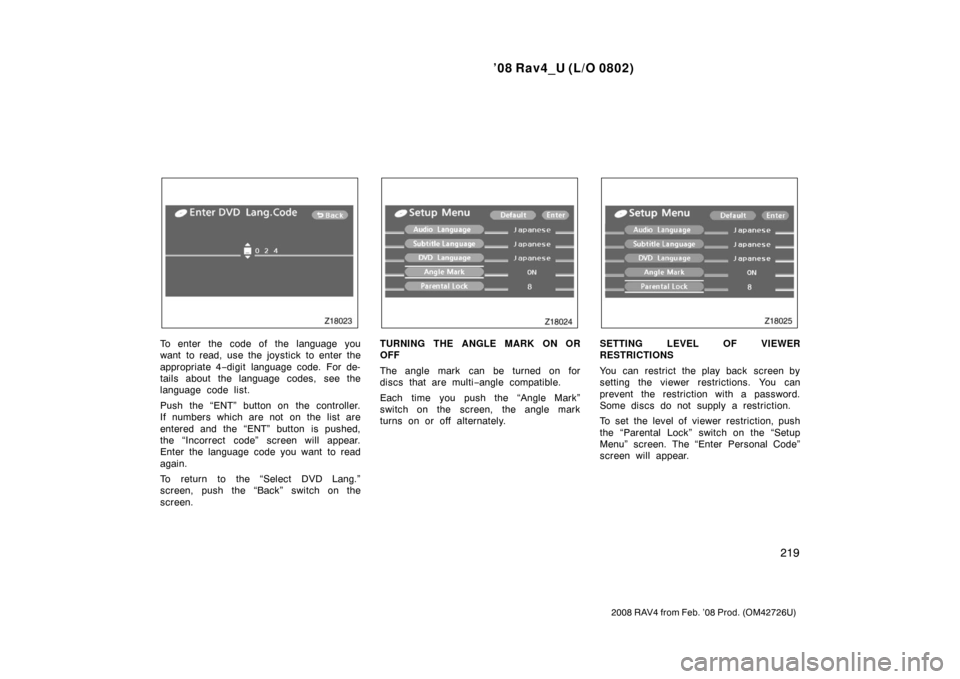

To enter the code of the language you
want to read, use the joystick to enter the
appropriate 4−digit language code. For de-
tails about the language codes, see the
language code list.
Push the “ENT” button on the controller.
If numbers which are not on the list are
entered and the “ENT” button is pushed,
the “Incorrect code” screen will appear.
Enter the language code you want to read
again.
To return to the “Select DVD Lang.”
screen, push the “Back” switch on the
screen.TURNING THE ANGLE MARK ON OR
OFF
The angle mark can be turned on for
discs that are multi −angle compatible.
Each time you push the “Angle Mark”
switch on the screen, the angle mark
turns on or off alternately.SETTING LEVEL OF VIEWER
RESTRICTIONS
You can restrict the play back screen by
setting the viewer restrictions. You can
prevent the restriction with a password.
Some discs do not supply a restriction.
To set the level of viewer restriction, push
the “Parental Lock” switch on the “Setup
Menu” screen. The “Enter Personal Code”
screen will appear.

’08 Rav4_U (L/O 0802)
220
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

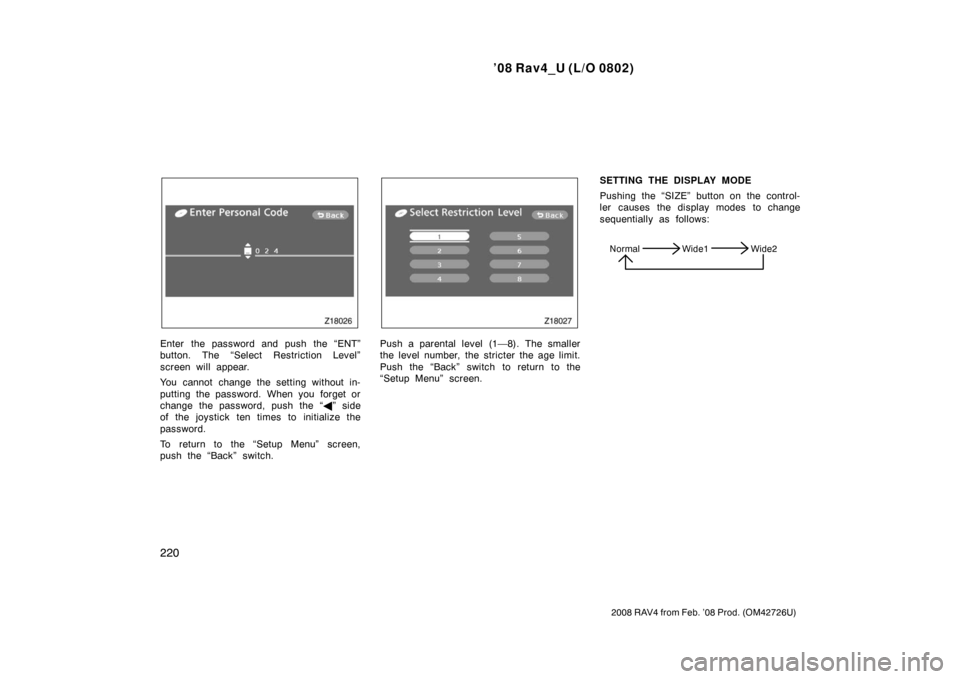

Enter the password and push the “ENT”
button. The “Select Restriction Level”
screen will appear.
You cannot change the setting without in-
putting the password. When you forget or
change the password, push the “” side
of the joystick ten times to initialize the
password.
To return to the “Setup Menu” screen,
push the “Back” switch.Push a parental level (1—8). The smaller
the level number, the stricter the age limit.
Push the “Back” switch to return to the
“Setup Menu” screen. SETTING THE DISPLAY MODE
Pushing the “SIZE” button on the control-
ler causes the display modes to change
sequentially as follows:
Normal Wide1 Wide2
