TOYOTA RAV4 2008 XA30 / 3.G Quick Reference Guide

9
FEATURES/OPERATIONS
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Automatic Transmission
* The engine switch must be ON, and the brake
pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
4-speed models
5-speed models
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear

10

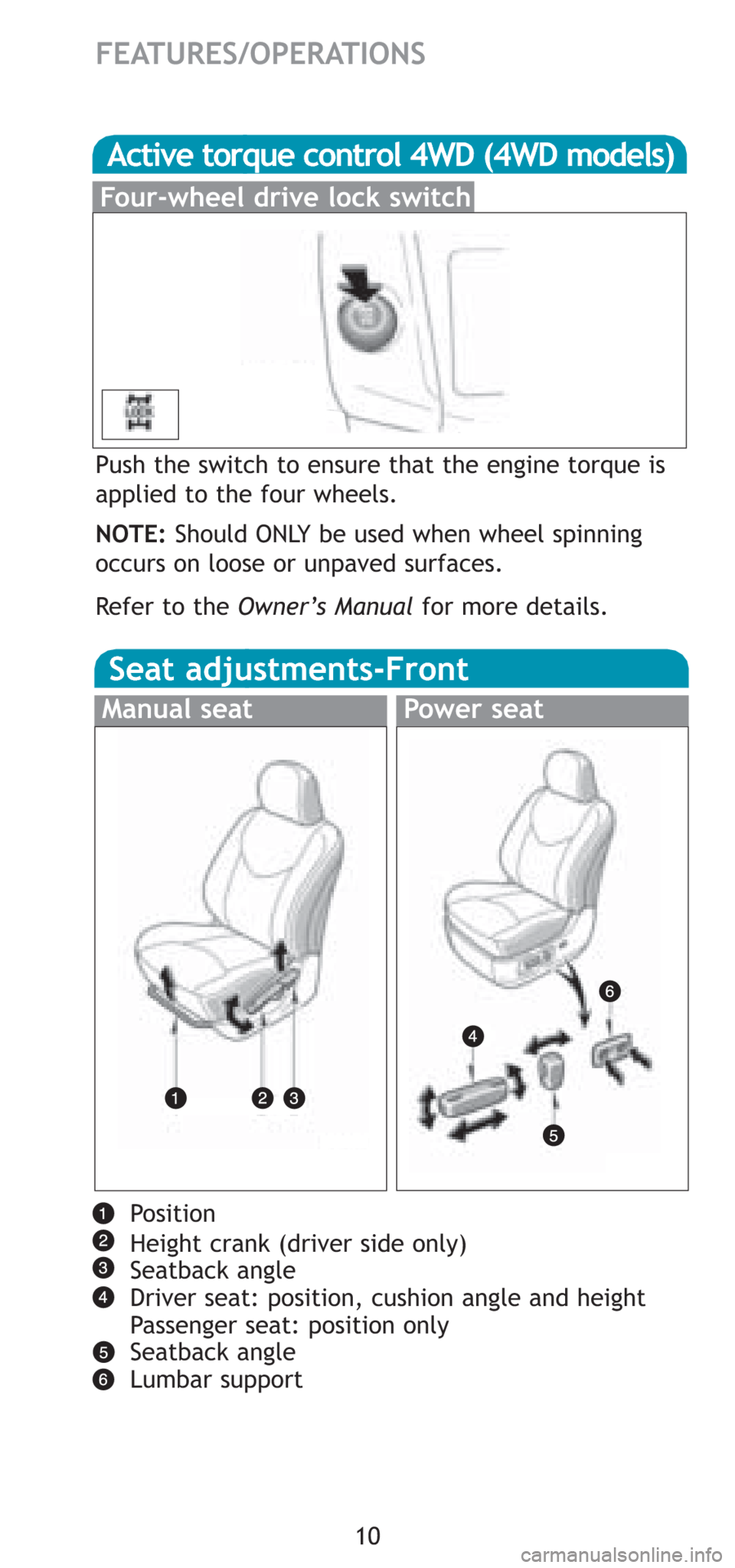

FEATURES/OPERATIONS
Position
Height crank (driver side only)
Seatback angle
Driver seat: position, cushion angle and height
Passenger seat: position only
Seatback angle
Lumbar support
Seat adjustments-Front
Manual seatPower seat
Auto lock functionsActive torque control 4WD (4WD models)
Four-wheel drive lock switch
Push the switch to ensure that the engine torque is
applied to the four wheels.
NOTE: Should ONLY be used when wheel spinning
occurs on loose or unpaved surfaces.
Refer to the Owner’s Manualfor more details.

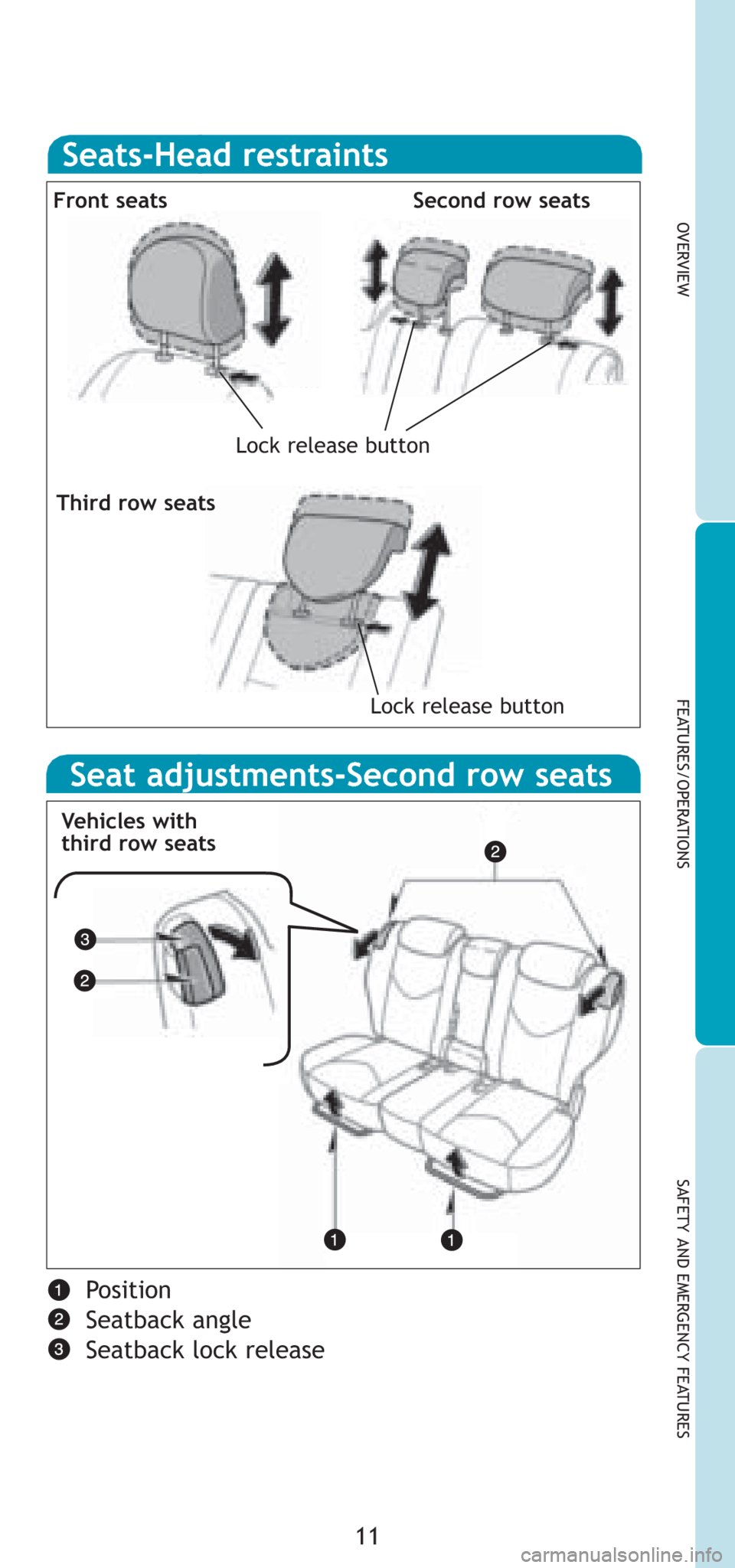

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seats-Head restraints
Front seatsSecond row seats
Third row seats
Lock release button
Lock release button
Seat adjustments-Second row seats
Position
Seatback angle
Seatback lock release
Vehicles with
third row seats

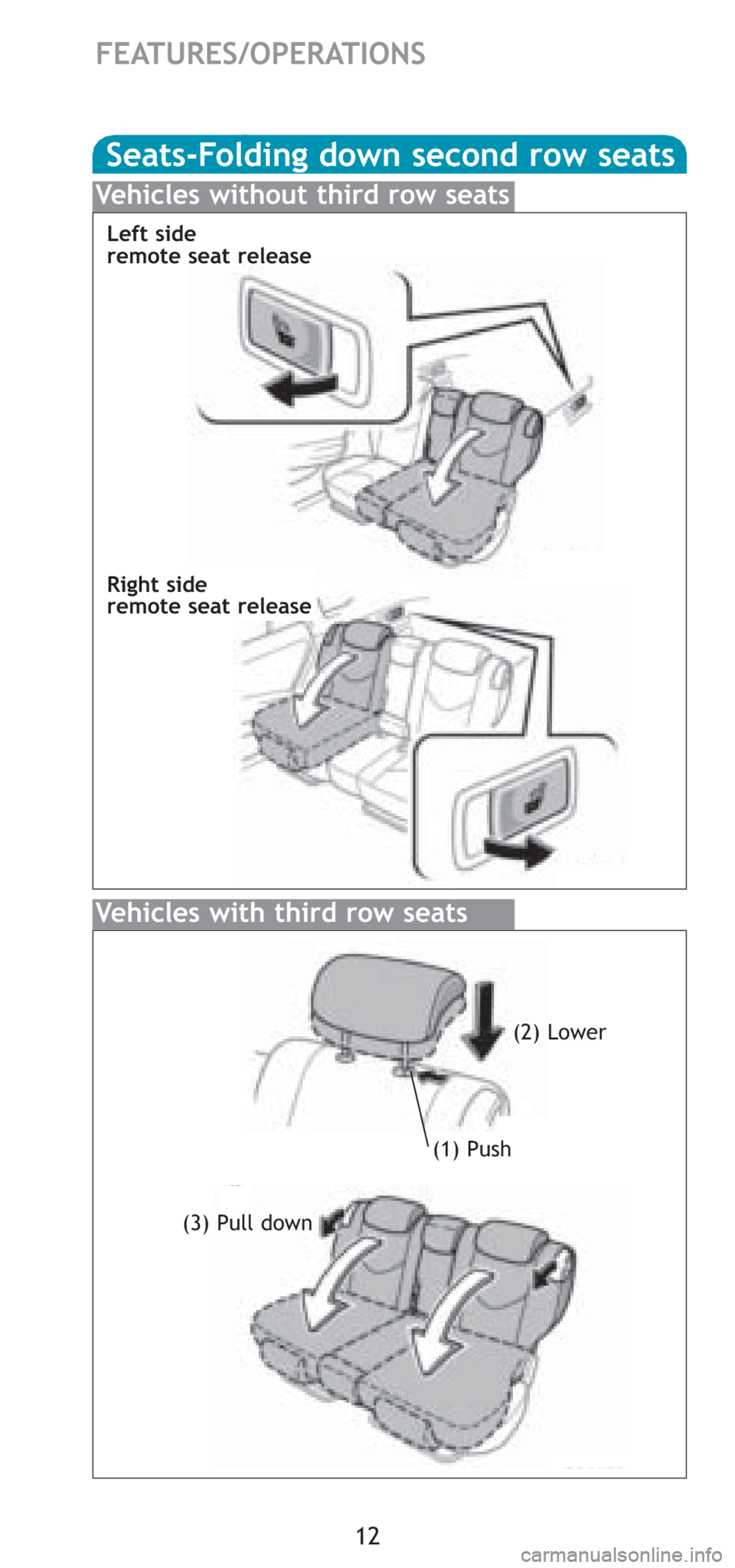

12
FEATURES/OPERATIONS
(2) Lower
(3) Pull down
Seats-Folding down second row seats
Right side
remote seat release Left side
remote seat release
Vehicles with third row seats
Vehicles without third row seats
(1) Push

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield wipers & washers
Rear
Front
Pull to wash and wipeAdjust interval
Interval wipe
Slow
Fast
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Seats-Stowing third row seats (if equipped)
(2) Lower
(1) Push
(5) Pull up
(7) Push
down
(8) Push to lock in
(4) Fold down
(3) Pull
(9) Push to lock in
(6) Lift up
Single wipe

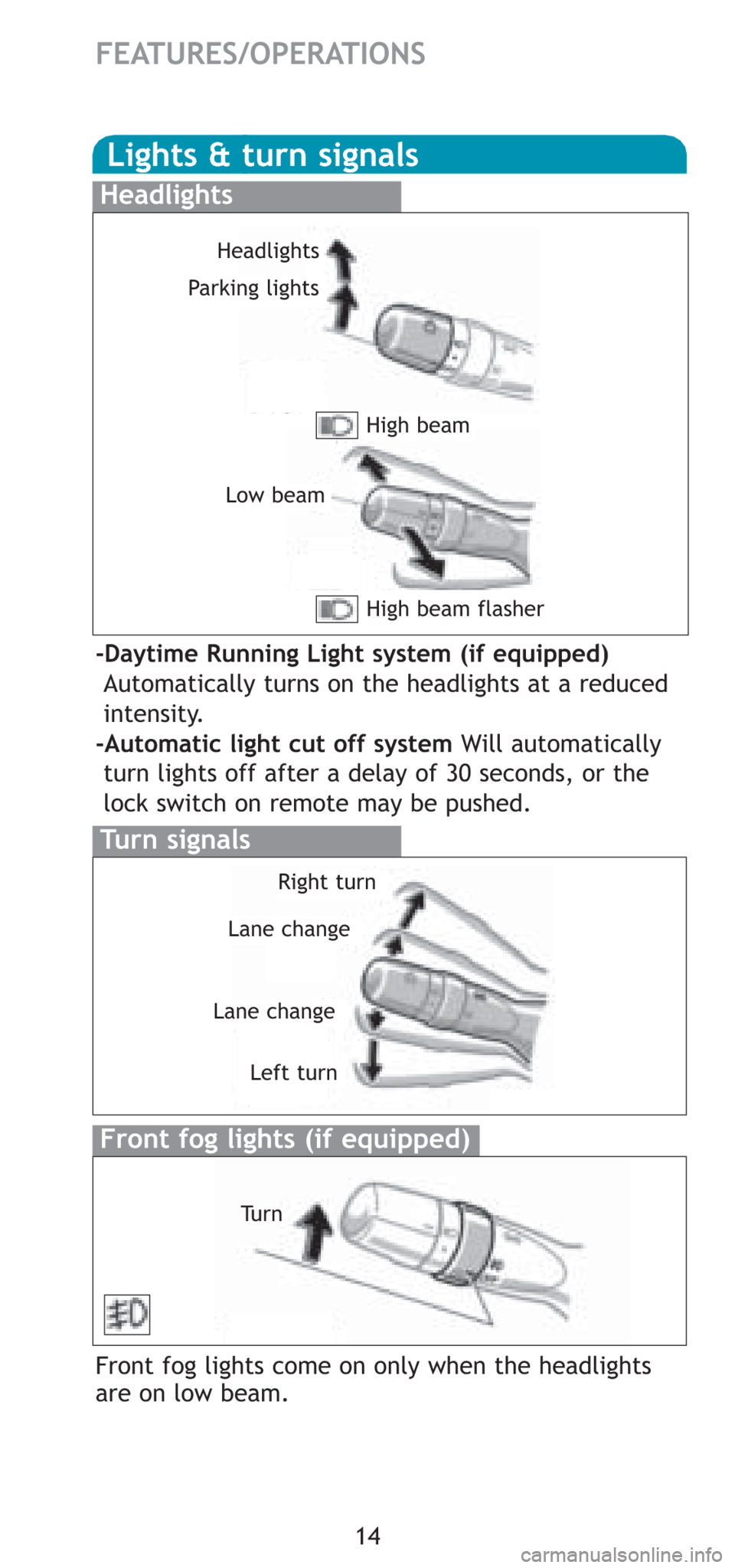

14
FEATURES/OPERATIONS
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (if equipped)
Automatically turns on the headlights at a reduced
intensity.
-Automatic light cut off system Will automatically
turn lights off after a delay of 30 seconds, or the
lock switch on remote may be pushed.
Front fog lights come on only when the headlights
are on low beam.
Parking lights
Right turn
Tu r n
Lane change
Lane change
Left turn
High beam

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length,
and return lever.
NOTE: Do not attempt to adjust while the vehicle
is in motion.
Lock
release
lever
Length
Angle
Windows
Driver side
Automatic operation (driver side only) Push the
switch completely down or pull it completely up and
release to fully open or close. To stop window
midway, lightly push the switch in the opposite
direction.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.
Up
Down
Windows
lock
button
Up
Down
NOTE: If the battery is disconnected, the window
needs to be reinitialized. Refer to the Owner’s
Manualfor more details.
15
Parking brake
Pull
(2) Push(1) Pull slightly
(3) Lower SetRelease

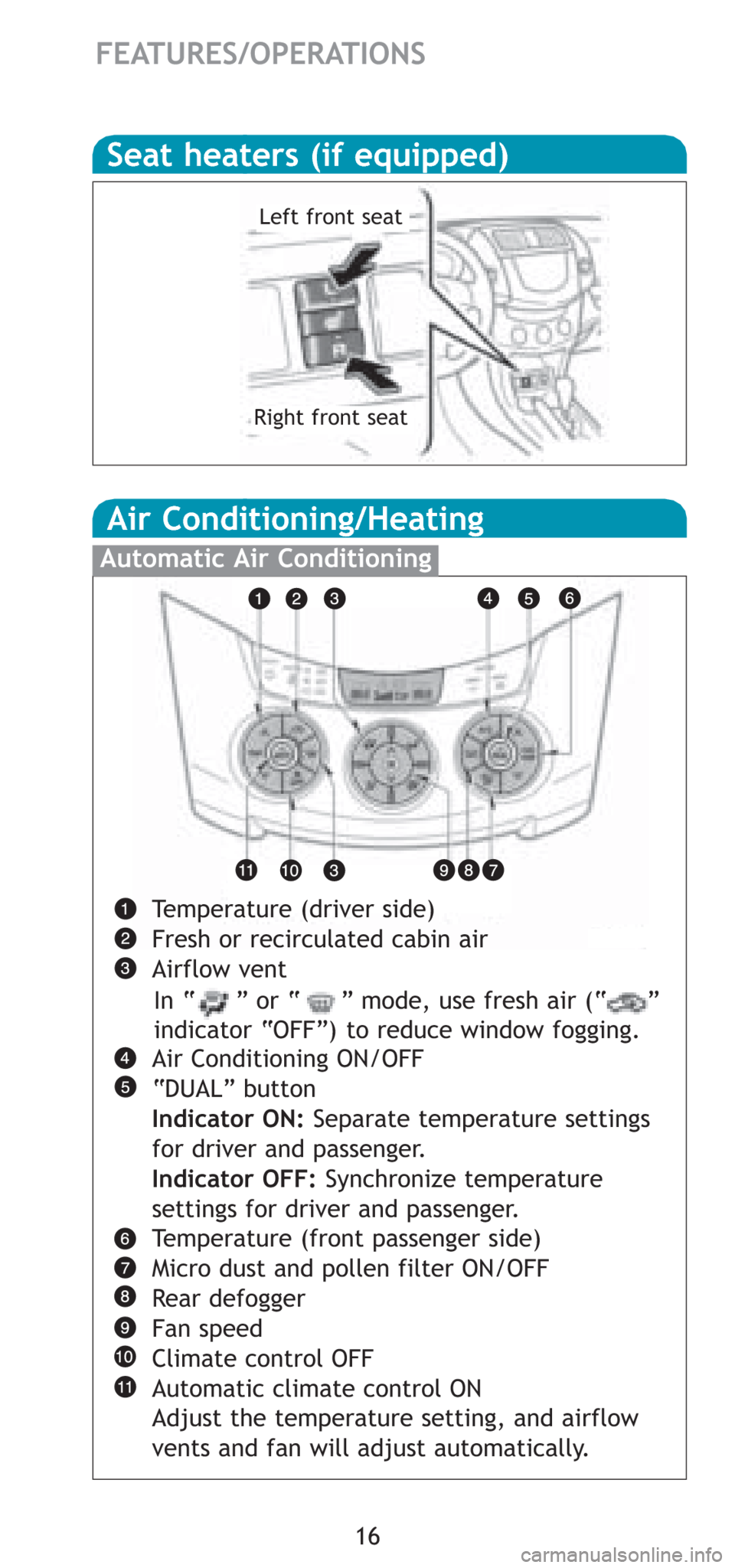

16
FEATURES/OPERATIONS
Seat heaters (if equipped)
Left front seat
Right front seat
Air Conditioning/Heating
Temperature (driver side)
Fresh or recirculated cabin air
Airflow vent
Air Conditioning ON/OFF
“DUAL” button
Indicator ON:Separate temperature settings
for driver and passenger.
Indicator OFF:Synchronize temperature
settings for driver and passenger.
Temperature (front passenger side)
Micro dust and pollen filter ON/OFF
Rear defogger
Fan speed
Climate control OFF
Automatic climate control ON
Adjust the temperature setting, and airflow
vents and fan will adjust automatically.
Automatic Air Conditioning
In “ ” or “ ” mode, use fresh air (“ ”
indicator “OFF”) to reduce window fogging.

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

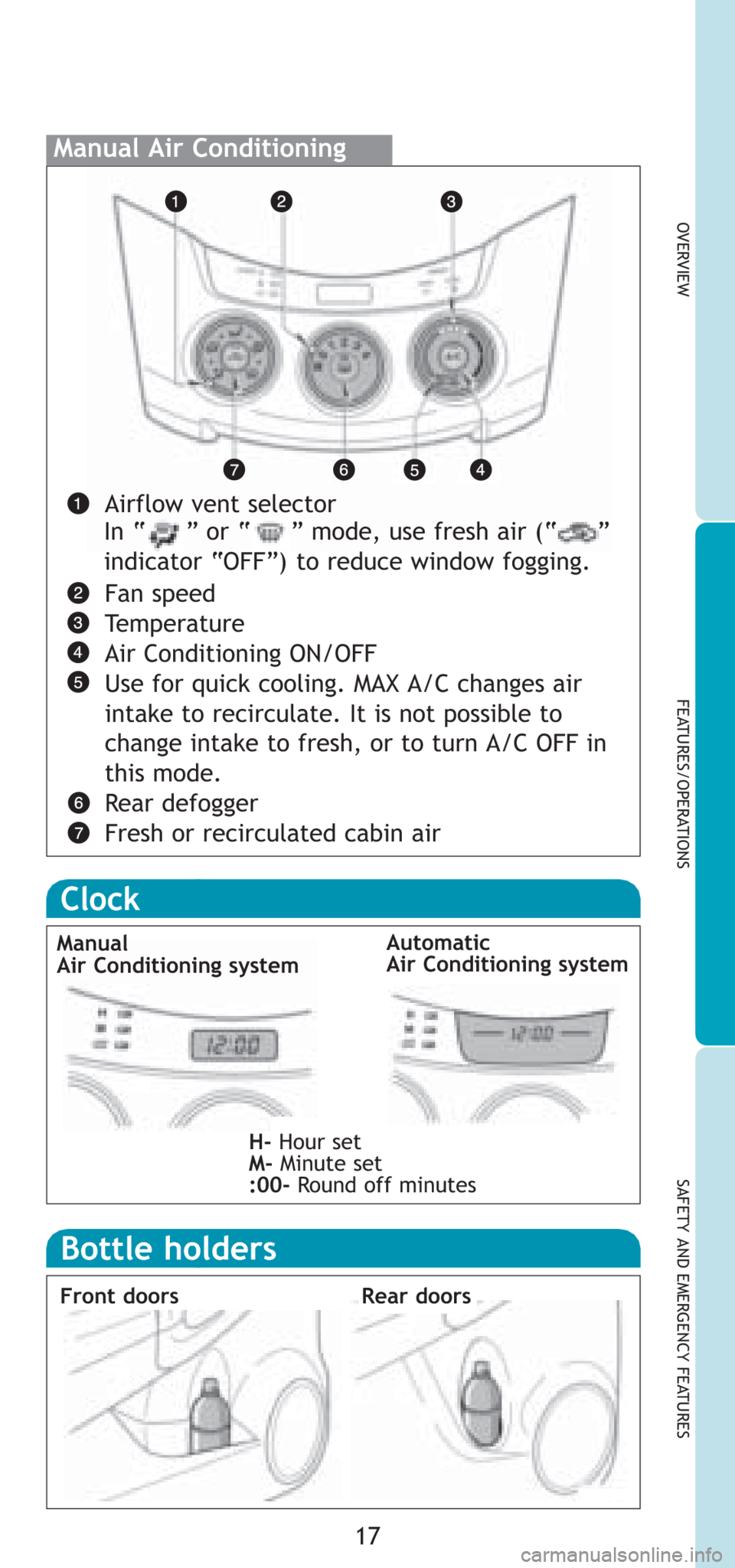

Bottle holders
Front doorsRear doors
Clock
Manual
Air Conditioning system
H-Hour set
M-Minute set
:00-Round off minutesAutomatic
Air Conditioning system
Manual Air Conditioning
Airflow vent selector
Fan speed
Temperature
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air
intake to recirculate. It is not possible to
change intake to fresh, or to turn A/C OFF in
this mode.
Rear defogger
Fresh or recirculated cabin air
In “ ” or “ ” mode, use fresh air (“ ”
indicator “OFF”) to reduce window fogging.

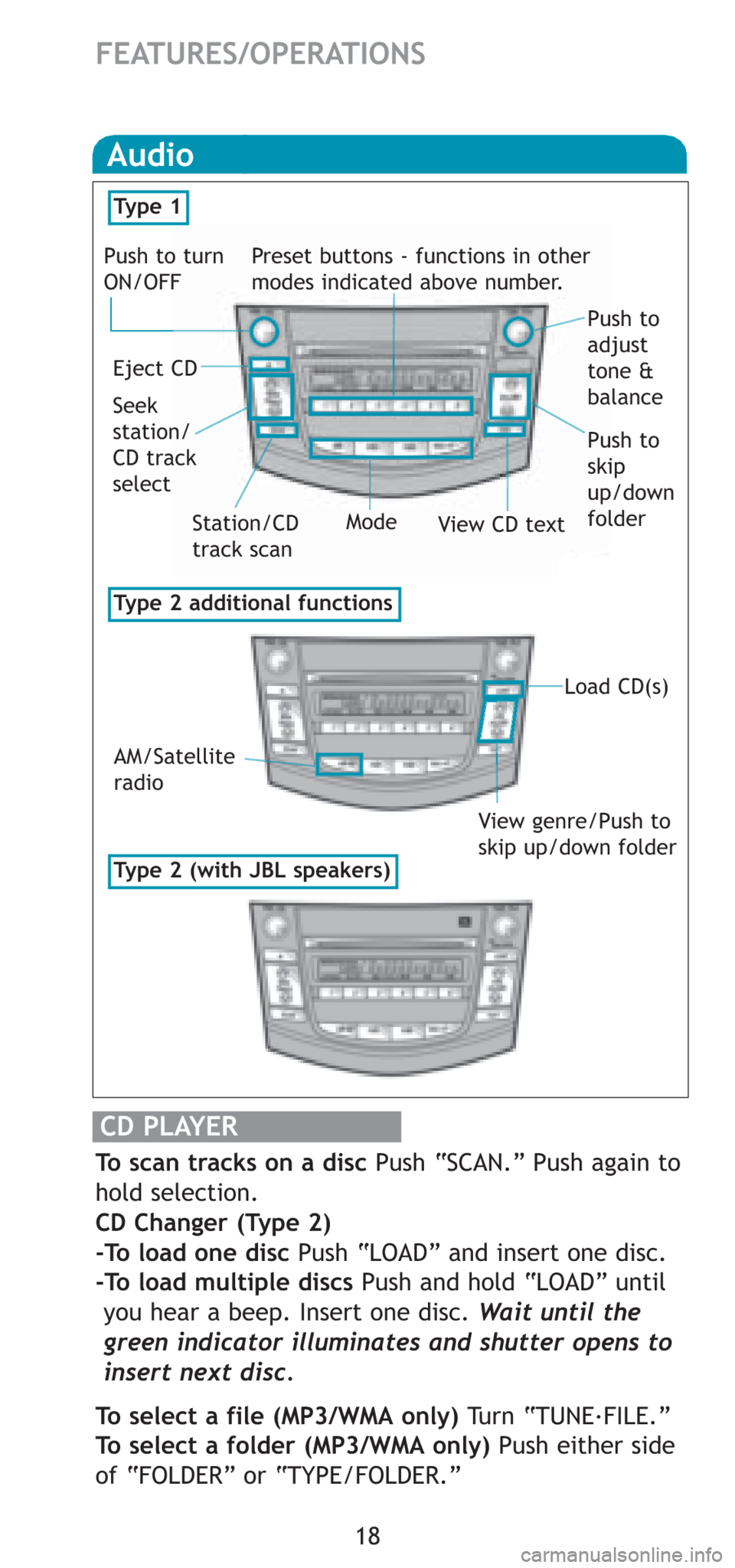

18
FEATURES/OPERATIONS
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to
hold selection.
CD Changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Wait until the
green indicator illuminates and shutter opens to
insert next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side
of “FOLDER” or “TYPE/FOLDER.”
Audio
View CD text Eject CD Push to turn
ON/OFF
Push to
adjust
tone &
balance
Push to
skip
up/down
folder Seek
station/
CD track
select
Station/CD
track scanMode
Load CD(s) Preset buttons - functions in other
modes indicated above number.
Ty p e 1
Type 2 additional functions
Type 2 (with JBL speakers)
AM/Satellite
radio
View genre/Push to
skip up/down folder
