TOYOTA RAV4 2008 XA30 / 3.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
Volume control
“MODE”
Push to turn audio ON and select an audio mode.
Push and hold to turn the audio OFF.
“ ”
-In radio modePush to select a preset station;
push and hold to seek the next strong station.
-In CD modePush to skip up or down to next/
previous track.
By inserting a mini plug into the AUX audio jack, you
can listen to music from a portable audio device
through the vehicle’s speaker system.
>>
Steering wheel controls (if equipped)
AUX audio jack
RADIO
To preset stations Tune in the desired station and
hold down a preset button (1-6) until you hear a
beep. Push desired preset button (1-6) to select.
To scan stations Push “SCAN.” Push and hold to scan
preset stations. Push again to hold selection.
-+

20
FEATURES/OPERATIONS

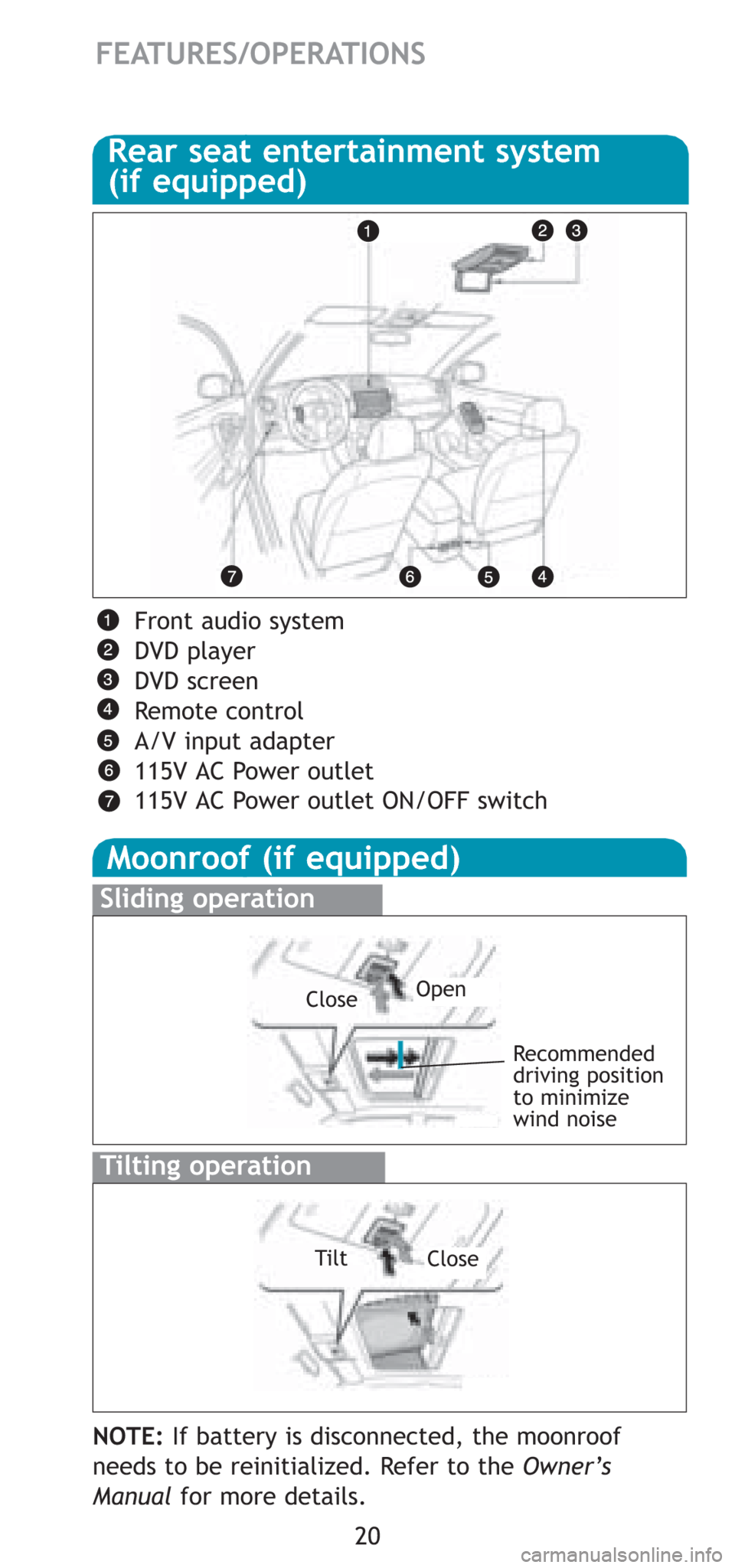

Moonroof (if equipped)
Tilting operation
Sliding operation
NOTE:If battery is disconnected, the moonroof
needs to be reinitialized. Refer to the Owner’s
Manualfor more details.
Open
Close
Close Tilt
Recommended
driving position
to minimize
wind noise
Front audio system
DVD player
DVD screen
Remote control
A/V input adapter
115V AC Power outlet
115V AC Power outlet ON/OFF switch
Rear seat entertainment system
(if equipped)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

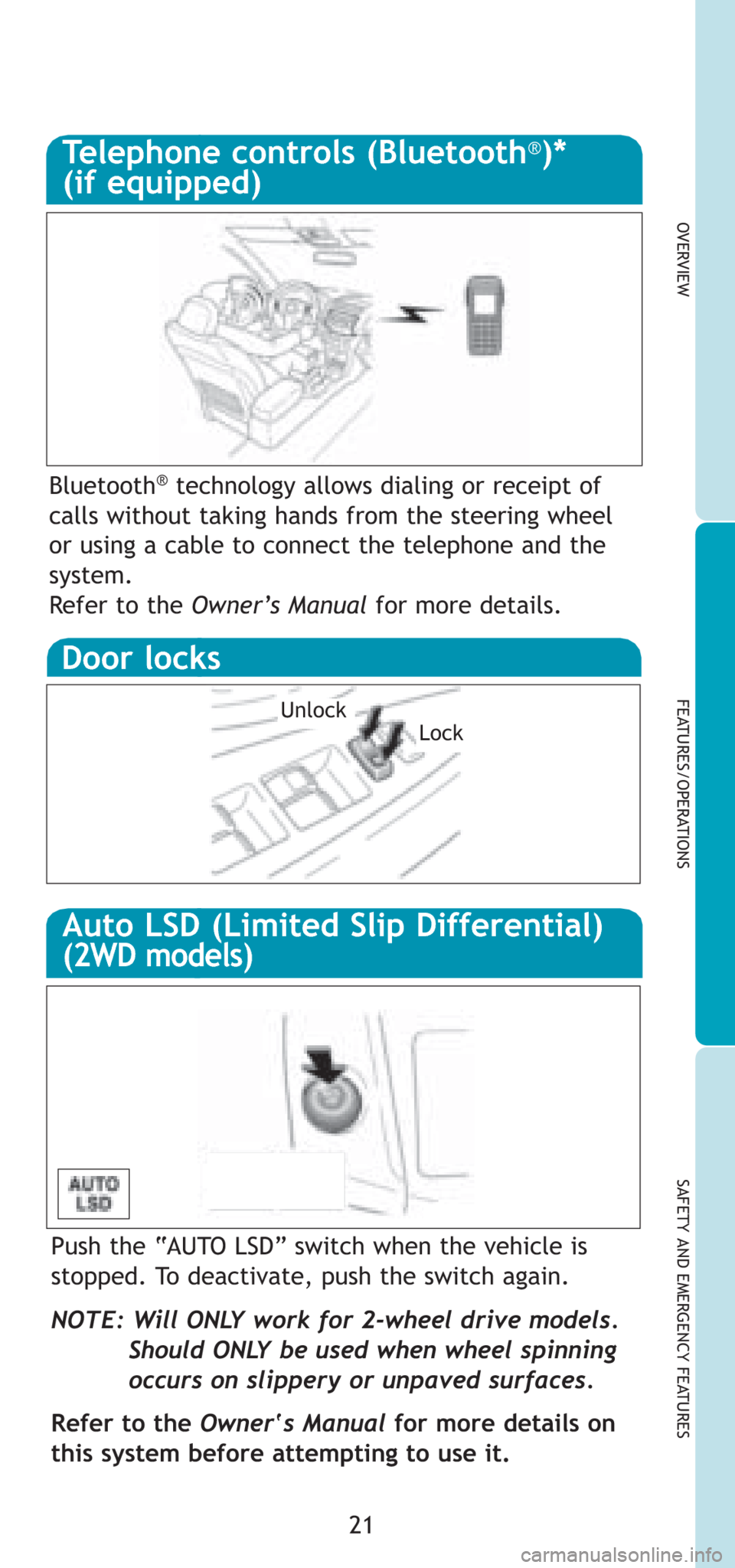

Door locks
UnlockLock
21
Auto LSD (Limited Slip Differential)
(2WD models)
Push the “AUTO LSD” switch when the vehicle is
stopped. To deactivate, push the switch again.
NOTE: Will ONLY work for 2-wheel drive models.
Should ONLY be used when wheel spinning
occurs on slippery or unpaved surfaces.
Refer to the Owner‘s Manualfor more details on
this system before attempting to use it.
Bluetooth®technology allows dialing or receipt of
calls without taking hands from the steering wheel
or using a cable to connect the telephone and the
system.
Refer to the Owner’s Manualfor more details.
Telephone controls (Bluetooth®)*
(if equipped)

22
FEATURES/OPERATIONS

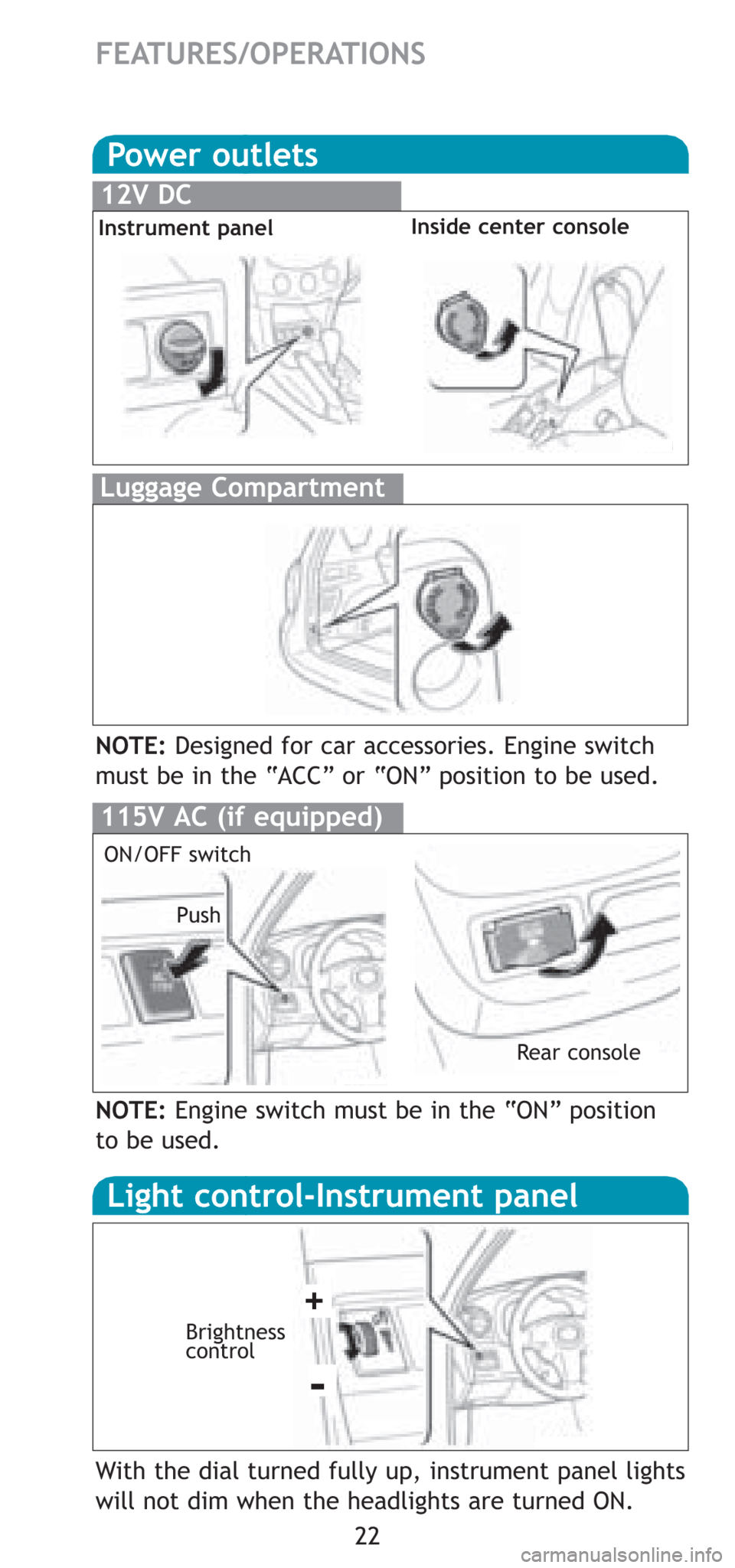

115V AC (if equipped)
ON/OFF switch
Rear console Push
NOTE:Engine switch must be in the “ON” position
to be used.
Light control-Instrument panel
Brightness
control+
-
Power outlets
12V DC
Luggage Compartment
Instrument panelInside center console
NOTE:Designed for car accessories. Engine switch
must be in the “ACC” or “ON” position to be used.
With the dial turned fully up, instrument panel lights
will not dim when the headlights are turned ON.

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

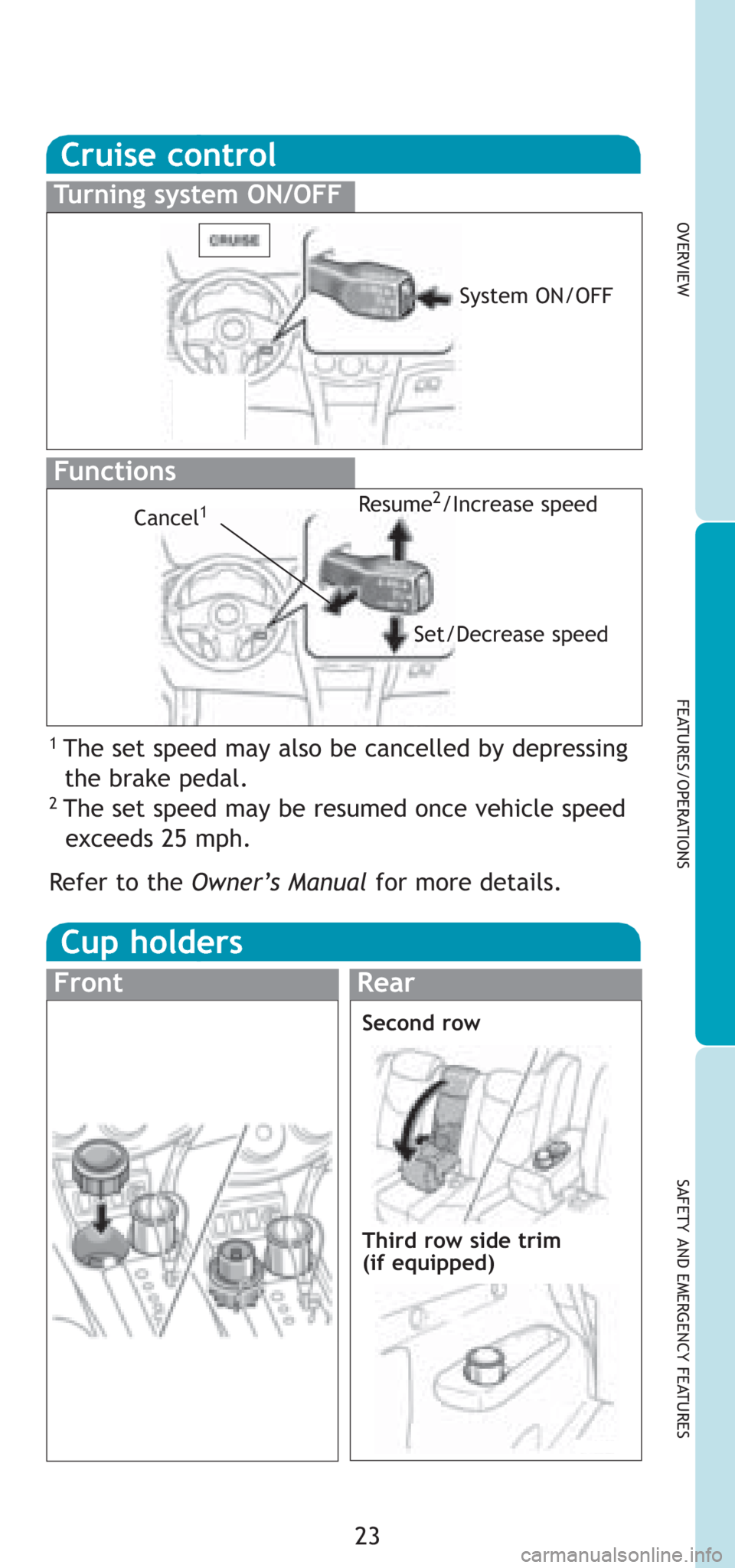

Cup holders
FrontRear
Second row
Third row side trim
(if equipped)
Cruise control
Turning system ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed Cancel1
1 The set speed may also be cancelled by depressing
the brake pedal.
2 The set speed may be resumed once vehicle speed
exceeds 25 mph.
Refer to the Owner’s Manualfor more details.

24
SAFETY AND
EMERGENCY FEATURES

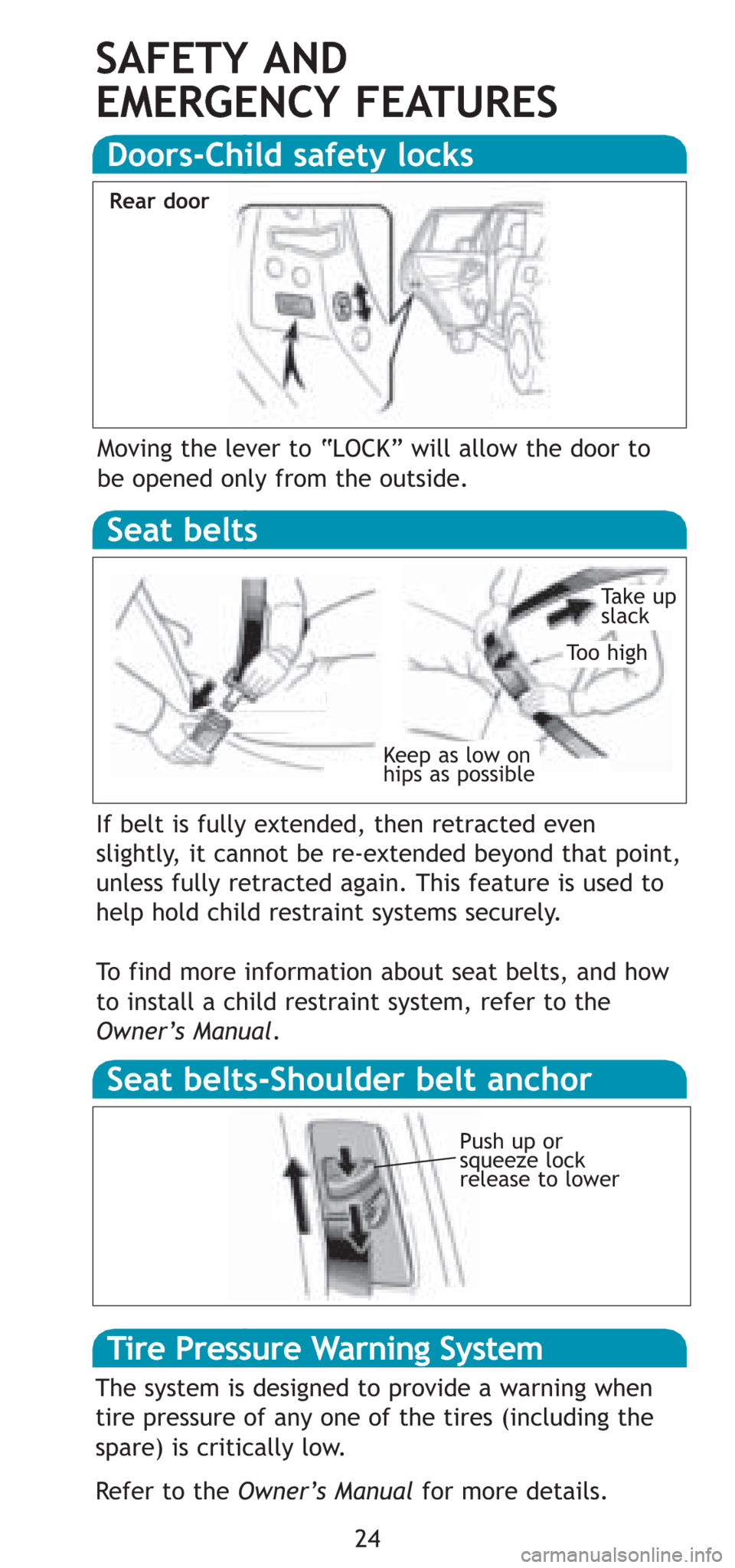

Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Doors-Child safety locks
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts
Tire Pressure Warning System
The system is designed to provide a warning when
tire pressure of any one of the tires (including the
spare) is critically low.
Refer to the Owner’s Manualfor more details.
Seat belts-Shoulder belt anchor
Push up or
squeeze lock
release to lower
Rear door

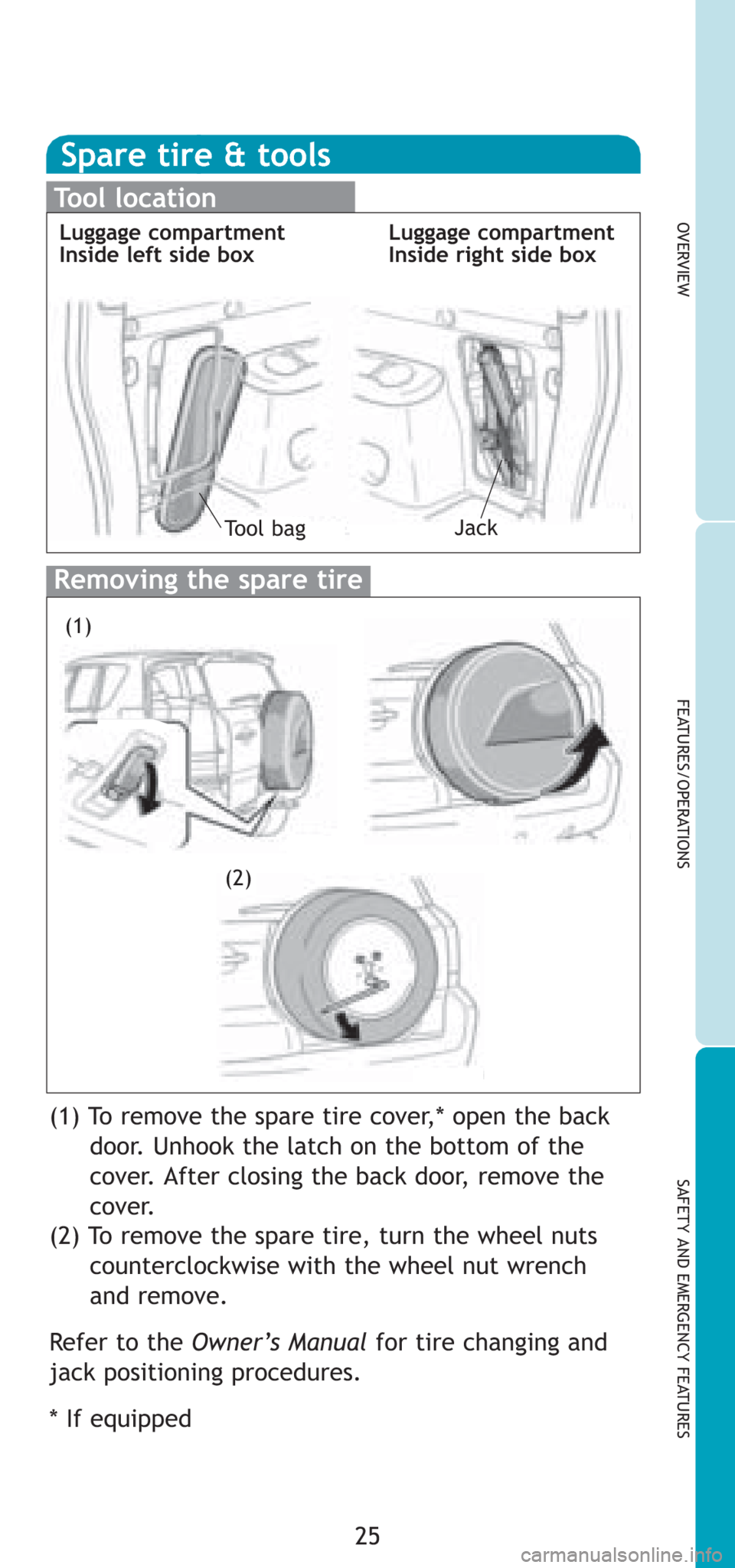

Spare tire & tools
Tool location
Removing the spare tire
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(1) To remove the spare tire cover,* open the back
door. Unhook the latch on the bottom of the
cover. After closing the back door, remove the
cover.
(2) To remove the spare tire, turn the wheel nuts
counterclockwise with the wheel nut wrench
and remove.
Refer to the
Owner’s Manualfor tire changing and
jack positioning procedures.
* If equipped
Luggage compartment
Inside left side boxLuggage compartment
Inside right side box
JackTool bag
(1)
(2)

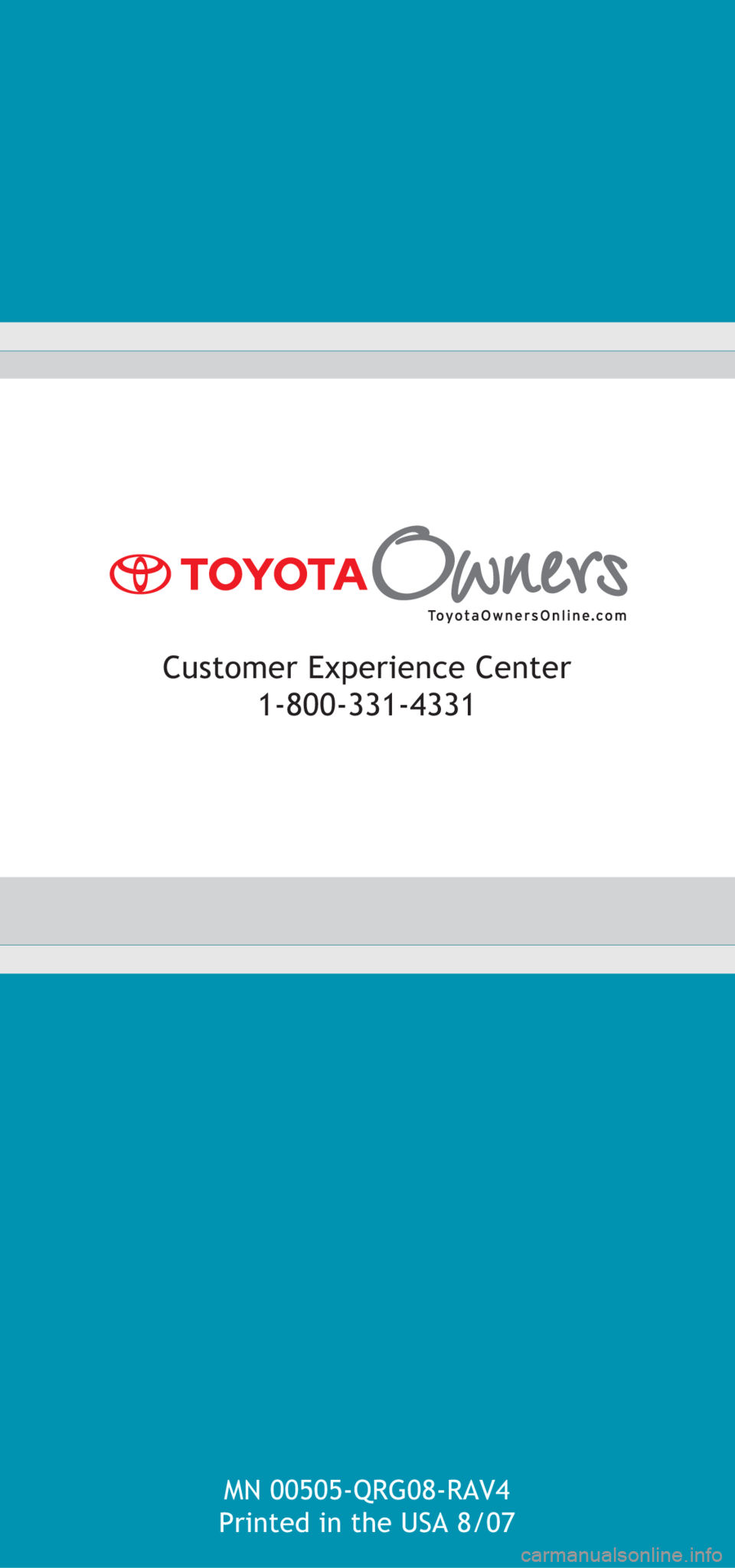

MN 00505-QRG08-RAV4
Printed in the USA 8/07
Customer Experience Center
1-800-331-4331
