TOYOTA RAV4 2009 XA30 / 3.G Owners Manual

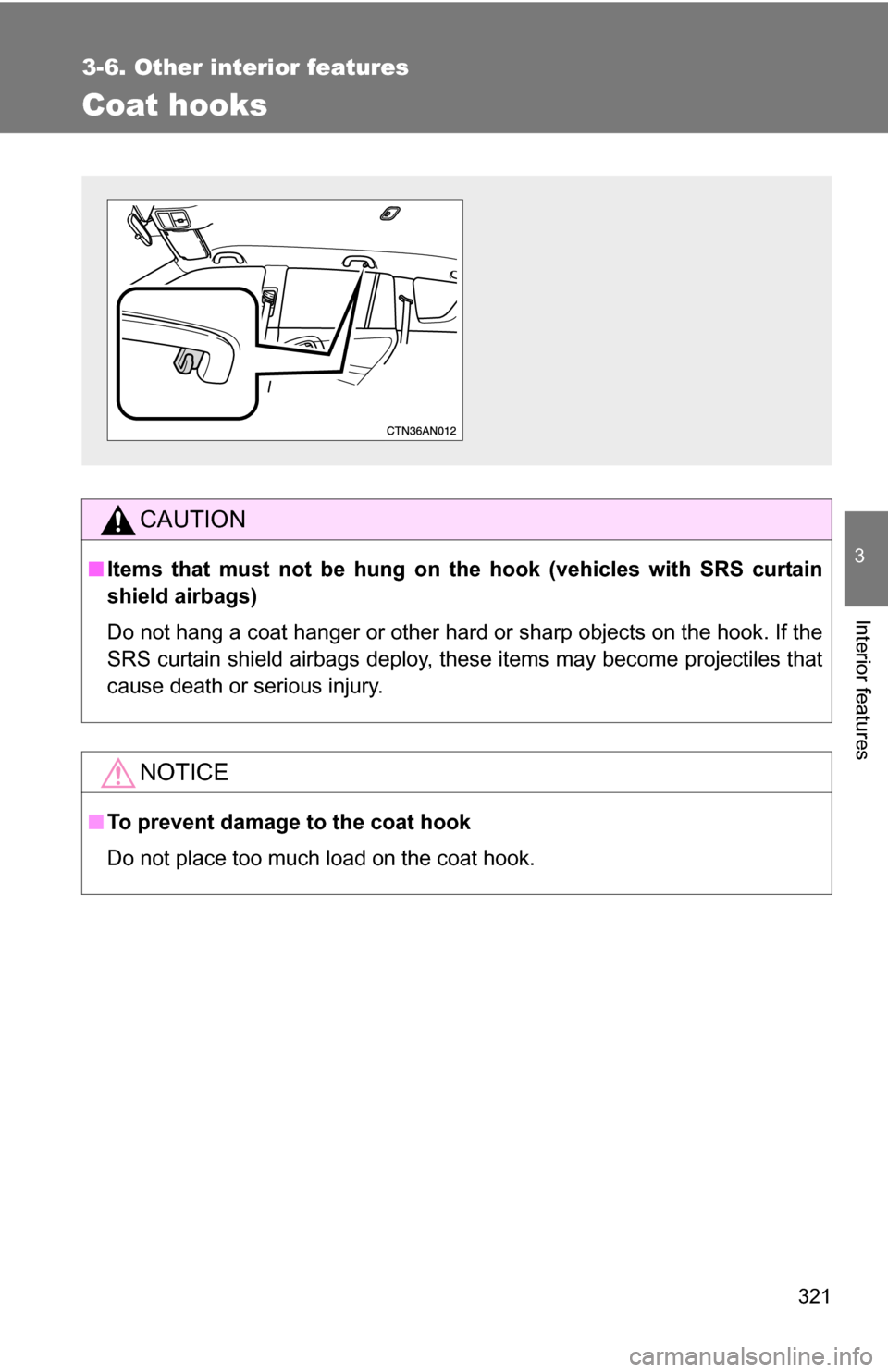

321
3-6. Other interior features
3
Interior features
Coat hooks
CAUTION
■Items that must not be hung on the hook (vehicles with SRS curtain
shield airbags)
Do not hang a coat hanger or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles that
cause death or serious injury.
NOTICE
■ To prevent damage to the coat hook
Do not place too much load on the coat hook.

322
3-6. Other interior features

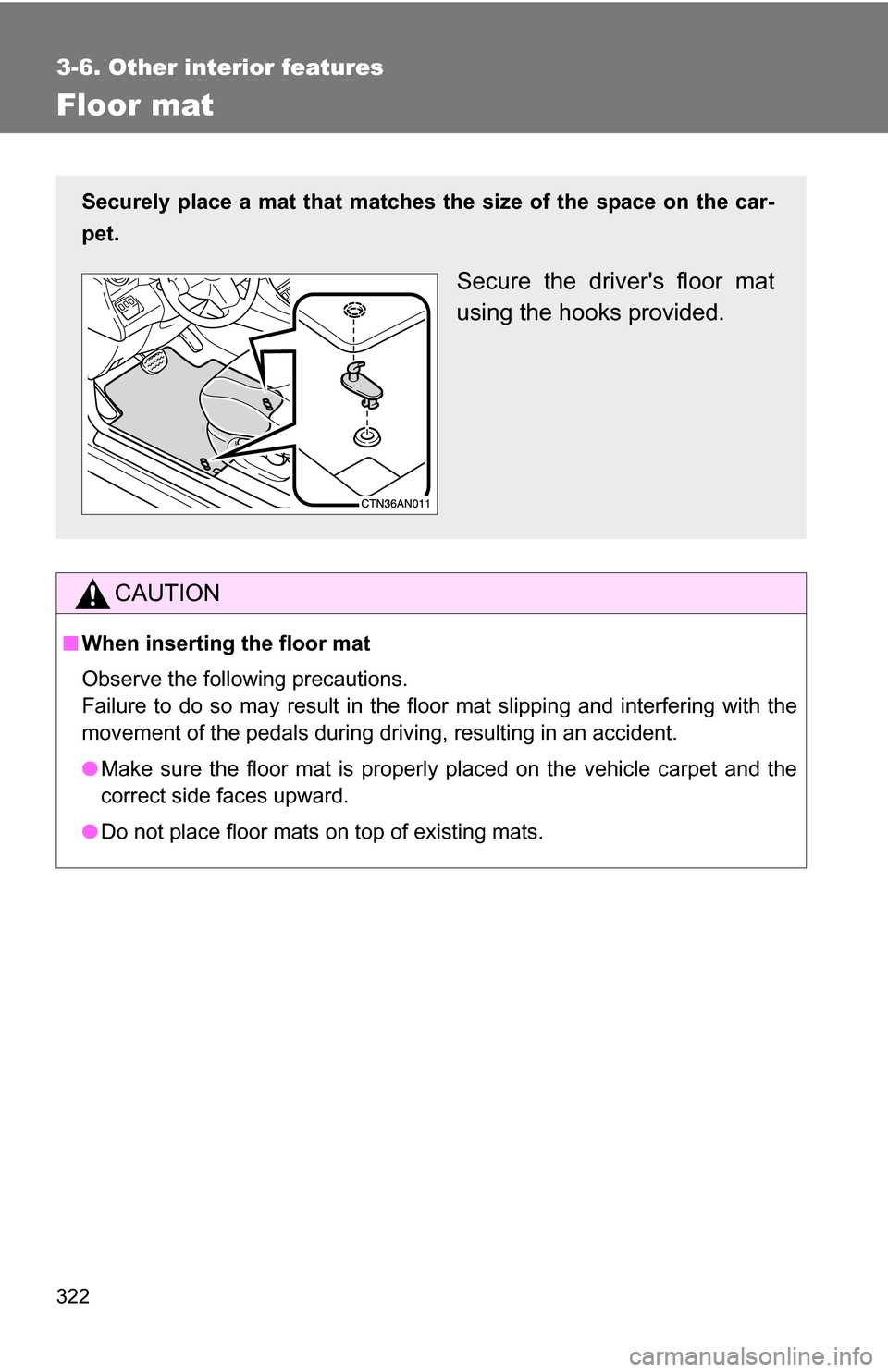

Floor mat
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
●Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the driver's floor mat
using the hooks provided.

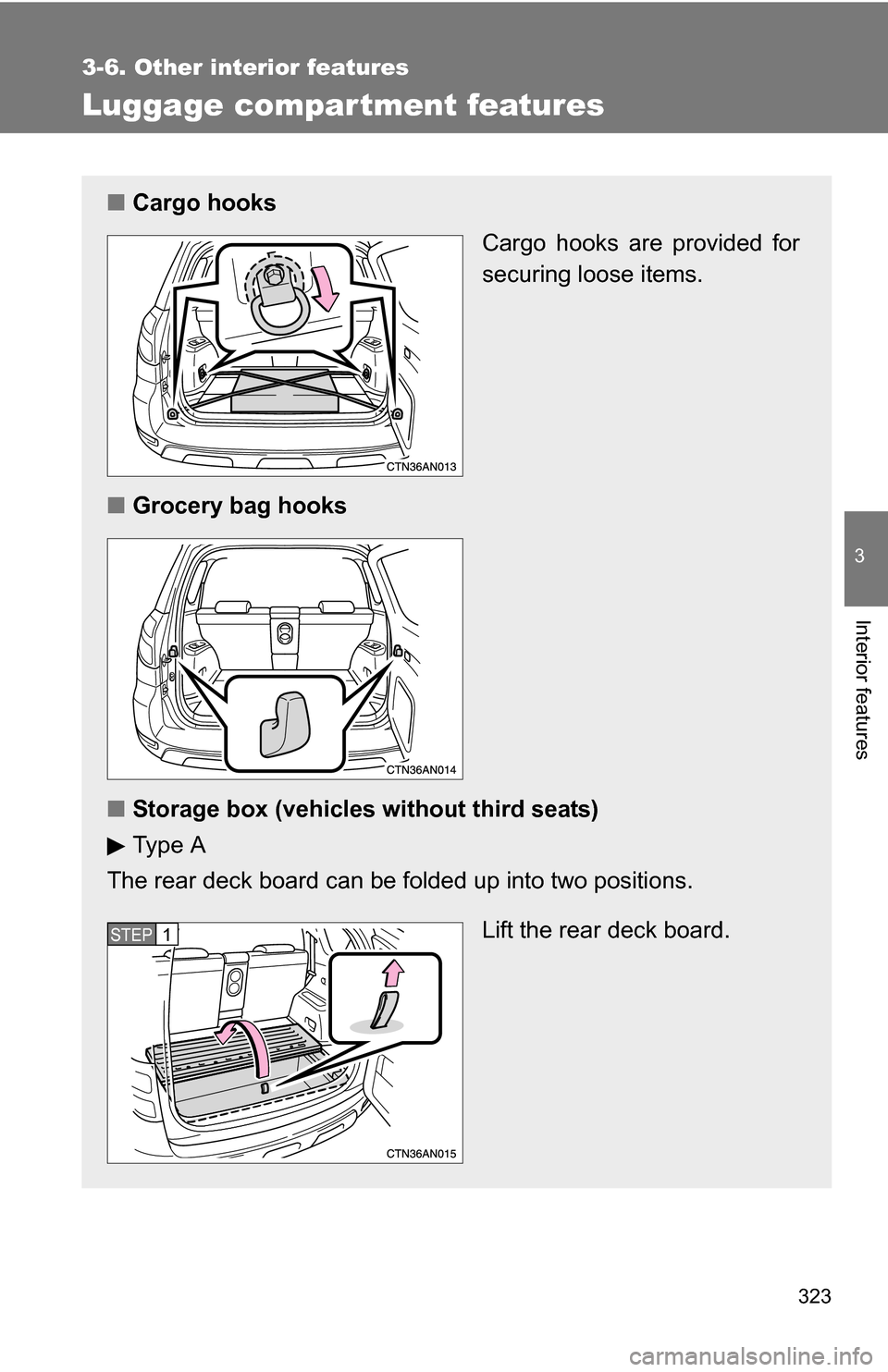

323
3-6. Other interior features
3
Interior features
Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Grocery bag hooks
■ Storage box (vehicles without third seats)
Ty p e A
The rear deck board can be folded up into two positions.
Lift the rear deck board.
STEP 1

324 3-6. Other interior features

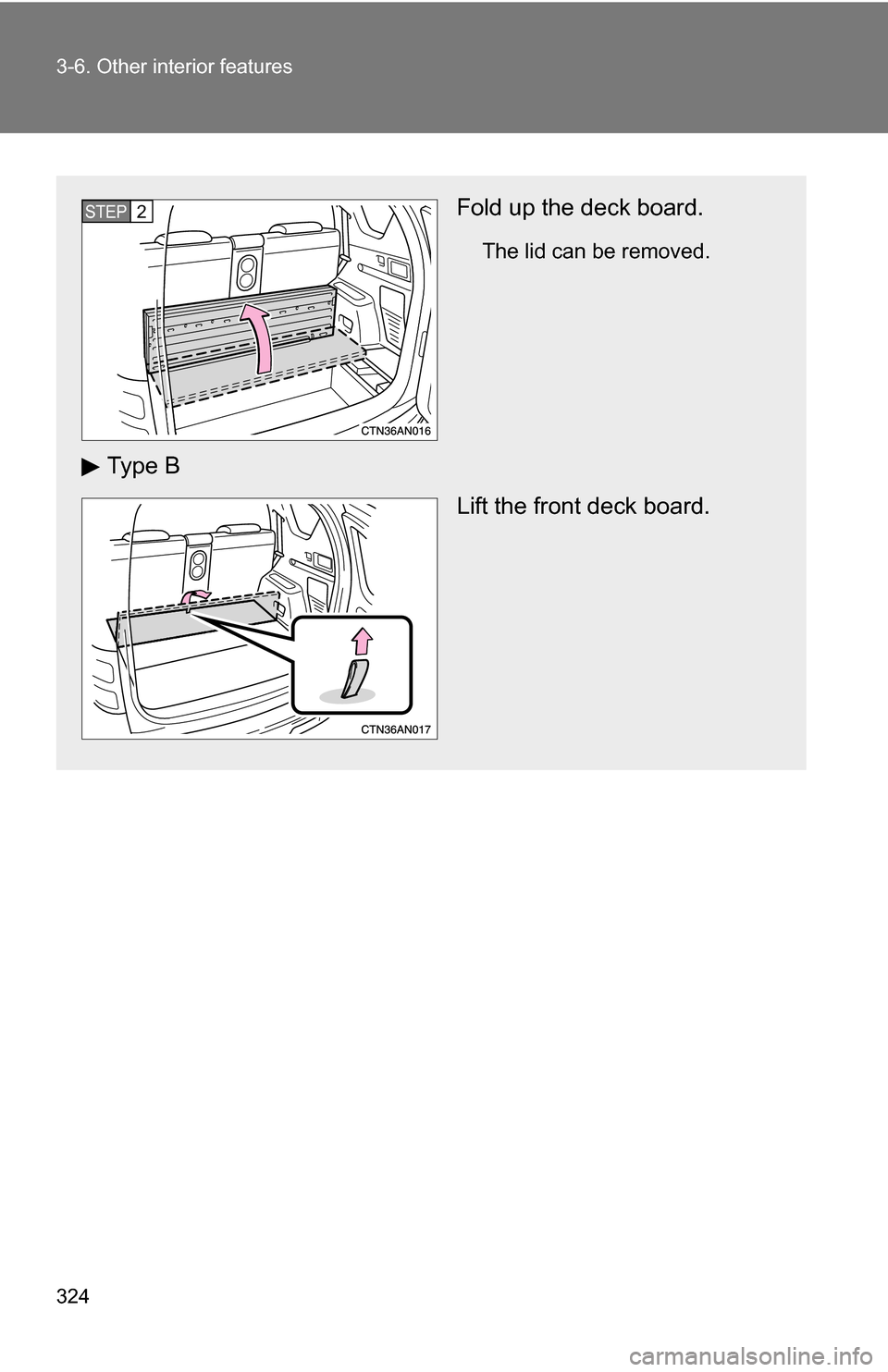

Fold up the deck board.
The lid can be removed.
Ty p e BLift the front deck board.
STEP 2

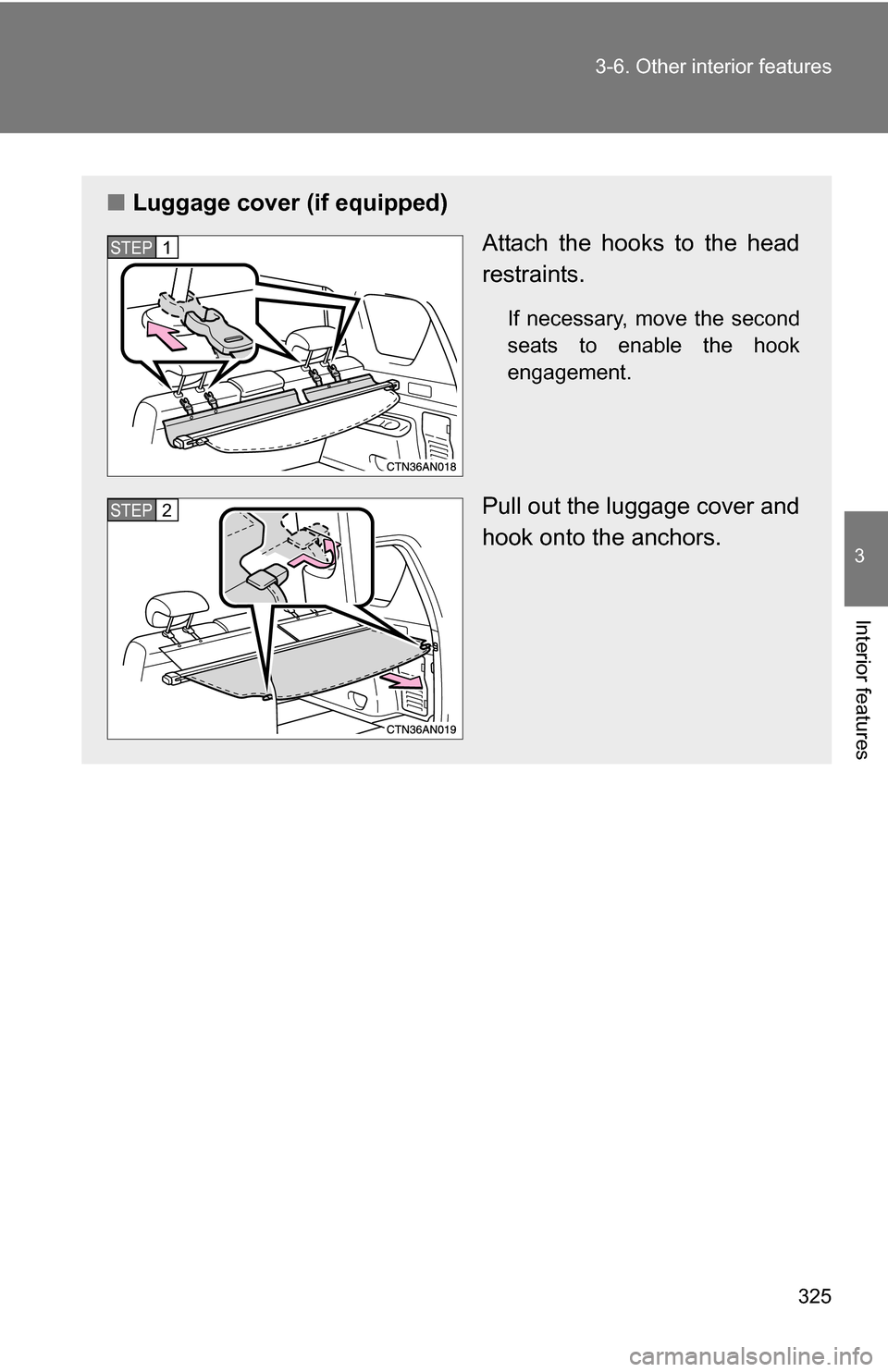

325
3-6. Other interior features
3
Interior features
■
Luggage cover (if equipped)
Attach the hooks to the head
restraints.
If necessary, move the second
seats to enable the hook
engagement.
Pull out the luggage cover and
hook onto the anchors.
STEP 1
STEP 2

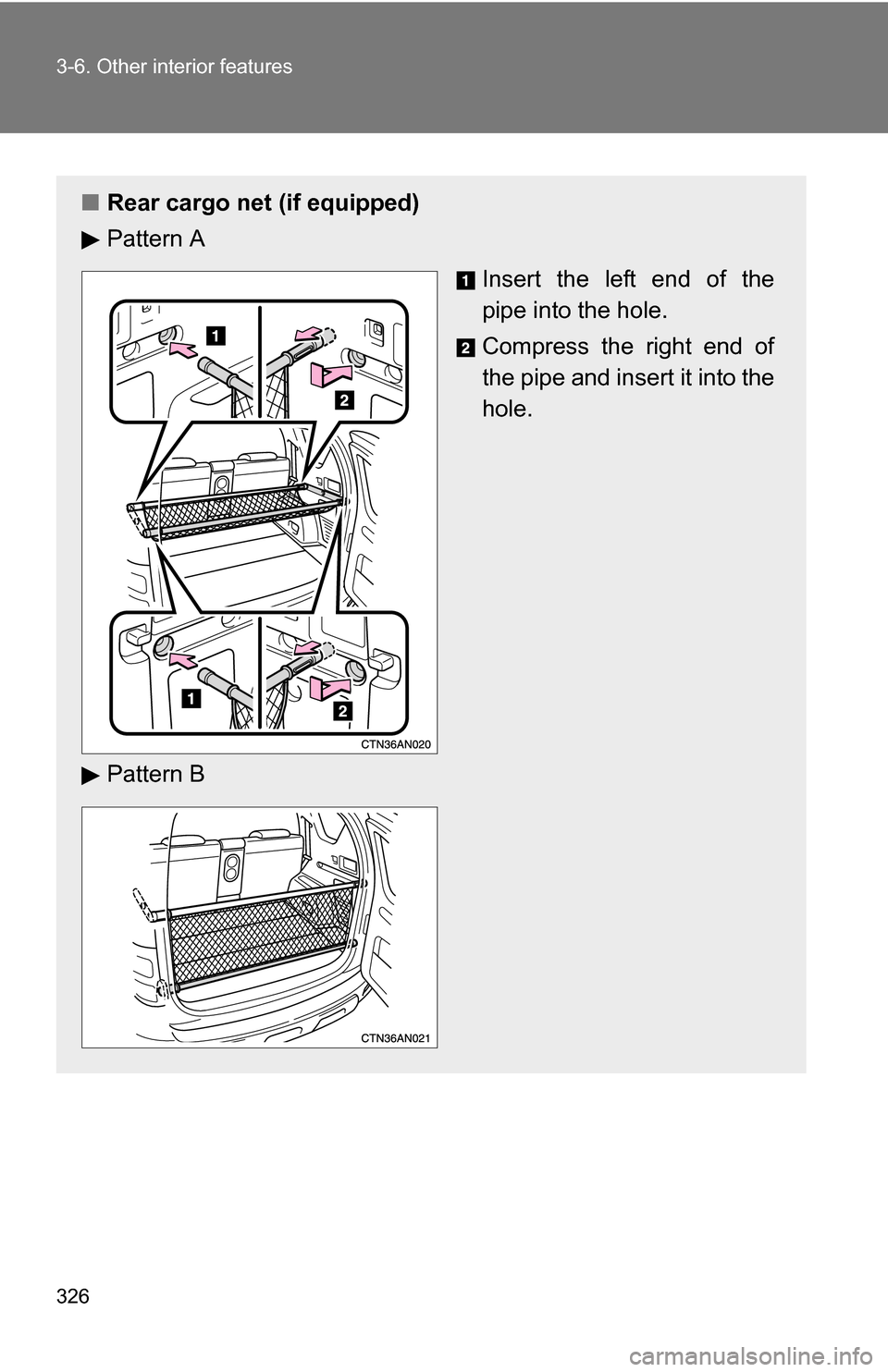

326 3-6. Other interior features
■Rear cargo net (if equipped)
Pattern A
Insert the left end of the
pipe into the hole.
Compress the right end of
the pipe and insert it into the
hole.
Pattern B

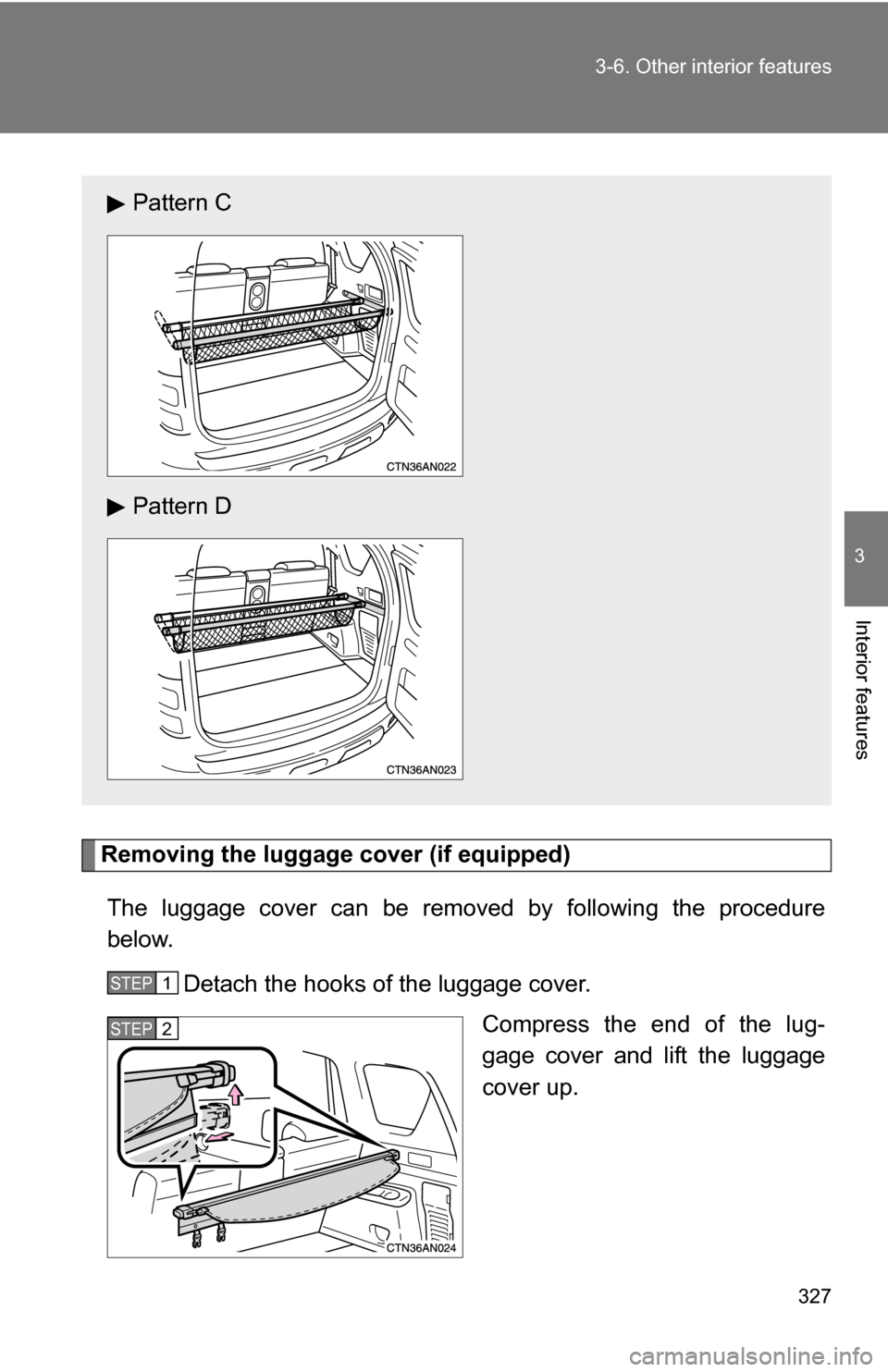

327
3-6. Other interior features
3
Interior features
Removing the luggage cover (if equipped)
The luggage cover can be removed by following the procedure
below. Detach the hooks of the luggage cover. Compress the end of the lug-
gage cover and lift the luggage
cover up.
Pattern C
Pattern D
STEP 1
STEP 2

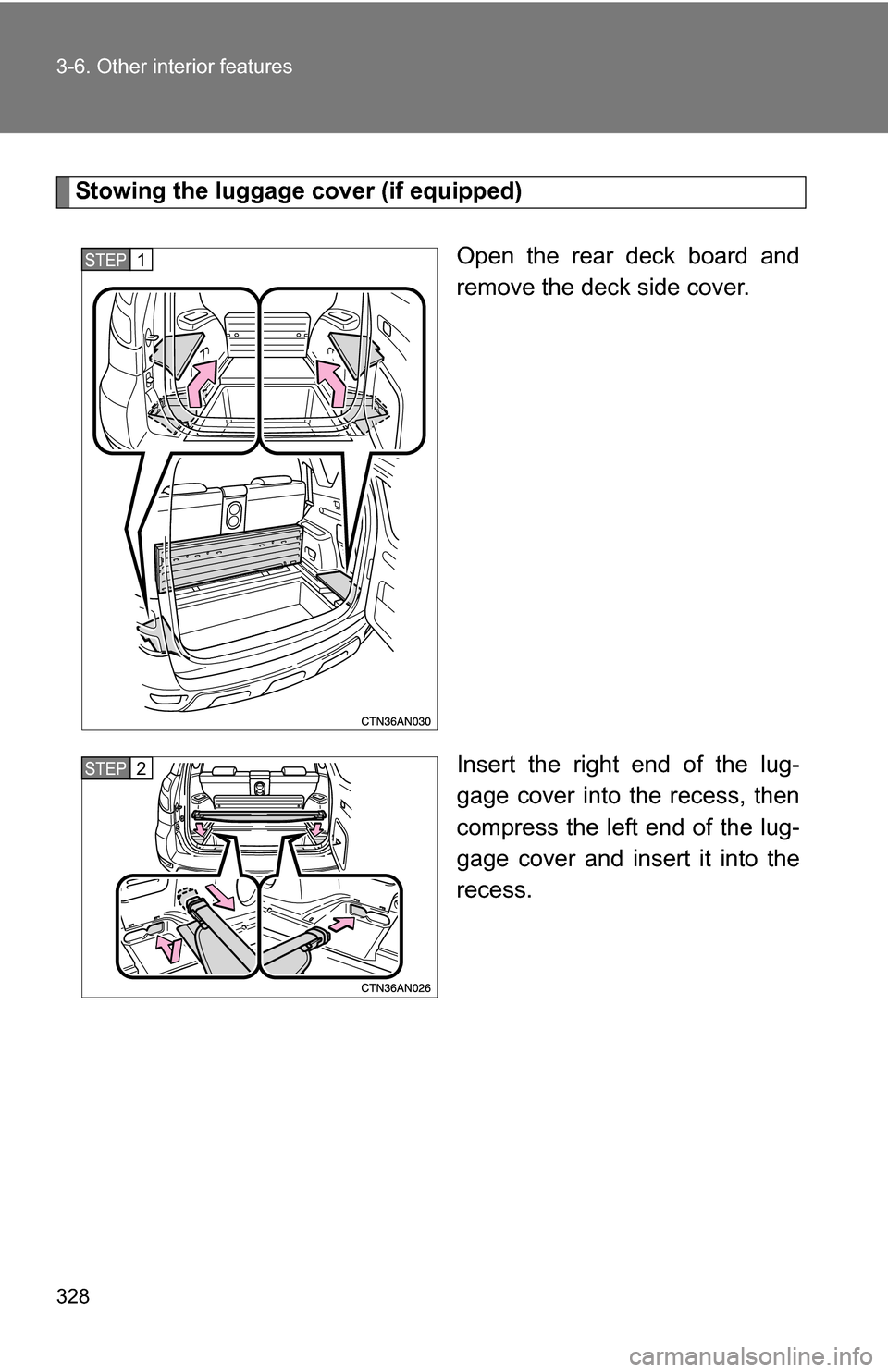

328 3-6. Other interior features
Stowing the luggage cover (if equipped)Open the rear deck board and
remove the deck side cover.
Insert the right end of the lug-
gage cover into the recess, then
compress the left end of the lug-
gage cover and insert it into the
recess.
STEP 1
STEP 2

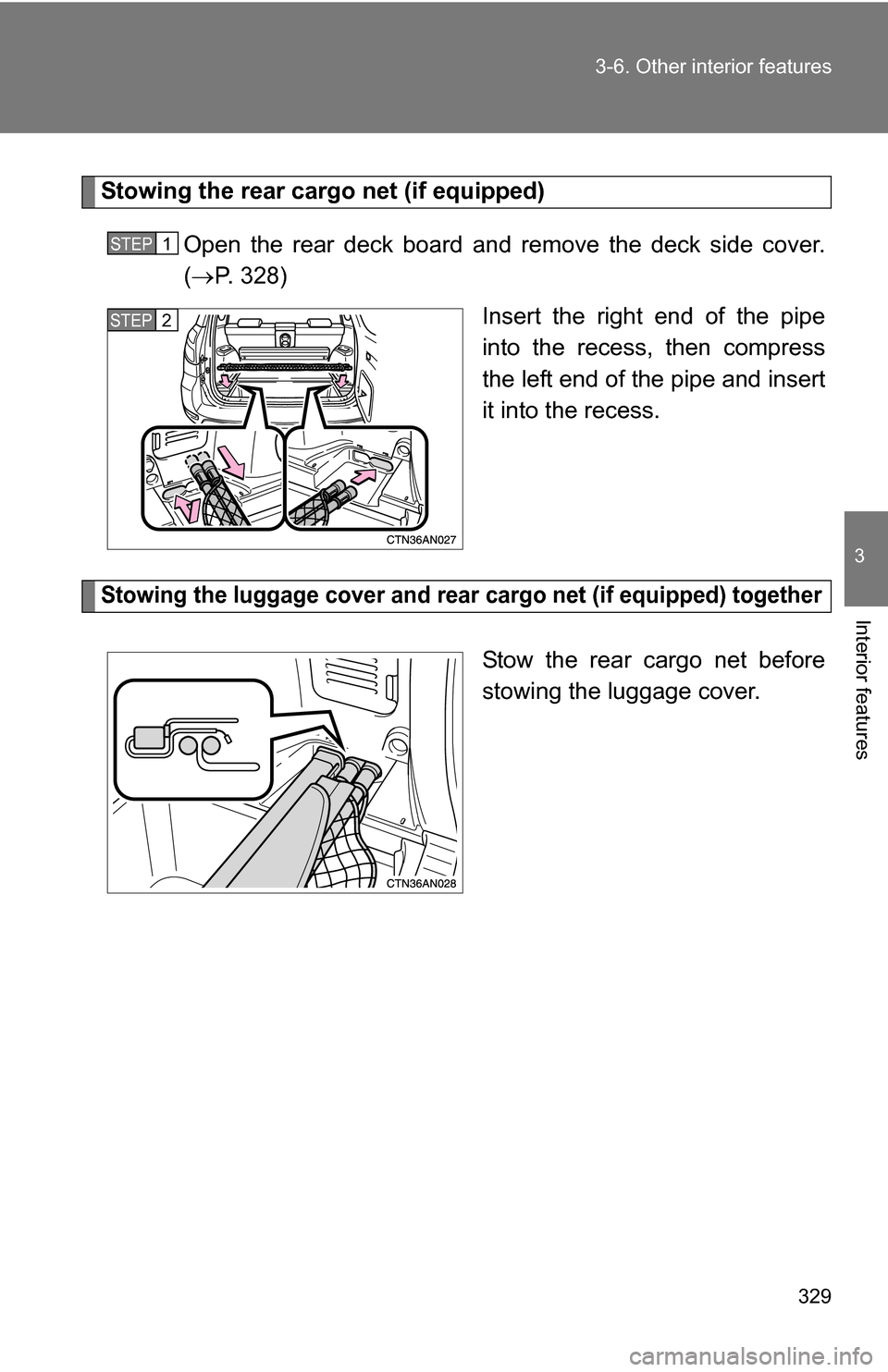

329
3-6. Other interior features
3
Interior features
Stowing the rear cargo net (if equipped)
Open the rear deck board and remove the deck side cover.
( P. 328)
Insert the right end of the pipe
into the recess, then compress
the left end of the pipe and insert
it into the recess.
Stowing the luggage cover and rear cargo net (if equipped) together
Stow the rear cargo net before
stowing the luggage cover.
STEP 1
STEP 2

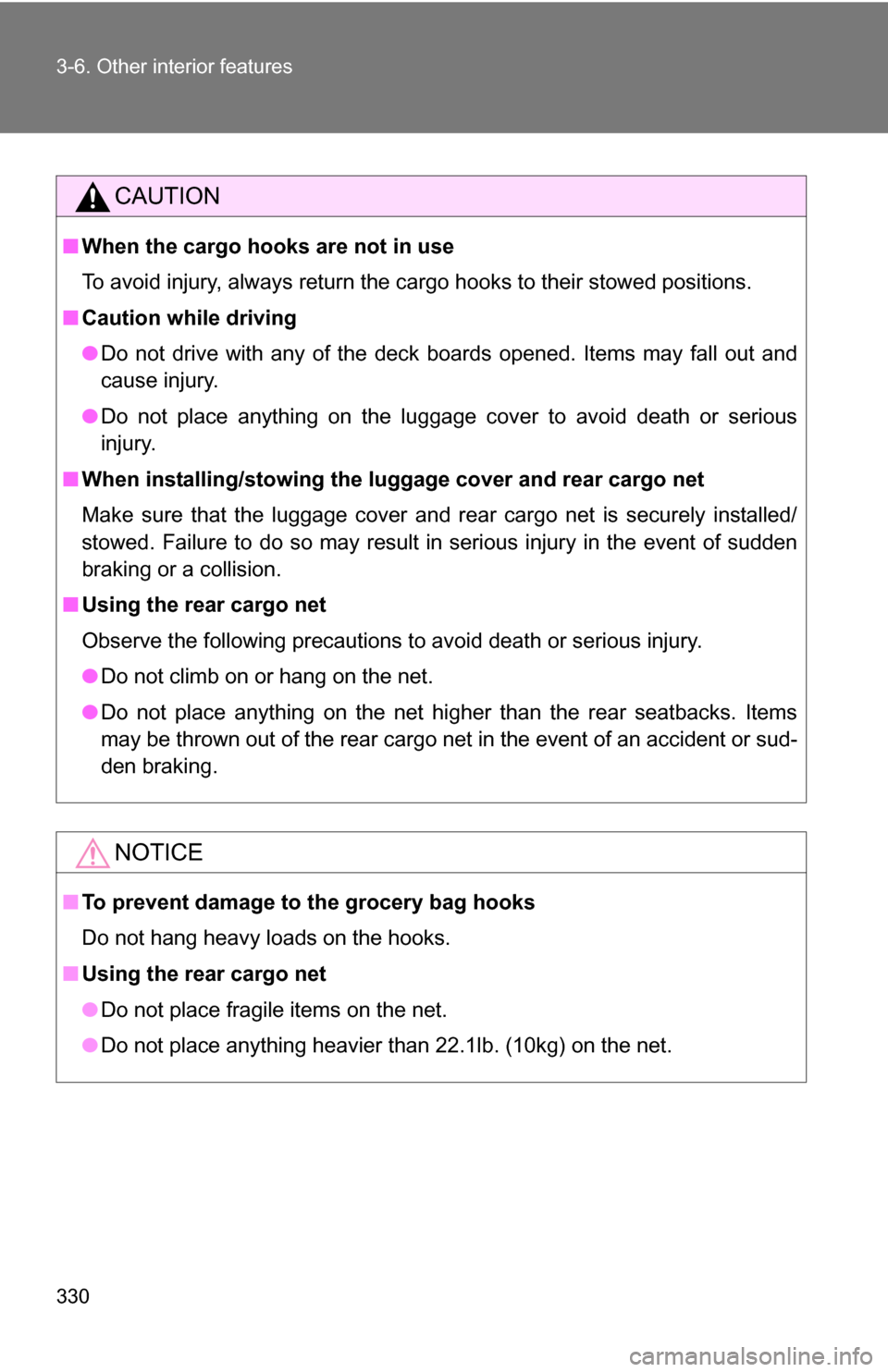

330 3-6. Other interior features
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■ Caution while driving
●Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
● Do not place anything on the luggage cover to avoid death or serious
injury.
■ When installing/stowing the lugg age cover and rear cargo net
Make sure that the luggage cover and rear cargo net is securely installed/
stowed. Failure to do so may result in serious injury in the event of sudden
braking or a collision.
■ Using the rear cargo net
Observe the following precautions to avoid death or serious injury.
●Do not climb on or hang on the net.
● Do not place anything on the net higher than the rear seatbacks. Items
may be thrown out of the rear cargo net in the event of an accident or sud-
den braking.
NOTICE
■To prevent damage to the grocery bag hooks
Do not hang heavy loads on the hooks.
■ Using the rear cargo net
●Do not place fragile items on the net.
● Do not place anything heavier than 22.1lb. (10kg) on the net.
