TOYOTA RAV4 2009 XA30 / 3.G Owners Manual

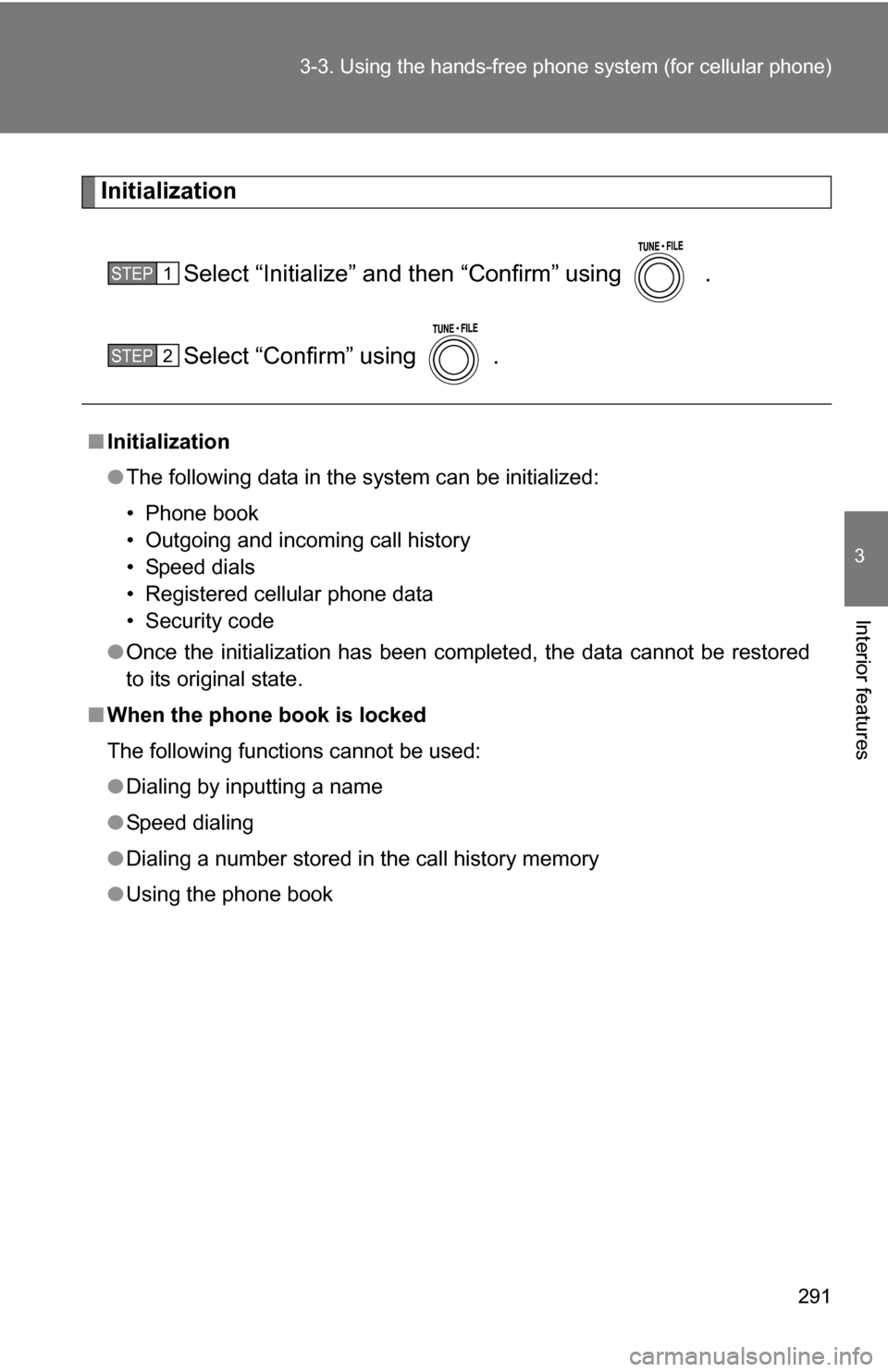

291
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Initialization
Select “Initialize” and then “Confirm” using .
Select “Confirm” using .
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
● Once the initialization has been completed, the data cannot be restored
to its original state.
■ When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
● Speed dialing
● Dialing a number stored in the call history memory
● Using the phone book
STEP 1
STEP 2

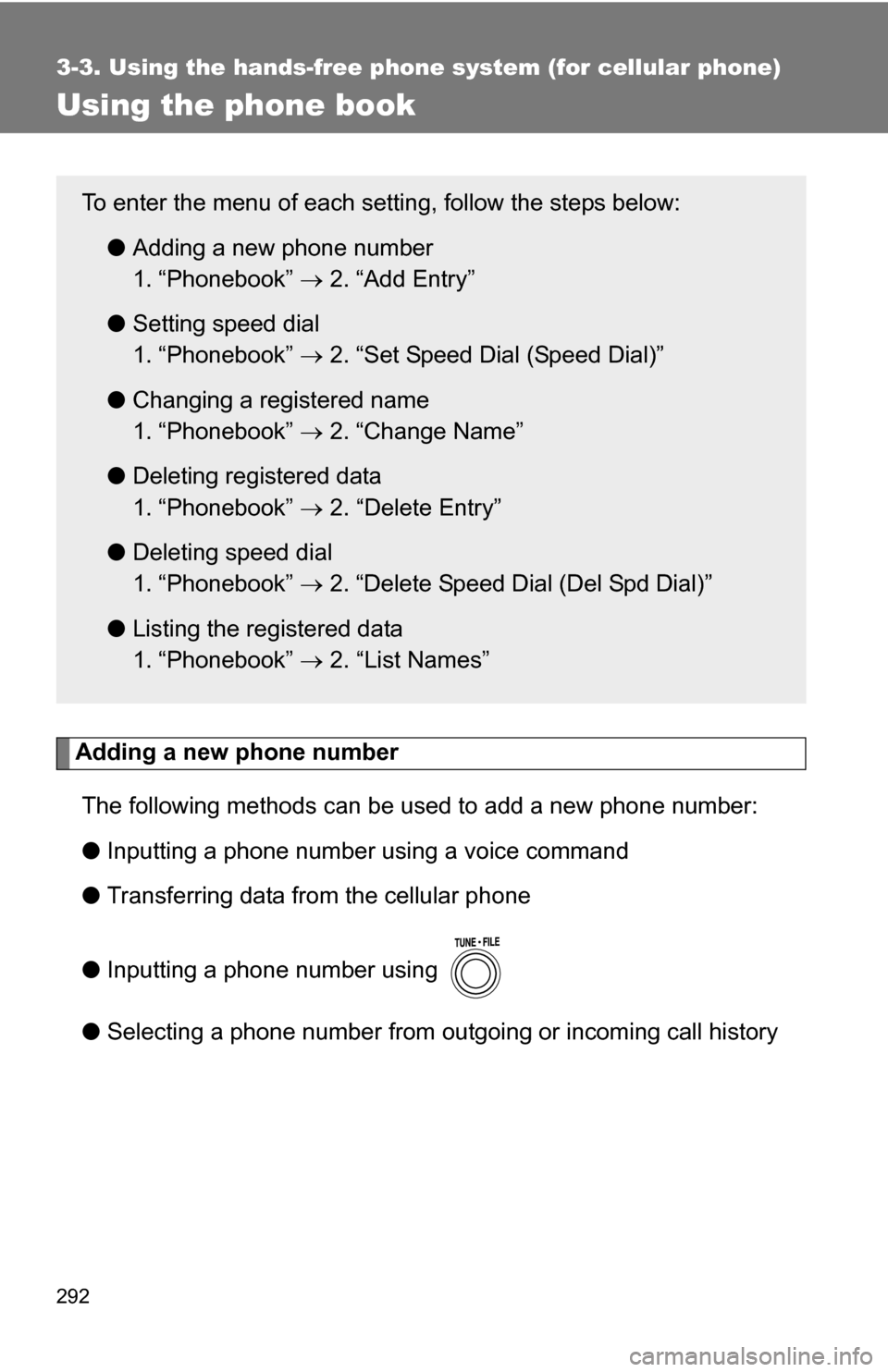

292
3-3. Using the hands-free phone system (for cellular phone)
Using the phone book
Adding a new phone numberThe following methods can be used to add a new phone number:
● Inputting a phone number using a voice command
● Transferring data from the cellular phone
● Inputting a phone number using
● Selecting a phone number from outgoing or incoming call history
To enter the menu of each setting, follow the steps below:
●Adding a new phone number
1. “Phonebook”  2. “Add Entry”
● Setting speed dial
1. “Phonebook”  2. “Set Speed Dial (Speed Dial)”
● Changing a registered name
1. “Phonebook”  2. “Change Name”
● Deleting registered data
1. “Phonebook”  2. “Delete Entry”
● Deleting speed dial
1. “Phonebook”  2. “Delete Speed Dial (Del Spd Dial)”
● Listing the registered data
1. “Phonebook”  2. “List Names”

293
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features

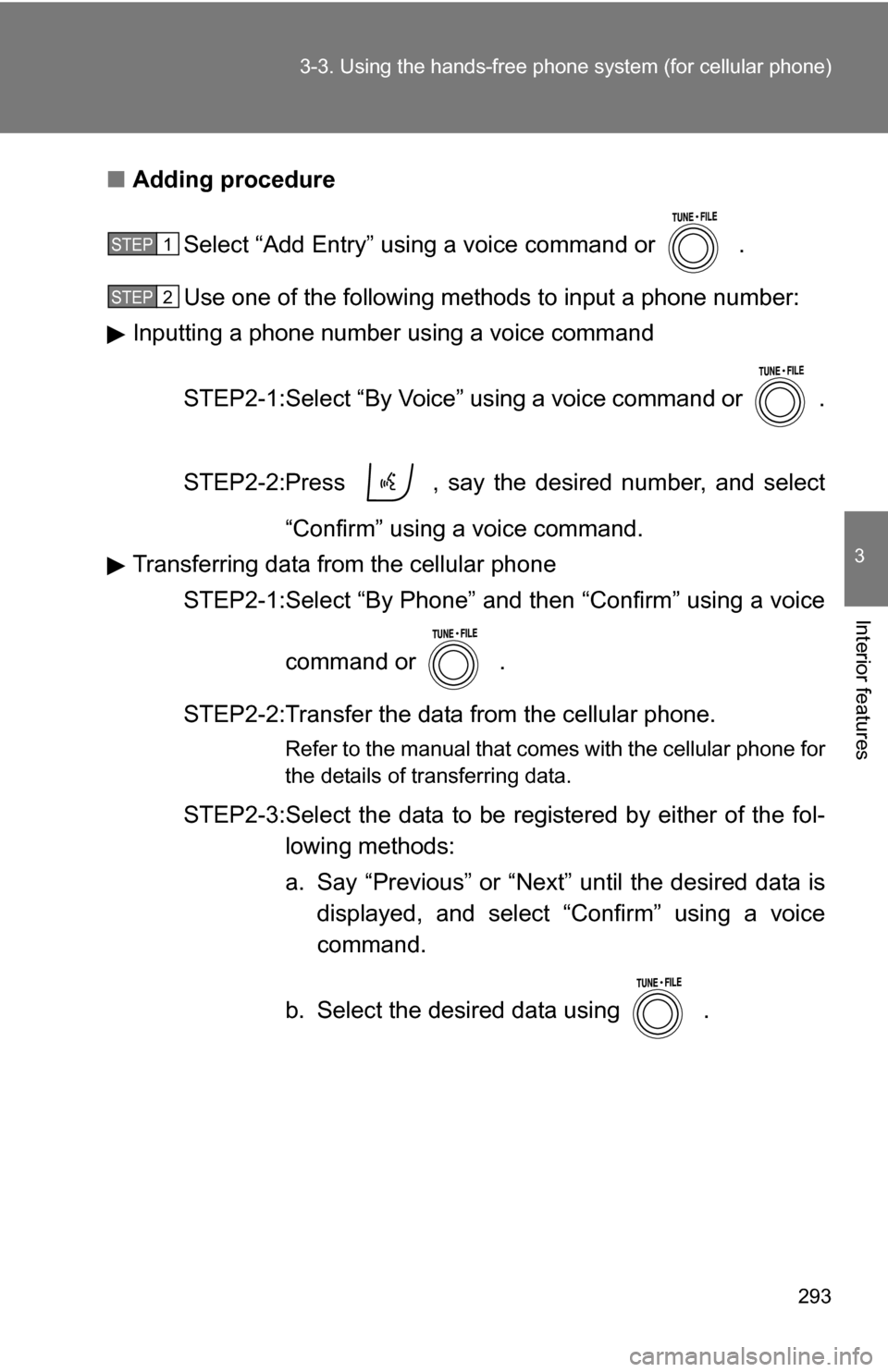

■Adding procedure
Select “Add Entry” using a voice command or .
Use one of the following methods to input a phone number:
Inputting a phone number using a voice command
STEP2-1:Select “By Voice” using a voice command or .
STEP2-2:Press , say the desired number, and select “Confirm” using a voice command.
Transferring data from the cellular phone
STEP2-1:Select “By Phone” and then “Confirm” using a voice
command or .
STEP2-2:Transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone for
the details of transferring data.
STEP2-3:Select the data to be re gistered by either of the fol-
lowing methods:
a. Say “Previous” or “Next” until the desired data is displayed, and select “Confirm” using a voice
command.
b. Select the desired data using .
STEP 1
STEP 2

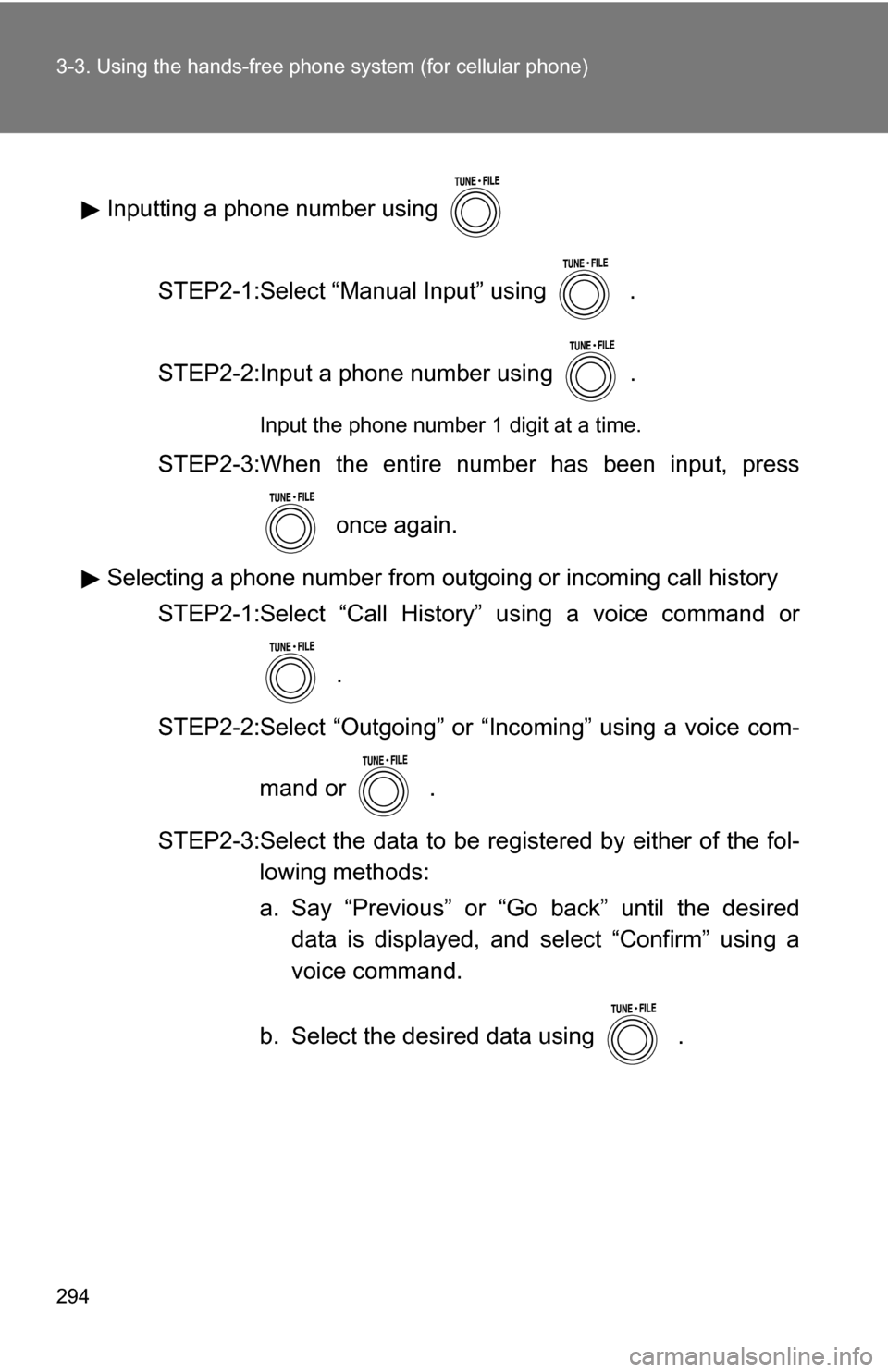

294 3-3. Using the hands-free phone system (for cellular phone)
Inputting a phone number using
STEP2-1:Select “Manual Input” using .
STEP2-2:Input a phone number using .
Input the phone number 1 digit at a time.
STEP2-3:When the entire number has been input, press once again.
Selecting a phone number from outgoing or incoming call history STEP2-1:Select “Call History” using a voice command or
.
STEP2-2:Select “Outgoing” or “Incoming” using a voice com-
mand or .
STEP2-3:Select the data to be re gistered by either of the fol-
lowing methods:
a. Say “Previous” or “Go back” until the desired data is displayed, and select “Confirm” using a
voice command.
b. Select the desired data using .

295
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features

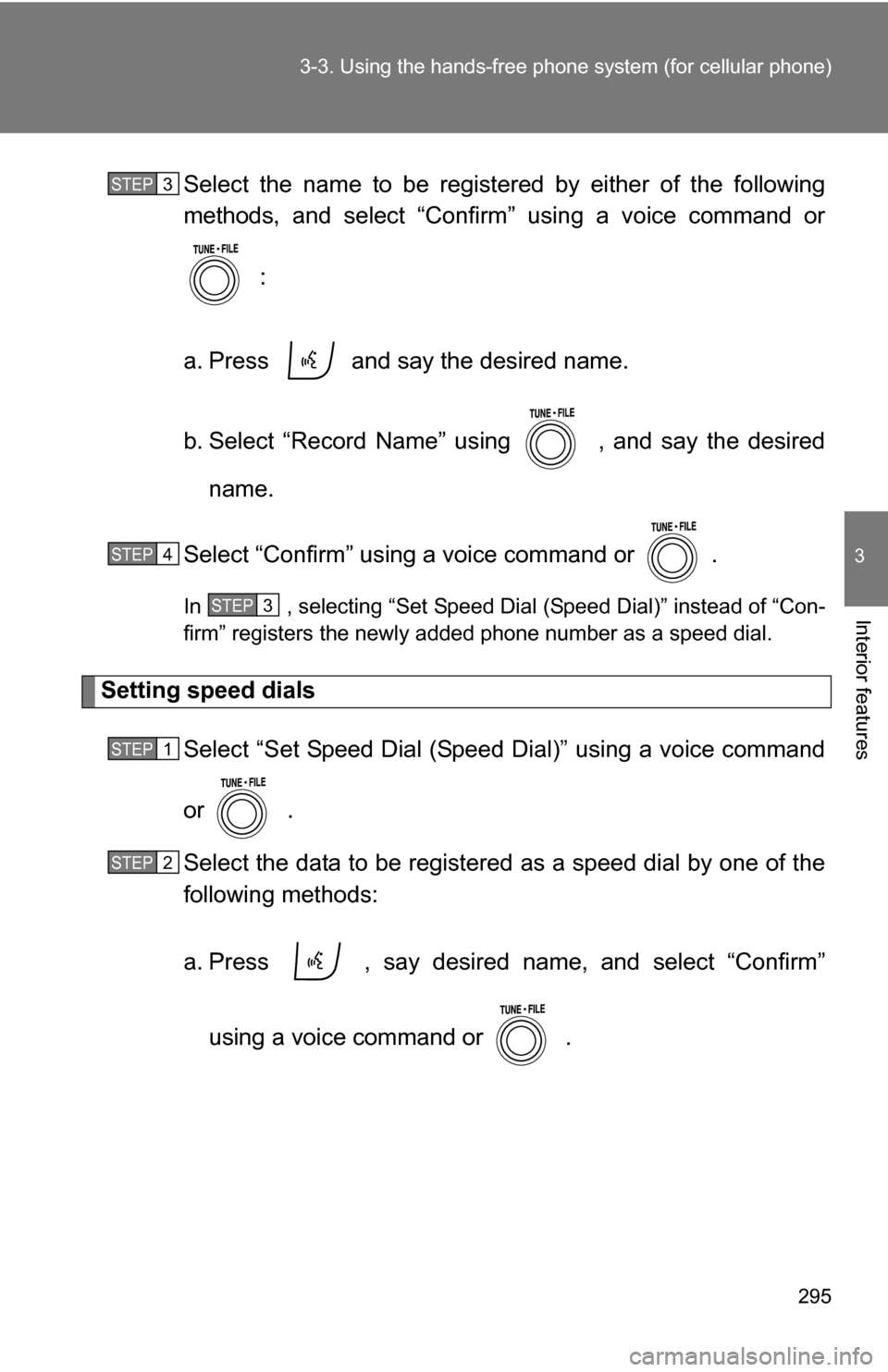

Select the name to be registered by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press and say the desired name.
b. Select “Record Name” using , and say the desired name.
Select “Confirm” using a voice command or .
In , selecting “Set Speed Dial (Speed Dial)” instead of “Con-
firm” registers the newly added phone number as a speed dial.
Setting speed dials
Select “Set Speed Dial (Spee d Dial)” using a voice command
or .
Select the data to be registered as a speed dial by one of the
following methods:
a. Press , say desired name, and select “Confirm”
using a voice command or
.
STEP 3
STEP 4
STEP 3
STEP 1
STEP 2

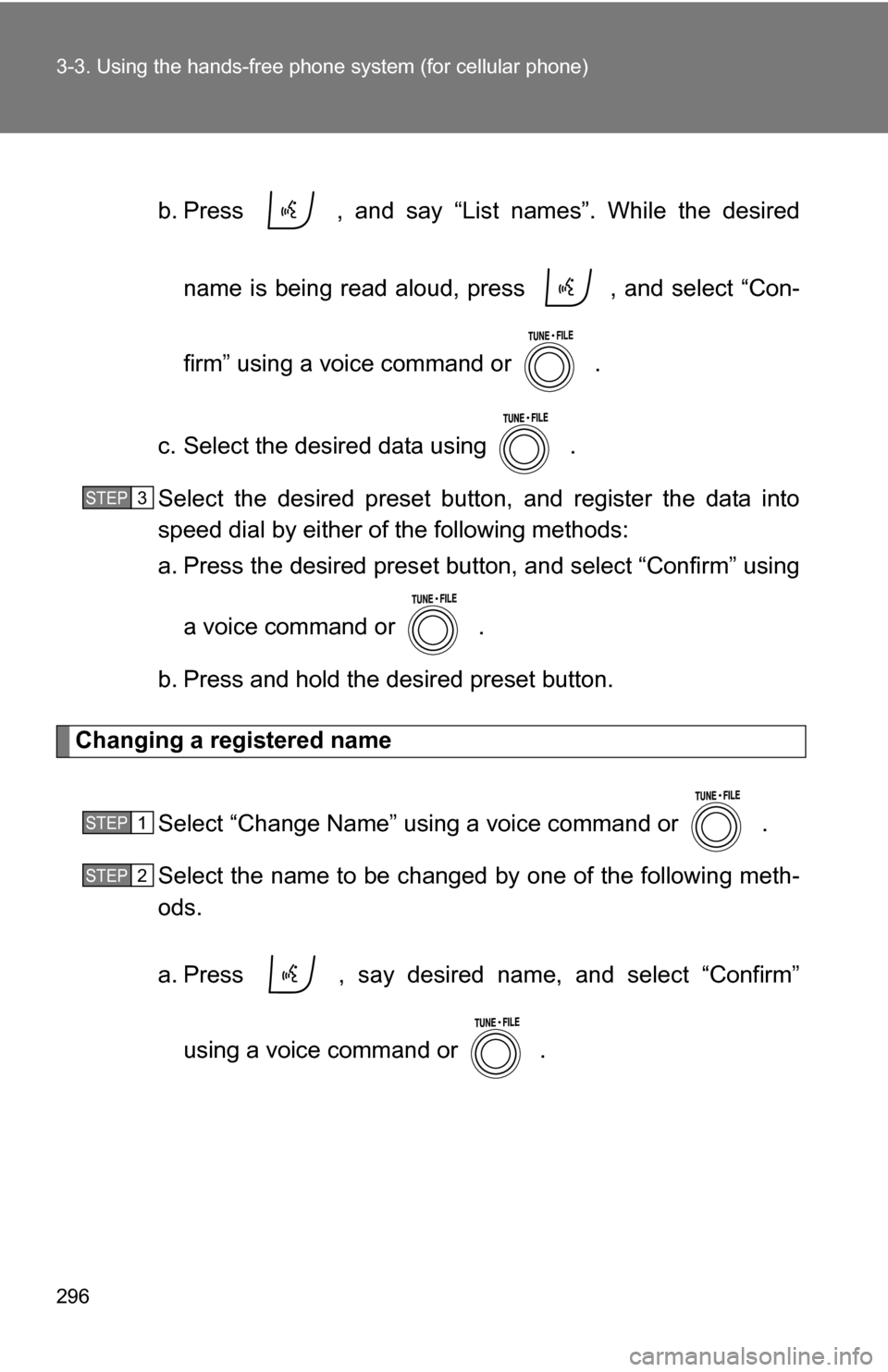

296 3-3. Using the hands-free phone system (for cellular phone)
b. Press , and say “List names”. While the desired
name is being read aloud, press , and select “Con-
firm” using a voice command or .
c. Select the desired data using .
Select the desired preset butt on, and register the data into
speed dial by either of the following methods:
a. Press the desired pres et button, and select “Confirm” using
a voice command or .
b. Press and hold the desired preset button.
Changing a registered name
Select “Change Name” using a voice command or .
Select the name to be changed by one of the following meth-
ods.
a. Press , say desired name, and select “Confirm”using a voice command or
.
STEP 3
STEP 1
STEP 2

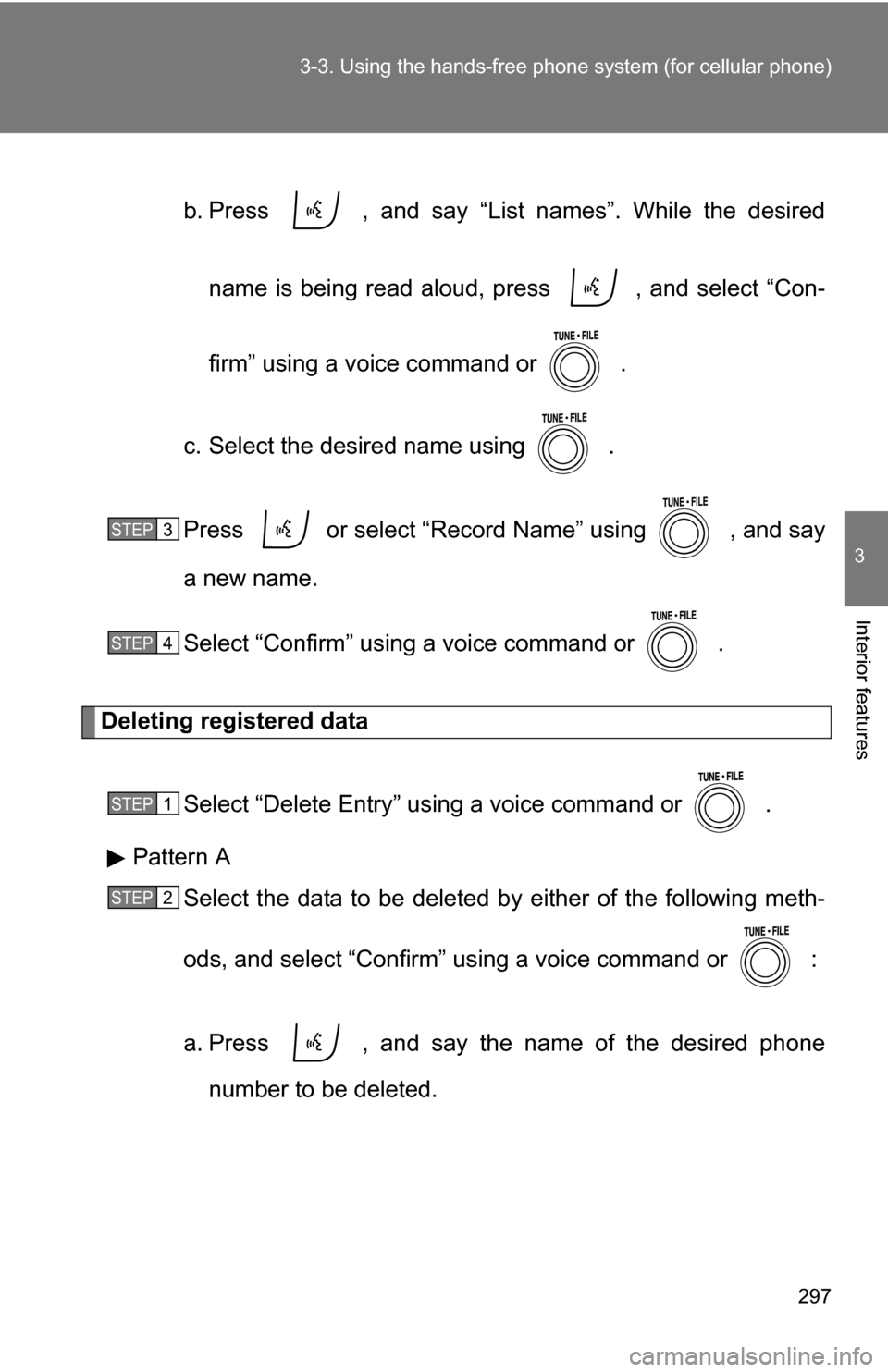

297
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features
b. Press , and say “List names”. While the desired
name is being read aloud, press , and select “Con-
firm” using a voice command or .
c. Select the desired name using .
Press or select “Record Name” using , and say
a new name.
Select “Confirm” using a voice command or .
Deleting registered data
Select “Delete Entry” using a voice command or .
Pattern A Select the data to be deleted by either of the following meth-
ods, and select “Confirm” us ing a voice command or :
a. Press , and say the name of the desired phone number to be deleted.
STEP 3
STEP 4
STEP 1
STEP 2

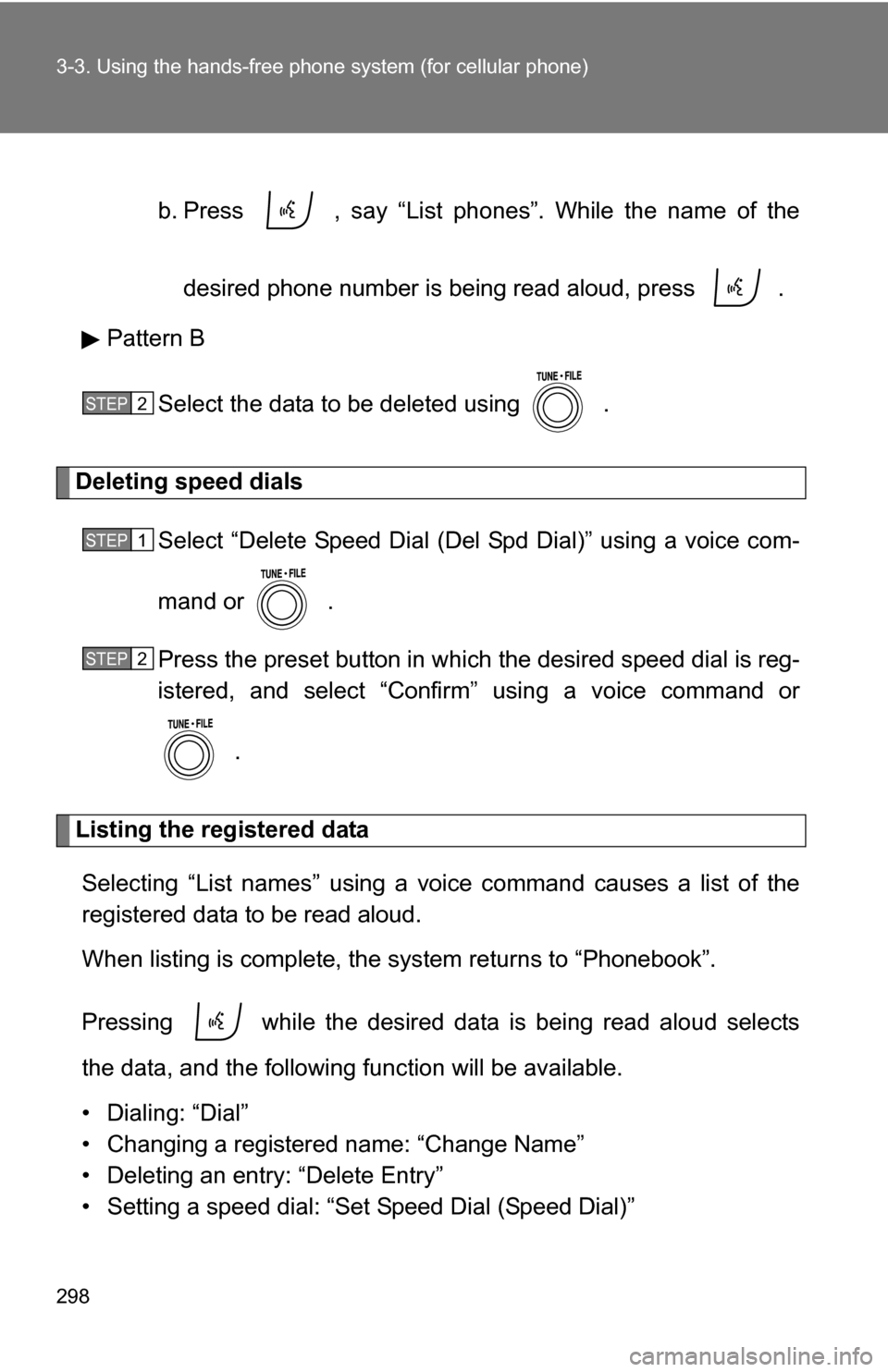

298 3-3. Using the hands-free phone system (for cellular phone)
b. Press , say “List phones”. While the name of the
desired phone number is being read aloud, press .
Pattern B
Select the data to be deleted using .
Deleting speed dials Select “Delete Speed Dial (Del Spd Dial)” using a voice com-
mand or .
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” using a voice command or
.
Listing the registered dataSelecting “List names” using a voice command causes a list of the
registered data to be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing while the desired data is being read aloud selects
the data, and the following function will be available.
• Dialing: “Dial”
• Changing a registered name: “Change Name”
• Deleting an entry: “Delete Entry”
• Setting a speed dial: “Set Speed Dial (Speed Dial)”
STEP 2
STEP 1
STEP 2

299
3-3. Using the hand
s-free phone system (for cellular phone)
3
Interior features

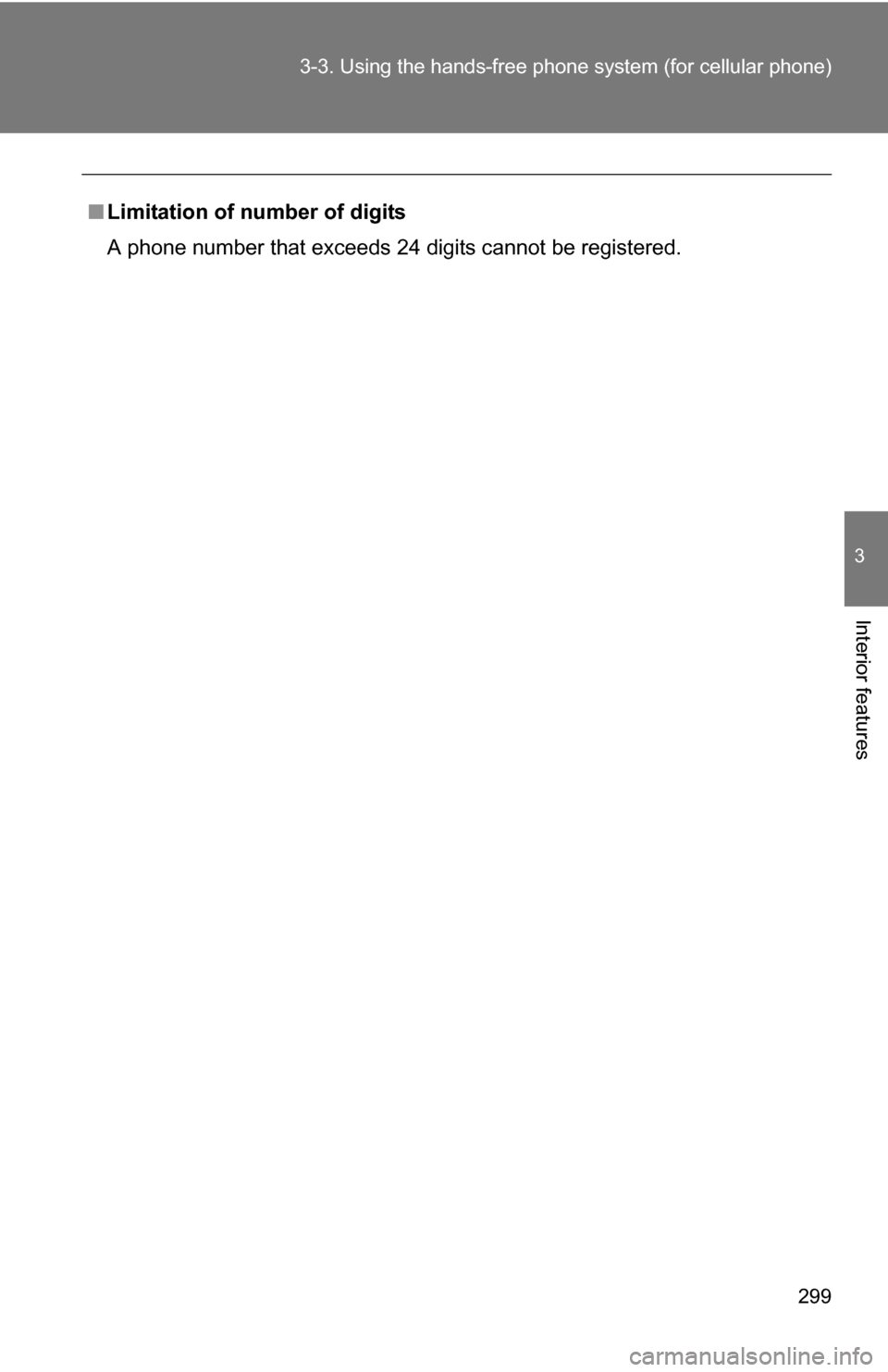

■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.

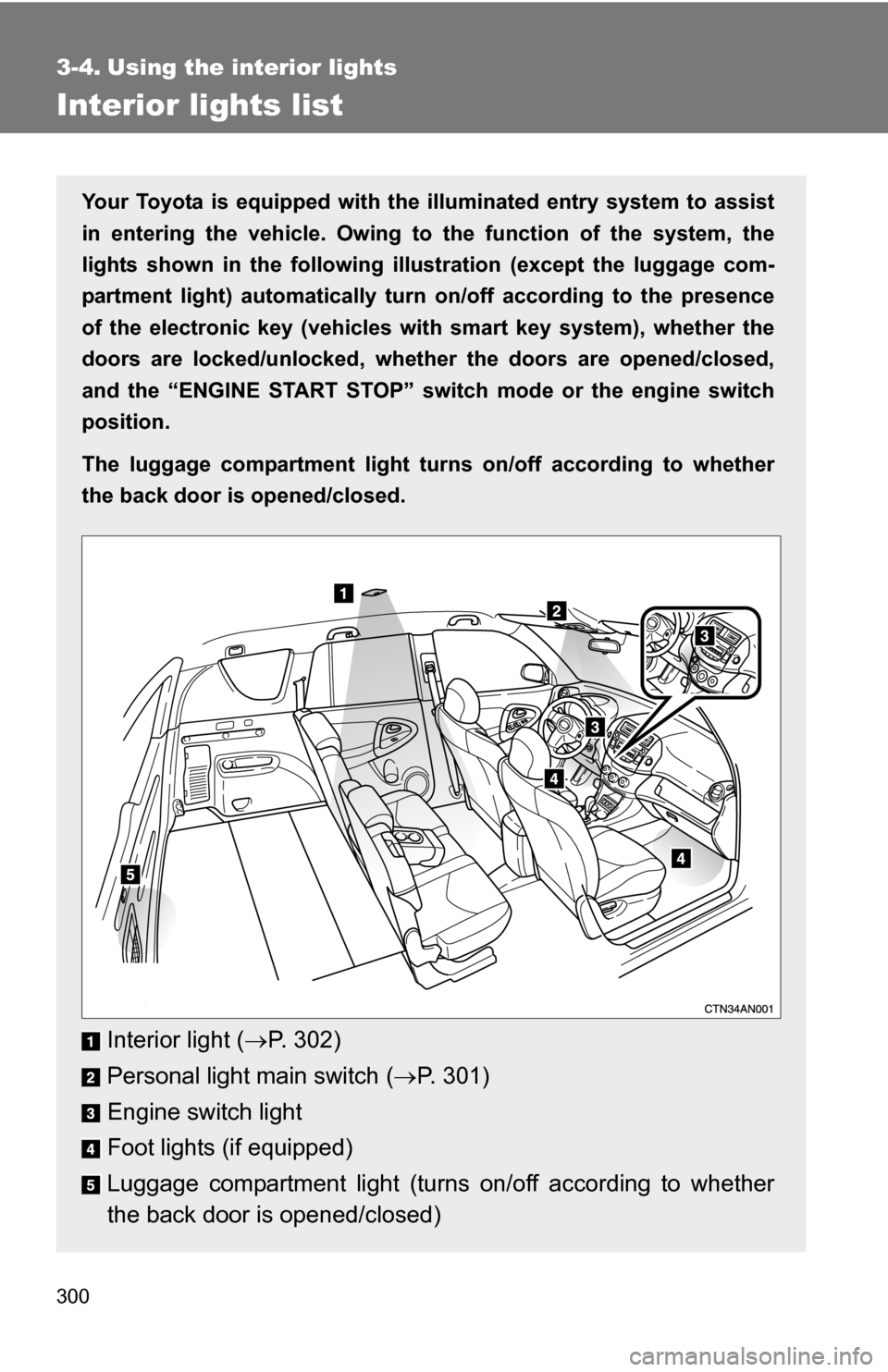

300
3-4. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Owing to the function of the system, the
lights shown in the following illu stration (except the luggage com-
partment light) automatically turn on/off according to the presence
of the electronic key (vehicles with smart key system), whether the
doors are locked/unlocked, whethe r the doors are opened/closed,
and the “ENGINE START STOP” switch mode or the engine switch
position.
The luggage compartment light tu rns on/off according to whether
the back door is opened/closed.
Interior light ( P. 302)
Personal light main switch ( P. 301)
Engine switch light
Foot lights (if equipped)
Luggage compartment light (turns on/off according to whether
the back door is opened/closed)
