TOYOTA RAV4 2009 XA30 / 3.G Owners Manual

491
6
Vehicle specifications
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart key
system
(if equipped)
(
P. 2 6 ) Smart key system On Off
Operation signal
(Emergency flashers)
On Off
Operation signal
(Buzzer) On Off
Wireless
remote con-
trol
(
P. 3 8 ) Wireless remote control On Off
Unlocking operation
Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic door lock
function to be activated
if door is not opened
after being unlocked On Off
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers) On Off
Door lock buzzer On Off
Your vehicle includes a variety of electronic features that can be
personalized to your preferen ces. Programming these preferences
requires specialized equipment and may be performed by your
Toyota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer.

492 6-2. Customization
Wireless
remote con-
trol
(
P. 38)Operation signal
(Buzzer)
On Off
Panic function On Off
Door lock
(
P. 42,
455) Unlocking using a key Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic
light control
system
( P. 165) Light sensor sensitivity Level 3 Level 1 to 5
Time elapsed before
headlights automati-
cally turn off after doors
are closed
30 seconds0 second
60 seconds
90 seconds
Lights
(
P. 165) Daytime running light
system (U.S.A. only)
On Off
Illumination
(
P. 300) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Vehicles with smart key
system: Operation after
the “ENGINE START
STOP” switch is turned
OFF
Vehicles without smart
key system: Operation
after the engine switch
is turned to the “LOCK”
position On Off
Front foot lights On Off
ItemFunctionDefault settingCustomized setting

493
6-2. Customization
6
Vehicle specifications

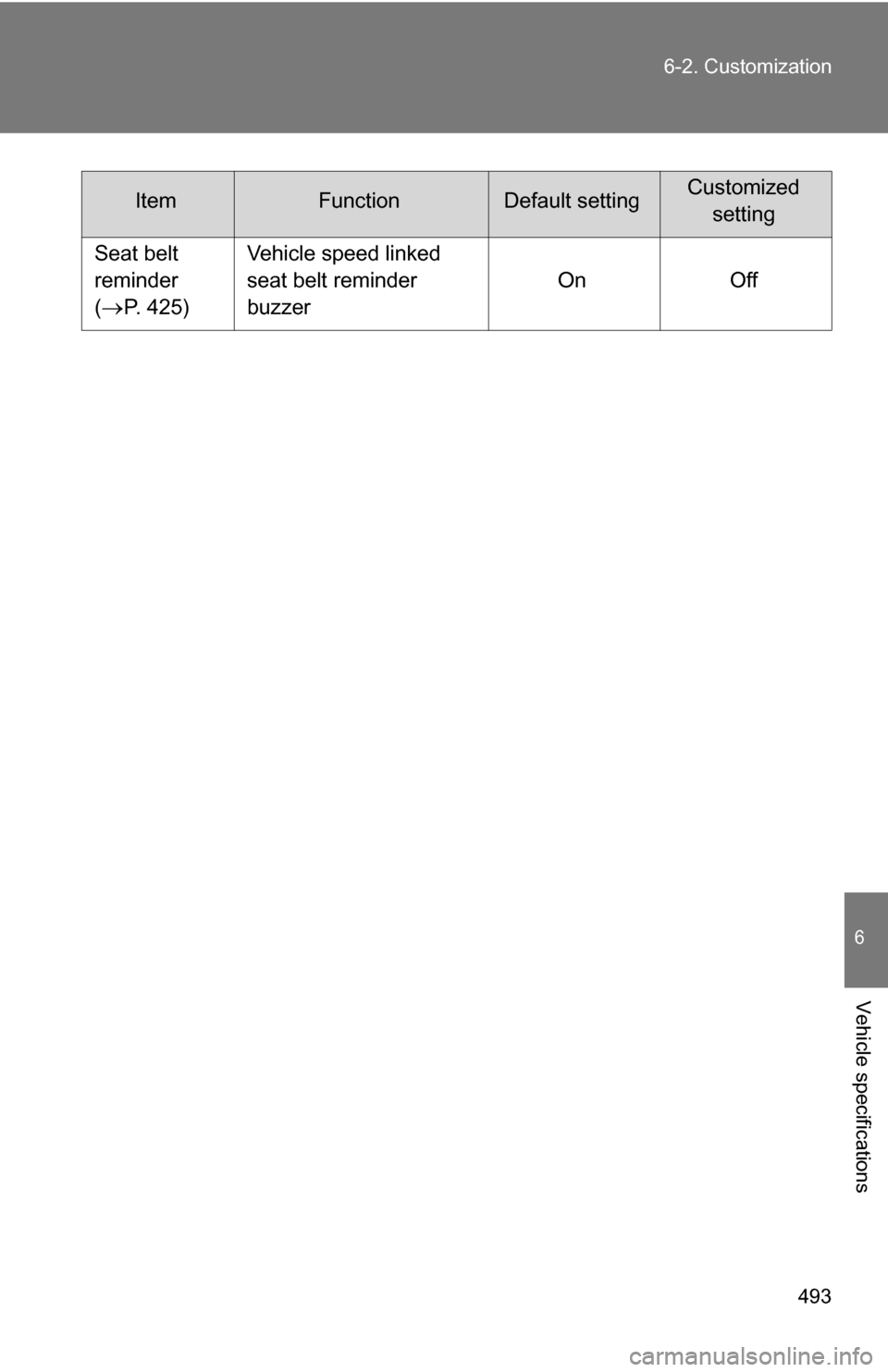

Seat belt
reminder
(
P. 425)
Vehicle speed linked
seat belt reminder
buzzer
On Off
ItemFunctionDefault settingCustomized
setting

494

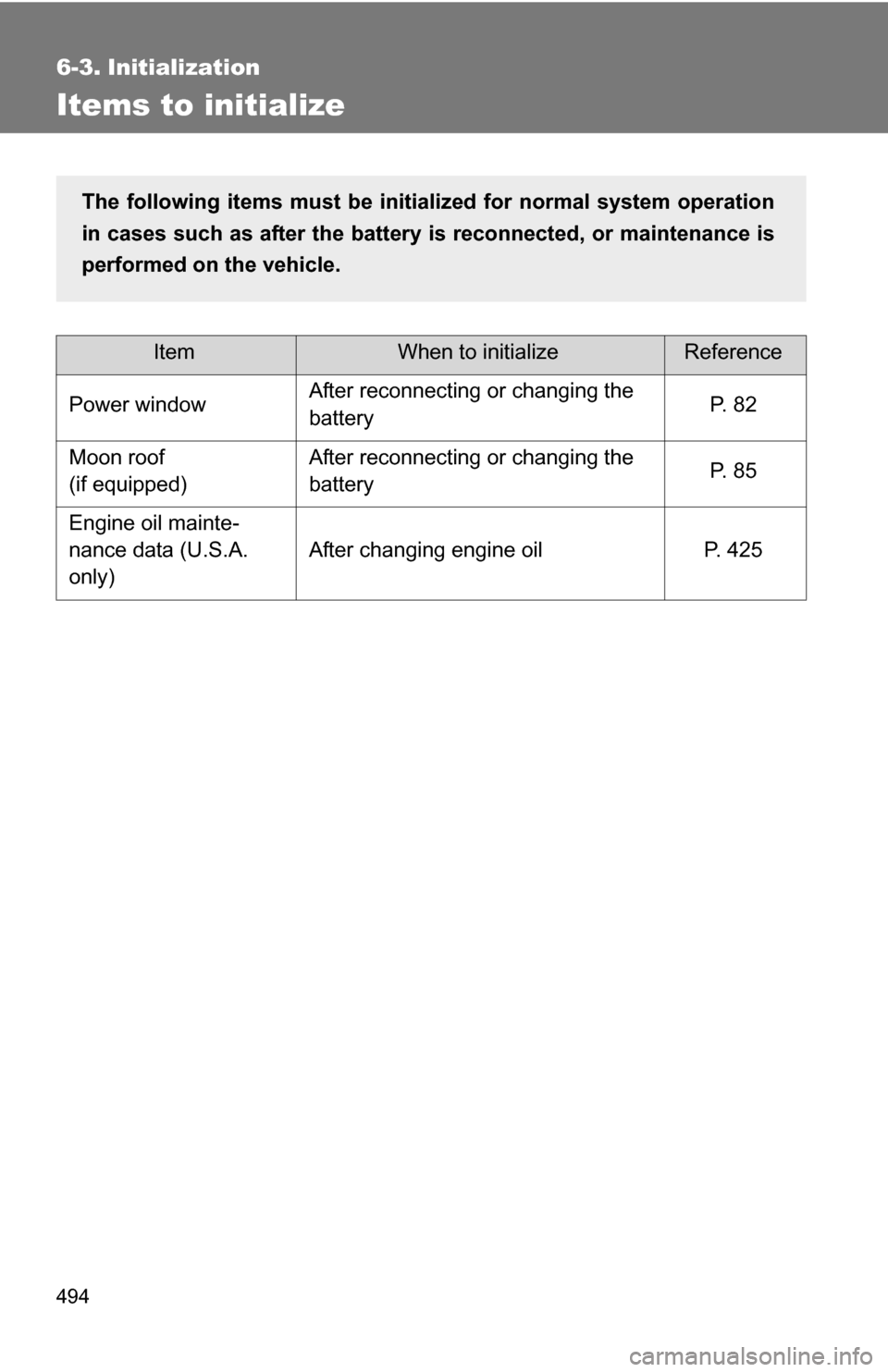

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Power window After reconnecting or changing the
battery P. 8 2
Moon roof
(if equipped) After reconnecting or changing the
battery
P. 8 5
Engine oil mainte-
nance data (U.S.A.
only) After changing engine oil P. 425
The following items must be initia
lized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

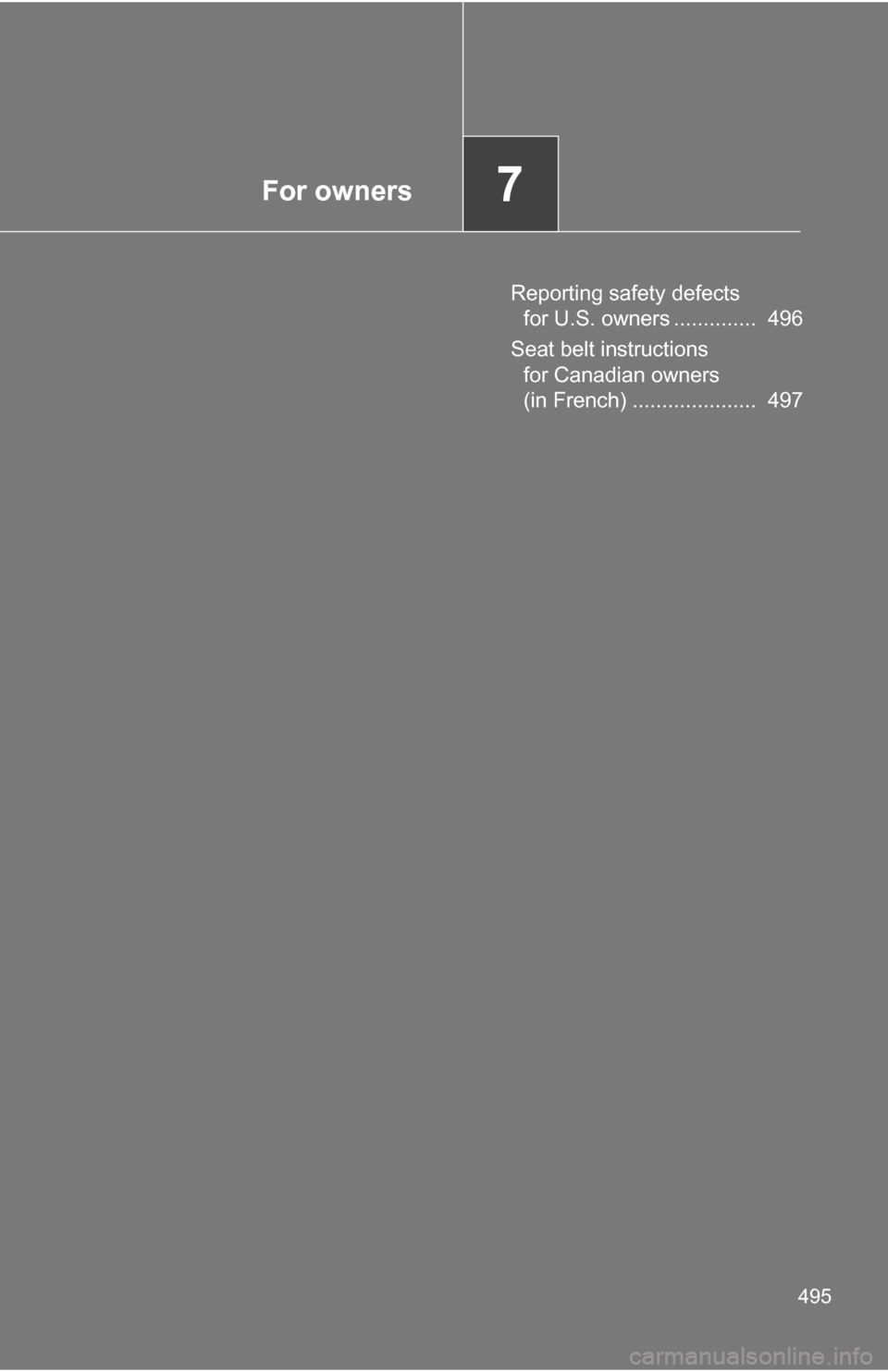

For owners7
495
Reporting safety defects for U.S. owners .............. 496
Seat belt instructions for Canadian owners
(in French) ..................... 497

496

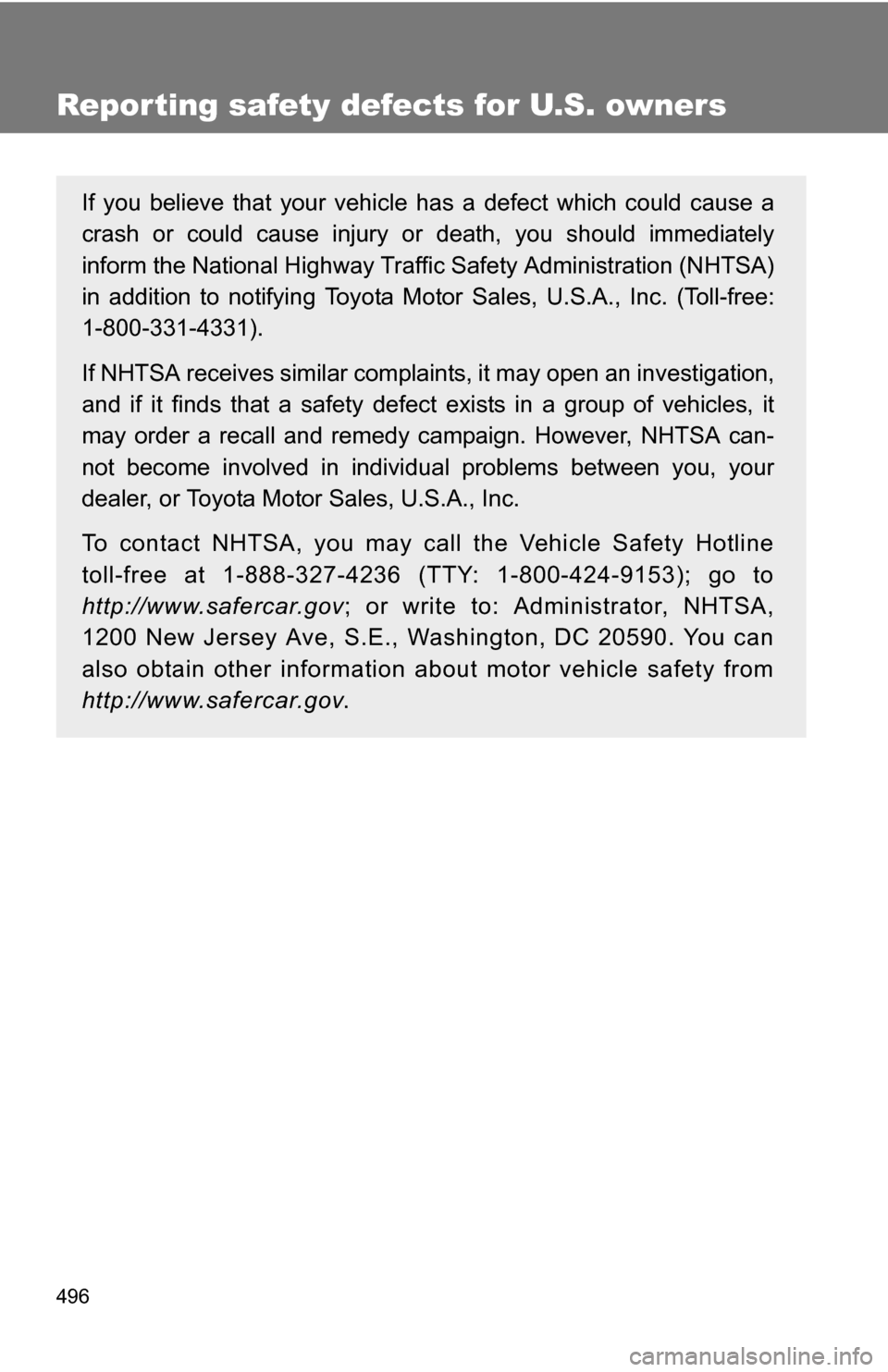

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free:
1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .

497
7
For owners

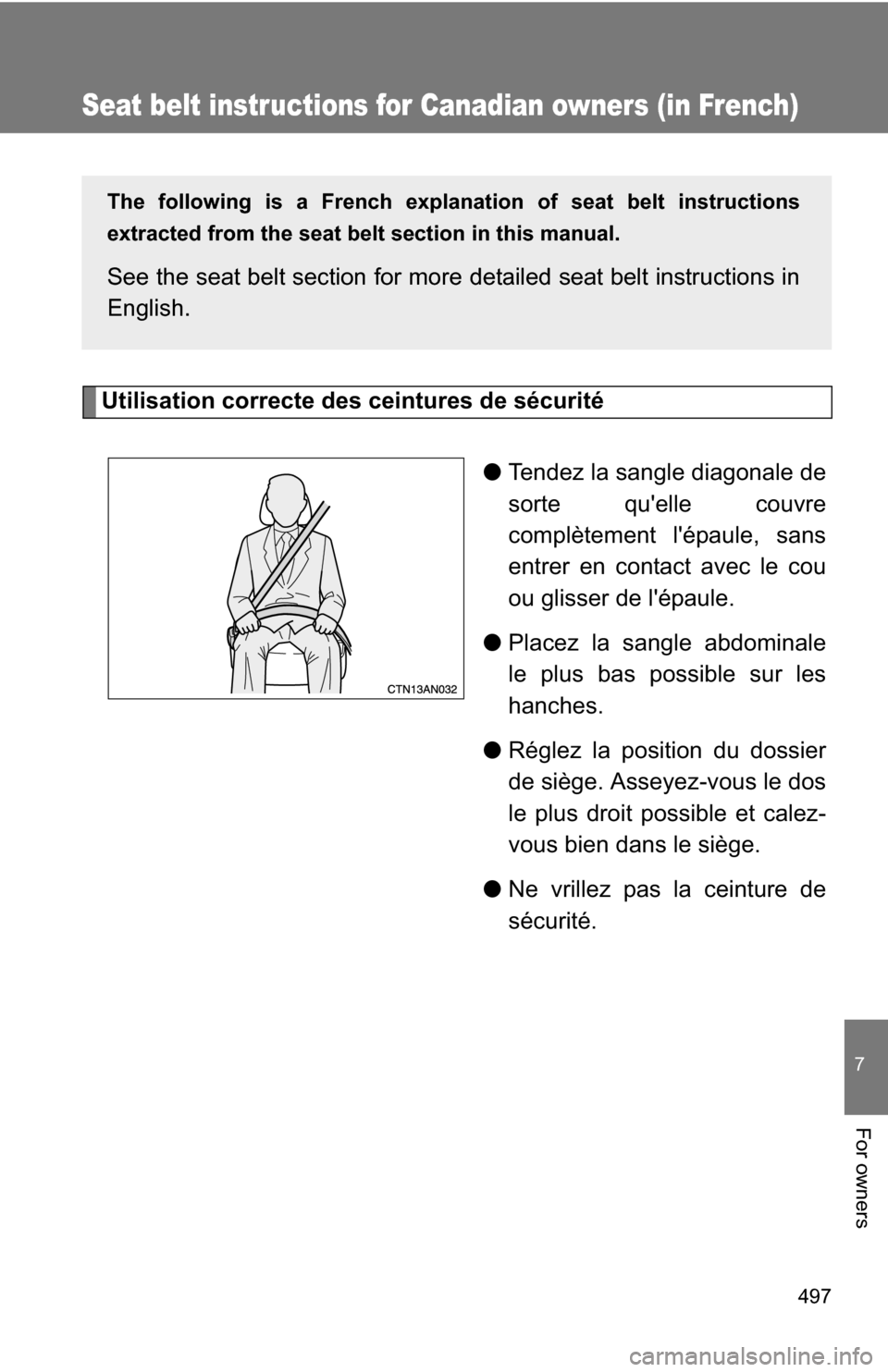

Seat belt instructions for Canadian owners (in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
●Tendez la sangle diagonale de
sorte qu'elle couvre
complètement l'épaule, sans
entrer en contact avec le cou
ou glisser de l'épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne vrillez pas la ceinture de
sécurité.

498
Entretien et soin
AT T E N T I O N
■Lorsque vous utilisez la ceinture de sécurité du siège central de la
deuxième rangée
■ Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède.
Profitez de l'occasion pour vérifier régulièrement que les ceintures ne sont
pas effilochées, entaillées, ou ne paraissent pas exagérément usées.
AT T E N T I O N
■Détérioration et usure des ceintures de sécurité
Inspectez les ceintures de sécurité périodiquement. Contrôlez qu'elles ne
sont pas entaillées, effilochées, et que leurs ancrages ne sont pas
desserrés. N'utilisez pas une ceinture de sécurité défectueuse avant qu'elle
ne soit remplacée. Une ceinture de sécurité défectueuse n'apporte aucune
garantie de protection de l'occupant en cas d'accident.
N'utilisez pas la ceinture de sécurité du
siège central de deuxième rangée si l'une
des 2 boucles est déverrouillée.
Si une seule des boucles est verrouillée,
ceci peut entraîner des blessures graves,
voire mortelles en cas de freinage
brusque ou de collision.

Index
499
Abbreviation list ..................... 500
Alphabetical index .................. 502
What to do if... ........................ 513
For details of equipment related to the navigation sys-
tem and such as the audio system, refer to the “Naviga-
tion System Owner's Manual”.

500

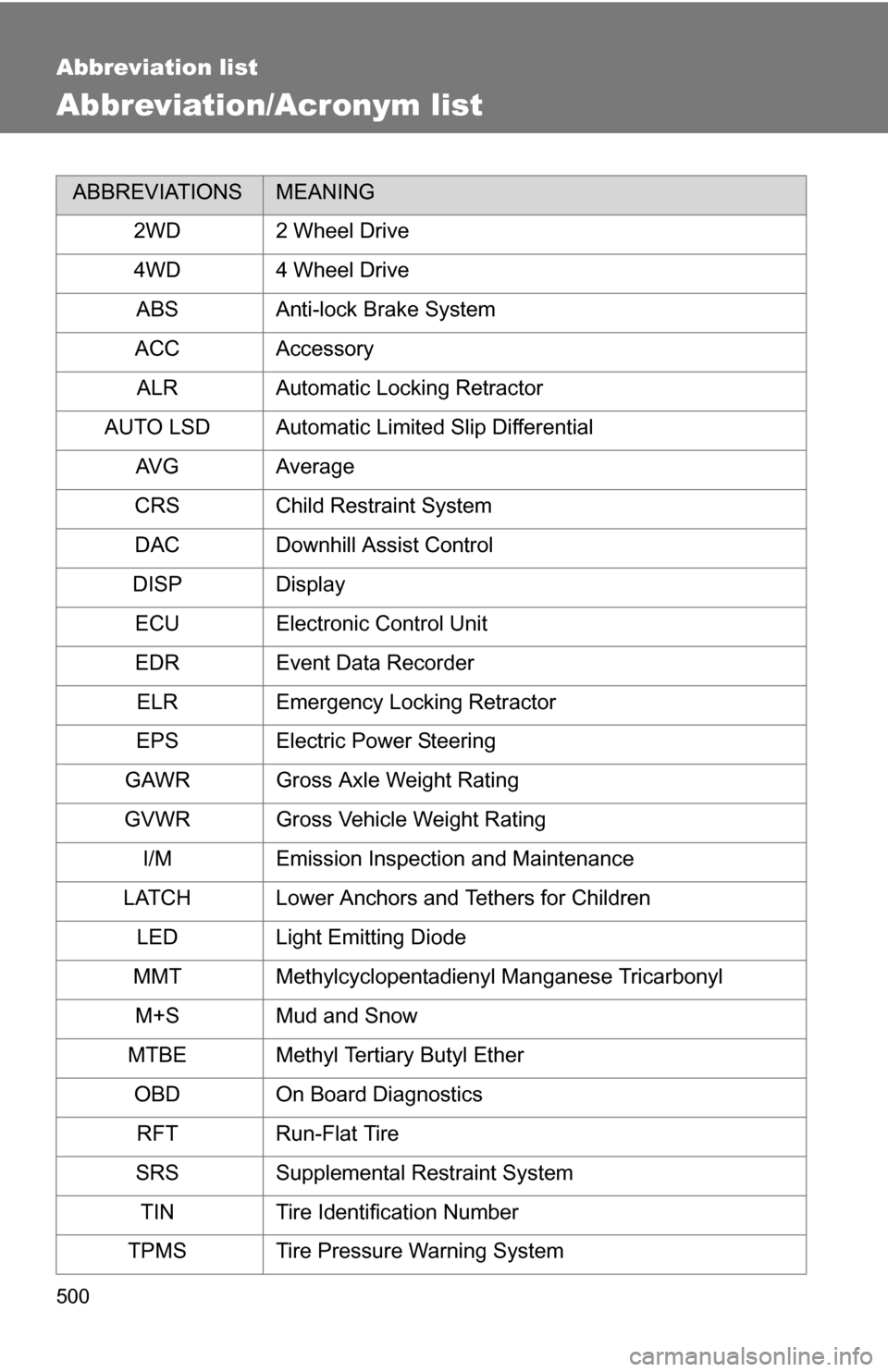

Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
2WD 2 Wheel Drive
4WD 4 Wheel Drive ABS Anti-lock Brake System
ACC Accessory ALR Automatic Locking Retractor
AUTO LSD Automatic Limited Slip Differential
AVG Average
CRS Child Restraint System
DAC Downhill Assist Control
DISP Display ECU Electronic Control Unit
EDR Event Data RecorderELR Emergency Locking Retractor
EPS Electric Power Steering
GAWR Gross Axle Weight Rating
GVWR Gross Vehicle Weight Rating
I/M Emission Inspection and Maintenance
LATCH Lower Anchors and Tethers for Children LED Light Emitting Diode
MMT Methylcyclopentadienyl Manganese Tricarbonyl M+S Mud and Snow
MTBE Methyl Tertiary Butyl Ether
OBD On Board DiagnosticsRFT Run-Flat Tire
SRS Supplemental Restraint System
TIN Tire Identification Number
TPMS Tire Pressure Warning System
