TOYOTA RAV4 2010 XA30 / 3.G Navigation Manual

ADVANCED FUNCTIONS
95

To register
1. Touch “Memorize”.
The confirmation screen will be displayed.
2. To register
, touch “Yes”. To return to
the previous screen, touch “No” or
.
When a button that is already registered is
touched, the following screen appears.
To replace, touch “Yes” . To cancel the re-
placement, touch “No” or
.
To change user
Touch “User number”.
The above message appears, then the
map screen will be displayed.

ADVANCED FUNCTIONS
96

To delete user
1. Touch “Delete”.
The confirmation screen will be displayed.
2. To delete, touch “Yes”. To return to
the previous screen, touch “No” or
.
Points or areas on the map can be regis-
tered.
The registered points can be used on the
“Destination”
screen. (See “ — Destination
search by Home” on page 46, “ — Destina-
tion search by Quick access” on page 46
and “ — Destination search by Memory” on
page 59.)
Registered areas are avoided at the time of
route search.
1. Push the “MENU” button.
2. Touch “My Places”.
My places —

ADVANCED FUNCTIONS
97

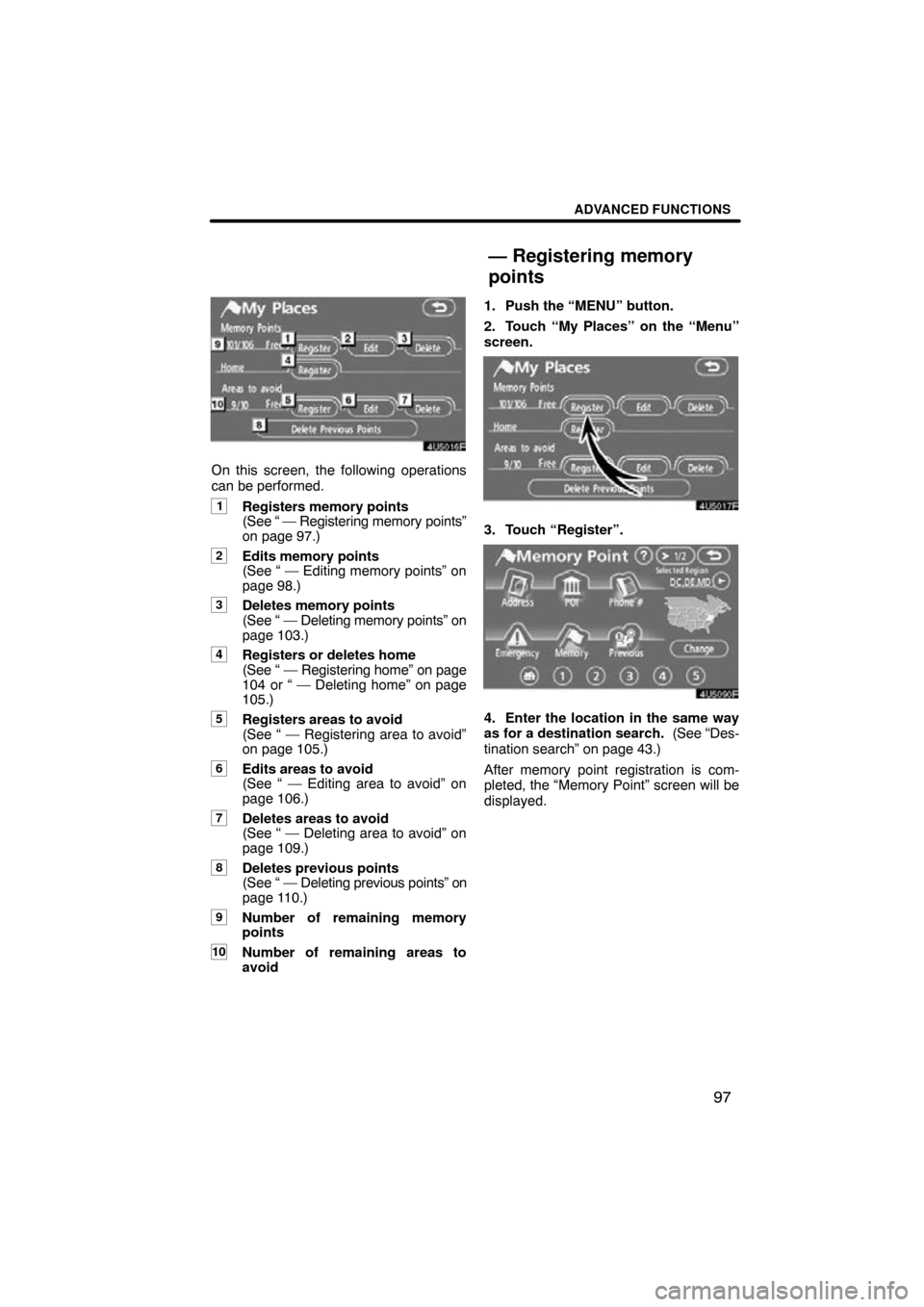

On this screen, the following operations
can be performed.
1Registers memory points
(See “ — Registering memory points”
on page 97.)
2Edits memory points
(See “ — Editing memory points” on
page 98.)
3Deletes memory points
(See “ — Deleting memory points” on
page 103.)
4Registers or deletes home
(See “ — Registering home” on page
104 or “ — Deleting home” on page
105.)
5Registers areas to avoid
(See “ — Registering area to avoid”
on page 105.)
6Edits areas to avoid
(See “ — Editing area to avoid” on
page 106.)
7Deletes areas to avoid
(See “ — Deleting area to avoid” on
page 109.)
8Deletes previous points
(See “ — Deleting previous points” on
page 110.)
9Number of remaining memory
points
10Number of remaining areas to
avoid 1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.
3. Touch “Register”.
4. Enter the location in the same way
as for a destination search.
(See “Des-
tination search” on page 43.)
After memory point registration is com-
pleted, the “Memory Point” screen will be
displayed.
— Registering memory
points

ADVANCED FUNCTIONS
98

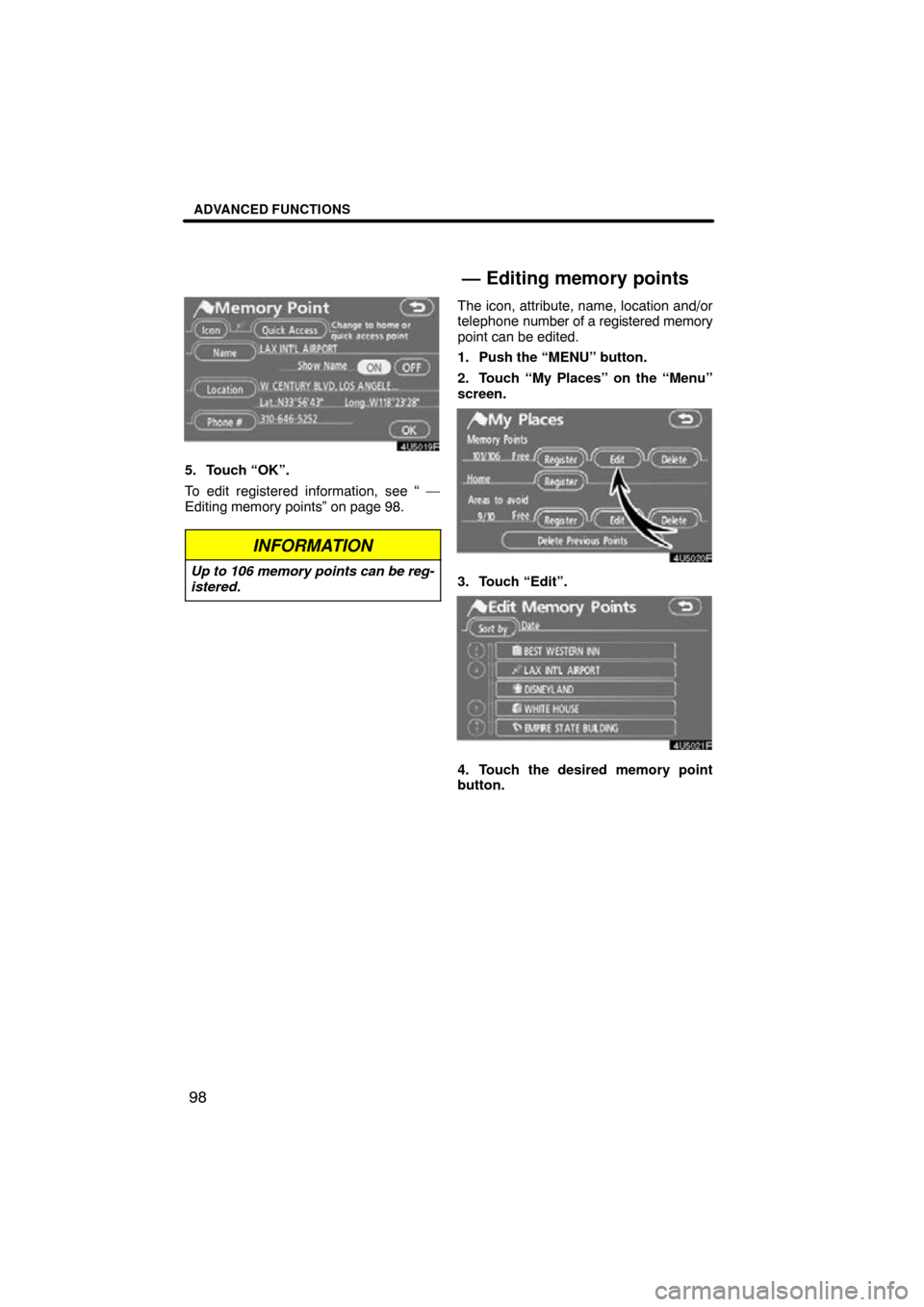

5. Touch “OK”.
To edit registered information, see “ —
Editing memory points” on page 98.
INFORMATION
Up to 106 memory points can be reg-
istered.
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.
3. Touch “Edit”.
4. Touch the desired memory point
button.
— Editing memory points

ADVANCED FUNCTIONS
99

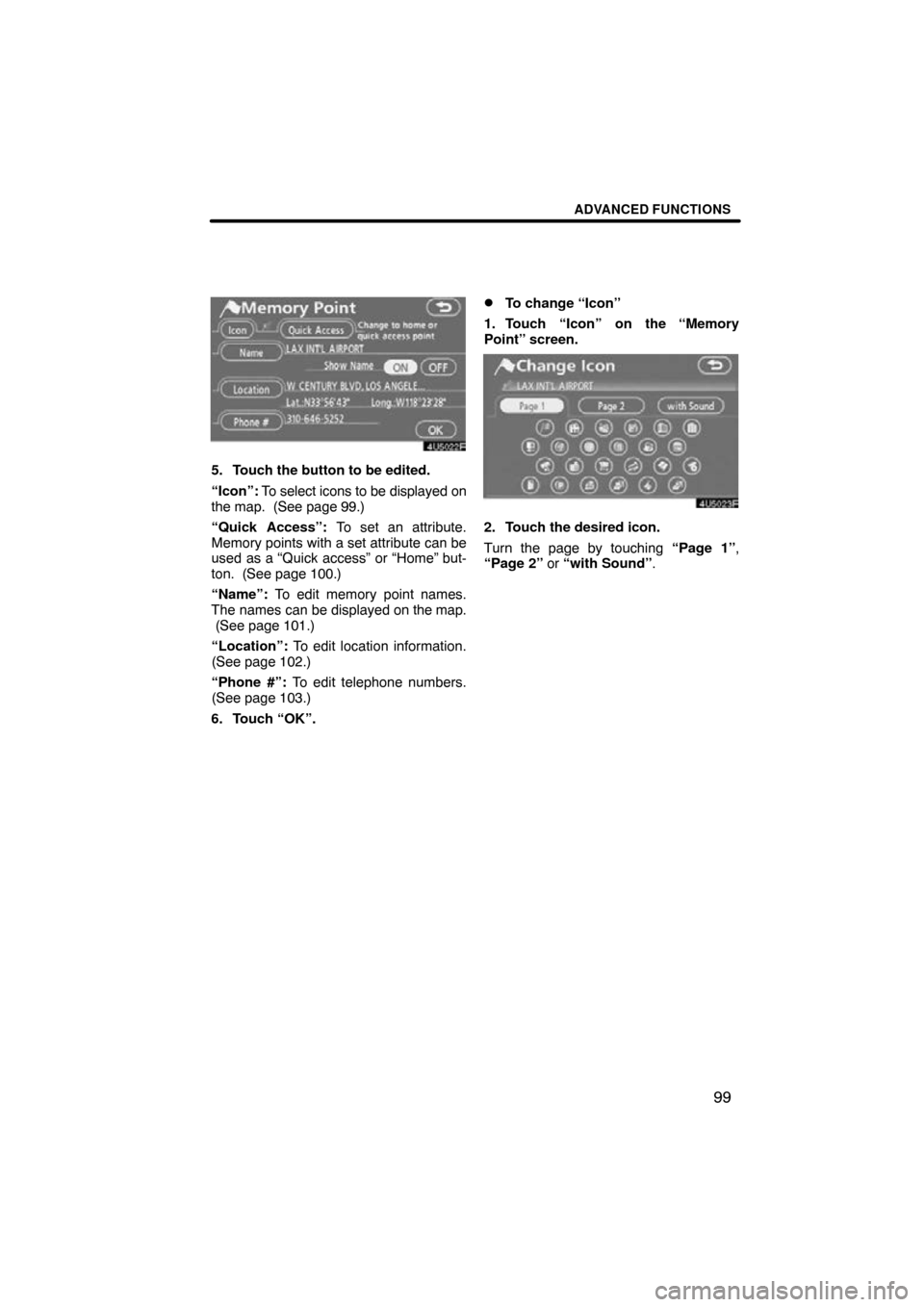

5. Touch the button to be edited.
“Icon”: To select icons to be displayed on
the map. (See page 99.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” but-
ton. (See page 100.)
“Name”: To edit memory point names.
The names can be displayed on the map.
(See page 101.)
“Location”: To edit location information.
(See page 102.)
“Phone #”: To edit telephone numbers.
(See page 103.)
6. Touch “OK”.
To change “Icon”
1. Touch “Icon” on the “Memory
Point” screen.
2. Touch the desired icon.
Turn the page by touching “Page 1”,
“Page 2” or “with Sound”.

ADVANCED FUNCTIONS
100

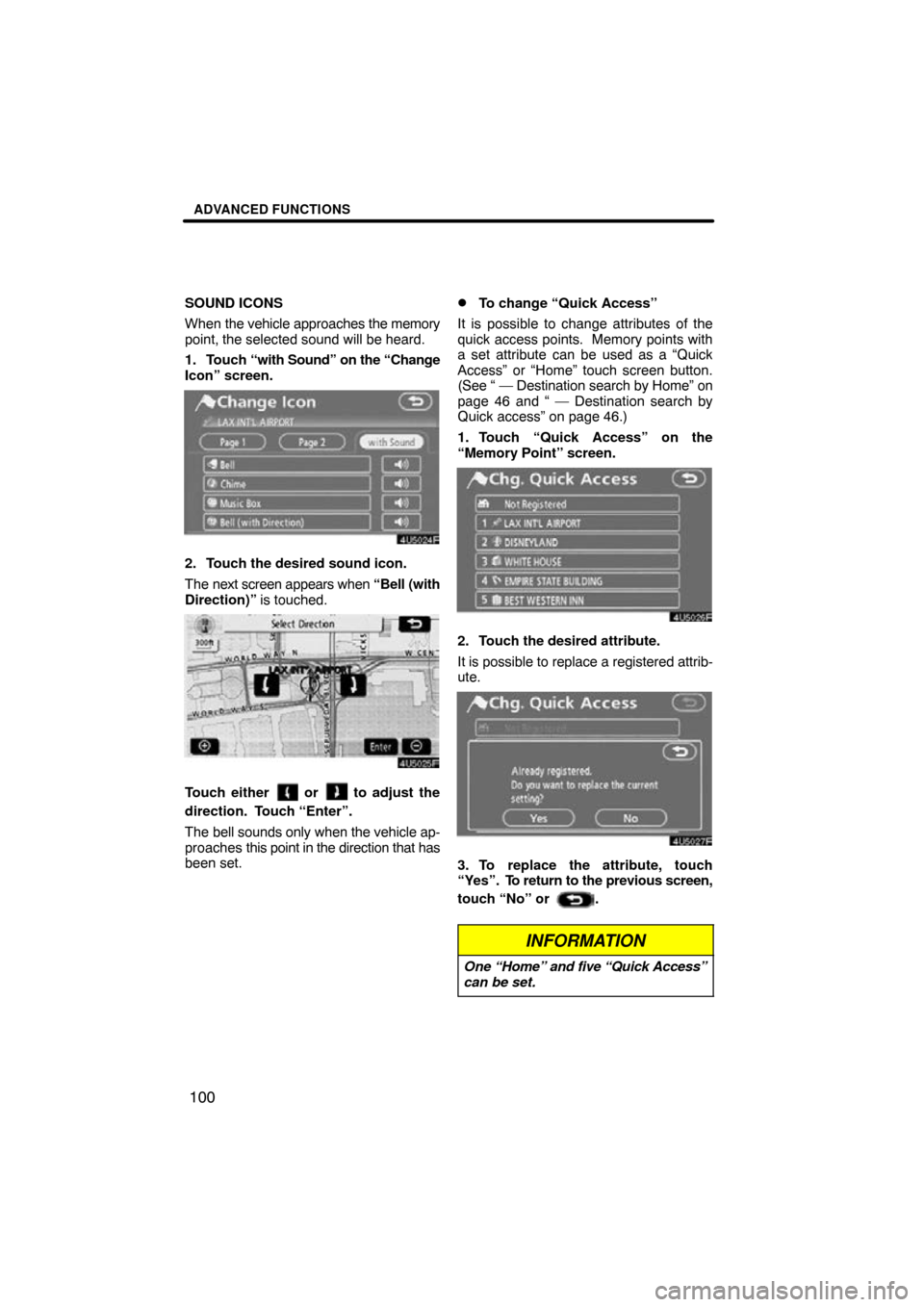

SOUND ICONS
When the vehicle approaches the memory
point, the selected sound will be heard.
1. Touch “with Sound” on the “Change
Icon” screen.
2. Touch the desired sound icon.
The next screen appears when “Bell (with
Direction)” is touched.
Touch either or to adjust the
direction. Touch “Enter”.
The bell sounds only when the vehicle ap-
proaches this point in the direction that has
been set.
To change “Quick Access”
It is possible to change attributes of the
quick access points. Memory points with
a set attribute can be used as a “Quick
Access” or “Home” touch screen button.
(See “ — Destination search by Home” on
page 46 and “ — Destination search by
Quick access” on page 46.)
1. Touch “Quick Access” on the
“Memory Point” screen.
2. Touch the desired attribute.
It is possible to replace a registered attrib-
ute.
3. To replace the attribute, touch
“Yes”. To return to the previous screen,
touch “No” or
.
INFORMATION
One “Home” and five “Quick Access”
can be set.

ADVANCED FUNCTIONS
101

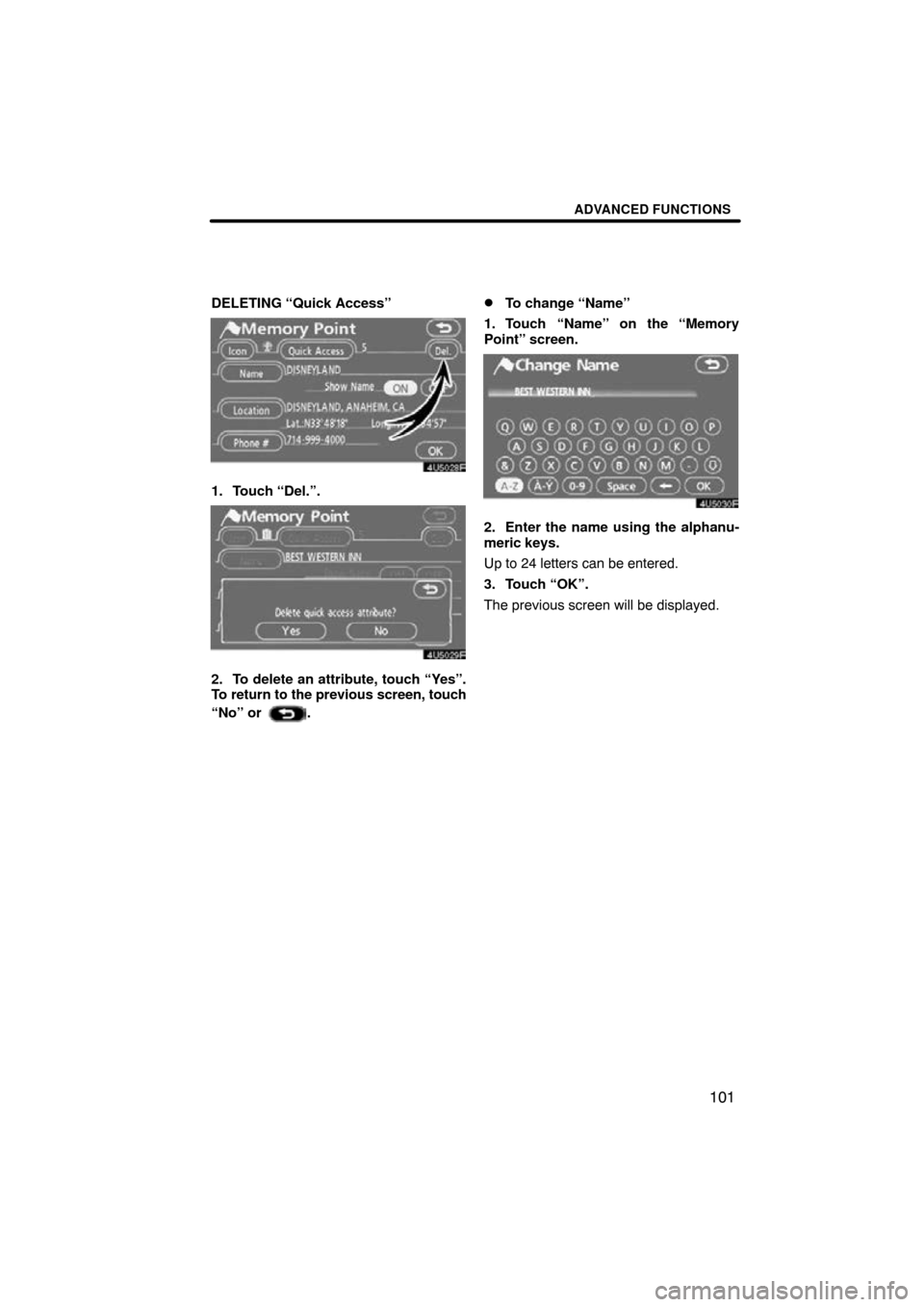

DELETING “Quick Access”
1. Touch “Del.”.
2. To delete an attribute, touch “Yes”.
To return to the previous screen, touch
“No” or
.
To change “Name”
1. Touch “Name” on the “Memory
Point” screen.
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
102

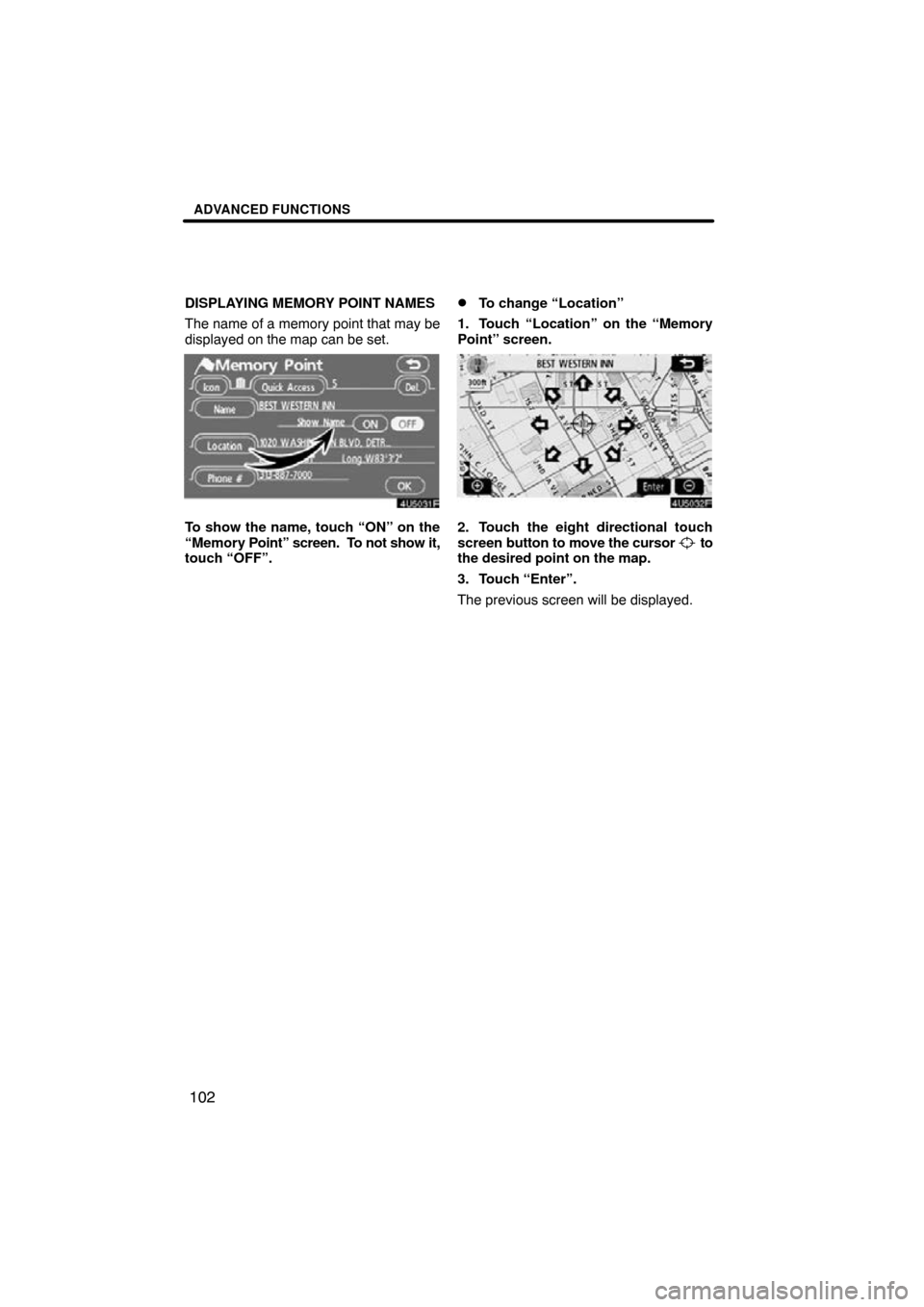

DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be
displayed on the map can be set.
To show the name, touch “ON” on the
“Memory Point” screen. To not show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

ADVANCED FUNCTIONS
103

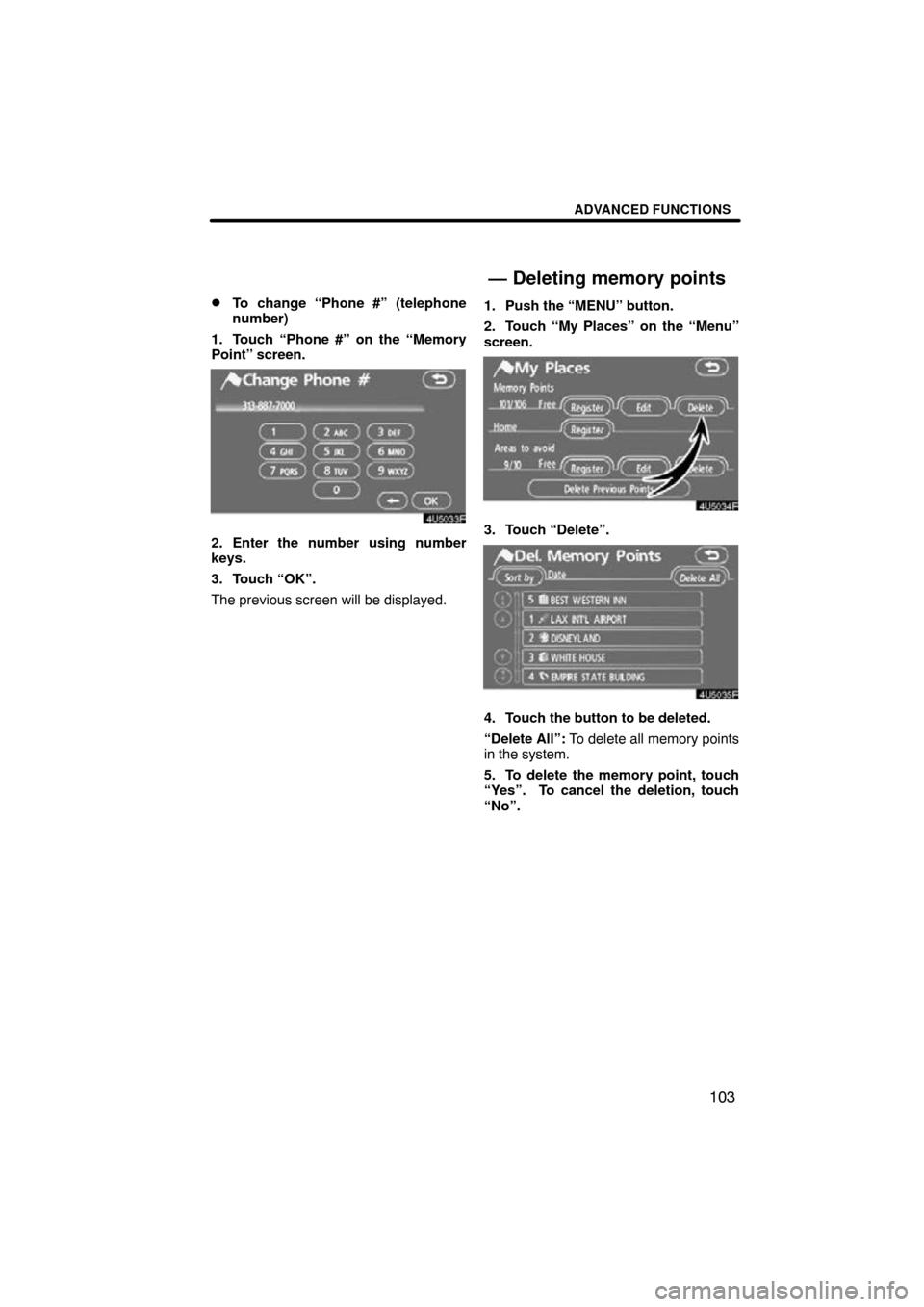

To change “Phone #” (telephone
number)
1. Touch “Phone #” on the “Memory
Point” screen.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed. 1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.3. Touch “Delete”.
4. Touch the button to be deleted.
“Delete All”: To delete all memory points
in the system.
5. To delete the memory point, touch
“Yes”. To cancel the deletion, touch
“No”.
— Deleting memory points

ADVANCED FUNCTIONS
104

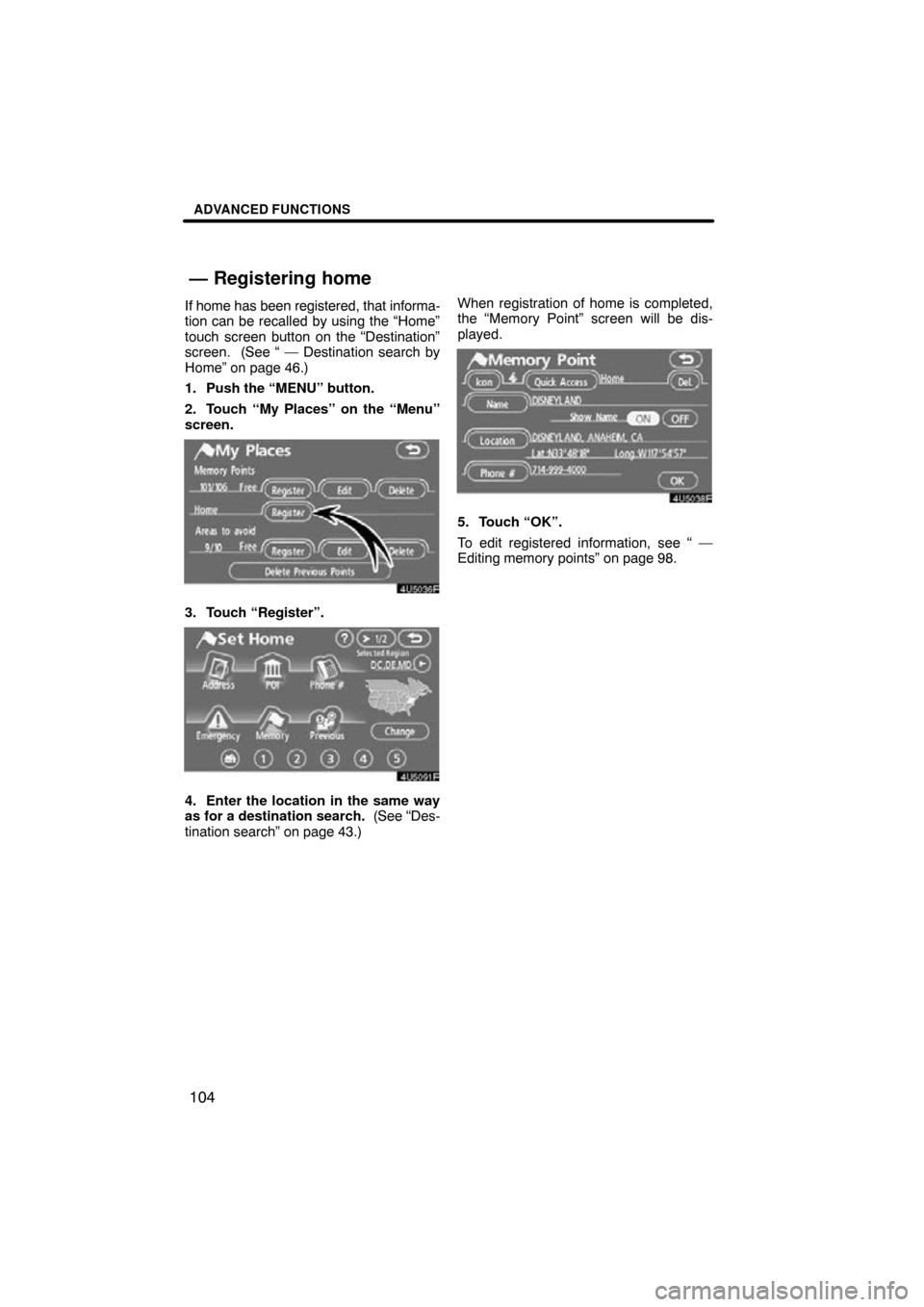

If home has been registered, that informa-
tion can be recalled by using the “Home”
touch screen button on the “Destination”
screen. (See “ — Destination search by
Home” on page 46.)
1. Push the “MENU” button.
2. Touch “My Places” on the “Menu”
screen.
3. Touch “Register”.
4. Enter the location in the same way
as for a destination search. (See “Des-
tination search” on page 43.) When registration of home is completed,
the “Memory Point” screen will be dis-
played.
5. Touch “OK”.
To edit registered information, see “ —
Editing memory points” on page 98.
— Registering home
