TOYOTA RAV4 2010 XA30 / 3.G Owners Manual

300
3-4. Using the interior lights

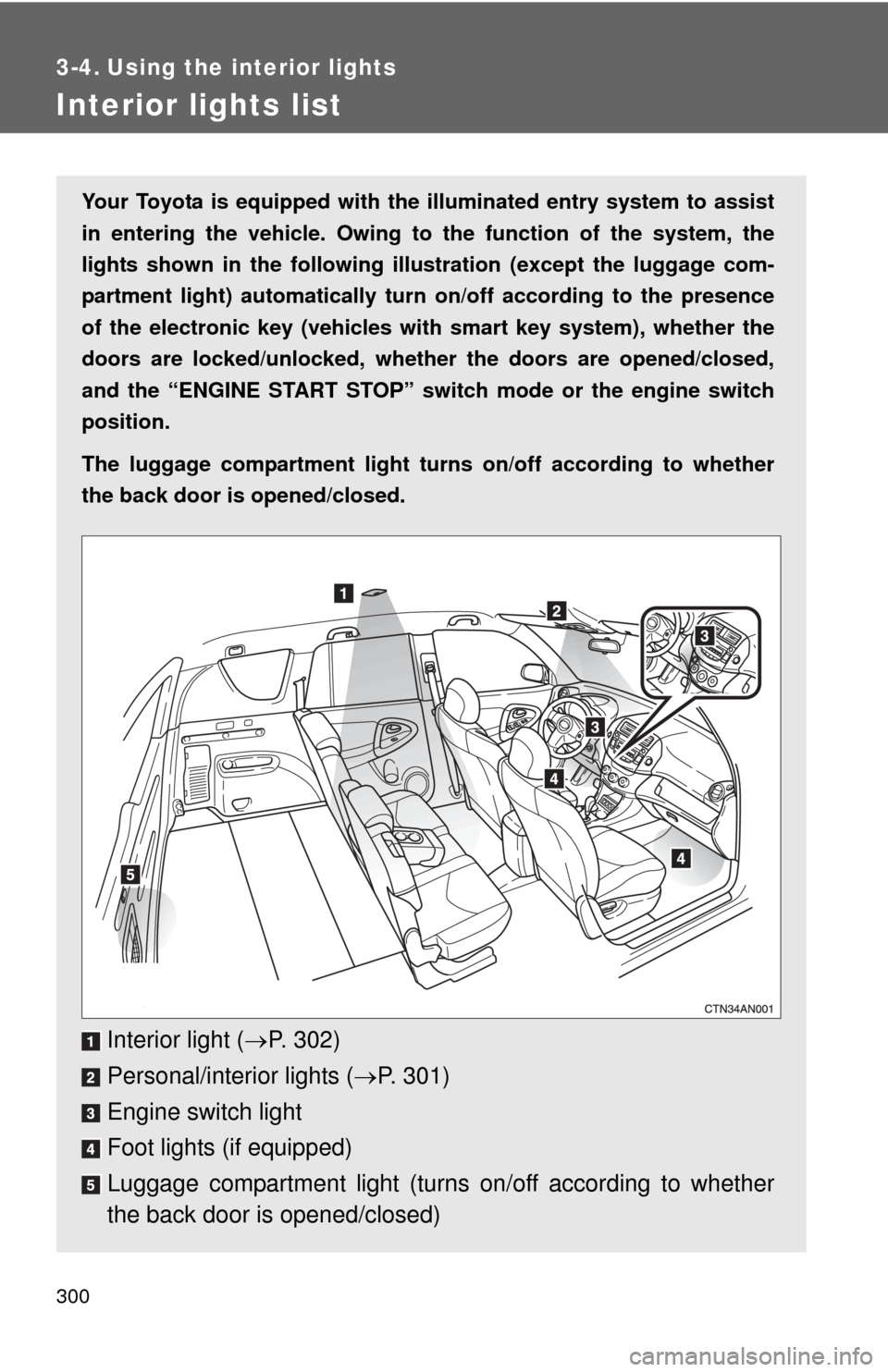

Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Owing to the function of the system, the
lights shown in the following illu stration (except the luggage com-
partment light) automatically turn on/off according to the presence
of the electronic key (vehicles with smart key system), whether the
doors are locked/unlocked, whethe r the doors are opened/closed,
and the “ENGINE START STOP” switch mode or the engine switch
position.
The luggage compartment light tu rns on/off according to whether
the back door is opened/closed.
Interior light ( P. 302)
Personal/interior lights ( P. 301)
Engine switch light
Foot lights (if equipped)
Luggage compartment light (turns on/off according to whether
the back door is opened/closed)

301
3-4. Using the interior lights
3
Interior features
Personal/interior light main switch
Type A Door position
The personal lights and interior
light come on when a door is
opened. They go off when the
doors are closed.
Off
The personal lights and interior
light can be individually turned on
or off.
Type B
Personal/interior lights
Type A On/off
Personal/interior light main switch and personal/interior lights

302 3-4. Using the interior lights
Type BOn/off
Interior light
Door position
Off
On
Luggage compartment lightOn
Off
Personal/interior lights and interior light and luggage compartment light

303
3-4. Using the interior lights
3
Interior features
■
To prevent battery discharge (excl uding luggage compartment light)
If the lights remain on when a door is not fully closed and the personal/inte-
rior light main switch is in door position, the lights will go off automatically
after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 488)
Luggage compartment light

304
3-5. Using the storage features

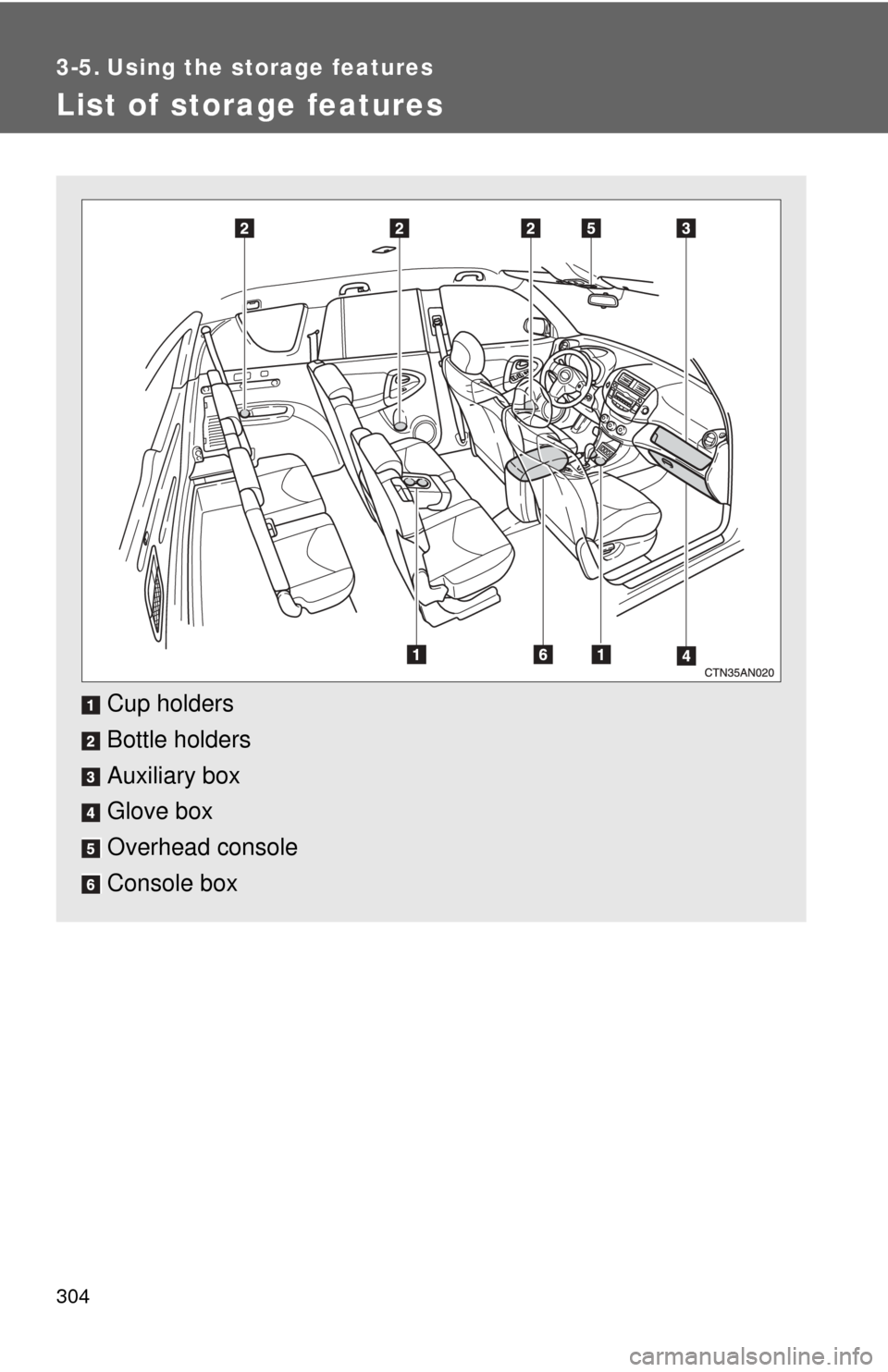

List of storage features
Cup holders
Bottle holders
Auxiliary box
Glove box
Overhead console
Console box

305
3-5. Using the
storage features
3
Interior features
Glove box
Unlock with the master key
(vehicles without smart key
system) or mechanical key
(vehicles with smart key sys-
tem)
Lock with the master key
(vehicles without smart key
system) or mechanical key
(vehicles with smart key sys-
tem)
Open (pull lever)
CAUTION
■ Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

306 3-5. Using the storage features
Console boxUpper tray Lift the lid.
Lower box Pull the lever up and lift the lid.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Console box

307
3-5. Using the
storage features
3
Interior features
Overhead console
The overhead console is useful for temporarily storing sunglasses
and similar small items.
Press in the lid.
CAUTION
■Items that should not be le ft in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
■ Caution while driving
Keep the overhead console closed.
Injuries may result in the event of an accident or sudden braking.
■ Items unsuitable for storing
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the overhead console to open and the items inside may
fall out, resulting in an accident.
Overhead console

308 3-5. Using the storage features
Cup holdersType A Removing the adapters changes
the size. (P. 308)
Type B To use the cup holders, pull the
strap forward and fold down the
center seatback.
■Adjusting size of the cup holders (type A only)
Remove the adapters.
Cup holders

309
3-5. Using the
storage features
3
Interior features
Bottle holders
Front seat
Second seat
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
Cup holders and bottle holders
