stop start TOYOTA RAV4 2010 XA30 / 3.G Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls1
Telephone controls1
Multi-information display switch
Speech command button1
Cruise control
Headlight, turn signal and front fog light1control
Wiper and washer controls
Four-wheel drive lock switch (4WD models)
Audio system/Navigation system
1,2
Emergency flasher switch
Air Conditioning controls
“ENGINE START STOP” button (Smart Key)
1
Engine immobilizer indicator
Front passenger seatbelt reminder light
Clock and Air Conditioning display
Without telephone controls
With telephone controls

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system* (if equipped)
Start function
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedal Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operationUnlocking operation
Carry remote to lock/unlockCarry remote to lock/unlock
Front door lockFront door unlock*
Push
Grasp
Push
Grasp Carry remote
to lock/unlock

10

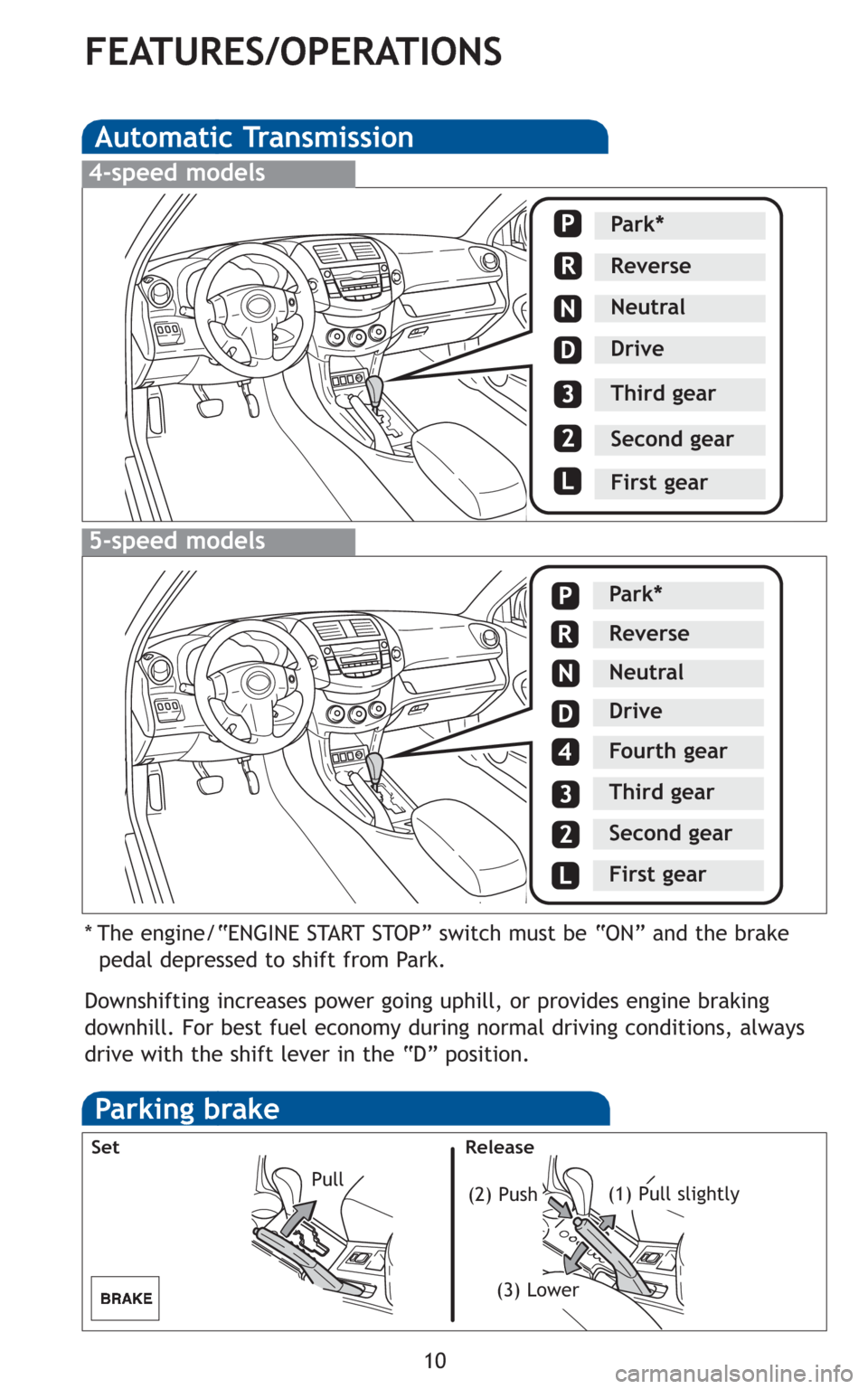

Automatic Transmission
* The engine/“ENGINE START STOP” switch must be “ON” and the brake
pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
4-speed models
5-speed models
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
Fourth gear
Parking brake
Pull(2) Push(1) Pull slightly
(3) Lower
SetRelease
FEATURES/OPERATIONS

22
ON/OFF switchRear consolePush
NOTE:Engine switch/“ENGINE START STOP” switch must be in the “ON”
position to be used.
Power outlets-12V DC
Instrument panelInside center console
NOTE:Designed for car accessories. Engine switch/“ENGINE START STOP”
switch must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Luggage compartment
Downhill Assist Control system (DAC)
Power outlets-120V AC (if equipped)
DAC helps the vehicle to descend steep hills while maintaining a low speed
without brake pedal operation. Press the “DAC” button (indicator will
blink). Shift into L or R to activate (indicator will be solid). Pressing the
button again will turn system off.
Refer to the Owner’s Manual for more details.

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Cruise control
Turning system ON/OFF
Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed Cancel
1
1The set speed may also be cancelled by depressing the brake pedal.2The set speed may be resumed once vehicle speed exceeds 25 mph.
Refer to theOwner’s Manualfor more details.
HAC helps prevent rolling backwards on an incline. To engage, push
further down on brake pedal while at a complete stop until a beep sounds
and slip indicator illuminates. HAC holds for approximately 2 seconds after
releasing brake pedal.
Refer to theOwner’s Manualfor more details.
Brake
pedal
Hill-start Assist Control (HAC)
(if equipped)
