lock TOYOTA RAV4 2011 XA30 / 3.G Quick Reference Guide

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windows-Power
Driver side
Automatic operation (driver side only)Push the switch completely down
or pull it completely up and release to fully open or close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
NOTE:If the battery is disconnected, the window needs to be
reinitialized. Refer to theOwner’s Manualfor more details.
Up
Down
Windows lock switch
Windshield wipers & washers
Rear
Front
Pull to wash and wipe Adjust frequency*
Interval wipe
Slow
Fast
Wash and wipeWipeInterval wipe
Wash and wipeSingle wipe
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.

16

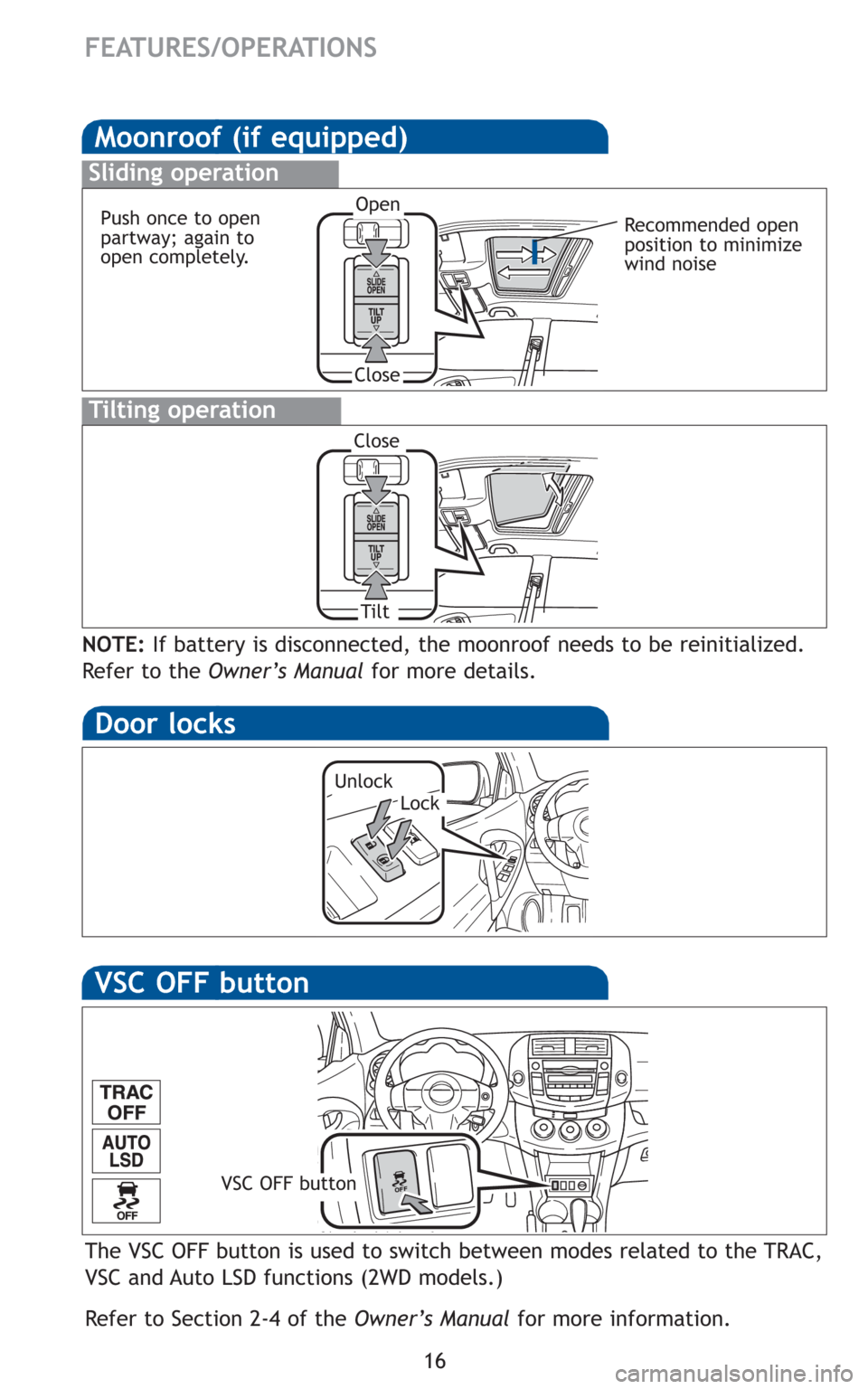

Moonroof (if equipped)
Tilting operation
Sliding operation
NOTE:If battery is disconnected, the moonroof needs to be reinitialized.
Refer to the Owner’s Manualfor more details.
Open
Close
Close
Tilt
Recommended open
position to minimize
wind noise
Door locks
UnlockLock
FEATURES/OPERATIONS
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions (2WD models.)
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
Push once to open
partway; again to
open completely.

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Telephone controls (Bluetooth®)
(if equipped)
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section
3-3 in the Owner’s Manual, or go to Toyota.LetsTalk.com for more
information about phone connections and compatibility.
MicrophoneAudio unit
Steering wheel telephone switches
Vo l u m e
End call
Start call
Voice command
button
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release leverLength Angle

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Clock
Manual
Air Conditioning system
H-Hour set
M-Minute set
:00-Round off minutes
Automatic
Air Conditioning system
Manual Air Conditioning
Airflow vent
“ ” or “ ” mode uses fresh air only (“ ” indicator “OFF”) to
reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Rear defogger
Fresh or recirculated cabin air
Light control-Instrument panel
Brightness
control
+
-
With the dial turned fully up, instrument panel lights will not dim when
the headlights are turned ON.

24
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
If tire pressure becomes critically low on any of the tires (including the
spare), “ ” indicator will come on. Correctly adjusting tire inflation will
turn off the light after a few minutes. If the light does not turn off, have
the system checked by your Toyota dealer.
Refer to the Owner’s Manualfor more details.
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Rear door
DownUp
Tire Pressure Monitoring (warning)
System

2011
RAV4
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review theOwner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4.
This Quick Reference Guideis not a full description of RAV4
operations. Every RAV4 owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire (if equipped) & tools
Tool location
Removing the spare tire
(1) To remove the spare tire cover,* open the back door. Unhook the latch
on the bottom of the cover. Close the back door. Remove the spare tire
cover by holding the bottom and lifting it up and away from the
vehicle.
(2) To remove the spare tire, turn the wheel nuts counterclockwise with
the wheel nut wrench and remove.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
* If equipped
Luggage compartment
Inside left side boxLuggage compartment
Inside right side box
Jack
Tool bag
(1)
(2)
