OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4
Instrument panel 2-3Keyless entry* 6Smart Key system* 7
Active torque control 4WD (4WD models) 11Air Conditioning/Heating 18-19Audio 20-21Automatic Transmission 10Clock 19Cruise control 23
Door locks16
Downhill Assist Control (DAC) 22
Hill-start Assist Control (HAC) 23Light control-Instrument panel19Lights & turn signals 14Moonroof 16Parking brake 10Power outlets-12V DC 22Power outlets-120V AC 22Seat adjustments-Front 12Seat adjustments-Second row seats 12Seat heaters18Seats-Folding down second row seats 13Seats-Head restraints 11Seats-S

towing third row seats 13Telephone controls (Bluetooth®)17Tilt and telescopic steering wheel 17
VSC OFF button 16Windows-Power 15
Windshield wipers & washers15
Doors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
* Visit your Toyota dealer for information on customizing this feature.

4
OVERVIEW
Open door warning
Tachometer
Service indicator and reminder
Speedometer
Engine coolant temperature
Fuel gauge
Odometer, two trip meters and trip information display
Automatic Transmission shift position indicator
Odometer/trip meter switch and trip meter reset button
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low fuel level warning
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2For details, refer to “Four-wheel drive lock switch,” Section 2-4, 2011 Owner’s Manual.

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Automatic Transmission indicator (4-speed)
Turn signal indicator
Fog light indicator
Low windshield washer fluid level warning
Airbag warning1
Headlight low/high beam indicator
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
4WD warning1
Electric power steering system warning1
Four-wheel drive lock indicator1,2
Slip indicator/Hill-start Assist Control (HAC) indicator/Downhill
Assist Control (DAC) indicator1
Downhill Assist Control indicator1
AUTO Limited Slip Differential indicator1
Cruise control indicator3
Anti-lock Brake System warning1
Automatic Transmission indicator (5-speed)
3If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Vehicle Stability Control (VSC) OFF indicator1
Smart Key system warning
Traction Control OFF indicator1
Front passenger occupant classification indicator

24

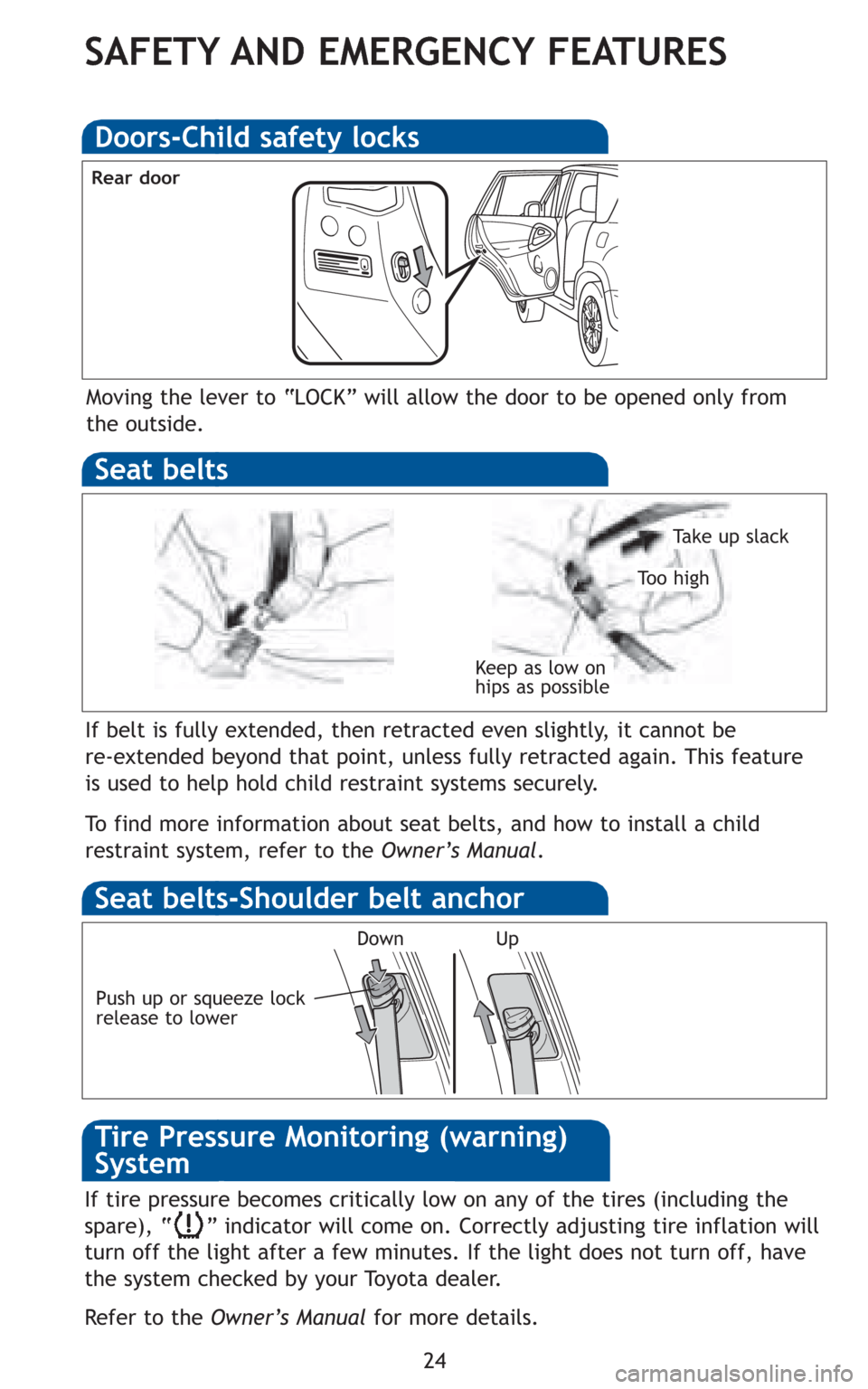

SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
If tire pressure becomes critically low on any of the tires (including the
spare), “ ” indicator will come on. Correctly adjusting tire inflation will
turn off the light after a few minutes. If the light does not turn off, have
the system checked by your Toyota dealer.
Refer to the Owner’s Manualfor more details.
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Rear door
DownUp
Tire Pressure Monitoring (warning)
System
