TOYOTA RAV4 2014 XA40 / 4.G Owners Manual

RAV4_OM_OM42A04U_(U)
3215-2. Using the audio system
5
Interior features

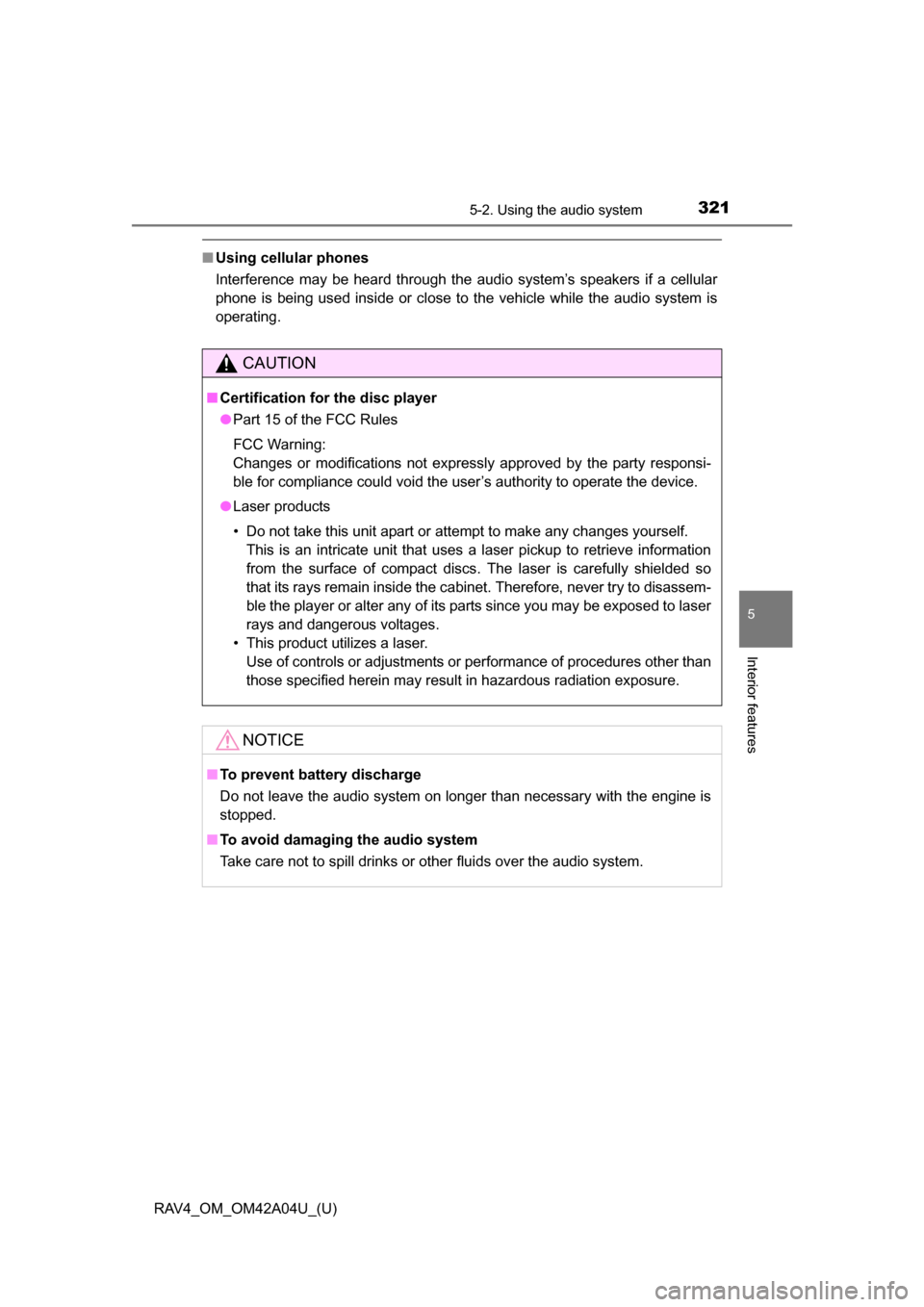

■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
CAUTION
■Certification for the disc player
●Part 15 of the FCC Rules
FCC Warning:
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate the device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disassem-
ble the player or alter any of its parts since you may be exposed to laser
rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine is
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

322
RAV4_OM_OM42A04U_(U)
5-2. Using the audio system

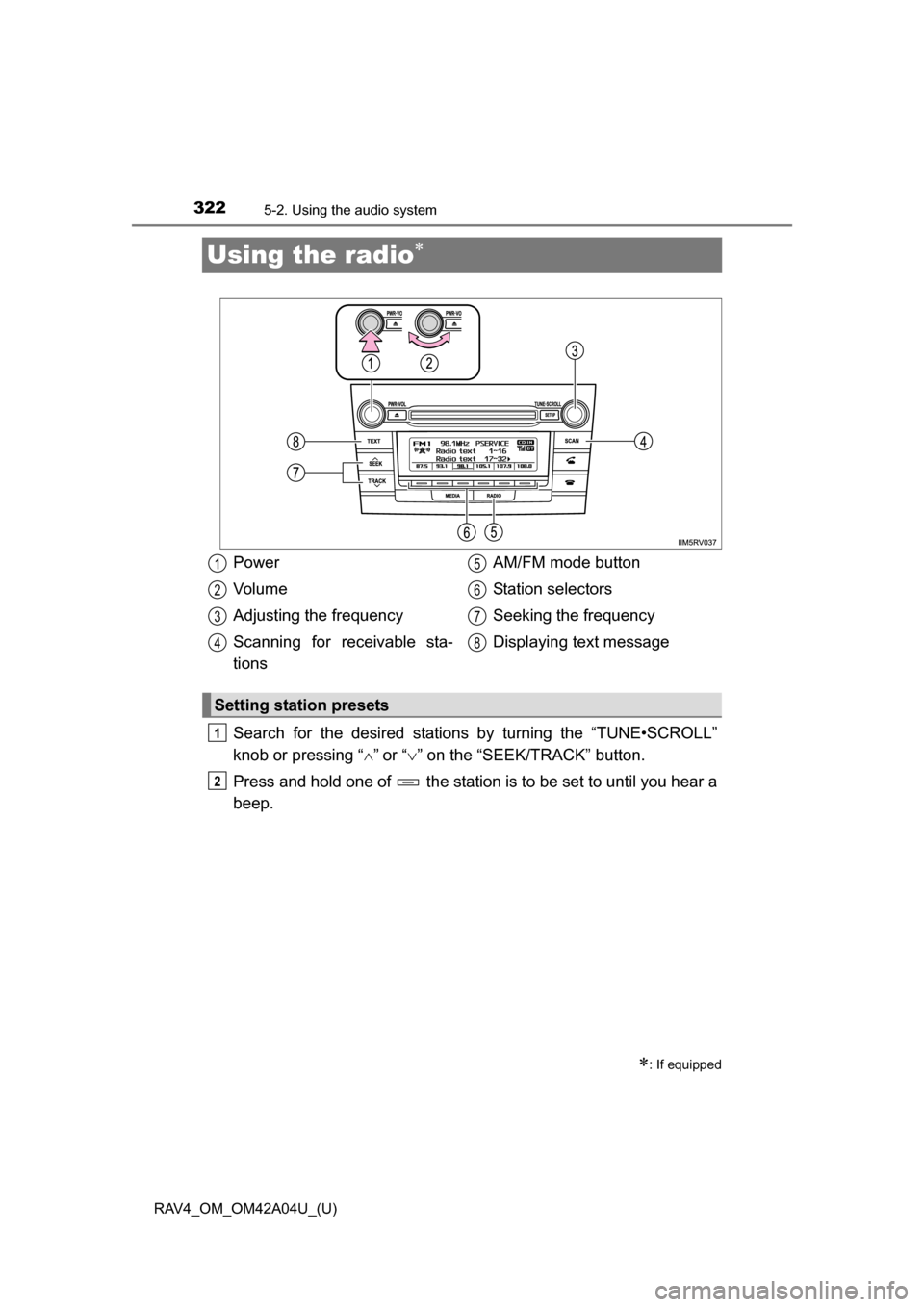

Using the radio
Search for the desired stations by turning the “TUNE•SCROLL”
knob or pressing “”
or “ ” on the “SEEK/TRACK” button.
Press and hold one of the station is to be set to until you hear a
beep.
: If equipped
Power
Vo l u m e
Adjusting the frequency
Scanning for receivable sta-
tions AM/FM mode button
Station selectors
Seeking the frequency
Displaying text message
Setting station presets
1
2
3
4
5
6
7
8
1
2

RAV4_OM_OM42A04U_(U)
3235-2. Using the audio system
5
Interior features

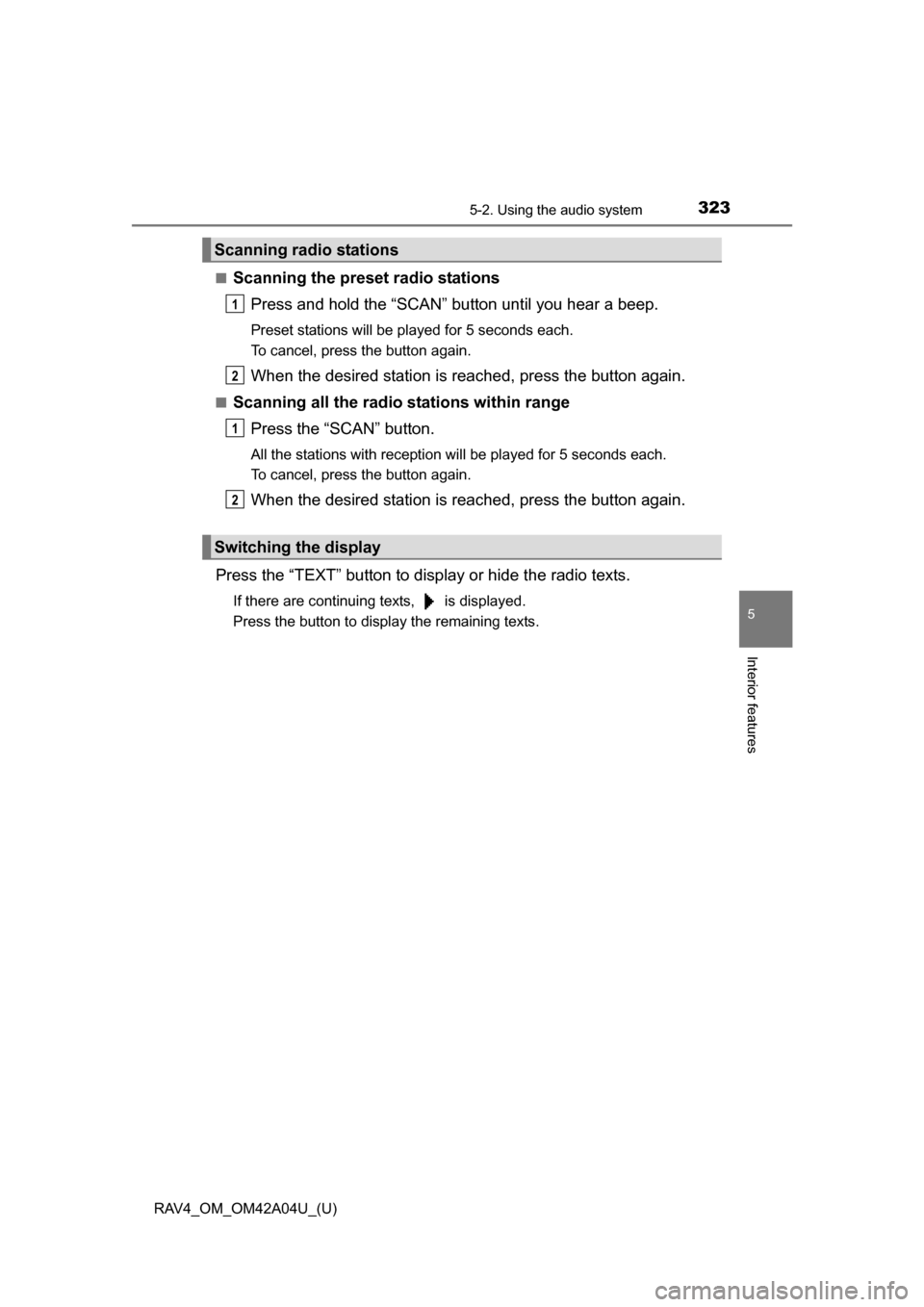

■Scanning the preset radio stationsPress and hold the “SCAN” button until you hear a beep.
Preset stations will be played for 5 seconds each.
To cancel, press the button again.
When the desired station is reached, press the button again.
■Scanning all the radio stations within rangePress the “SCAN” button.
All the stations with reception will be played for 5 seconds each.
To cancel, press the button again.
When the desired station is reached, press the button again.
Press the “TEXT” button to display or hide the radio texts.
If there are continuing texts, is displayed.
Press the button to display the remaining texts.
Scanning radio stations
Switching the display
1
2
1
2

324
RAV4_OM_OM42A04U_(U)
5-2. Using the audio system

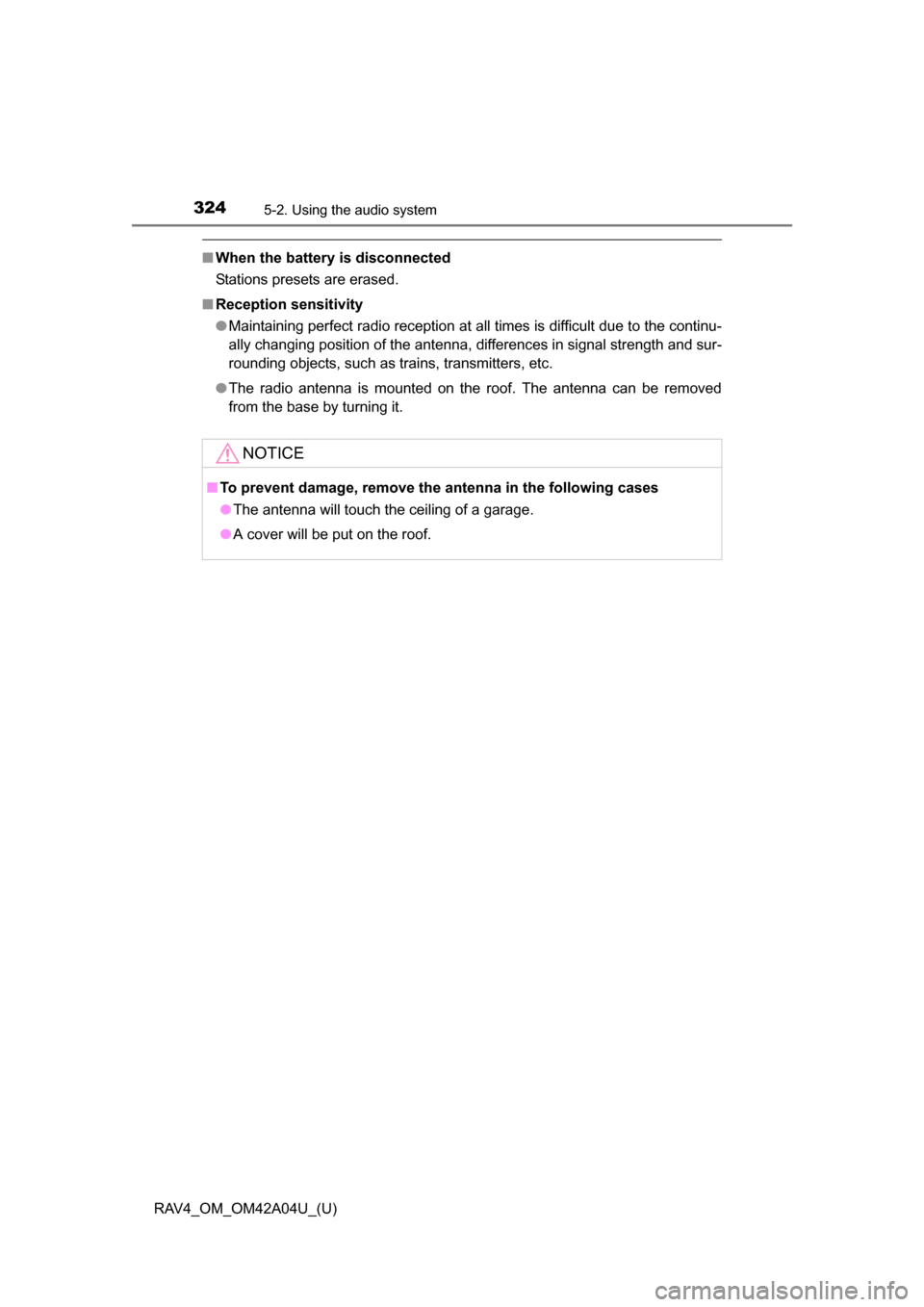

■When the battery is disconnected
Stations presets are erased.
■ Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning it.
NOTICE
■ To prevent damage, remove the antenna in the following cases
●The antenna will touch the ceiling of a garage.
● A cover will be put on the roof.

325
RAV4_OM_OM42A04U_(U)
5-2. Using the audio system
5
Interior features

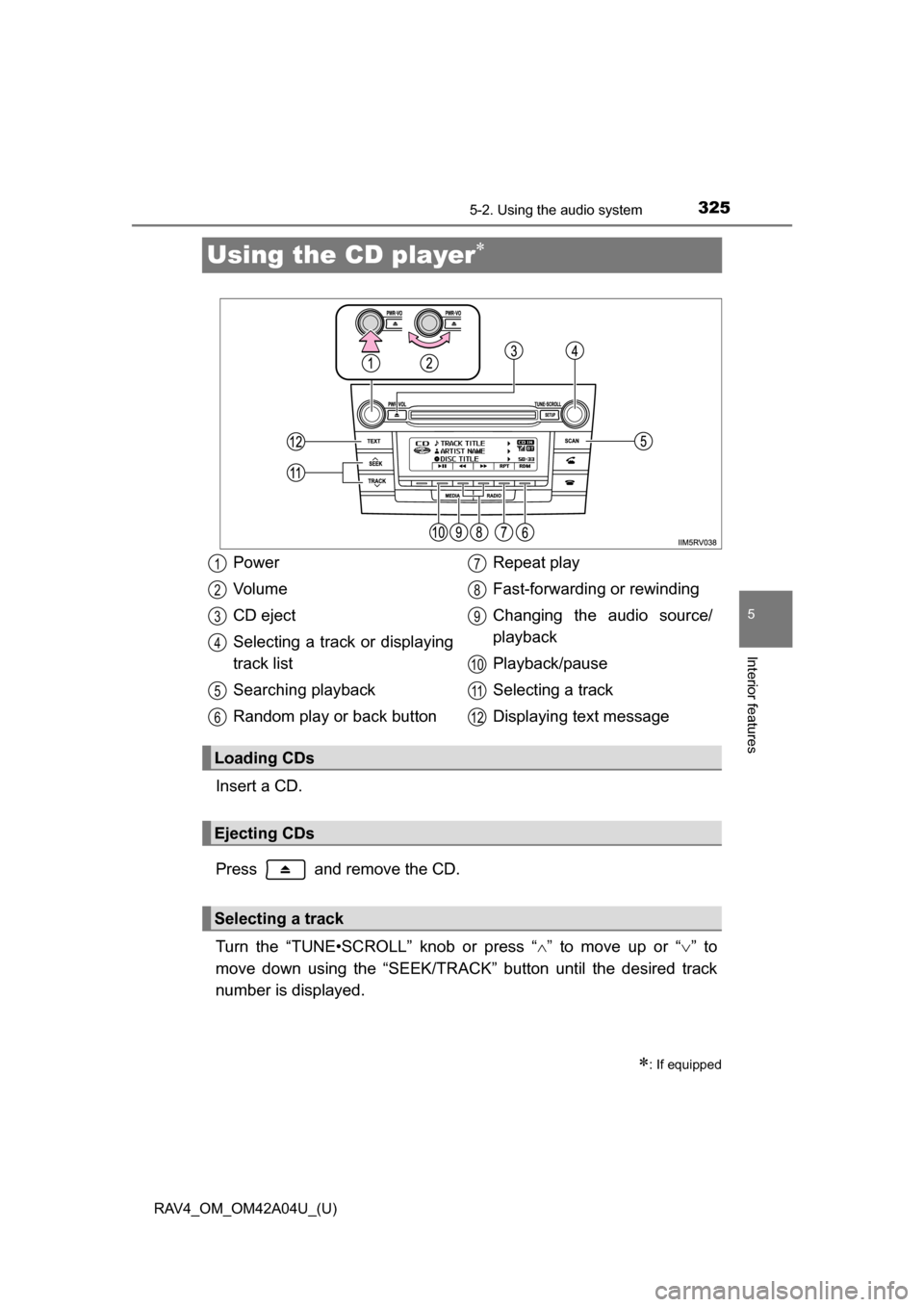

Using the CD player
Insert a CD.
Press and remove the CD.
Turn the “TUNE•SCROLL” knob or press “” to move up or “ ” to
move down using the “SEEK/TRACK” button until the desired track
number is displayed.
: If equipped
Power
Vo l u m e
CD eject
Selecting a track or displaying
track list
Searching playback
Random play or back button Repeat play
Fast-forwarding or rewinding
Changing the audio source/
playback
Playback/pause
Selecting a track
Displaying text message
Loading CDs
Ejecting CDs
Selecting a track
1
2
3
4
5
6
7
8
9
10
11
12

326
RAV4_OM_OM42A04U_(U)
5-2. Using the audio system

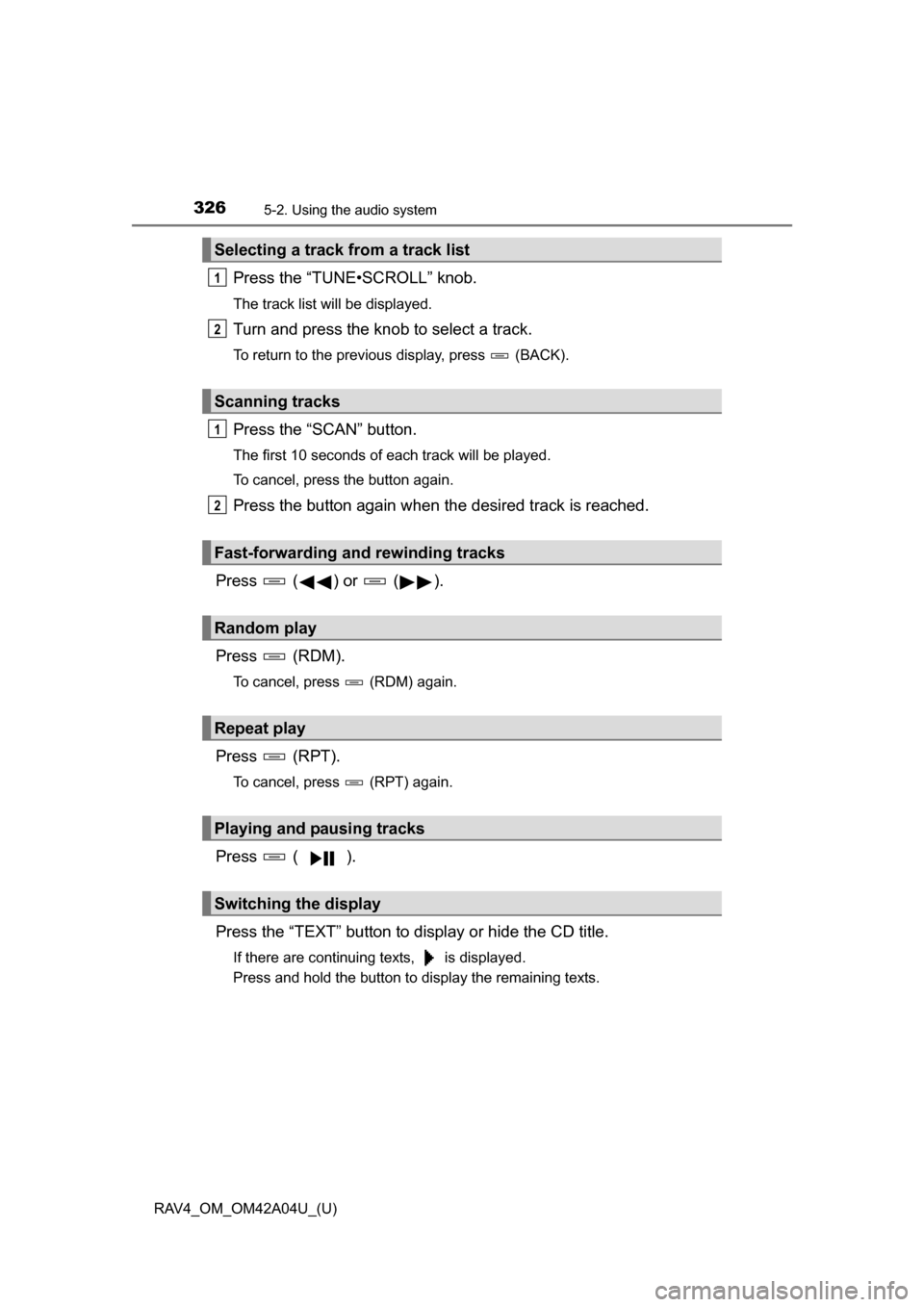

Press the “TUNE•SCROLL” knob.
The track list will be displayed.
Turn and press the knob to select a track.
To return to the previous display, press (BACK).
Press the “SCAN” button.
The first 10 seconds of each track will be played.
To cancel, press the button again.
Press the button again when the desired track is reached.
Press ( ) or ( ).
Press (RDM).
To cancel, press (RDM) again.
Press (RPT).
To cancel, press (RPT) again.
Press ( ).
Press the “TEXT” button to display or hide the CD title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
Selecting a track from a track list
Scanning tracks
Fast-forwarding and rewinding tracks
Random play
Repeat play
Playing and pausing tracks
Switching the display
1
2
1
2

RAV4_OM_OM42A04U_(U)
3275-2. Using the audio system
5
Interior features

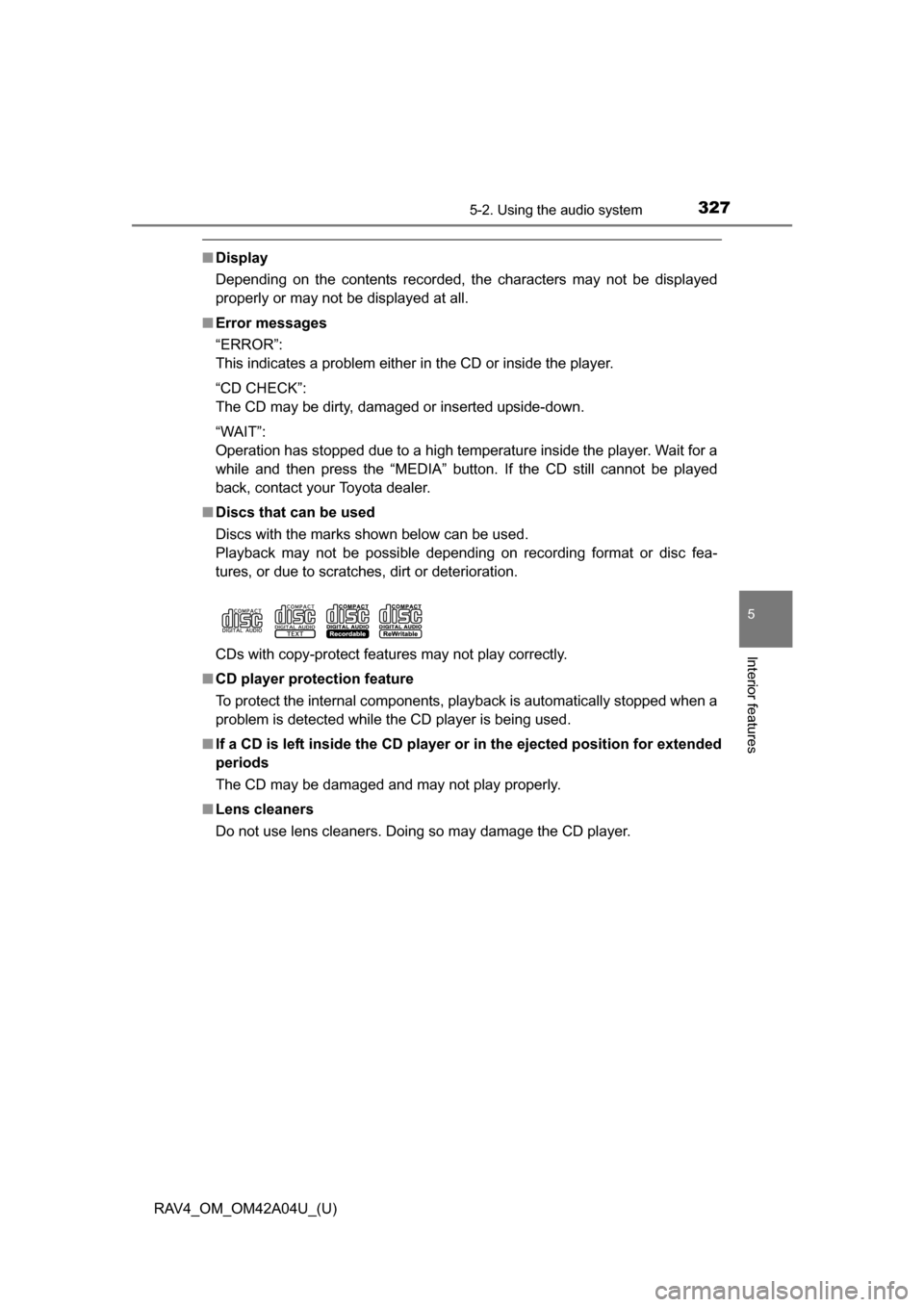

■Display
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Error messages
“ERROR”:
This indicates a problem either in the CD or inside the player.
“CD CHECK”:
The CD may be dirty, damaged or inserted upside-down.
“WAIT”:
Operation has stopped due to a high temperature inside the player. Wait for a
while and then press the “MEDIA” button. If the CD still cannot be played
back, contact your Toyota dealer.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
■ If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

328
RAV4_OM_OM42A04U_(U)
5-2. Using the audio system

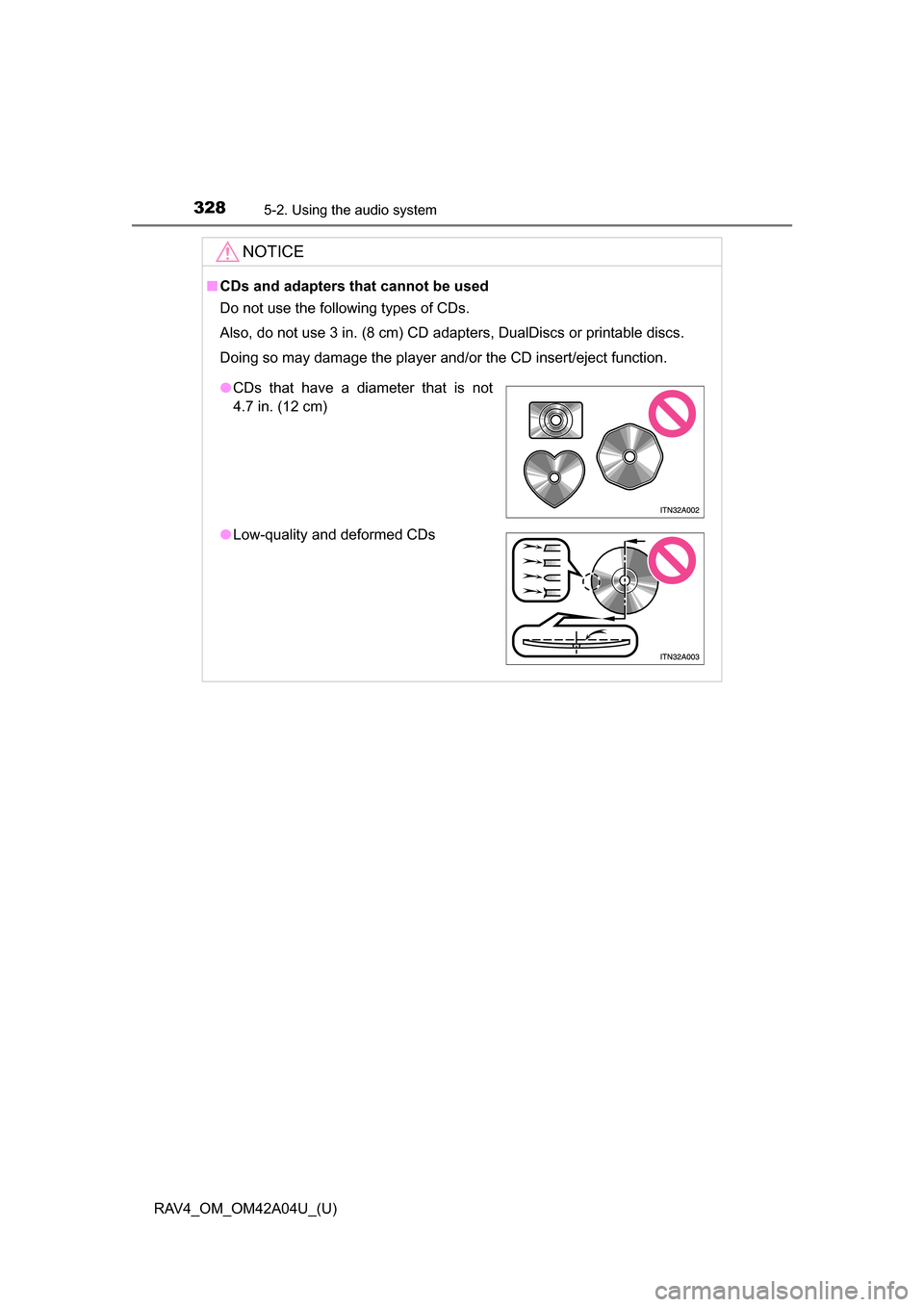

NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 3 in. (8 cm) CD adapters, DualDiscs or printable discs.
Doing so may damage the player and/or the CD insert/eject function.
●CDs that have a diameter that is not
4.7 in. (12 cm)
● Low-quality and deformed CDs

RAV4_OM_OM42A04U_(U)
3295-2. Using the audio system
5
Interior features

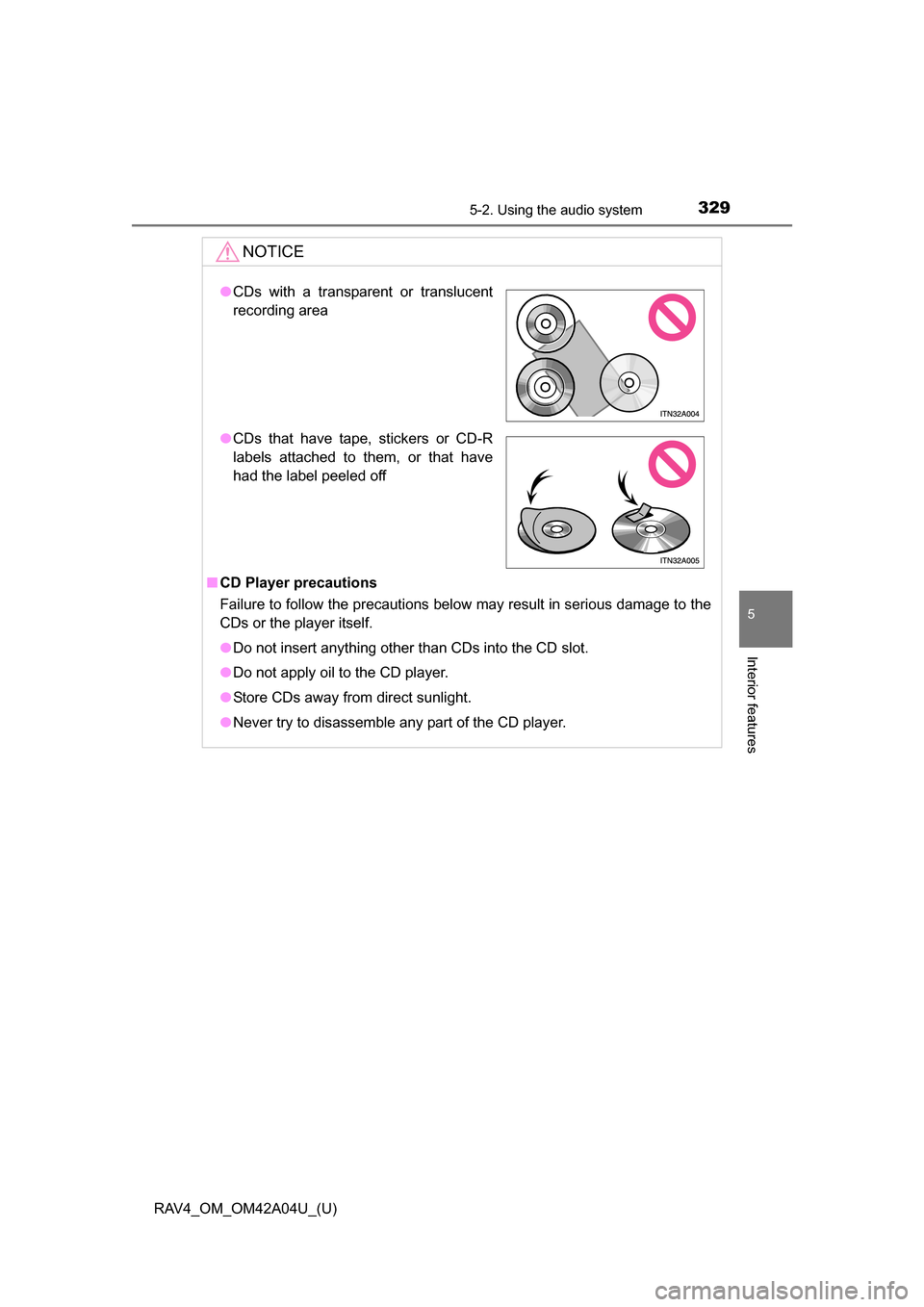

NOTICE
■CD Player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
●Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the CD player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the CD player.
●CDs with a transparent or translucent
recording area
● CDs that have tape, stickers or CD-R
labels attached to them, or that have
had the label peeled off

330
RAV4_OM_OM42A04U_(U)
5-2. Using the audio system

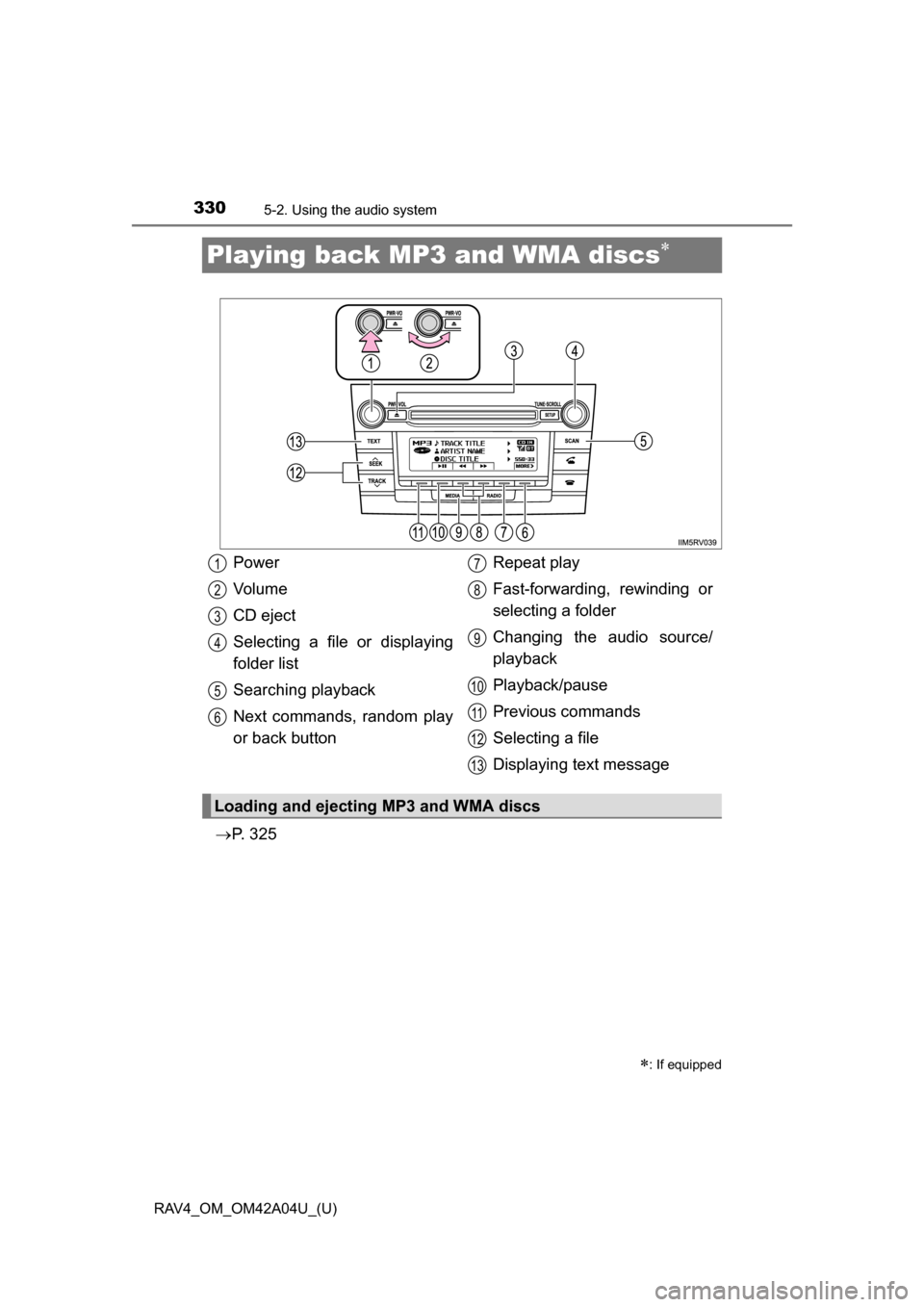

Playing back MP3 and WMA discs
P. 3 2 5
: If equipped
Power
Vo l u m e
CD eject
Selecting a file or displaying
folder list
Searching playback
Next commands, random play
or back button Repeat play
Fast-forwarding, rewinding or
selecting a folder
Changing the audio source/
playback
Playback/pause
Previous commands
Selecting a file
Displaying text message
Loading and ejecting MP3 and WMA discs
1
2
3
4
5
6
7
8
9
10
11
12
13
