TOYOTA RAV4 2015 XA40 / 4.G Owner's Manual

21Pictorial index
RAV4_OM_OM42A78U_(U)Audio remote control switches
*2. . . . . . . . . . . . . . . . . P. 356, 389
Telephone switches
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . P. 365, 457
Talk switch
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 483
“DISP” button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88
Cruise control switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 149
Back switch
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 389
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7

22Pictorial index
RAV4_OM_OM42A78U_(U)Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 600
Intuitive parking assist switch
*1 . . . . . . . . . . . . . . . . . . . . . P. 253
LDA (Lane Departure Alert) switch
*1. . . . . . . . . . . . . . . . . . P. 245
Driving mode select switches . . . . . . . . . . . . . . . . . . . . . . . P. 209
Seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 506
Windshield wiper de-icer switch
*1. . . . . . . . . . . . . . . . . . . . P. 318
AUX port/USB port
*2. . . . . . . . . . . . . . . . . . . P. 337, 345, 355, 391
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 505
1
2
3
4
5
6
7
8

23Pictorial index
RAV4_OM_OM42A78U_(U)
■Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 136
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 138
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 491
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 492
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 510
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9
10
11

24Pictorial index
RAV4_OM_OM42A78U_(U)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 503
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 503
Interior lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 487
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 487
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6

25
RAV4_OM_OM42A78U_(U)
For safety and security1
1-1. For safe useBefore driving ...................... 26
For safety drive ................... 28
Seat belts ............................ 30
SRS airbags ........................ 38
Front passenger occupant classification system ......... 51
Safety information for children ........................ 58
Child restraint systems........ 59
Installing child restraints...... 63
Exhaust gas precautions..... 75
1-2. Theft deterrent system Engine immobilizer system .............................. 76

261-1. For safe use
RAV4_OM_OM42A78U_(U)
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehi cle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
O

271-1. For safe use
RAV4_OM_OM42A78U_(U)
1
For safety and security
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

281-1. For safe use
RAV4_OM_OM42A78U_(U)
For safety drive
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 136)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 136)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. ( P. 146)
Wear the seat belt correctly.
(  P. 30)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 3 0 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(  P. 59)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts

291-1. For safe use
RAV4_OM_OM42A78U_(U)
1
For safety and security
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 150, 153)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

301-1. For safe use
RAV4_OM_OM42A78U_(U)
Seat belts

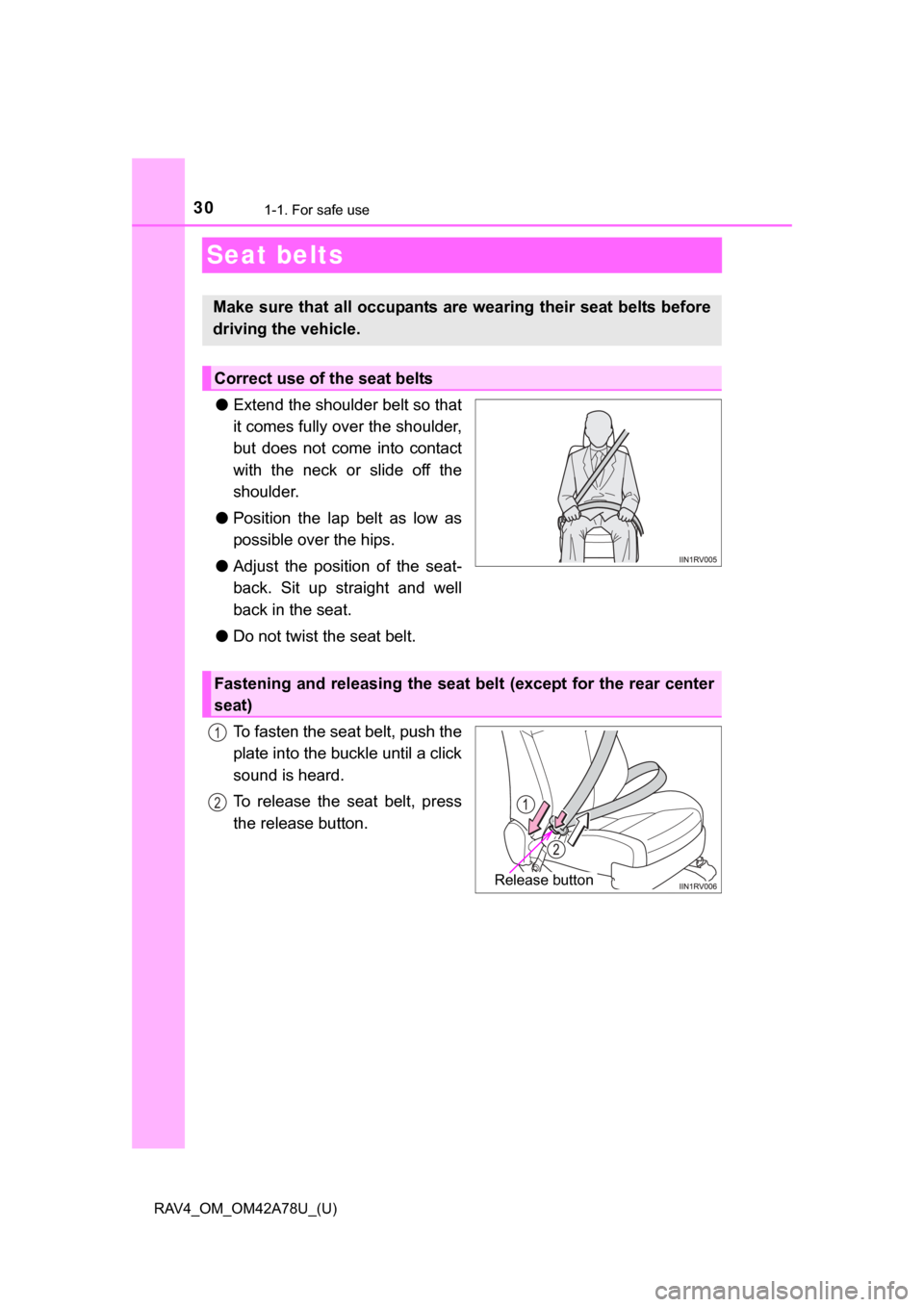

●Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt (except for the rear center
seat)
Release button
1
2
