3115-1. Using the air conditioning system and defogger
5
Interior features
Press .
The mode switches between outside air mode (the indicator is off) and
recirculated air mode (the indicator is on) each time is pressed.
Operates micro dust and pollen fil-
ter mode on/off.
Outside air mode switches to recir-
culated air mode. Pollen is
removed from the air and the air
flows to the upper part of the body.
Usually the system will turn off
automatically after approximately 3
minutes.
Switching between outside air and recirculated air modes
Micro dust and pollen filter mode button

312
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger
■Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knobs to open or
close the vents.
Turn the knob to open or
close the vent for rear seat
occupants.
■Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
Adjusting the position of and op ening and closing the air outlets
1
2
3
1
2

RAV4_OM_OM42A78U_(U)
3135-1. Using the air conditioning system and defogger
5
Interior features
■Operation of the air conditio ning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
● Engine speed and compressor operation controlled to restrict heating/cool-
ing capacity
● Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
● Adjust the fan speed
● Turn off Eco drive mode ( P. 209)
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculated air mode will also cool the vehicle
interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.

314
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger
■When the outside temperature exceeds 75 F (24C) and the air condition-
ing system is on
● In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
● Recirculated air mode is selected as a default mode when the engine switch
is in the “ON” position (vehicles without a smart key system) or IGNITION
ON mode (vehicles with a smart key system)
● It is possible to switch to outside air mode at any time by pressing .
■ Micro dust and pollen filter
●In order to prevent the windshield from fogging up when the outside air is
cold, the following may occur:
• Outside air mode does not switch to recirculated air mode.
• The dehumidification function operates.
• The operation cancels after approximately 1 minute.
● In rainy weather, the windows may fog up. Press .
● In extremely humid weather, the windows may fog up.
● The pollens are filtered out even if the micro dust and pollen filter is turned
off.
■ When the outside temperature falls to nearly 32 F (0C)
The dehumidification function may not operate even when is pressed.

RAV4_OM_OM42A78U_(U)
3155-1. Using the air conditioning system and defogger
5
Interior features
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic
mode.
■ Air conditioning filter
P. 568
■ Customization
Settings (e.g. outside/recirculated air mode) can be changed.
(Customizable features P. 687)
CAUTION
■To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.

316
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger
Rear window and outsid e rear view mirror
defoggers
Vehicles with a manual air conditioning system
On/off
The defoggers will automatically
turn off after approximately 15 min-
utes.
Vehicles with an automatic air conditioning system
On/off
The defoggers will automatically
turn off after approximately 15 min-
utes.
These features are used to defog the rear window, and to
remove raindrops, dew and frost from the outside rear view mir-
rors (if equipped).

RAV4_OM_OM42A78U_(U)
3175-1. Using the air conditioning system and defogger
5
Interior features
■Operating conditions
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ The outside rear view mirror defogge rs (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■ When the outside rear view mirror defoggers are on (vehicles with out-
side rear view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
NOTICE
■ To prevent battery discharge
Turn the defoggers off when the engine is off.

318
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger
Windshield wiper de-icer
On/off
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes. Pressing the
switch again also turns the de-icer
off.
■Operating conditions
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
: If equipped
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
CAUTION
■ When the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars,
as the surfaces can become very hot and burn you.

319
RAV4_OM_OM42A78U_(U)
5-2. Using the audio system
5
Interior features
Audio system types
Vehicles with an Entune Premium Audio with Navigation
Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Vehicles with an Entune Audio Plus
Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Vehicles with an Entune Audio
 P. 3 8 7

320
RAV4_OM_OM42A78U_(U)
5-2. Using the audio system

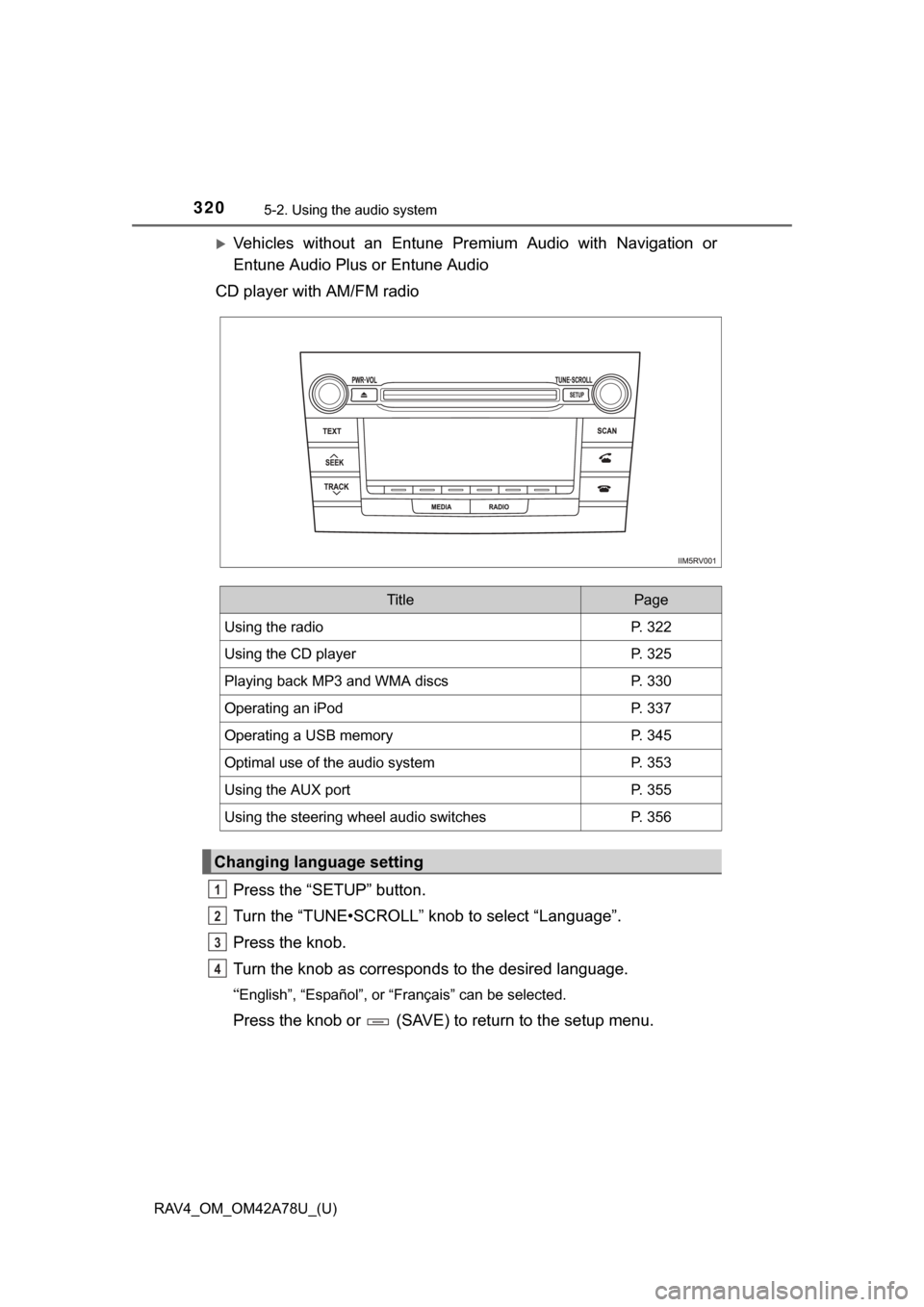

Vehicles without an Entune Premium Audio with Navigation or
Entune Audio Plus or Entune Audio
CD player with AM/FM radio
Press the “SETUP” button.
Turn the “TUNE•SCROLL” knob to select “Language”.
Press the knob.
Turn the knob as corresponds to the desired language.
“English”, “Español”, or “Français” can be selected.
Press the knob or (SAVE) to return to the setup menu.
TitlePage
Using the radioP. 322
Using the CD playerP. 325
Playing back MP3 and WMA discsP. 330
Operating an iPodP. 337
Operating a USB memoryP. 345
Optimal use of the audio systemP. 353
Using the AUX portP. 355
Using the steering wheel audio switchesP. 356
Changing language setting
1
2
3
4
