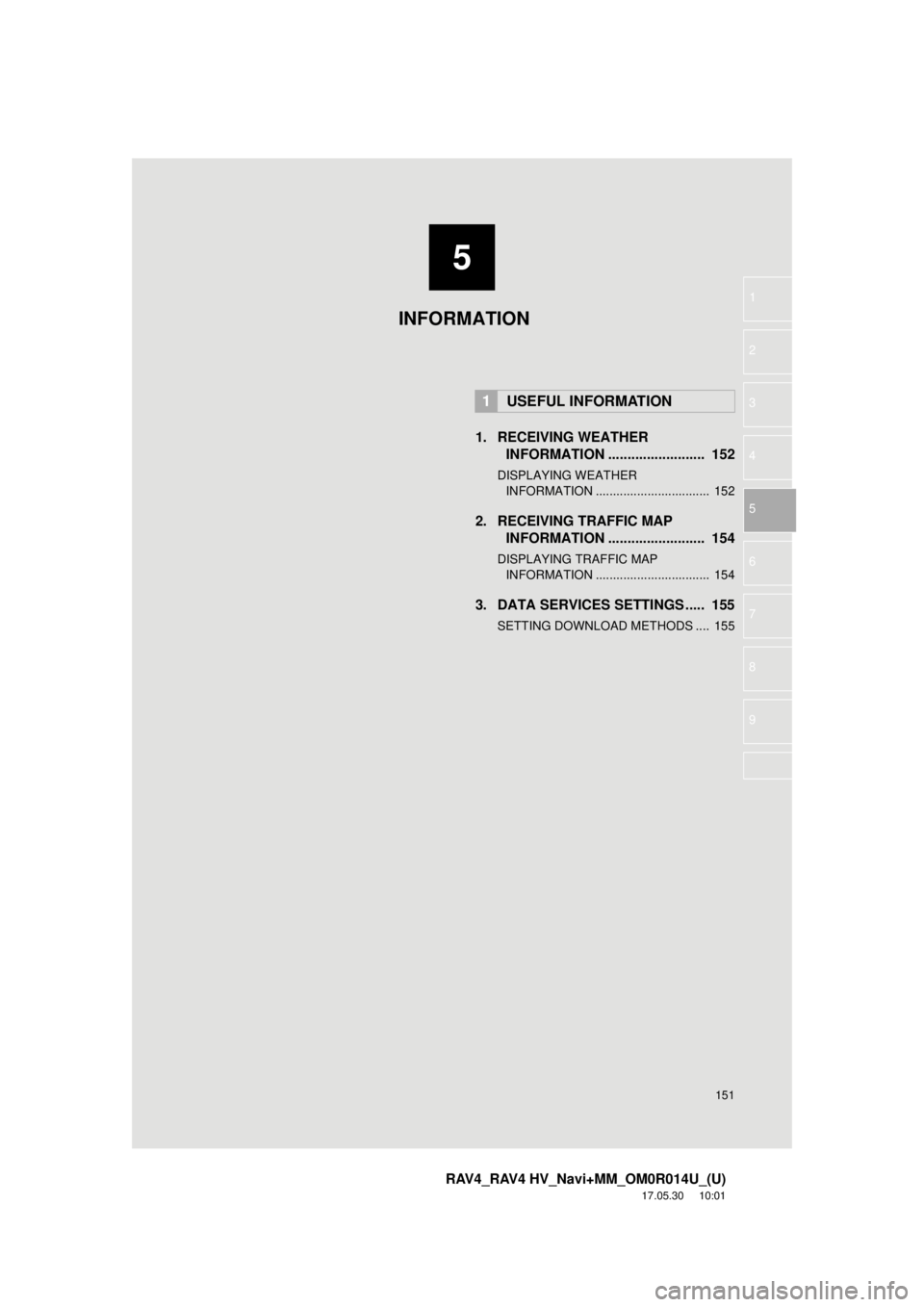

1. RECEIVING WEATHER INFORMATION ......................... 152
DISPLAYING WEATHER
IN FORMATION ................................. 152
2. RECEIVING TRAFFIC MAP
INFORMATION ......................... 154
DISPLAYING TRAFFIC MAP
IN FORMATION ................................. 154
3. DATA SERVICES SETTINGS ..... 155
SETTING DOWNLOAD METHODS .... 155
1USEFUL INFORMATION
INFORMATION

152
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1. USEFUL INFORMATION

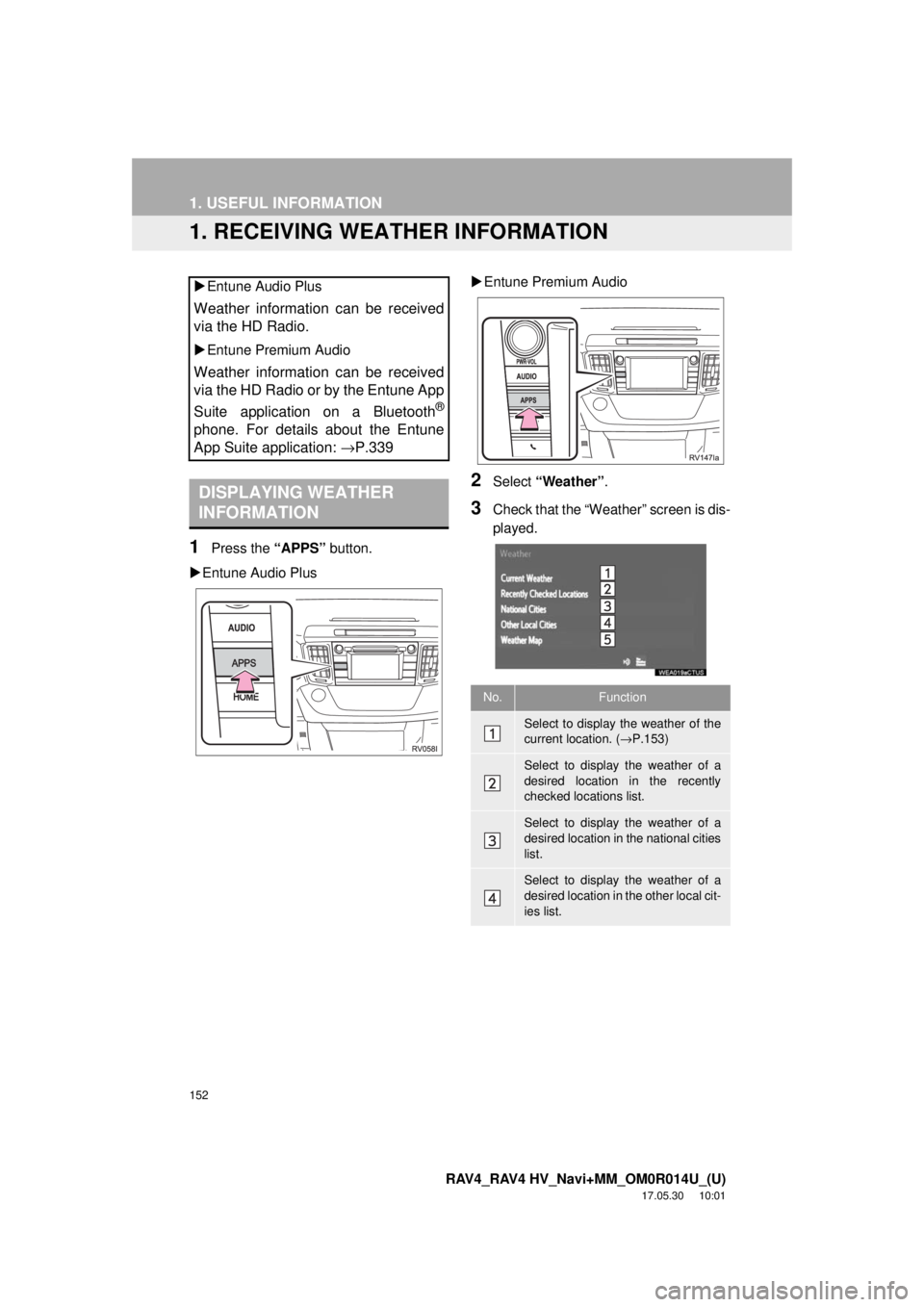

1. RECEIVING WEATHER INFORMATION
1Press the “APPS” button.
 Entune Audio Plus 
Entune Premium Audio
2Select “Weather”.
3Check that the “Weather” screen is dis-
played.

Entune Audio Plus
Weather information can be received
via the HD Radio.
Entune Premium Audio
Weather information can be received
via the HD Radio or by the Entune App
Suite application on a Bluetooth
®
phone. For details about the Entune
App Suite application: →P.339
DISPLAYING WEATHER
INFORMATION
No.Function
Select to display the weather of the
current location. (→P.153)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.

153
1. USEFUL INFORMATION
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
INFORMATION
5
1Display the “Weather” screen.
(→P.152)
2Select “Current Weather” .
3Select the desired tab to be displayed.
*Select to display weather informa-
tion over the map.
*: Entune Premium Audio only
INFORMATION
● Weather information is available in the
48 states, D.C. and Alaska of the United
States.
No.FunctionDISPLAYING THE WEATHER
OF THE CURRENT LOCATION
INFORMATION
●If weather is set to the home screen, the
weather screen of the current location
will be displayed.

154
1. USEFUL INFORMATION
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01

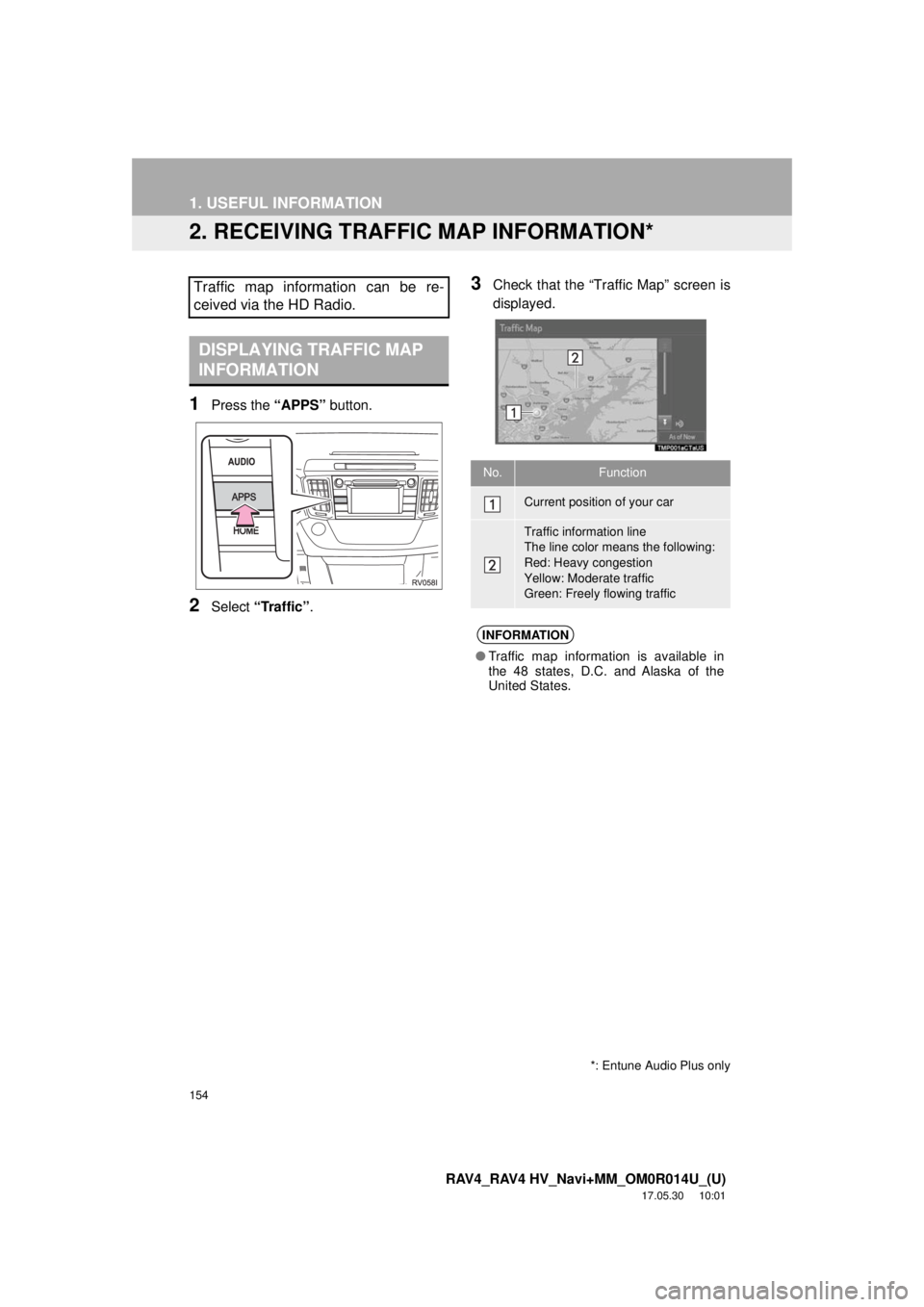

2. RECEIVING TRAFFIC MAP INFORMATION*
1Press the “APPS” button.
2Select “Traffic”.
3Check that the “Traffic Map” screen is
displayed.Traffic map information can be re-
ceived via the HD Radio.
DISPLAYING TRAFFIC MAP
INFORMATION
No.Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic
INFORMATION
●Traffic map information is available in
the 48 states, D.C. and Alaska of the
United States.
*: Entune Audio Plus only

155
1. USEFUL INFORMATION
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
INFORMATION
5

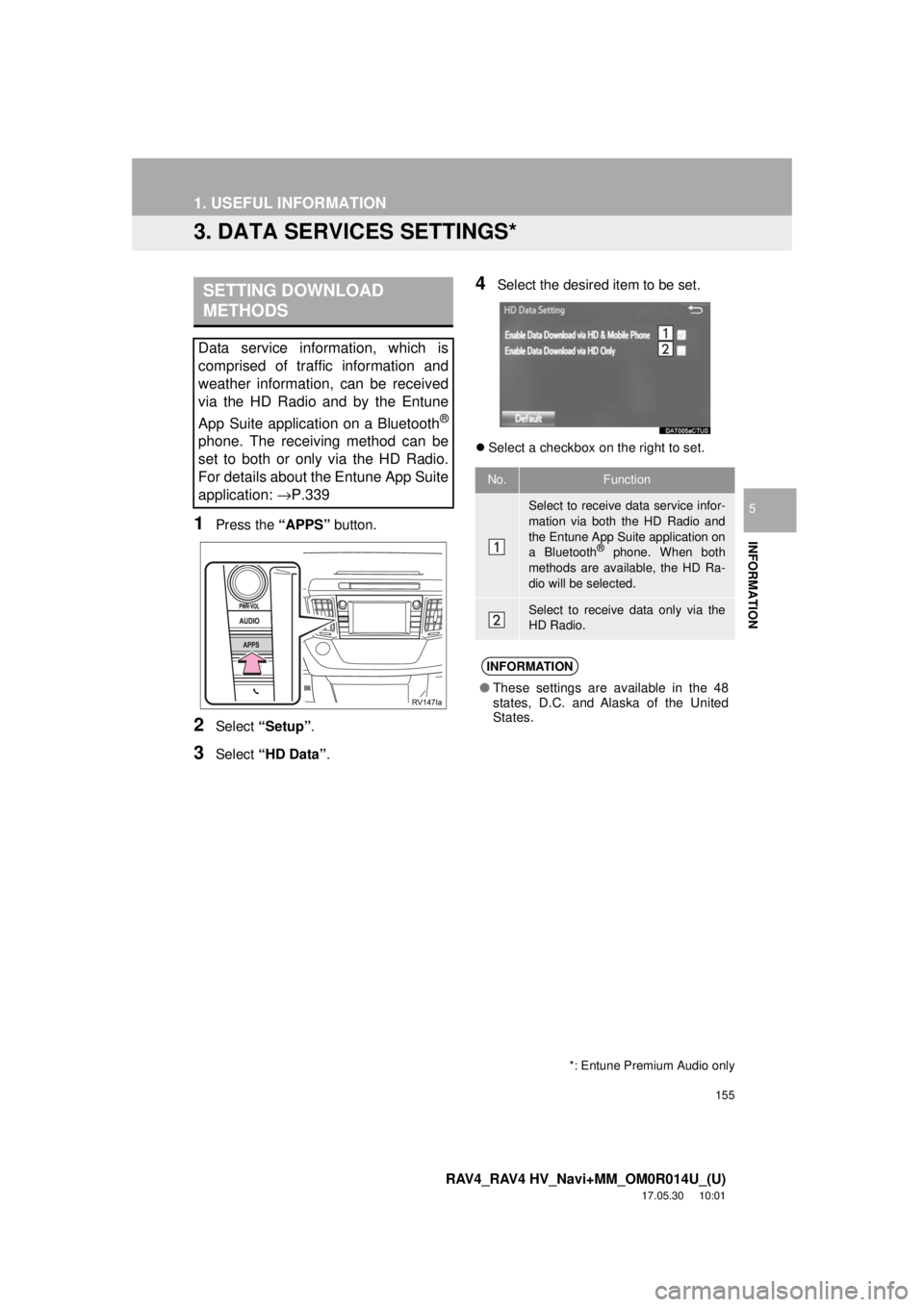

3. DATA SERVICES SETTINGS*
1Press the “APPS” button.
2Select “Setup” .
3Select “HD Data” .
4Select the desired item to be set.
Select a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via the HD Radio and by the Entune
App Suite application on a Bluetooth
®
phone. The receiving method can be
set to both or only via the HD Radio.
For details about the Entune App Suite
application: →P.339
No.Function
Select to receive data service infor-
mation via both the HD Radio and
the Entune App Suite application on
a Bluetooth
® phone. When both
methods are available, the HD Ra-
dio will be selected.
Select to receive data only via the
HD Radio.
INFORMATION
● These settings are available in the 48
states, D.C. and Alaska of the United
States.
*: Entune Premium Audio only

156
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1. REAR VIEW MONITORSYSTEM..................................... 158
REAR VIEW MONITOR SYSTEM ....... 158
DRIVING PRECAUTIONS ................... 158
SCREEN DESCRIPTION .................... 160
2. REAR VIEW MONITOR SYSTEMPRECAUTIONS ......................... 162
AREA DISPLAYED ON SCREEN........ 162
THE CAMERA ..................................... 163
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 164
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 165
3. THINGS YOU SHOULD KNOW ........................................ 167
IF YOU NOTICE ANY SYMPTOMS .... 167
1. TOYOTA PARKING ASSIST MONITOR .................................. 168
TOYOTA PARKING ASSIST
MONITOR .......................................... 168
DRIVING PRECAUTIONS ................... 168
SCREEN DISPLAY .............................. 170
USING THE SYSTEM .......................... 171
2. ESTIMATED COURSE LINE DISPLAY MODE ....................... 173
SCREEN DESCRIPTION ..................... 173
PARKING ............................................. 174
3. PARKING ASSIST GUIDE LINEDISPLAY MODE ....................... 175
SCREEN DESCRIPTION ..................... 175
PARKING ............................................. 176
4. TOYOTA PARKING ASSISTMONITOR PRECAUTIONS ....... 177
AREA DISPLAYED ON SCREEN ........ 177
THE CAMERA ...................................... 178
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 179
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 180
5. THINGS YOU SHOULD KNOW ....................................... 182
IF YOU NOTICE ANY SYMPTOMS ..... 182
1REAR VIEW MONITOR
SYSTEM2TOYOTA PARKING ASSIST
MONITOR
6
PERIPHERAL MONITORING SYSTEM

6
157
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1
2
3
4
5
6
7
8
9

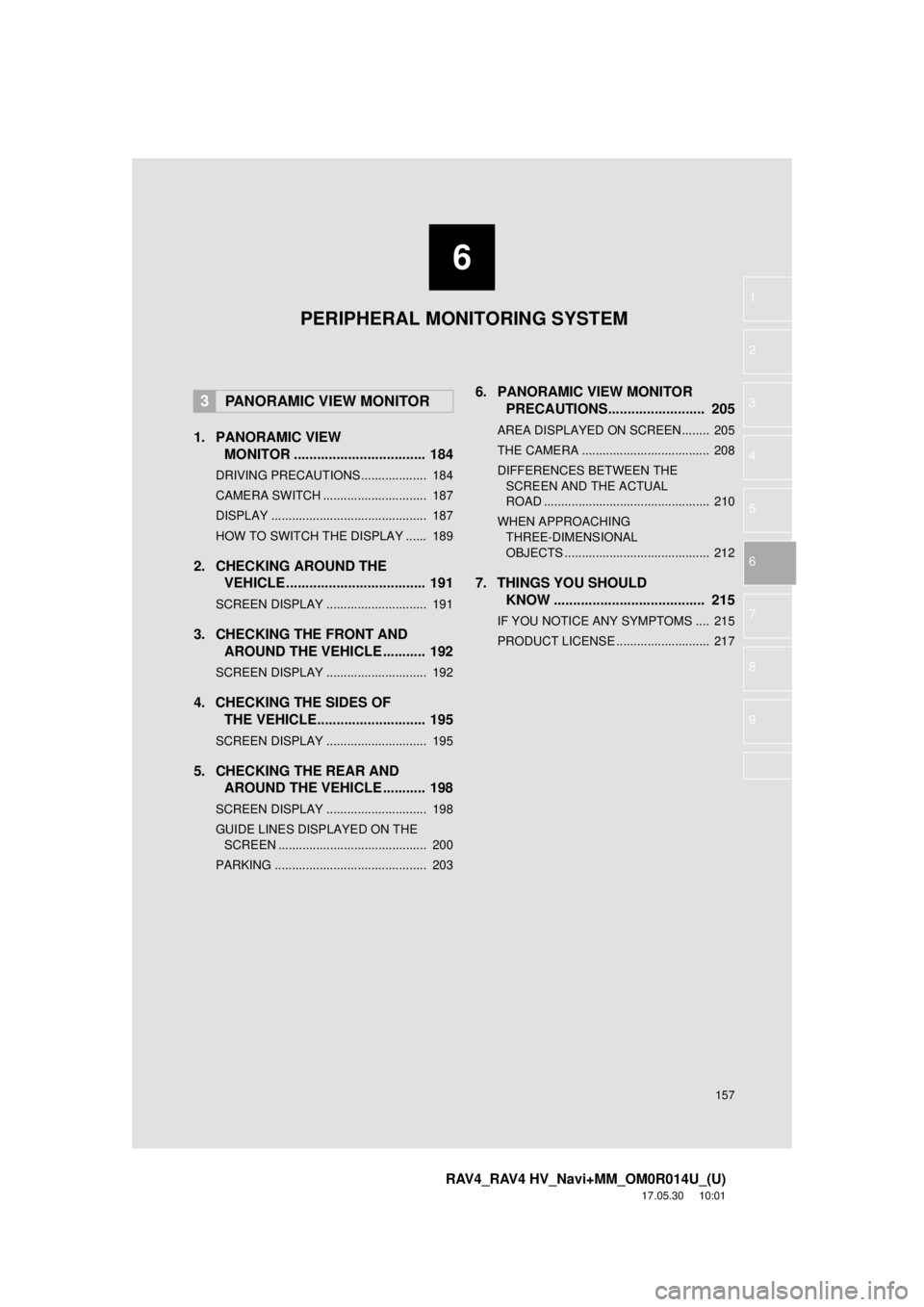

1. PANORAMIC VIEW MONITOR .................................. 184
DRIVING PRECAUTIONS ................... 184
CAMERA SWITCH .............................. 187
DISPLAY ............................................. 187
HOW TO SWITCH THE DISPLAY ...... 189
2. CHECKING AROUND THEVEHICLE .................................... 191
SCREEN DISPLAY ............................. 191
3. CHECKING THE FRONT ANDAROUND THE VEHICLE ........... 192
SCREEN DISPLAY ............................. 192
4. CHECKING THE SIDES OF
THE VEHICLE............................ 195
SCREEN DISPLAY ............................. 195
5. CHECKING THE REAR ANDAROUND THE VEHICLE ........... 198
SCREEN DISPLAY ............................. 198
GUIDE LINES DISPLAYED ON THE
SCREEN ........................................... 200
PARKING ............................................ 203
6. PANORAMIC VIEW MONITOR PRECAUTIONS......................... 205
AREA DISPLAYED ON SCREEN........ 205
THE CAMERA ..................................... 208
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 210
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 212
7. THINGS YOU SHOULD KNOW ....................................... 215
IF YOU NOTICE ANY SYMPTOMS .... 215
PRODUCT LICENSE ........................... 217
3PANORAMIC VIEW MONITOR
PERIPHERAL MONITORING SYSTEM

158
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM*
REAR VIEW MONITOR
SYSTEM
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
*: If equipped

159
1. REAR VIEW MONITOR SYSTEM
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
PERIPHERAL MONITORING SYSTEM
6
WA R N I N G
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
WA R N I N G
●Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the back door is not closed com- pletely
• On roads that are not flat or straight,
such as curves or slopes.
● In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances. ( →P.164)

160
1. REAR VIEW MONITOR SYSTEM
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01

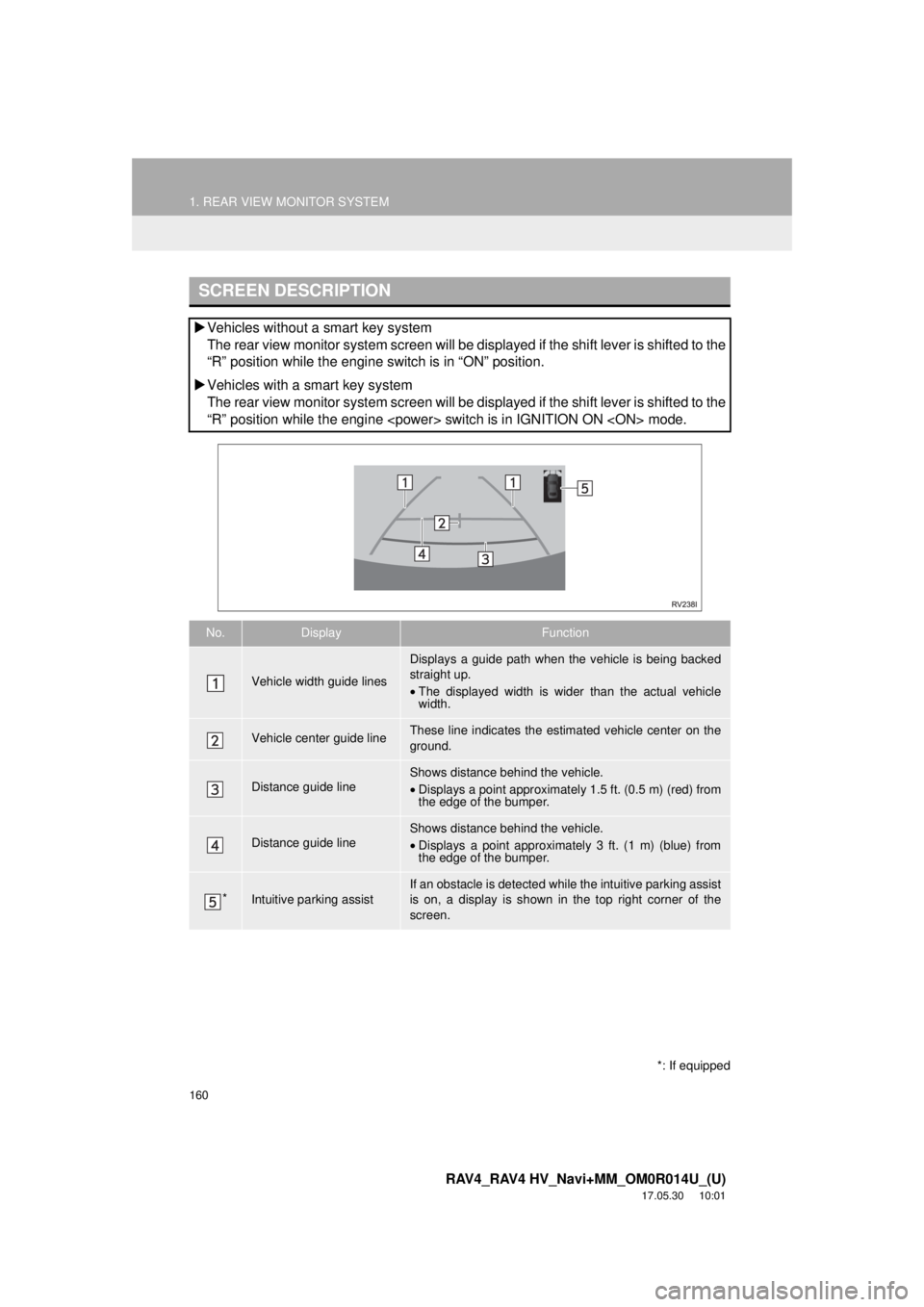

SCREEN DESCRIPTION
Vehicles without a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine switch is in “ON” position.
 Vehicles with a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Vehicle width guide lines
Displays a guide path when the vehicle is being backed
straight up.
• The displayed width is wider than the actual vehicle
width.
Vehicle center guide lineThese line indicates the estimated vehicle center on the
ground.
Distance guide lineShows distance behind the vehicle.
• Displays a point approximatel y 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
• Displays a point approximately 3 ft. (1 m) (blue) from
the edge of the bumper.
*Intuitive parking assist
If an obstacle is detected while the intuitive parking assist
is on, a display is shown in the top right corner of the
screen.
*: If equipped
