navigation TOYOTA RAV4 2018 Accessories, Audio & Navigation (in English)

307
3. ROUTE GUIDANCE
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(→P.303)
2Select “Start from Adjacent Road” .
STARTING FROM ADJACENT
ROAD
When a freeway and a surface road
run in parallel, the system may show
the guidance route going on the free-
way while driving on the surface road,
or vice versa.
If this happens, you can instantly
choose the adjacent road for the route
guidance.
INFORMATION
●When there is no adjacent road, this
screen button will not be displayed.

308
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
4. MEMORY POINTS
1. MEMORY POINTS SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Navigation” .
4Select the desired item to be set.Home, preset destinations, address
book entries, areas to avoid can be set
as memory points. The registered
points can be used as the destinations.
(→ P.281)
Registered areas to avoid, will be
avoided when the system searches for
a route.
No.FunctionPage
Select to set home.309
Select to set preset desti-
nations.310
Select to set the address
book.312
Select to set areas to
avoid.315
Select to delete previous
destinations.317
Select to set detailed navi-
gation settings.318

309
4. MEMORY POINTS
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
NAVIGATION SYSTEM
8

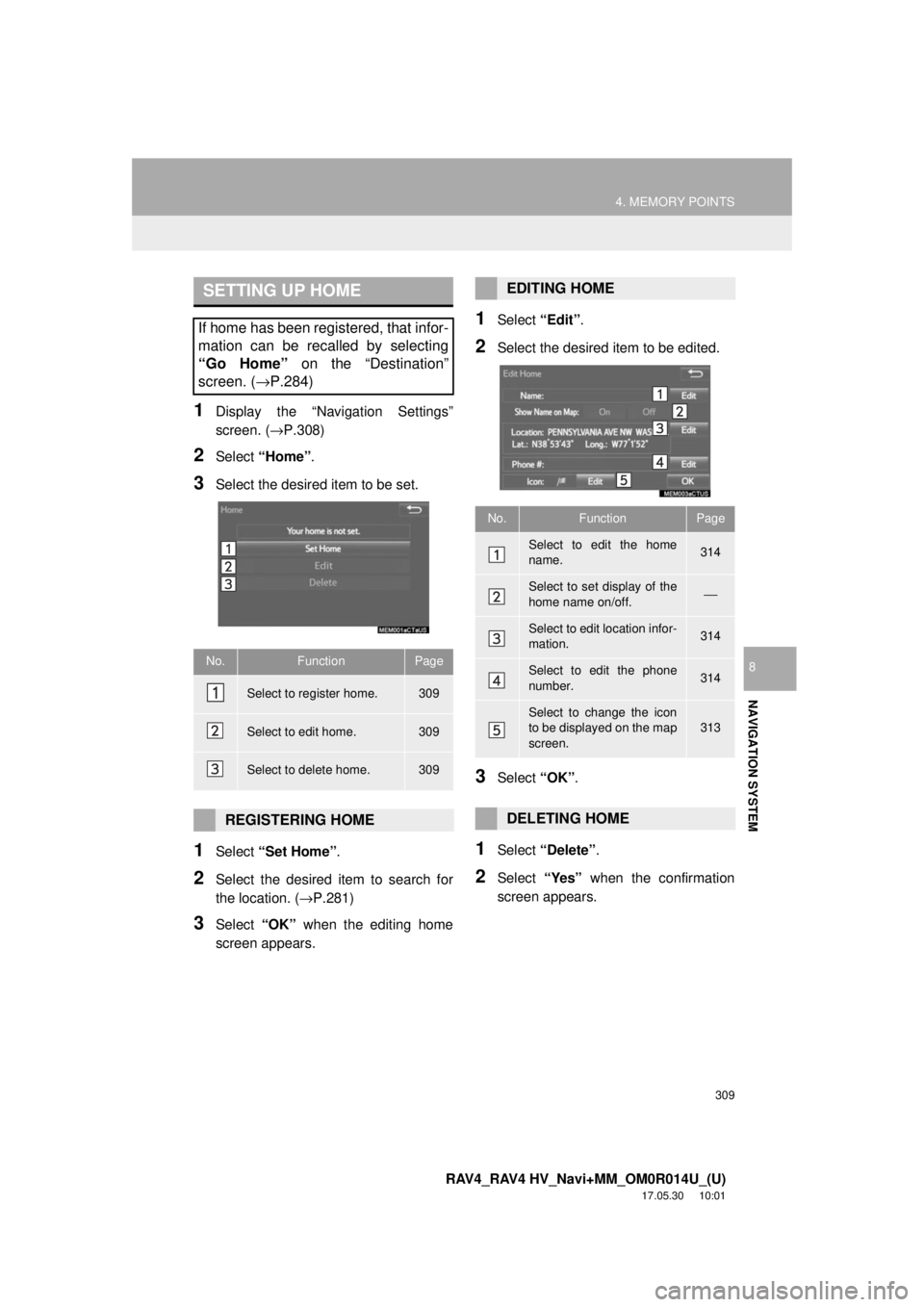

1Display the “Navigation Settings”
screen. (→P.308)
2Select “Home” .
3Select the desired item to be set.
1Select “Set Home” .
2Select the desired item to search for
the location. ( →P.281)
3Select “OK” when the editing home
screen appears.
1Select “Edit”.
2Select the desired item to be edited.
3Select “OK”.
1Select “Delete” .
2Select “Yes” when the confirmation
screen appears.
SETTING UP HOME
If home has been registered, that infor-
mation can be recalled by selecting
“Go Home” on the “Destination”
screen. ( →P.284)
No.FunctionPage
Select to register home.309
Select to edit home.309
Select to delete home.309
REGISTERING HOME
EDITING HOME
No.FunctionPage
Select to edit the home
name.314
Select to set display of the
home name on/off.⎯
Select to edit location infor-
mation.314
Select to edit the phone
number.314
Select to change the icon
to be displayed on the map
screen.313
DELETING HOME

310
4. MEMORY POINTS
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1Display the “Navigation Settings”
screen. (→P.308)
2Select “Preset Destinations” .
3Select the desired item.
1Select “Set”.
2Select the desired item to search for
the location. ( →P.281)
3Select a position for this preset desti-
nation.
4Select “OK” when the editing preset
destination screen appears. ( →P.311)
SETTING UP PRESET
DESTINATIONS
If a preset destination has been regis-
tered, that information can be recalled
by using preset destinations on the
“Destination” screen. (→P.284)
No.FunctionPage
Select to register a preset
destination.310
Select to edit a preset des-
tination.311
Select to delete a preset
destination.311
REGISTERING PRESET
DESTINATIONS
INFORMATION
●Up to 5 preset destinations can be regis-
tered.

311
4. MEMORY POINTS
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
NAVIGATION SYSTEM
8
1Select “Edit”.
2Select the desired preset destination.
3Select the item to be edited.
4Select “OK”.
1Select “Delete” .
2Select the preset destination to be de-
leted and select “Delete”.
3Select “Yes” when the confirmation
screen appears.
EDITING PRESET
DESTINATIONS
No.FunctionPage
Select to edit the preset
destination name.314
Select to set display of the
preset destination name
on/off.
⎯
Select to edit location infor-
mation.314
Select to edit the phone
number.314
Select to change the icon
to be displayed on the map
screen.
313
DELETING PRESET
DESTINATIONS

312
4. MEMORY POINTS
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
1Display the “Navigation Settings”
screen. (→P.308)
2Select “Address Book” .
3Select the desired item.
1Select “New”.
2Select the desired item to search for
the location. ( →P.281)
3Select “OK” when the editing address
book entry screen appears. ( →P.313)
SETTING UP ADDRESS
BOOK
Points on the map can be registered.
No.FunctionPage
Select to register address
book entries.312
Select to edit address book
entries.313
Select to delete address
book entries.314
REGISTERING ADDRESS
BOOK ENTRIES
INFORMATION
●Up to 100 address book entries can be
registered.

313
4. MEMORY POINTS
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
NAVIGATION SYSTEM
8
1Select “Edit”.
2Select the desired address book entry.
3Select the item to be edited.
4Select “OK”.
■CHANGING THE ICON
1Select “Edit” next to the “Icon”.
2Select the desired icon.
Change pages by selecting the “Page 1”,
“Page 2” or “With Sound” tab.
“With Sound” : Select the memory points
with a sound
EDITING ADDRESS BOOK
ENTRIES
The icon, name, location and/or phone
number of a registered address book
entry can be edited.
No.FunctionPage
Select to edit the address
book entry name.314
Select to set display of the
address book entry name
on/off.
⎯
Select to edit location infor-
mation.314
Select to edit the phone
number.314
Select to change the icon
to be displayed on the map
screen.
313

315
4. MEMORY POINTS
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
NAVIGATION SYSTEM
8
1Display the “Navigation Settings”
screen. (→P.308)
2Select “Areas to Avoid” .
3Select the desired item.
1Select “New”.
2Select the desired item to search for
the location. ( →P.281)
3Select either or to
change the size of the area to be avoid-
ed and select “OK”.
4Select “OK” when the editing area to
avoid screen appears.
SETTING UP AREAS TO
AVOID
Areas to be avoided because of traffic
jams, construction work or other rea-
sons can be registered as “Areas to
Avoid”.
No.FunctionPage
Select to register areas to
avoid.315
Select to edit areas to
avoid.316
Select to delete areas to
avoid.317
REGISTERING AREAS TO
AVOID
INFORMATION
● If a destination is entered in the area to
avoid or the route calculation cannot be
made without running through the area
to avoid, a route passing through the
area to be avoided may be shown.
● Up to 10 locations can be registered as
points/areas to avoid.

317
4. MEMORY POINTS
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
NAVIGATION SYSTEM
8
1Select “Delete” .
2Select the area to be deleted and se-
lect “Delete” .
3Select “Yes” when the confirmation
screen appears.
1Display the “Navigation Settings”
screen. ( →P.308)
2Select “Delete Previous Dest.” .
3Select the previous destination to be
deleted and select “Delete”.
4Select “Yes” when the confirmation
screen appears.
DELETING AREAS TO AVOID
DELETING PREVIOUS
DESTINATIONS
Previous destinations can be deleted.

318
RAV4_RAV4 HV_Navi+MM_OM0R014U_(U)
17.05.30 10:01
5. SETUP
1. DETAILED NAVIGATION SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Navigation” .
4Select “Detailed Navi. Settings” .
5Select the items to be set.
6Select “OK”.
Settings are available for pop-up infor-
mation, favorite POI categories, low
fuel warning, etc.SCREENS FOR NAVIGATION
SETTINGS
