3-2. Opening, closing and locking the doors
■Situations in which the touchless sensor does not operate properly
(vehicles with touc hless power back door)
If the touchless sensor does not operate in the following situations, use the
back door opener switch or power back door switch or wireless remote con-
trol to open the power back door. ( →P. 114)
● When the rear bumper is subjected to strong impact
● When an external radio wave source interferes with the communication
between the vehicle and electronic key ( →P. 111 )
● When a large amount of water is kept applying to the lower center part of the
rear bumper, such as in heavy rain
● When the vehicle is being washed and water is kept applying to the lower
center part of the rear bumper
● When the lower center part of the rear bumper is covered with mud, snow,
ice, etc.
● When a metal object, etc., such as a towing hitch is installed near the lower
center part of the rear bumper
● When the vehicle has been parked for a while near objects that may move
and contact the lower center part of the rear bumper, such as grass or trees
● When the vehicle is parked at an area where an electromagnetic field is
generated, such as a road with an electric snow melting system or parking
meters
■ Customization (vehicles with power back door)
Settings (e.g. power back door opening angle) can be changed.
(Customizable features: →P. 701)

126
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
WARNING
●In the following situations, the power back door may detect an abnormality
and automatic operation may be stopped. In this case, the back door has
to be operated manually. Take extra care in this situation, as the stopped
back door may suddenly open or close, causing an accident.
• When the back door contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine
switch is turned to the “ON” position (vehicles without smart key sys-
tem) or IGNITION ON mode (vehicles with smart key system) or the
engine is started during automatic operation
● If a bicycle carrier or similar heavy object is attached to the back door, the
power back door may not operate, causing itself to malfunction, or the
back door may move slightly in the closing direction after being opened,
causing someone’s hands, head or neck to be caught and injured. When
installing an accessory part to the back door, ask your Toyota dealer for
details.
■ Touchless sensor (vehicles with touchless power back door)
Observe the following precautions when operating the touchless power
back door.
Failure to do so may cause death or serious injury.
● Do not leave the electronic key within the effective range (detection area)
of the luggage compartment.
● Check the safety of the surrounding area to make sure there are no obsta-
cles or anything that could cause any of your belongings to get caught.
● When putting your foot near the lower center part of the rear bumper and
moving it from the rear bumper, be careful not to touch the exhaust pipes
until they have cooled down sufficiently, as touching hot exhaust pipes can
cause burns.
■ Jam protection function (vehicles with power back door)
Observe the following precautions.
Failure to do so may cause death or serious injury.
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the back door fully closes. Be careful not to catch fingers or any-
thing else.
● The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.\

128
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
NOTICE
■To prevent damage to the po wer back door (if equipped)
● Make sure that there is no ice between the back door and frame that
would prevent movement of the back door. Operating the power back door
when excessive load is present on the back door may cause a malfunc-
tion.
● Do not apply excessive force to the back door while the power back door
is operating.
● Take care not to damage the sensors (installed on the right and left edges
of the power back door) with a knife or other sharp object. If the sensor is
disconnected, the power back door will not close automatically.

RAV4_OM_OM0R012U_(U)
1293-2. Opening, closing and locking the doors
3
Operation of each component
NOTICE
■Touchless sensor precautions (veh icles with touchless power back
door)
The touchless sensor is located behind lower center part of the rear
bumper. Observe the following to ensure that the touchless power back
door function operates properly:
● Keep the lower center part of the rear bumper clean at all times.
If the lower center part of the rear bumper is dirty or covered with snow,
the touchless sensor may not operate. In this situation, clean off the dirt or
snow, move the vehicle from the current position and then check if the
touchless sensor operates.
If it does not operate, have the vehicle inspected by your Toyota dealer.
● Do not apply coatings that have a rain clearing (hydrophilic) effect, or other
coatings, to the lower center part of the rear bumper.
● Do not park the vehicle near objects that may move and contact the lower
center part of the rear bumper, such as grass or trees.
If the vehicle has been parked for a while near objects that may move and
contact the lower center part of the rear bumper, such as grass or trees,
the touchless sensor may not operate. In this situation, move the vehicle
from the current position and then check if the touchless sensor operates.
If it does not operate, have the vehicle inspected by your Toyota dealer.
● Do not subject the touchless sensor or its surrounding area to a strong
impact.
If the touchless sensor or its surrounding area has been subjected to a
strong impact, the touchless sensor may not operate properly. If the
touchless sensor does not operate in the following situations, have the
vehicle inspected by your Toyota dealer.
• The touchless sensor or its surrounding area has been subjected to a
strong impact.
• The lower center part of the rear bumper is scratched or damaged.
● Do not disassemble the rear bumper.
● Do not attach stickers to the rear bumper.
● Do not paint the rear bumper.
● If a bicycle carrier or similar heavy object is attached to the power back
door, disable the touchless sensor. ( →P. 701)

RAV4_OM_OM0R012U_(U)
1333-2. Opening, closing and locking the doors
3
Operation of each component
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to
the rear bumper center when the back door is opened.
• The electronic key is on the instrument panel, luggage cover or floor, or in the door pockets or glove box when the engine is started or engine switch
modes are changed.
● Do not leave the electronic key on top of the instrument panel or near t\
he
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the out side, possibly trapping the electronic
key inside the vehicle.
● As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
● Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.
● The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)
● If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
● Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
● When the lock operation is performed using the lock sensor, recognition sig-
nals will be shown up to two consecutive times. After this, no recognition
signals will be given.
● If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In that case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the
vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart key
system. ( →P. 131)
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

134
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
●The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.
● A sudden handle operation or a handle operation immediately after entering
the effective range may prevent the doors from being unlocked. Touch the
door unlock sensor and check that the doors are unlocked before pulling the
door handle again.
● Gripping the door handle when wearing a glove may not unlock the door.
● If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.
■ When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.
● The smart key system can be deactivated in advance. Ask your Toyota
dealer for details.
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)
■ If the smart key system do es not operate properly
● Locking and unlocking the doors: Use the mechanical key. ( →P. 660)
● Starting the engine: →P. 661

1523-4. Adjusting the steering wheel and mirrors
RAV4_OM_OM0R012U_(U)

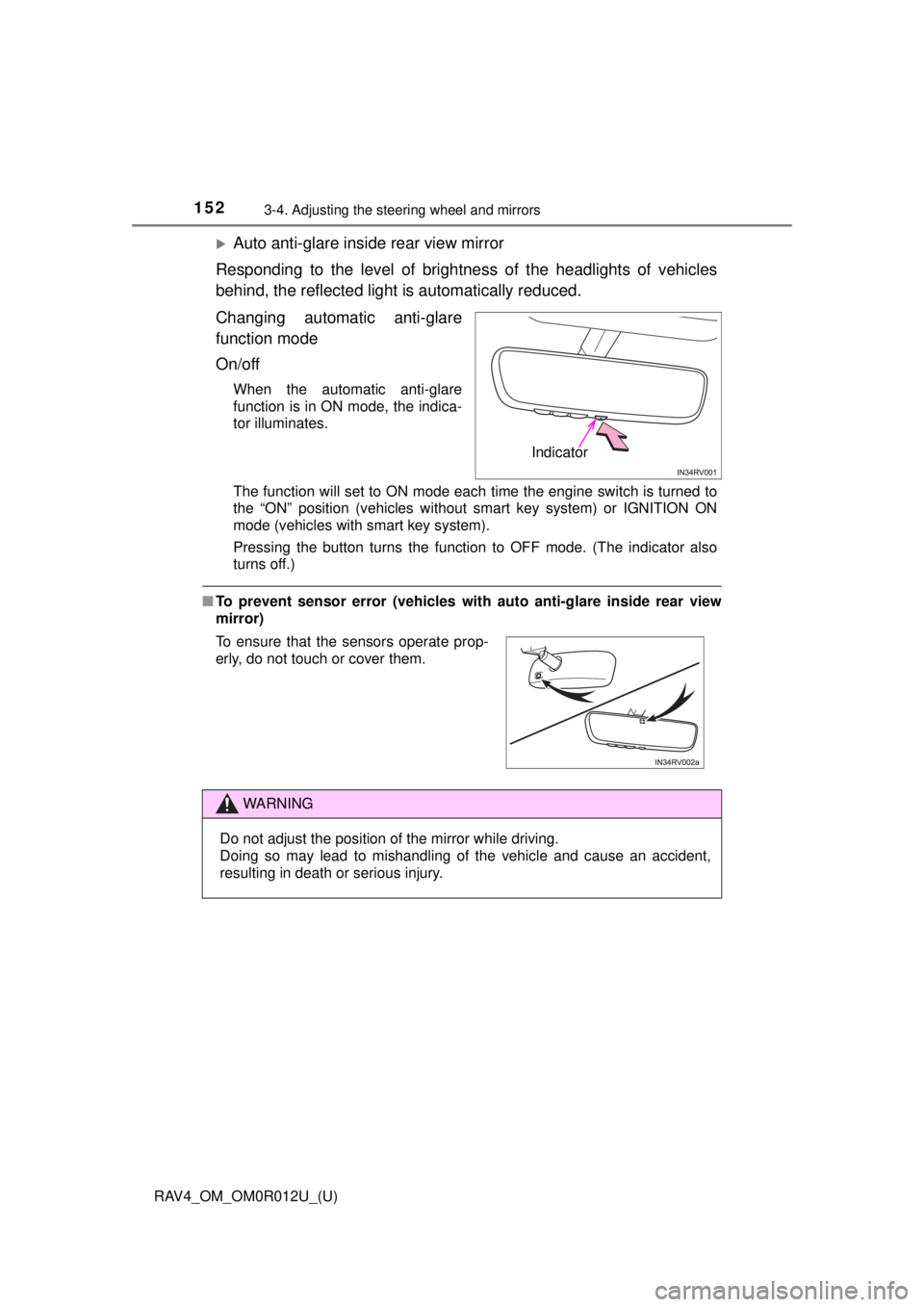

Auto anti-glare inside rear view mirror
Responding to the level of brightne ss of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode each time the engine switch is turned to
the “ON” position (vehicles without smart key system) or IGNITION ON
mode (vehicles with smart key system).
Pressing the button turns the function to OFF mode. (The indicator also
turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

218
RAV4_OM_OM0R012U_(U)
4-3. Operating the lights and wipers
Vehicles with LED headlights
● The daytime running lights illuminate using the same lights as the parking
lights and illuminate brighter than the parking lights.
● To make your vehicle more visible to other drivers during daytime driving,
the daytime running lights turn on automatically when all of the following
conditions are met. (The daytime running lights are not designed for use at
night.)
• The engine is running
• The parking brake is released
• The headlight switch is in the (Canada only), , or “AUTO”
*
position
*: When the surroundings are bright
The daytime running lights remain on after they illuminate, even if the
parking brake is set again.
● For the U.S.A.: Daytime running lights can be turned off by operating the
switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Headlight control sensor (if equipped)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

RAV4_OM_OM0R012U_(U)
2194-3. Operating the lights and wipers
4
Driving
■Automatic light off system
When the headlights are on: The lights turn off 30 seconds after the engine
switch is turned to the “LOCK” position (vehicles without smart key system) or
off (vehicles with smart key system) and a door is opened and all of the doors
are closed. (The lights turn off immediately if on the key is pressed
while all the doors are locked.)
When only the tail lights are on: The lights turn off after the engine switch is
turned to the “LOCK” position (vehicles without smart key system) or off
(vehicles with smart key system) and the driver’s door is opened.
To turn the lights on again, turn the engine switch to the “ON” position (vehi-
cles without smart key system) or to IGNITION ON mode (vehicles with smart
key system), or turn the light switch off once, or turn the light switch to
once, then turn it to or to .
If any of the doors is kept open and the engine switch is in the “LOCK” posi-
tion (vehicles without smart key system) or off (vehicles with smart key sys-
tem), the lights automatically turn off after 20 minutes.
■ Light reminder buzzer
Vehicles without smart key system
A buzzer sounds when the engine switch is turned to the “LOCK” position, the
key is removed and the driver’s door is opened while the lights are turned on.
Vehicles with smart key system
A buzzer sounds when the engine switch is turned off and the driver’s door is
opened while the lights are turned on.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 704)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.

220
RAV4_OM_OM0R012U_(U)
4-3. Operating the lights and wipers

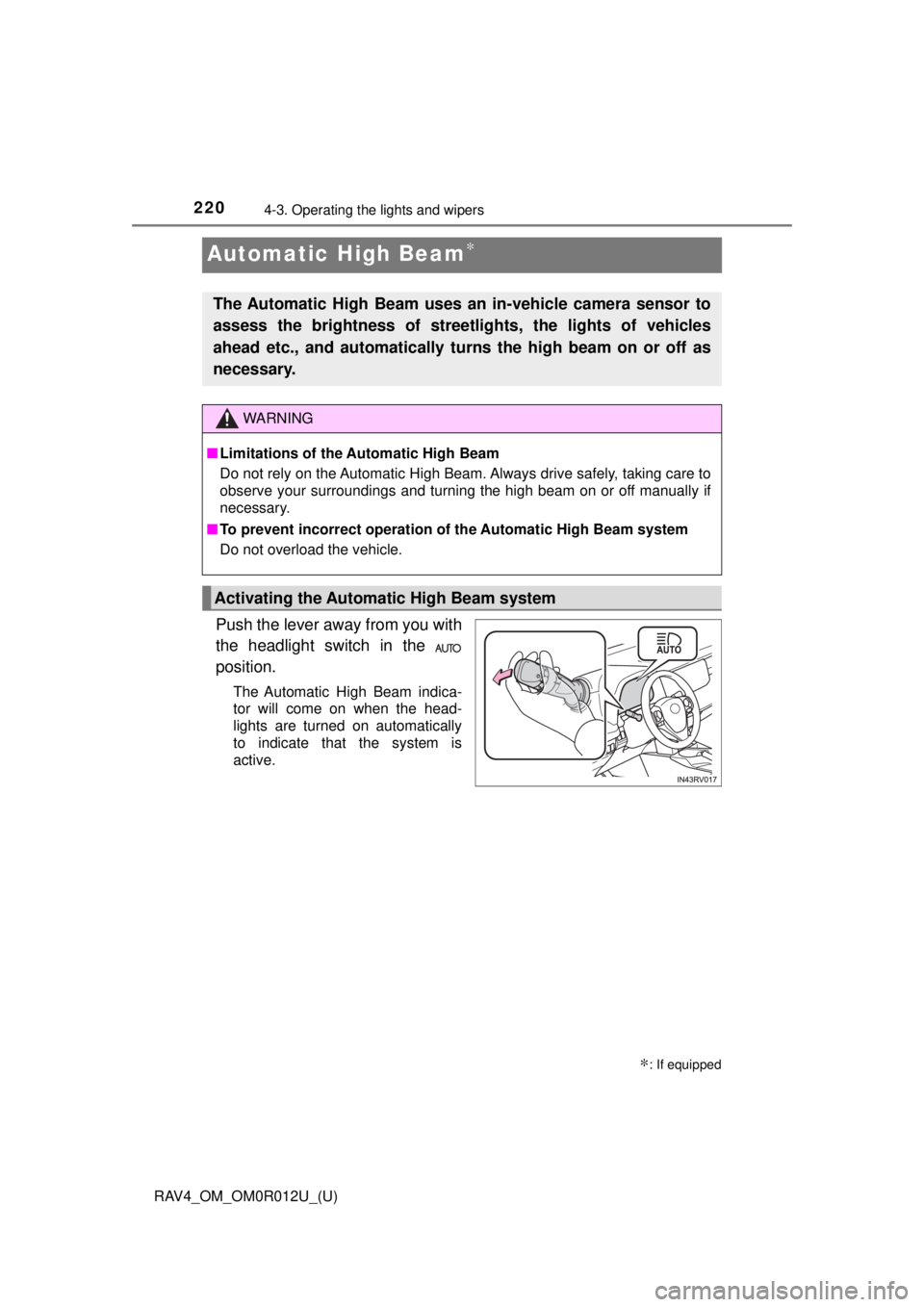

Automatic High Beam∗
Push the lever away from you with
the headlight switch in the
position.
The Automatic High Beam indica-
tor will come on when the head-
lights are turned on automatically
to indicate that the system is
active.
∗: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetlights, the lights of vehicles
ahead etc., and automatically turns the high beam on or off as
necessary.
WARNING
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning the high beam on or off manually if
necessary.
■ To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.
Activating the Automatic High Beam system
