3815-8. Bluetooth® Audio
5
Audio system
Press () to select desired album.
Press (MORE>) to display the commands.
Press and hold the “SCAN” button until you hear a beep.
The first 10 seconds of the first track in each album will be played.
To cancel, press the button again.
When the desired album is reached, press the button again.
Press “ ∧” or “∨ ” on the “SEEK/TRACK” butt on to select the desired
track.
Press the “SCAN” button.
The first 10 seconds of each track will be played.
To cancel, press the button again.
When the desired track is reac hed, press the button again.
Press ( ) or ( ).
Press ( Pressing (RPT) changes modes in the following order:
Track repeat →Album repeat →Off.
Press (MORE>) to display the command.
Pressing (RDM) changes modes in the following order:
Album random →All track random →Off.
Press (MORE>) to display the command.
Selecting an album
Scanning an album
Selecting a track
Scanning the tracks in an album
Fast-forwarding and rewinding tracks
Repeat play
Random play
1
2
1
2

382
RAV4_OM_OM0R012U_(U)
5-8. Bluetooth® Audio
Press ( ).
Press ( Press the “TEXT” button to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
→P. 344
Playing and pausing tracks
Switching the display

383
RAV4_OM_OM0R012U_(U)
5-9. Bluetooth® Phone
5
Audio system
Making a phone call∗
Select “Phonebook” using the “TUNE•SCROLL” knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (Add S. Dial) and one of the speed dial buttons (from [1] to [5]) while the desired name is selected, it can be regis-
tered as a speed dial.
Press (A-Z) to display the regi stered names in alphabetical order
of the initial.
Select “Speed dials” using the “TUNE•SCROLL” knob.
Press the desired preset button (f rom [1] to [5]) and press
the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (DELETE) and then press (YES).
To overwrite a speed dial, after selecting the desired preset button
(from [1] to [5]) press (YES).
∗: If equipped
To enter the “PHONE” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing
1
2
1
2

384
RAV4_OM_OM0R012U_(U)
5-9. Bluetooth® Phone
Select “Dial by number” using the “TUNE•SCROLL” knob.
Enter the phone number and press the off-hook switch.
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the “TUNE•SCROLL” knob.
Select a desired number using th e knob and press the off-hook
switch.
The following operations can be performed:
● Registering a number as a speed dial
Press (Add S. Dial) and then press the desired preset button
(from [1] to [5]).
● Deleting the selected number
Press (DELETE) and press (YES).
Dialing by entering the number
Dialing from call histories
1
2
1
2

385
RAV4_OM_OM0R012U_(U)
5-9. Bluetooth® Phone
5
Audio system
When receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
Press the off-hook switch.
Pressing the off-hook switch again returns you to the previous call.
To decrease the volume: Turn the “PWR•VOL” knob counterclock-
wise.
To increase the volume: Turn the “PWR•VOL” knob clockwise.
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call

386
RAV4_OM_OM0R012U_(U)
5-9. Bluetooth® Phone
Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation
of the phone.
b. Press the (HNDSET).*
*
: This operation can be performed only when transferring a call from the cellular phone to the system during a call.
Press (MUTE).
Press (0-9) and use the “TUNE •SCROLL” knob to input the
desired digits. • To send the input digits press (SEND).
• When finished, press (EXIT) to return to the previous screen.
To decrease the volume: Turn the “PWR•VOL” knob counterclock-
wise.
To increase the volume: Turn the “PWR•VOL” knob clockwise.
Transferring a call
Muting your voice
Inputting digits
Setting call volume

RAV4_OM_OM0R012U_(U)
3875-9. Bluetooth® Phone
5
Audio system
■When talking on the phone
●Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■ Phone call system functions
Depending on the cellular phone, certain functions may not be available.\
■ Situations where the system m ay not recognize your voice
● When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise

388
RAV4_OM_OM0R012U_(U)
5-10. Bluetooth®
Bluetooth®
■Conditions affecting operation
The Bluetooth
® audio/phone may not operate normally in the fol-
lowing situations:
● The portable player does not support Bluetooth
®
●The cellular phone is located outside the service area
● The Bluetooth
® device is switched off
● The Bluetooth
® device has a low battery
● The Bluetooth
® device is not connected to the system
● The Bluetooth
® device is behind the seat or in the glove box or
console box, or metal material covers or touches the device
■When transferring ownership of the vehicle
Be sure to initialize th e system to prevent pe rsonal data from being
improperly accessed. ( →P. 374)
■About Bluetooth®
Bluetooth is a registered trade-
mark of Bluetooth SIG, Inc.

RAV4_OM_OM0R012U_(U)
3895-10. Bluetooth®
5
Audio system
■Compatible models
●Bluetooth
® specifications:
Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
(recommended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recommended: Ver. 1.3 or higher)
Portable players must correspo nd to the above specifications in
order to be connected to the Bluetooth
® audio/phone. However,
please note that some function s may be limited depending on the
type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0

390
RAV4_OM_OM0R012U_(U)
5-10. Bluetooth®

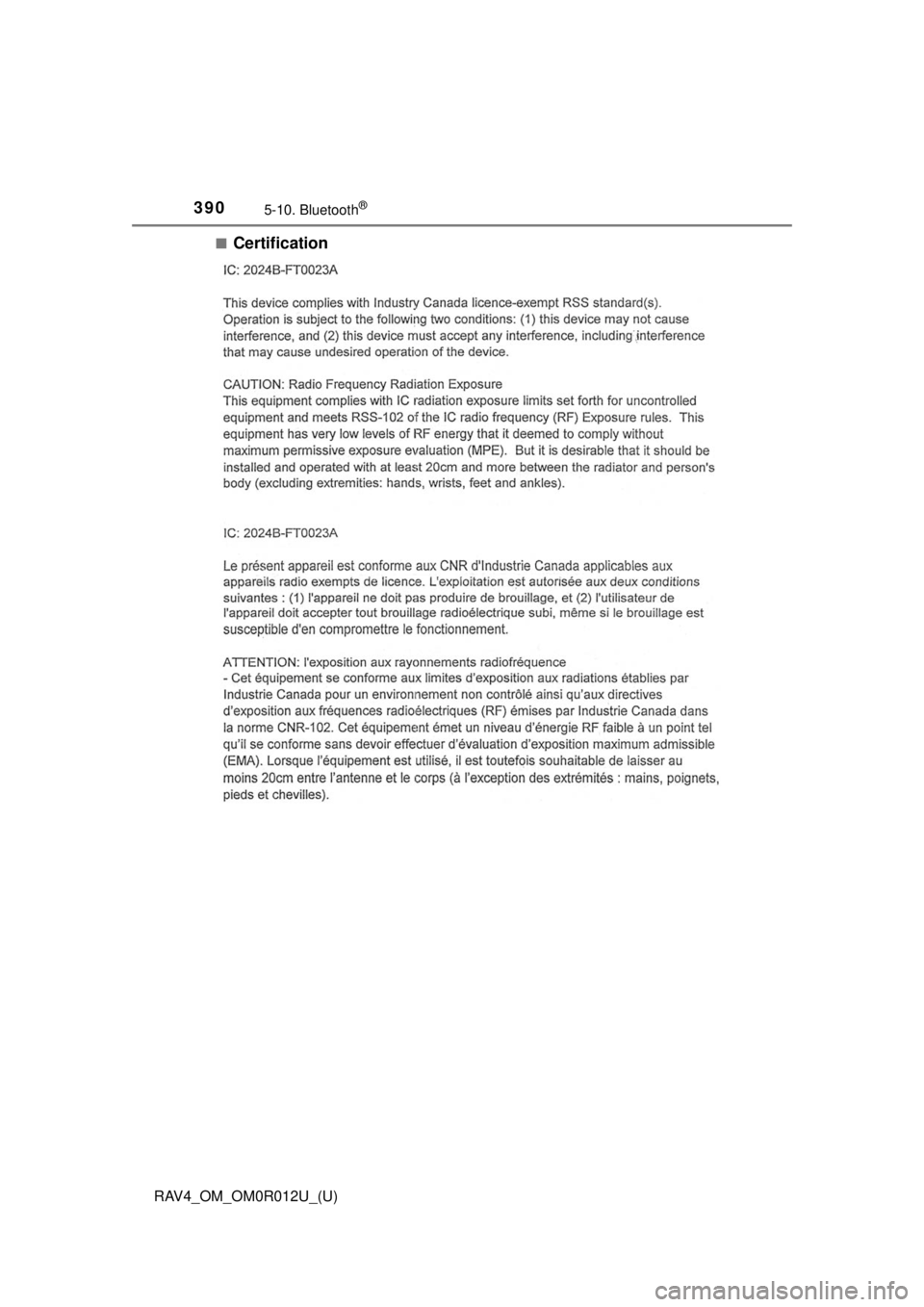

■Certification
