6318-2. Steps to take in an emergency
RAV4_OM_OM0R012U_(U)
8
When trouble arises

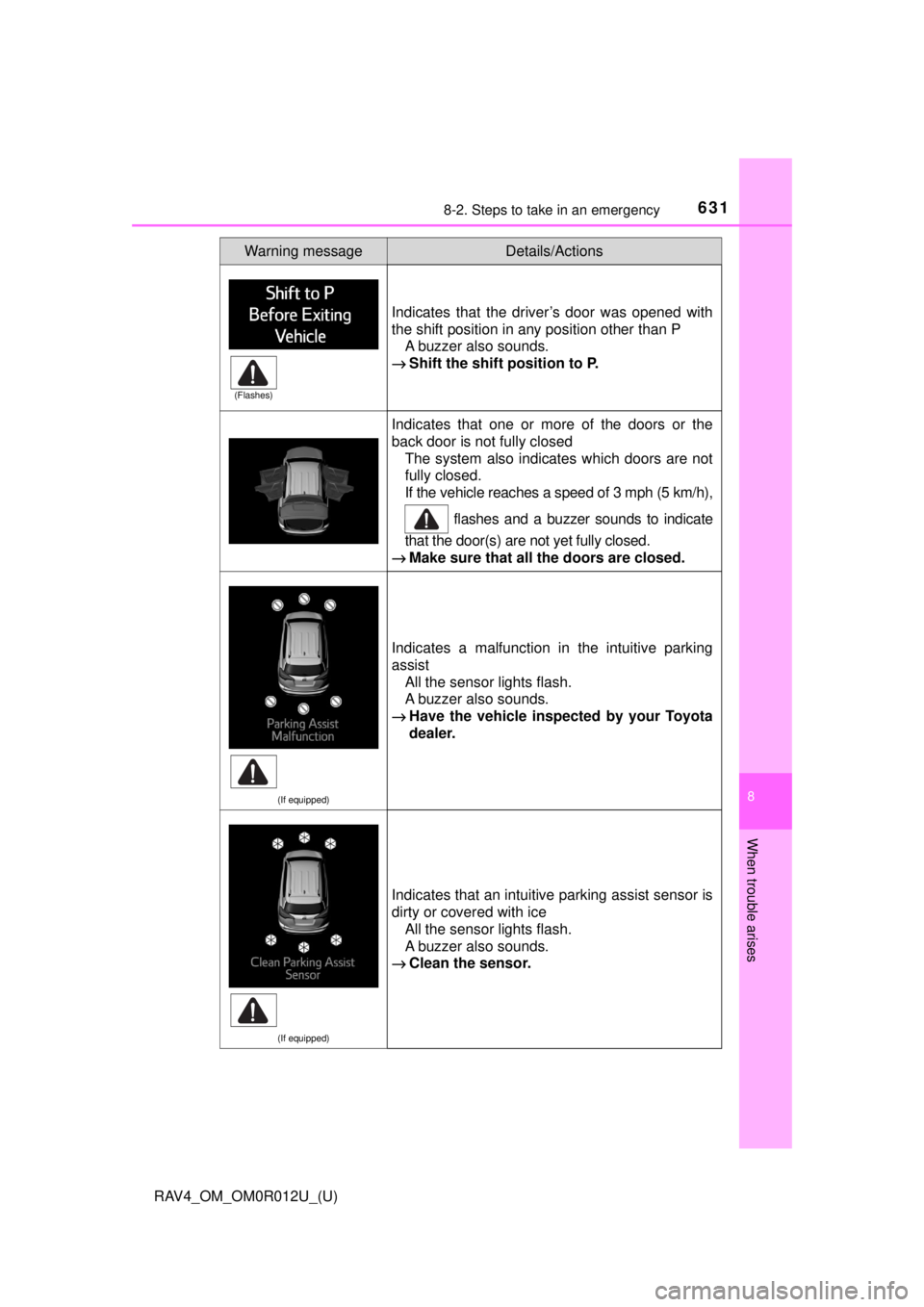

Indicates that the driver’s door was opened with
the shift position in any position other than PA buzzer also sounds.
→ Shift the shift position to P.
Indicates that one or more of the doors or the
back door is not fully closed
The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the door(s) are not yet fully closed.
→ Make sure that all the doors are closed.
(If equipped)
Indicates a malfunction in the intuitive parking
assist
All the sensor lights flash.
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates that an intuitive parking assist sensor is
dirty or covered with ice
All the sensor lights flash.
A buzzer also sounds.
→ Clean the sensor.
Warning messageDetails/Actions
(Flashes)

6338-2. Steps to take in an emergency
RAV4_OM_OM0R012U_(U)
8
When trouble arises

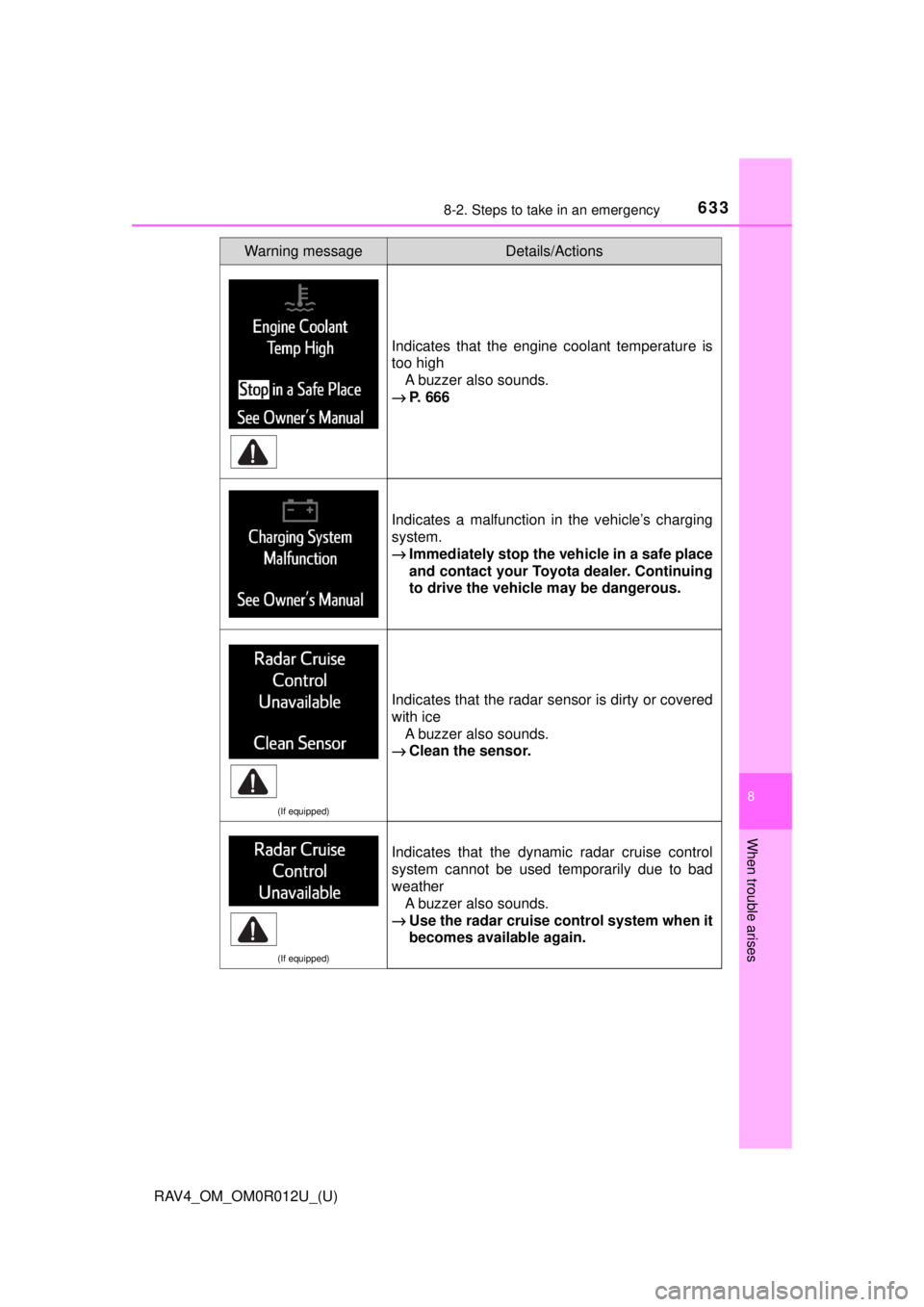

Indicates that the engine coolant temperature is
too highA buzzer also sounds.
→ P. 666
Indicates a malfunction in the vehicle’s charging
system.
→Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system cannot be used temporarily due to bad
weather
A buzzer also sounds.
→ Use the radar cruise control system when it
becomes available again.
Warning messageDetails/Actions

6348-2. Steps to take in an emergency
RAV4_OM_OM0R012U_(U)
(If equipped)

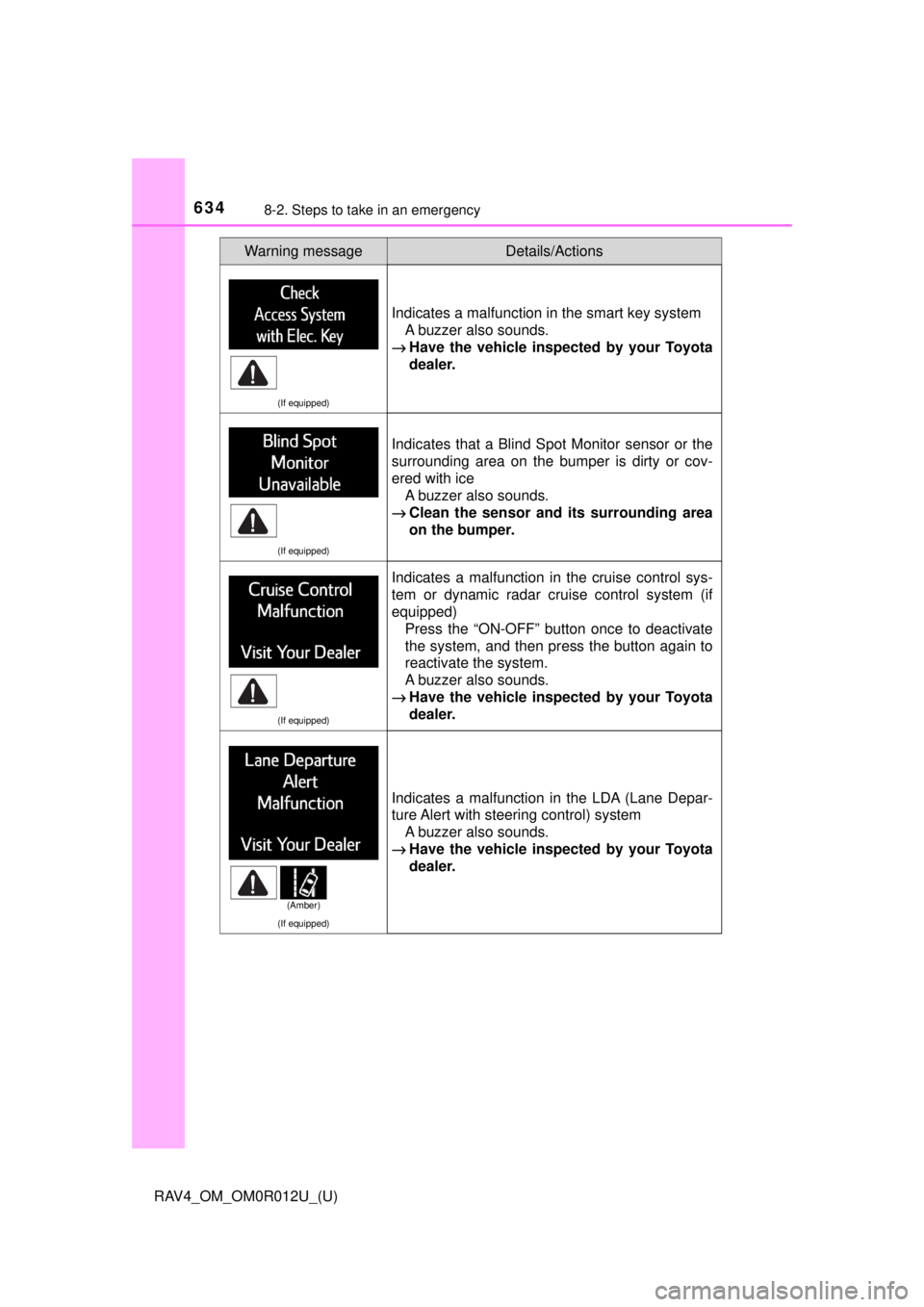

Indicates a malfunction in the smart key systemA buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with ice A buzzer also sounds.
→ Clean the sensor and its surrounding area
on the bumper.
(If equipped)
Indicates a malfunction in the cruise control sys-
tem or dynamic radar cruise control system (if
equipped) Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert with steering control) system
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Warning messageDetails/Actions
(Amber)

6358-2. Steps to take in an emergency
RAV4_OM_OM0R012U_(U)
8
When trouble arises
(If equipped)

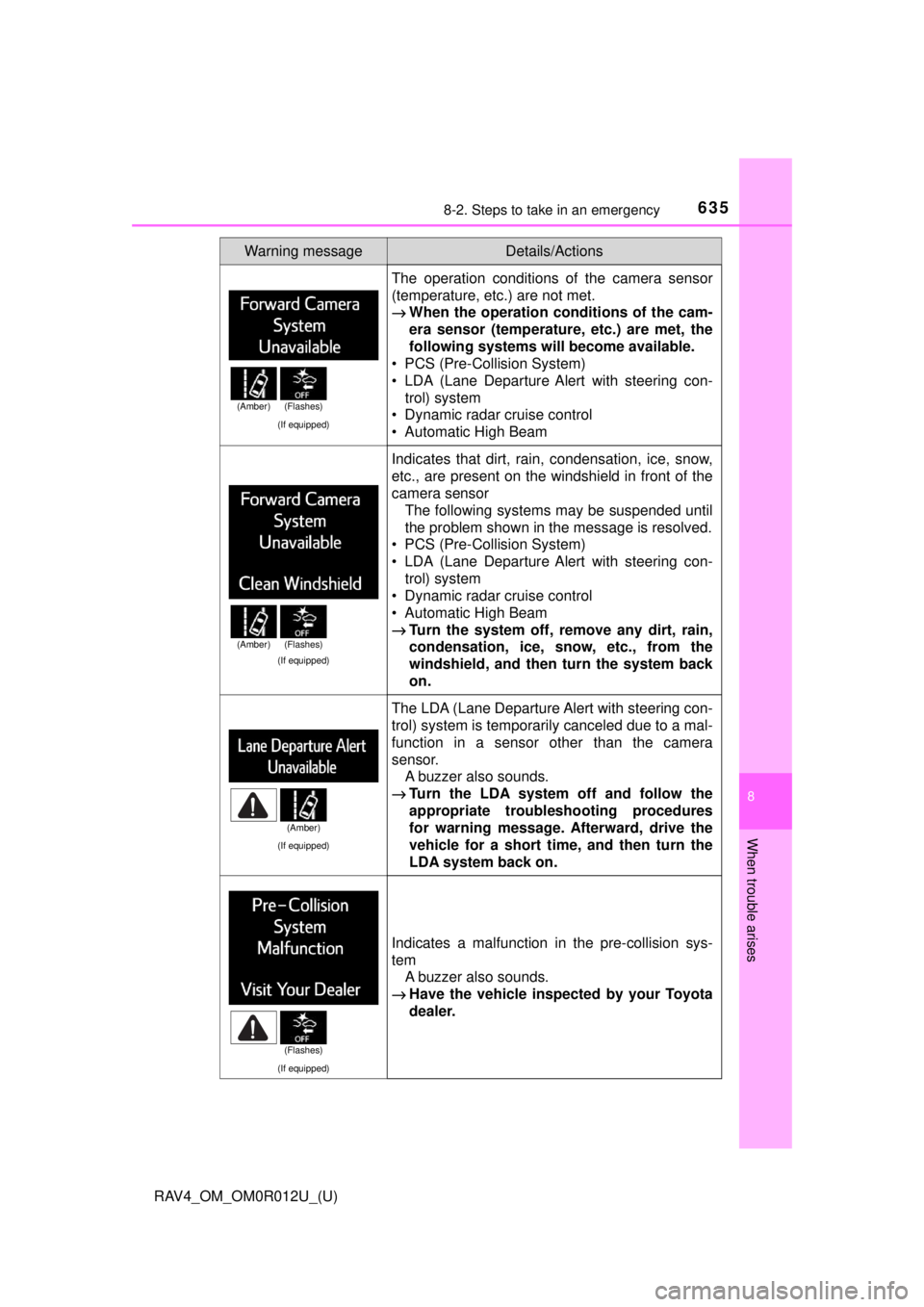

The operation conditions of the camera sensor
(temperature, etc.) are not met.
→When the operation c onditions of the cam-
era sensor (temperature, etc.) are met, the
following systems will become available.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert with steering con- trol) system
• Dynamic radar cruise control
• Automatic High Beam
(If equipped)
Indicates that dirt, rain, condensation, ice, snow,
etc., are present on the windshield in front of the
camera sensor The following systems may be suspended until
the problem shown in the message is resolved.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert with steering con-
trol) system
• Dynamic radar cruise control
• Automatic High Beam
→ Turn the system off, remove any dirt, rain,
condensation, ice, snow, etc., from the
windshield, and then turn the system back
on.
(If equipped)
The LDA (Lane Departure Alert with steering con-
trol) system is temporarily canceled due to a mal-
function in a sensor other than the camera
sensor.
A buzzer also sounds.
→ Turn the LDA system off and follow the
appropriate troubleshooting procedures
for warning message. Afterward, drive the
vehicle for a short time, and then turn the
LDA system back on.
(If equipped)
Indicates a malfunction in the pre-collision sys-
tem
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Warning messageDetails/Actions
(Amber) (Flashes)
(Amber) (Flashes)
(Amber)
(Flashes)

6398-2. Steps to take in an emergency
RAV4_OM_OM0R012U_(U)
8
When trouble arises
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.

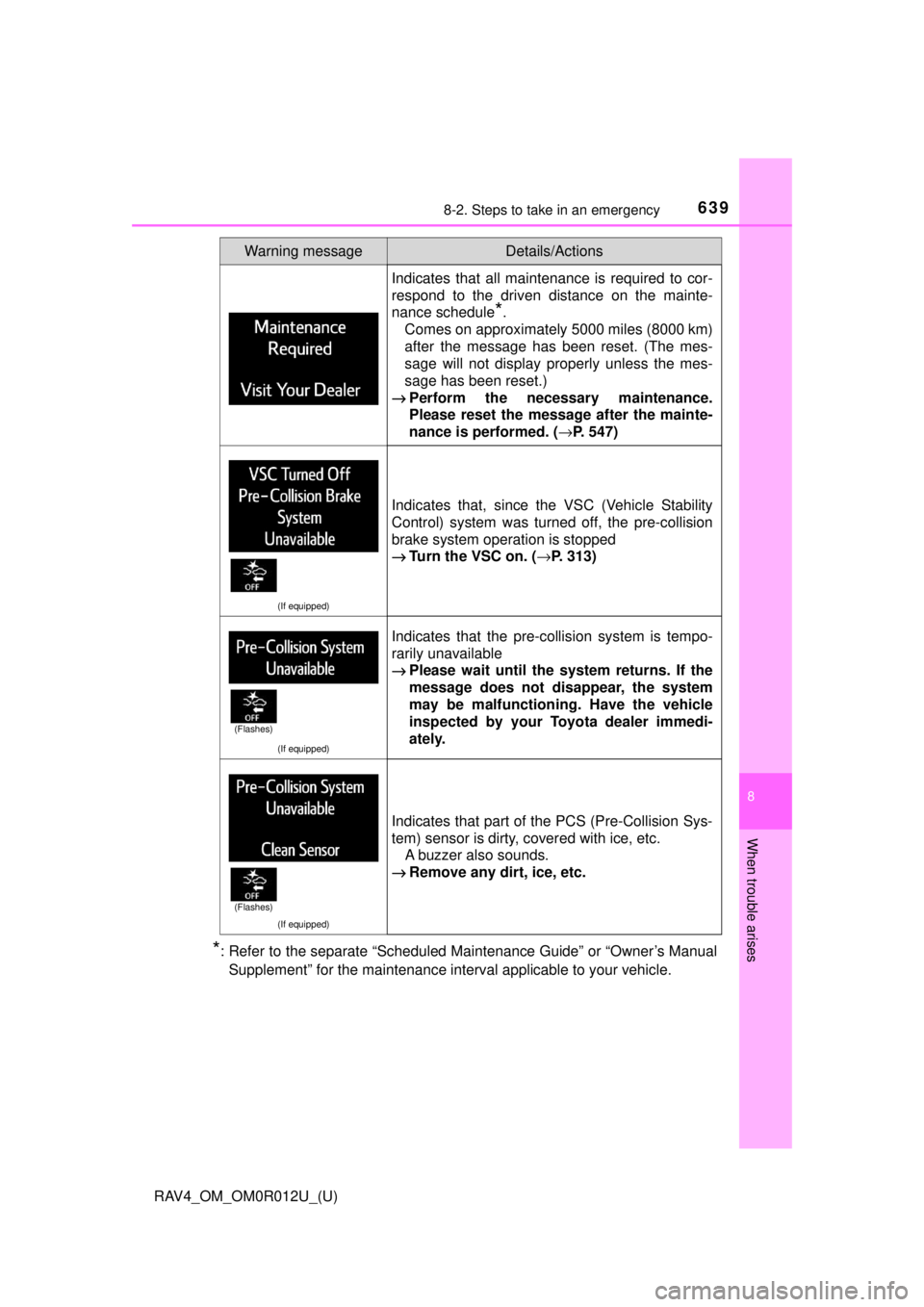

Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*.
Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The mes-
sage will not display properly unless the mes-
sage has been reset.)
→ Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( →P. 547)
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
→Turn the VSC on. ( →P. 313)
(If equipped)
Indicates that the pre-collision system is tempo-
rarily unavailable
→Please wait until the system returns. If the
message does not disappear, the system
may be malfunctioning. Have the vehicle
inspected by your Toyota dealer immedi-
ately.
(If equipped)
Indicates that part of the PCS (Pre-Collision Sys-
tem) sensor is dirty, covered with ice, etc.
A buzzer also sounds.
→ Remove any dirt, ice, etc.
Warning messageDetails/Actions
(Flashes)
(Flashes)

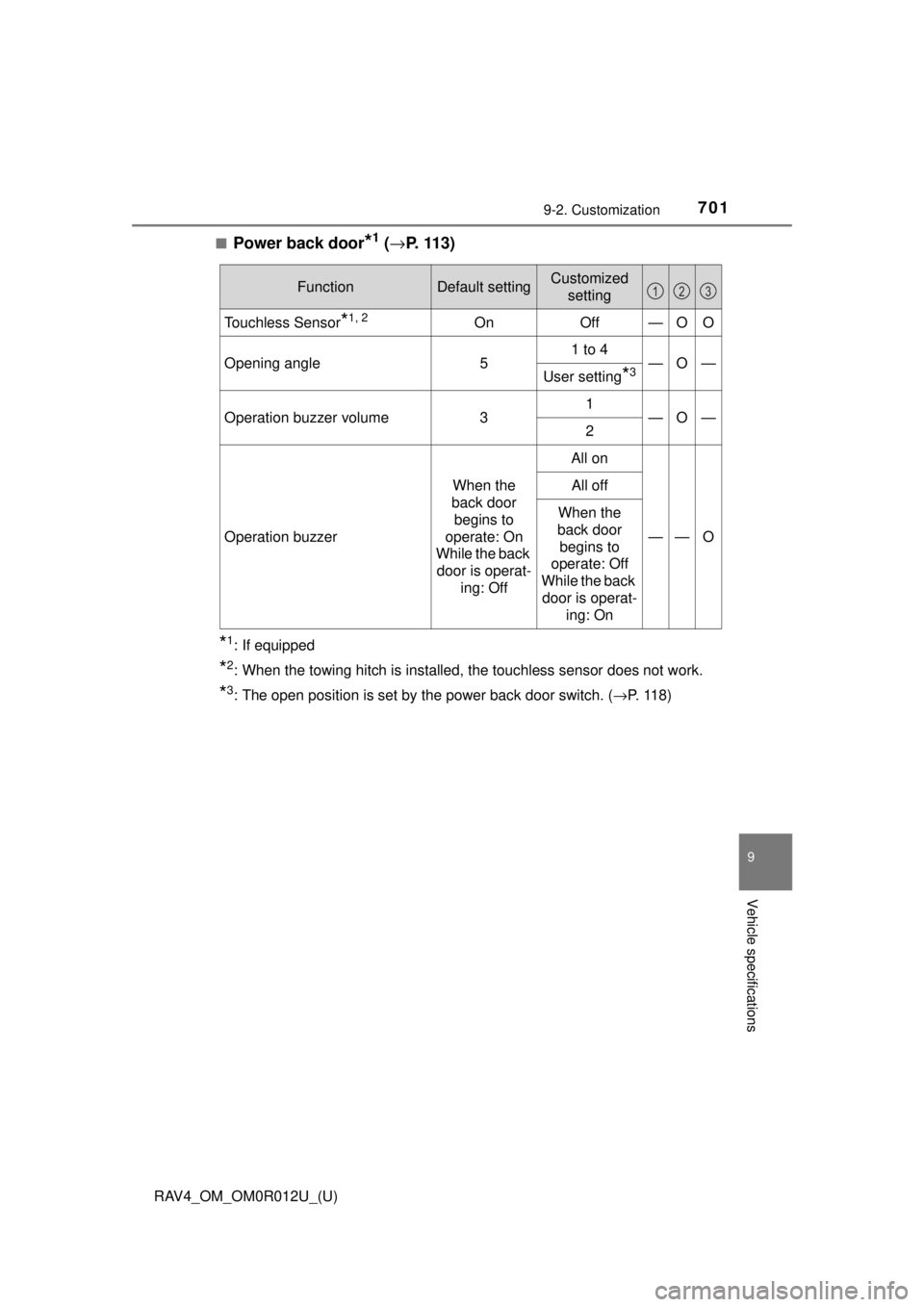

RAV4_OM_OM0R012U_(U)
7019-2. Customization
9
Vehicle specifications
■Power back door*1 (→ P. 113)
*1: If equipped
*2: When the towing hitch is installed, the touchless sensor does not work.
*3: The open position is set by the power back door switch. ( →P. 118)
FunctionDefault settingCustomized
setting
Touchless Sensor*1, 2OnOff—OO
Opening angle51 to 4—O—User setting*3
Operation buzzer volume31—O—2
Operation buzzer
When the
back door begins to
operate: On
While the back door is operat-
ing: Off
All on
——O
All off
When the
back door begins to
operate: Off
While the back door is operat- ing: On
123

704

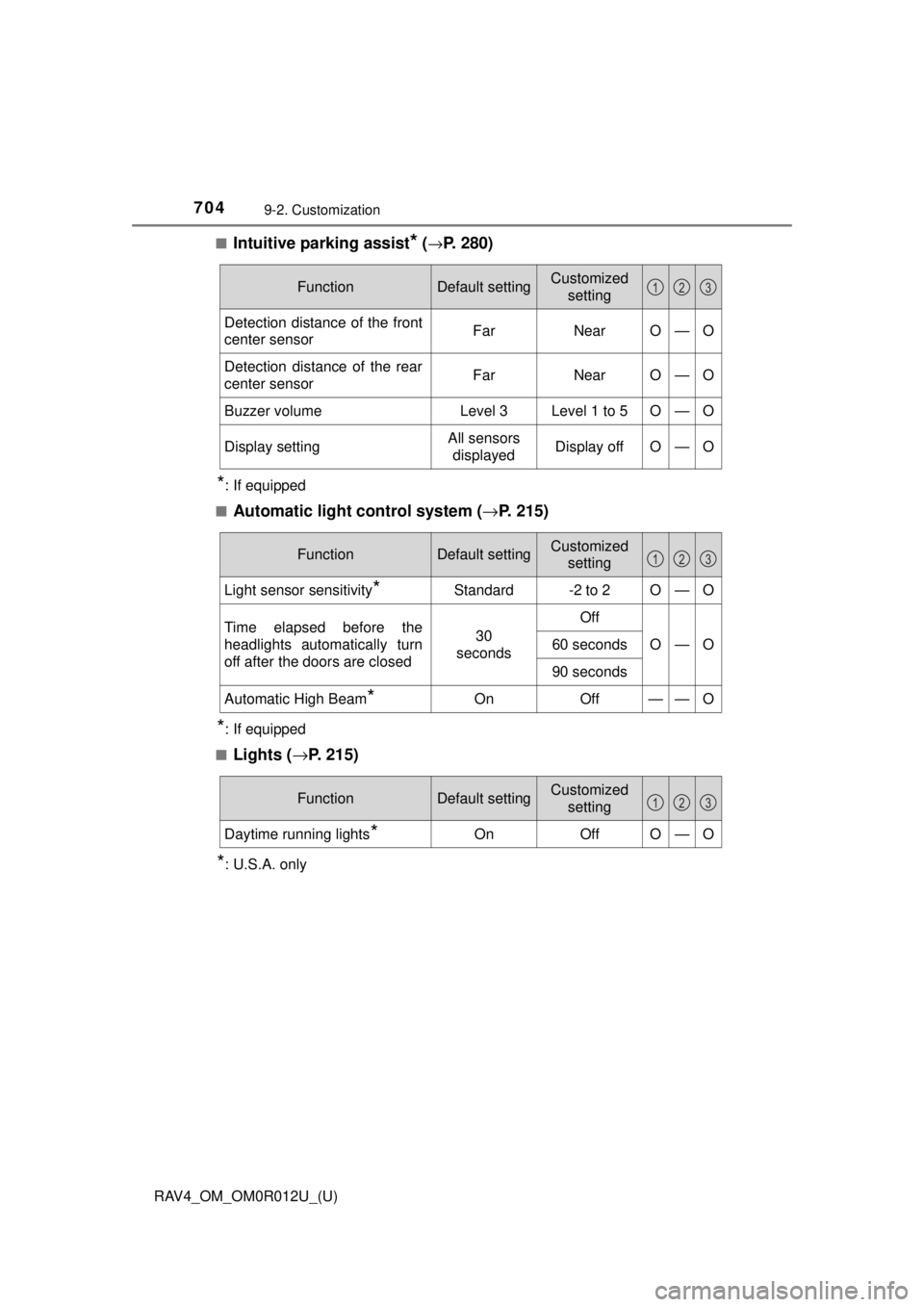

RAV4_OM_OM0R012U_(U)
9-2. Customization
■Intuitive parking assist* (→P. 280)
*: If equipped
■
Automatic light control system ( →P. 215)
*: If equipped
■
Lights (→ P. 215)
*: U.S.A. only
FunctionDefault settingCustomized
setting
Detection distance of the front
center sensor Far Near O—O
Detection distance of the rear
center sensor Far Near O
—O
Buzzer volume Level 3 Level 1 to 5 O
—O
Display setting All sensors
displayed Display off O
—O
123
FunctionDefault settingCustomized
setting
Light sensor sensitivity*Standard-2 to 2O—O
Time elapsed before the
headlights automatically turn
off after the doors are closed30
seconds
Off
O—O60 seconds
90 seconds
Automatic High Beam*OnOff——O
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123

729Alphabetical index
RAV4_OM_OM0R012U_(U)
Automatic High Beam ............. 220
Automatic light control system .................................... 218
Automatic transmission.......... 205 If the shift lever cannot be
shifted from P ..................... 211
Paddle shift switches ........... 208
AUX port ........................... 334, 397
Auxiliary box ............................ 511
Back door
Back door.............................. 113
Jam protection function......... 121
Power back door ................... 116
Touchless power back door .................................... 115
Wireless remote control .......... 99
Back-up lights Replacing light bulbs............. 603
Wattage ................................ 680
Battery ...................................... 565 Battery checking ................... 565
If the vehicle battery
is discharged ...................... 662
Preparing and checking before winter....................... 317
Warning light/ message ............................. 633
Bluetooth
®........................ 388, 476
Audio system ................ 380, 443
Hands-free system (for cellular phone) ..... 383, 445
Registering a Bluetooth
® device....... 369, 436
Selecting a Bluetooth®
device ......................... 371, 438
Wireless communication ........... 363, 431
Bluetooth
® audio ............. 380, 443 Bluetooth
® phone
(audio system)....................... 363
Deleting the call history ........ 377
Making a call......................... 383
Managing speed dials........... 376
Managing the contacts ......... 378
Phone settings ...................... 370
Receiving a call .................... 385
Speaking on the phone......... 383
Bluetooth
® phone (Entune Audio)
Deleting the call history ........ 462
Making a call......................... 447
Managing the contacts ......... 466
Message function ................. 454
Phone settings ...................... 460
Receiving a call .................... 450
Speaking on the phone......... 451
Bottle holders .......................... 511
Brake Fluid ...................................... 564
Parking brake ....................... 214
Warning light/message..................... 619, 630
Brake assist ............................. 310
Break-in tips............................. 167
Brightness control Instrument panel light
control .................................. 86
BSM (Blind Spot Monitor) ....... 300 Blind Spot Monitor
function............................... 304
Rear Cross Traffic Alert function............................... 307
Care .................................. 540, 543 Aluminum wheels ................. 541
Exterior ................................. 540
Interior .................................. 543
Radar sensor ................ 237, 303
Seat belts.............................. 544
B
C

730Alphabetical index
RAV4_OM_OM0R012U_(U)
Cargo capacity ......................... 672
Cargo hooks............................. 512
Catch protection function ....... 157
CD player .......................... 340, 413
Chains....................................... 317
Child restraint system ............... 57Booster seats, definition ......... 57
Booster seats, installation ....... 67
Convertible seats, definition ............................... 57
Convertible seats,
installation ............................ 64
Front passenger occupant classification syst em............. 49
Infant seats, definition ............. 57
Infant seats, installation .......... 64
Installing CRS with LATCH system ..................... 62
Installing CRS with seat belts ...................................... 64
Installing CRS with top tether strap ........................... 69
Child safety ................................ 56
Airbag precautions .................. 39
Back door precautions .......... 123
Battery precautions ....... 567, 665
Child restraint system ............. 57
How your child should wear the seat belt ................. 32
Installing child restraints ......... 61
Moon roof precautions .......... 163
Power window lock switch .... 156
Power window
precautions ......................... 159
Rear door child-protectors .... 110
Removed key battery precautions ......................... 591
Seat belt extender precautions ........................... 35
Seat belt precautions .............. 33
Seat heater precautions........ 503 Child-protectors ...................... 110
Cleaning ........................... 540, 543
Aluminum wheels ................. 541
Exterior ................................. 540
Interior .................................. 543
Radar sensor ................ 237, 303
Seat belts.............................. 544
Clock......................................... 402
Coat hooks ............................... 526
Compass .................................. 535
Condenser................................ 564
Console box ............................. 509
Coolant ..................................... 562 Capacity................................ 676
Checking............................... 562
Preparing and checking before winter ...................... 317
Cooling system Engine overheating............... 666
Cruise control
Cruise control ....................... 276
Dynamic radar cruise control ................................ 264
Warning message................. 634
Cup holders ............................. 510
Curtain shield airbags............... 36
Customizable features ............ 697
Daytime running light system.................................... 217
Defogger Outside rear view
mirrors ........................ 490, 497
Rear window ................. 490, 497
Windshield ............................ 489
Differential................................ 677
Dimension ................................ 672
Dinghy towing.......................... 197
D

736Alphabetical index
RAV4_OM_OM0R012U_(U)
Paddle shift switches ...... 208, 209
Panoramic view monitor
*
Parking assist sensors (intuitive parking assist) ....... 280
Parking brake ........................... 214
Operation .............................. 214
Parking brake engaged warning buzzer ................... 619
Parking brake engaged warning message ............... 632
Parking lights ........................... 215
Light switch ........................... 215
Replacing light bulbs............. 597
Wattage ................................ 680
PCS (Pre-Collision System) .... 242 Enabling/disabling the system ......... ....................... 246
Function ................................ 242
Warning light ......................... 621
Warning message ................. 635
Personal lights ......................... 505 Switch ................................... 506
Wattage ................................ 680
Power back door opener and closer .............................. 113
Power outlet ............................. 524
Power steering (Electric Power Steering system) ....... 311 Warning light ......................... 620
Power windows........................ 156
Catch protection function ...... 157
Jam protection function......... 157
Operation .............................. 156
Window lock switch............... 156
Pre-Collision System (PCS) ...................................... 242
Enabling/disabling the system ......... ....................... 246
Function ................................ 242
Warning light ......................... 621
Warning message ................. 635 Radar cruise control
(dynamic radar cruise
control)................................... 264
Radiator .................................... 564
Radio ................................ 338, 411
Radio Broadcast Data System (RBDS)
*
Rear passengers’ seat belt reminder lights ...................... 620
Rear seat .................................. 141 Adjustment............................ 141
Folding down the rear
seatbacks ........................... 142
Rear side marker lights........... 215
Light switch ........................... 215
Replacing light bulbs ............ 601
Wattage ................................ 680
Rear turn signal lights ............ 213 Replacing light bulbs ............ 601
Turn signal lever ................... 213
Wattage ................................ 680
Rear view mirror Inside rear view mirror .......... 151
Outside rear view mirrors ..... 153
Rear view monitor system ...... 289
Rear window defogger .... 490, 497
Rear window wiper .................. 229
Refueling .................................. 232 Capacity................................ 674
Fuel types ............................. 674
Opening the fuel tank cap..... 234
Replacing Electronic key battery ........... 589
Fuses .................................... 592
Light bulbs ............................ 595
Tires...................................... 645
Wireless remote control
battery ................................ 589
Reporting safety defects
for U.S. owners...................... 710
PR
