TOYOTA RAV4 2018 Owners Manual (in English)

RAV4_OM_OM0R012U_(U)
7019-2. Customization
9
Vehicle specifications
■Power back door*1 (→ P. 113)
*1: If equipped
*2: When the towing hitch is installed, the touchless sensor does not work.
*3: The open position is set by the power back door switch. ( →P. 118)
FunctionDefault settingCustomized
setting
Touchless Sensor*1, 2OnOff—OO
Opening angle51 to 4—O—User setting*3
Operation buzzer volume31—O—2
Operation buzzer
When the
back door begins to
operate: On
While the back door is operat-
ing: Off
All on
——O
All off
When the
back door begins to
operate: Off
While the back door is operat- ing: On
123

702
RAV4_OM_OM0R012U_(U)
9-2. Customization
■Smart key system*1 (→ P. 130) and wireless remote control
( → P. 99, 107, 113)
*1: If equipped
*2: For some models: the default setting is “5”.
FunctionDefault settingCustomized
setting
Operation signal
(Buzzers)
*2Level 7
Off
O—O
Level 1 to 6
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff——O
Unlocking operation
Driver’s door unlocked in
one step, all
doors
unlocked in two steps
All doors
unlocked in one step
O—O
Alarm (panic mode)OnOff——O
123

RAV4_OM_OM0R012U_(U)
7039-2. Customization
9
Vehicle specifications
■Smart key system*1 (→ P. 107, 113, 130)
*1: If equipped
*2: Settings that can be changed by electronic key ( →P. 111 )
■
Wireless remote control ( →P. 98, 107, 113)
*: If equipped
■
Moon roof* ( → P. 162)
*: If equipped
FunctionDefault settingCustomized
setting
Smart key systemOnOff——O
Select doors to unlock*2Driver’s doorAll the doorsO—O
Number of consecutive door
lock operations2 timesAs many as desired——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Opening operation of power
back door
*
Press and
hold
Off
——OOne short press
Press twice
123
FunctionDefault settingCustomized setting
Moon roof open reminder
functionOnOff——O
123

704
RAV4_OM_OM0R012U_(U)
9-2. Customization
■Intuitive parking assist* (→P. 280)
*: If equipped
■
Automatic light control system ( →P. 215)
*: If equipped
■
Lights (→ P. 215)
*: U.S.A. only
FunctionDefault settingCustomized
setting
Detection distance of the front
center sensor Far Near O—O
Detection distance of the rear
center sensor Far Near O
—O
Buzzer volume Level 3 Level 1 to 5 O
—O
Display setting All sensors
displayed Display off O
—O
123
FunctionDefault settingCustomized
setting
Light sensor sensitivity*Standard-2 to 2O—O
Time elapsed before the
headlights automatically turn
off after the doors are closed30
seconds
Off
O—O60 seconds
90 seconds
Automatic High Beam*OnOff——O
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123

RAV4_OM_OM0R012U_(U)
7059-2. Customization
9
Vehicle specifications

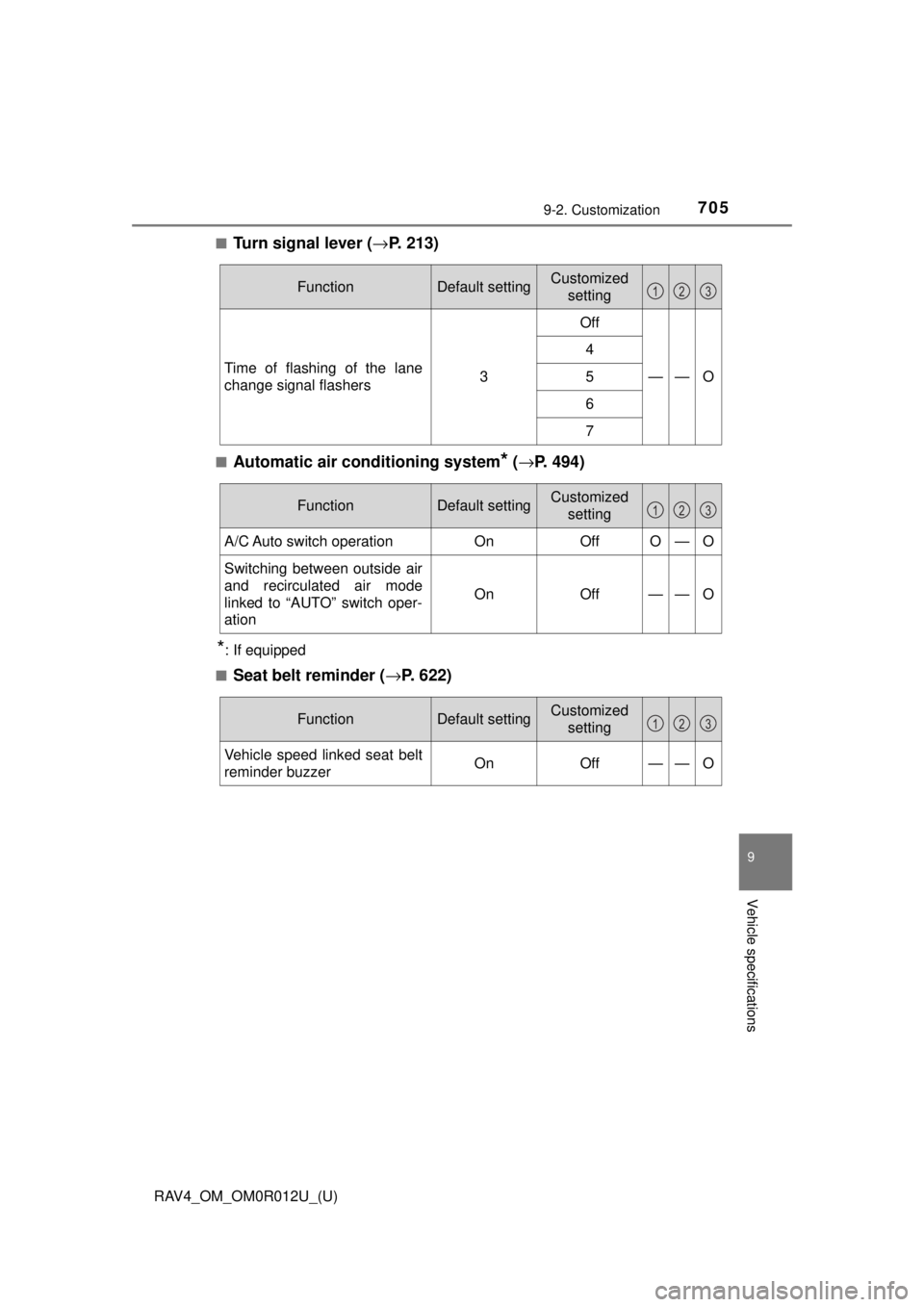

■Turn signal lever (→P. 213)
■Automatic air conditioning system* (→ P. 494)
*: If equipped
■
Seat belt reminder ( →P. 622)
FunctionDefault settingCustomized
setting
Time of flashing of the lane
change signal flashers3
Off
——O
4
5
6
7
123
FunctionDefault settingCustomized setting
A/C Auto switch operationOnOffO—O
Switching between outside air
and recirculated air mode
linked to “AUTO” switch oper-
ation
OnOff——O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff——O
123

706
RAV4_OM_OM0R012U_(U)
9-2. Customization
■Illumination (→P. 505)
*: If equipped
■Vehicle customization
●When the Speed linked door locking function and shift position linked door
locking function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will
be locked.
• If the vehicle is started with all the doors locked, the Speed linked door
locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door
locking function will operate.
● When the smart key system (if equipped) is off, the selecting doors to unlock
cannot be customized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency
flashers) settings.
FunctionDefault settingCustomized
setting
Interior lights illumination con-
trol
*OnOff——O
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O*—O
7.5
seconds
30
seconds
Operation after the engine
switch is turned to the “LOCK”
position (vehicles without
smart key system) or engine
switch is turned off (vehicles
with smart key system)
OnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person (vehicles
with smart key system)
OnOff——O
Footwell lights control*OnOff——O
123

RAV4_OM_OM0R012U_(U)
7079-2. Customization
9
Vehicle specifications
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

708
RAV4_OM_OM0R012U_(U)
9-3. Initialization
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door
(if equipped)• After reconnecting or changing the battery
• After changing a fuse
P. 121
Moon roof (If equipped)
• After reconnecting or changing the battery
• After changing a fuse
P. 162
Maintenance required
reminder message
(U.S.A. only)• After the mainte-
nance is performedP. 547
Tire pressure warning
system (If equipped)• When changing the
tire sizeP. 5 7 2
Toyota parking assist
monitor (if equipped)
• After reconnecting or changing the battery
• After changing a fuseRefer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
Panoramic view
monitor (if equipped)

709
RAV4_OM_OM0R012U_(U)
For owners10
Reporting safety defects for U.S. owners........................ 710
Seat belt instructions for Canadian owners
(in French) ............................... 711
SRS airbag instructions for Canadian owners
(in French) ............................... 713

710
RAV4_OM_OM0R012U_(U)

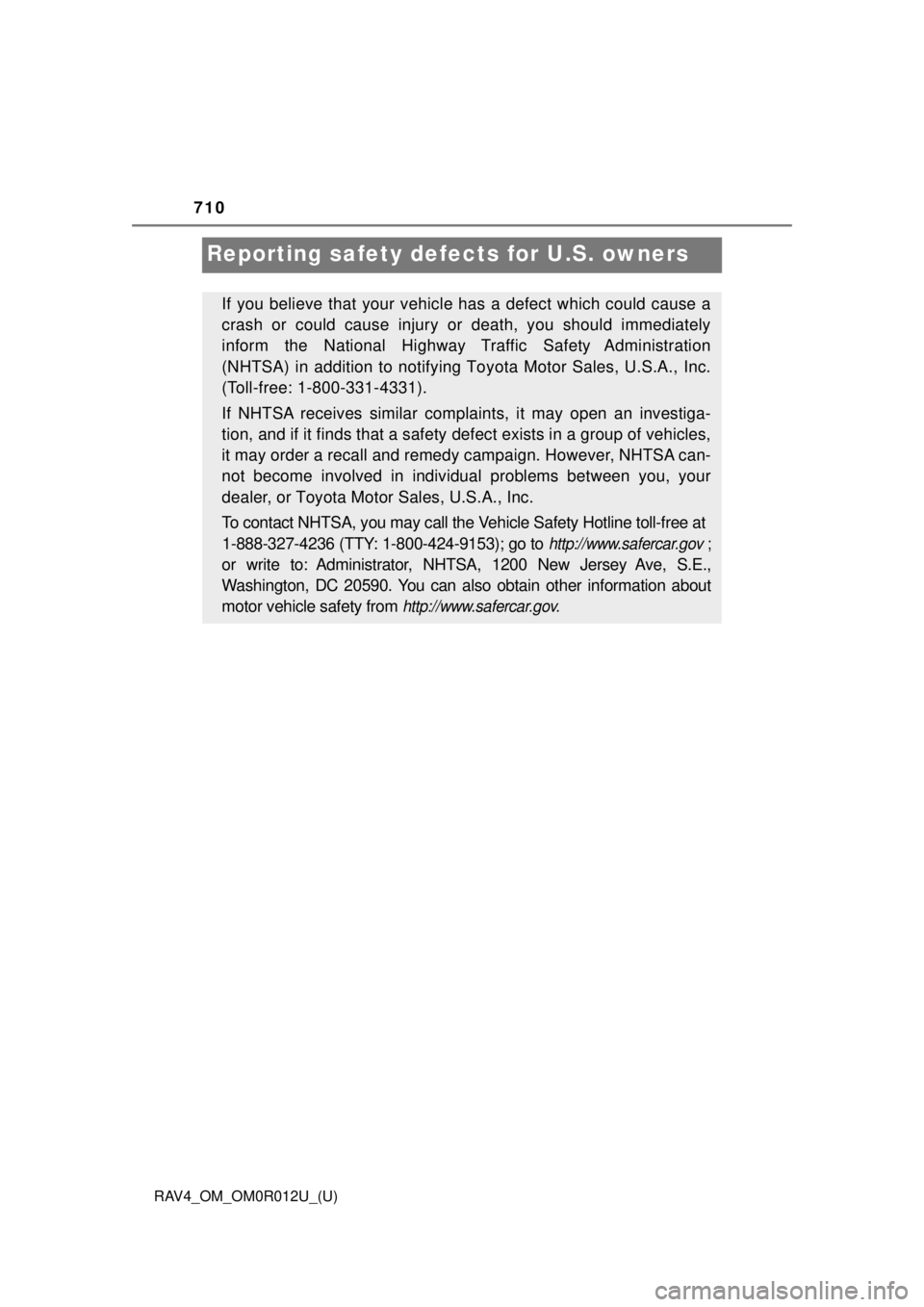

Reporting safety defects for U.S. owners
If you believe that your vehicl e has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying To yota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar comp laints, it may open an investiga-
tion, and if it finds that a safety defect exists in a group of vehicles,
it may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov.
