1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1 8-9
Smart Key system1 9
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ (TSS 2.0)
Air conditioning/heating 19
Audio 23
Auto lock/unlock
1 12
Automatic transmission 12
Bird’s Eye View Camera
with Perimeter Scan function 28
Blind Spot Monitor with Rear
$ S P T T 5 S B G m D " M F S U # 4 . X 3 $ 5 "
Clock 20
Cup holders 26
Door locks 14
Downhill assist control system 28
Driving mode select 32-33
Electric parking brake 13
Front and Rear Parking Assist
with Automated Braking 30
Garage door opener (Homelink
®)3 35
Intuitive Parking Assist 30
Lights
1,2 & turn signals1 16-17
Moonroof 20
Multi-Information Display (MID)
2 25
Multi-terrain select 34
Panoramic moonroof 21
Power outlets-12V DC 26
Power outlets- 120V AC
26
Qi wireless charger 27
Rear door-Power Liftgate 18
Rear view monitor system 29
Seat adjustments-Front 15
Seat adjustments-Rear 15
Seat heaters/ventilators 22
Seats-Head restraints 15Steering lock release 14
Steering wheel-Heater 22
Steering wheel switches &
U F M F Q I P O F D P O U S P M T # M V F U P P U I
®
Stop & Start system 31
Tilt & telescopic steering wheel 14
USB charge-ports 27
USB media Port 23
7 F I J D M F 4 U B C J M J U Z $ P O U S P M 7 4 $
TRAC/Trailer sway control
OFF switch 33
Windows-Power 17
Windshield wipers & washers 17
" V U P N B U J D ) J H I # F B N T " ) #
Full-Speed Range Dynamic Radar
$ S V J T F $ P O U S P M % 3 $ $
Lane Departure Alert with Steering
" T T J T U - % " X 4 "
- B O F 5 S B D J O H " T T J T U - 5 "
Pre-Collision System with Pedestrian
% F U F D U J P O 1 $ 4 X 1 %
Quick overview-
Toyota Safety Sense
™ 2.0
5 4 4
36
3 P B E 4 J H O " T T J T U 3 4 "
Sensors 37
BLUETOOTH® DEVICE
PAIRING SECTION 58-60 Floor mat installation 57
Rear door child safety locks 53
Safety Connect
® 55
Seat belts 53
Seat belts-Shoulder belt anchor 53
Spare tire & tools 54
Star Safety System
TM 56-57
Tire Pressure Monitoring
X B S O J O H
4 Z T U F N 5 1 . 4
Page 5 of 64
3
1
If equipped.2
For details, refer to the “Navigation and Multimedia System Owner’s Manual” or
visit www.toyota.com/audio-multimedia for additional audio/multimedia resources.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Emergency flasher switch
Air conditioning/heating controls
1
“ENGINE START STOP”
button (Smart Key)1
Audio/Navigation system1,2
Page 6 of 64
4
CENTER PANEL AREA
OVERVIEW
Instrument panel (continued)
1
If equipped.
Electric parking brake switch
Brake hold switch
Multi-terrain
Select switch1
VSC OFF switch Front seat heater/ventilator switches
1
Front seat heater switches1
Stop & Start cancel switches1
Electric parking
brake switchDriving mode select switch
Driving mode
select switch
Snow mode
switch1Snow mode
switch1
DAC (Downhill Assist Control) switch1
Multi-terrain
Select switch1
Brake hold switch
Page 9 of 64
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.5
Refer to section PKSB (Parking Support Braking function) in the Owner’s Manual.
7
Low outside temperature indicator
Pre-Collision System (PCS)
warning1,2
Vehicle Stability Control (VSC) OFF
indicator1
Slip indicator1,3
SPORT mode indicator
Stop & Start indicator1,4
Stop & Start cancel indicator1,2,4
RCTA OFF indicator1,2,4
Rear passengers’ seat belt
reminder
Parking brake indicator2
Mud & sand mode indicator4
Rock & dirt mode indicator4
Snow mode indicator4
Smart Key system indicator4
Security indicator
Turn signal indicator
Lane Tracing Assist (LTA)/
Lane Departure Alert (LDA)
indicator [Orange]
Low engine oil pressure warning
Low fuel level warning
Low Tire Pressure Warning1
Malfunction/Check Engine
indicator1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 11 of 64
9
Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Push and hold
PANIC BUTTON
Smart Key
START FUNCTION
1 0 8 & 3 8 * 5 ) 0 6 5 4 5 " 3 5 * / ( & / ( * / &
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 15 of 64
13
Electric parking brake
Automatic (shift lever operation)
ManualTo turn automatic mode ON, while vehicle is stopped, pull and hold switch until
a buzzer sounds and “EPB Shift Interlock Function Activated” displays in Multi-
* O G P S N B U J P O % J T Q M B Z . * %
8 I J M F E F Q S F T T J O H C S B L F
T I J G U J O H J O U P 1 Q P T J U J P O X J M M
automatically set the brake and turn the parking brake indicator and parking brake
light on. To release brake, depress brake and shift out of P. The indicator light turns
off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator light turns off.
The brake hold system keeps the brake applied when the shift lever is in D, S or N
with the system on and the brake pedal has been depressed to stop the vehicle.
The system releases the brake when the accelerator pedal is depressed with the
shift lever in D or S to allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Parking brake light
Parking brake light
Pull to setPress to
release
Standby indicatorOperated indicator
Driver sideAutomatic modeManual mode
BRAKE HOLD
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
PARKING BRAKE
Page 29 of 64
27
FrontRear
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Power switchCharge areaOperation indicator light
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless
charger power switch and the green operation indicator light turns on. (2) Place
a compatible mobile device on the tray as shown in the illustration. An amber
indicator illuminates while charging is in progress. When charging is complete, the
indicator illuminates green. Some phones, cases or cover type wireless chargers
may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Press (1)
When the engine is turned off, the last state
(ON/OFF) of the charger is memorized.
Place device nearest the center of charging
area for best results. Moving device may
result in stopping or restarting the charging
process.
Place (2)
USB charge-ports (if equipped)
5 I F F O H J O F T X J U D I N V T U C F J O U I F i " $ $ w P S i 0 / w Q P T J U J P O X J U I P V U 4 N B S U , F Z
i " $ $ & 4 4 0 3 : w P S w * ( / * 5 * 0 / 0 / w N P E F X J U I 4 N B S U , F Z
G P S V T F
(Charge only) (Charge only)
Page 33 of 64
31

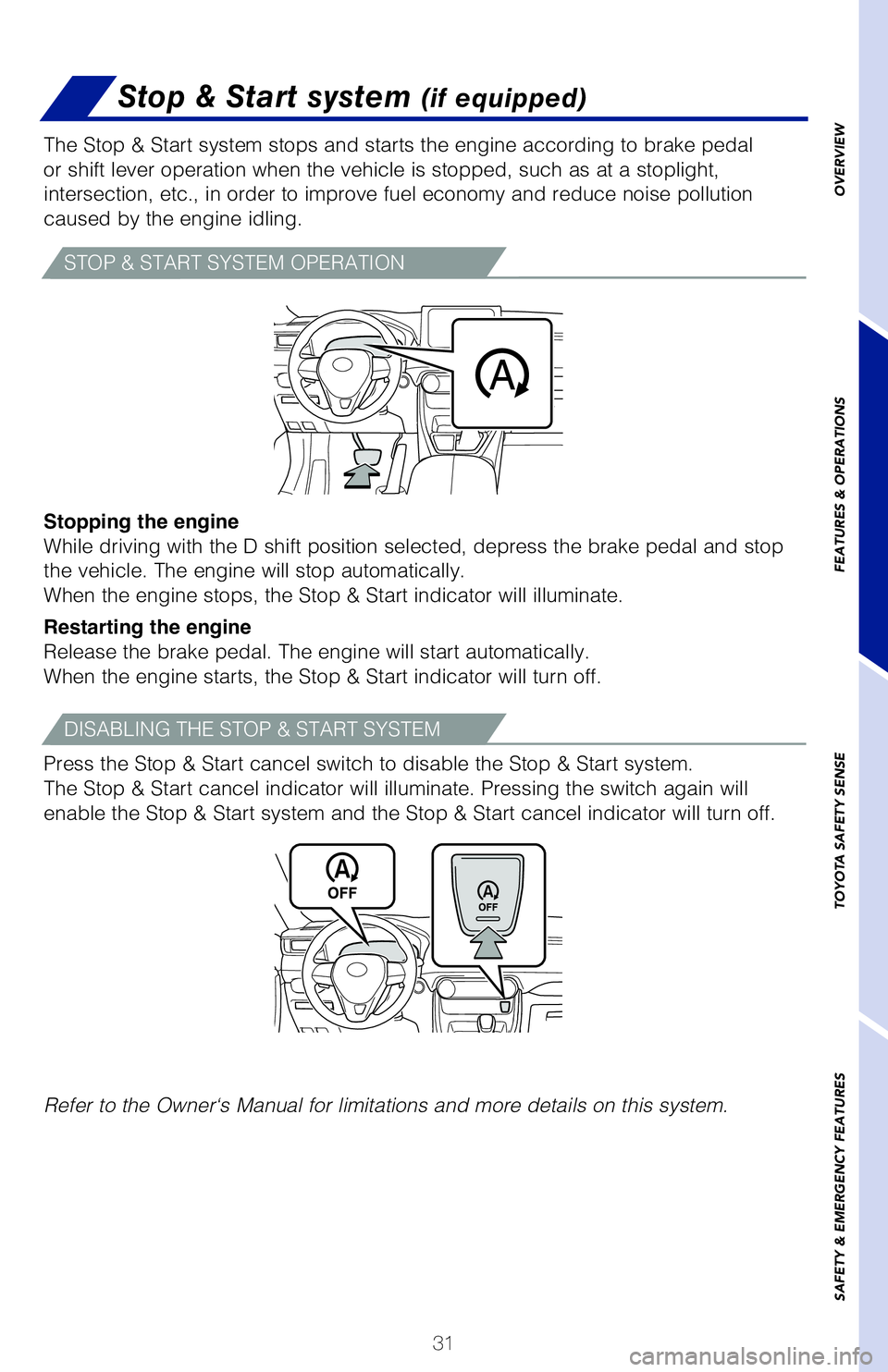

Stop & Start system (if equipped)
The Stop & Start system stops and starts the engine according to brake pedal
or shift lever operation when the vehicle is stopped, such as at a stoplight,
intersection, etc., in order to improve fuel economy and reduce noise pollution
caused by the engine idling.
Press the Stop & Start cancel switch to disable the Stop & Start system.
The Stop & Start cancel indicator will illuminate. Pressing the switch again will
enable the Stop & Start system and the Stop & Start cancel indicator will turn off.
Refer to the Owner‘s Manual for limitations and more details on this system. Stopping the engine
While driving with the D shift position selected, depress the brake pedal and stop
the vehicle. The engine will stop automatically.
When the engine stops, the Stop & Start indicator will illuminate.
Restarting the engine
Release the brake pedal. The engine will start automatically.
When the engine starts, the Stop & Start indicator will turn off.
STOP & START SYSTEM OPERATION
DISABLING THE STOP & START SYSTEM
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
