35Maintenance Log
MAINTENANCE
MAINTAINING YOUR WARRANTY
IMPORTANT MAINTENANCE
INFORMATION
It is especially important to both
routinely check your vehicle’s engine
oil level (once a month) and regularly
replace the engine oil and oil filter
(see the Maintenance Log section of
this booklet to determine how often
you should change your vehicle’s oil
and filter). Failure to do so can cause
oil starvation and/or oil gelling, which
can result in severe damage to your
vehicle and require costly repairs that
are not covered by the New Vehicle
Limited Warranty.
Maintenance Records
Maintaining your vehicle according to
the recommendations in this booklet is
required to ensure that your warranty
coverage remains intact. You should keep
detailed records of vehicle maintenance,
including date of service, mileage at time
of service and a description of service
and/or parts installation performed. The
scheduled maintenance log in this booklet
can help you document this information. If
you sell your vehicle, be sure to give your
maintenance records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records
to show that you maintained your vehicle.
However, damage or failure caused by lack
of proper maintenance is not covered
under warranty.


Maintenance Providers
Maintenance and repair services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely because
you used a service provider other than a
Toyota dealership for maintenance and
repairs. However, damage or failure
caused by improper maintenance or
repairs is not covered under warranty.
Dealer-Recommended
Maintenance
Your dealer may recommend more
frequent maintenance intervals or more
maintenance services than those listed in
the scheduled maintenance log. These
additional services are not required to
maintain your warranty coverage. Ask
your dealer to explain any recommended
maintenance not included in the scheduled
maintenance log.
For a complete description of Toyota
warranty coverages, see the Warranty
Information portion of this booklet.
126981_19-TCS-14207 MY21 WMG RAV4 GUTS 2_R1.indd 35126981_19-TCS-14207 MY21 WMG RAV4 GUTS 2_R1.indd 357/7/20 7:26 AM7/7/20 7:26 AM

37Maintenance Log
MAINTENANCE
Special Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “special operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE:
You should perform these additional
maintenance services only if the
majority of your driving is done under
the special operating conditions
indicated. If you only occasionally
drive under these circumstances, it
is not necessary to perform the
additional services.
Engine Oil Selection
Please refer to your Owner’s Manual for the
specific oil viscosity rating recommended
for your vehicle/engine type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance, such as fluid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the Owner’ s Manual. Be sure
to perform these procedures regularly to
ensure the most trouble-free operation
of your vehicle.
SuperChrome and
Alloy Wheel Care
If you purchased Genuine Toyota Accessory
SuperChrome or Aluminum Alloy Wheels,
follow these cleaning guidelines to maintain
the appearance of your wheels:
• If wheels are hot, wait for them to cool
before washing.
• Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly rinse
off with water. Use a soft cloth to apply
the same car wax as used for the
vehicle body.
•
DO NOT USE: Any kind of chemical-
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes or coarse abrasives
to clean your wheels.
USING THE MAINTENANCE LOG CHARTS
126981_19-TCS-14207 MY21 WMG RAV4 GUTS 2_R1.indd 37126981_19-TCS-14207 MY21 WMG RAV4 GUTS 2_R1.indd 377/7/20 7:26 AM7/7/20 7:26 AM

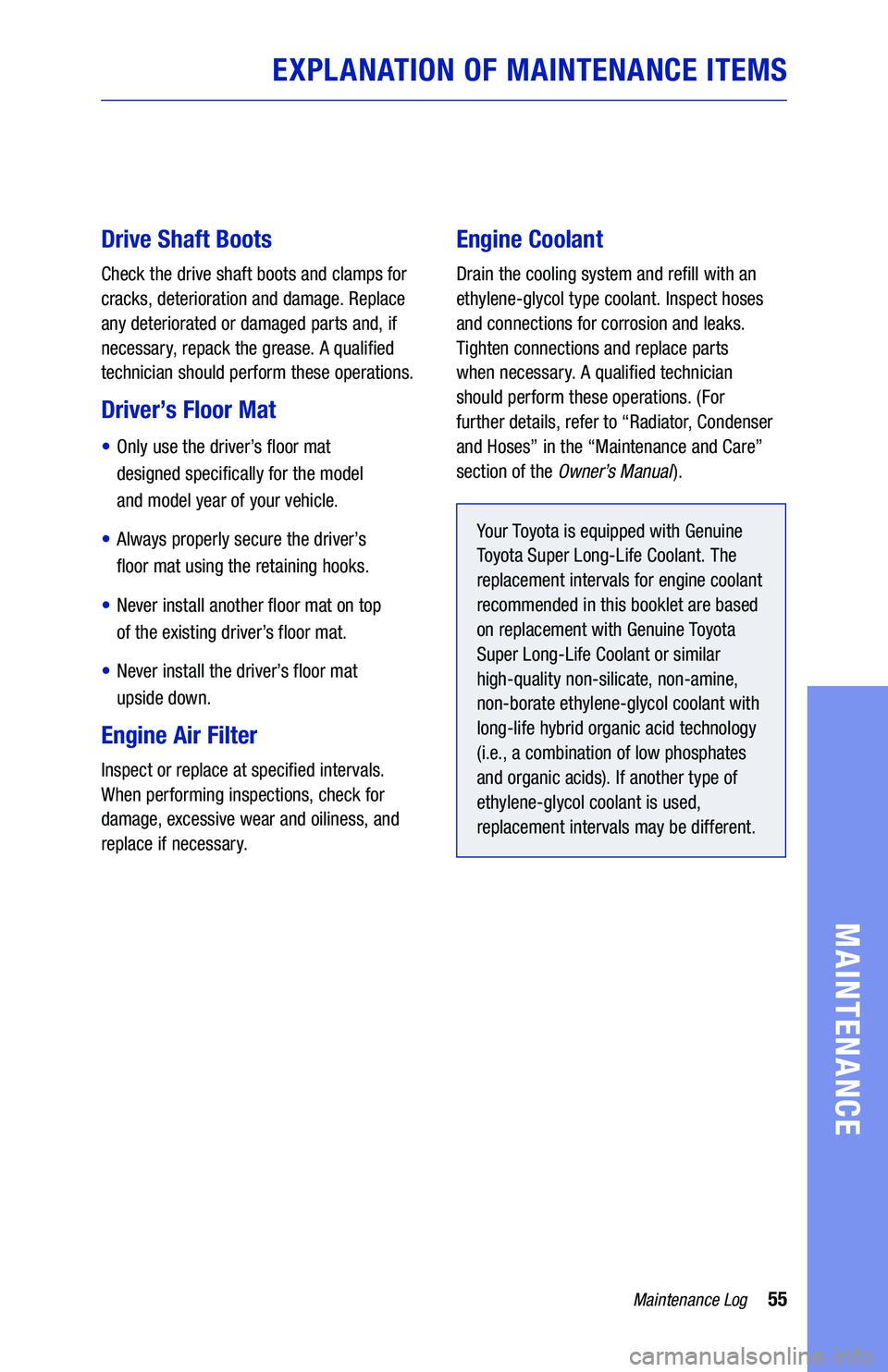

55Maintenance Log
MAINTENANCE
Drive Shaft Boots
Check the drive shaft boots and clamps for
cracks, deterioration and damage. Replace
any deteriorated or damaged parts and, if
necessary, repack the grease. A qualified
technician should perform these operations.
Driver’s Floor Mat
• Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
•
Always properly secure the driver’s
floor mat using the retaining hooks.
•
Never install another floor mat on top
of the existing driver’s floor mat.
•
Never install the driver’s floor mat
upside down.
Engine Air Filter
Inspect or replace at specified intervals.
When performing inspections, check for
damage, excessive wear and oiliness, and
replace if necessary.
Engine Coolant
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect hoses
and connections for corrosion and leaks.
Tighten connections and replace parts
when necessary. A qualified technician
should perform these operations. (For
further details, refer to “Radiator, Condenser
and Hoses” in the “Maintenance and Care”
section of the Owner’s Manual ).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant. The
replacement intervals for engine coolant
recommended in this booklet are based
on replacement with Genuine Toyota
Super Long-Life Coolant or similar
high-quality non-silicate, non-amine,
non-borate ethylene-glycol coolant with
long-life hybrid organic acid technology
(i.e., a combination of low phosphates
and organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
EXPLANATION OF MAINTENANCE ITEMS
126981_19-TCS-14207 MY21 WMG RAV4 GUTS 2_R1.indd 55126981_19-TCS-14207 MY21 WMG RAV4 GUTS 2_R1.indd 557/7/20 7:26 AM7/7/20 7:26 AM

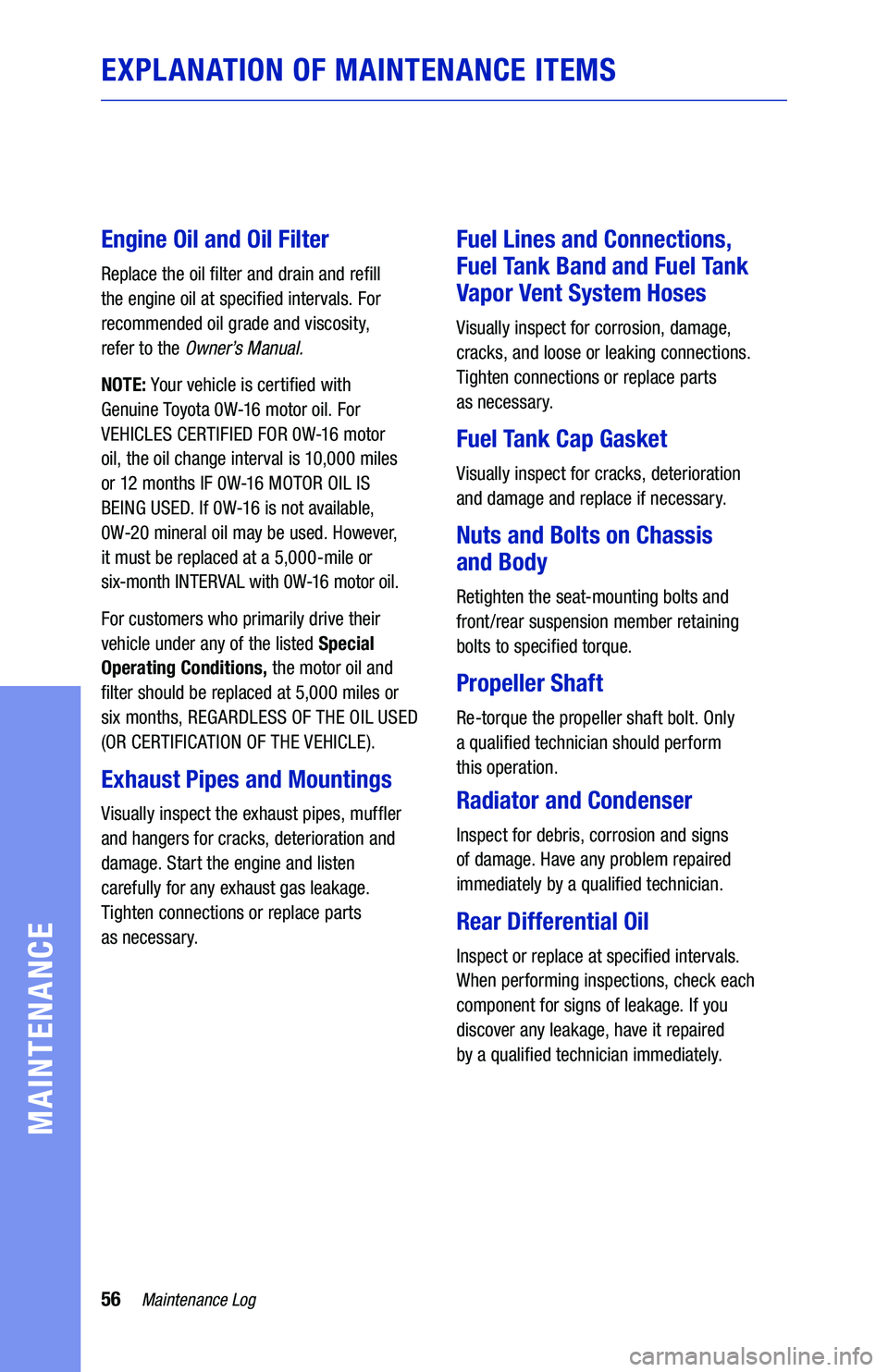

56Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W-16 motor oil. For
VEHICLES CERTIFIED FOR 0W-16 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W-16 MOTOR OIL IS
BEING USED. If 0W-16 is not available,
0W-20 mineral oil may be used. However,
it must be replaced at a 5,000-mile or
six-month INTERVAL with 0W-16 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
six months, REGARDLESS OF THE OIL USED
(OR CERTIFICATION OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specified torque.
Propeller Shaft
Re-torque the propeller shaft bolt. Only
a qualified technician should perform
this operation.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
Rear Differential Oil
Inspect or replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired
by a qualified technician immediately.
