711-4. Theft deterrent system
1
For safety and security
*: If equipped
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.
Alarm*
The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:
 Vehicles without smart key
system: A locked door is
unlocked or opened in any
way other than using the
wireless remote control or
key. (The doors will lock
again automatically.)
Vehicles with smart key
system: A locked door is
unlocked or opened in any
way other than using the
entry function, wireless
remote control or mechani-
cal key. (The doors will lock
again automatically.)
For Canada: A locked door
is unlocked or opened in
any way other than using
the entry function (if
equipped) or wireless
remote control. (The doors
will lock again automati-
cally.)
The hood is opened.

721-4. Theft deterrent system
■Items to check before lock-
ing the vehicle
To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:
 Nobody is in the vehicle.
 The side windows and moon
roof (if equipped) or pan-
oramic moon roof (if
equipped) are closed before
the alarm is set.
 No valuables or other per-
sonal items are left in the
vehicle.
■Setting
Close the doors and hood, and
lock all the doors. The system
will be set automatically after 30
seconds.
Except for Canada, the alarm
can also be set using the
mechanical key.
The security indicator changes from
being on to flashing when the sys-
tem is set.
■Canceling or stopping
Do one of the following to deac-
tivate or stop the alarm:
Except for Canada
 Unlock the doors.
 Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)
For Canada
 Unlock the doors using the
entry function (if equipped) or
wireless remote control.
 Start the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
■System maintenance
The vehicle has a maintenance-free
type alarm system.
■Triggering of the alarm
The alarm may be triggered in the
following situations:
(Stopping the alarm deactivates the
alarm system.)
●For Canada: The doors are
unlocked using the key.
●A person inside the vehicle opens
a door or hood, or unlocks the
vehicle using an inside lock but-
ton.
Setting/canceling/stop-
ping the alarm system

731-4. Theft deterrent system
1
For safety and security
●The battery is recharged or
replaced when the vehicle is
locked. (P.476)
■Alarm-operated door lock
In the following cases, depending
on the situation, th e door may auto-
matically lock to p revent improper
entry into the vehicle:
●When a person remaining in the
vehicle unlocks the door and the
alarm is activated.
●While the alarm is activated, a
person remaining in the vehicle
unlocks the door.
●When recharging or replacing the
battery.
■Customization (for Canada)
The alarm can be set to deactivate
when the key (vehicles without
smart key system) or mechanical
key (vehicles with smart key sys-
tem) is used to unlock. (Customiz-
able features: P.510)
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.

741-4. Theft deterrent system

75
2
2
Vehicle status information and indicators
Vehicle status informa-tion and indicators
2-1. Instrument cluster
Warning lights and indica-tors ............................... 76
Gauges and meters (with 7- inch multi-information dis-
play) ............................. 83
Gauges and meters (with 12.3-inch multi-informa-
tion display) .................. 88
Multi-information display (with 7-inch multi-informa-
tion display) .................. 93
Multi-information display (with 12.3-inch multi-infor-
mation display) .......... 102
Fuel consumption informa- tion ............................ 111

762-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
■With 7-inch multi-information display
The display of the speedometer can be selected from two types,
analog or digital. ( P.98)
When analog speedometer is displayed
The units used on the meters and some indicators may differ dep ending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver
of the status of the vehicle’s various systems.
Instrument cluster

772-1. Instrument cluster
2
Vehicle status information and indicators
When digital speedometer is displayed
The units used on the meters and some indicators may differ depending on
the target region.

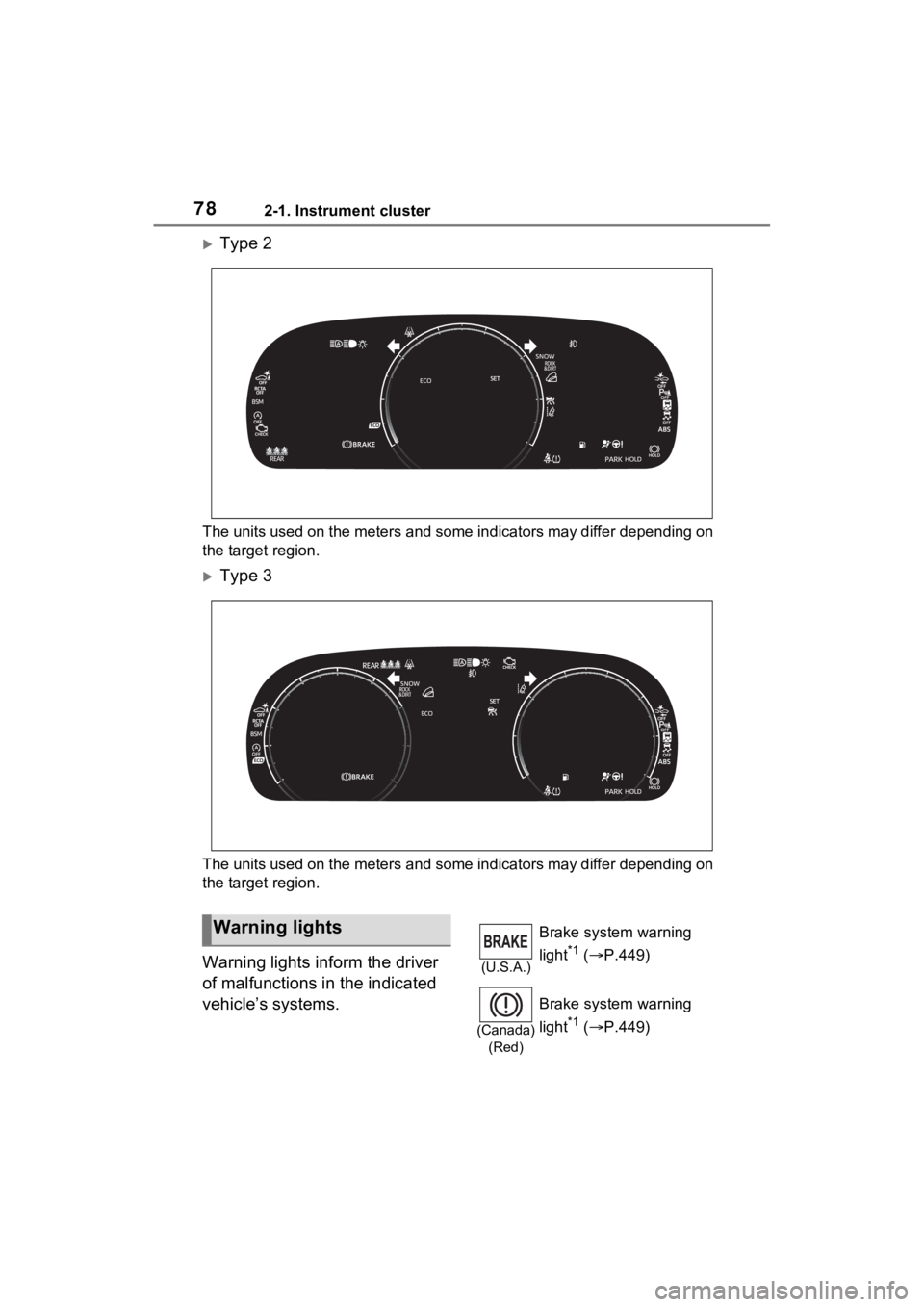

■With 12.3-inch multi-information display
The meter type can be changed on of the multi-information dis-
play. ( P.107)
Type 1
The units used on the meters and some indicators may differ dep ending on
the target region.

782-1. Instrument cluster
Type 2
The units used on the meters and some indicators may differ depending on
the target region.
Type 3
The units used on the meters and some indicators may differ dep ending on
the target region.
Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.
Warning lights
(U.S.A.)
Brake system warning
light
*1 (  P.449)
(Canada)
(Red)
Brake system warning
light
*1 ( P.449)

792-1. Instrument cluster
2
Vehicle status information and indicators
*1: These lights turn on when the
engine switch is turned to ON to
(Yellow)
Brake system warning
light
*1 (  P.449)
Charging system warning
light
*1 (  P.449)
High coolant temperature
warning light
*2 (  P.450)
Low engine oil pressure
warning light
*2 (  P.450)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.450)
(Canada)
Malfunction indicator
lamp
*1 ( P.450)
SRS warning light
*1
(  P.450)
(U.S.A.)
ABS warning light*1
(  P.451)
(Canada)
ABS warning light*1
(  P.451)
(Red)
Electric power steering
system warning light
*1
(  P.451)
(Yellow)
Electric power steering
system warning light
*1
(  P.451)
(Flashes
or illumi- nates)
PCS warning light*1
(  P.451)
(Orange)
LTA indicator ( P.452)
(Flashes)
Stop & Start cancel indica-
tor
*1 (if equipped)
(  P.452)
(Flashes)
Intuitive parking assist
OFF indicator
*3 (if
equipped) ( P.452)
(Flashes)
PKSB OFF indicator*1 (if
equipped) ( P.453)
(Flashes)
RCTA OFF indicator*1 (if
equipped) ( P.453)
Slip indicator light
*1
(  P.453)
Inappropriate pedal opera-
tion warning light
*2
(  P.454)
(Flashes)
Brake hold operated indi-
cator
*1 ( P.454)
(U.S.A.)
(Flashes)
Parking brake indicator
(  P.454)
(Canada)
(Flashes)
Parking brake indicator
( P.454)
Tire pressure warning
light
*1 (if equipped)
(  P.455)
Low fuel level warning
light ( P.455)
Driver’s and front passen-
ger’s seat belt reminder
light ( P.455)
Rear passengers’ seat
belt reminder lights
*4
(  P.456)
Rear passengers’
seat belt reminder
lights ( P.456)

802-1. Instrument cluster
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the light does not come on, or
turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-informatio n display with a
message.
*3: Intuitive parking assist OFF indi- cator turns on when the engine
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*4: Vehicles with 12.3-inch multi-information display
The indicators inform the driver
of the operating state of the
vehicle’s various systems.
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SR S warning light
not come on when you start the
engine, this could mean that
these systems are not available to
help protect you in an accident,
which could result in death or seri-
ous injury. Have the vehicle
inspected by your Toyota dealer
immediately if this occurs.
Indicators
Turn signal indicator
(  P.212)
(U.S.A.)
Headlight indicator
( P.219)
(Canada)
Tail light indicator
( P.219)
Headlight high beam indi-
cator ( P.222)
Automatic High Beam
indicator ( P.222)
Fog light indicator (if
equipped) ( P.226)
Smart key system indica-
tor
*1 (  P.204)
Cruise control indicator
(  P.264)
Dynamic radar cruise
control indicator
(  P.264)
Cruise control “SET” indi-
cator ( P.264)
(white)
LTA indicator*2 ( P.255)
(Green)
LTA indicator*2 ( P.239,
255)
(Orange)
(Flashes)LTA indicator*2 (  P.255)
