812-1. Instrument cluster
2
Vehicle status information and indicators
*1: This light illuminates on the multi-information display with a
message.
*2: Depending on the operating con-ditions of the system, the color
and state (illuminat ed/blinking) of
the indicator change.
*3: The light comes on when the system is turned off.
*4: Intuitive parking assist OFF indi-
cator turns on wh en the engine
switch is turned t o ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*5: These lights tu rn on when the
engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
Intuitive parking assist
OFF indicator
*3, 4 (if
equipped) ( P.282)
PKSB OFF indicator
*3, 5
(if equipped) ( P.296)
(Flashes)
Slip indicator light*5
(  P.320)
VSC OFF indicator
*3, 5
(  P.320)
PCS warning light
*3, 5
(  P.242)
BSM outside rear view
mirror indicators
*5, 6 (if
equipped) ( P.276)
BSM indicator (if
equipped) ( P.275)
RCTA OFF indicator
*3, 5
(if equipped) ( P.289)
Stop & Start indicator
*5 (if
equipped) ( P.304)
Stop & Start cancel indi-
cator
*3, 5 (if equipped)
(  P.305)
Brake hold standby indi-
cator
*5 (  P.217)
Brake hold operated indi-
cator
*5 (  P.217)
Security indicator
*8
(  P.70, 72)
Low outside temperature
indicator
*7 (  P.91, 86)
Eco Driving Indicator
Light
*5 (  P.96)
(U.S.A.)
Parking brake indicator
( P.213)
(Canada)
Parking brake indicator
( P.213)
Eco drive mode indicator
(  P.310)
Sport mode indicator
(  P.310)
Mud & sand mode indica-
tor (if equipped)
(  P.313)
Rock & dirt mode indica-
tor (if equipped)
(  P.313)
Snow mode indicator (if
equipped) ( P.315)
Downhill assist control
system indicator
*5 (if
equipped) ( P.316)
“AIR BAG ON/OFF”
indicator
*5, 8
(  P.43)

822-1. Instrument cluster
after a few seconds. There may
be a malfunction in a system if
the lights do not turn on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*6: This light illumi nates on the out-
side rear view mirrors.
*7: When the outside temperature is approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.
*8: This light illumi nates on the cen-
ter panel.
■BSM (Blind Spot Monitor) out-
side rear view mirror indicators
(if equipped)
In order to confirm operation, the
BSM outside rear view mirror indica-
tors illuminate in the following situa-
tions:
●When the engine switch is turned
to ON while the BSM function is
enabled on the screen of the
multi-informat ion display.
●When the BSM function is
enabled on the screen of the
multi-information display while the
engine switch is in ON.
If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off afte r a few
seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction
in the system. If this occurs, have
the vehicle insp ected by your
Toyota dealer.

832-1. Instrument cluster
2
Vehicle status information and indicators
The display of the speedometer can be selected from two types,
analog or digital. (P.98)
Analog speedometer
The units used on the meter and display may differ depending on the target
region.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Clock
Automatically adjusts the time by using the GPS time informatio n (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.85 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
Gauges and meters (with 7-inch multi-information
display)
The meters display various drive information.
Meter display
A
B
C
D

842-1. Instrument cluster
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter
Odometer:
Displays the total distance th at the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” c an be used to record and display different
distances independently.
Outside temperature ( P.86)
Multi-information display
Presents the driver with a variety of driving-related data ( P.93)
Displays warning messages if a malfunction occurs (P.459)
Shift position and shift range indicator
Displays the selected shift posit ion or selected shift range (P.209)
Digital speedometer
The units used on the meter and display may differ depending on the target
region.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
E
F
G
H
I
A
B

852-1. Instrument cluster
2
Vehicle status information and indicators
Displays the vehicle speed
Clock
Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.85 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopp ed on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter
Odometer:
Displays the total distance th at the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” c an be used to record and display different
distances independently.
Outside temperature ( P.86)
Multi-information display
Presents the driver with a variety of driving-related data ( P.93)
Displays warning messages if a malfunction occurs (P.459)
Shift position and shift range indicator
Displays the selected shift posit ion or selected shift range (P.209)
■The meters and display illumi-
nate when
The engine switch is in ON.
■When changing driving mode
●Speedometer color is changed fol-
lowing the select ed driving mode.
(  P.310)
●AWD models: Speedometer color
is changed following the selected driving mode or
Multi-terrain
Select mode. ( P.310, 312)
■Manually updating the fuel
gauge and possible driving
range
The fuel gauge and the possible
driving range are linked. If the dis-
plays of the fuel gauge and possible
driving range do n ot update after
adding a small amount of fuel, the
displays can be updated by per-
C
D
E
F
G
H
I

862-1. Instrument cluster
forming the following procedure.
1Stop the vehicle on a level sur-
face.
2 Press the “ODO TRIP” switch to
change the odometer and trip
meter display to odometer.
3 Turn the engine switch off.
4 While pressing and holding the
“ODO TRIP” switch, turn the
engine switch to ON.
5 Continue to hold the “ODO TRIP”
switch for approximately 5 sec-
onds, and then release it once
the odometer begins flashing.
Updating is complete once the
odometer flashes for approximately
5 seconds and th en the display
returns to normal.
■Outside temperature display
●In the following si tuations, the cor-
rect outside tempe rature may not
be displayed, or the display may
take longer than normal to
change.
• When stopped, or driving at low
speeds (less than 12 mph [20
km/h])
• When the outside temperature
has changed suddenly (at the
entrance/exit of a garage, tunnel,
etc.)
●When “--” or “E” is displayed, the
system may be malfunctioning.
Take your vehicle to your Toyota
dealer.
●Displays the outside temperature
within the range of -40°F (-40°C)
to 122°F (50°C).
●When the outside temperature is
approximately 37°F (3°C) or
lower, the indicator will flash
for approximately 10 seconds,
then stay on.
■Liquid crystal display
 P.94
■Customization
Settings (e. g. meter display) can be changed on the screen of the
multi-informat
ion display. (P.98)
Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
WARNING
■The information display at
low temperatures
Allow the interior of the vehicle to
warm up before using the liquid
crystal information display. At
extremely low temperatures, the
display monitor may respond
slowly, and display changes may
be delayed.
For example, there is a lag
between the driver’s shifting and
the new gear number appearing
on the display. This lag could
cause the driver to downshift
again, causing rapid and exces-
sive engine braking and possibly
an accident resulting in death or
injury.
NOTICE
■To prevent damage to the
engine and its components
●Do not let the indicator needle
of the tachometer enter the red
zone, which indicates the maxi-
mum engine speed.
●The engine may be overheating
if the engine coolant tempera-
ture gauge is in the red zone
(“H”). In this case, immediately
stop the vehicle in a safe place,
and check the engine after it
has cooled completely.
(  P.480)

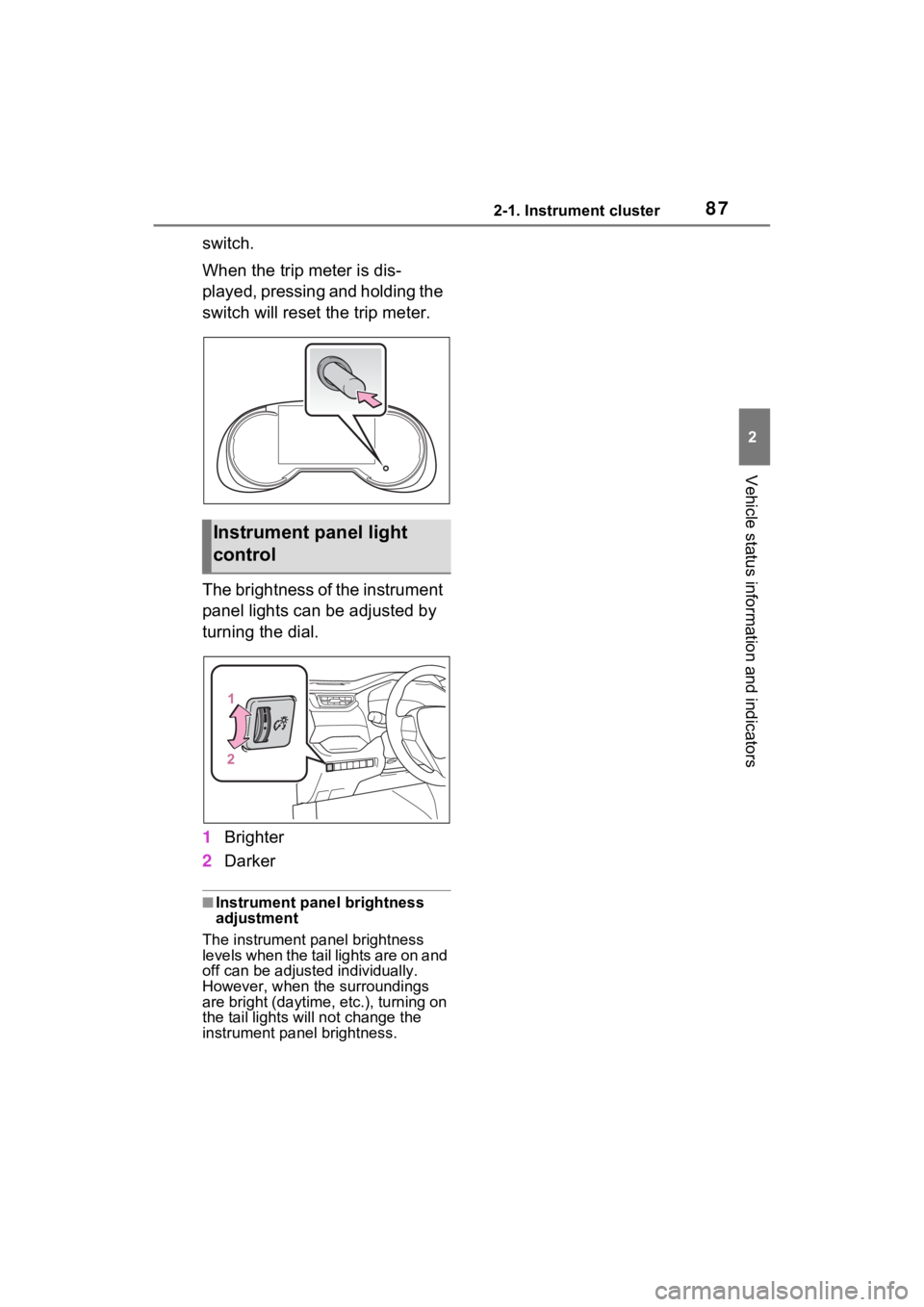

Using the “ODO TRIP”
switch

872-1. Instrument cluster
2
Vehicle status information and indicators
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.
The brightness of the instrument
panel lights can be adjusted by
turning the dial.
1Brighter
2 Darker
■Instrument panel brightness
adjustment
The instrument panel brightness
levels when the tail lights are on and
off can be adjusted individually.
However, when the surroundings
are bright (daytime, etc.), turning on
the tail lights will not chan ge the
instrument panel brightness.
Instrument panel light
control

882-1. Instrument cluster
■Locations of gauges and meters
The meter type can be changed on of the multi-information dis-
play. ( P.107)
Type 1/Type 2
The units of measure may differ depending on the intended destination of
the vehicle.
Multi-information display
Presents the driver with a variety of vehicle data (P.102)
Displays warning messages if a malfunction occurs (P.459)
Outside temperature ( P.91)
Analog meter (Type 2 only)
The dial type of analog meter c an be changed on of the multi-i nforma-
tion display. ( P.111)
Tachometer:
Displays the engine speed in revolutions per minute.
Analog speedometer:
Displays the vehicle speed.
Gauges and meters (with 12.3-inch multi-informa-
tion display)
The meters display various drive information.
Meter display
A
B
C

892-1. Instrument cluster
2
Vehicle status information and indicators
Digital speedometer
Displays the vehicle speed
Shift position and shift range
Displays the selected shift position or selected shift range (P.209)
Clock
Automatically adjusts the time by using the GPS time informatio n (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Widget (Audio system-linked display)
Displays selection of an audio source or track on the meter. ( P.106)
If contents list is displayed on t he multi-information display, widget will not
be displayed. ( P.104)
Distance to empty
Displays driving range with remaining fuel. ( P.91)
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.91 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopp ed on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.
Widget (Fuel Economy)
Displays fuel economy information. ( P.105)
If contents list is displayed on t he multi-information display, widget will not
be displayed. ( P.104)
Engine coolant temperature gauge
Displays the engine c oolant temperature
Odometer and trip meter display ( P.92)
D
E
F
G
H
I
J
K
L

902-1. Instrument cluster
Type 3Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of vehicle data (P.102)
Displays warning messages if a malfunction occurs (P.459)
Outside temperature ( P.91)
Digital speedometer
Displays the vehicle speed.
Shift position and shift range
Displays the selected shift posit ion or selected shift range (P.209)
Clock
Automatically adjusts the time by using the GPS time informatio n (GPS
clock).
For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Analog speedometer
Displays the vehicle speed.
Distance to empty
Displays driving range with remaining fuel. ( P.209)
Fuel gauge
Displays the quantity of fu el remaining in the tank.
In the following sit uations, the actual quantity of fuel remain ing in the tank
may not be displayed correctly. Refer to P.91 if the actual quantity of fuel
remaining in the tank is not displayed correctly.
A
B
C
D
E
F
G
H
I
