dimensions TOYOTA RAV4 2023 Owners Manual

4868-1. Specifications
8-1.Specifications
*1: Unladen vehicle
*2: Vehicles without 235/55R19 tires
*3: Vehicles with 235/55R19 tires
*4: Vehicles without towing package
*5: Vehicles with towing package

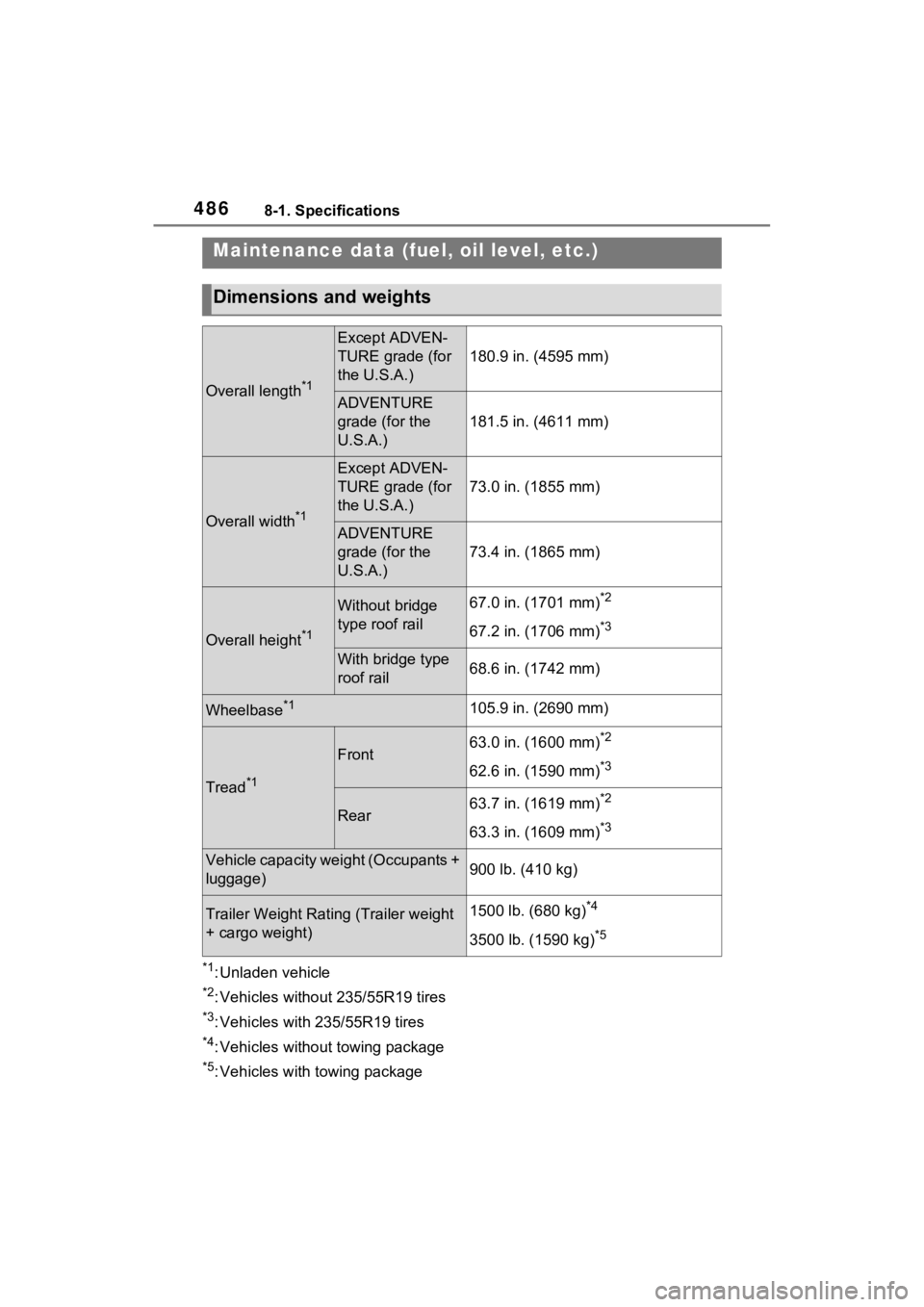

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length*1
Except ADVEN-
TURE grade (for
the U.S.A.)
180.9 in. (4595 mm)
ADVENTURE
grade (for the
U.S.A.)
181.5 in. (4611 mm)
Overall width*1
Except ADVEN-
TURE grade (for
the U.S.A.)
73.0 in. (1855 mm)
ADVENTURE
grade (for the
U.S.A.)
73.4 in. (1865 mm)
Overall height*1
Without bridge
type roof rail67.0 in. (1701 mm)*2
67.2 in. (1706 mm)*3
With bridge type
roof rail68.6 in. (1742 mm)
Wheelbase*1105.9 in. (2690 mm)
Tread*1
Front63.0 in. (1600 mm)*2
62.6 in. (1590 mm)*3
Rear63.7 in. (1619 mm)*2
63.3 in. (1609 mm)*3
Vehicle capacity weight (Occupants +
luggage)900 lb. (410 kg)
Trailer Weight Rating (Trailer weight
+ cargo weight)1500 lb. (680 kg)*4
3500 lb. (1590 kg)*5

5018-1. Specifications
8
Vehicle specifications
Type BDOT symbol
*
Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code
Manufacturing week
Manufacturing year
*: The DOT symbol certifies that the tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.
■Typical tire size information
The illustration indicates typical
tire size.
Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)
Speed symbol (alphabet with
one letter)
■Tire dimensions
Section width
Tire height
Wheel diameter
Tire size
A
B
C
D
E
F
A
7LUHVHFWLRQ\
QDPHV
B
C
D
E
F
G
A
B
C
