headlight bulb TOYOTA RAV4 2023 Owners Manual

RAV4_OM_OM0R100U_(U)
1
2
3
4
5
6
7
8
9
Pictorial indexSearch by illustration
For safety
and securityMake sure to read through them
(Main topics: Child seat, theft deterrent system)
Vehicle status
information and
indicatorsReading driving-related information
(Main topics: Meters, multi-information display)
Before driving
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats, power windows)
Driving
Operations and advice which are necessary for
driving
(Main topics: Starting engine, refueling)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and careCaring for your vehicle and maintenance
procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arisesWhat to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle
specificationsVehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
For ownersReporting safety defects for U.S. owners, and seat
belt, SRS airbag and headlight aim instructions for
Canadian owners
IndexSearch by symptom
Search alphabetically

4TABLE OF CONTENTS
5-1. Using the air conditioning
system and defogger
Manual air conditioning sys-
tem .............................. 332
Automatic air conditioning system ......................... 338
Heated steering wheel/seat heaters/seat ventilators 345
5-2. Using the interior lights Interior lights list ............ 348
5-3. Using the storage features List of storage features . 350
Luggage compartment fea- tures ............................ 354
5-4. Using the other interior fea- tures
Other interior features ... 359
Garage door opener...... 370
6-1. Maintenance and care Cleaning and protecting the vehicle exterior ............ 380
Cleaning and protecting the vehicle interior ............. 384
6-2. Maintenance Maintenance requirements.................................... 387
General maintenance.... 389
Emission inspection and maintenance (I/M) pro-
grams .......................... 3916-3. Do-it-yourself maintenance
Do-it-yourself service pre-cautions ....................... 393
Hood .............................. 395
Positioning a floor jack .. 396
Engine compartment ..... 398
Tires .............................. 405
Tire inflation pressure .... 416
Wheels .......................... 418
Air conditioning filter ...... 420
Wiper insert replacement .................................... 422
Wireless remote control/elec- tronic key battery ......... 425
Checking and replacing fuses ............................ 428
Headlight aim ................ 431
Light bulbs ..................... 432
7-1. Essential information Emergency flashers....... 440
If your vehicle has to be stopped in an emergency
.................................... 440
If the vehicle is submerged or water on the road is rising
.................................... 441
7-2. Steps to take in an emer- gency
If your vehicle needs to be towed ........................... 443
If you think something is wrong........................... 447
Fuel pump shut off system .................................... 448
5Interior features
6Maintenance and care
7When trouble arises

15Pictorial index
Precautions against winter season ......................................P.325
To prevent freezing (windshield wiper de-icer)
*...................P.344
Precautions against car wash (R ain-sensing windshield wipers)
*
............................................................... ..............................P.381
Replacing the wiper insert ..................................... ...............P.422
Fuel filler door ............................................... .....................P.231
Refueling method ............................................... ..................P.231
Fuel type/fuel tan k capacity .................................................P.488
Tires ....................................................................................P.405
Tire size/inflation pressure ................................... ................P.492
Winter tires/tire chain ........................................ ...................P.325
Checking/rotation/tire pressure warning system
*.................P.405
Coping with flat tires......................................... ....................P.463
Hood ....................................................................................P.395
Opening ........................................................ .......................P.395
Engine oil ..................................................... ........................P.488
Coping with overheat ........................................... ................P.480
Warning messages ..............................................................P.459
Headlights..................................................... ......................P.219
Turn signal lights ...............................................................P.212
Parking lights .....................................................................P.219
Daytime running lights .. ....................................................P.219
Side marker lights ............................................. .................P.219
Fog lights
*............................................................... ............P.226
Stop lights/tail lights/turn s ignal lights ....................P.212, 219
Tail lights .................................................... ........................P.219
Back-up lights
Light bulbs of the exterior lights for driving
(Replacing method: P .432, Watts: P.496)
E
F
G
H
I
J
K
L
M
N
O

2204-3. Operating the lights and wipers
Canada
1 The side marker, park-
ing, tail, license plate, instru-
ment panel lights, and
daytime running lights
( P.220) turn on.
2 The headlights and all
lights listed above (except
daytime running lights) turn
on.
3 The headlights, daytime
running lights ( P.220) and
all the lights listed above turn
on and off automatically.
■AUTO mode can be used when
The engine switch is in ON.
■Daytime runni ng light system
●Vehicles with multi-LED head-
lights and LED projector head-
lights with bulb type front turn
signal lights: The daytime running
lights illuminate u sing the same
lights as the low beam headlights
and illuminate d immer than the
low beam headlights.
●Vehicles with LED projector head-
lights with LED type front turn sig-nal lights: The daytime running
lights illuminate using the same
lights as the parking lights and illu-
minate brighter than the parking
lights.
●To make your vehicle more visible
to other drivers
during daytime
driving, the daytime running lights
turn on automatically when all of
the following conditions are met.
(The daytime running lights are
not designed for use at night.)
• The engine is running
• The parking brake is released
• For the U. S. A.: The headlight
switch is in the , or
*
position
• For Canada: The headlight switch
is in the or
* position
*: When the surroundings are bright
The daytime running lights remain
on after they illumi nate, even if the
parking brake is set again.
●For the U.S.A.: Daytime running
lights can be turned off by operat-
ing the switch.
●Compared to turning on the head-
lights, the daytime running light
system offers greater durability
and consumes less electricity, so
it can help improve fuel economy.
■Headlight control sensor (if
equipped)
The sensor may not function prop-
erly if an object is placed on the sen-
sor, or anything that blocks the
sensor is affixed to the windshield.
Doing so interferes with the sensor
detecting the level of ambient light
and may cause t he automatic head-
light system to malfunction.

379
6
6
Maintenance and care
Maintenance and care
6-1. Maintenance and careCleaning and protecting the vehicle exterior .......... 380
Cleaning and protecting the vehicle interior ........... 384
6-2. Maintenance Maintenance requirements.................................. 387
General maintenance.. 389
Emission inspection and maintenance (I/M) pro-
grams ........................ 391
6-3. Do-it-yourself mainte- nance
Do-it-yourself service pre- cautions ..................... 393
Hood ........................... 395
Positioning a floor jack 396
Engine compartment ... 398
Tires ............................ 405
Tire inflation pressure . 416
Wheels ......... ...............418
Air conditioning filter .... 420
Wiper insert replacement .................................. 422
Wireless remote con- trol/electronic key battery.................................. 425
Checking and replacing fuses.......................... 428
Headlight aim .............. 431
Light bulbs................... 432

3946-3. Do-it-yourself maintenance
Light bulbs
( P.432)
• Bulb with same
number and watt-
age rating as origi-
nal
• Phillips-head screwdriver
• Flathead screw- driver
• Wrench
Headlight aim
(  P.431)• Phillips-head
screwdriver
Radiator and
condenser
( P.401)

Tire inflation
pressure
( P.416)• Tire pressure
gauge
• Compressed air source
Washer fluid
( P.404)
• Water or washer
fluid containing
antifreeze (for win-
ter use)
• Funnel (used only for adding water or
washer fluid)
WARNING
The engine compartment contains
many mechanisms and fluids that
may move suddenly, become hot,
or become electrically energized.
To avoid death or serious injury,
observe the following precautions.
■When working on the engine
compartment
●Keep hands, clothing and tools
away from the moving fan and
engine drive belt.
ItemsParts and tools●Be careful not to touch the
engine, radiator, exhaust mani-
fold, etc., right after driving as
they may be hot. Oil and other
fluids may also be hot.
●Do not leave anything that may
burn easily, such as paper and
rags, in the engine compart-
ment.
●Do not smoke, cause sparks or
expose an open flame to fuel or
the battery. Fuel and battery
fumes are flammable.
●Be extremely cautious when
working on the battery. It con-
tains poisonous and corrosive
sulfuric acid.
■When working near the elec-
tric cooling fan or radiator
grille
Be sure the engine switch is off.
With the engine switch in ON, the
electric cooling fa n may automati-
cally start to run if the air condi-
tioning is on and/or the coolant
temperature is high. ( P.401)
■Safety glasses
Wear safety gla sses to prevent
flying or falling material, fluid
spray, etc., from getting in your
eyes.
NOTICE
■If you remove the air cleaner
filter
Driving with the air cleaner filter
removed may cause excessive
engine wear due to dirt in the air.

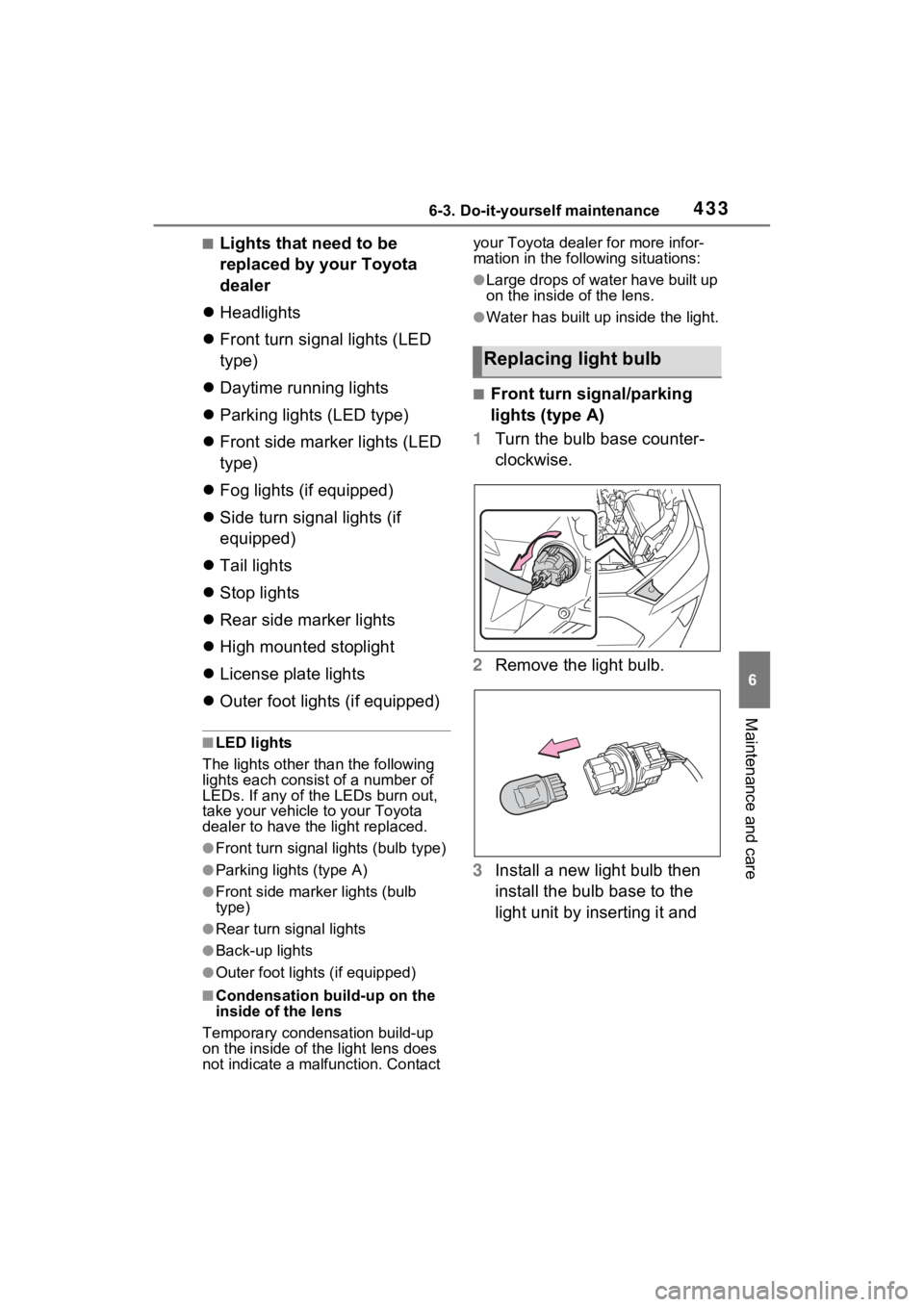

4336-3. Do-it-yourself maintenance
6
Maintenance and care
■Lights that need to be
replaced by your Toyota
dealer
 Headlights
 Front turn signal lights (LED
type)
 Daytime running lights
 Parking lights (LED type)
 Front side marker lights (LED
type)
 Fog lights (if equipped)
 Side turn signal lights (if
equipped)
 Tail lights
 Stop lights
 Rear side marker lights
 High mounted stoplight
 License plate lights
 Outer foot lights (if equipped)
■LED lights
The lights other than the following
lights each consist of a number of
LEDs. If any of the LEDs burn out,
take your vehicle to your Toyota
dealer to have the light replaced.
●Front turn signal lights (bulb type)
●Parking lights (type A)
●Front side marker lights (bulb
type)
●Rear turn signal lights
●Back-up lights
●Outer foot lights (if equipped)
■Condensation build-up on the
inside of the lens
Temporary condensation build-up
on the inside of the light lens does
not indicate a malfunction. Contact your Toyota dealer for more infor-
mation in the following situations:
●Large drops of water have built up
on the inside of the lens.
●Water has built up inside the light.
■Front turn signal/parking
lights (type A)
1 Turn the bulb base counter-
clockwise.
2 Remove the light bulb.
3 Install a new light bulb then
install the bulb base to the
light unit by inserting it and
Replacing light bulb

Alphabetical Index547
Changing the engine switch positions ............................. 203
If your vehicle has to be stopped in an emergency................. 440
Enhanced Vehicle Stability Con- trol (Enhanced VSC) ............ 319
Enhanced VSC (Enhanced Vehi- cle Stability Control) ............ 319
EPS (Electric Power Steering) Function ............................... 319
Warning light ........................ 451
Event data recorder (EDR)......... 8
Exhaust gas precautions ......... 48
F
Flat tire .................................... 463 Tire pressure warning system........................................... 408
Floor mats ................................. 26
Fluid Automatic transmission ........ 490
Brake ............................ 401, 492
Washer ................................. 404
Fog lights Replacing light bulbs ............ 432
Switch................................... 226
Footwell lights ..... ................... 348
Front passenger’s seat belt reminder light ....................... 455
Front passenger occupant clas- sification system .................... 43
Front seat heaters .................. 345
Front seats .............................. 144 Adjustment ........................... 144
Cleaning ............................... 384
Correct driving posture ........... 27
Driving position memory....... 147
Head restraints ..................... 150
Memory recall function ......... 149
Seat heaters ......................... 345
Seat position memory .......... 147
Seat ventilators .................... 345 Front side marker lights.........219
Light switch...........................219
Replacing light bulbs ............432
Wattage ................................496
Front turn signal lights Replacing light bulbs ............432
Turn signal lever . ..................212
Wattage ................................496
Fuel Capacity ...............................488
Fuel gauge .......................83, 88
Fuel pump shut off system ...448
Gas station information ........576
Information ......... ..................497
Refueling ..............................231
Type .............................488, 497
Warning light ........................455
Fuel consumption information Average fuel economy....95, 105
Fuel filler door.........................232 Refueling ..............................231
Fuel gauge...........................83, 88
Fuel pump shut off system ....448
Fuses .......................................428
G
Garage door opene r ...............370
Gas station information .........576
Gauges ................................83, 88
Glove box ................................351
H
Headlight aim ..........................431 Headlight aim instructions for Canadian owners ...............536
Headlights ...............................219 Automatic High Beam system...........................................222
Light switch...........................219
Replacing light bulbs ............432

Alphabetical Index549
Keyless entry................ 116, 139
Mechanical key .................... 118
Replacing the battery ........... 425
Warning buzzer .................... 140
Wireless remote control key . 116
Knee airbags ............................. 33
L
Lane Tracing Assist (LTA) ..... 250 Operation ............................. 250
Warning messages .............. 260
Language (multi-information dis- play) ............................... 100, 511
LATCH anchors ........................ 59
Lever Auxiliary catch lever ............. 395
Hood lock release lever........ 395
Shift lever ............................. 209
Turn signal lever................... 212
Wiper lever ................... 226, 229
License plate lights Light switch .......................... 219
Replacing light bulbs ............ 432
Light bulbs Replacing ............................. 432
Wattage ................................ 496
Lights Automatic High Beam system........................................... 222
Fog light switch .................... 226
Front interior lights ............... 349
Headlight switch ................... 219
Interior lights......................... 349
Personal lights...................... 349
Rear interior light .................. 349
Replacing light bulbs ............ 432
Turn signal lever................... 212
Vanity lights .......................... 359
Wattage ................................ 496
LTA (Lane Tracing Assist) ..... 250 Operation ............................. 250 Warning messages
...............260
Luggage compartment light 128, 132
Luggage cover ........................356
M
Maintenance Do-it-yourself maintenance ..393
General maintenance ...........389
Maintenance data .................486
Maintenance requirements ...387
Malfunction indicator lamp ....450
Manual air conditioning system ...............................................332Air conditioning filter .............420
Menu icons ................................95
Meter Clock ................................83, 88
Indicators ................................76
Instrument panel light control87, 93
Meter control switches....94, 103
Meters ..............................83, 88
Multi-information display.93, 102
Settings ..........................98, 510
Units .............................100, 511
Warning lights.......................449
Warning messages ......102, 110, 459
Meter control switches.....94, 103
Mirrors Digital Rear-view Mirror ........156
Inside rear view mirror ..........154
Outside rear view mirror defog-gers ............................333, 340
Outside rear view mirrors .....165
Vanity mirrors ..... ..................359
Moon roof Door lock linked moon roof oper-ation....................................170
Jam protection function ........170
Operation..............................170

552Alphabetical Index
Electronic key battery ........... 425
Fuses ................................... 428
Light bulbs ............................ 432
Tires ..................................... 463
Wiper insert .......................... 422
Wireless remote control battery........................................... 425
Reporting safety defects for Canadian owners ................. 527
Reporting safety defects for U.S. owners................................... 526
Resetting the message indicat- ing maintenance is required 388
Road Sign Assist .................... 261
Rock & Dirt mode ................... 312
RSA (Road Sign Assist) ......... 261
S
Seat belt reminder light . 455, 456
Seat belts .................................. 29 Adjusting the seat belt shoulder anchor height ....................... 31
Automatic Locking Retractor .. 31
Child restraint system installation ............................................. 54
Cleaning and maintaining the seat belt.............................. 384
Emergency Locking Retractor 31
How to wear your seat belt..... 30
How your child should wear the seat belt................................ 30
Pregnant women, proper seat belt use................................. 29
Reminder light and buzzer . 455, 456
Seat belt extender .................. 30
Seat belt instructions for Cana- dian owners ........................ 527
Seat belt pretensioners .......... 32
SRS warning light................. 450
Seat heaters ............................ 345
Seating capacity ..................... 188 Seat position memory ............147
Seats
Adjustment precautions 144, 145
Adjustment ...................144, 145
Child restraint sys tem installation
.............................................50
Cleaning ...............................384
Driving position memory .......147
Folding down the rear seatbacks ...........................................146
Head restraint .......................150
Properly sitting in the seat ......27
Seat heaters ....... ..................345
Seat position memory...........147
Seat ventilators.....................345
Seat ventilators .. .....................345
Secondary Collision Brake ....319
Sensor Automatic headlight system .220
Automatic High Beam system...........................................222
BSM (Blind Spot M onitor) .....276
Digital Rear-view Mirror ........160
Inside rear view mirror ..........155
Intuitive parking assist ..........280
LTA (Lane Traci ng Assist) ....250
Parking Support Brake function (rear-crossing vehicles) ......276
Parking Support Brake function (static objects) ....................280
Rain-sensing windshield wipers ...........................................228
RCTA (Rear Cross Traffic Alert) ...........................................276
Toyota Safety Sense 2.5 ......234
Service reminder message ....388
Shift lever ................................209 Automatic transm ission ........209
If th e s hif t le ver ca n no t b e s hif te d from P .................................210
Shift lock system ....................210
Side airbags ..............................33
