display TOYOTA RAV4 2023 Owners Manual

RAV4_OM_OM0R100U_(U)
1
2
3
4
5
6
7
8
9
Pictorial indexSearch by illustration
For safety
and securityMake sure to read through them
(Main topics: Child seat, theft deterrent system)
Vehicle status
information and
indicatorsReading driving-related information
(Main topics: Meters, multi-information display)
Before driving
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats, power windows)
Driving
Operations and advice which are necessary for
driving
(Main topics: Starting engine, refueling)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and careCaring for your vehicle and maintenance
procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arisesWhat to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle
specificationsVehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
For ownersReporting safety defects for U.S. owners, and seat
belt, SRS airbag and headlight aim instructions for
Canadian owners
IndexSearch by symptom
Search alphabetically

2TABLE OF CONTENTS
For your information...................6
Reading this manual ................ 11
How to search .......................... 12
Pictorial index .......................... 14
1-1. For safe use Before driving ................... 26
For safe driving ................ 27
Seat belts ......................... 29
SRS airbags ..................... 33
Front passenger occupant classification system ...... 43
Exhaust gas precautions.. 48
1-2. Child safety Riding with children .......... 49
Child restraint systems..... 50
1-3. Emergency assistance Safety Connect ................ 65
1-4. Theft deterrent system Engine immobilizer system....................................... 70
Alarm................................ 71
2-1. Instrument cluster Warning lights and indicators....................................... 76
Gauges and meters (with 7- inch multi-information dis-
play) ............................... 83
Gauges and meters (with 12.3-inch multi-information
display) ........................... 88Multi-information display
(with 7-inch multi-informa-
tion display) .................... 93
Multi-information display (with 12.3-inch multi-infor-
mation display) ............ 102
Fuel consumption informa- tion............................... 111
3-1. Key information Keys .............................. 114
3-2. Opening, closing and lock- ing the doors
Side doors ..................... 119
Back door ...................... 125
Smart key system .......... 139
3-3. Adjusting the seats Front seats .................... 144
Rear seats ..................... 145
Driving position memory 147
Head restraints .............. 150
3-4. Adjusting the steering wheel and mirrors
Steering wheel............... 153
Inside rear view mirror ... 154
Digital Rear-view Mirror . 156
Outside rear view mirrors .................................... 165
3-5. Opening, closing the win- dows and moon roof
Power windows ............. 167
Moon roof ...................... 170
Panoramic moon roof .... 173
1For safety and security
2
Vehicle status
information and
indicators
3Before driving

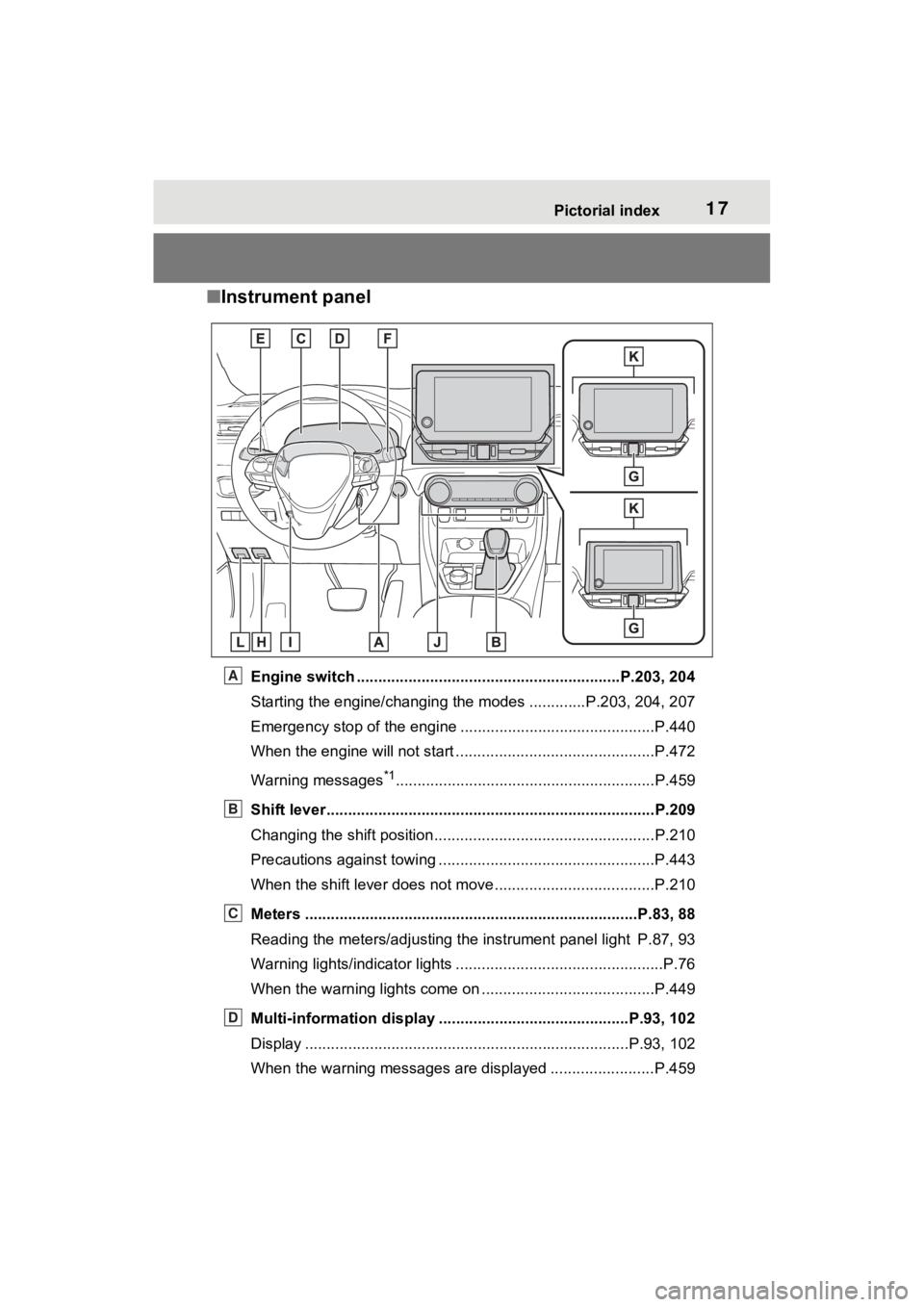

17Pictorial index
■Instrument panel
Engine switch .............................................................P.203, 204
Starting the engine/changing the modes .............P.203, 204, 207
Emergency stop of the engin e .............................................P.440
When the engine will not start ................................. .............P.472
Warning messages
*1............................................................P.4 59
Shift lever.................................................... ........................P.209
Changing the shift position.................................... ...............P.210
Precautions against towing ..................................................P.443
When the shift lever does not move............................. ........P.210
Meters ......................................................... ....................P.83, 88
Reading the meters/adjusting t he instrument panel light P.87, 9 3
Warning lights/indicator lights ................................ ................P.76
When the warning lights come on ................................ ........P.449
Multi-information display . ...........................................P.93, 102
Display ........................................................ ...................P.93, 102
When the warning messages are displayed ........................ P.459
A
B
C
D

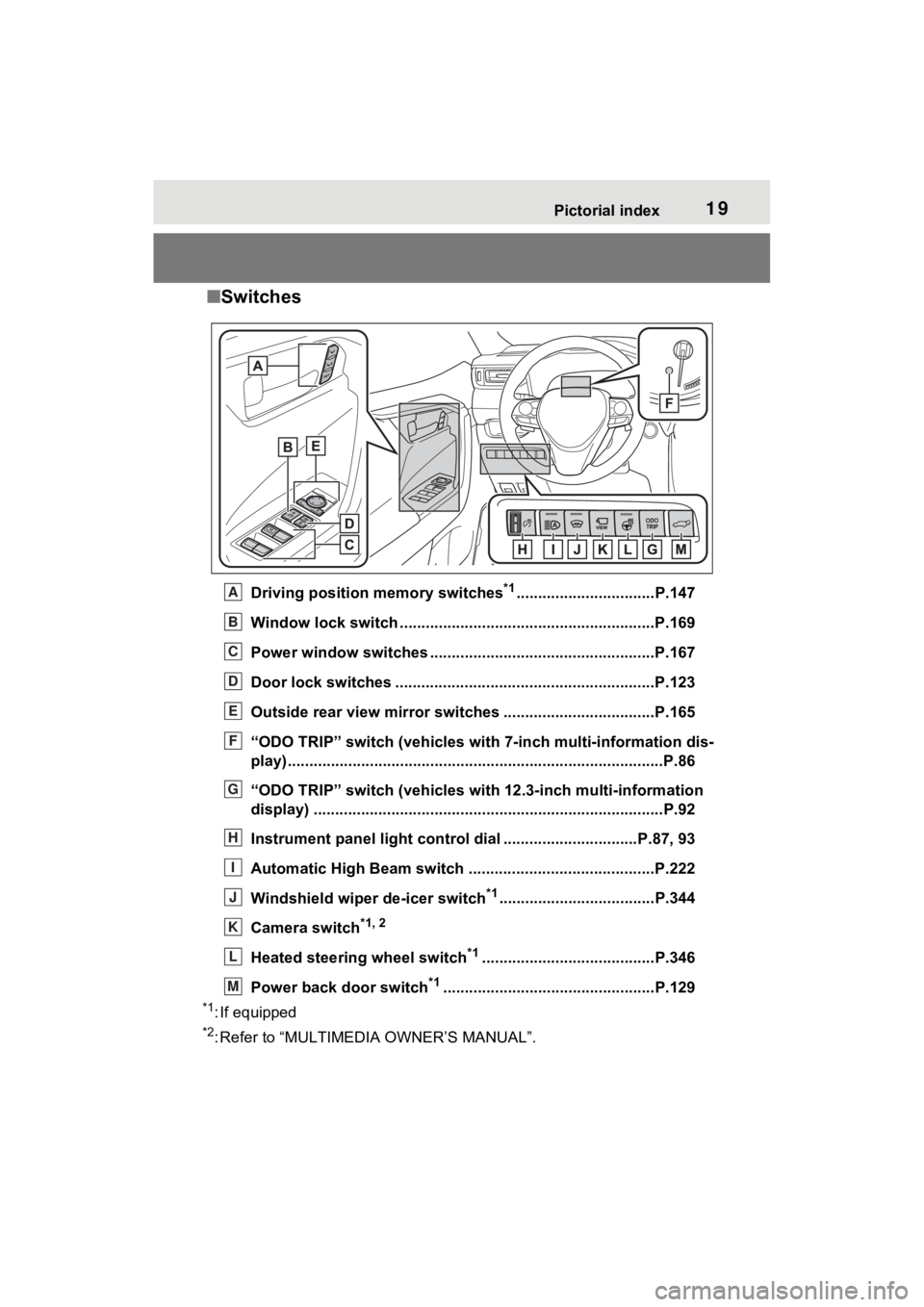

19Pictorial index
■Switches
Driving position memory switches*1................................P.147
Window lock switch ............................................. ..............P.169
Power window switches ....... .............................................P.167
Door lock switches ............................................................P.123
Outside rear view mirror swi tches ...................................P.165
“ODO TRIP” switch (vehicles with 7-inch multi-information dis-
play).......................................................................................P.86
“ODO TRIP” switch (vehicles with 12.3-inch multi-information
display) ....................................................... ..........................P.92
Instrument panel light cont rol dial ...............................P.87, 93
Automatic High Beam switch ..................................... ......P.222
Windshield wiper de-icer switch
*1....................................P.344
Camera switch
*1, 2
Heated steering wheel switch*1........................................P.346
Power back door switch
*1.................................................P.129
*1: If equipped
*2: Refer to “MULTIMEDIA OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
K
L
M

75
2
2
Vehicle status information and indicators
Vehicle status informa-tion and indicators
2-1. Instrument cluster
Warning lights and indica-tors ............................... 76
Gauges and meters (with 7- inch multi-information dis-
play) ............................. 83
Gauges and meters (with 12.3-inch multi-informa-
tion display) .................. 88
Multi-information display (with 7-inch multi-informa-
tion display) .................. 93
Multi-information display (with 12.3-inch multi-infor-
mation display) .......... 102
Fuel consumption informa- tion ............................ 111

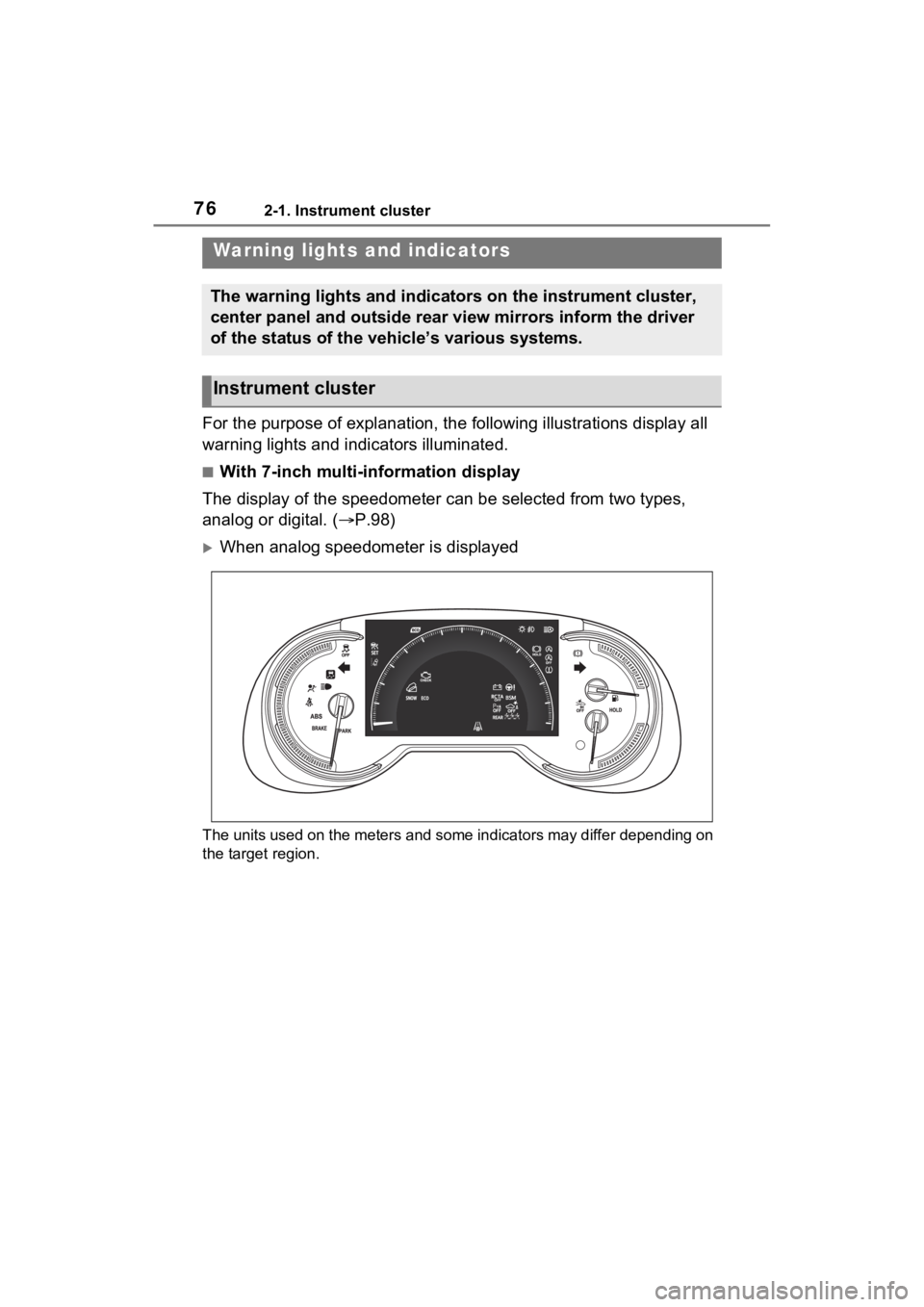

762-1. Instrument cluster
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
■With 7-inch multi-information display
The display of the speedometer can be selected from two types,
analog or digital. ( P.98)
When analog speedometer is displayed
The units used on the meters and some indicators may differ dep ending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver
of the status of the vehicle’s various systems.
Instrument cluster

772-1. Instrument cluster
2
Vehicle status information and indicators

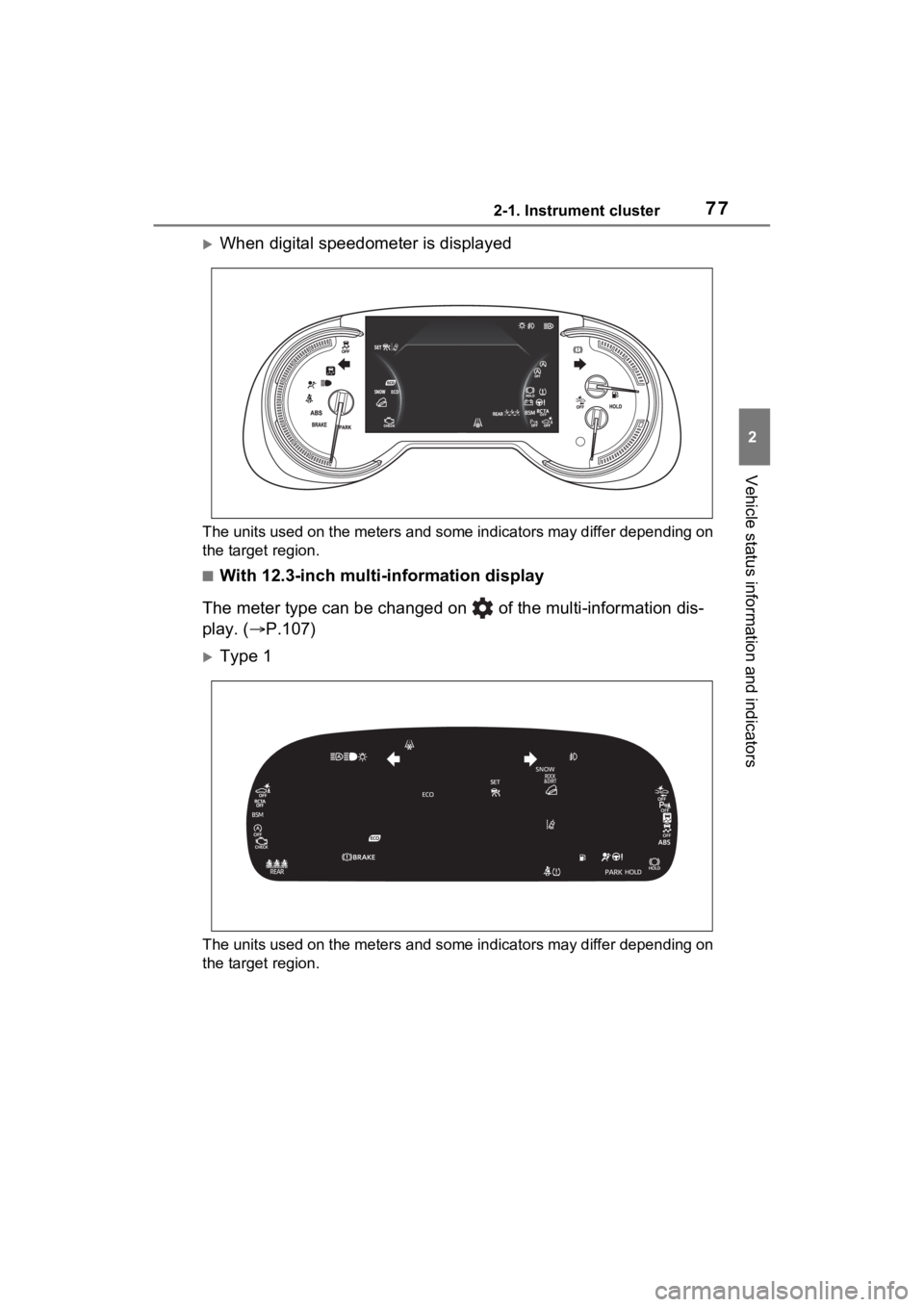

When digital speedometer is displayed
The units used on the meters and some indicators may differ depending on
the target region.
■With 12.3-inch multi-information display
The meter type can be changed on of the multi-information dis-
play. ( P.107)
Type 1
The units used on the meters and some indicators may differ dep ending on
the target region.

802-1. Instrument cluster
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the light does not come on, or
turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-informatio n display with a
message.
*3: Intuitive parking assist OFF indi- cator turns on when the engine
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*4: Vehicles with 12.3-inch multi-information display
The indicators inform the driver
of the operating state of the
vehicle’s various systems.
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SR S warning light
not come on when you start the
engine, this could mean that
these systems are not available to
help protect you in an accident,
which could result in death or seri-
ous injury. Have the vehicle
inspected by your Toyota dealer
immediately if this occurs.
Indicators
Turn signal indicator
(  P.212)
(U.S.A.)
Headlight indicator
( P.219)
(Canada)
Tail light indicator
( P.219)
Headlight high beam indi-
cator ( P.222)
Automatic High Beam
indicator ( P.222)
Fog light indicator (if
equipped) ( P.226)
Smart key system indica-
tor
*1 (  P.204)
Cruise control indicator
(  P.264)
Dynamic radar cruise
control indicator
(  P.264)
Cruise control “SET” indi-
cator ( P.264)
(white)
LTA indicator*2 ( P.255)
(Green)
LTA indicator*2 ( P.239,
255)
(Orange)
(Flashes)LTA indicator*2 (  P.255)

812-1. Instrument cluster
2
Vehicle status information and indicators
*1: This light illuminates on the multi-information display with a
message.
*2: Depending on the operating con-ditions of the system, the color
and state (illuminat ed/blinking) of
the indicator change.
*3: The light comes on when the system is turned off.
*4: Intuitive parking assist OFF indi-
cator turns on wh en the engine
switch is turned t o ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
*5: These lights tu rn on when the
engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
Intuitive parking assist
OFF indicator
*3, 4 (if
equipped) ( P.282)
PKSB OFF indicator
*3, 5
(if equipped) ( P.296)
(Flashes)
Slip indicator light*5
(  P.320)
VSC OFF indicator
*3, 5
(  P.320)
PCS warning light
*3, 5
(  P.242)
BSM outside rear view
mirror indicators
*5, 6 (if
equipped) ( P.276)
BSM indicator (if
equipped) ( P.275)
RCTA OFF indicator
*3, 5
(if equipped) ( P.289)
Stop & Start indicator
*5 (if
equipped) ( P.304)
Stop & Start cancel indi-
cator
*3, 5 (if equipped)
(  P.305)
Brake hold standby indi-
cator
*5 (  P.217)
Brake hold operated indi-
cator
*5 (  P.217)
Security indicator
*8
(  P.70, 72)
Low outside temperature
indicator
*7 (  P.91, 86)
Eco Driving Indicator
Light
*5 (  P.96)
(U.S.A.)
Parking brake indicator
( P.213)
(Canada)
Parking brake indicator
( P.213)
Eco drive mode indicator
(  P.310)
Sport mode indicator
(  P.310)
Mud & sand mode indica-
tor (if equipped)
(  P.313)
Rock & dirt mode indica-
tor (if equipped)
(  P.313)
Snow mode indicator (if
equipped) ( P.315)
Downhill assist control
system indicator
*5 (if
equipped) ( P.316)
“AIR BAG ON/OFF”
indicator
*5, 8
(  P.43)

822-1. Instrument cluster
after a few seconds. There may
be a malfunction in a system if
the lights do not turn on, or turn
off. Have the vehicle inspected
by your Toyota dealer.
*6: This light illumi nates on the out-
side rear view mirrors.
*7: When the outside temperature is approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.
*8: This light illumi nates on the cen-
ter panel.
■BSM (Blind Spot Monitor) out-
side rear view mirror indicators
(if equipped)
In order to confirm operation, the
BSM outside rear view mirror indica-
tors illuminate in the following situa-
tions:
●When the engine switch is turned
to ON while the BSM function is
enabled on the screen of the
multi-informat ion display.
●When the BSM function is
enabled on the screen of the
multi-information display while the
engine switch is in ON.
If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off afte r a few
seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction
in the system. If this occurs, have
the vehicle insp ected by your
Toyota dealer.
