TOYOTA RAV4 EV 2012 1.G Quick Reference Guide

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29
The amount of charge remaining in the traction battery and charging/Pre-climate
schedule settings can be confirmed, and the schedule can be adjusted according
to your next departure time.
Step 1 Touch EV.
Step 2 Touch “Charge Summary.”
The next scheduled charge (if previously set) will also be shown on this screen. If
an earlier charge time is desired, a one-time departure may be scheduled here.
Step 3 Touch “Edit.”
Step 4 Touch “Yes.”
The previously scheduled charge
will be ignored until the one-time
departure is completed.
In the unlikely event that the electrical leakage detection function is not
operating properly, contact your Toyota dealer as soon as possible.
Check that it is operating properly by following the procedure below.
Step 1 Insert the charging cable into the electrical receptacle of the external
power source.
Step 2 Press the test button on the CCID (Charging Circuit Interrupting Device).
If the error warning indicator
illuminates when the test button
is pressed, the function is
operating correctly.
Step 3 Press the reset button on the CCID (Charging Circuit Interrupting Device).
Turn off the error warning indicator. Charging cannot be carried out while the
error warning indicator is illuminated.
Charging can be continued by following the normal procedure. If not charging,
store the charging cable.
See the Owner’s Manual for important precautionary information.
Charging information and warning messages The first time the POWER switch is
turned to ON mode after charging is completed, a message detailing the results
of the charge is shown. Also, if an operation that cannot be carried out during
charging was attempted, a warning message will be shown.Inspecting electrical leakage
detection function
For details on setting one-time departure, see Charging section.
2012Rav4EV_Text.indd 299/17/12 1:25 PM

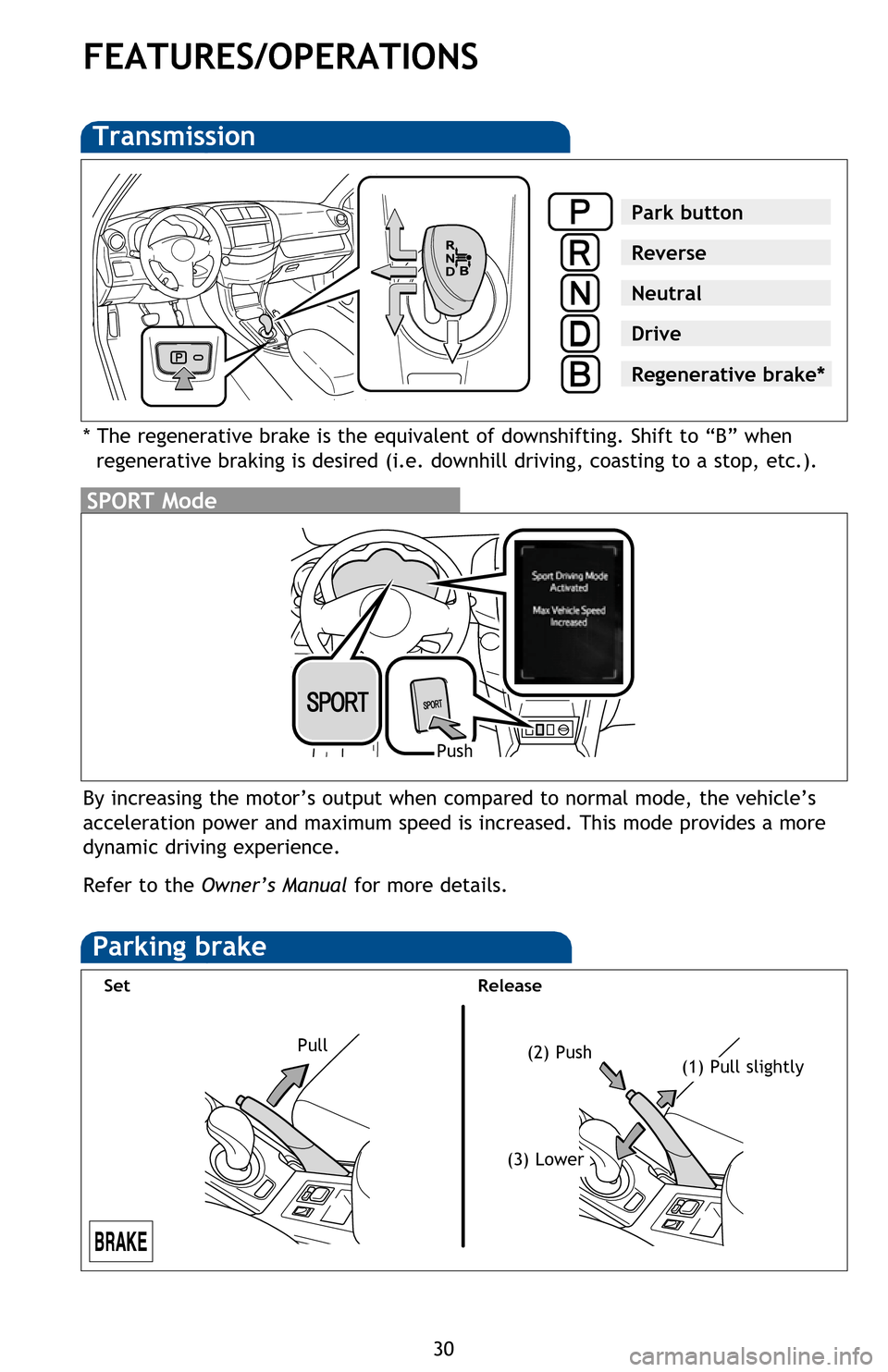

30
Parking brake
FEATURES/OPERATIONS
Transmission
*
The regenerative brake is the equivalent of downshifting. Shift to “B” when
regenerative braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park button
Reverse
Neutral
Drive
Regenerative brake*
SPORT Mode
By increasing the motor’s output when compared to normal mode, the vehicle’s
acceleration power and maximum speed is increased. This mode provides a more
dynamic driving experience.
Refer to the Owner’s Manual for more details.
Push
Pull
(2) Push(1) Pull slightly
(3) Lower
Set Release
Seat adjustments-Rear
Seat position (forward/backward)
Seatback angle
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat adjustments-Front
2012Rav4EV_Text.indd 309/17/12 1:26 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
31
*
The regenerative brake is the equivalent of downshifting. Shift to “B” when
regenerative braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park button
Reverse
Neutral
Drive
Regenerative brake*
By increasing the motor’s output when compared to normal mode, the vehicle’s
acceleration power and maximum speed is increased. This mode provides a more
dynamic driving experience.
Refer to the Owner’s Manual for more details.
(1) Pull slightly
Seat adjustments-Rear
Seat position (forward/backward)
Seatback angle
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat adjustments-Front
2012Rav4EV_Text.indd 319/17/12 1:26 PM

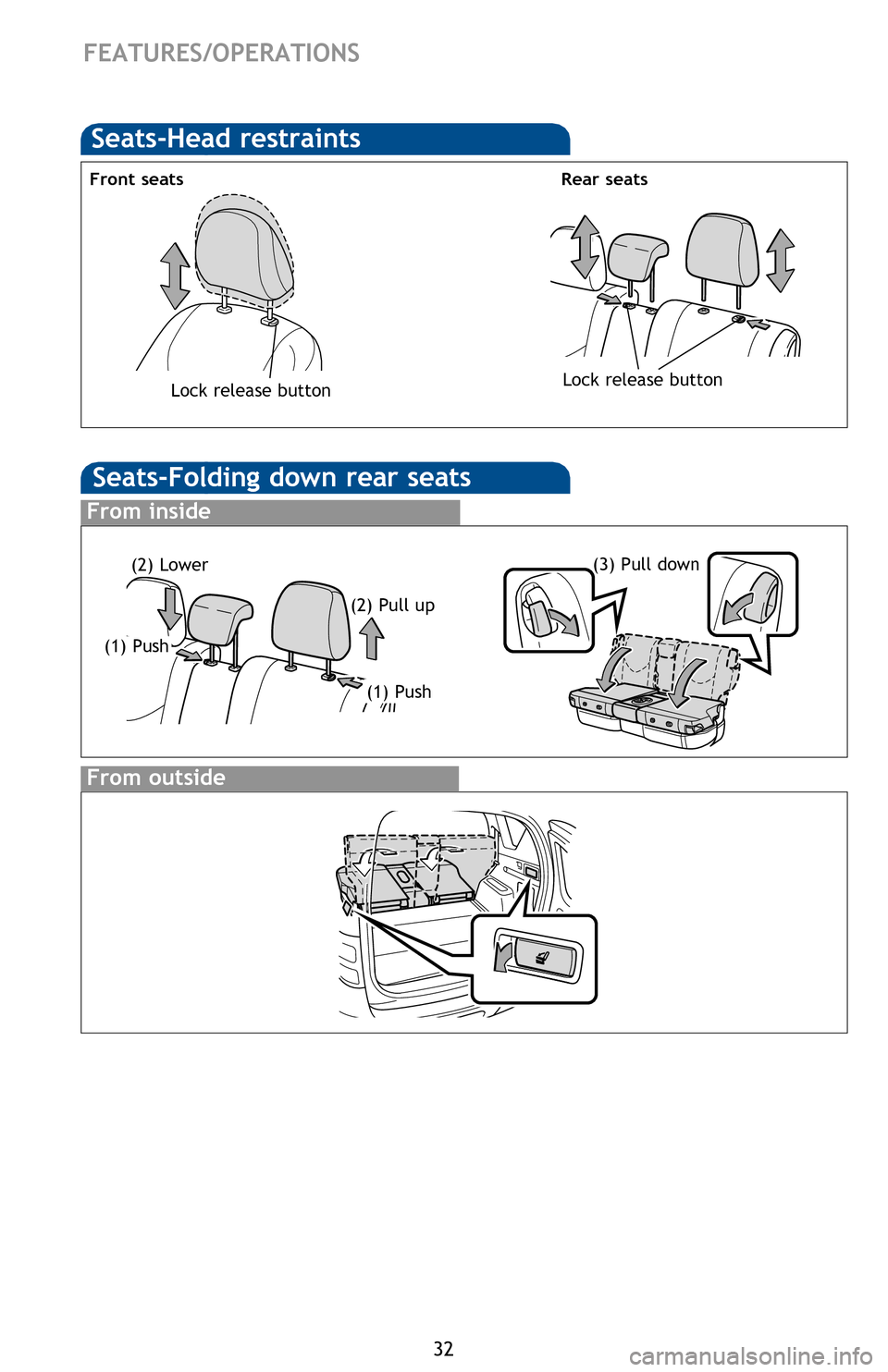

32
FEATURES/OPERATIONS
(2) Lower(3) Pull down
From inside
(1) Push
Seats-Folding down rear seats
(1) Push(2) Pull up
From outside
Seats-Head restraints
Front seatsRear seats
Lock release buttonLock release button
Lights & turn signals
Turn signals
Headlights
-Daytime Running Light system (DRL)
Automatically turns on the Daytime Running Lights after EV System is started
and parking brake released .
-Automatic light cut off system Automatically turns lights off after a delay
of 30 seconds, or the lock switch on remote may be pushed after locking.
2012Rav4EV_Text.indd 329/17/12 1:27 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
33
Lights & turn signals
Turn signals
Headlights
Low beam
-Daytime Running Light system (DRL)
Automatically turns on the Daytime Running Lights after EV System is started
and parking brake released .
-Automatic light cut off system Automatically turns lights off after a delay
of 30 seconds, or the lock switch on remote may be pushed after locking.
High beam flasher
High beam
Right turn
Lane change
Lane change Left turn
Headlights
Parking lights Auto
DRL OFF
2012Rav4EV_Text.indd 339/17/12 1:28 PM

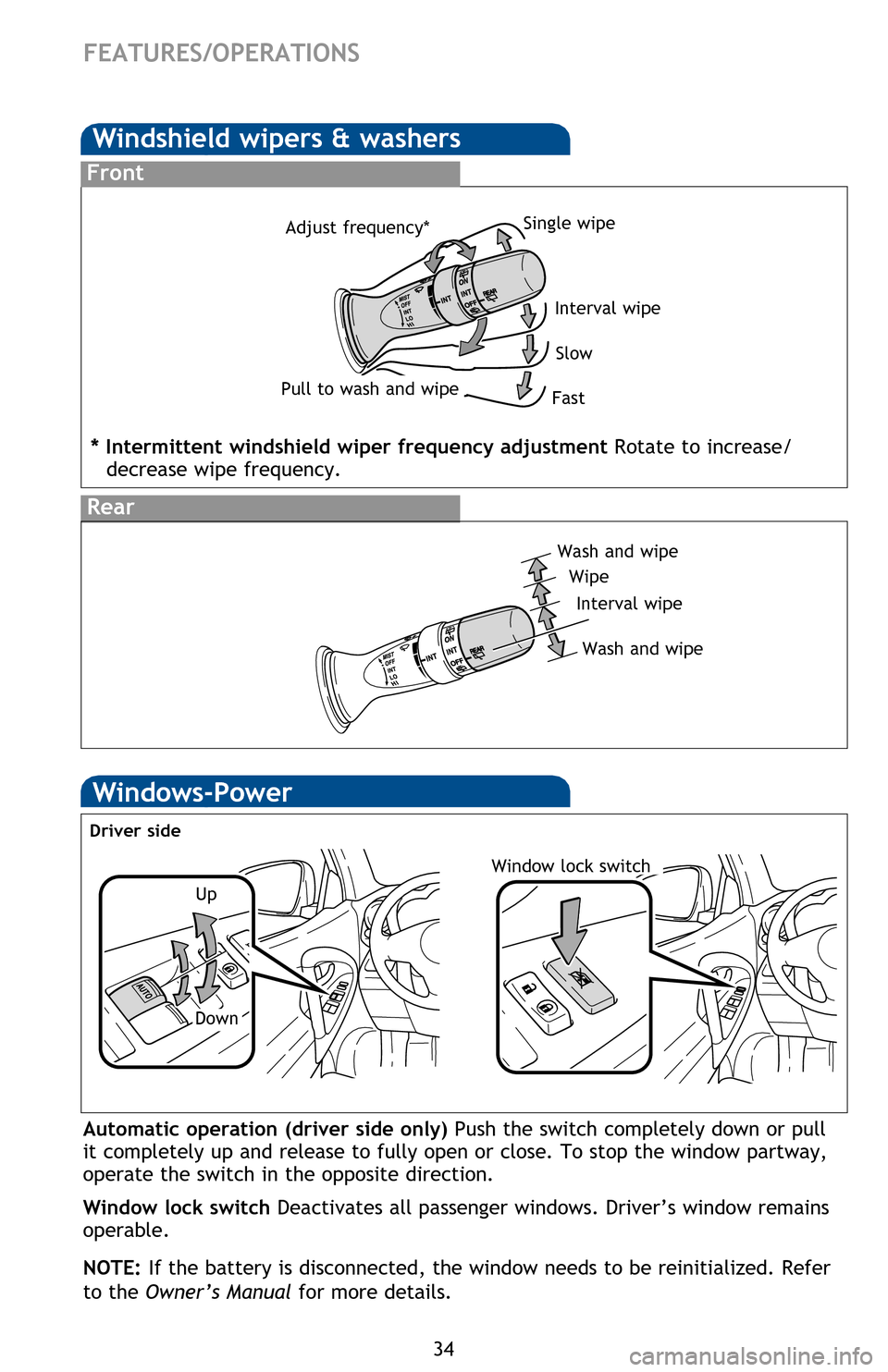

34
FEATURES/OPERATIONS
Windows-Power
Driver side
Automatic operation (driver side only) Push the switch completely down or pull
it completely up and release to fully open or close. To stop the window partway,
operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
NOTE: If the battery is disconnected, the window needs to be reinitialized. Refer
to the Owner’s Manual for more details.
Up
Down
Window lock switch
Windshield wipers & washers
Rear
Front
Pull to wash and wipeAdjust frequency*
Interval wipe
Slow
Fast
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Single wipe
* Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
Door locks
Light control-Instrument panel
With the dial turned fully up, instrument panel lights will not dim when the
headlights are turned ON.
2012Rav4EV_Text.indd 349/17/12 1:29 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
35
Automatic operation (driver side only) Push the switch completely down or pull
it completely up and release to fully open or close. To stop the window partway,
operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
NOTE: If the battery is disconnected, the window needs to be reinitialized. Refer
to the Owner’s Manual for more details.
* Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.

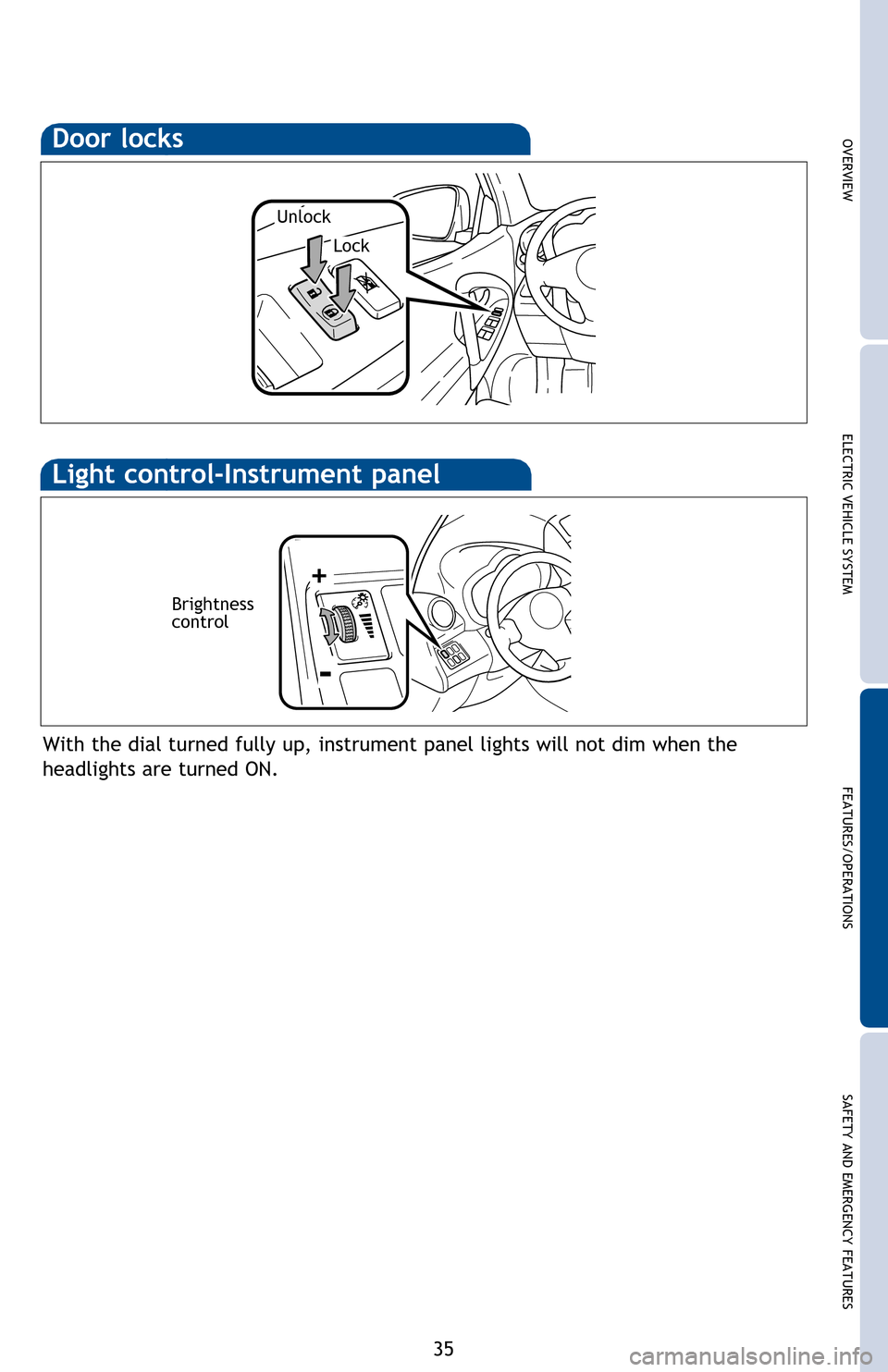

Door locks
Unlock
Lock
Light control-Instrument panel
With the dial turned fully up, instrument panel lights will not dim when the
headlights are turned ON.
Brightness
control
+
-
2012Rav4EV_Text.indd 359/17/12 1:29 PM

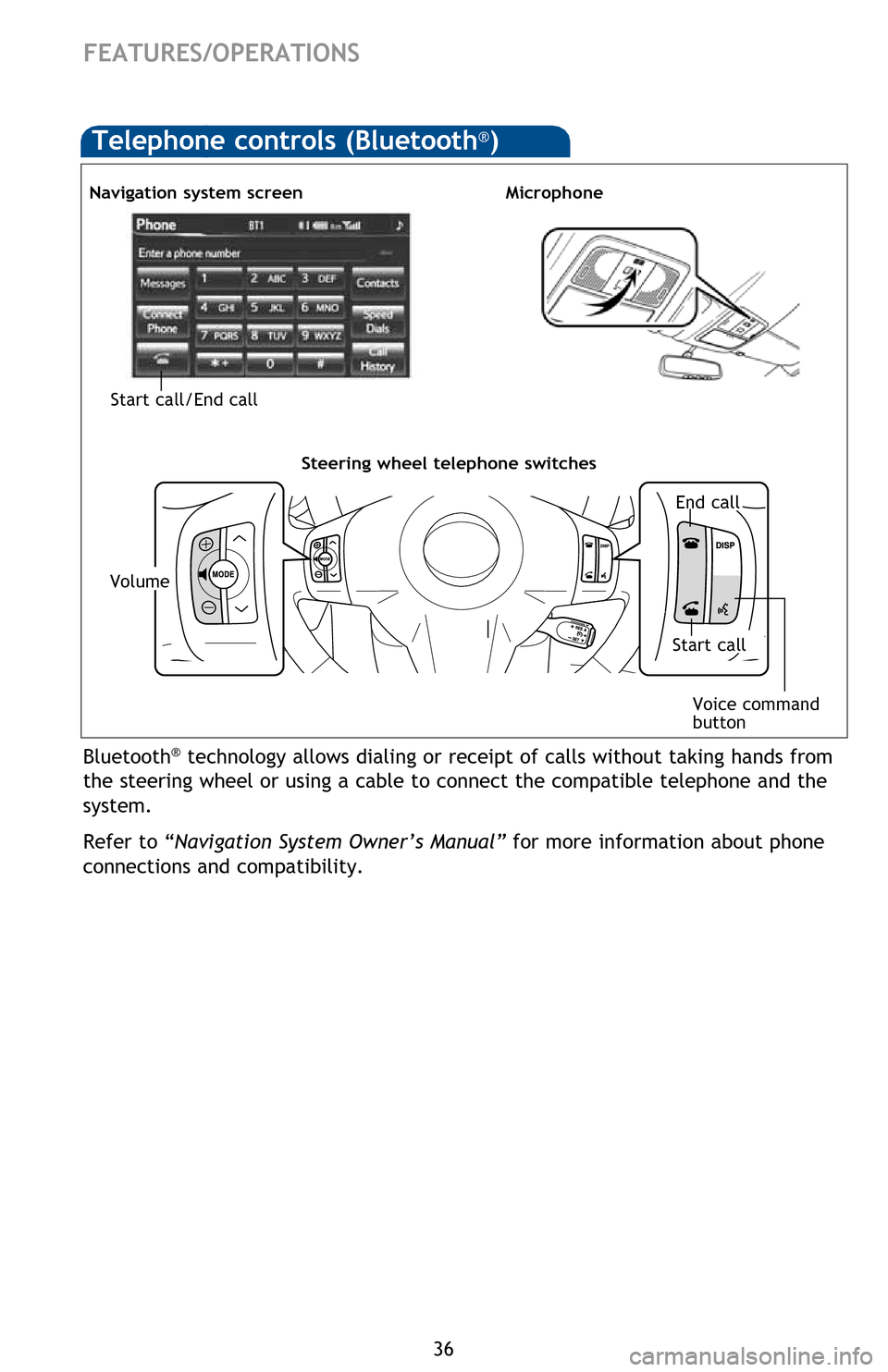

36
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Navigation System Owner’s Manual” for more information about phone
connections and compatibility.
Navigation system screen
Volume
Start call/End call
FEATURES/OPERATIONS
Voice command
button
End call
Start call
Telephone controls (Bluetooth®)
Steering wheel telephone switches
Microphone
Seat heaters
Air Conditioning/Heating
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Temperature selector (driver side)
Windshield defogger
HVAC display
Rear defogger
Temperature selector (front passenger side)
Air Conditioning ON/OFF
“SYNC” button
ON: Separate temperature settings for driver and passenger.
OFF: Synchronize temperature settings for driver and passenger.
Recirculate cabin air (fresh air when OFF)
Climate control OFF
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging.
“ ” mode uses fresh air only.
ECO mode selector
Automatic Air Conditioning
Refer to the Owner’s Manual for more details.
2012Rav4EV_Text.indd 369/17/12 1:30 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
37
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Navigation System Owner’s Manual” for more information about phone
connections and compatibility.
FEATURES/OPERATIONS
Voice command
button
Seat heaters
Air Conditioning/Heating
Automatic climate control ON
Adjust the temperature setting, and airflow vents and fan will adjust
automatically.
Temperature selector (driver side)
Windshield defogger
HVAC display
Rear defogger
Temperature selector (front passenger side)
Air Conditioning ON/OFF
“SYNC” button
ON: Separate temperature settings for driver and passenger.
OFF: Synchronize temperature settings for driver and passenger.
Recirculate cabin air (fresh air when OFF)
Climate control OFF
Fan speed
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window fogging.
“
” mode uses fresh air only.
ECO mode selector
Automatic Air Conditioning
Left front seatRight front seat
Refer to the Owner’s Manual for more details.
2012Rav4EV_Text.indd 379/17/12 1:30 PM

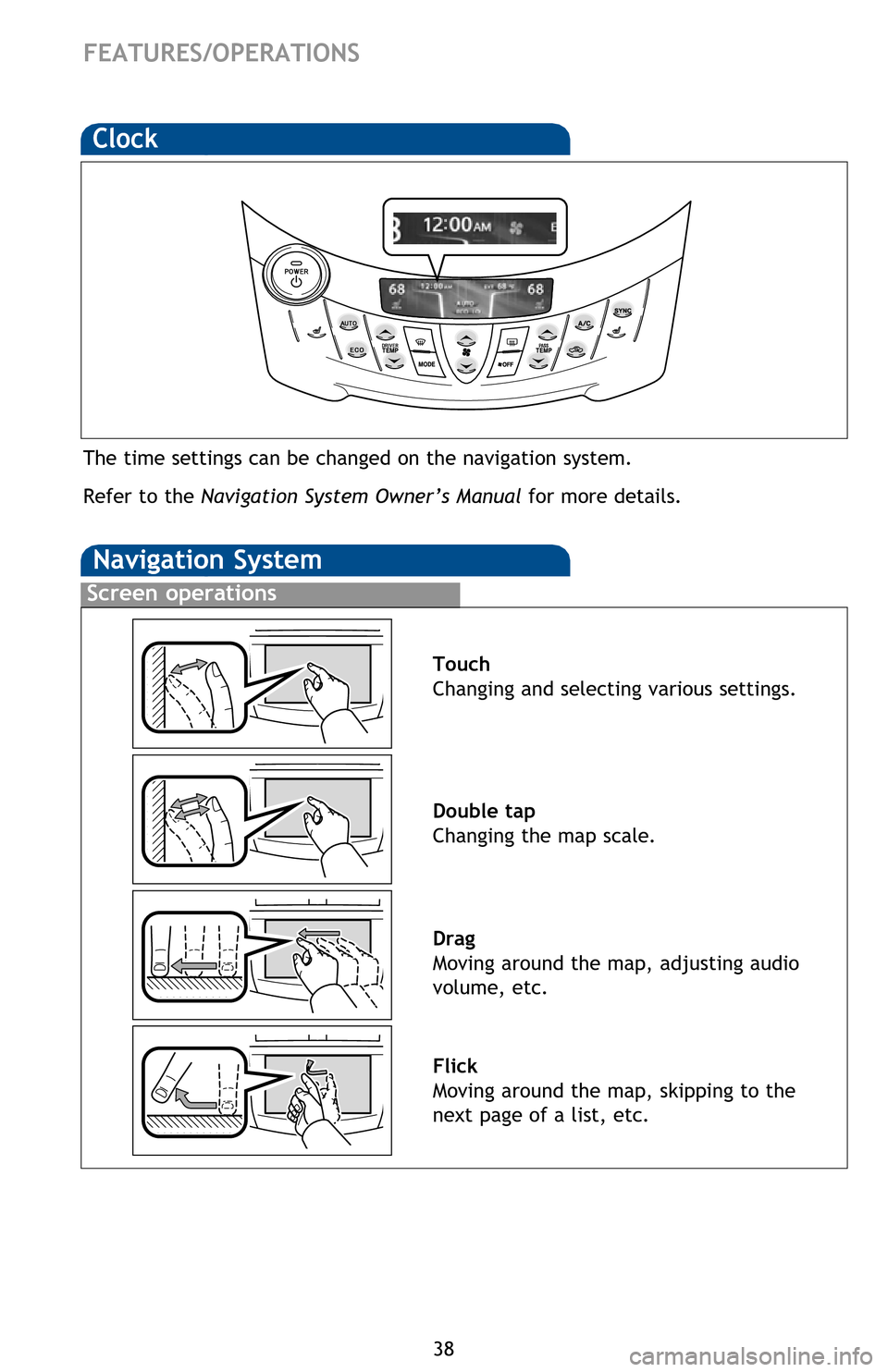

38
FEATURES/OPERATIONS
Clock
The time settings can be changed on the navigation system.
Refer to the Navigation System Owner’s Manual for more details.
Screen operations
Navigation System
Touch
Changing and selecting various settings.
Double tap
Changing the map scale.
Drag
Moving around the map, adjusting audio
volume, etc.
Flick
Moving around the map, skipping to the
next page of a list, etc.
Functions
Refer to the Navigation System Owner’s Manual for instructions and more
information. Touch to display the radio control screen.
Touch to display the media control screen.
Touch to display the “Apps” screen.
Touch to display the audio control screen.
Touch to display the hands-free operation screen.
Touch to display the “Information” screen.
Touch to display the “Setup” screen.
Touch to view and set
Energy Monitor, Charge Summary, Charging & Pre-
climate Setup and Range Map settings. For details, refer to the Owner’s
Manual.
Press to display the “Main Menu” screen. Press and hold to turn off the screen
and audio system.
Touch to display the “Destination” screen.
Touch to display the current position and start guidance.
Touch to turn the audio system on and off.
