warning TOYOTA RAV4 EV 2012 1.G Quick Reference Guide

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY
FEATURES
* Visit your Toyota dealer for information on customizing this feature.
INDEX
OVERVIEWFEATURES/OPERATIONS
Air Conditioning/Heating 37
Clock 38
Cruise control 41
Door locks 35
Hill-start Assist Control (HAC) 43
iPod
®/USB/AUX port 40Light control-Instrument panel 35Lights & turn signals 33
Multi-Information Display 42
Navigation system 38-39
Parking brake 30
Power outlets-12V DC 42
Seat adjustments-Front 31
Seat adjustments-Rear 31
Seat heaters 37
Seats-Folding down rear seats 32
Seats-Head restraints 32
Steering wheel switches 40
Telephone controls (Bluetooth
®) 36
Tilt and telescopic steering wheel 41
Transmission 30
VSC OFF button 43
Windows-Power 34
Windshield wipers & washers
34



Doors-Child safety locks 44
Emergency tire puncture repair kit 45
Floor mat installation 47
Seat belts 44
Seat belts-Shoulder belt anchor 45
Star Safety System
TM 46-47
Tire Pressure Monitoring
(warning) System
Charge port 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Motor maintenance 9
Smart Key system* 7



Charging 19-24
Charging cable-Plugging in 14-17
Charging cable-Unplugging 18
Charging equipment 12
Charging-Power sources 13
Confirming charge settings 28
Electric Vehicle System 10
Extended charge mode 25-26
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 11




27-28
29
45
SAFETY AND EMERGENCY FEATURES
ELECTRIC VEHICLE SYSTEM
2012
RAV4 EV
2012Rav4EV_Text.indd 19/17/12 1:07 PM

4
OVERVIEW
Open door warning
EV System indicator
SOC (State Of Charge) gauge
Driving range
Service indicator and reminder
Speedometer
Multi-Information Display
Transmission shift position indicator
Odometer and two trip meters
Display change button
Instrument cluster
12-volt battery charging system warning1
Plug-in indicator (yellow/green) Brake system warning (red)
1
Output control warning
Master warning
Indicator symbols
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
SOC (state of charge) warning
Brake system warning (yellow)1
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2012 Owner’s Manual.1 If indicator does not turn off within a few seconds of starting EV System, there may be a malfunction. Have vehicle inspected by your Toyota dealer.
2012Rav4EV_Text.indd 49/17/12 1:09 PM

OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
EV System indicator
SOC (State Of Charge) gauge
Driving range
Service indicator and reminder
Speedometer
Multi-Information Display
Transmission shift position indicator
Odometer and two trip meters
Display change button
Transmission shift position indicator
Turn signal indicator
SRS Airbag warning1
Headlight low/high beam indicator
Low Tire Pressure Warning1
Electric power steering system warning1
Slip indicator/Hill-start Assist Control (HAC) indicator1
Cruise control indicator2/Cruise control SET indicator2
Anti-lock Brake System warning1
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2012 Owner’s Manual.1 If indicator does not turn off within a few seconds of starting EV System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Vehicle Stability Control (VSC) OFF indicator1
Traction Control OFF indicator1
Front passenger occupant classification indicator
Charging indicator
READY indicator ECO Driving Indicator Light
1
SPORT mode indicator
Immobilizer indicator
2012Rav4EV_Text.indd 59/17/12 1:10 PM

12
ELECTRIC VEHICLE SYSTEM
Charging cable
Charging port door
Charging port cap
Charging port
Charging indicator
Charging equipmentCharging-Power sources
A Level 1 charging cable is provided with your RAV4 EV. However, a Level 2 (240V)
charging station is strongly recommended. Level 2 charging offers a faster charge
time than AC120V charging. Please contact your Authorized Toyota RAV4 EV Dealer
for more information on obtaining a Level 2 charging station for your home.
-Connect your Level 1 charging cable to an AC 120V electrical receptacle (NEMA 5-15R or NEMA 5-20R) with a Ground-Fault Circuit-Interrupter (GFCI) and an over
current circuit breaker in the service panel.
-Toyota recommends using a dedicated receptacle with a single socket. If the receptacle has two sockets, do not plug any other item into the other socket.
-For public charging, this vehicle may only be charged at stations that are SAE J1772 compliant. Use your navigation system to search for nearby public charging
stations.
-When charging outdoors, be sure to connect to a rain tight electrical receptacle that is appropriate for outdoor use.
NOTE: Do not attempt to use a damaged or loose electrical receptacle to
charge your vehicle.
See the Owner’s Manual for important precautionary information.
Charging connector
Latch release button
CCID (Charging Circuit Interrupting Device)
Plug
Power indicator
Error warning indicator
Test button
Reset button
The charging cable included with the vehicle is designed to be connected only
to an AC 120V power source.
2012Rav4EV_Text.indd 129/17/12 1:14 PM

OVERVIEW
ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

13
Charging cable
Charging port door
Charging port cap
Charging port
Charging indicator
Charging-Power sources
A Level 1 charging cable is provided with your RAV4 EV. However, a Level 2 (240V)
charging station is strongly recommended. Level 2 charging offers a faster charge
time than AC 120V charging. Please contact your Authorized Toyota RAV4 EV Dealer
for more information on obtaining a Level 2 charging station for your home.
-Connect your Level 1 charging cable to an AC 120V electrical receptacle (NEMA 5-15R or NEMA 5-20R) with a Ground-Fault Circuit-Interrupter (GFCI) and an over
current circuit breaker in the service panel.
-Toyota recommends using a dedicated receptacle with a single socket. If the receptacle has two sockets, do not plug any other item into the other socket.
-For public charging, this vehicle may only be charged at stations that are SAE J1772 compliant. Use your navigation system to search for nearby public charging
stations.
-When charging outdoors, be sure to connect to a rain tight electrical receptacle that is appropriate for outdoor use.
NOTE: Do not attempt to use a damaged or loose electrical receptacle to
charge your vehicle.
Do not connect the charging
cable to a multi-outlet adapter,
multi-plugs, or conversion plug.
Do not connect the charging cable
to an extension cable. The cable
may overheat and does not contain
a Ground-Fault Circuit-Interrupter
(GFCI).
Do not connect to a power strip.
See the Owner’s Manual for important precautionary information.
Charging connector
Latch release button
CCID (Charging Circuit Interrupting Device)
Plug
Power indicator
Error warning indicator
Test button
Reset button
The charging cable included with the vehicle is designed to be connected only
to an AC 120V power source.
2012Rav4EV_Text.indd 139/18/12 4:11 PM

14
ELECTRIC VEHICLE SYSTEM

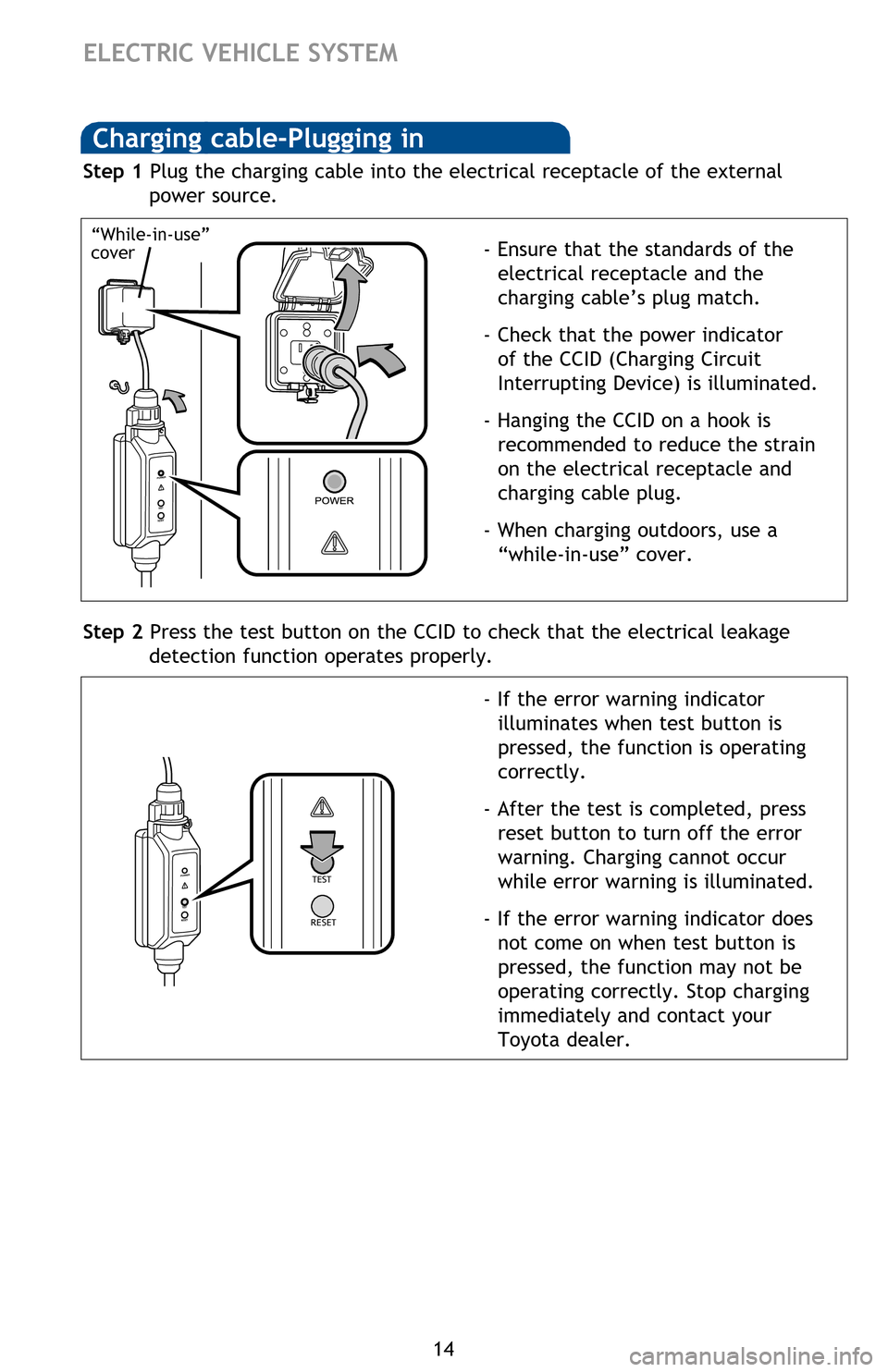

Charging cable-Plugging in
Step 1 Plug the charging cable into the electrical receptacle of the external power source.
- Ensure that the standards of the electrical receptacle and the
charging cable’s plug match.
- Check that the power indicator of the CCID (Charging Circuit
Interrupting Device) is illuminated.
- Hanging the CCID on a hook is recommended to reduce the strain
on the electrical receptacle and
charging cable plug.
- When charging outdoors, use a “while-in-use” cover.
Step 2 Press the test button on the CCID to check that the electrical leakage detection function operates properly.
- If the error warning indicator illuminates when test button is
pressed, the function is operating
correctly.
- After the test is completed, press reset button to turn off the error
warning. Charging cannot occur
while error warning is illuminated.
- If the error warning indicator does not come on when test button is
pressed, the function may not be
operating correctly. Stop charging
immediately and contact your
Toyota dealer.
Step 3 Pull up the charging port door lever.
Step 4 Open the charging port cap by releasing the clip.
Step 5 Remove the charging connector cap. Affix the cap to the cable.
“While-in-use”
cover
2012Rav4EV_Text.indd 149/17/12 1:17 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Step 1 Plug the charging cable into the electrical receptacle of the external
power source.
- Ensure that the standards of the electrical receptacle and the
charging cable’s plug match.
- Check that the power indicator of the CCID (Charging Circuit
Interrupting Device) is illuminated.
- Hanging the CCID on a hook is recommended to reduce the strain
on the electrical receptacle and
charging cable plug.
- When charging outdoors, use a “while-in-use” cover.
Step 2 Press the test button on the CCID to check that the electrical leakage detection function operates properly.
- If the error warning indicator illuminates when test button is
pressed, the function is operating
correctly.
- After the test is completed, press reset button to turn off the error
warning. Charging cannot occur
while error warning is illuminated.
- If the error warning indicator does not come on when test button is
pressed, the function may not be
operating correctly. Stop charging
immediately and contact your
Toyota dealer.

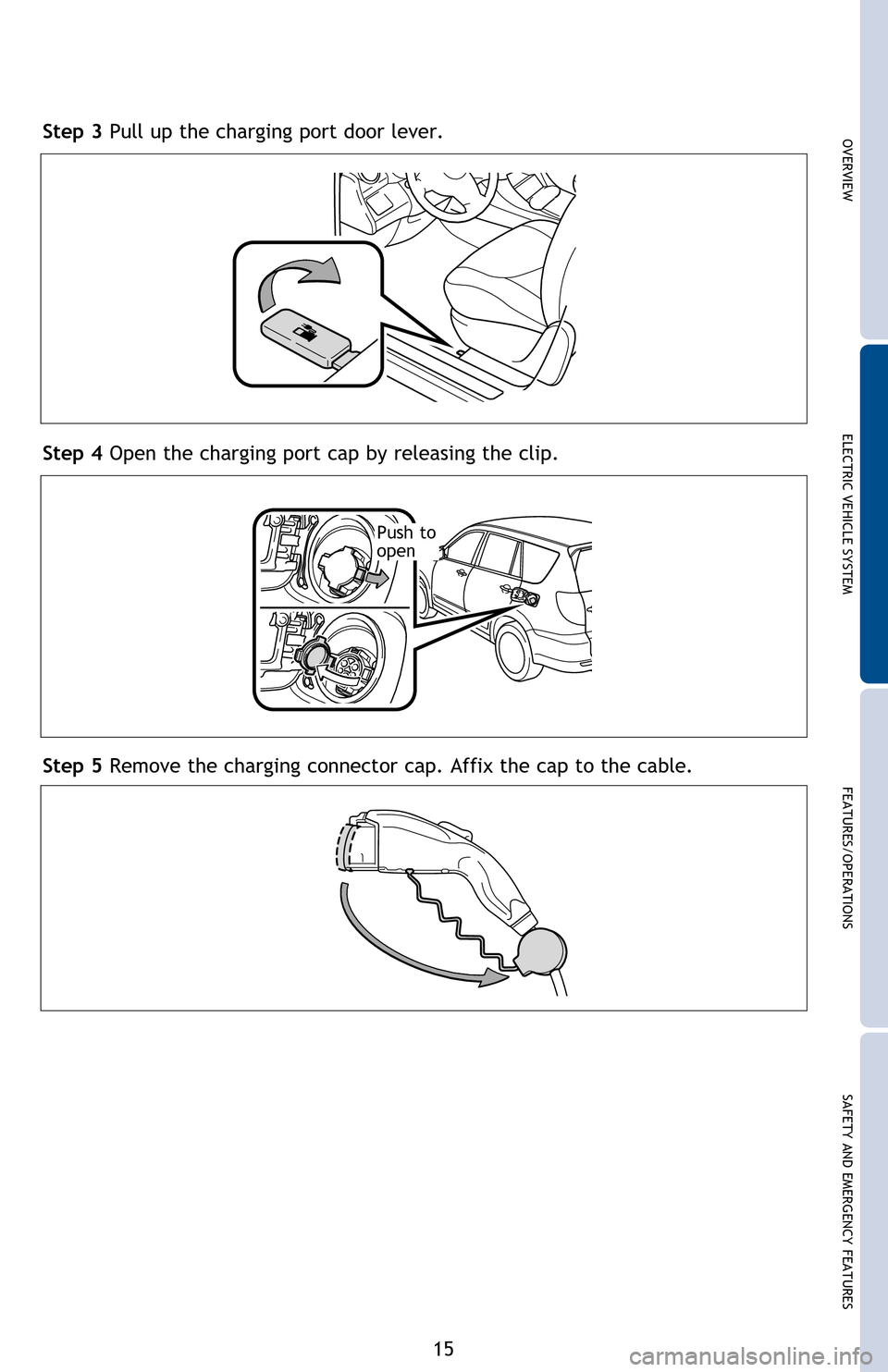

Step 3 Pull up the charging port door lever.
Step 4 Open the charging port cap by releasing the clip.
Step 5 Remove the charging connector cap. Affix the cap to the cable.
Push to
open
2012Rav4EV_Text.indd 159/17/12 1:18 PM

26
ELECTRIC VEHICLE SYSTEM
Charging and Pre-climate results While charging/Pre-climate operations are being
performed or after they are finished, the following information is displayed for 30
seconds when the driver’s door is opened.
Plug connection status
Current charging status
Estimated charging time (both 120V and 240V)
When the plug is connected, only the voltage of the connected receptacle
is displayed.
Pre-climate status
Departure time*
* If Pre-climate operations are performed using a smartphone, this will not be displayed even if the driver’s door is opened.
In the following conditions, only the plug connection information will be displayed:
- When the POWER switch is turned to ON mode after charging/Pre-climate operations.
- When the charging/Pre-climate schedule is not set.
Note: If Pre-climate operations are performed using a smartphone, Pre-climate
results will be displayed.

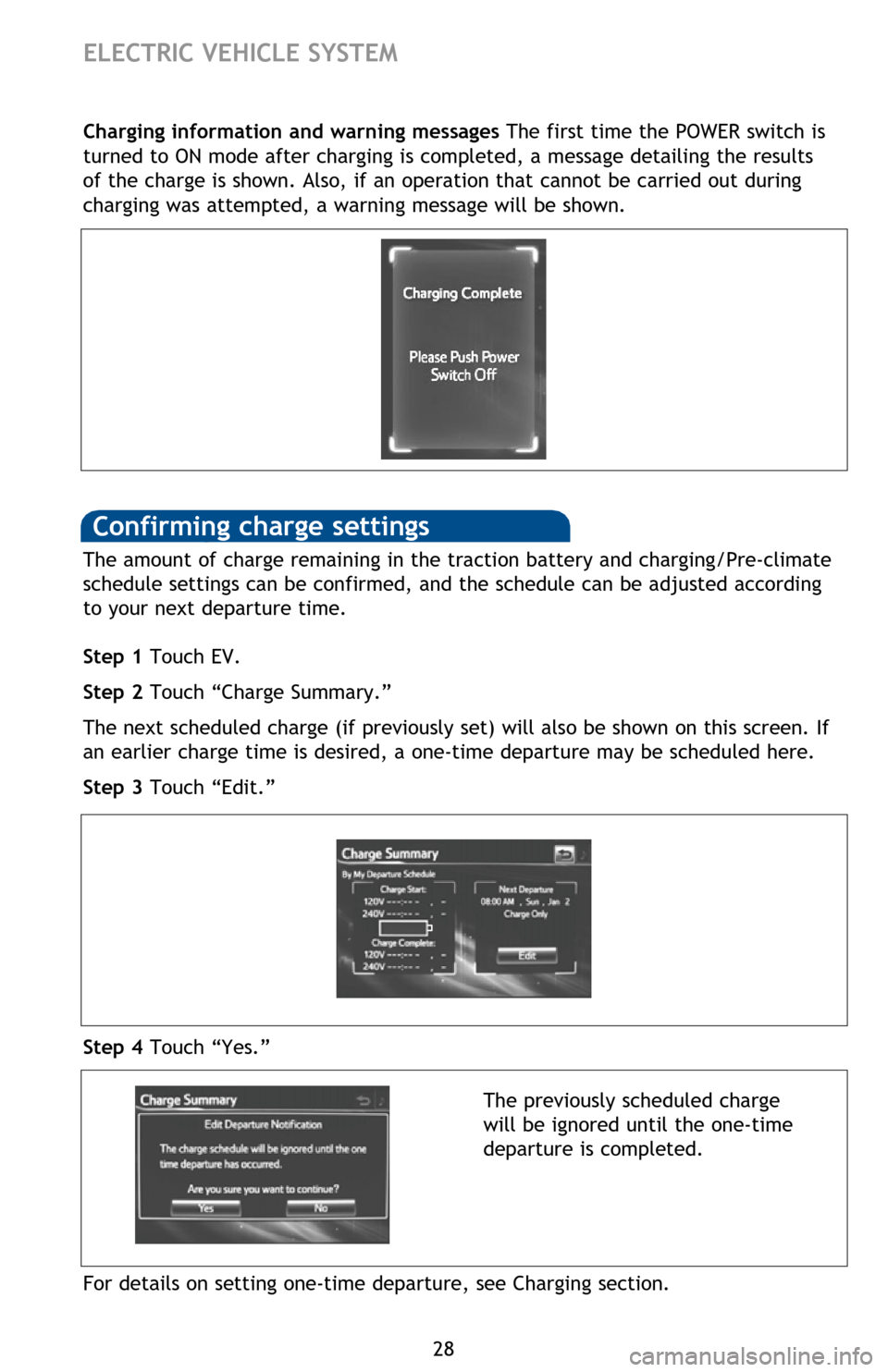

Charging information and warning messages The first time the POWER switch is
turned to ON mode after charging is completed, a message detailing the results
of the charge is shown. Also, if an operation that cannot be carried out during
charging was attempted, a warning message will be shown.
Multi-Information Display-Charging

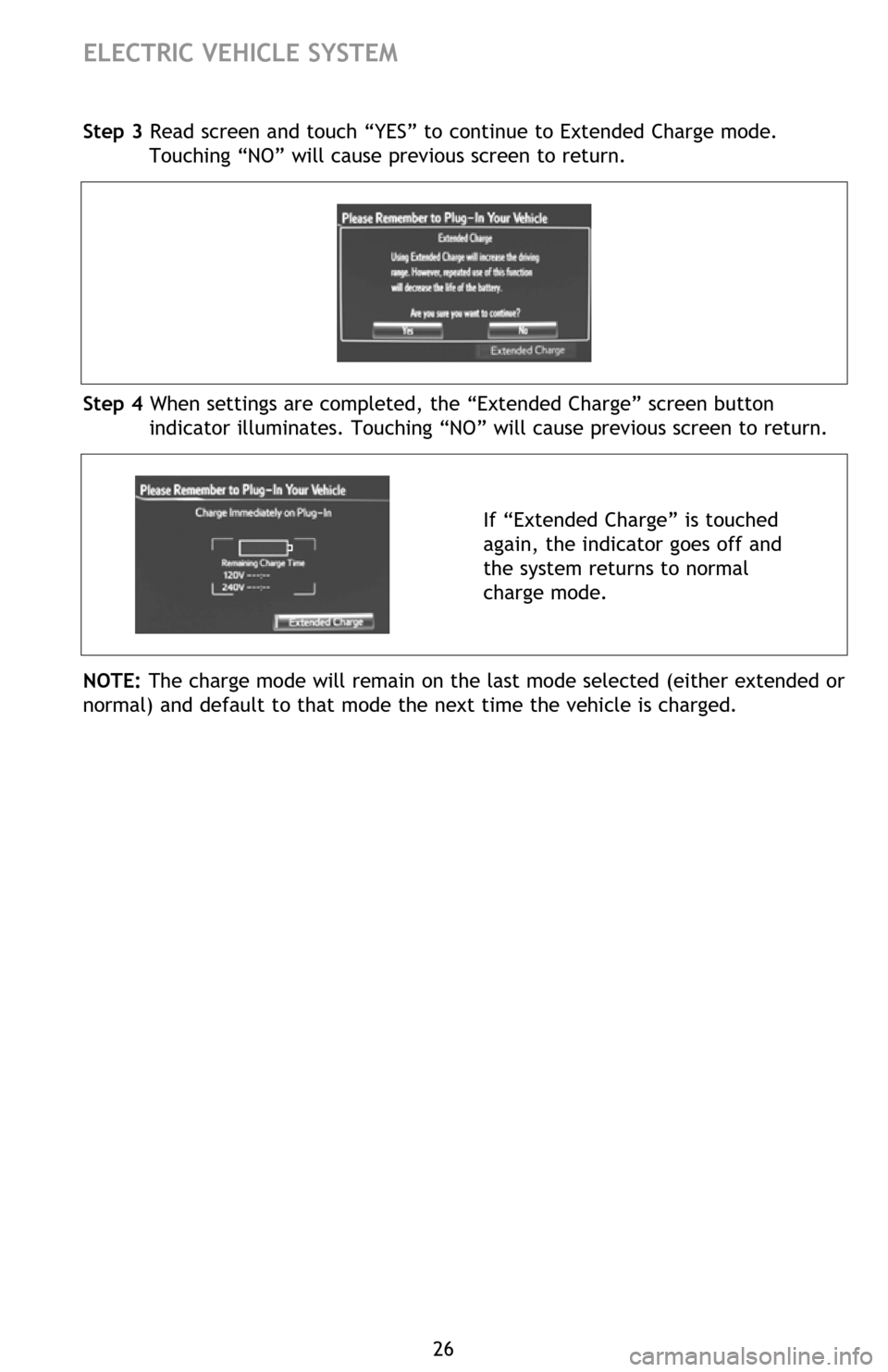

informationStep 3 Read screen and touch “YES” to continue to Extended Charge mode. Touching “NO” will cause previous screen to return.
Step 4 When settings are completed, the “Extended Charge” screen button indicator illuminates. Touching “NO” will cause previous screen to return.
If “Extended Charge” is touched
again, the indicator goes off and
the system returns to normal
charge mode.
NOTE: The charge mode will remain on the last mode selected (either extended or
normal) and default to that mode the next time the vehicle is charged.
2012Rav4EV_Text.indd 269/17/12 1:22 PM

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27

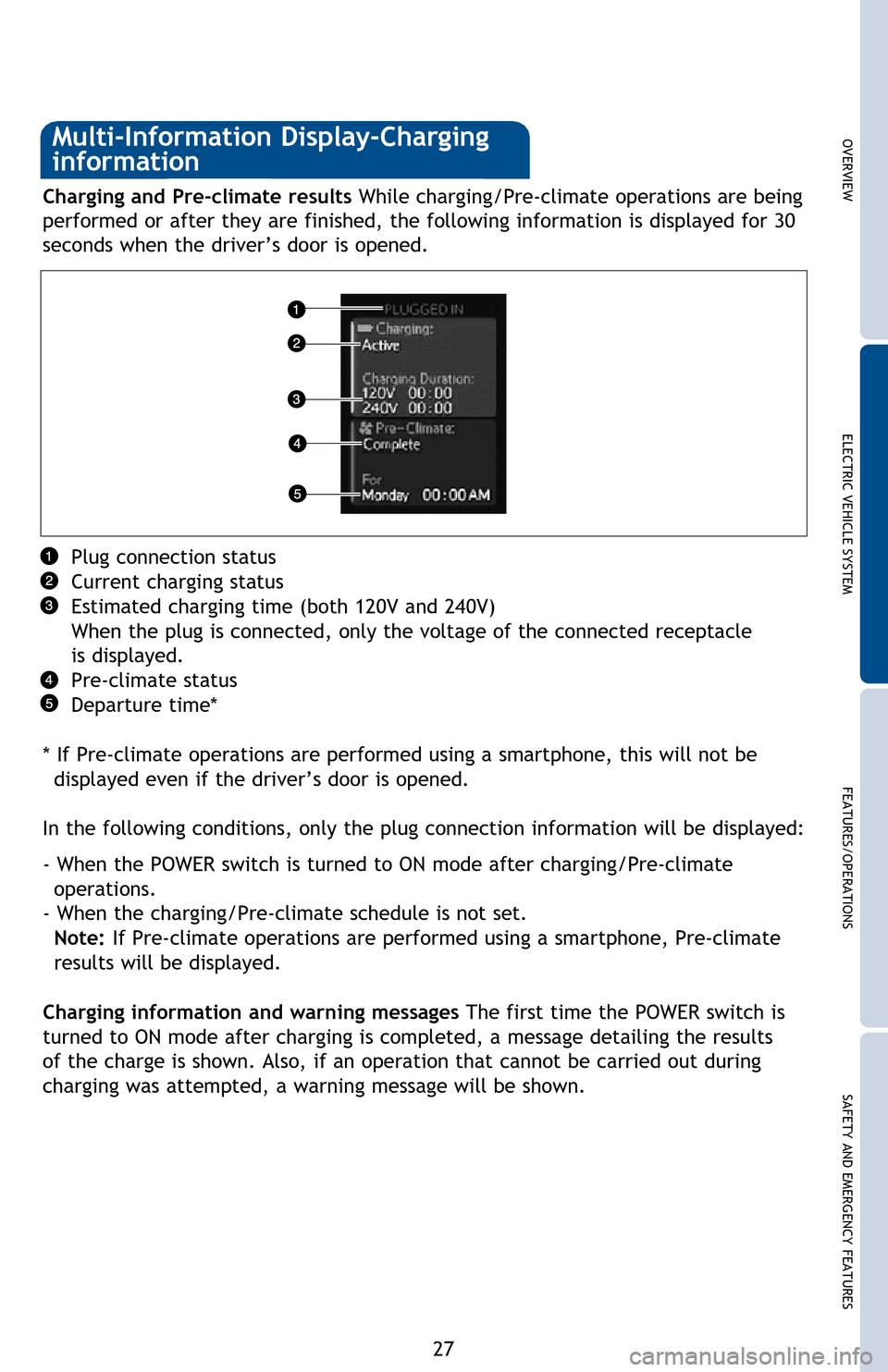

Charging and Pre-climate results While charging/Pre-climate operations are being
performed or after they are finished, the following information is displayed for 30
seconds when the driver’s door is opened.
Plug connection status
Current charging status
Estimated charging time (both 120V and 240V)
When the plug is connected, only the voltage of the connected receptacle
is displayed.
Pre-climate status
Departure time*
* If Pre-climate operations are performed using a smartphone, this will not be displayed even if the driver’s door is opened.
In the following conditions, only the plug connection information will be displayed:
- When the POWER switch is turned to ON mode after charging/Pre-climate operations.
- When the charging/Pre-climate schedule is not set.
Note: If Pre-climate operations are performed using a smartphone, Pre-climate
results will be displayed.
Charging information and warning messages The first time the POWER switch is
turned to ON mode after charging is completed, a message detailing the results
of the charge is shown. Also, if an operation that cannot be carried out during
charging was attempted, a warning message will be shown.
Multi-Information Display-Charging
informationStep 3 Read screen and touch “YES” to continue to Extended Charge mode. Touching “NO” will cause previous screen to return.
Step 4 When settings are completed, the “Extended Charge” screen button indicator illuminates. Touching “NO” will cause previous screen to return.
NOTE: The charge mode will remain on the last mode selected (either extended or
normal) and default to that mode the next time the vehicle is charged.
2012Rav4EV_Text.indd 279/17/12 1:23 PM

28
ELECTRIC VEHICLE SYSTEM
Confirming charge settings
The amount of charge remaining in the traction battery and charging/Pre-climate
schedule settings can be confirmed, and the schedule can be adjusted according
to your next departure time.
Step 1 Touch EV.
Step 2 Touch “Charge Summary.”
The next scheduled charge (if previously set) will also be shown on this screen. If
an earlier charge time is desired, a one-time departure may be scheduled here.
Step 3 Touch “Edit.”
Step 4 Touch “Yes.”
The previously scheduled charge
will be ignored until the one-time
departure is completed.
In the unlikely event that the electrical leakage detection function is not
operating properly, contact your Toyota dealer as soon as possible.
Check that it is operating properly by following the procedure below.
Step 1 Insert the charging cable into the electrical receptacle of the external power source.
Step 2 Press the test button on the CCID (Charging Circuit Interrupting Device).
Step 3 Press the reset button on the CCID (Charging Circuit Interrupting Device).
Turn off the error warning indicator. Charging cannot be carried out while the
error warning indicator is illuminated.
Charging can be continued by following the normal procedure. If not charging,
store the charging cable.
See the Owner’s Manual for important precautionary information.
Charging information and warning messages The first time the POWER switch is
turned to ON mode after charging is completed, a message detailing the results
of the charge is shown. Also, if an operation that cannot be carried out during
charging was attempted, a warning message will be shown.Inspecting electrical leakage
detection function
For details on setting one-time departure, see Charging section.
2012Rav4EV_Text.indd 289/17/12 1:23 PM
