TOYOTA RAV4 EV 2014 1.G Owners Manual

480 5-2. Steps to take in an emergency

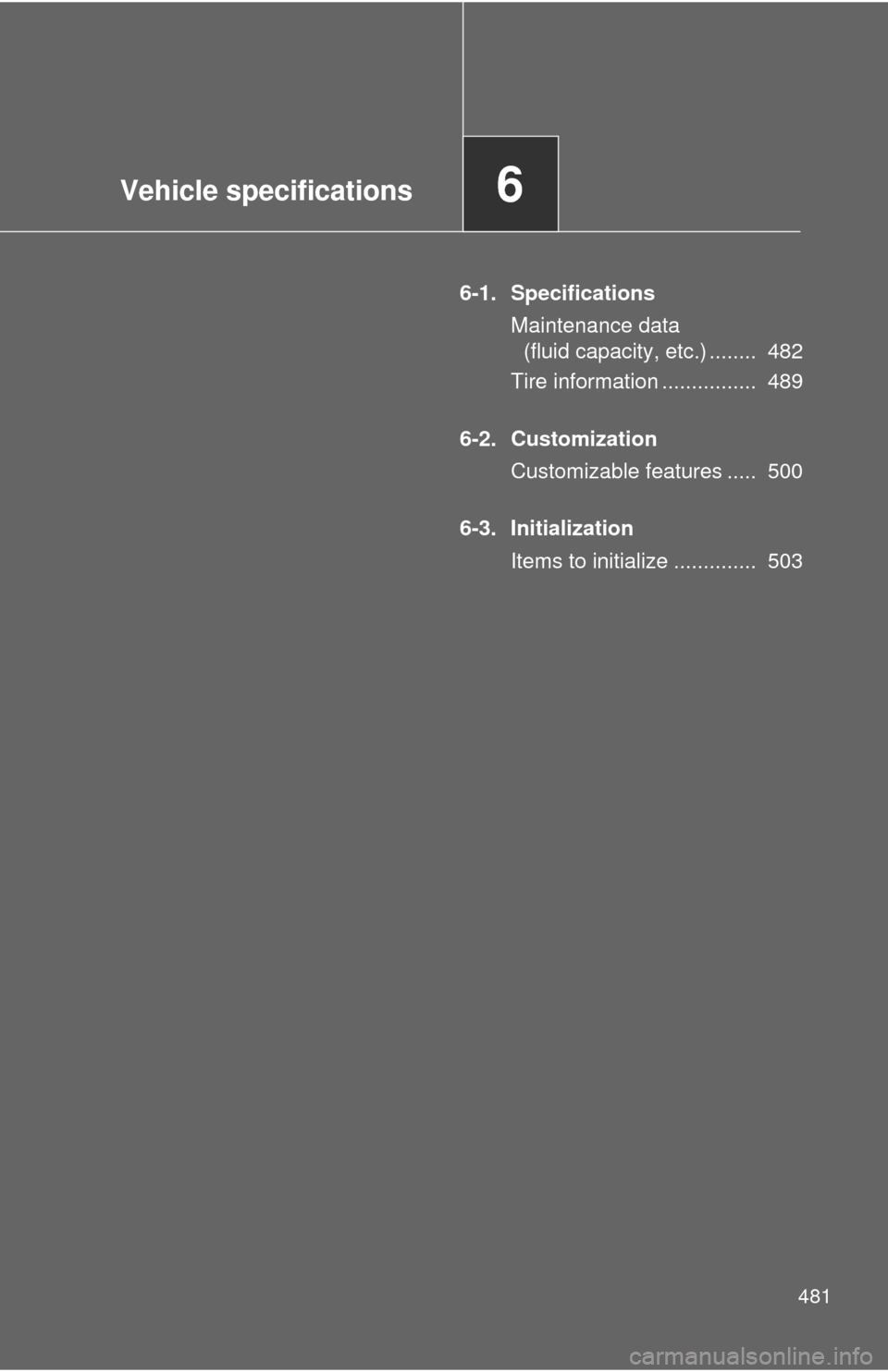

Vehicle specifications6
481
6-1. SpecificationsMaintenance data (fluid capacity, etc.) ........ 482
Tire information ................ 489
6-2. Customization Customizable features ..... 500
6-3. Initialization Items to initialize .............. 503

482
6-1. Specifications
Maintenance data (fluid capacity, etc.)
Dimensions and weights
*: Unladen vehicle
Overall length180.1 in. (4575 mm)
Overall width71.5 in. (1815 mm)
Overall height* 66.3 in. (1685 mm)
Wheelbase104.7 in. (2660 mm)
Front tread 61.4 in. (1560 mm)
Rear tread61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage) 880 lb. (395 kg)

483
6-1. Specifications
6
Vehicle specifications

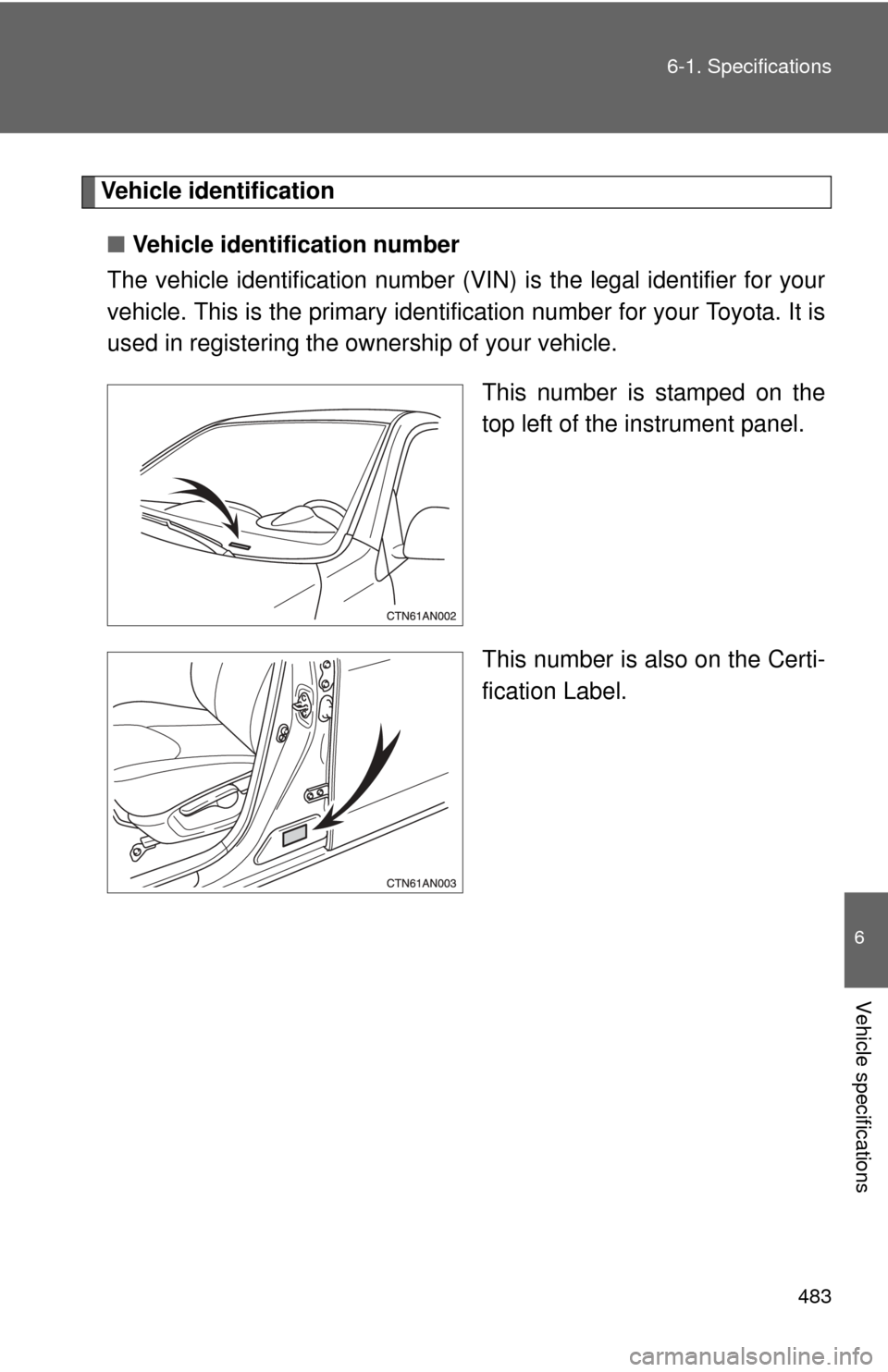

Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

484 6-1. Specifications
Tr a c t i o n m o t o r
Traction battery
TypeAC Induction
TypeLithium-ion battery
Overall voltage (Reference) 386 V

485
6-1. Specifications
6
Vehicle specifications
Cooling system
■ Motor coolant
■ Heater coolant
*1: The capacity is a reference quantity. If replacement is necessary, contact
your Toyota dealer.
*
2: The dilution ratio for both “Zerex G 48” and “Glysantin G 48” is 50% coolant and 50% deionized water.
Capacity (Reference)*16.1 qt. (5.8 L, 5.1 Imp. qt.)
Coolant type “Zerex G 48” or “Glysantin G 48” only *2
Capacity (Reference)*11.6 qt. (1.5 L, 1.3 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life
hybrid organic acid technology
Do not use plain water alone.

486 6-1. Specifications
Electrical system
Transmission
*: The capacity is a reference quantity. If replacement is necessary, contactyour Toyota dealer.
12-volt battery
Open voltage* at 68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(*: Voltage is checked 20 minutes
after the EV system and all the lights
are turned off)
Charging rates 5 A max.
Fluid capacity (Reference)* 1.26 qt. (1.2 L, 1.05 Imp. qt.)
Fluid typeMobil Dexron VI
NOTICE
■Transmission fluid type
Using transmission fluid other than “Mobil Dexron VI” may cause deteriora-
tion in transmission performance, durability, and ultimately damage the
transmission of your vehicle.

487
6-1. Specifications
6
Vehicle specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) while the EV system is operating
*
2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N, 21 kgf)
Steering
Pedal clearance*11.7 in. (44 mm)
Pedal free play 0.04  0.12 in. (1  3 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*29 11 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3
Free playLess than 1.2 in. (30 mm)

488 6-1. Specifications
Tires and wheels
Light bulbs
A: HB3 halogen bulbsB: Wedge base bulbs (clear)
C: Wedge base bulbs (amber) D: Double end bulbs
Tire size 225/65R17 101H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size 17  7 J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbsBulb No.WTy p e
Exterior Headlights
High beam 9005 60 A
Front turn signal
3457NAK28/8 C
Rear side marker lights W5W 5 B
Rear turn signal lights 7440 21 C
Back-up lights 921 18 B
License plate lights W5W 5 B
Interior Vanity lights
8B
Front personal lights 8B
Interior light 8D
Luggage compartment light 5D

489
6-1. Specifications
6
Vehicle specifications

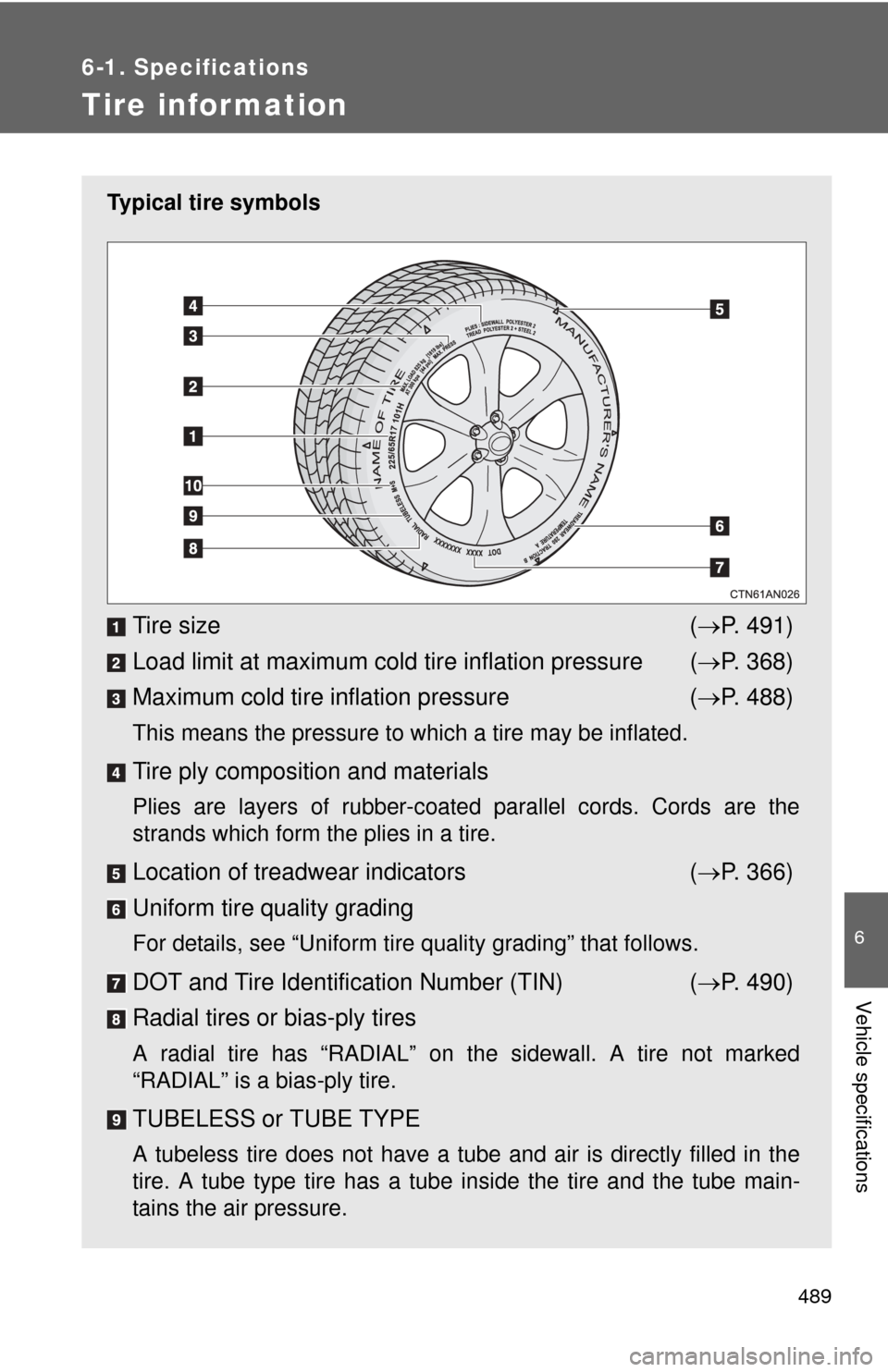

Tire infor mation
Typical tire symbols
Tire size( P. 491)
Load limit at maximum cold tire inflation pressure ( P. 368)
Maximum cold tire in flation pressure ( P. 488)
This means the pressure to which a tire may be inflated.
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Location of treadwear indicators ( P. 366)
Uniform tire quality grading
For details, see “Uniform tire quality grading” that follows.
DOT and Tire Identification Number (TIN) ( P. 490)
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.
