change time TOYOTA RAV4 EV 2014 1.G Quick Reference Guide

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
49
NOTES
2014Rav4EV_v3.indd 499/8/13 2:38 AM
This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4 EV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of RAV4 EV
operations. Every RAV4 EV owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
RAV4 EVINDEX
* Visit your Toyota dealer for information on customizing this feature.
OVERVIEW
Charge port 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Motor maintenance 9
Smart Key system* 7



Charging 19-24
Charging cable-Plugging in 14-17
Charging cable-Unplugging 18
Charging equipment 12
Charging-Power sources 13
Confirming charge settings 28
Electric Vehicle System 10
Extended charge mode 25-26
Inspecting electrical leakage
detection function
Multi-Information
Display-Charging information
Range Map screen 11




ELECTRIC VEHICLE SYSTEM
2014Rav4EV_v3.indd 29/8/13 2:29 AM13-TCS-06958_VehChargeOpQRG_RAV4EV_1_0F_lm.indd 29/8/13 3:49 AM

OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Depending on the charge settings, the vehicle may not start charging just by
plugging in the charging cable. Use the navigation screen to set the charging and
Pre-climate/remote climate control schedules. Before either function starts, it is
recommended that:
-Parking brake is securely set with shift position in “P”
-All windows and doors are closed
-Engine hood is securely closed
-All lights are turned off
When the EV System is turned off, the screen changes to the charging and
Pre-climate settings screen. If no operations are performed for approximately 30
seconds, the screen turns off.
Next charge start schedule
Battery charge amount
Charge complete schedule
Charge immediately button
Next departure schedule
Departure schedule Edit button
Extended charge mode setting button
By My Departure schedule setting
Charge and Pre-climate schedule setting screen
Set departure time dial
Charge Only button
Pre-climate Only button
Charge and Pre-climate button
Add/Delete button
Charging

22
ELECTRIC VEHICLE SYSTEM
Charging and Pre-climate operations may be programmed to complete at a specific
time on any or all days of the week.
Set charging/Pre-climate schedule
Step 1 Touch EV.
Step 2 Touch “Charging & Pre-climate Setup.”
Step 3 Touch
to display the “My Departure Schedule” screen. Touch
“Schedule Setup.”
Step 4 Touch desired day.
- Up to three actions can be set for a
single day by touching “Add.”
- To delete the set action, touch
“Delete.”
- Two actions cannot be set at the
same time. Step 5 Flick the schedule to the desired time for charging and/or Pre-climate
completion. Select Charge Only, Pre-climate Only or Charge & Pre-climate.
Step 6 After settings have been completed, touch twice to return to the “By
My Departure Schedule.”
Step 7 Touch “Save.” If “Save” is not touched, the changes will not be reflected
in the charging schedule.
Scheduled charging

24
ELECTRIC VEHICLE SYSTEM
Add a one-time departure
Step 1 Turn the EV System off. If a charge schedule has been previously set,
the following charge settings screen will be displayed. If no actions are
performed, screen will turn off after 30 seconds.
Step 2 Touch “Edit.”
Step 3 Touch “Yes.”
Step 4 Flick the schedule to the desired day and time for charging and/or
Pre-climate completion. Select Charge Only, Pre-climate Only or Charge &
Pre-climate. Touch Save.
Charge Only schedule setting
Pre-climate Only schedule setting
Charging and Pre-climate
schedule setting
Step 5 The set schedule will be displayed. To change the set action or schedule,
return to Step 2.
Step 6 Plug in the charging cable.

OVERVIEW ELECTRIC VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
33
Lights & turn signals
Turn signals
Headlights
Low beam
-Daytime Running Light system (DRL)
Automatically turns on the Daytime Running Lights after EV System is started
and parking brake released.
-Automatic light cut off system Automatically turns lights off after a delay of 30
seconds, or the lock switch on remote may be pushed after locking.
High beam flasher
High beam
Right turn
Lane change
Lane change
Left turn Headlights
Parking lights
Auto
DRL OFF

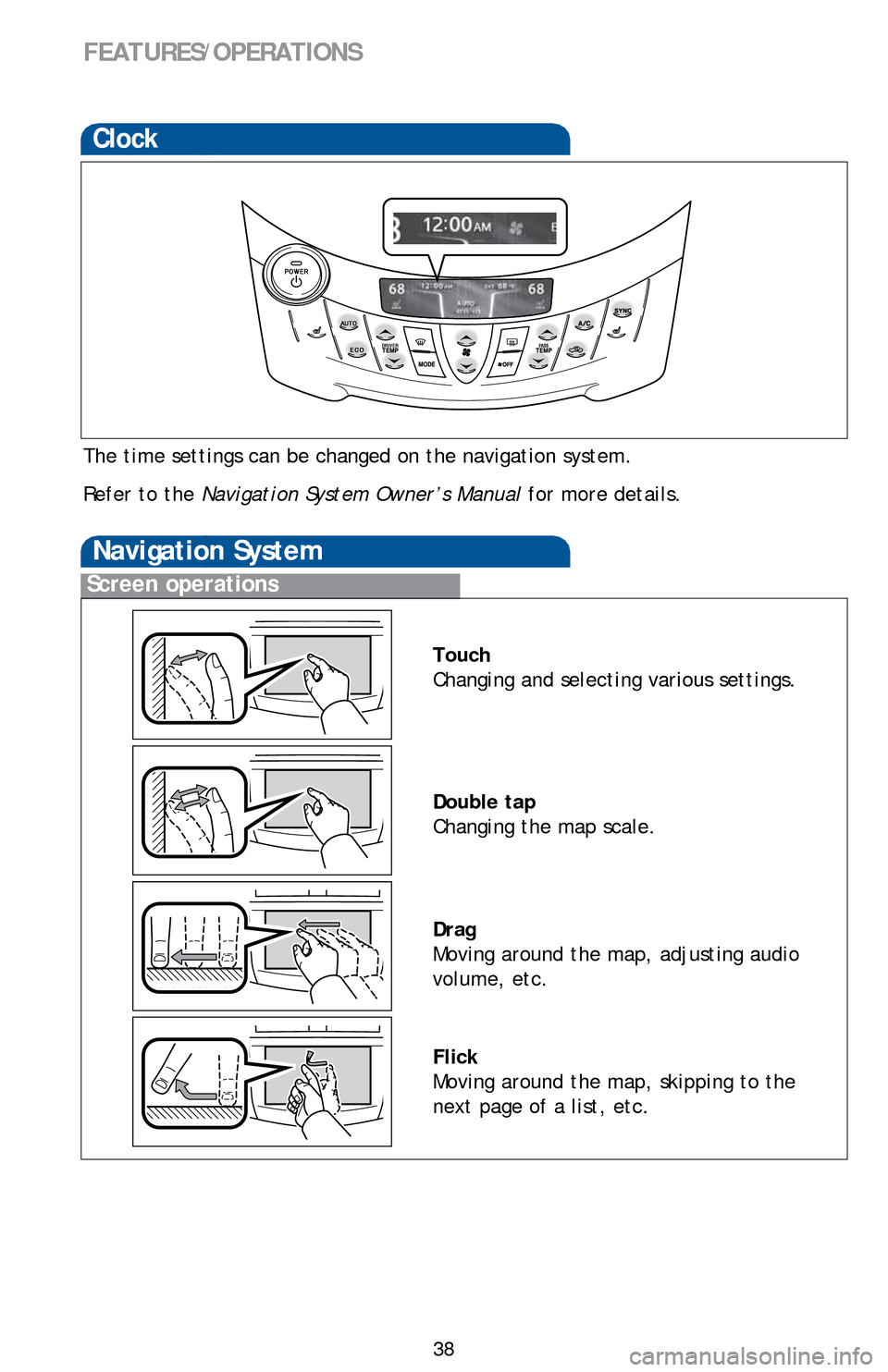

38
FEATURES/OPERATIONS
Clock
The time settings can be changed on the navigation system.
Refer to the Navigation System Owner’s Manual for more details.
Screen operations
Navigation System
Touch
Changing and selecting various settings.
Double tap
Changing the map scale.
Drag
Moving around the map, adjusting audio
volume, etc.
Flick
Moving around the map, skipping to the
next page of a list, etc.

OVERVIEWELECTRIC VEHICLE SYSTEM FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
49
NOTES
2014Rav4EV_v3.indd 499/8/13 2:38 AM
This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4 EV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of RAV4 EV
operations. Every RAV4 EV owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
