THE NEW WORLD OF
ANTI-THEFT TECHNOLOGY
This Toyota vehicle may be equipped with
an electronic “immobilizer” anti-theft
system. When the key is inserted into the
ignition switch it transmits an electronic
code to an immobilizer computer. The
engine will only start if the code in the key
matches the code in the immobilizer. If the
code does not match, the immobilizer
disables the ignition and fuel systems.
While an exact physical copy of the key
will open the door and allow retrieval of
items locked in the vehicle, it won’t start
the vehicle unless the key has the same
code as the immobilizer.
SECURITY
For security purposes, access to key
codes and service procedures for
electronically registering replacement keys
is restricted. Only a Toyota dealer or
certain bonded/registered independent
locksmiths can generate replacement keys.
The Immobilizer Key
INTRODUCTION
Introduction7
Page 9 of 50
JOBNAME: 1491140-2014-r4eWG-E PAGE: 8 SESS: 11 OUTPUT: Thu Aug 1 07:50:38 2013
/tweddle/toyota/sched-maint/1491140-en-r4e/wg
REPLACING THE KEY
Upon purchase, each vehicle should have
two master keys and an aluminum tag
with a key-code imprinted on it.
To generate a fully functional replacement
key (one that will both open the doors and
start the engine), one of the master keys
is required. To make a key that will open
the door for retrieval of items locked
inside the vehicle, the aluminum key-code
tag can be used. If a master key or the
aluminum key-code tag is not available, a
Toyota dealer or certain registered
locksmiths can obtain the key code from a
restricted-access database. These
businesses can also access a service
utility to reprogram the immobilizer if all
registered master keys have been lost. If a
Toyota dealer is not available, please refer
towww.aloa.org to find a
bonded/registered locksmith who performs
high security key service.
KEEPING THE KEY SAFE
Replacing an immobilizer key may be
costly. It is advisable to keep a spare
master key and the aluminum key-code
tag in a safe place. If you record the
key-code in more than one place, do not
record it in a way that can be easily
identified and associated with the vehicle.
It is wise to keep a copy of the key-code
outside of the vehicle.
If the vehicle was delivered with less than
two keys and the aluminum key-code tag,
consider having the Toyota dealer or a
qualified independent automotive
locksmith make a duplicate key before you
need it.
The Immobilizer Key
INTRODUCTION
8Introduction
Page 14 of 50
JOBNAME: 1491140-2014-r4eWG-E PAGE: 13 SESS: 11 OUTPUT: Thu Aug 1 07:50:38 2013
/tweddle/toyota/sched-maint/1491140-en-r4e/wg

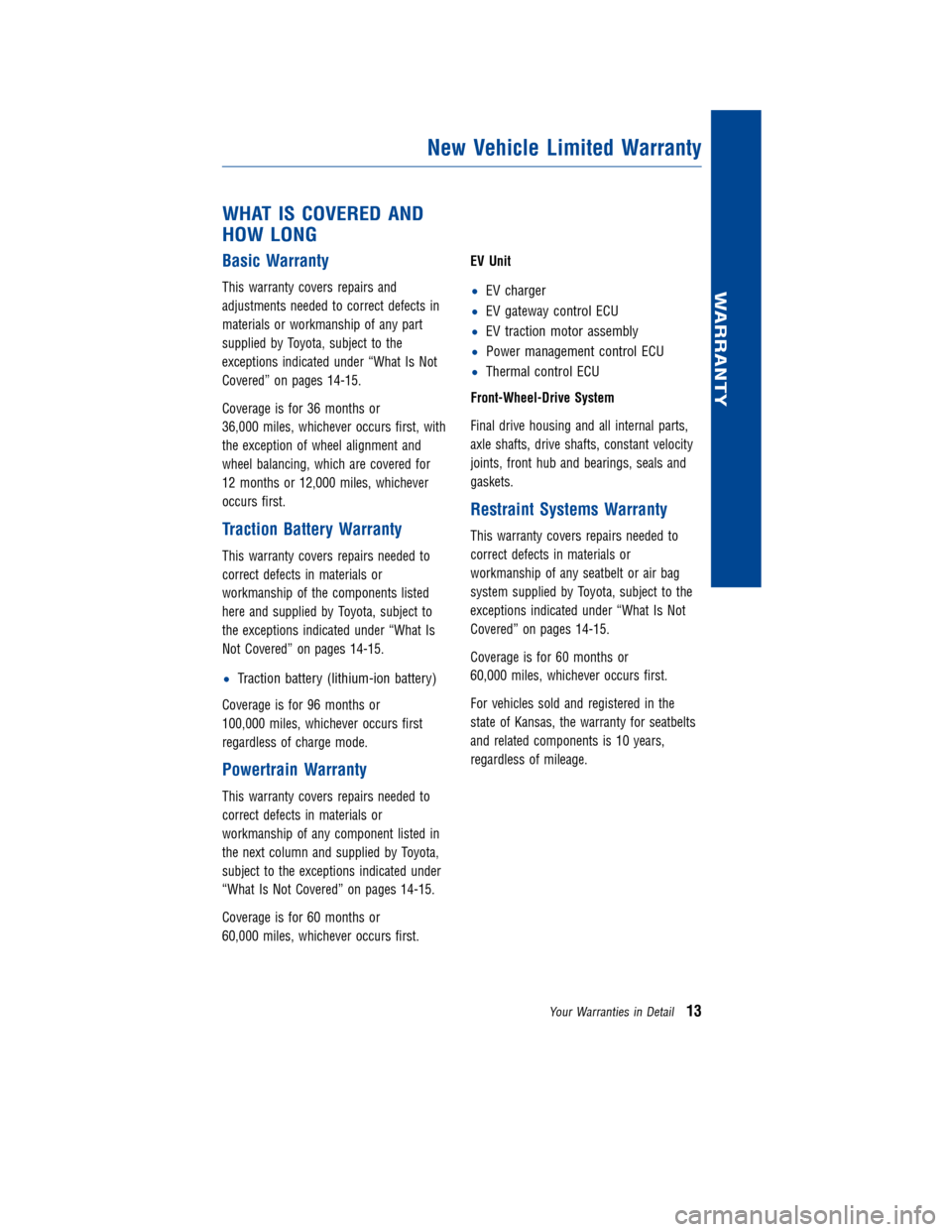

WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 12,000 miles, whichever
occurs first.
Traction Battery Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of the components listed
here and supplied by Toyota, subject to
the exceptions indicated under “What Is
Not Covered” on pages 14-15.
•Traction battery (lithium-ion battery)
Coverage is for 96 months or
100,000 miles, whichever occurs first
regardless of charge mode.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed in
the next column and supplied by Toyota,
subject to the exceptions indicated under
“What Is Not Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first. EV Unit
•
EV charger
• EV gateway control ECU
• EV traction motor assembly
• Power management control ECU
• Thermal control ECU
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals and
gaskets.
Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any seatbelt or air bag
system supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
For vehicles sold and registered in the
state of Kansas, the warranty for seatbelts
and related components is 10 years,
regardless of mileage.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail13
Page 44 of 50
JOBNAME: 1491140-2014-r4eWG-E PAGE: 43 SESS: 11 OUTPUT: Thu Aug 1 07:50:38 2013
/tweddle/toyota/sched-maint/1491140-en-r4e/wg

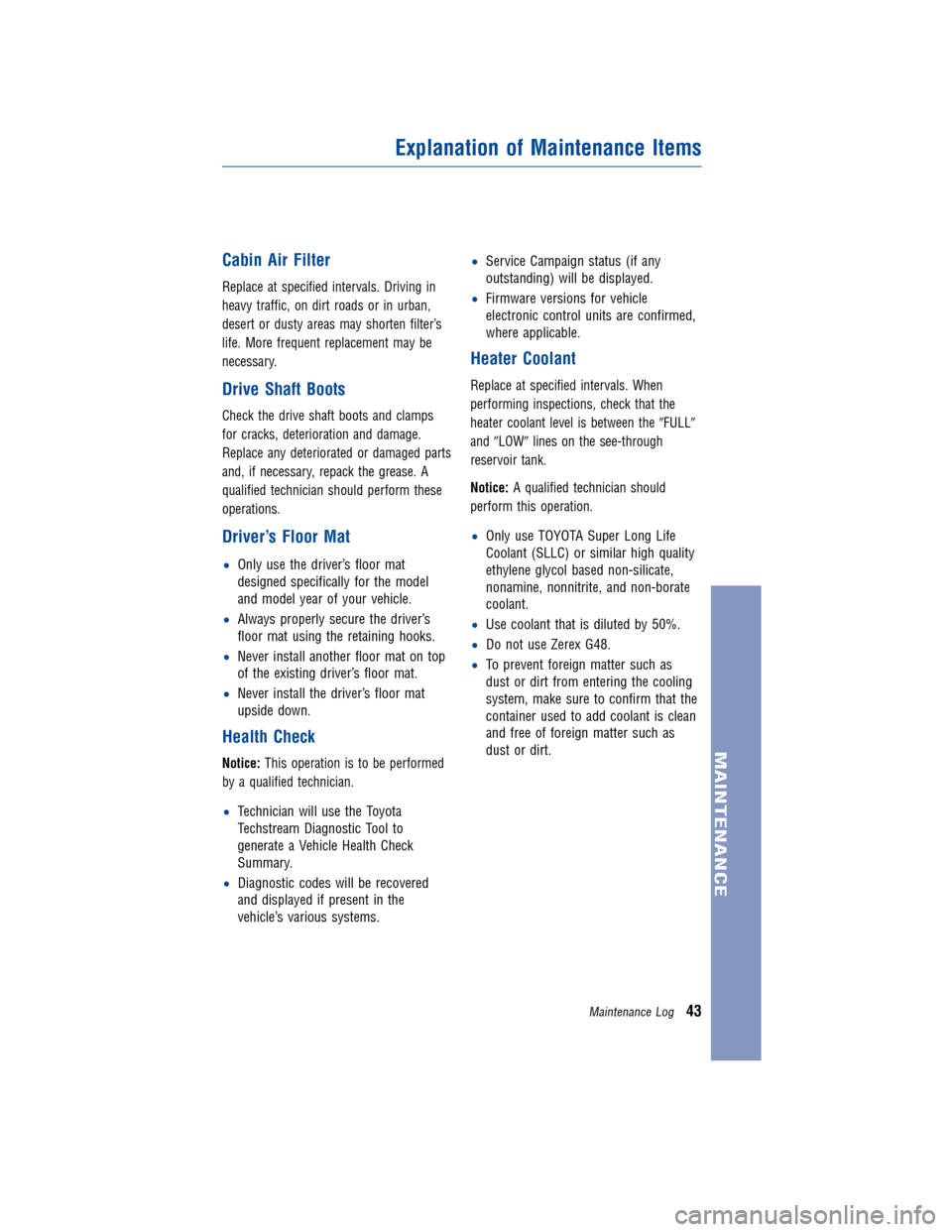

Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may be
necessary.
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease. A
qualified technician should perform these
operations.
Driver’s Floor Mat
•Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
• Always properly secure the driver’s
floor mat using the retaining hooks.
• Never install another floor mat on top
of the existing driver’s floor mat.
• Never install the driver’s floor mat
upside down.
Health Check
Notice: This operation is to be performed
by a qualified technician.
• Technician will use the Toyota
Techstream Diagnostic Tool to
generate a Vehicle Health Check
Summary.
• Diagnostic codes will be recovered
and displayed if present in the
vehicle’s various systems. •
Service Campaign status (if any
outstanding) will be displayed.
• Firmware versions for vehicle
electronic control units are confirmed,
where applicable.
Heater Coolant
Replace at specified intervals. When
performing inspections, check that the
heater coolant level is between the FULL
and LOW lines on the see-through
reservoir tank.
Notice: A qualified technician should
perform this operation.
• Only use TOYOTA Super Long Life
Coolant (SLLC) or similar high quality
ethylene glycol based non-silicate,
nonamine, nonnitrite, and non-borate
coolant.
• Use coolant that is diluted by 50%.
• Do not use Zerex G48.
• To prevent foreign matter such as
dust or dirt from entering the cooling
system, make sure to confirm that the
container used to add coolant is clean
and free of foreign matter such as
dust or dirt.
Explanation of Maintenance Items
Maintenance Log43
MAINTENANCE
