8-2. Steps to take in an emergency
8
When trouble arises

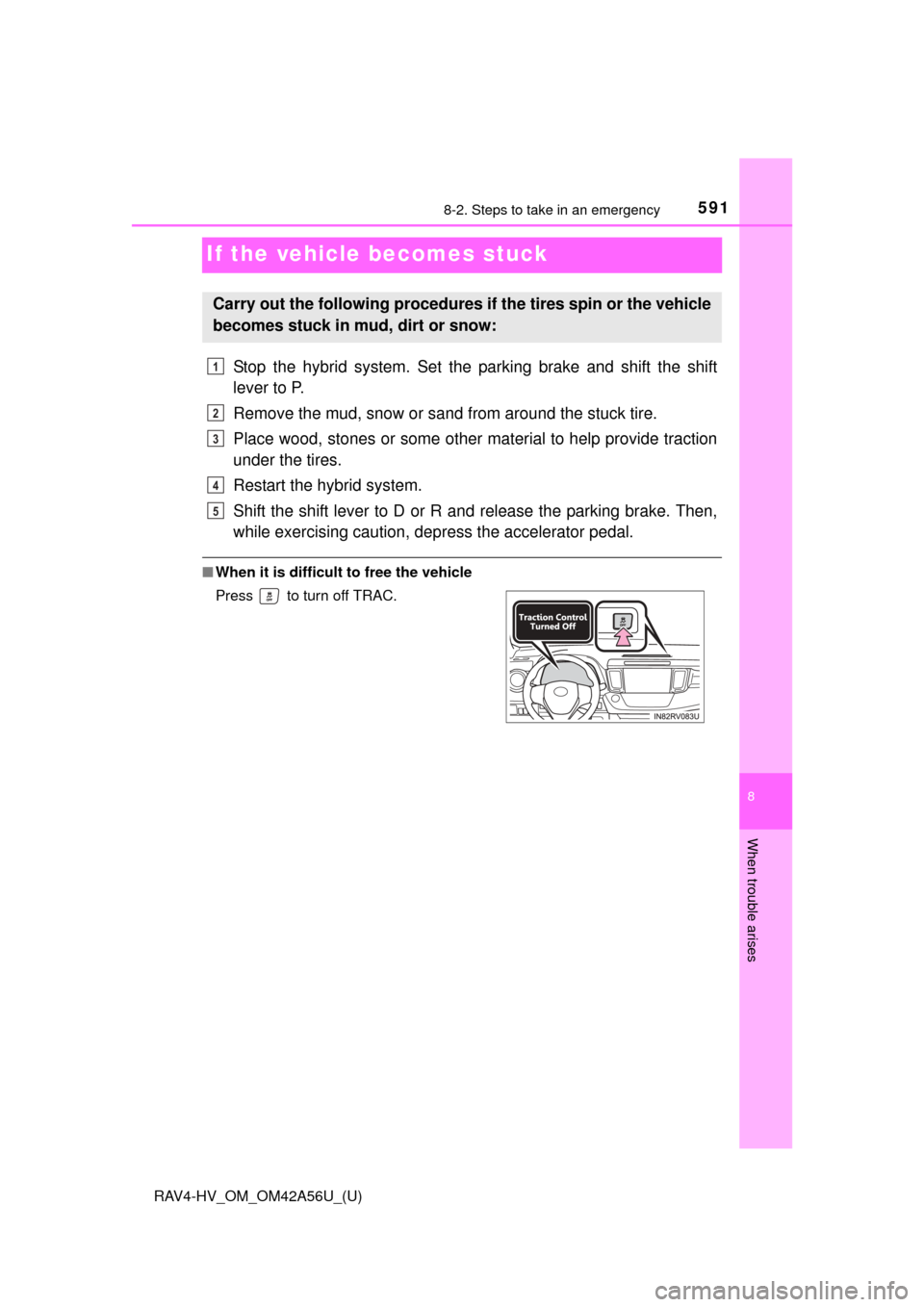

If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift
lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC.
1
2
3
4
5

5928-2. Steps to take in an emergency
RAV4-HV_OM_OM42A56U_(U)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damaging the hybrid transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

593
RAV4-HV_OM_OM42A56U_(U)
9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 594
Fuel information ................ 603
Tire information ................. 606
9-2. Customization Customizable features ...... 619
9-3. Initialization Items to initialize ............... 628

594
RAV4-HV_OM_OM42A56U_(U)
9-1. Specifications

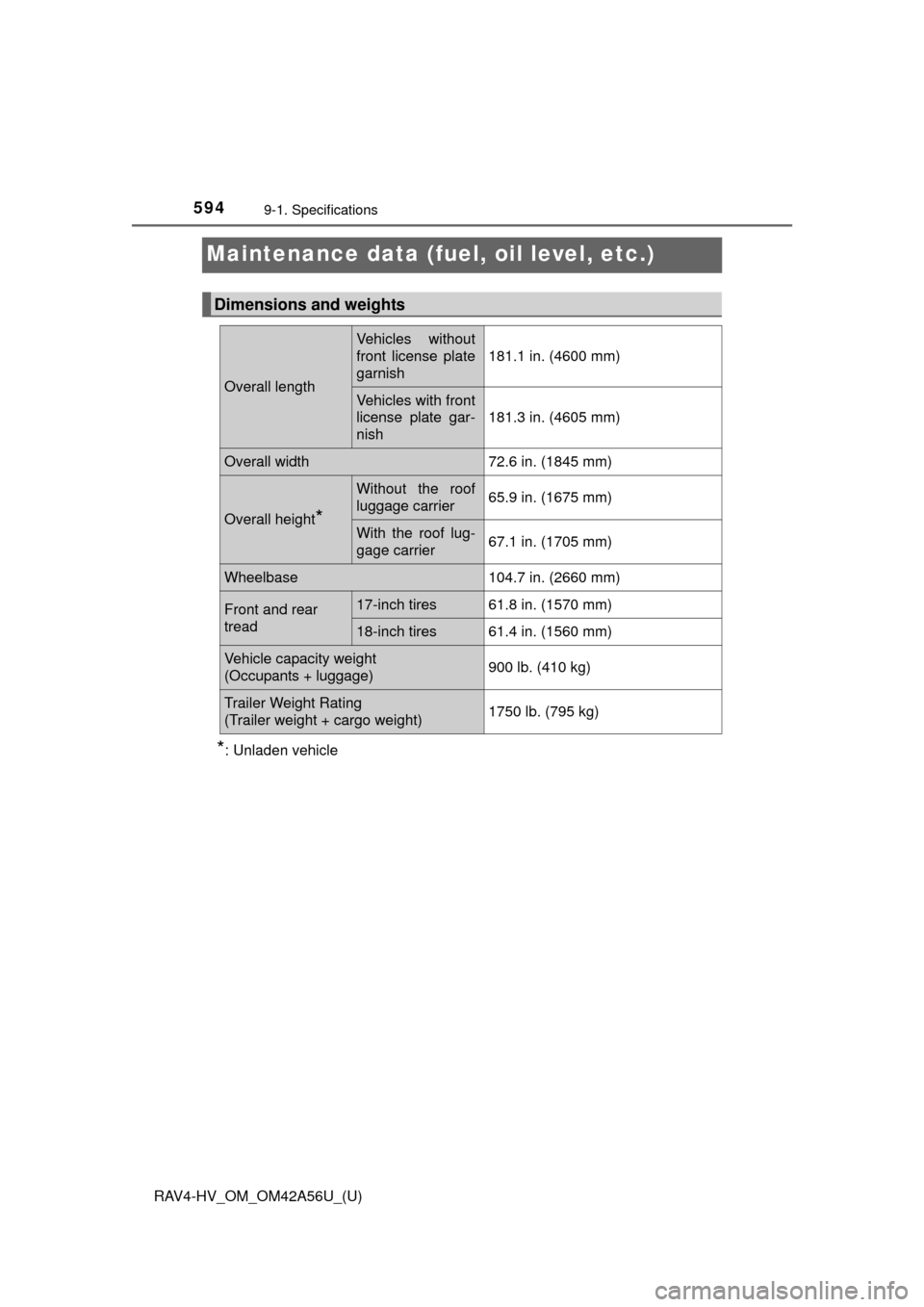

Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weights
Overall length
Vehicles without
front license plate
garnish
181.1 in. (4600 mm)
Vehicles with front
license plate gar-
nish
181.3 in. (4605 mm)
Overall width72.6 in. (1845 mm)
Overall height*
Without the roof
luggage carrier65.9 in. (1675 mm)
With the roof lug-
gage carrier67.1 in. (1705 mm)
Wheelbase104.7 in. (2660 mm)
Front and rear
tread17-inch tires61.8 in. (1570 mm)
18-inch tires61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage)900 lb. (410 kg)
Trailer Weight Rating
(Trailer weight + cargo weight)1750 lb. (795 kg)

RAV4-HV_OM_OM42A56U_(U)
5959-1. Specifications
9
Vehicle specifications

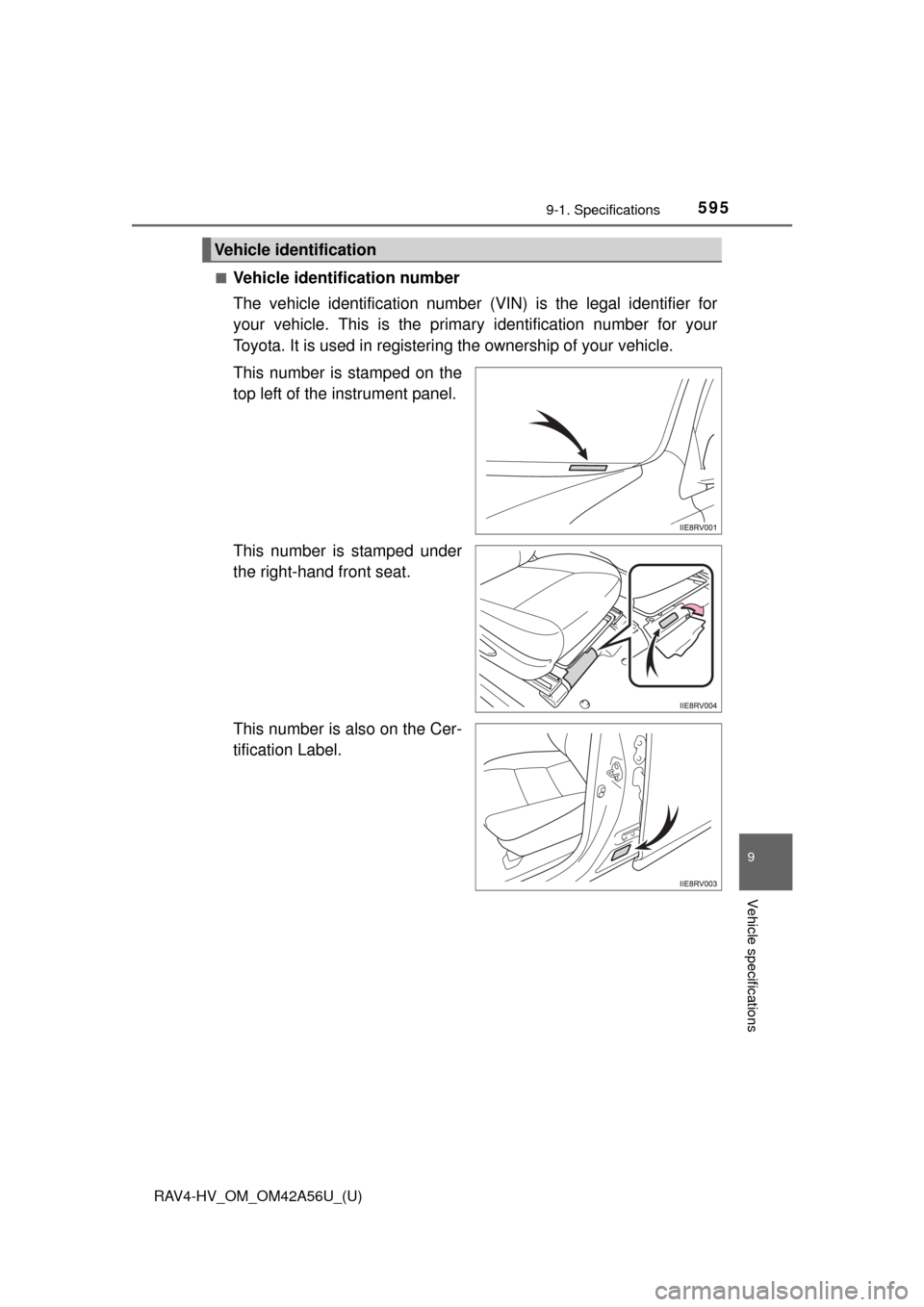

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is stamped under
the right-hand front seat.
This number is also on the Cer-
tification Label.
Vehicle identification

596
RAV4-HV_OM_OM42A56U_(U)
9-1. Specifications

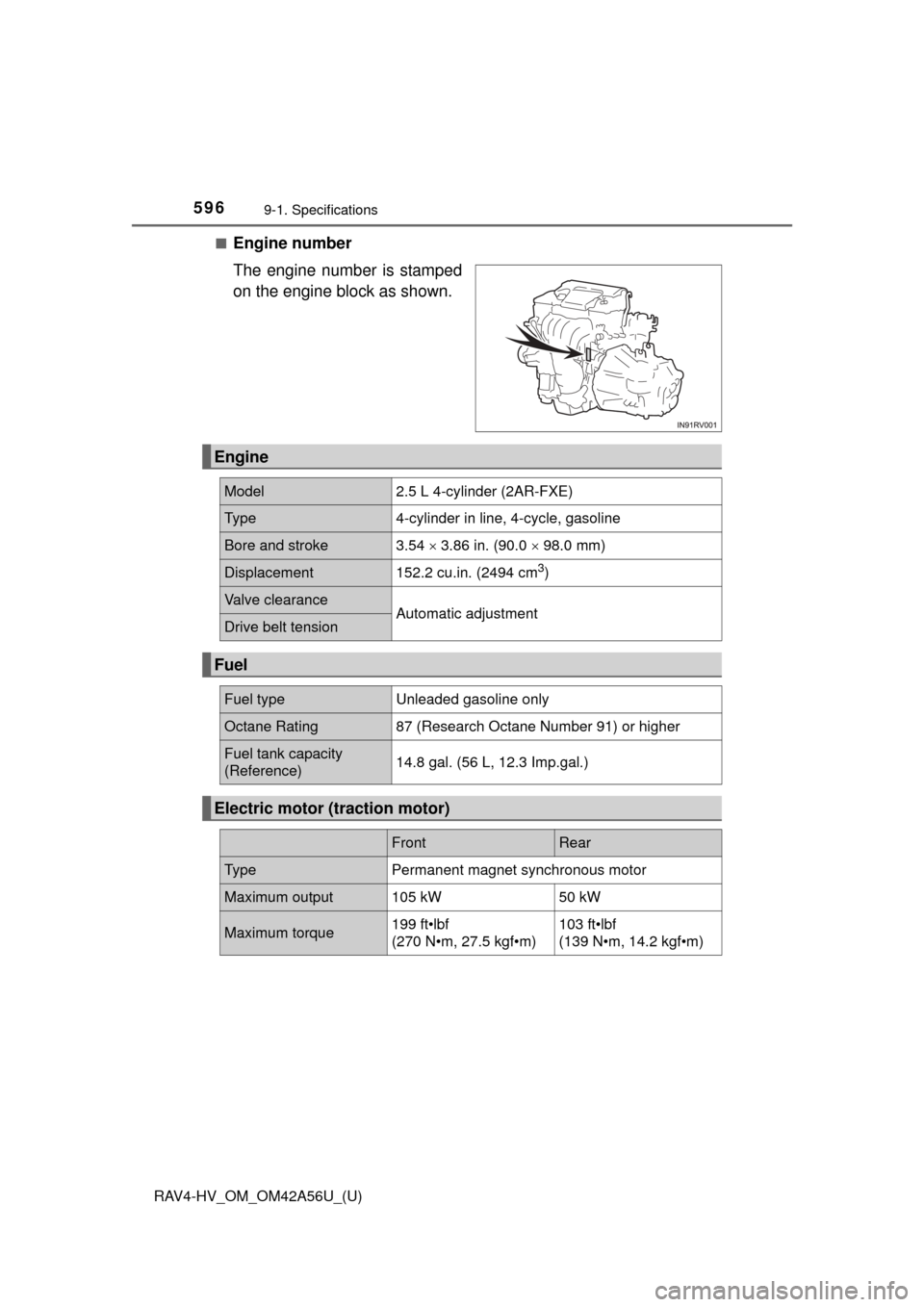

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model2.5 L 4-cylinder (2AR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.54  3.86 in. (90.0  98.0 mm)
Displacement152.2 cu.in. (2494 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)14.8 gal. (56 L, 12.3 Imp.gal.)
Electric motor (traction motor)
FrontRear
Ty p ePermanent magnet synchronous motor
Maximum output105 kW50 kW
Maximum torque199 ft•lbf
(270 N•m, 27.5 kgf•m)103 ft•lbf
(139 N•m, 14.2 kgf•m)

RAV4-HV_OM_OM42A56U_(U)
5979-1. Specifications
9
Vehicle specifications
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

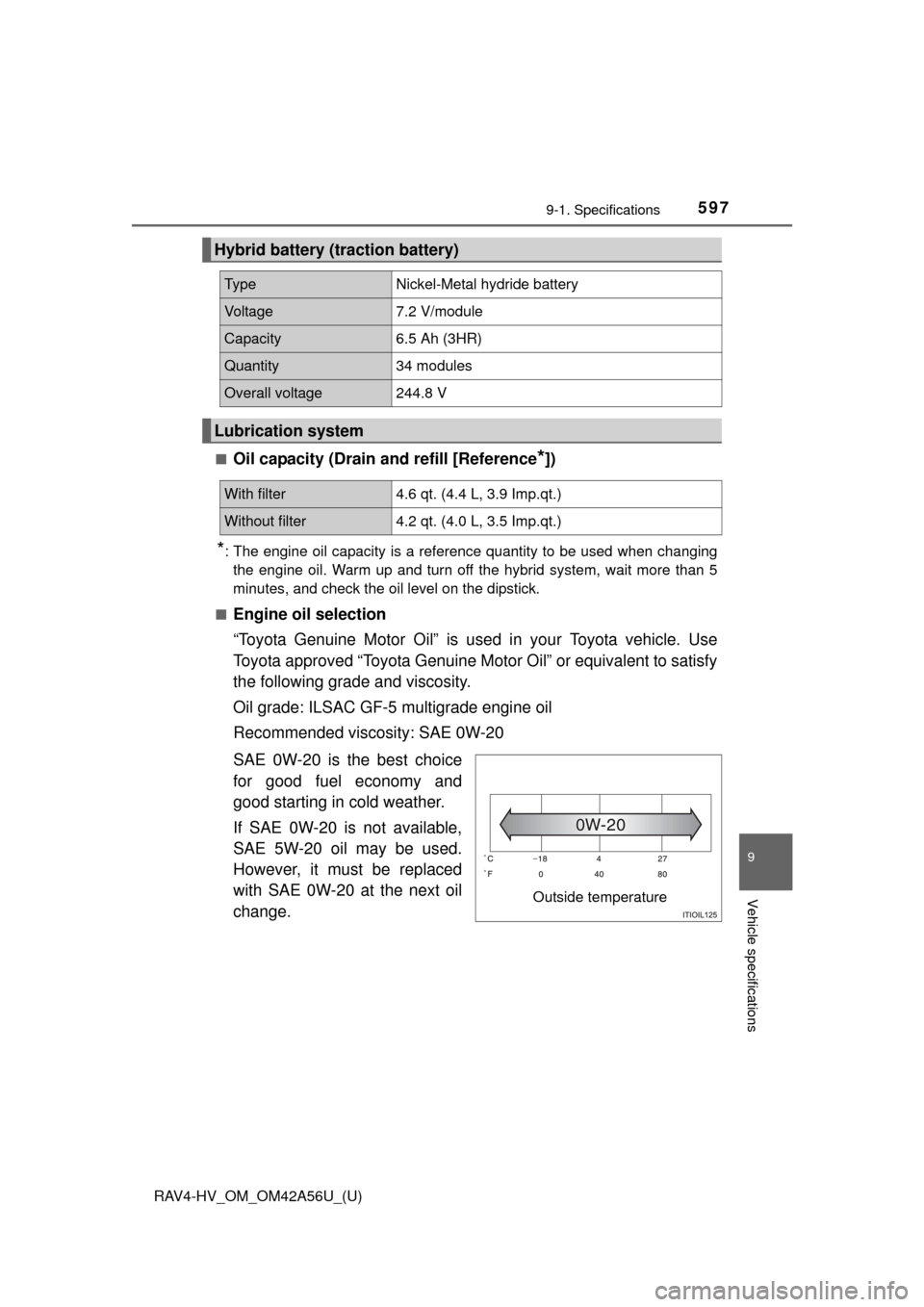

Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V
Lubrication system
With filter4.6 qt. (4.4 L, 3.9 Imp.qt.)
Without filter4.2 qt. (4.0 L, 3.5 Imp.qt.)
Outside temperature

598
RAV4-HV_OM_OM42A56U_(U)
9-1. Specifications
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Cooling system
Capacity
Gasoline
engine7.9 qt. (7.5 L, 6.6 Imp.qt.)
Power
control unit1.6 qt. (1.5 L, 1.3 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

RAV4-HV_OM_OM42A56U_(U)
5999-1. Specifications
9
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Toyota dealer.
Ignition system
Spark plug
MakeDENSO FK16HR-A8
Gap0.03 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68 F
(20 C):12.6 V  12.8 V: Fully charged
12.2  12.4 V: Half charged
11 . 8 V  12.0 V: Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates5 A max.
Hybrid transaxle
Fluid
capacity
*
Front4.0 qt. (3.8 L, 3.3 Imp.qt.)
Rear1.9 qt. (1.8 L, 1.6 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Hybrid transaxle fluid type
Using transaxle fluid other than “Toyota Genuine ATF WS” may cause dete-
rioration in shift quality, locking up of your transaxle accompanied by vibra-
tion, and ultimately damage the transaxle of your vehicle.

600
RAV4-HV_OM_OM42A56U_(U)
9-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,50 kgf) while the hybrid system is operating.
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Brakes
Pedal clearance*14.13 in. (105 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lever travel*27  10 clicks
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
