TOYOTA RAV4 HYBRID 2016 XA40 / 4.G Owners Manual

RAV4-HV_OM_OM42A56U_(U)
6219-2. Customization
9
Vehicle specifications
■LDA (Lane Departure Alert with steering control) (if equipped)
(  P. 243)
■PCS (Pre-Collision System) (if equipped) ( P. 228)
■Power back door (if equipped) ( P. 1 1 3 )
*: The open position is set by the power back door switch ( P. 1 1 7 )
FunctionDefault
settingCustomized setting
Steering AssistOnOff—O—
Alert sensitivityStandardHigh—O—
Vehicle sway warningOnOff—O—
Vehicle sway warning
sensitivityStandardLow—O—High
123
FunctionDefault settingCustomized setting
Alert timing
(Middle)

(Far)
—O—

(Near)
123
FunctionDefault settingCustomized setting
Opening angle5
1 to 4
—O—User setting*
Operation buzzer volume31—O—2
Operation buzzerOnOff——O
123

622
RAV4-HV_OM_OM42A56U_(U)
9-2. Customization
■Door lock (P. 107, 579)
FunctionDefault
settingCustomized setting
Unlocking using a mechanical
key
On (Driver’s
door unlocked
in one step, all
doors
unlocked in two steps)
Off (All doors unlocked
in one step)
——O
Speed linked door locking
functionOffOnO—O
Shift position linked door lock-
ing functionOnOffO—O
Shift position linked door
unlocking functionOnOffO—O
Driver’s door linked door
unlocking functionOffOnO—O
123

RAV4-HV_OM_OM42A56U_(U)
6239-2. Customization
9
Vehicle specifications
■Smart key system and wireless remote control (P. 107)
*: The default setting varies according to on some models.
■
Smart key system ( P. 107)
*: Settings that can be changed by electronic key ( P. 1 1 1 )
FunctionDefault
settingCustomized setting
Operation signal (buzzer)*Level 5OffO—OLevel 1 to 7
Operation signal (emergency
flashers)OnOffO—O
Adjust the time elapsed before
the automatic door lock func-
tion is activated if a door is not
opened after being unlocked
60 seconds
30 seconds
——O
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff——O
Unlocking operation
Driver’s door unlocked in
one step, all doors
unlocked in
two steps
All doors
unlocked in
one step
O—O
Alarm (panic mode)OnOff——O
123
FunctionDefault settingCustomized setting
Smart key systemOnOffO—O
Select doors to unlock*Driver’s doorAll the doorsO—O
Number of consecutive door
lock operations2 timesAs many as desired——O
123

624
RAV4-HV_OM_OM42A56U_(U)
9-2. Customization
■Wireless remote control (P. 107)
*: If equipped
■
Moon roof ( P. 154)
■Turn signal lever ( P. 199)
FunctionDefault
settingCustomized setting
Wireless remote controlOnOff——O
Power back door unlocking
operation
*
Press and hold
Off
——OOne short press
Push twice
123
FunctionDefault settingCustomized setting
Automatic operationOnOff——O
123
FunctionDefault
settingCustomized setting
Time of flashing of the lane
change signal flashers3
Off
——O
4
5
6
7
123

RAV4-HV_OM_OM42A56U_(U)
6259-2. Customization
9
Vehicle specifications
■Automatic light control system (P. 201, 205)
■Lights ( P. 201)
*: U.S.A. only
■
Intuitive parking assist (if equipped) ( P. 268)
■Automatic air condi tioning system (P. 414)
FunctionDefault
settingCustomized setting
Light sensor sensitivity0-2 to 2O—O
Automatic High BeamOnOff——O
Time elapsed before the
headlights automatically turn
off after the doors are closed
30 seconds
Off
O—O60 seconds
90 seconds
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Intuitive parking assist
is operating)All sensors
displayedDisplay offO—O
123
FunctionDefault settingCustomized setting
Switching between outside air
and recirculated air mode
linked to “AUTO” switch oper-
ation
OnOff——O
A/C Auto switch operationOnOffO—O
123

626
RAV4-HV_OM_OM42A56U_(U)
9-2. Customization
■Illumination (P. 424)
■Seat belt reminder ( P. 28)
FunctionDefault
settingCustomized setting
Interior lights illumination con-
trolOnOff——O
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff——O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff——O
123

RAV4-HV_OM_OM42A56U_(U)
6279-2. Customization
9
Vehicle specifications
■Vehicle customization
●When the speed linked door locking function and shift position linked door
locking function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will
be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door locking function will operate.
● When the smart key system is off, the selecting doors to unlock cannot be
customized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency
flashers) settings.
WARNING
■ During customization
As the hybrid system needs to be oper ating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

628
RAV4-HV_OM_OM42A56U_(U)
9-3. Initialization

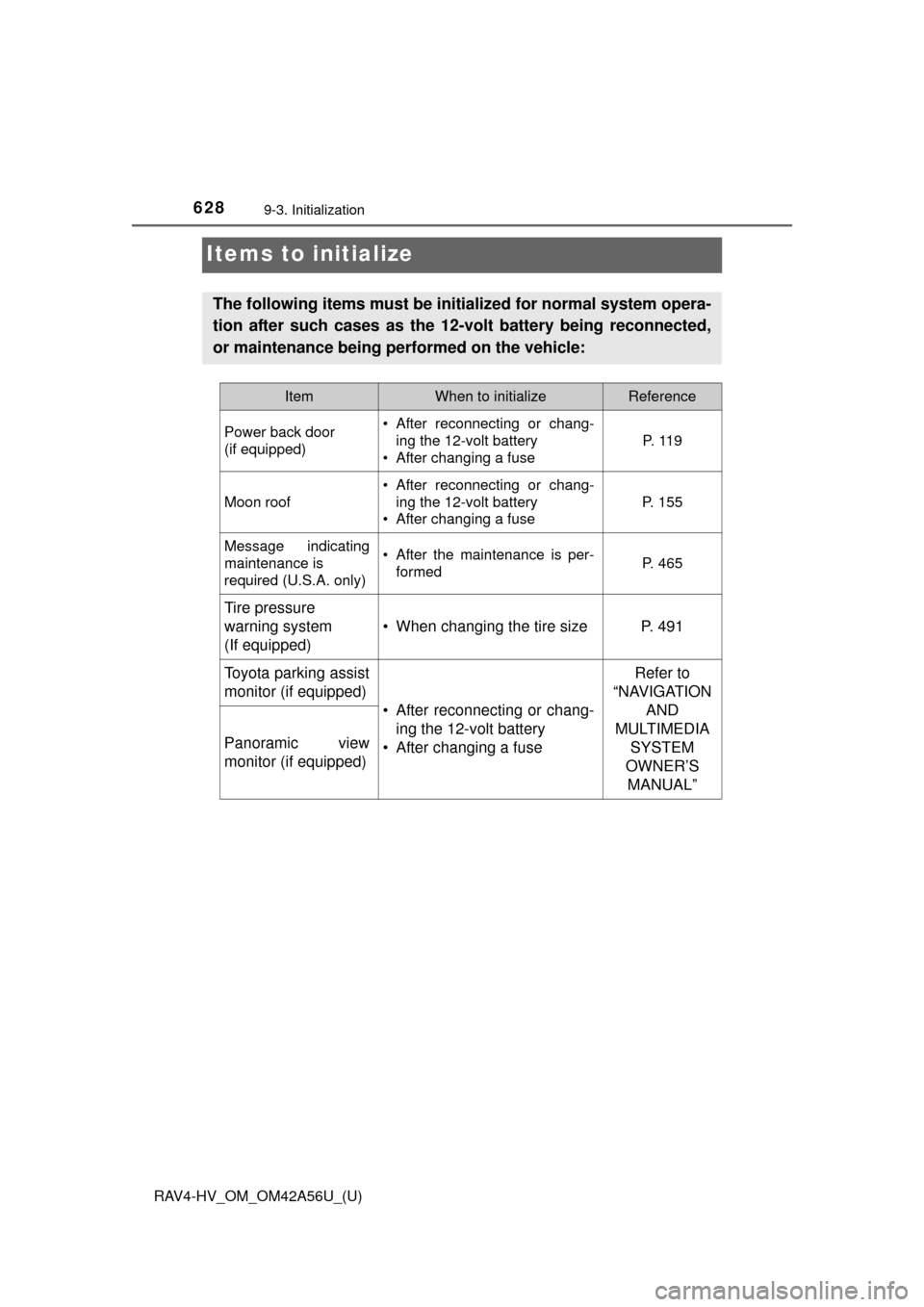

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door
(if equipped)• After reconnecting or chang- ing the 12-volt battery
• After changing a fuse
P. 1 1 9
Moon roof
• After reconnecting or chang- ing the 12-volt battery
• After changing a fuse
P. 155
Message indicating
maintenance is
required (U.S.A. only)• After the maintenance is per-
formedP. 465
Tire pressure
warning system
(If equipped)
• When changing the tire sizeP. 4 9 1
Toyota parking assist
monitor (if equipped)
• After reconnecting or chang-
ing the 12-volt battery
• After changing a fuse
Refer to
“ N AV I G AT I O N AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”
Panoramic view
monitor (if equipped)

629
RAV4-HV_OM_OM42A56U_(U)
For owners10
Reporting safety defects for U.S. owners ........................ 630
Seat belt instructions for Canadian owners
(in French) ............................... 631
SRS airbag instructions for Canadian owners
(in French) ............................... 633

630
RAV4-HV_OM_OM42A56U_(U)

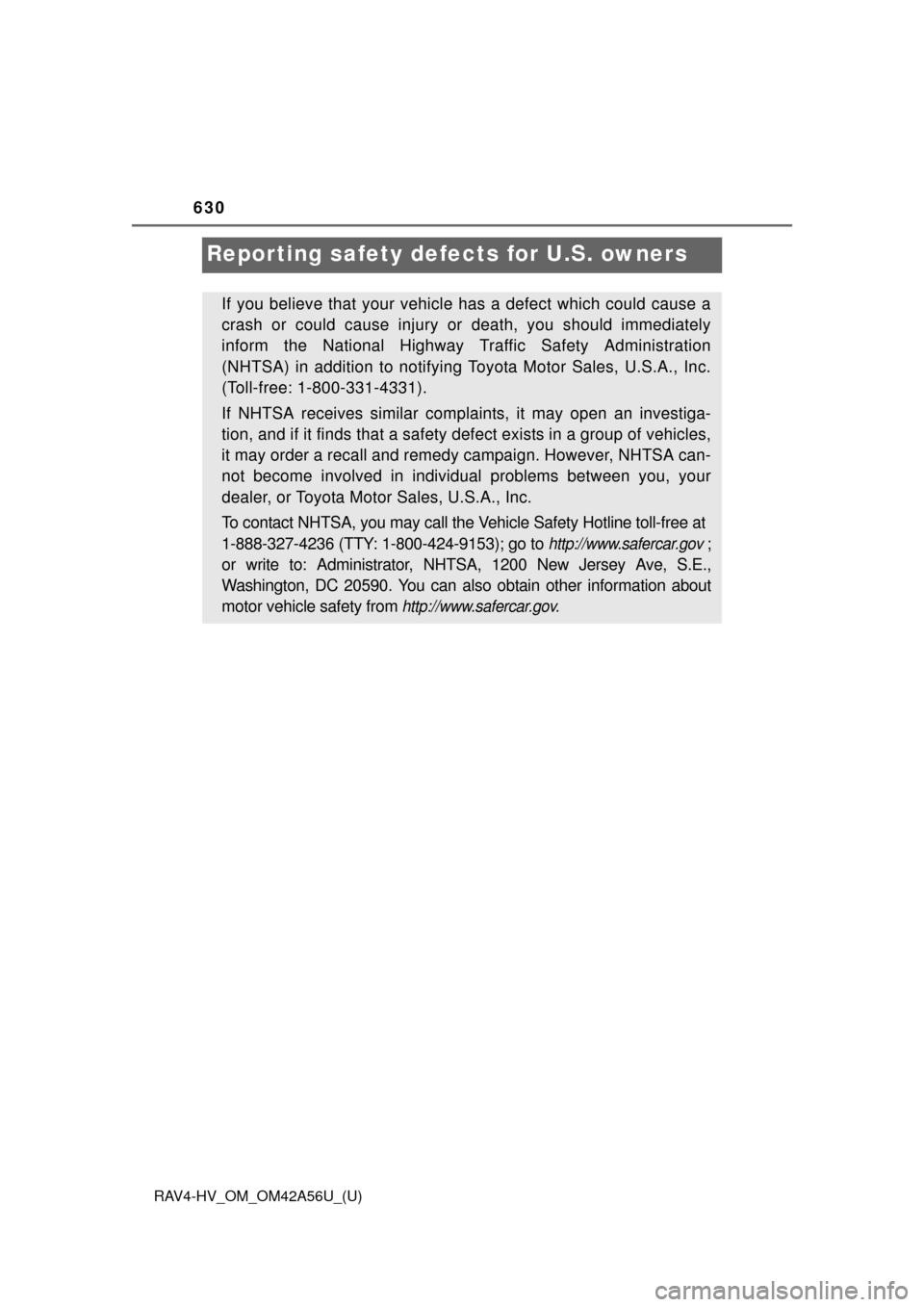

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Tr affic Safety Administration
(NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar comp laints, it may open an investiga-
tion, and if it finds that a safety defect exists in a group of vehicles,
it may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov.
