TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual

RAV4-HV_OM_OM42B03U_(U)
1213-2. Opening, closing and locking the doors
3
Operation of each component

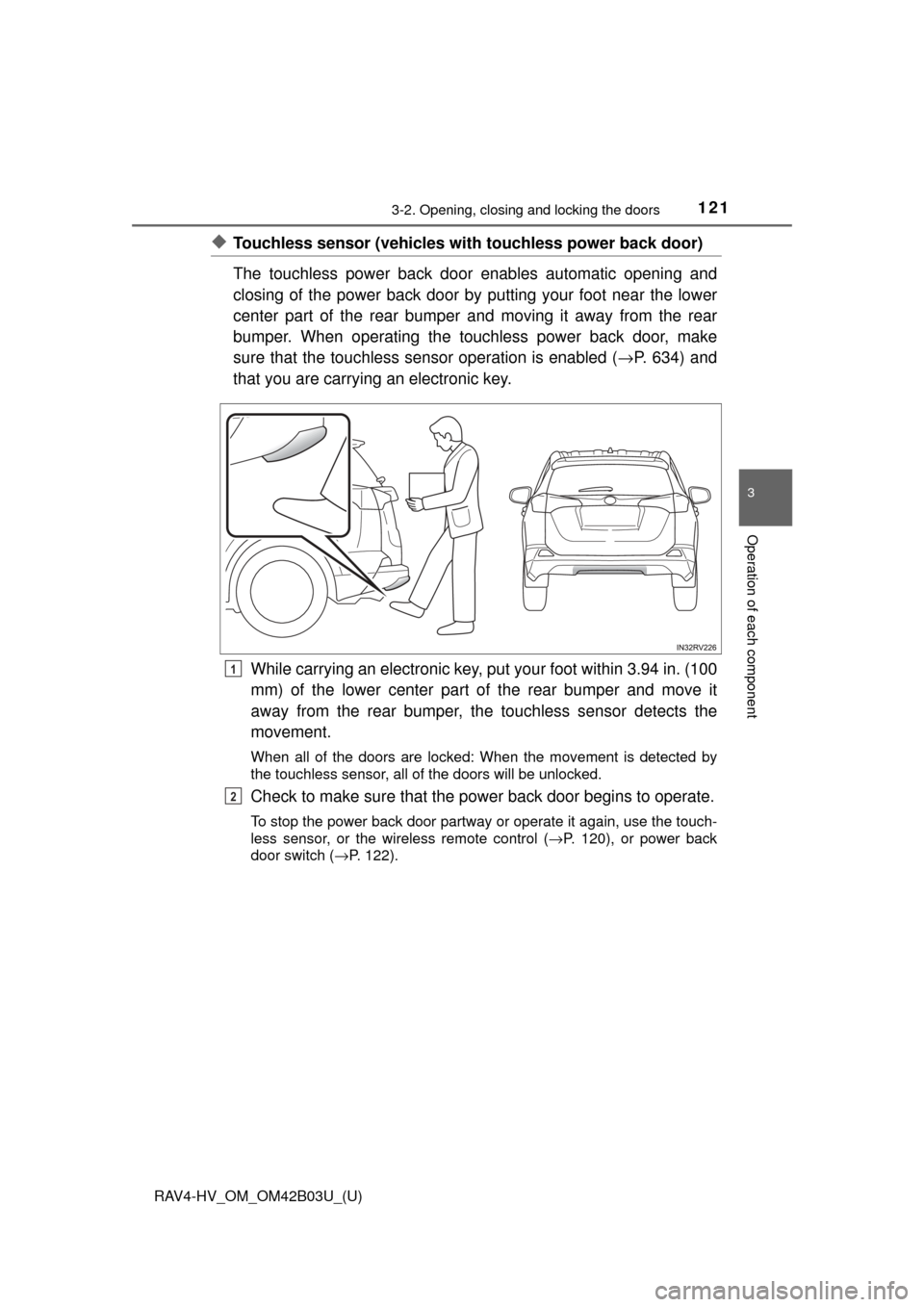

◆Touchless sensor (vehicles with touchless power back door)
The touchless power back door enables automatic opening and
closing of the power back door by putting your foot near the lower
center part of the rear bumper and moving it away from the rear
bumper. When operating the touchless power back door, make
sure that the touchless s ensor operation is enabled ( →P. 634) and
that you are carrying an electronic key.
While carrying an electronic key, pu t your foot within 3.94 in. (100
mm) of the lower center part of the rear bumper and move it
away from the rear bumper, th e touchless sensor detects the
movement.
When all of the doors are locked: When the movement is detected by
the touchless sensor, all of the doors will be unlocked.
Check to make sure that the powe r back door begins to operate.
To stop the power back door partway or operate it again, use the touch-
less sensor, or the wireless remote control (→P. 120), or power back
door switch (→P. 122).
1
2

122
RAV4-HV_OM_OM42B03U_(U)
3-2. Opening, closing and locking the doors
Pressing the switch closes the
back door automatically. (A
buzzer sounds.)
Pressing the switch while the back
door is opening/closing stops the
operation. Pressing the switch
again will reverse the operation.
Lower the back door using the
back door handle.
Vehicles without power back
door
Make sure to push the back door
down from the outside to close it.
Vehicles with power back door
The back door closing assist will
activate, and the back door will
fully close automatically.

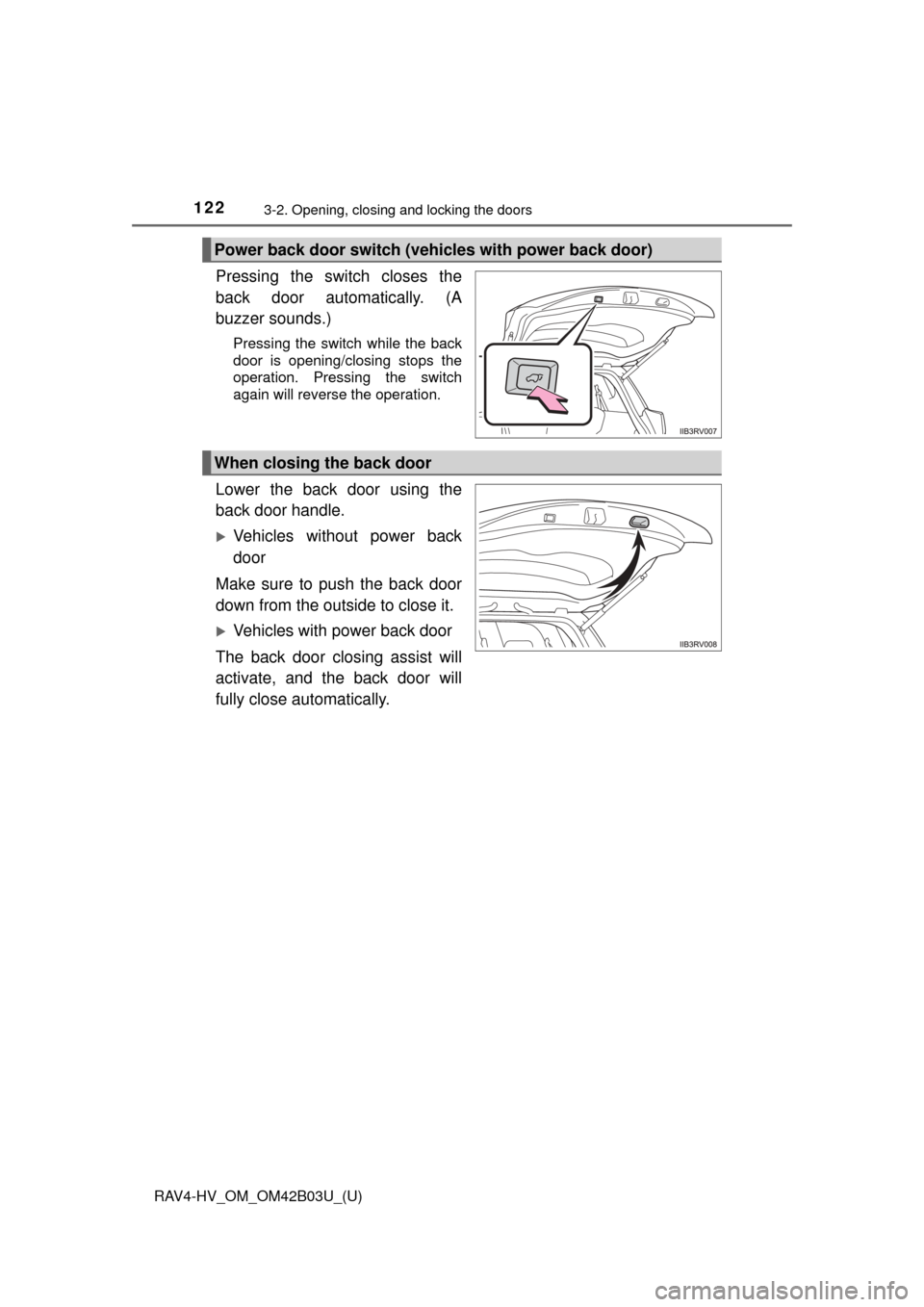

Power back door switch (vehicles with power back door)
When closing the back door

RAV4-HV_OM_OM42B03U_(U)
1233-2. Opening, closing and locking the doors
3
Operation of each component

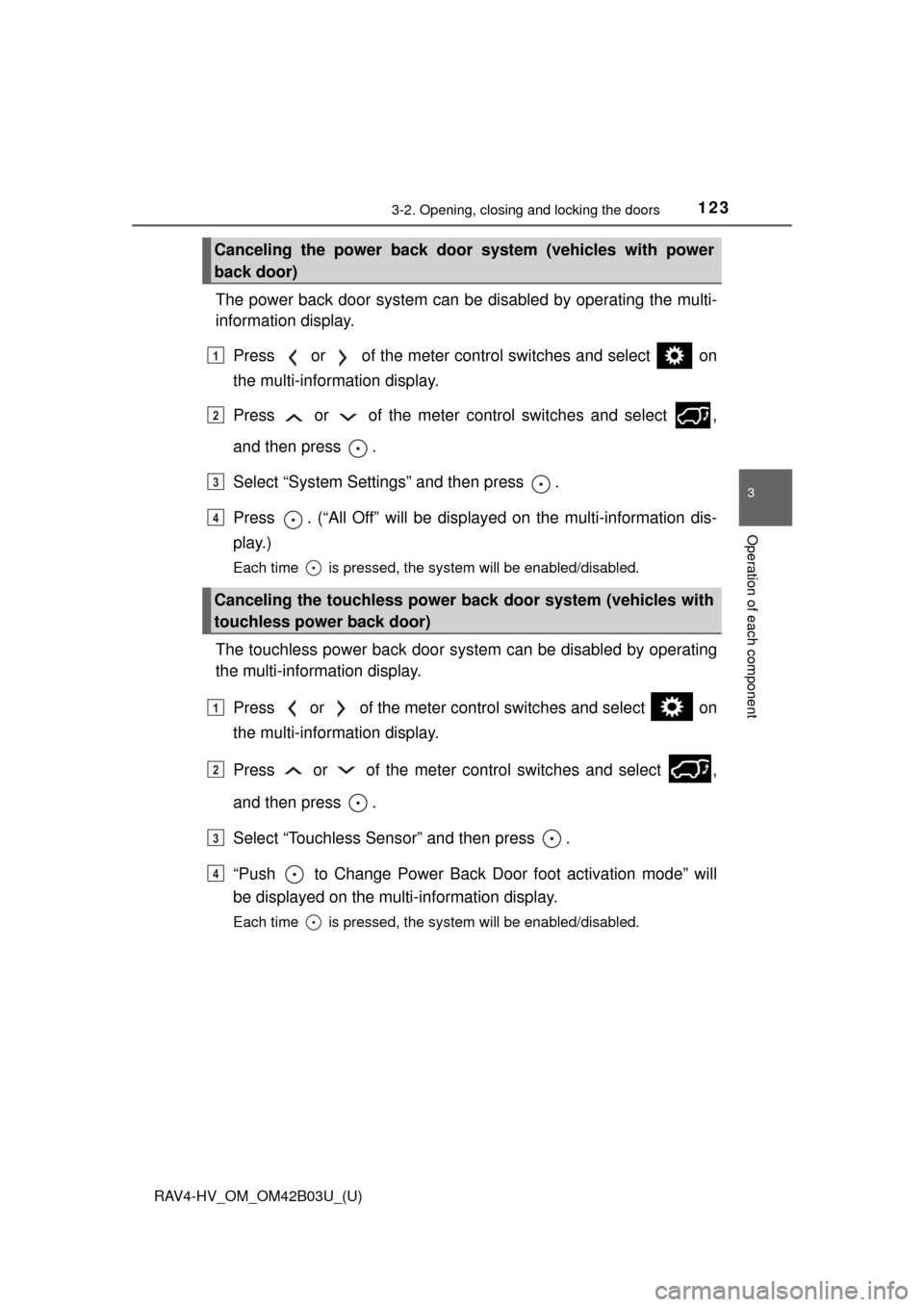

The power back door system can be disabled by operating the multi-
information display.
Press or of the meter control switches and select on
the multi-information display.
Press or of the meter control switches and select ,
and then press .
Select “System Settings” and then press .
Press . (“All Off” will be displayed on the multi-information dis-
play.)
Each time is pressed, the system will be enabled/disabled.
The touchless power back door system can be disabled by operating
the multi-information display.
Press or of the meter control switches and select on
the multi-information display.
Press or of the meter control switches and select ,
and then press .
Select “Touchless Sensor” and then press .
“Push to Change Power Back Door foot activation mode” will
be displayed on the multi-information display.
Each time is pressed, the system will be enabled/disabled.
Canceling the power back door system (vehicles with power
back door)
Canceling the touchless power ba ck door system (vehicles with
touchless power back door)
1
2
3
4
1
2
3
4

124
RAV4-HV_OM_OM42B03U_(U)
3-2. Opening, closing and locking the doors

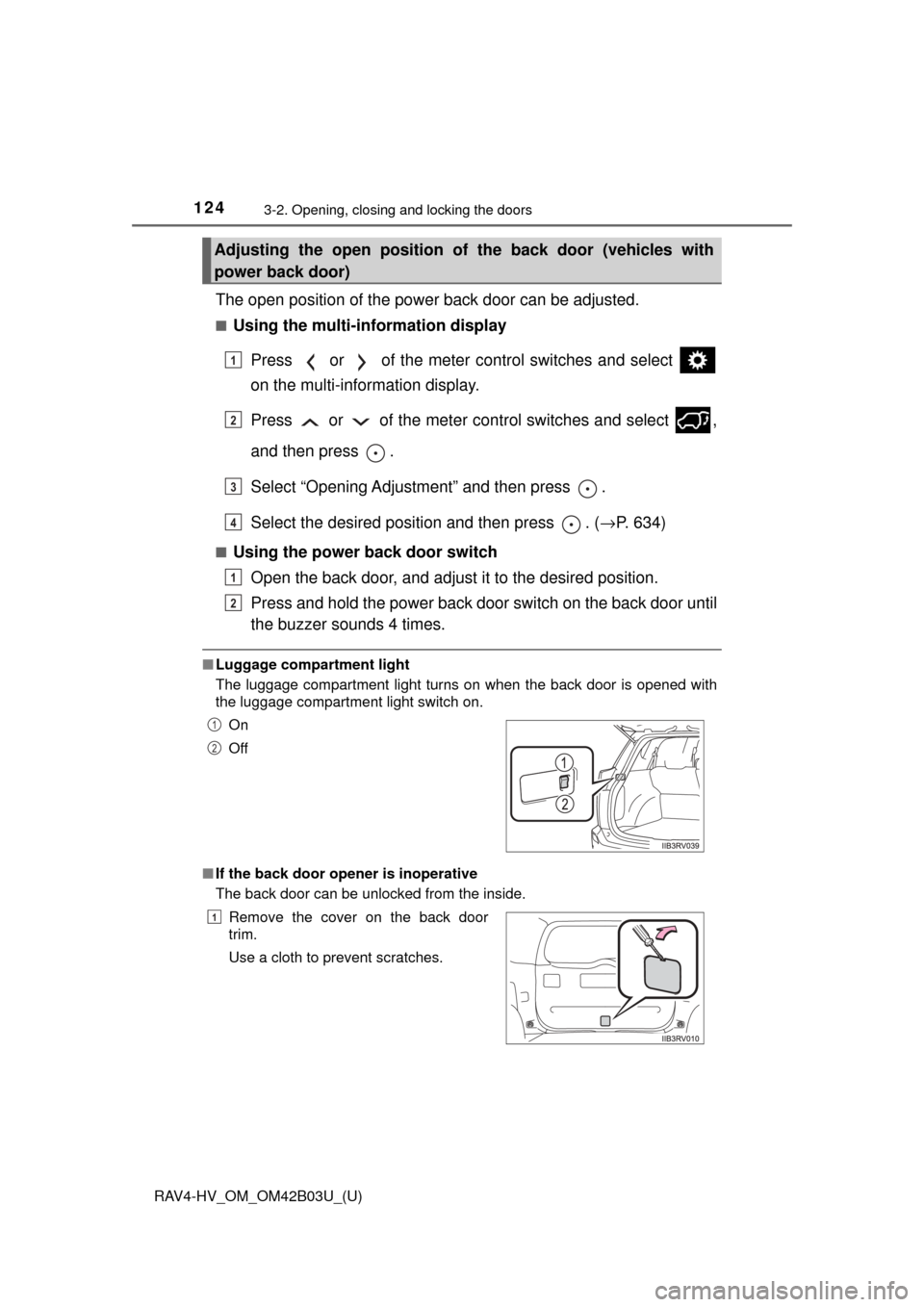

The open position of the power back door can be adjusted.
■Using the multi-information display
Press or of the meter control switches and select
on the multi-information display.
Press or of the meter co ntrol switches and select ,
and then press .
Select “Opening Adjustment” and then press .
Select the desired position and then press . ( →P. 634)
■Using the power back door switch
Open the back door, and adjust it to the desired position.
Press and hold the power back door switch on the back door until
the buzzer sounds 4 times.
■ Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
■ If the back door open er is inoperative
The back door can be unlocked from the inside.
Adjusting the open position of the back door (vehicles with
power back door)
On
Off
Remove the cover on the back door
trim.
Use a cloth to prevent scratches.
1
2
3
4
1
2
1
2
1

RAV4-HV_OM_OM42B03U_(U)
1253-2. Opening, closing and locking the doors
3
Operation of each component

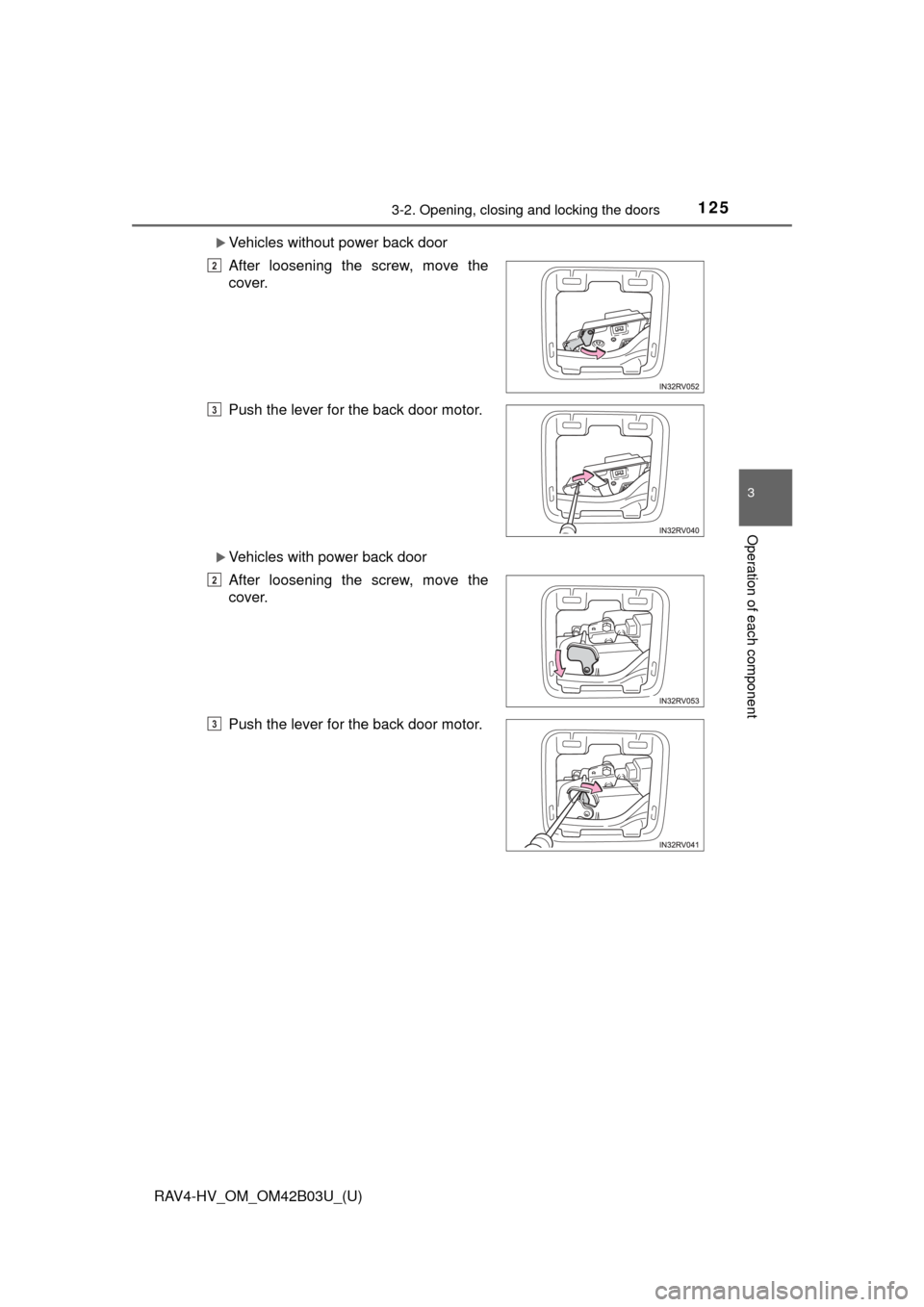

Vehicles without power back door
Vehicles with power back door After loosening the screw, move the
cover.
Push the lever for the back door motor.
After loosening the screw, move the
cover.
Push the lever for the back door motor.
2
3
2
3

126
RAV4-HV_OM_OM42B03U_(U)
3-2. Opening, closing and locking the doors
■Back door operation
●A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
● Power back door (if equipped): A buzzer sounds and the emergency flash-
ers flash twice to indicate that the back door is opening/closing.
● Power back door (if equipped): The back door can be opened even if it is
locked. The back door and side doors will be unlocked when the power back
door is opened. Lock all the doors again when you leave the vehicle. All the
doors will not lock automatically after the back door has been opened and
then closed.
■ Touchless sensor (vehicles wit h touchless power back door)
The power back door will open/close automatically when the touchless sen-
sor operation is enabled ( →P. 634) and the following conditions are met:
● The power back door is fully closed/opened.
● The electronic key is within the operational range. ( →P. 136)
● A foot is put near the lower center part of the rear bumper and moved away
from the rear bumper.
The power back door may also be operated by putting a hand, an elbow, a
knee, etc. near the lower center part of the rear bumper and moving it away
from the rear bumper. Make sure to put it close enough to the center part of
the rear bumper.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Jam protection function (veh icles with power back door)
If anything obstructs the power back door while it is closing/opening, the back
door will automatically operate in the opposite direction or stop.
■ When reconnecting the 12- volt battery (vehicles with power back door)
To enable the power back door to operate properly, close the back door man-
ually.

RAV4-HV_OM_OM42B03U_(U)
1273-2. Opening, closing and locking the doors
3
Operation of each component
■Back door closer (vehicl es with power back door)
In the event that the back door is left slightly open, the back door closer will
automatically close it to the fully closed position.
■ Fall-down protection function (vehicles with power back door)
While the power back door is opening automatically, applying excessive force
to it will stop the opening operation to prevent the power back door from sud-
denly shutting.
■ Back door closing assist (veh icles with power back door)
If the back door is lowered manually when the back door is stopped at an
open position, the back door will fully close automatically.
■ Canceling the adjusted open positi on of the back door (vehicles with
power back door)
Press and hold the power back door switch on the back door until the buzzer
sounds 4 times, pauses momentarily, and then sounds 2 times. The open
position is initialized to the fully opened position.
■ Situations in which the touchless sensor may operate unintentionally
(vehicles with touc hless power back door)
In the following situations, the touchless sensor may operate unintentionally.
To prevent unintentional operation, keep the electronic key out of the opera-
tional range or disable the touchless sensor operation. (→P. 634)
● When water is applied to the rear bumper, such as in the rain or in a car
wash
● When dirt is wiped off the lower center part of the rear bumper
● When a metal object is brought near the lower center part of the rear
bumper
● When a vehicle cover is installed or removed
● When pets or other moving things suddenly enter the area below the rear
bumper
● When attempting to remove an object from below the lower center part of
the rear bumper
● When attempting to remove snow, etc. from below the lower center part of
the rear bumper

128
RAV4-HV_OM_OM42B03U_(U)
3-2. Opening, closing and locking the doors
■Situations in which the touchless sensor does not operate properly
(vehicles with touc hless power back door)
If the touchless sensor does not operate in the following situations, use the
back door opener switch or power back door switch or wireless remote con-
trol to open the power back door. ( →P. 120)
● When the rear bumper is subjected to strong impact
● When an external radio wave source interferes with the communication
between the vehicle and electronic key ( →P. 138)
● When a large amount of water is kept applying to the lower center part of the
rear bumper, such as in heavy rain
● When the vehicle is being washed and water is kept applying to lower center
part of the rear bumper
● When the lower center part of the rear bumper is covered with mud, snow,
ice, etc.
● When a metal object, etc., such as a towing hitch is installed near the lower
center part of the rear bumper
● When the vehicle has been parked for a while near objects that may move
and contact the lower center part of the rear bumper, such as grass or trees
● When the vehicle is parked at an area where an electric field is generated,
such as a road with an electric snow melting system or parking meters
■ Customization (vehicles with power back door)
Settings (e.g. power back door opening angle) can be changed.
(Customizable features: →P. 634)

RAV4-HV_OM_OM42B03U_(U)
1293-2. Opening, closing and locking the doors
3
Operation of each component

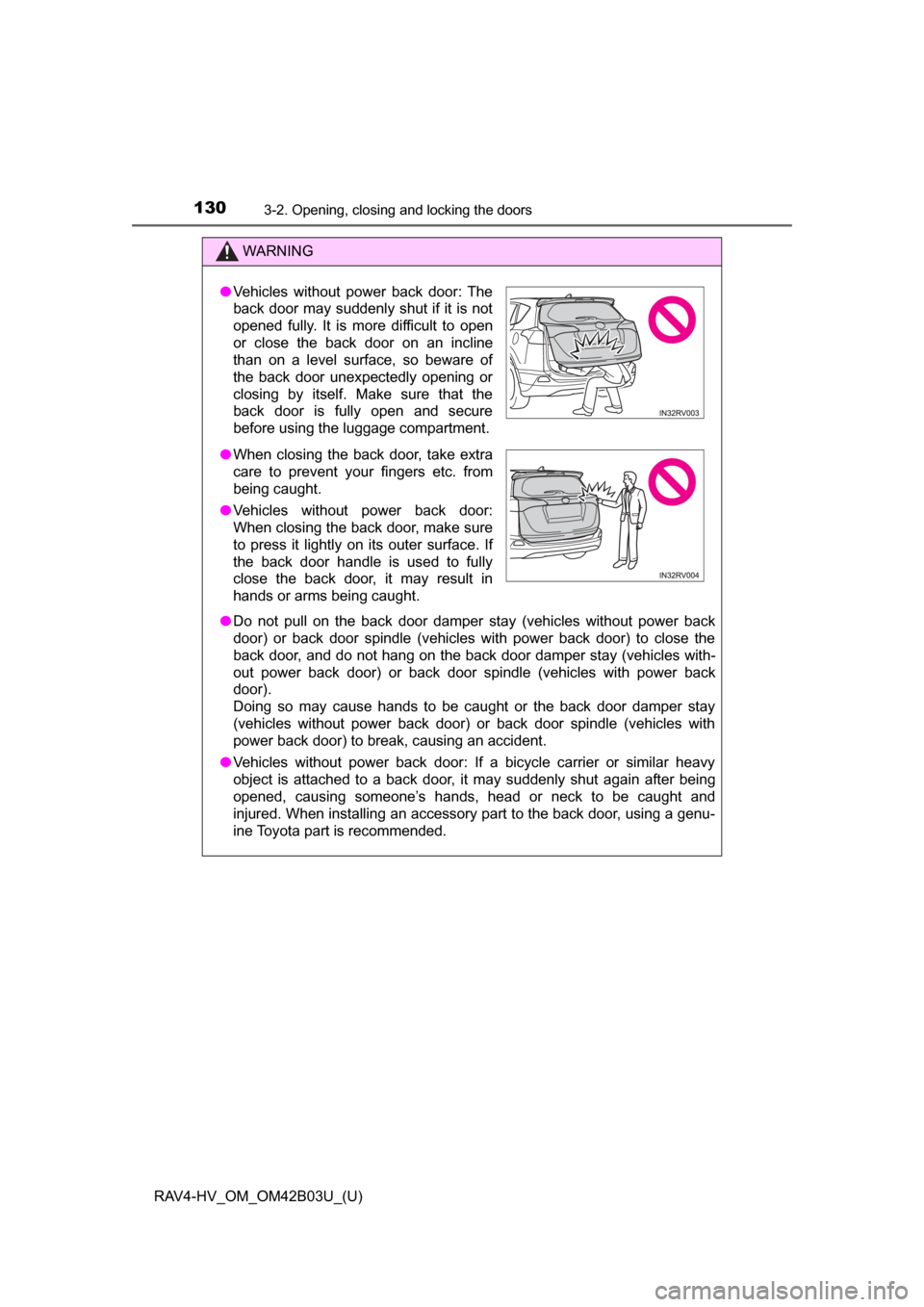

WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
● Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects or luggage in the
luggage compartment may be thrown out, causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door suddenly shut
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

130
RAV4-HV_OM_OM42B03U_(U)
3-2. Opening, closing and locking the doors
WARNING
●Do not pull on the back door damper stay (vehicles without power back
door) or back door spindle (vehicles with power back door) to close the
back door, and do not hang on the back door damper stay (vehicles with-
out power back door) or back door spindle (vehicles with power back
door).
Doing so may cause hands to be caught or the back door damper stay
(vehicles without power back door) or back door spindle (vehicles with
power back door) to break, causing an accident.
● Vehicles without power back door: If a bicycle carrier or similar heavy
object is attached to a back door, it may suddenly shut again after being
opened, causing someone’s hands, head or neck to be caught and
injured. When installing an accessory part to the back door, using a genu-
ine Toyota part is recommended.
●Vehicles without power back door: The
back door may suddenly shut if it is not
opened fully. It is more difficult to open
or close the back door on an incline
than on a level surface, so beware of
the back door unexpectedly opening or
closing by itself. Make sure that the
back door is fully open and secure
before using the luggage compartment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● Vehicles without power back door:
When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
