TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual

RAV4-HV_OM_OM42B03U_(U)
5317-3. Do-it-yourself maintenance
7
Maintenance and care

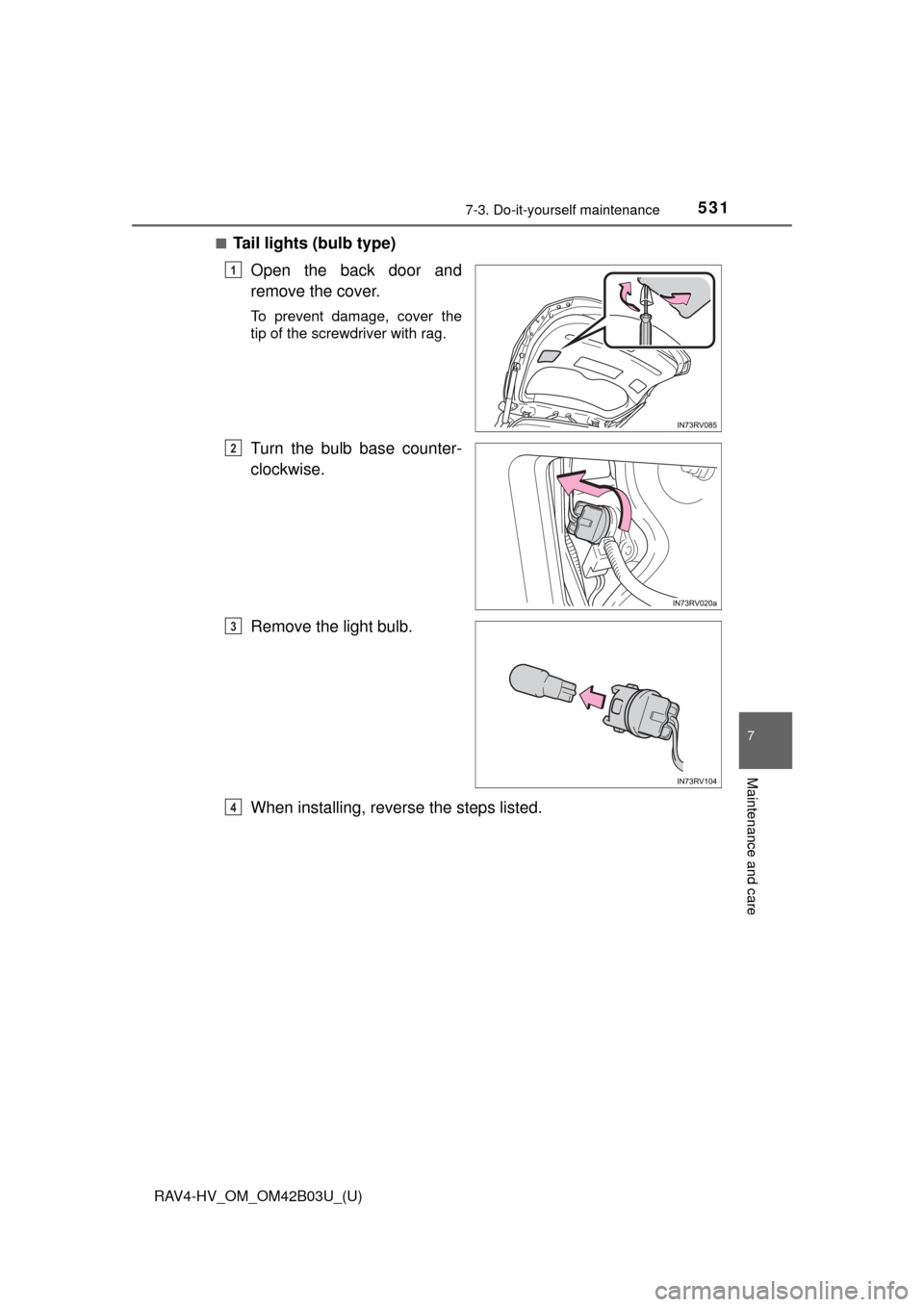

■Tail lights (bulb type)Open the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, revers e the steps listed.
1
2
3
4

532
RAV4-HV_OM_OM42B03U_(U)
7-3. Do-it-yourself maintenance
■Back-up lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
make sure that the rubber cover
is installed securely.
1
2
Rubber
cover
3

RAV4-HV_OM_OM42B03U_(U)
5337-3. Do-it-yourself maintenance
7
Maintenance and care

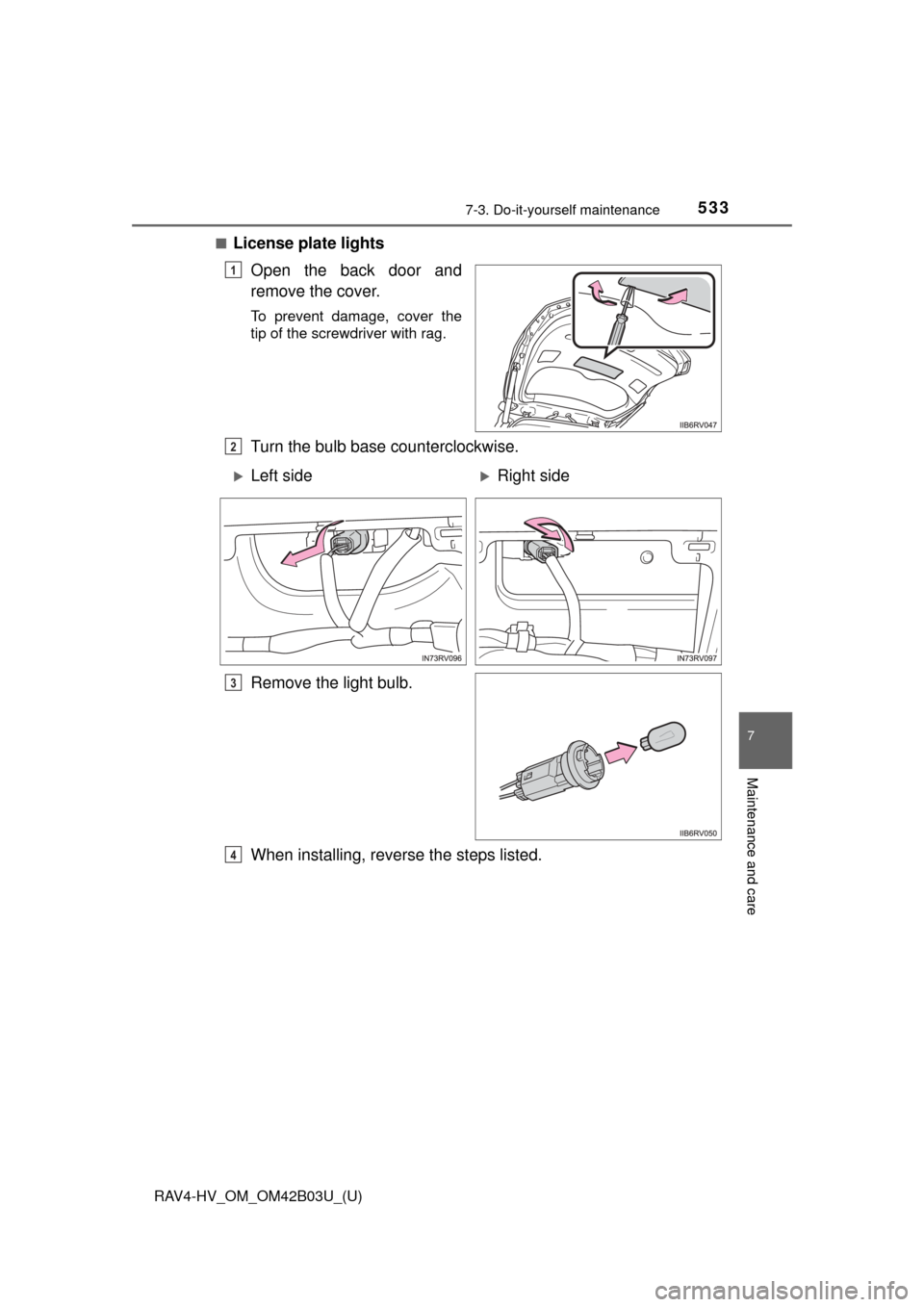

■License plate lightsOpen the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
Left sideRight side
3
4

534
RAV4-HV_OM_OM42B03U_(U)
7-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights (LED headlights)
● Parking lights/daytime runni ng lights (LED headlights)
● Side turn signal lights
● Stop/tail lights (LED type)
● Tail lights (LED type)
● Rear side marker lights (LED type)
● High mounted stoplight
■LED Lights
The headlights (LED headlights), parking lights/daytime running lights\
(LED
headlights), side turn signal lights (if equipped), stop/tail lights \
(LED type), tail
lights (LED type), rear side marker lights (LED type) and high mounted stop-
light consist of a number of LEDs. If any of the LEDs burn out, take your vehi-
cle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.

RAV4-HV_OM_OM42B03U_(U)
5357-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
● When replacing the back up light of the right side, be careful not to touch
the exhaust pipes until they have cooled down sufficiently, as touching hot
exhaust pipes can cause burns.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

536
RAV4-HV_OM_OM42B03U_(U)
7-3. Do-it-yourself maintenance

537
RAV4-HV_OM_OM42B03U_(U)
8When trouble arises
8-1. Essential informationEmergency flashers .......... 538
If your vehicle has to be stopped in an
emergency ...................... 539
8-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 540
If you think something is wrong ......... 546
If a warning light turns on or a warning buzzer
sounds ............................ 547
If a warning message is displayed......................... 556
If you have a flat tire.......... 576
If the hybrid system will not start ..................... 588
If the electronic key does not operate properly........ 590
If the 12-volt battery is discharged ................... 592
If your vehicle overheats ... 597
If the vehicle becomes stuck ............................... 602

538
RAV4-HV_OM_OM42B03U_(U)
8-1. Essential information

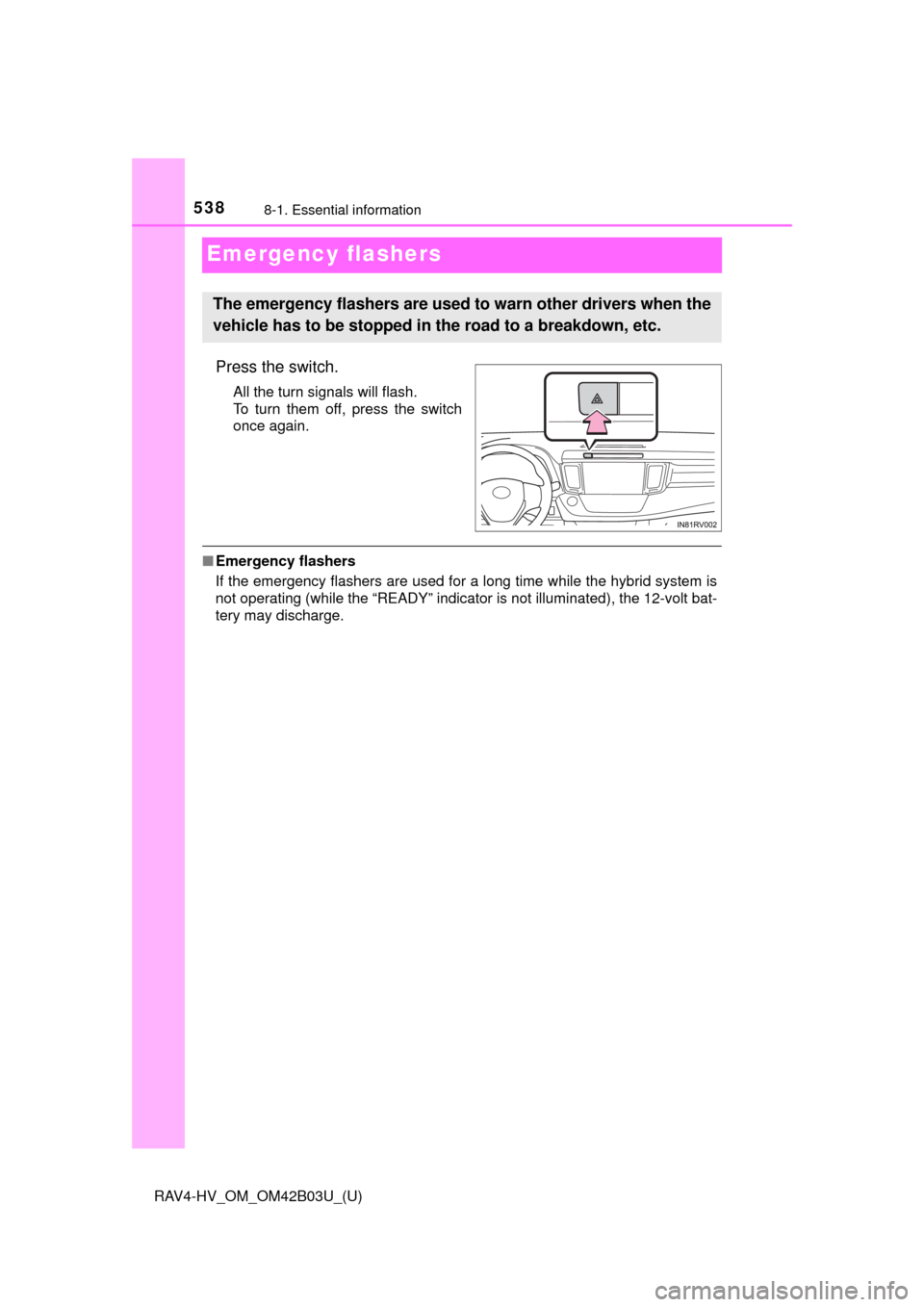

Emergency flashers
Press the switch.
All the turn signals will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt \
bat-
tery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road to a breakdown, etc.

539
RAV4-HV_OM_OM42B03U_(U)
8-1. Essential information
8
When trouble arises

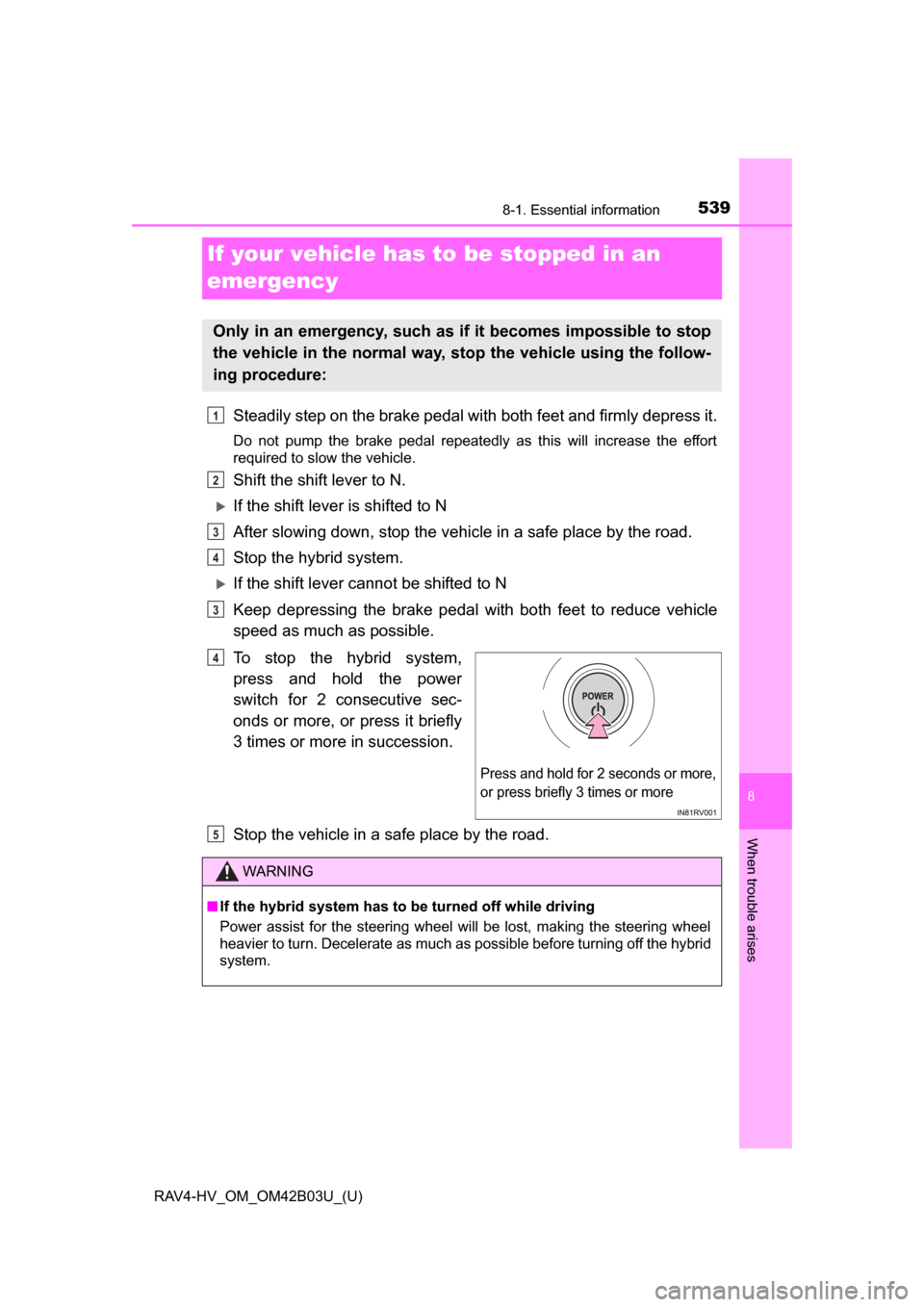

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
WARNING
■ If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.
5

540
RAV4-HV_OM_OM42B03U_(U)
8-2. Steps to take in an emergency

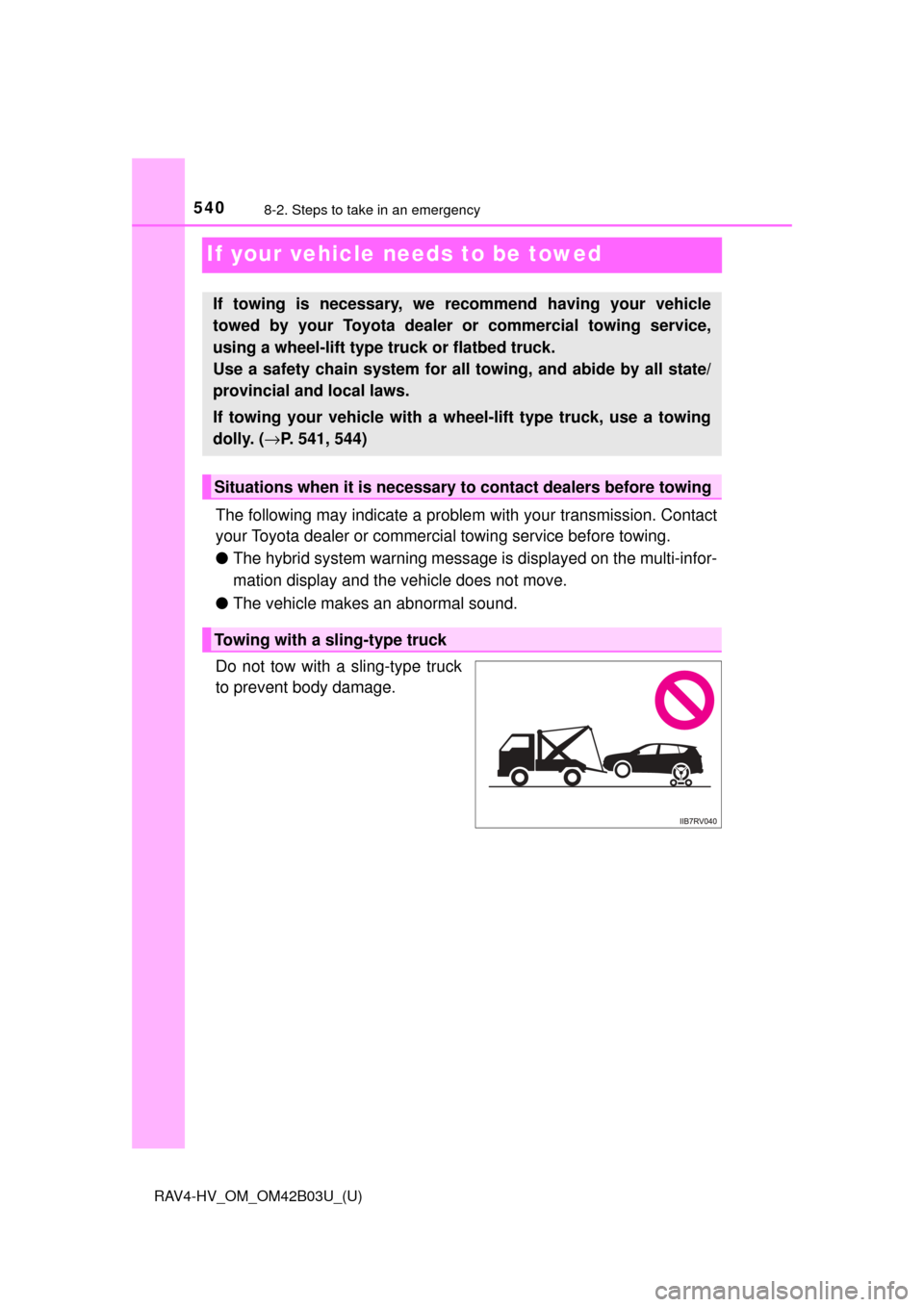

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
● The hybrid system warning message is displayed on the multi-infor-
mation display and the vehicle does not move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we re commend having your vehicle
towed by your Toyota dealer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
If towing your vehicle with a wheel-lift type truck, use a towing
dolly. (→ P. 541, 544)
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck
