5618-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises
Indicates that the vehicle is being driven at 3 mph
(5 km/h) or more with the parking brake still
engaged.A buzzer also sounds.
→ Release the parking brake.
(If equipped)
Indicates that the LDA (Lane Departure Alert with
steering control) system has determined that the
driver does not have the hands on the steering
wheel while the steering control function is on
If the system continues to determine that the
driver does not have the hands on the steering
wheel, a buzzer also sounds.
→ Firmly hold the steering wheel.
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates a malfunction in:
• The ABS; or
• The brake assist system A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
Warning messageDetails/Actions
(Flashes) (U.S.A.) (Red)
(Canada)
(U.S.A.) (Canada)

5628-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)

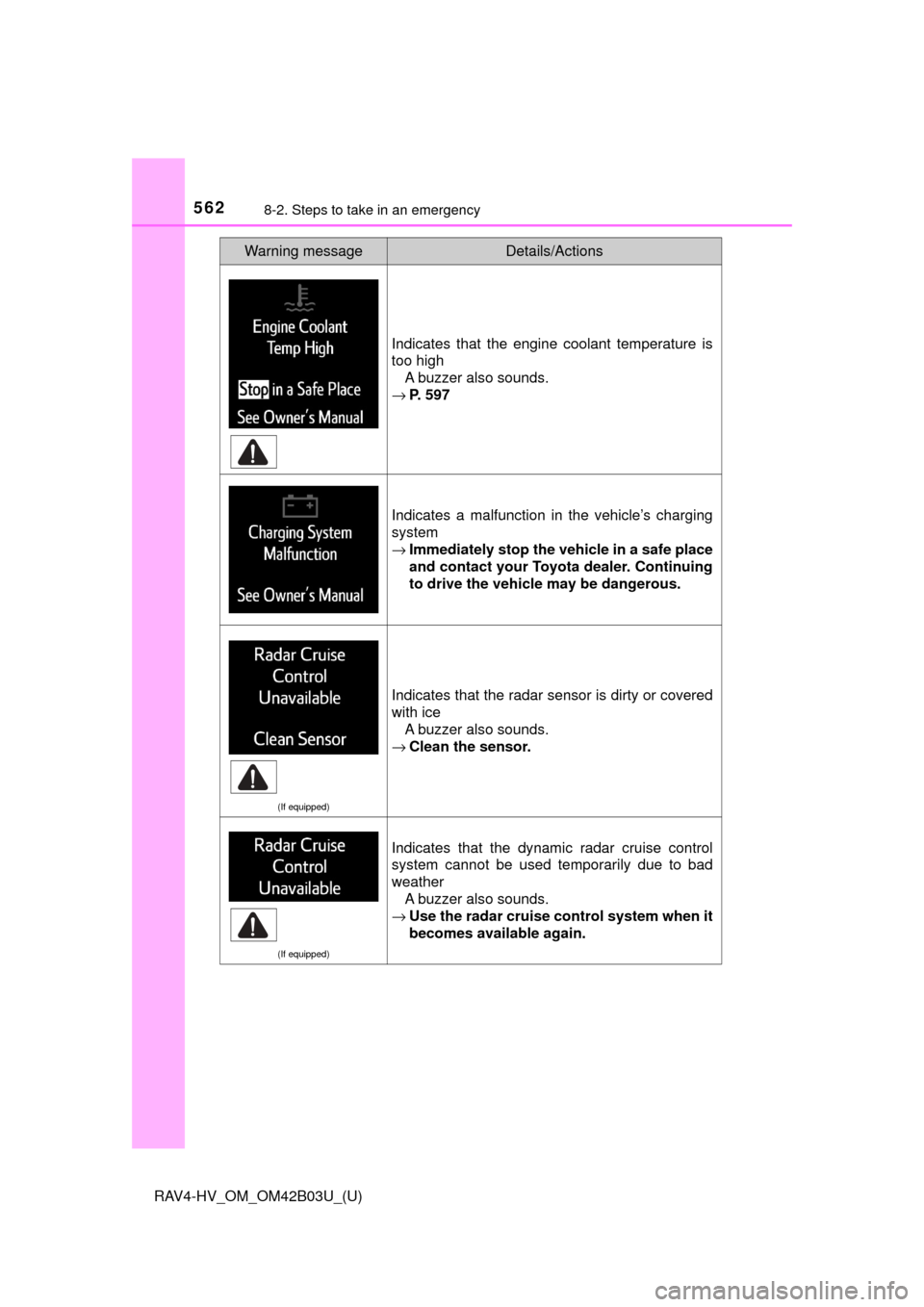

Indicates that the engine coolant temperature is
too highA buzzer also sounds.
→ P. 597
Indicates a malfunction in the vehicle’s charging
system
→Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system cannot be used temporarily due to bad
weather
A buzzer also sounds.
→ Use the radar cruise control system when it
becomes available again.
Warning messageDetails/Actions

5638-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises

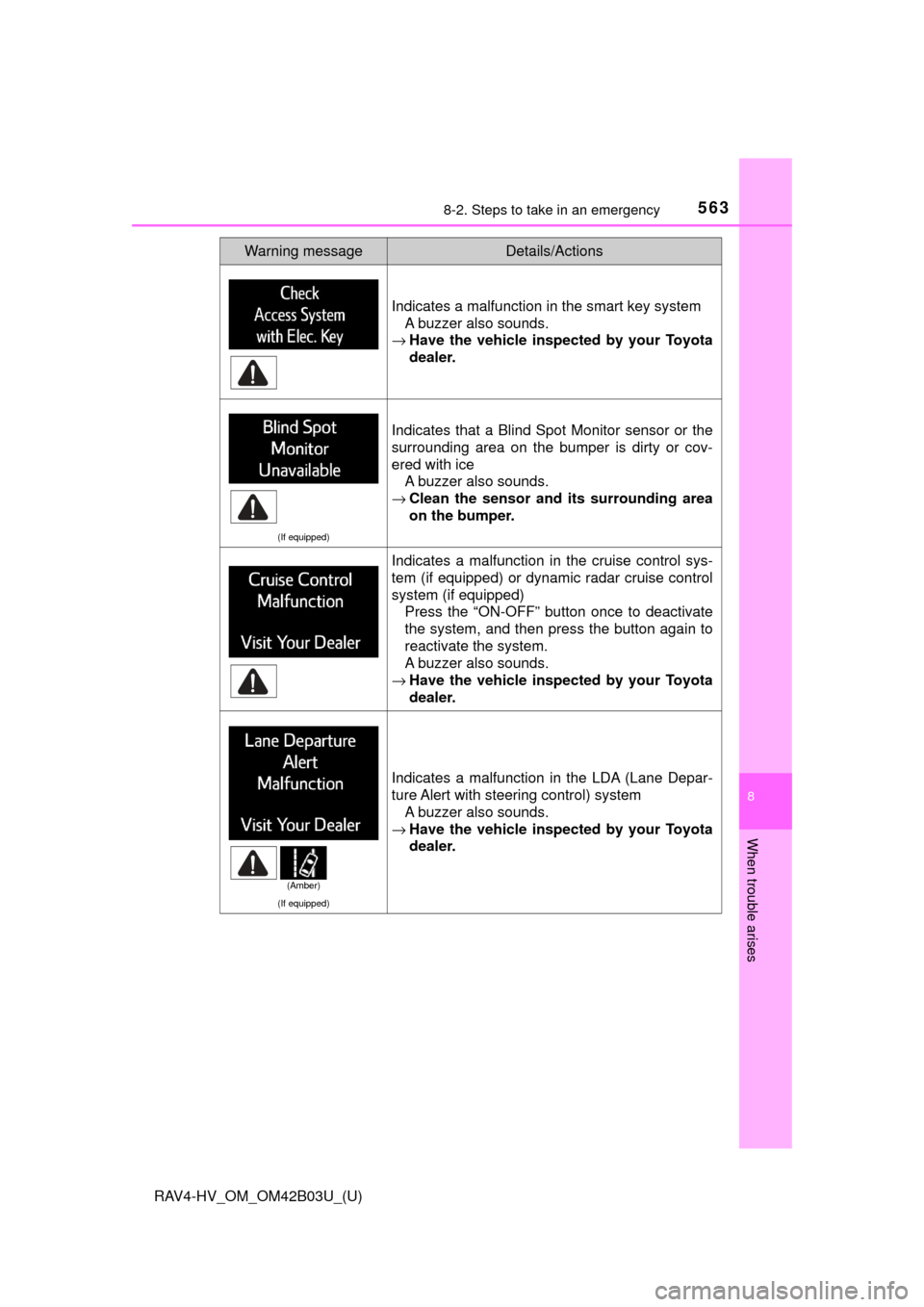

Indicates a malfunction in the smart key systemA buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with ice A buzzer also sounds.
→ Clean the sensor and its surrounding area
on the bumper.
Indicates a malfunction in the cruise control sys-
tem (if equipped) or dynamic radar cruise control
system (if equipped) Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert with steering control) system
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Warning messageDetails/Actions
(Amber)

5648-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
(If equipped)

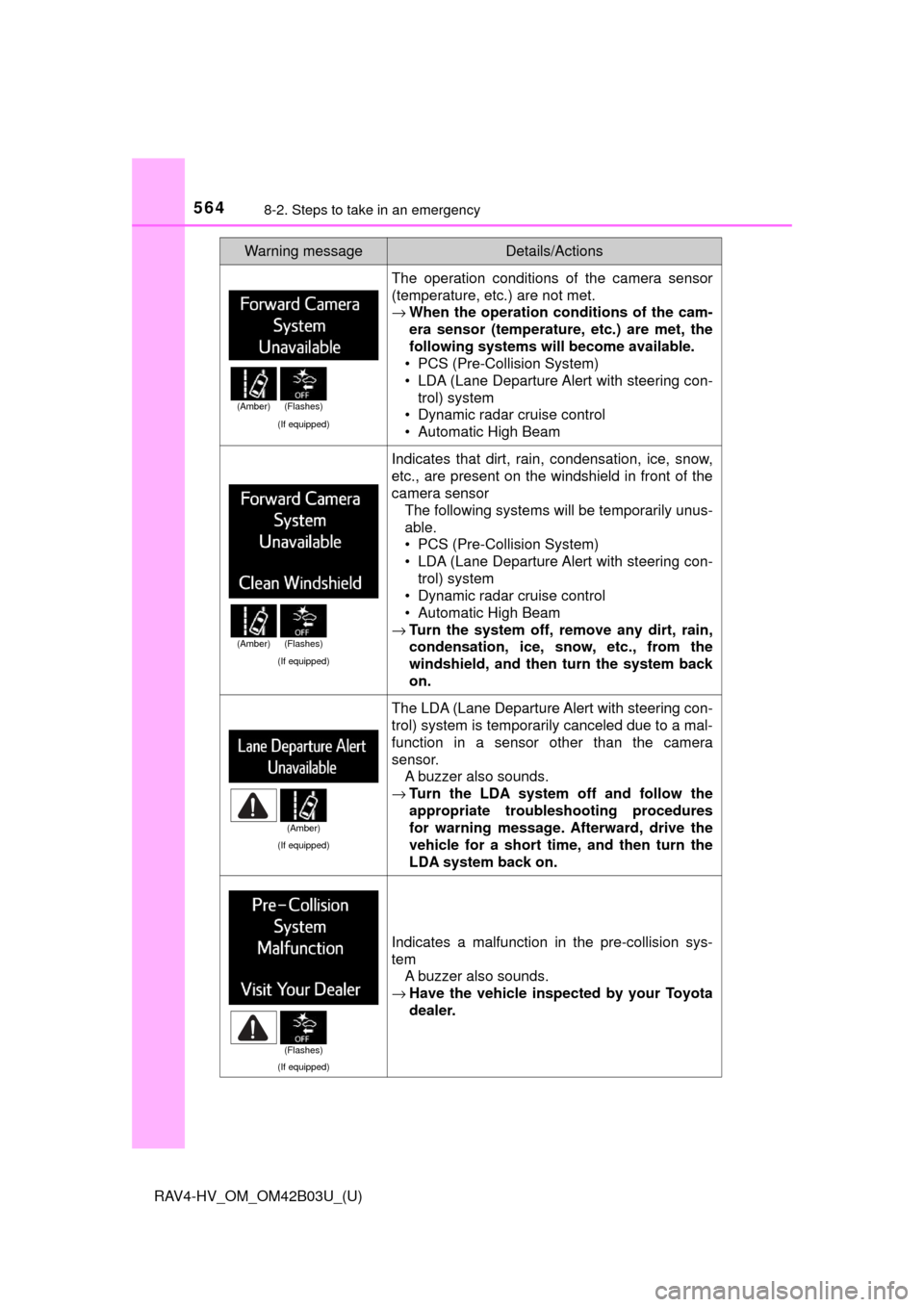

The operation conditions of the camera sensor
(temperature, etc.) are not met.
→When the operation c onditions of the cam-
era sensor (temperature, etc.) are met, the
following systems will become available.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert with steering con- trol) system
• Dynamic radar cruise control
• Automatic High Beam
(If equipped)
Indicates that dirt, rain, condensation, ice, snow,
etc., are present on the windshield in front of the
camera sensor The following systems will be temporarily unus-
able.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert with steering con-
trol) system
• Dynamic radar cruise control
• Automatic High Beam
→ Turn the system off, remove any dirt, rain,
condensation, ice, snow, etc., from the
windshield, and then turn the system back
on.
(If equipped)
The LDA (Lane Departure Alert with steering con-
trol) system is temporarily canceled due to a mal-
function in a sensor other than the camera
sensor.
A buzzer also sounds.
→ Turn the LDA system off and follow the
appropriate troubleshooting procedures
for warning message. Afterward, drive the
vehicle for a short time, and then turn the
LDA system back on.
(If equipped)
Indicates a malfunction in the pre-collision sys-
tem
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Warning messageDetails/Actions
(Amber) (Flashes)
(Amber) (Flashes)
(Amber)
(Flashes)

5658-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises
(If equipped)

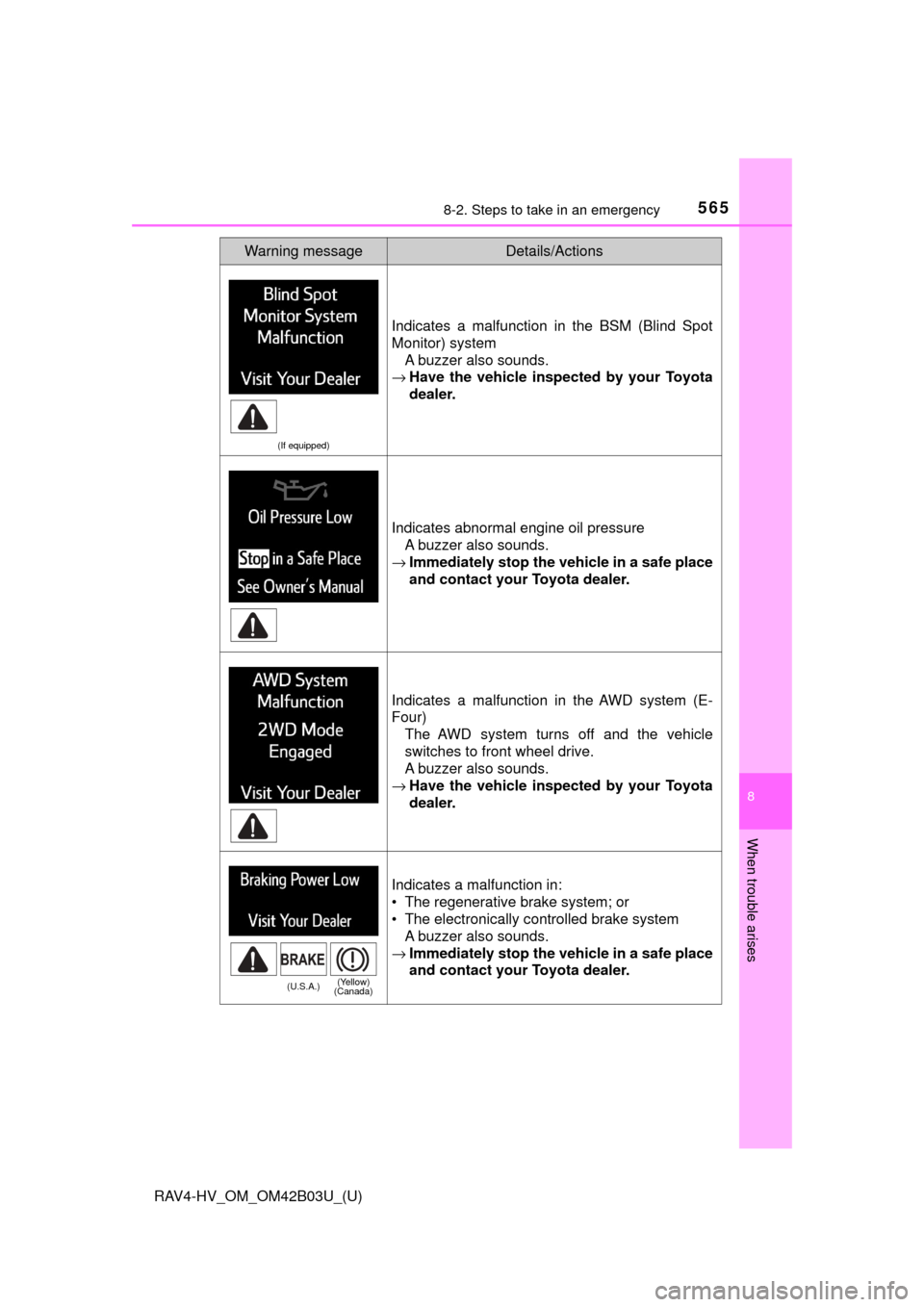

Indicates a malfunction in the BSM (Blind Spot
Monitor) systemA buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates abnormal engine oil pressure
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the AWD system (E-
Four)
The AWD system turns off and the vehicle
switches to front wheel drive.
A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Warning messageDetails/Actions
(U.S.A.) (Yellow)
(Canada)

5668-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
(If equipped)

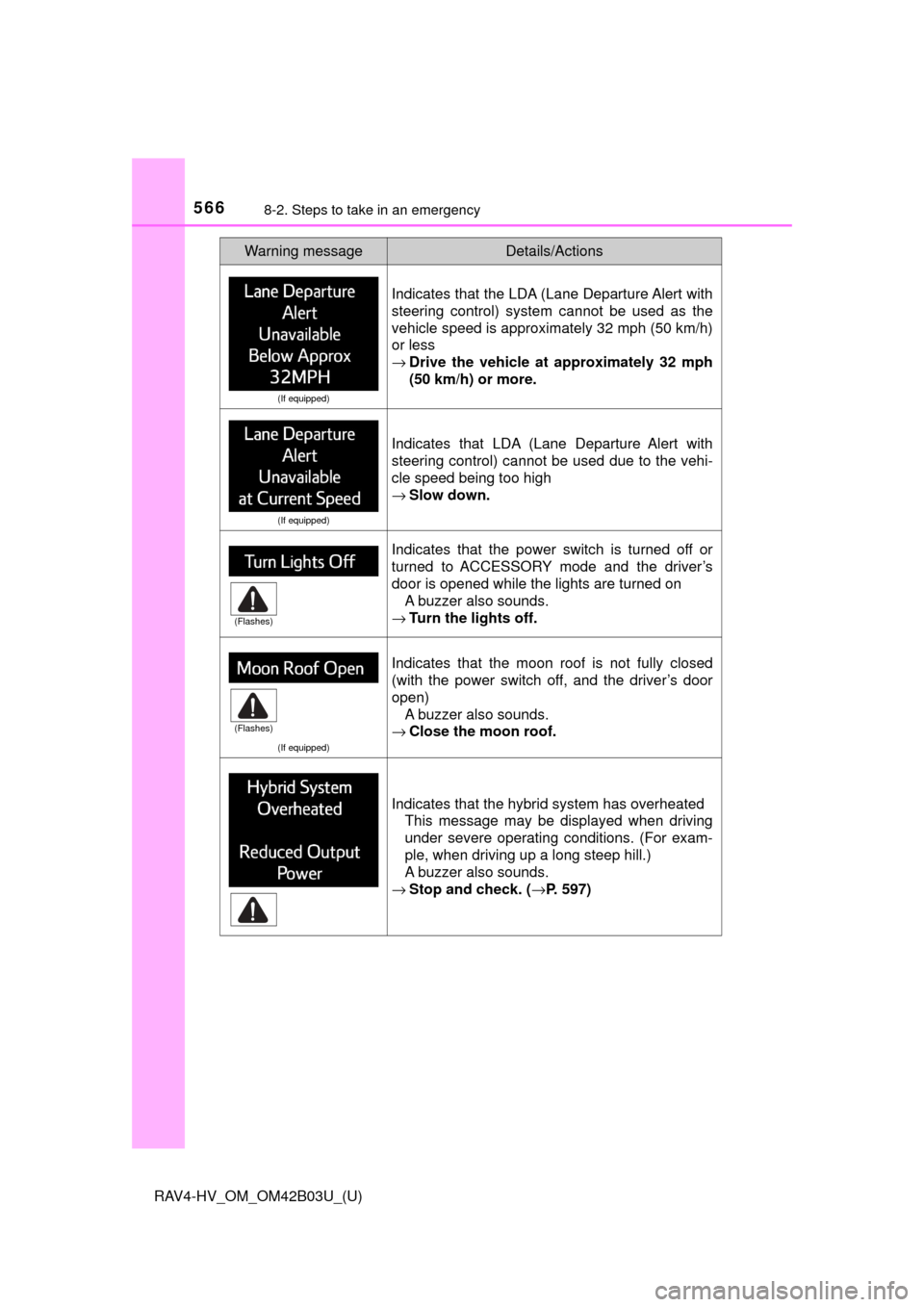

Indicates that the LDA (Lane Departure Alert with
steering control) system cannot be used as the
vehicle speed is approximately 32 mph (50 km/h)
or less
→Drive the vehicle at approximately 32 mph
(50 km/h) or more.
(If equipped)
Indicates that LDA (Lane Departure Alert with
steering control) cannot be used due to the vehi-
cle speed being too high
→Slow down.
Indicates that the power switch is turned off or
turned to ACCESSORY mode and the driver’s
door is opened while the lights are turned on
A buzzer also sounds.
→ Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed
(with the power switch off, and the driver’s door
open)
A buzzer also sounds.
→ Close the moon roof.
Indicates that the hybrid system has overheated
This message may be displayed when driving
under severe operating conditions. (For exam-
ple, when driving up a long steep hill.)
A buzzer also sounds.
→ Stop and check. ( →P. 597)
Warning messageDetails/Actions
(Flashes)
(Flashes)

5678-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises
(If equipped)

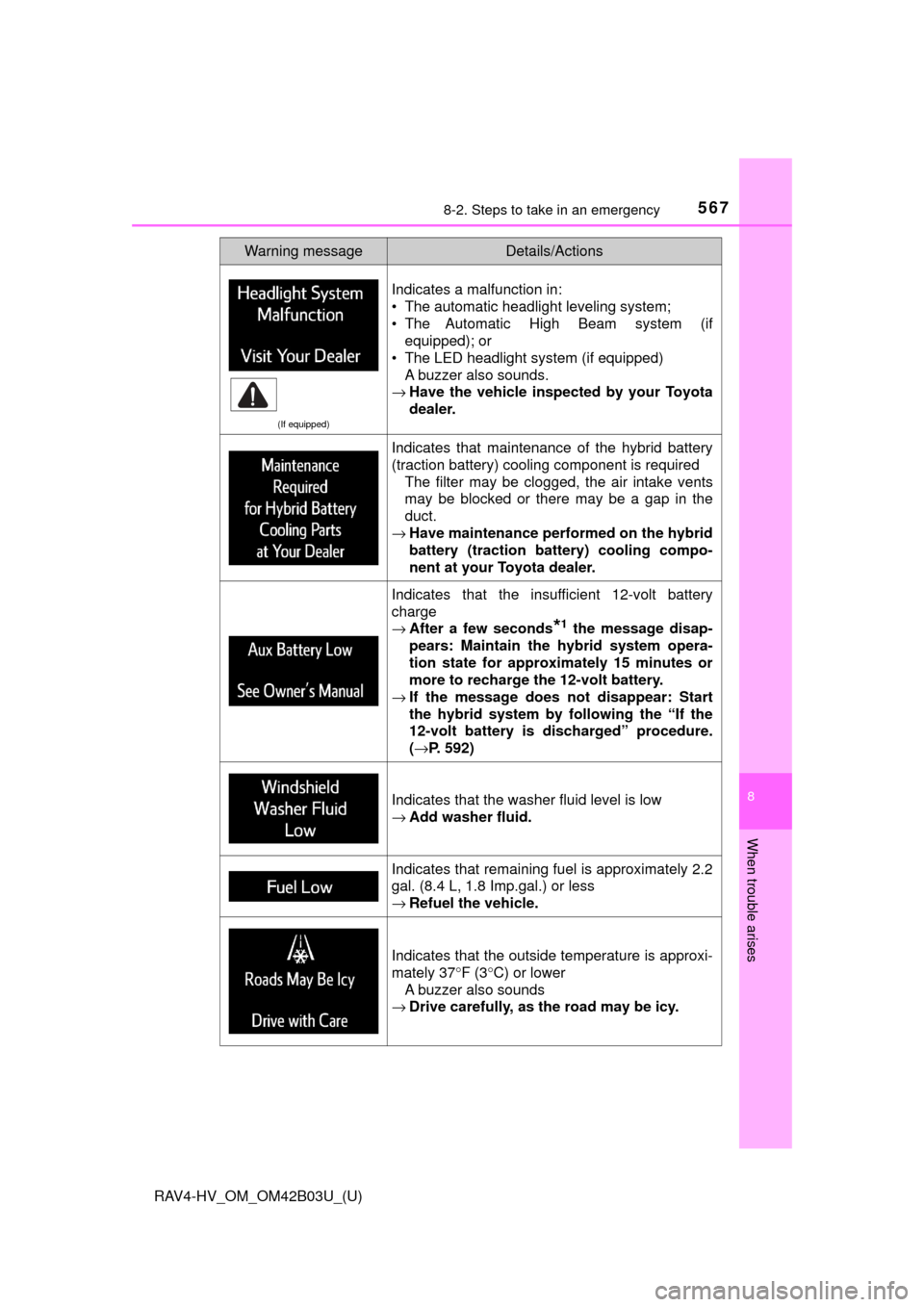

Indicates a malfunction in:
• The automatic headlight leveling system;
• The Automatic High Beam system (ifequipped); or
• The LED headlight system (if equipped) A buzzer also sounds.
→ Have the vehicle inspect ed by your Toyota
dealer.
Indicates that maintenance of the hybrid battery
(traction battery) cooling component is required The filter may be clogged, the air intake vents
may be blocked or there may be a gap in the
duct.
→ Have maintenance performed on the hybrid
battery (traction batt ery) cooling compo-
nent at your Toyota dealer.
Indicates that the insufficient 12-volt battery
charge
→ After a few seconds
*1 the message disap-
pears: Maintain the hybrid system opera-
tion state for approximately 15 minutes or
more to recharge the 12-volt battery.
→ If the message does not disappear: Start
the hybrid system by following the “If the
12-volt battery is discharged” procedure.
(→P. 592)
Indicates that the washer fluid level is low
→ Add washer fluid.
Indicates that remaining fuel is approximately 2.2
gal. (8.4 L, 1.8 Imp.gal.) or less
→Refuel the vehicle.
Indicates that the outside temperature is approxi-
mately 37 °F (3 °C) or lower
A buzzer also sounds
→ Drive carefully, as the road may be icy.
Warning messageDetails/Actions

5688-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
(If equipped)

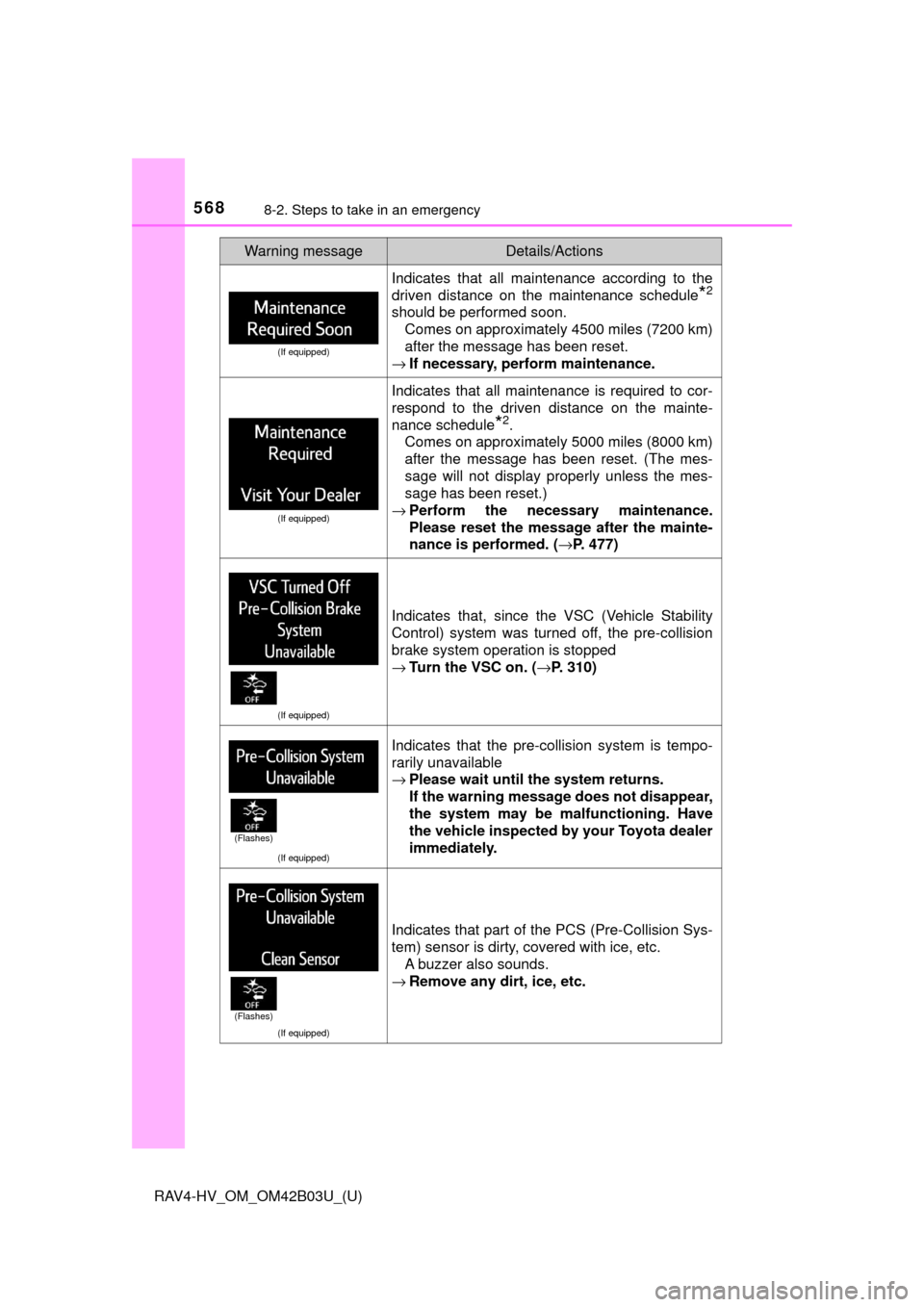

Indicates that all maintenance according to the
driven distance on the maintenance schedule
*2
should be performed soon.Comes on approximately 4500 miles (7200 km)
after the message has been reset.
→ If necessary, perform maintenance.
(If equipped)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*2.
Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The mes-
sage will not display properly unless the mes-
sage has been reset.)
→ Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( →P. 477)
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
→Turn the VSC on. ( →P. 310)
(If equipped)
Indicates that the pre-collision system is tempo-
rarily unavailable
→Please wait until the system returns.
If the warning message does not disappear,
the system may be malfunctioning. Have
the vehicle inspected by your Toyota dealer
immediately.
(If equipped)
Indicates that part of the PCS (Pre-Collision Sys-
tem) sensor is dirty, covered with ice, etc.
A buzzer also sounds.
→ Remove any dirt, ice, etc.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5698-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
8
When trouble arises

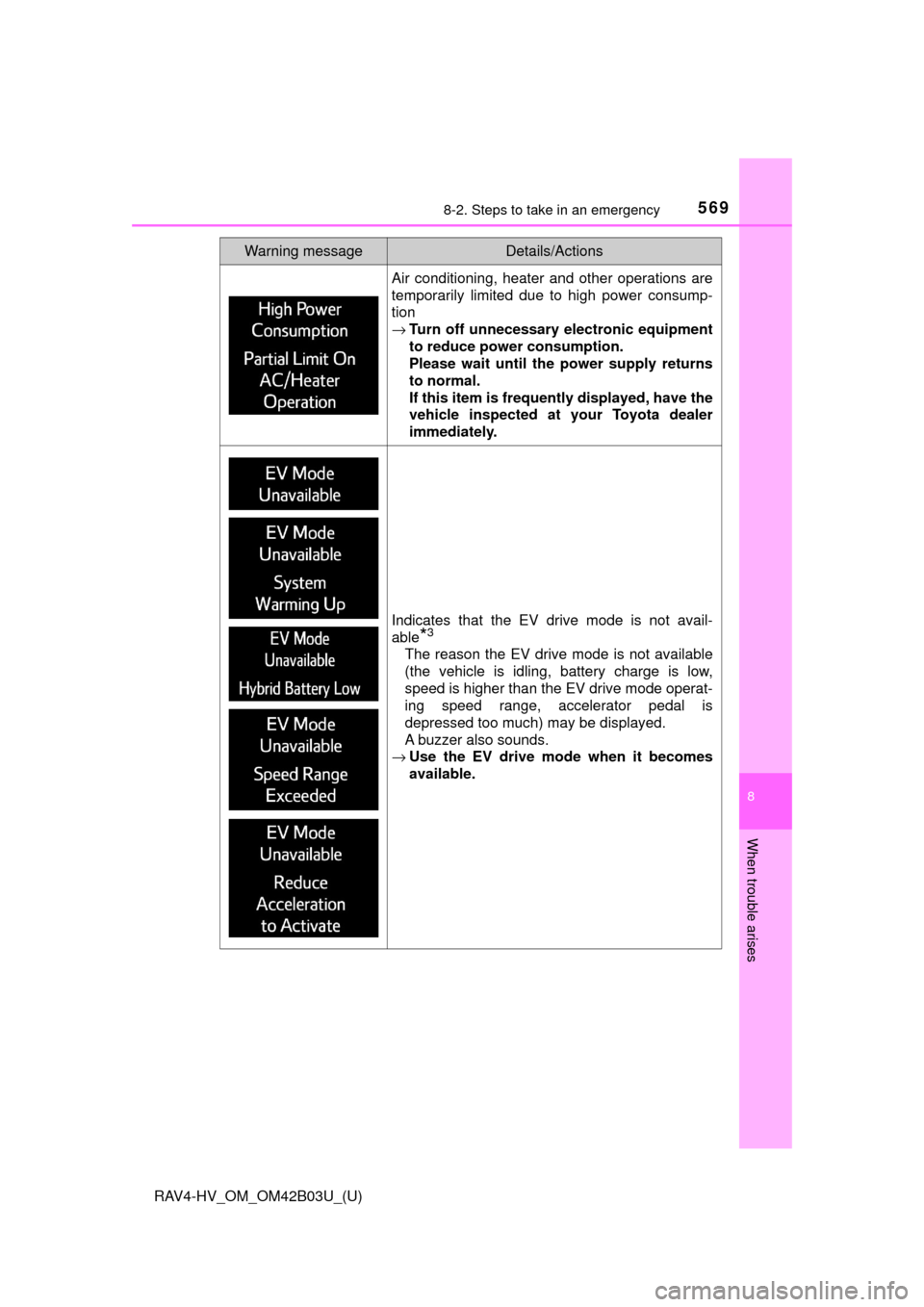

Air conditioning, heater and other operations are
temporarily limited due to high power consump-
tion
→Turn off unnecessary electronic equipment
to reduce power consumption.
Please wait until the power supply returns
to normal.
If this item is frequently displayed, have the
vehicle inspected at your Toyota dealer
immediately.
Indicates that the EV drive mode is not avail-
able
*3
The reason the EV drive mode is not available
(the vehicle is idling, battery charge is low,
speed is higher than the EV drive mode operat-
ing speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
→ Use the EV drive mode when it becomes
available.
Warning messageDetails/Actions

5708-2. Steps to take in an emergency
RAV4-HV_OM_OM42B03U_(U)
*1: Displays for about 6 seconds
*2: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
*3: For the EV drive mode operating conditions ( →P. 203).

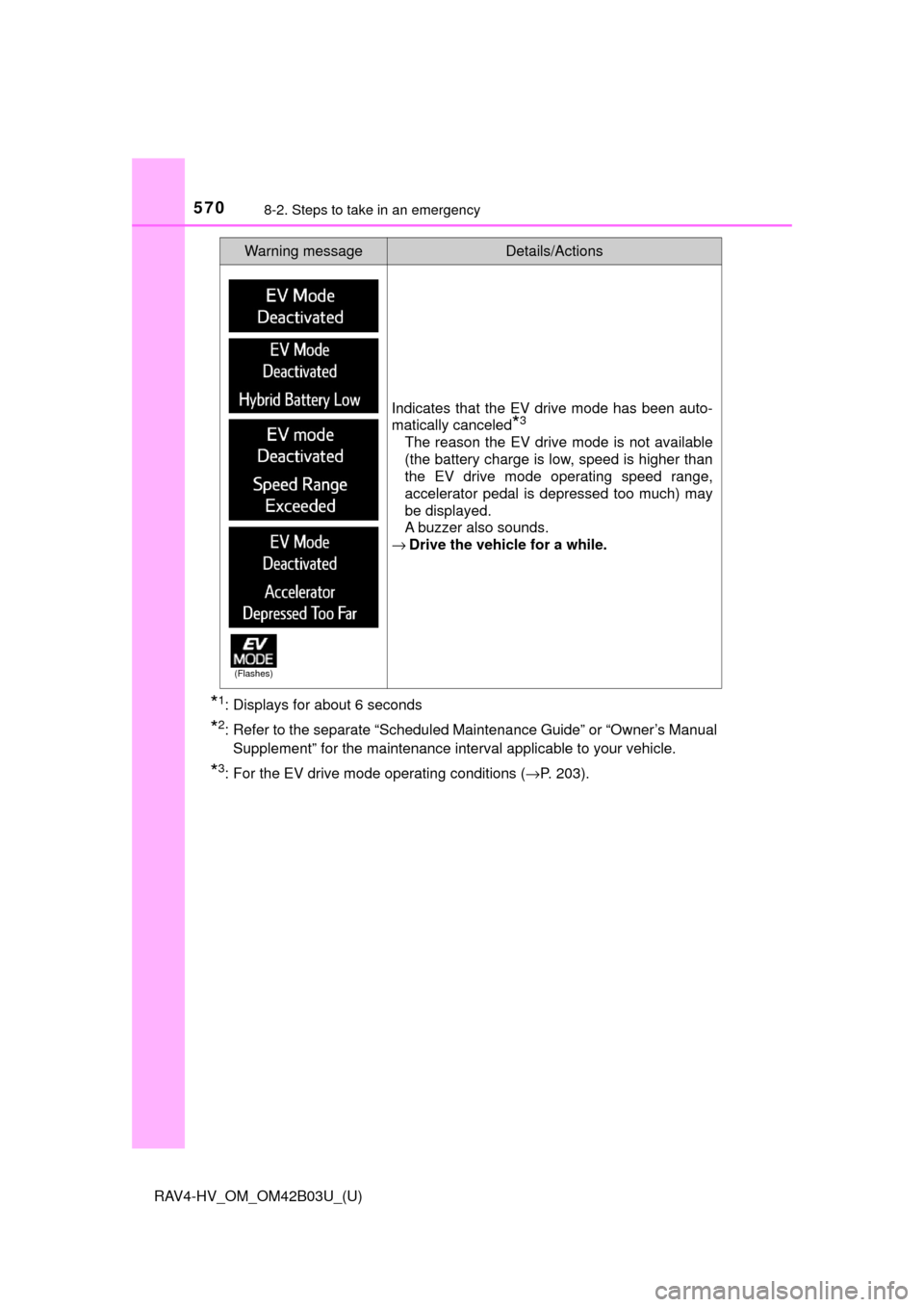

Indicates that the EV drive mode has been auto-
matically canceled
*3
The reason the EV drive mode is not available
(the battery charge is low, speed is higher than
the EV drive mode operating speed range,
accelerator pedal is depressed too much) may
be displayed.
A buzzer also sounds.
→ Drive the vehicle for a while.
Warning messageDetails/Actions
(Flashes)
