TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual RAV4-HV_OM_OM42B03U_(U)
6219-1. Specifications
9
Vehicle specifications

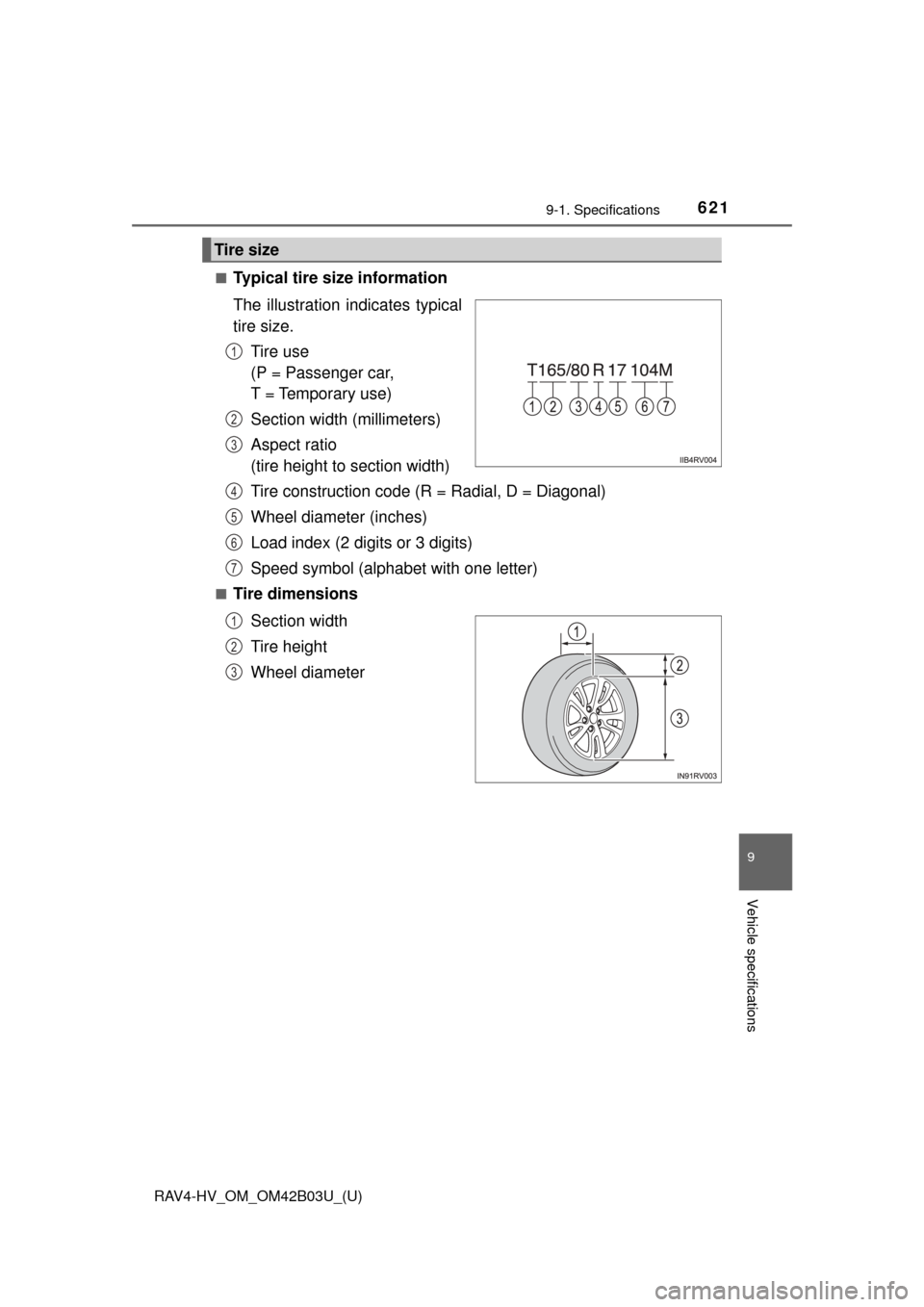

■Typical tire size information
The illustration indicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)

Page 622 of 676

TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual 622
RAV4-HV_OM_OM42B03U_(U)
9-1. Specifications
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer

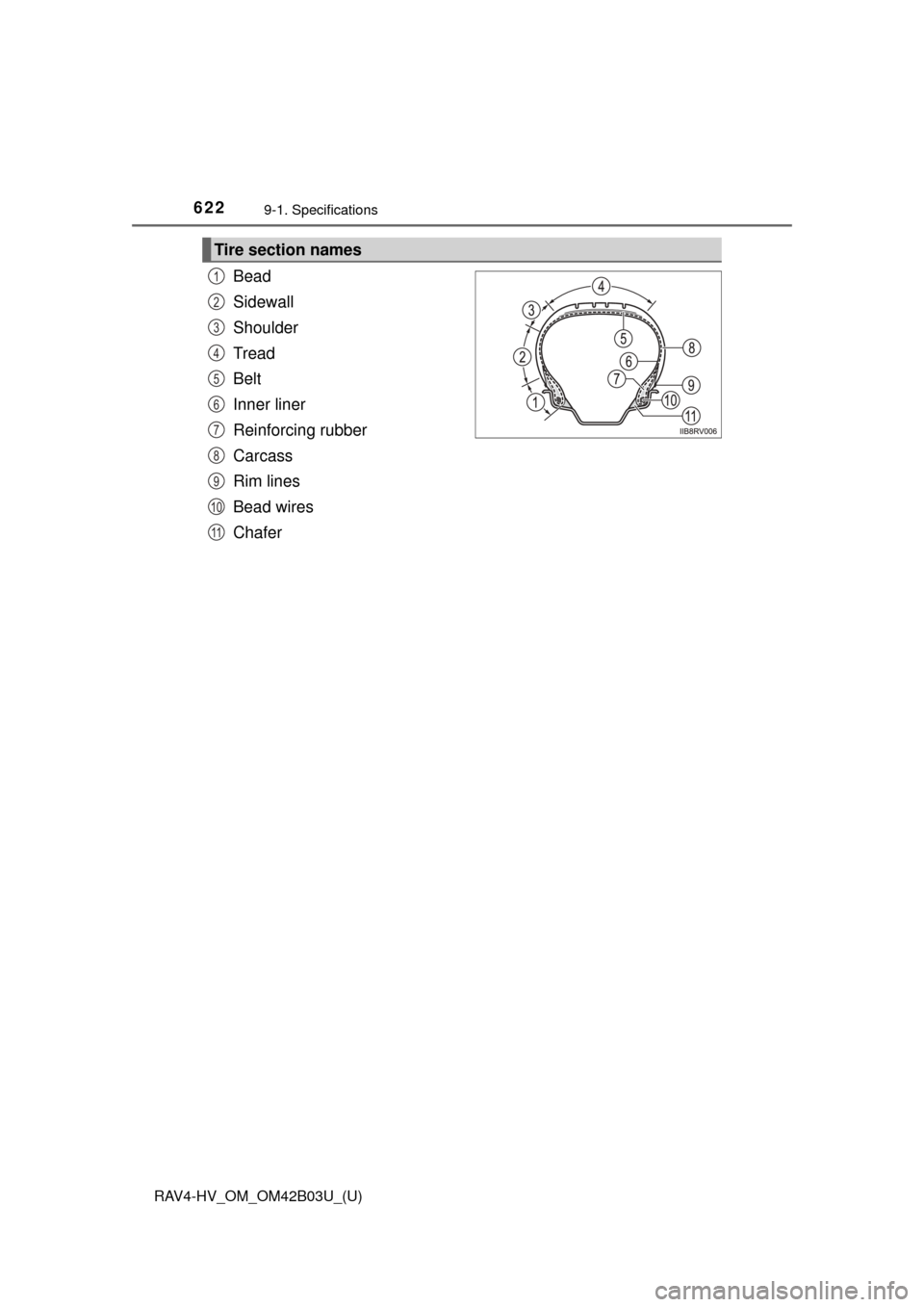

Tire section names
1
2
3
4
5
6
7
8
9
10
11

Page 623 of 676

TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual RAV4-HV_OM_OM42B03U_(U)
6239-1. Specifications
9
Vehicle specifications
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration o

Page 624 of 676

TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual 624
RAV4-HV_OM_OM42B03U_(U)
9-1. Specifications
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its abil

Page 625 of 676

TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual RAV4-HV_OM_OM42B03U_(U)
6259-1. Specifications
9
Vehicle specifications

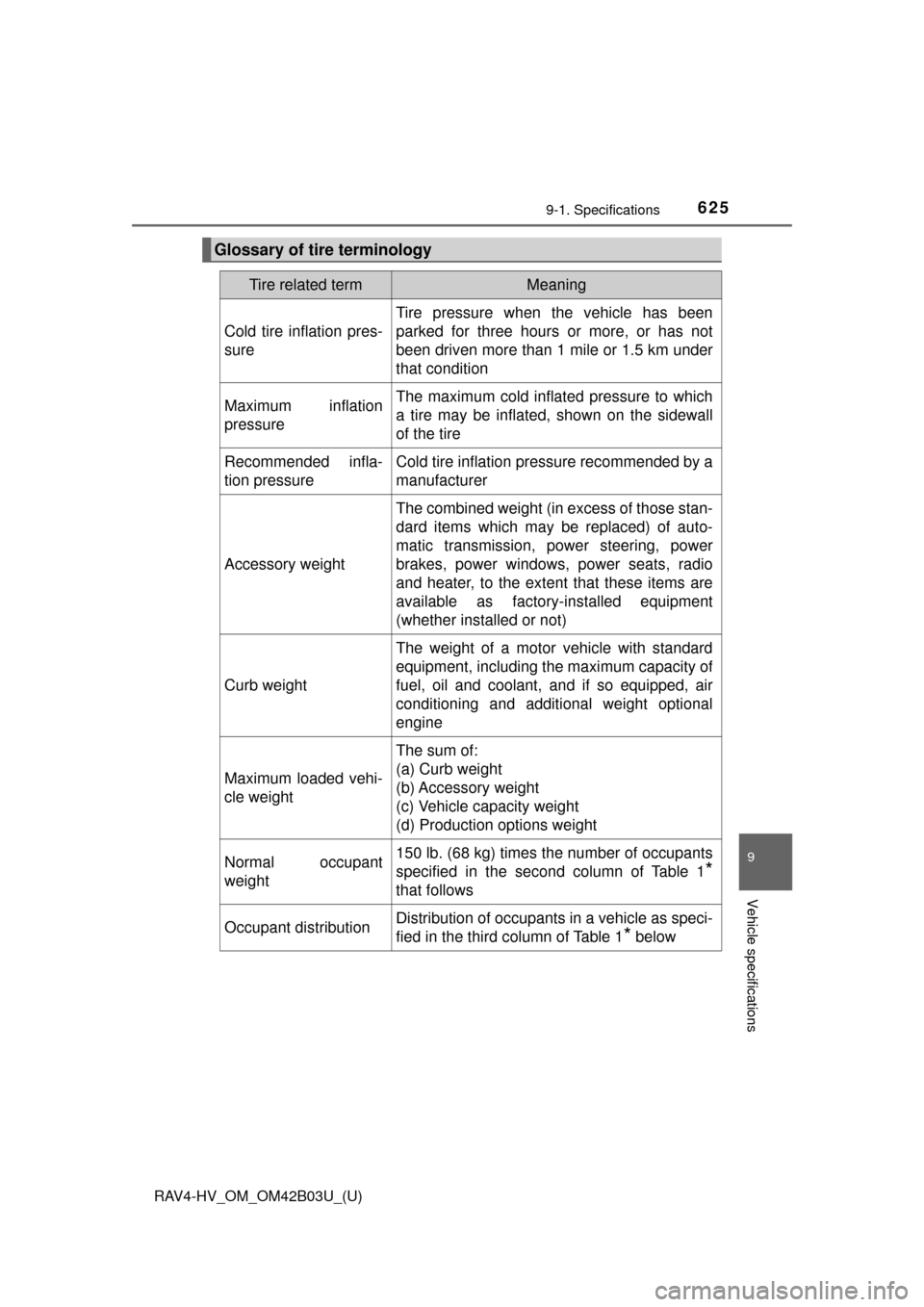

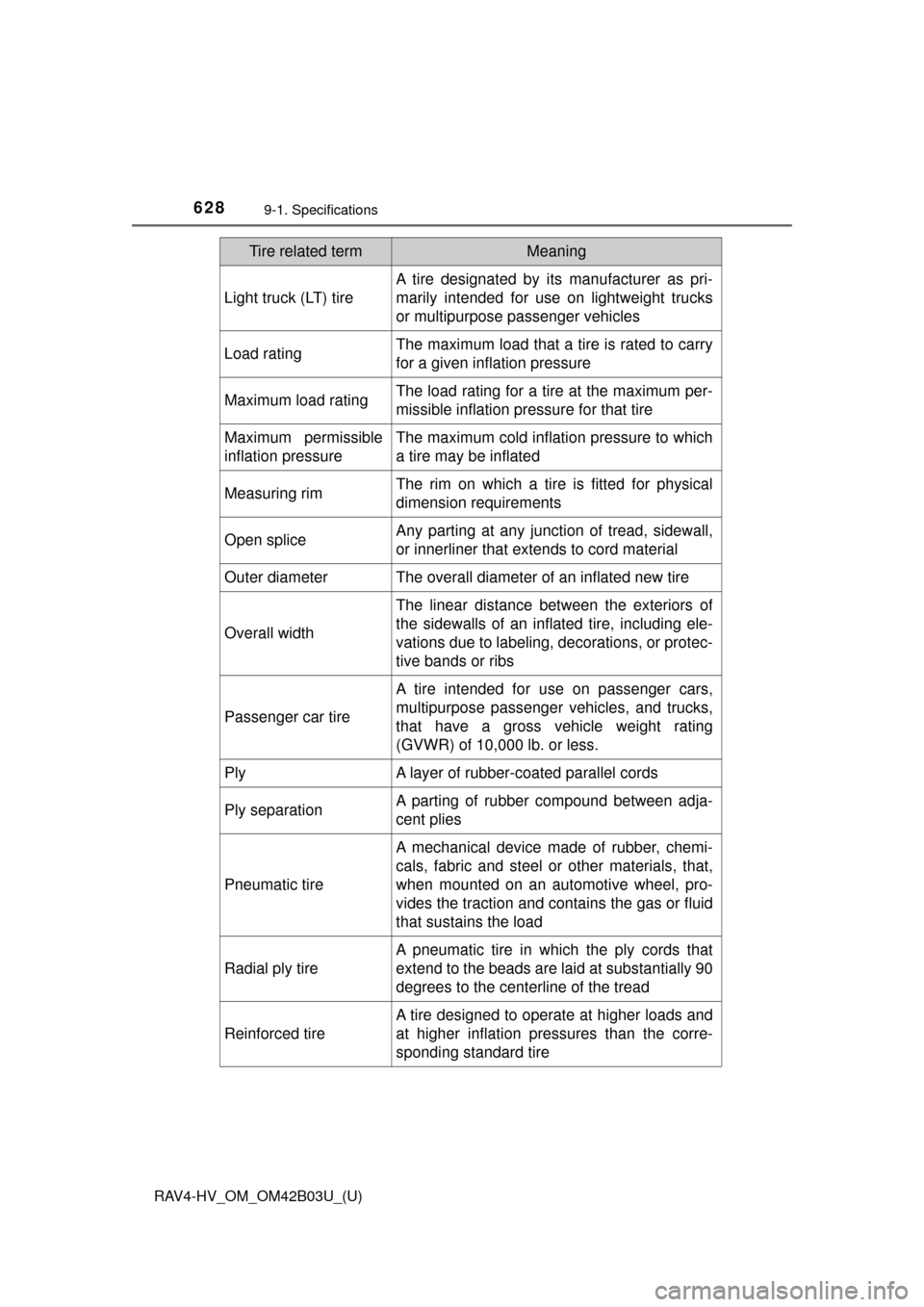

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
par

Page 626 of 676

TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual 626
RAV4-HV_OM_OM42B03U_(U)
9-1. Specifications
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items whi

Page 627 of 676

TOYOTA RAV4 HYBRID 2017 XA40 / 4.G Owners Manual RAV4-HV_OM_OM42B03U_(U)
6279-1. Specifications
9
Vehicle specifications

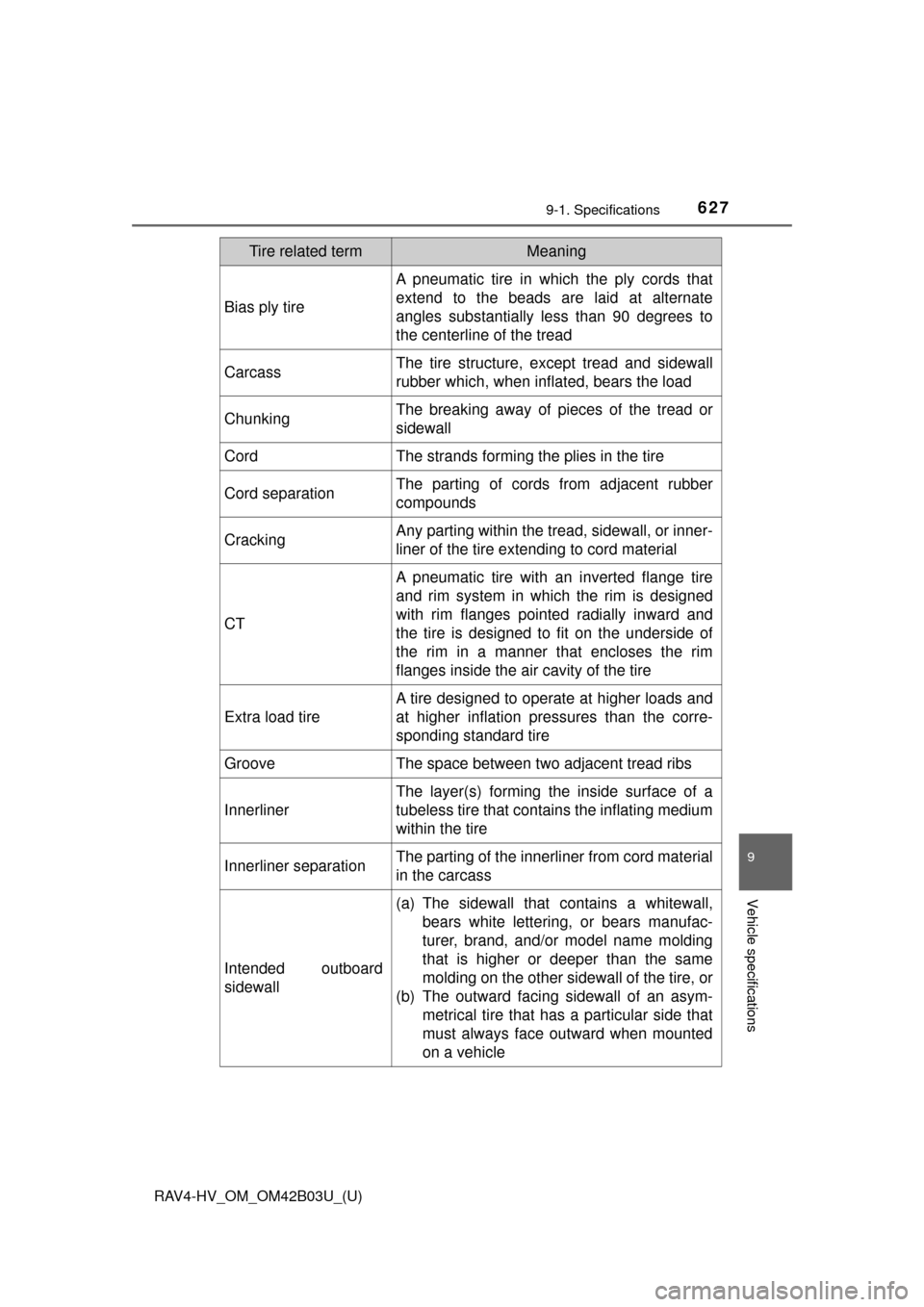

Bias ply tire
